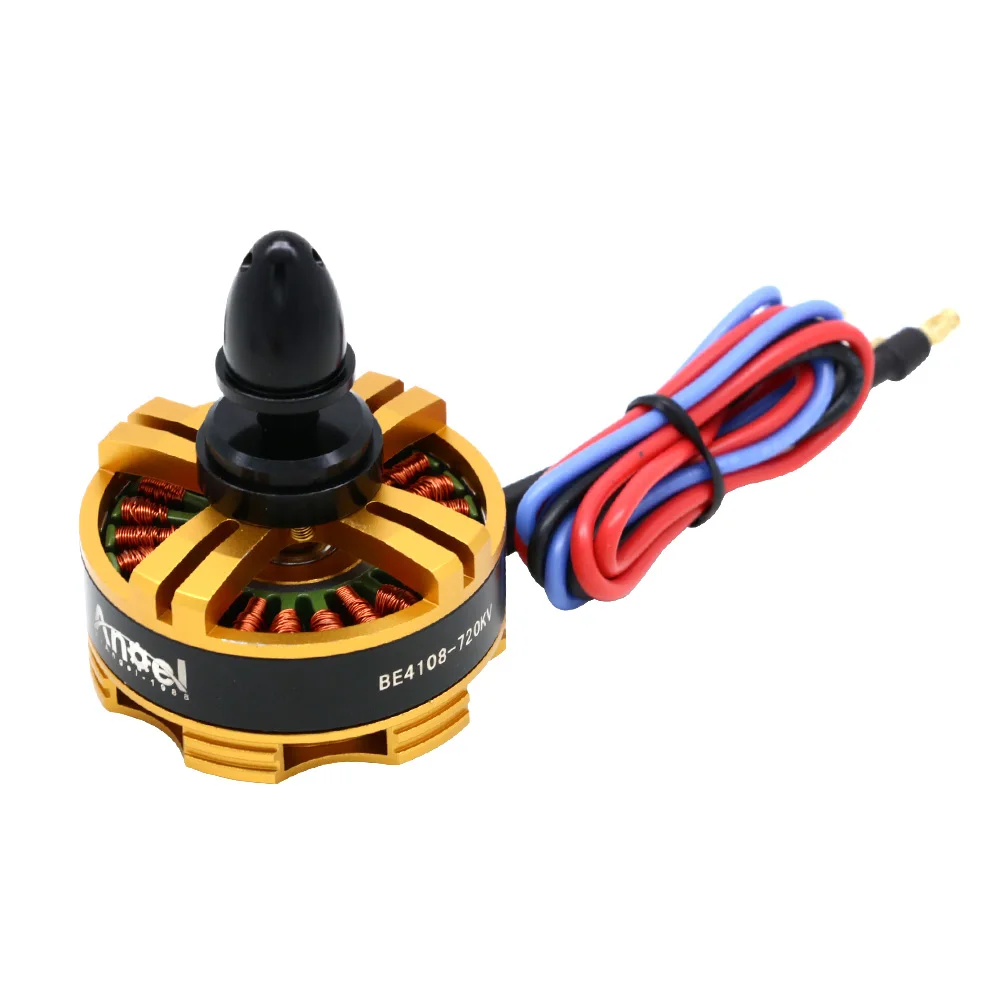

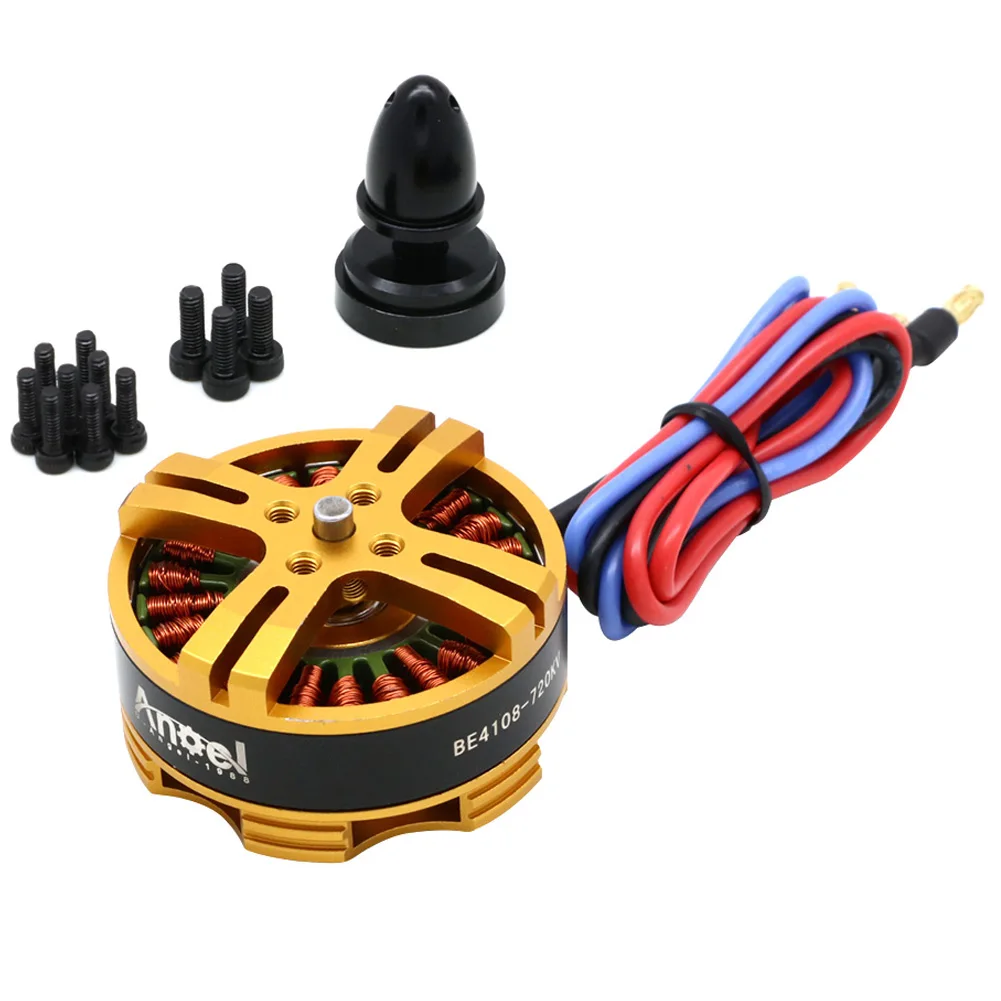

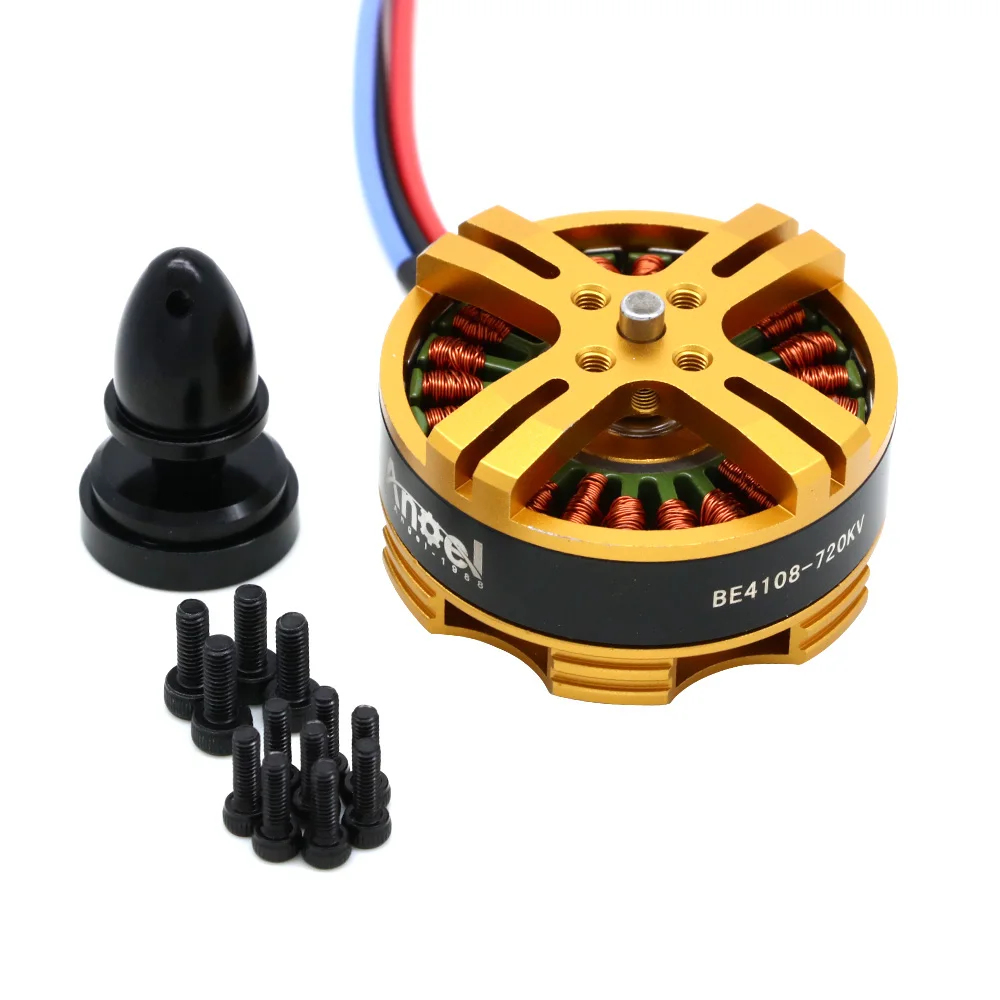

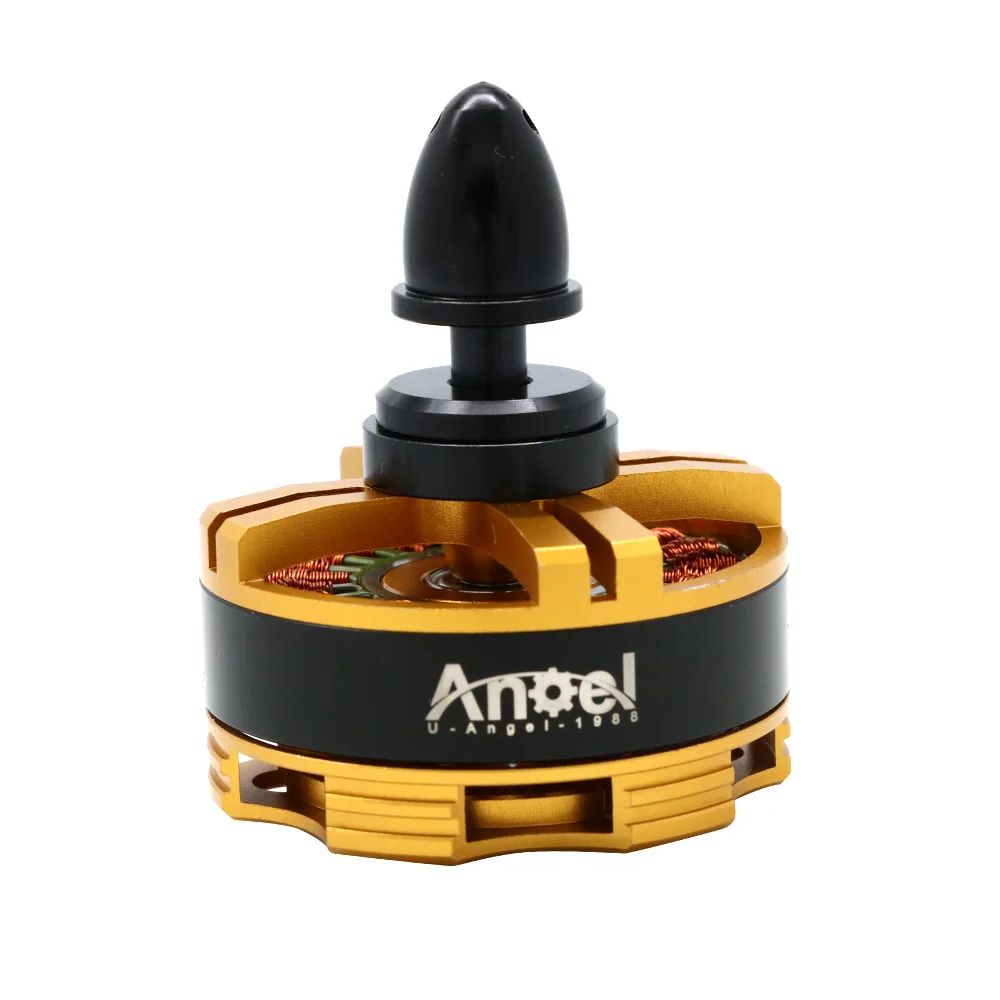

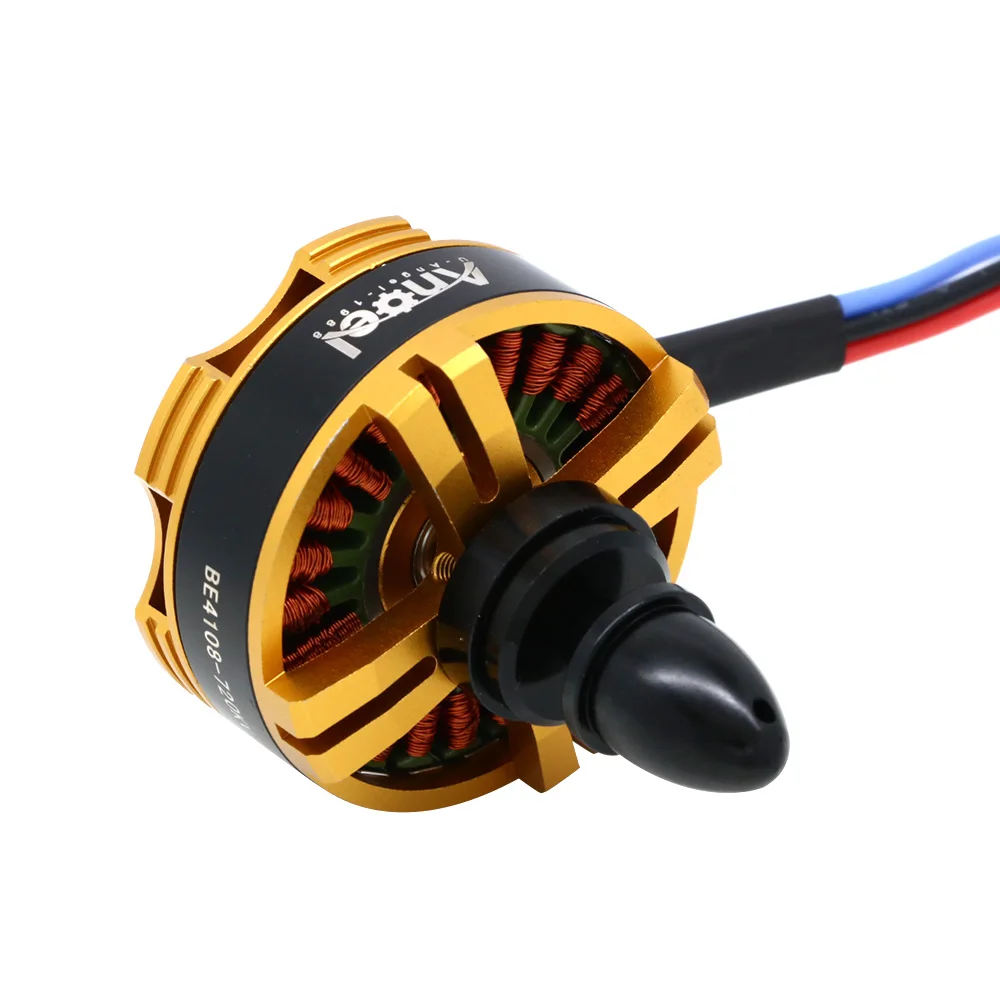

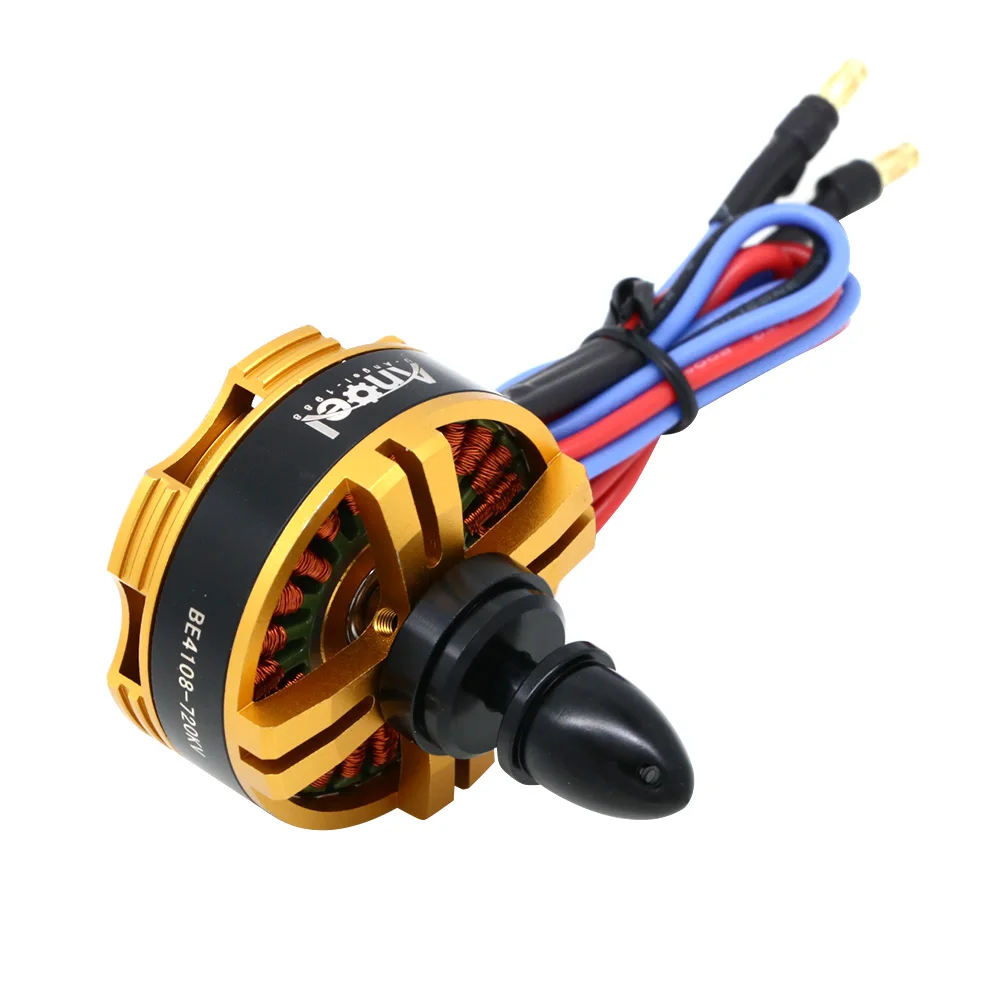

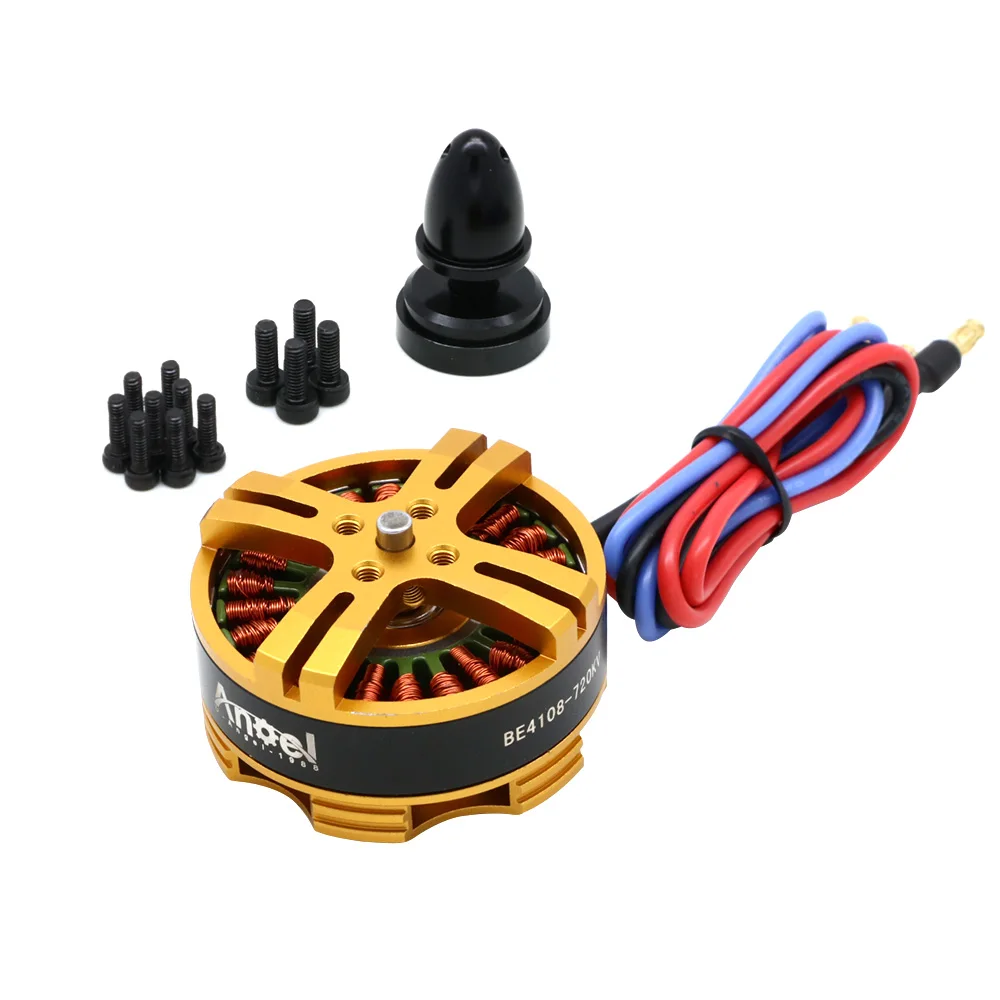

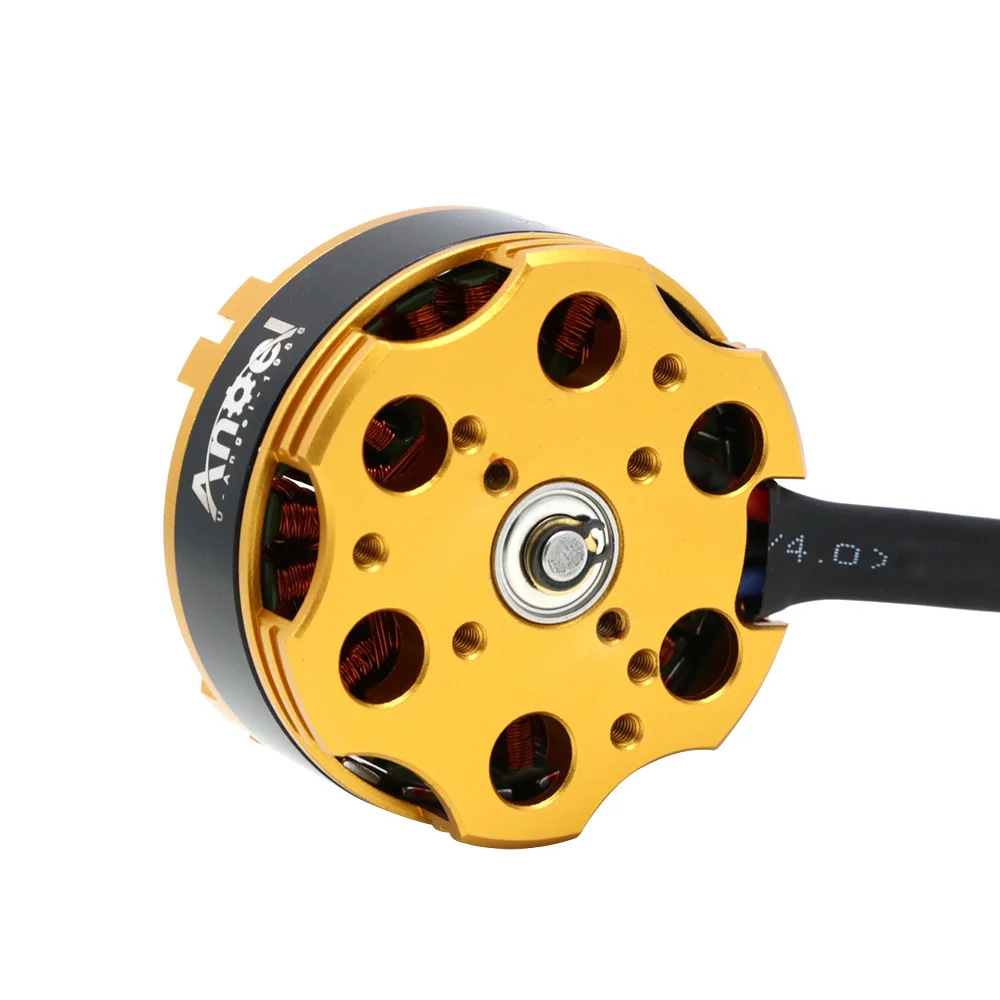

RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 2
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 3
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 4
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 5
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 6
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 7
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 8
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 9
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 10
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 11
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 12
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 13
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 14
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 15
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 16
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 17
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 18
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 19
RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor - Image 20

RC BE4108 380KV 580KV 720KV Brushless Motor For RC Multi Axis Drone External Rotating Brushless High Speed Motor

Price range: $96.80 through $97.96

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: d6l5fermiq7000decdf0 Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: DYS BE4108 720KV

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: DYS240

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Size: DYS BE4108 380KV

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: DYS BE4108 580KV

Use: Vehicles & Remote Control Toys

Wheelbase: Screws


BE4108 Brushless Motor For Drone Accessory 380KV 580KV 480KV 720KV RC Multi Axis External Rotating Brushless High Speed Motor

Item name:BE4108

KV:720KV/580KV/380KV

Pull: 2200g/2000g/2450g/2080g

Motor size: Φ46×25

Battery: 3-6s Lipo

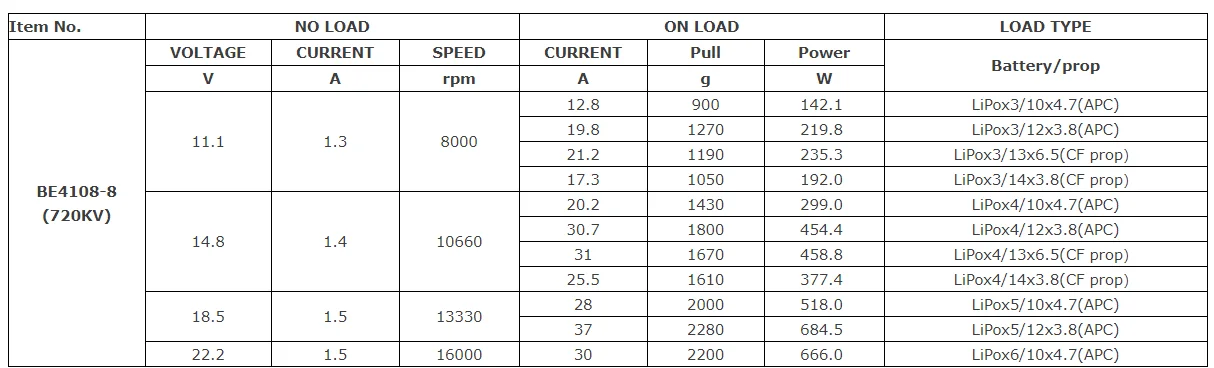

Specifications:
KV…………………………………………………..720
Configu ration…………………………………….NP
Stator Diameter………………………………….41mm
Stator Length…………………………………8mm
Shaft Diameter………………………………..4.0mm

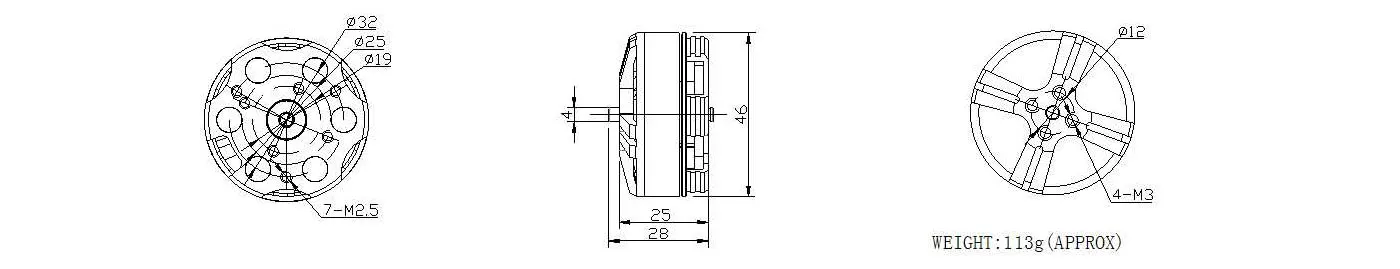

Motor Dimensions(Dia.*Len)…………………Φ46x25mm
Weight (g)………………………………………..113g
No.of Cells(Lipo)…………………………3-6S
Max Continuous current(A)……………30A
Max Continuous Power(W)……………….666W
internal resistance…………………………0.055Ω

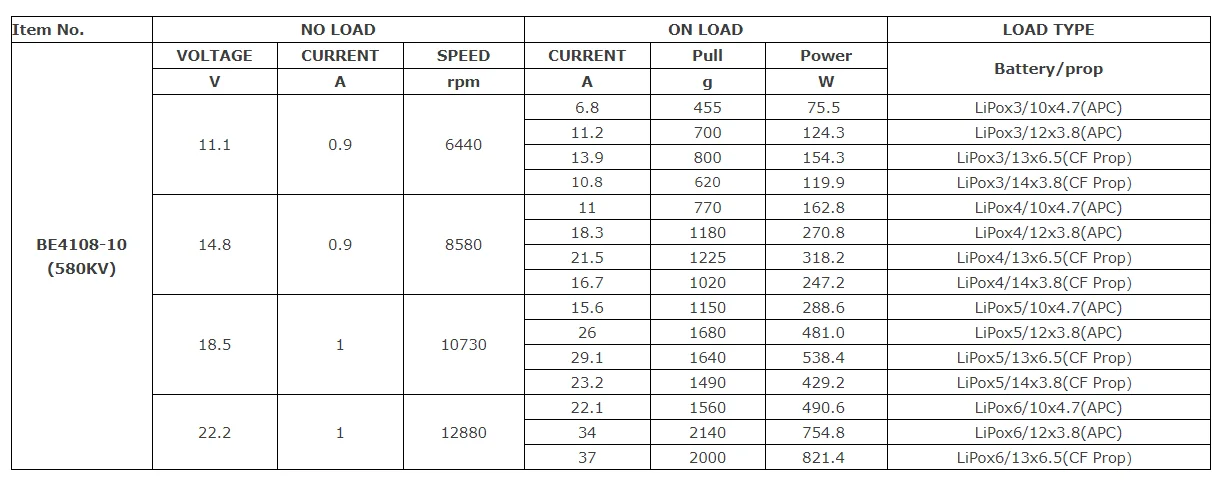

Specifications:
KV………………………………………………………………………………………………..580
Configu ration…………………………………………………………………………NP
Stator Diameter…………………………………………………………………………41mm
Stator Length………………………………………………………………………………8mm
Shaft Diameter……………………………………………………………………………4.0mm
Motor Dimensions(Dia.*Len)………………………………………..Φ46x25mm
Weight (g)………………………………………………………………………………………113g
No.of Cells(Lipo)………………………………………………………………………….3-6S
Max Continuous current(A)……………………………………………………37A
Max Continuous Power(W)…………………………………………………..821W
internal resistance……………………………………………………………………0.098Ω

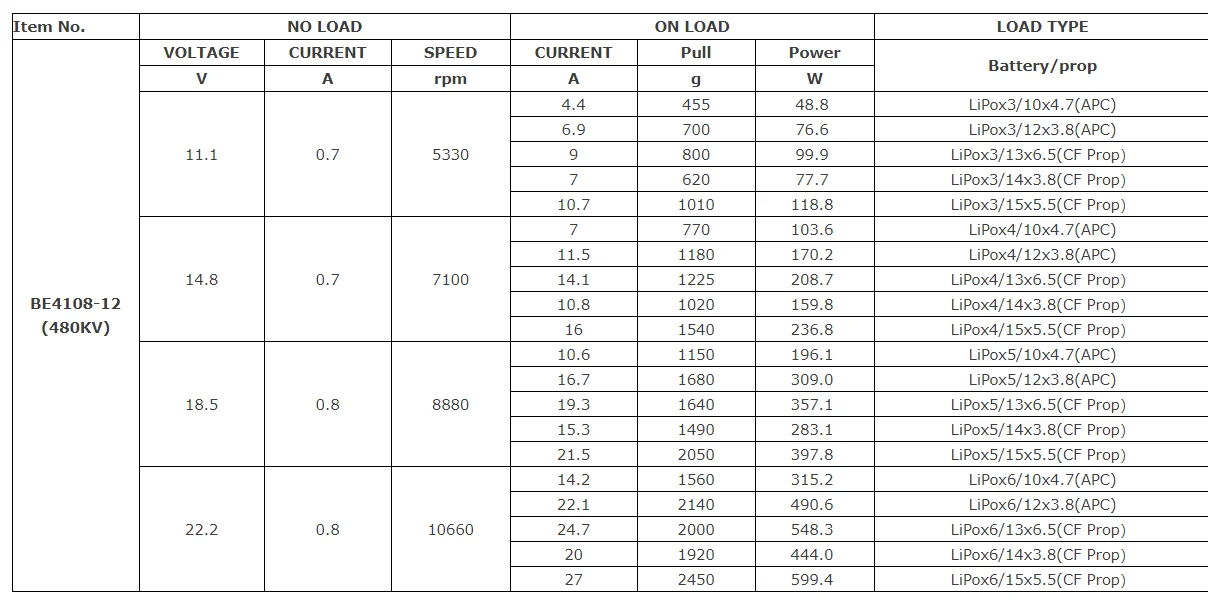

Specifications:
KV………………………………………………………………………………………………..480
Configu ration…………………………………………………………………………NP
Stator Diameter…………………………………………………………………………41mm
Stator Length………………………………………………………………………………8mm
Shaft Diameter……………………………………………………………………………4.0mm
Motor Dimensions(Dia.*Len)………………………………………..Φ46x25mm
Weight (g)………………………………………………………………………………………113g
No.of Cells(Lipo)………………………………………………………………………….3-6S
Max Continuous current(A)……………………………………………………27A
Max Continuous Power(W)…………………………………………………..599W
internal resistance………………………………………………0.125Ω

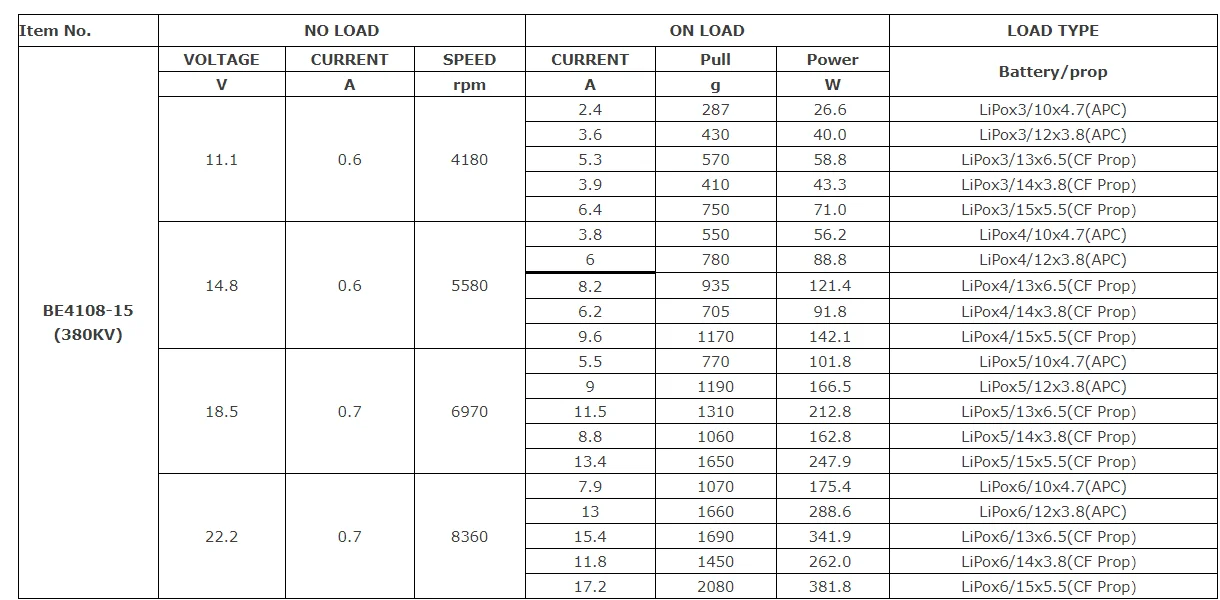

Specifications:
KV………………………………………………………………………………………………..380
Configu ration…………………………………………………………………………NP
Stator Diameter…………………………………………………………………………41mm
Stator Length………………………………………………………………………………8mm
Shaft Diameter……………………………………………………………………………4.0mm
Motor Dimensions(Dia.*Len)………………………………………..Φ46x25mm
Weight (g)………………………………………………………………………………………113g
No.of Cells(Lipo)………………………………………………………………………….3-6S
Max Continuous current(A)……………………………………………………17.2A
Max Continuous Power(W)…………………………………………………..381W
internal resistance……………………………………………………………………0.193Ω

Additional information
ColorBE4108 480KV, BE4108 720KV, BE4108 580KV, BE4108 380KV
