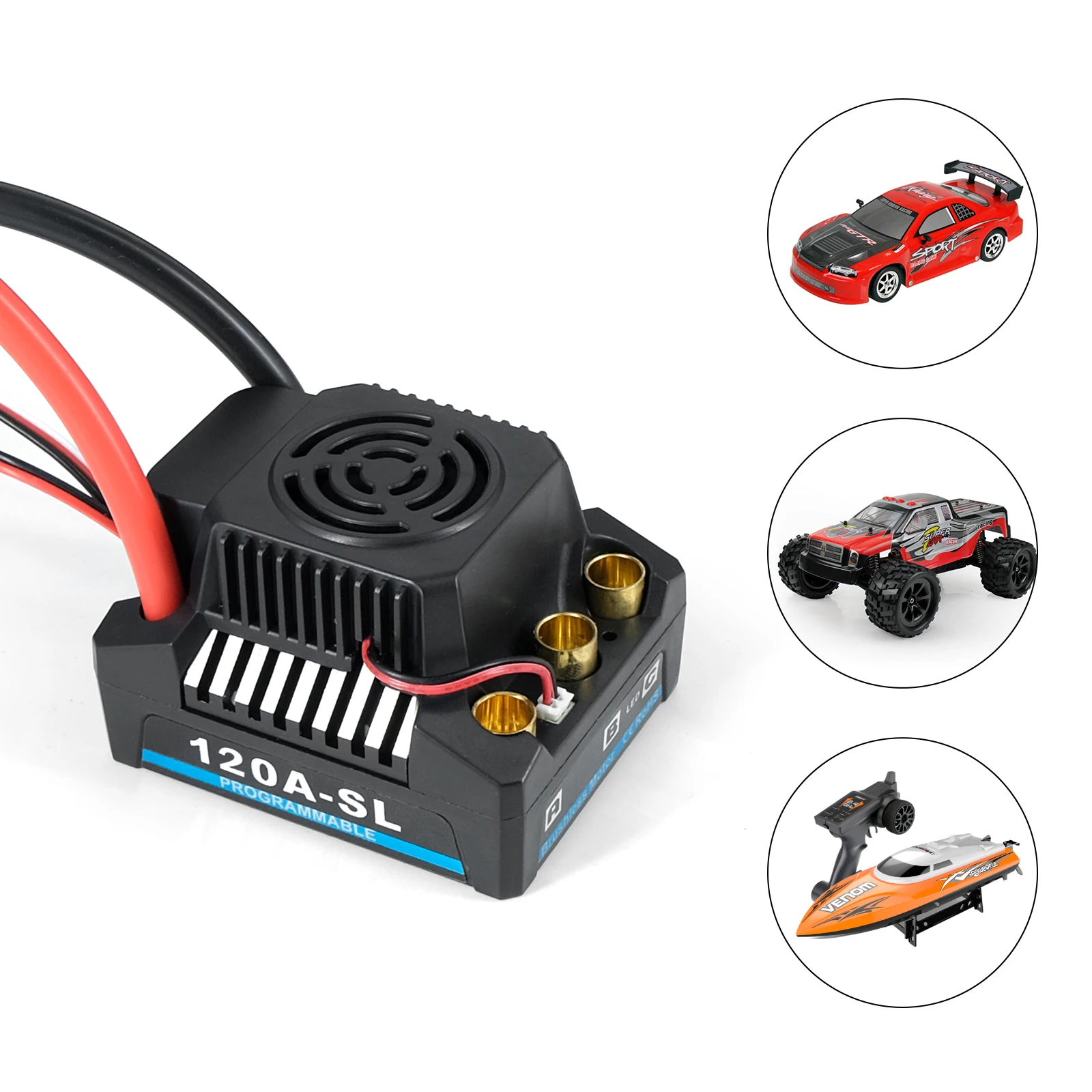

This is Electronic Speed Controller(ESC)for car.Hiah power svstem for RC model is verv dangerous. so please read this

manual carefully. Since we can’t control over the correct use,installation,application,or maintenance of our products, we've no liability shall be assumed nor accepted for any damages,losses or costs resulting from the use of the product.Any claims arising from the operating,failure of malfunctioningetc.will be denied.We assume no liability for personal injury, consequential damages resulting from our product or our workmanship. FEATURES

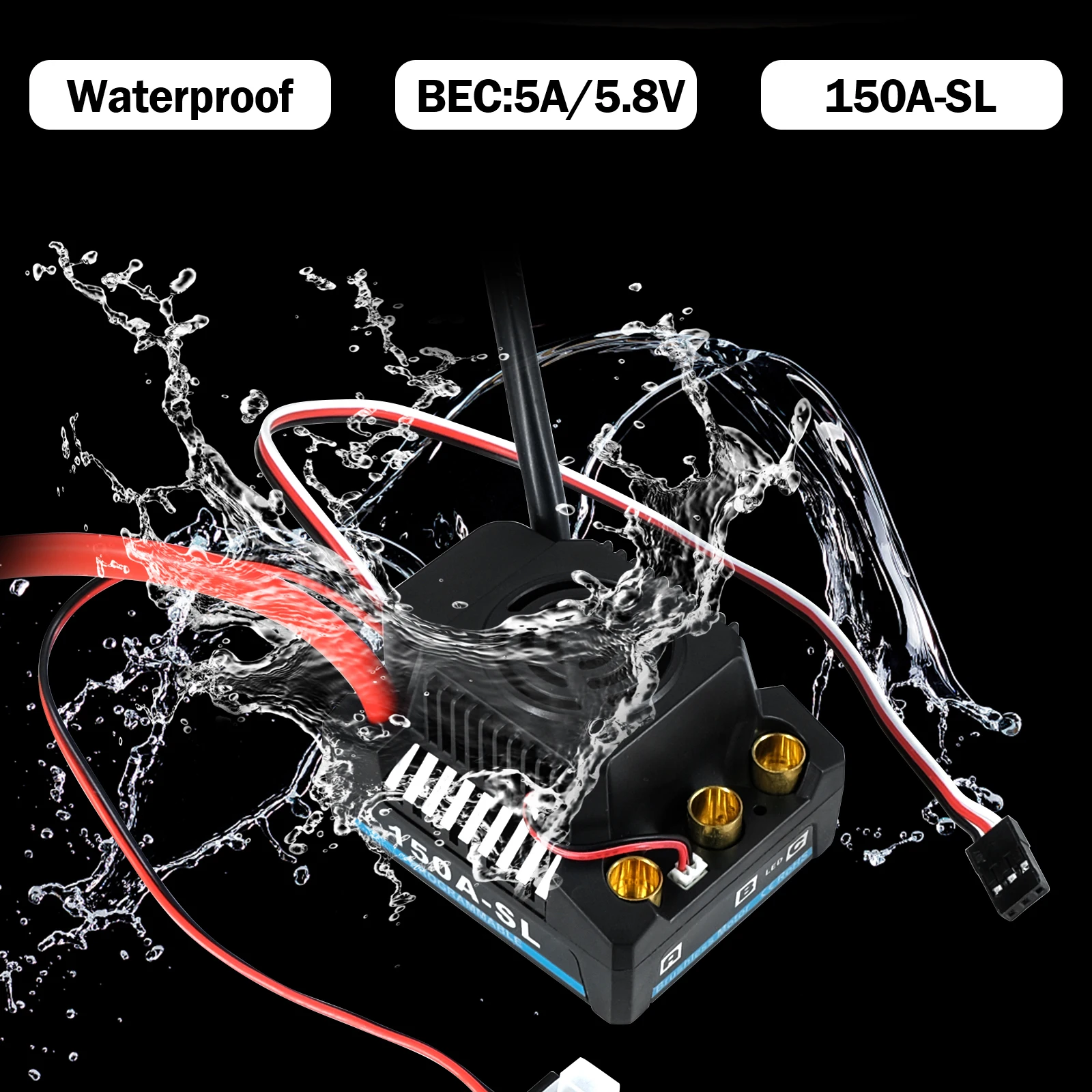

1.Water-proof and dust-proof for all-weather races;(Note:please uninstall the coolina fan before usina this ESC in waters

Clean and dry it soon after the use for avoiding the connectors get rusty.)

2.Specially designed for RC car with excellent start-upacceleration and linearity features.

3.Compatible with sensorless brushless motor.

4.The strong resistant current capability,excellent heat dissipation

5.Multiple protection features:Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle

signalloss protection/Motor blocked protection/

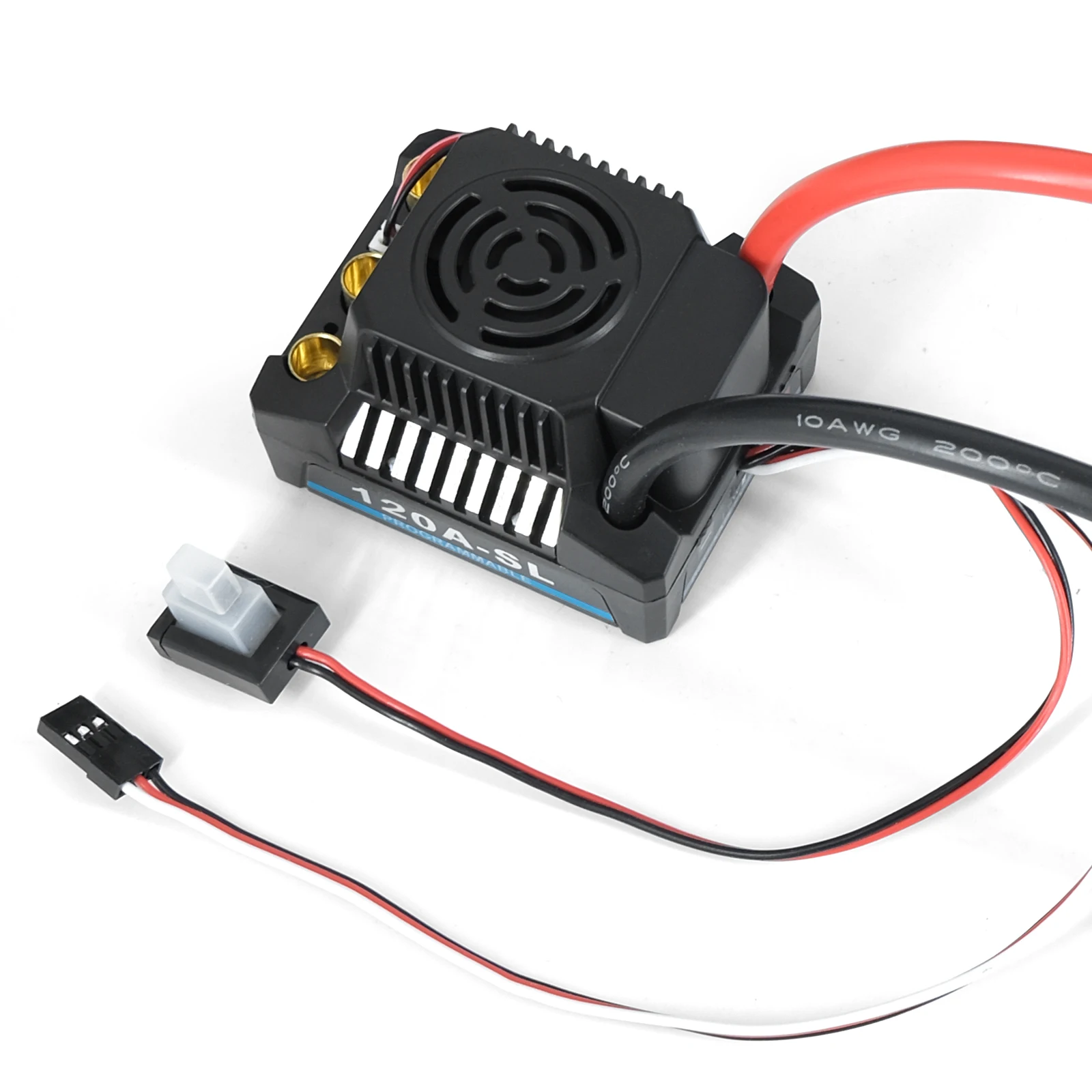

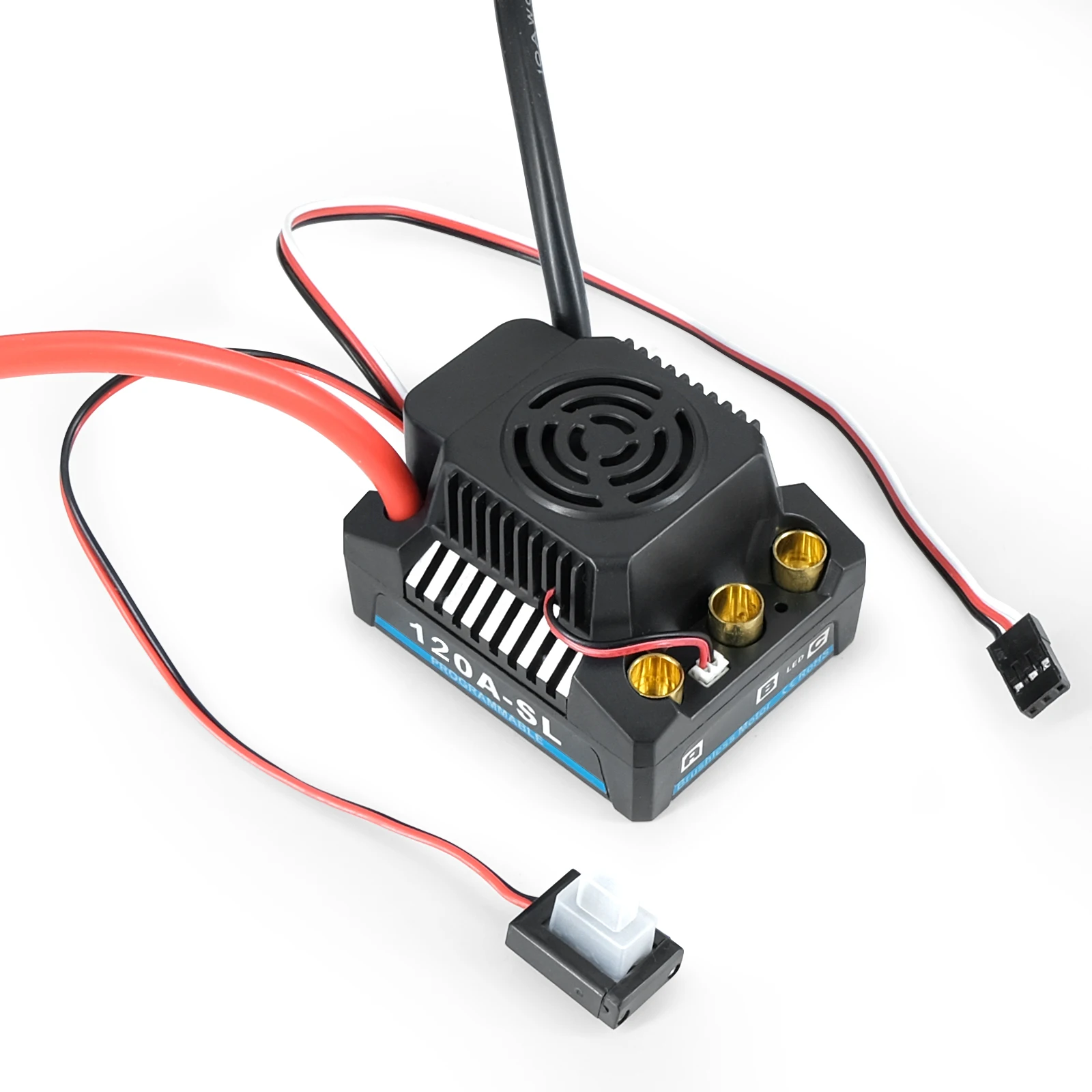

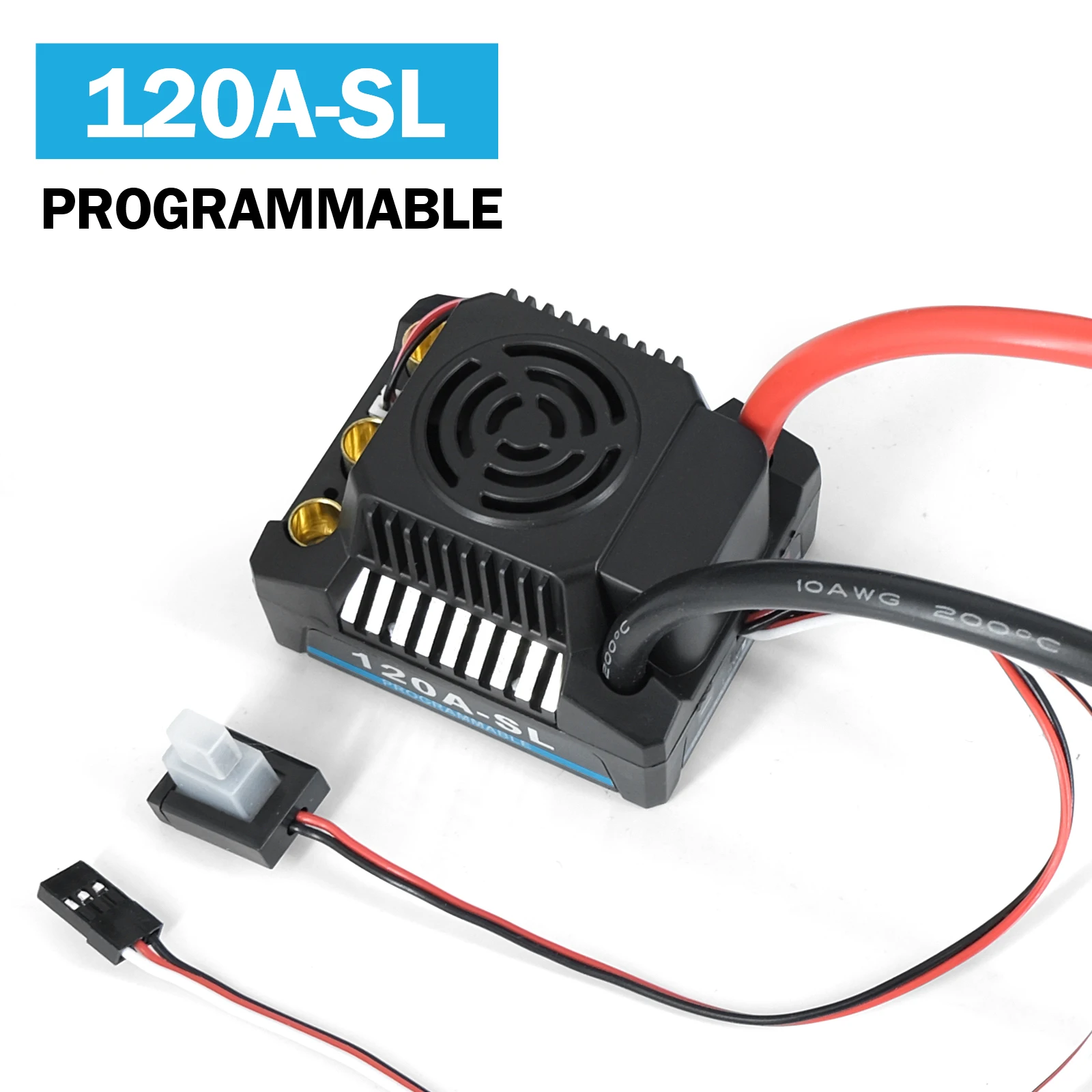

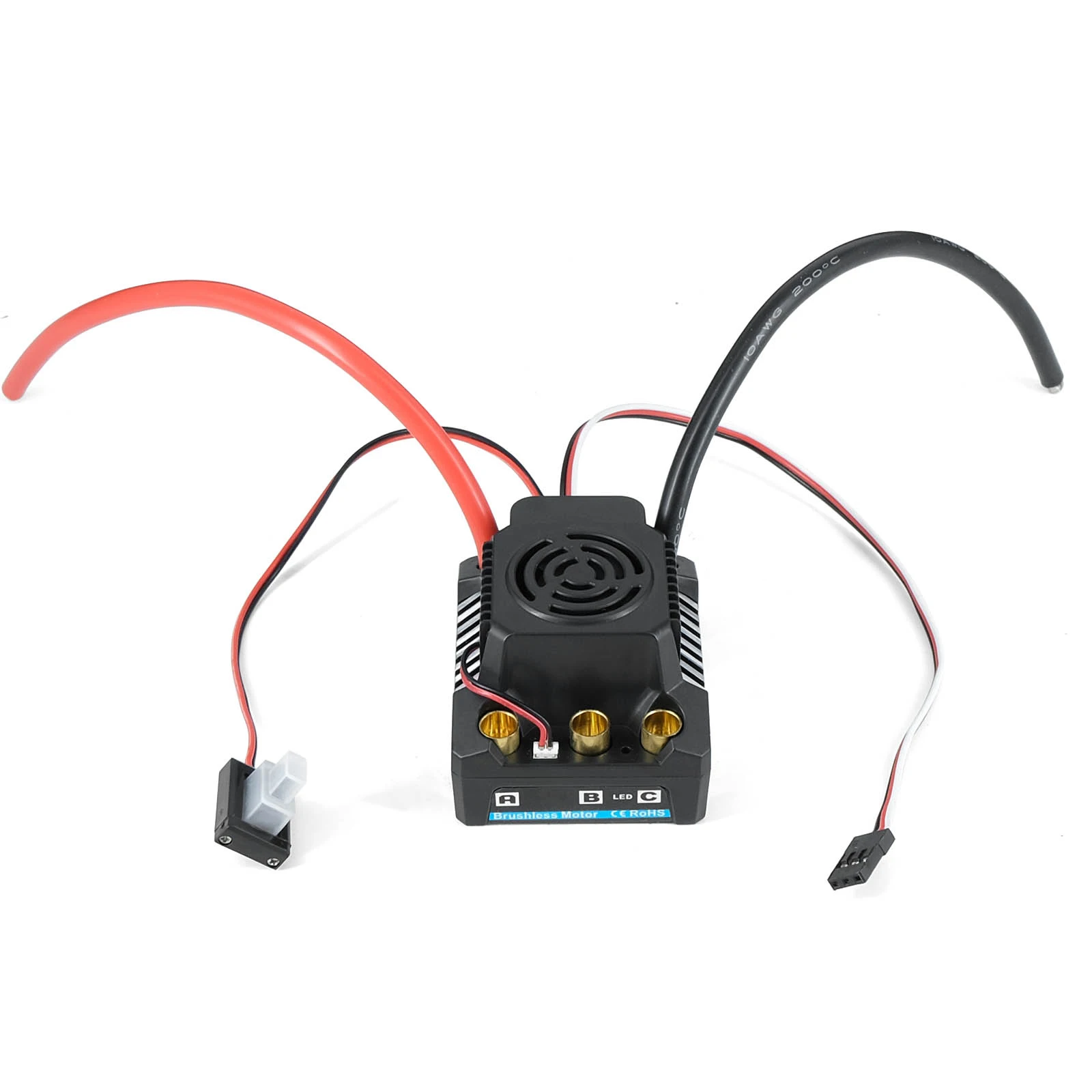

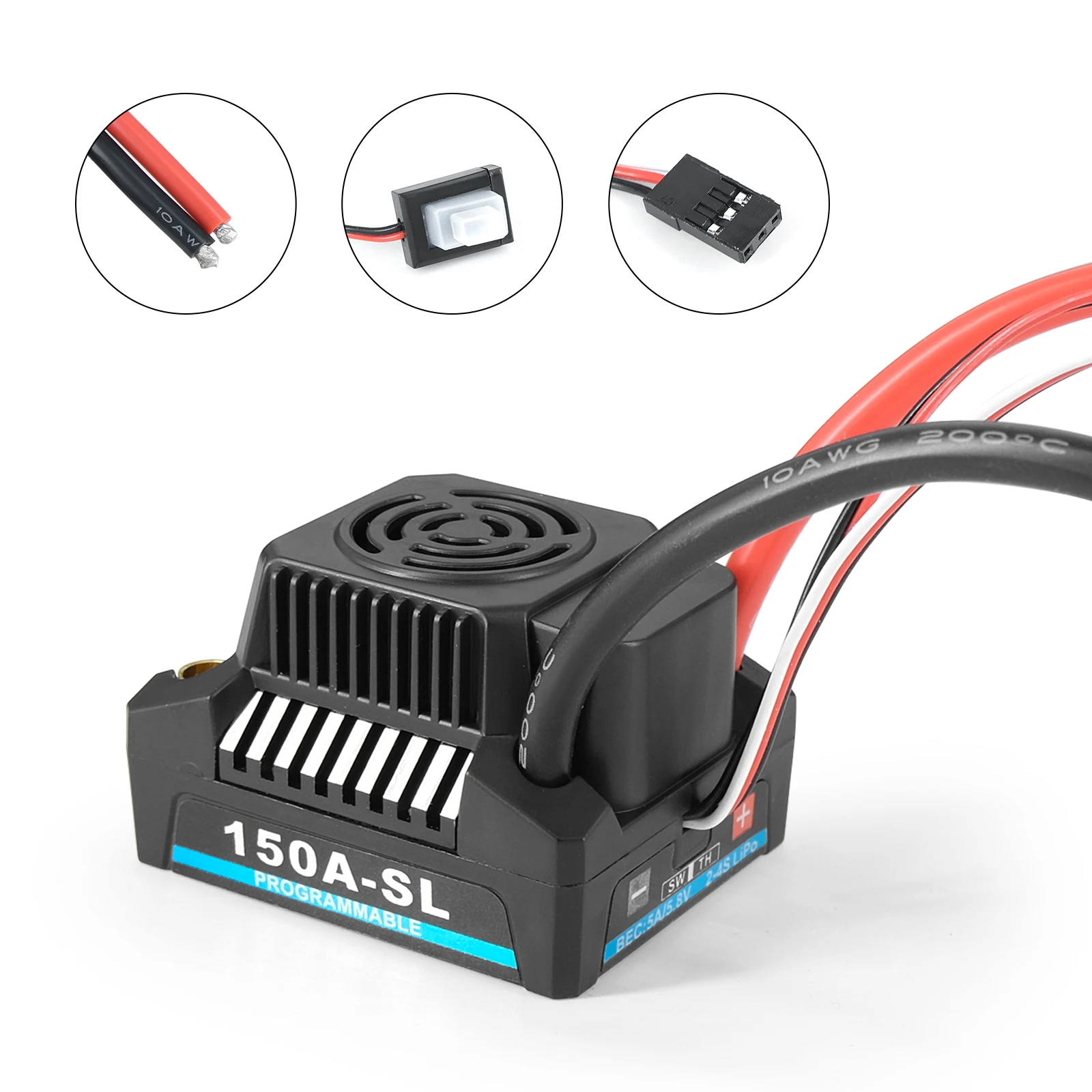

6.Easily programmed and compatible with pocket-sized program card CONNECTIONS

Connet to Battery Connet to motor

Connet to Receiver Switch

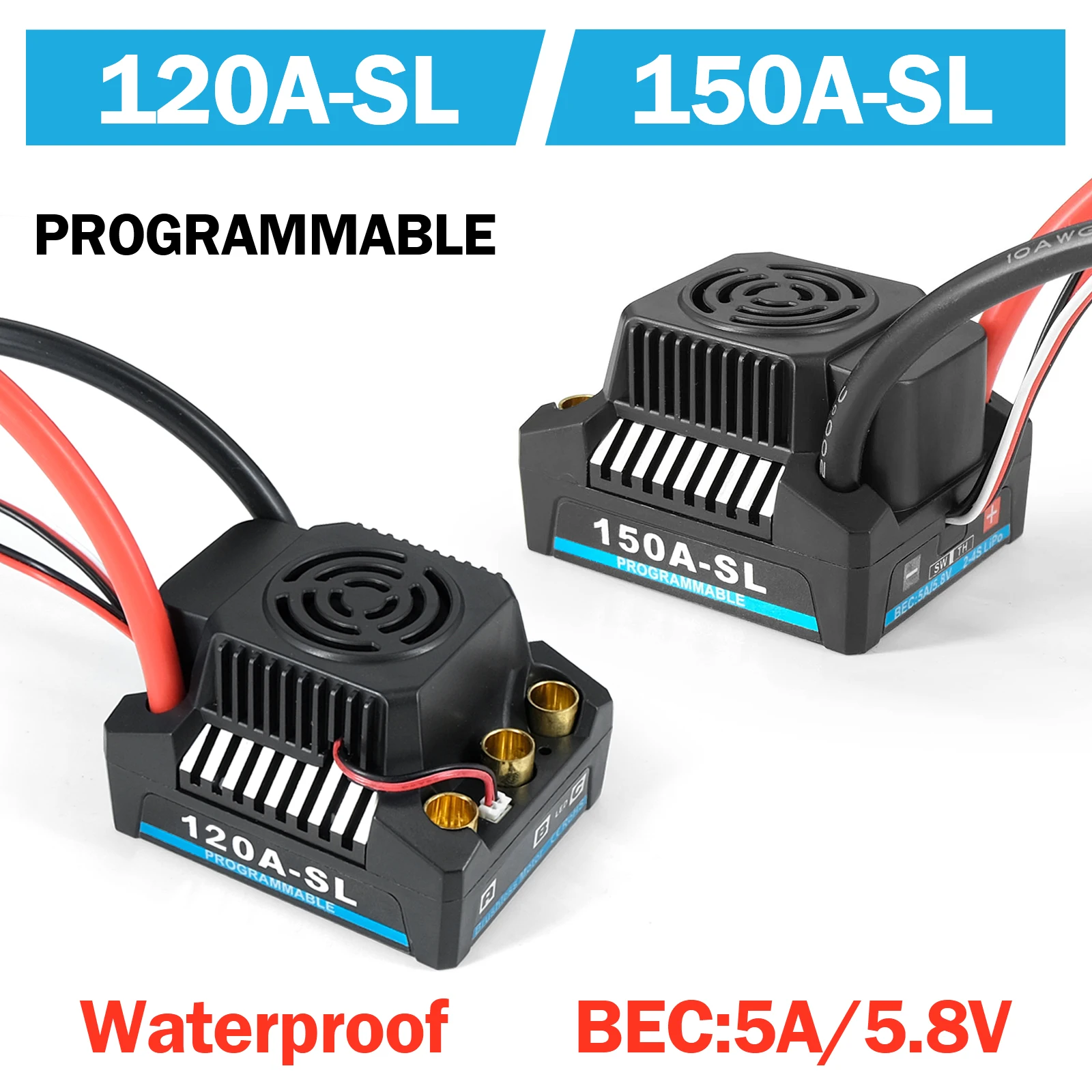

Specifications

Model 120A 150A

Burst Current Cont.Current 120A/600A 150A/720A

Sensorless Brushless Moto Sensorless Brushless Motor

For 4S Lipo or 12 cells NiMH: For 4S Lipo or 12 cells NiMH

1.on-road:40XX-size or smaller motor with the KV<3000 1.on-road:42XX-size or smaller motor withtheKV<3000

Motor Type with the KV<2500

2.Off-road/Buggy/Monster:40XX-size or smaller motor with the KV<2500

2.Off-road/Bugqy/Monster:42XX-size or smaller moto

Suitable Car 1/8 car 1/8car

Resistance 0.00035ohm 0.00030ohm

BEC Output 5.8V-6.1V/3A

Weight:108G

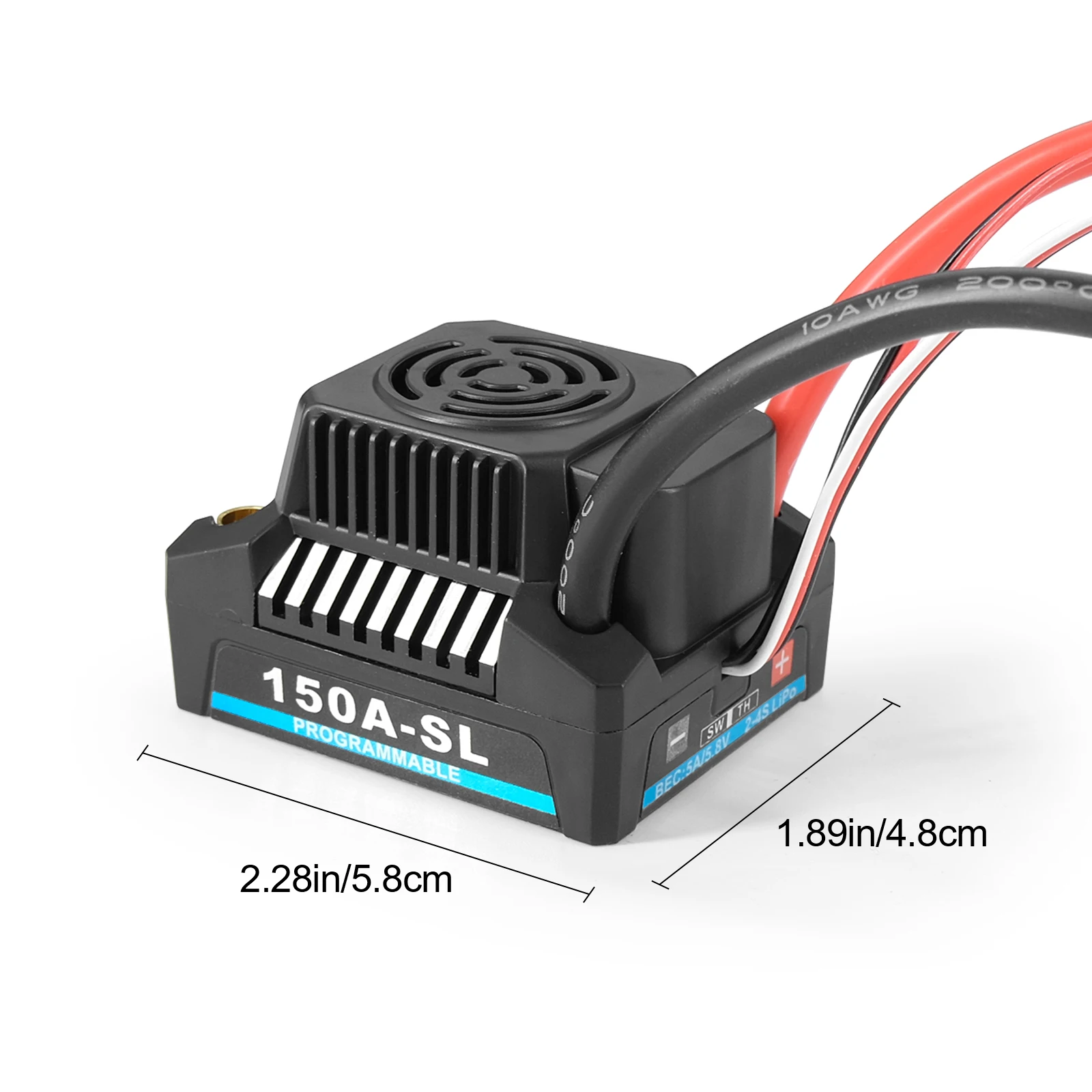

Size:60*50*38MM
