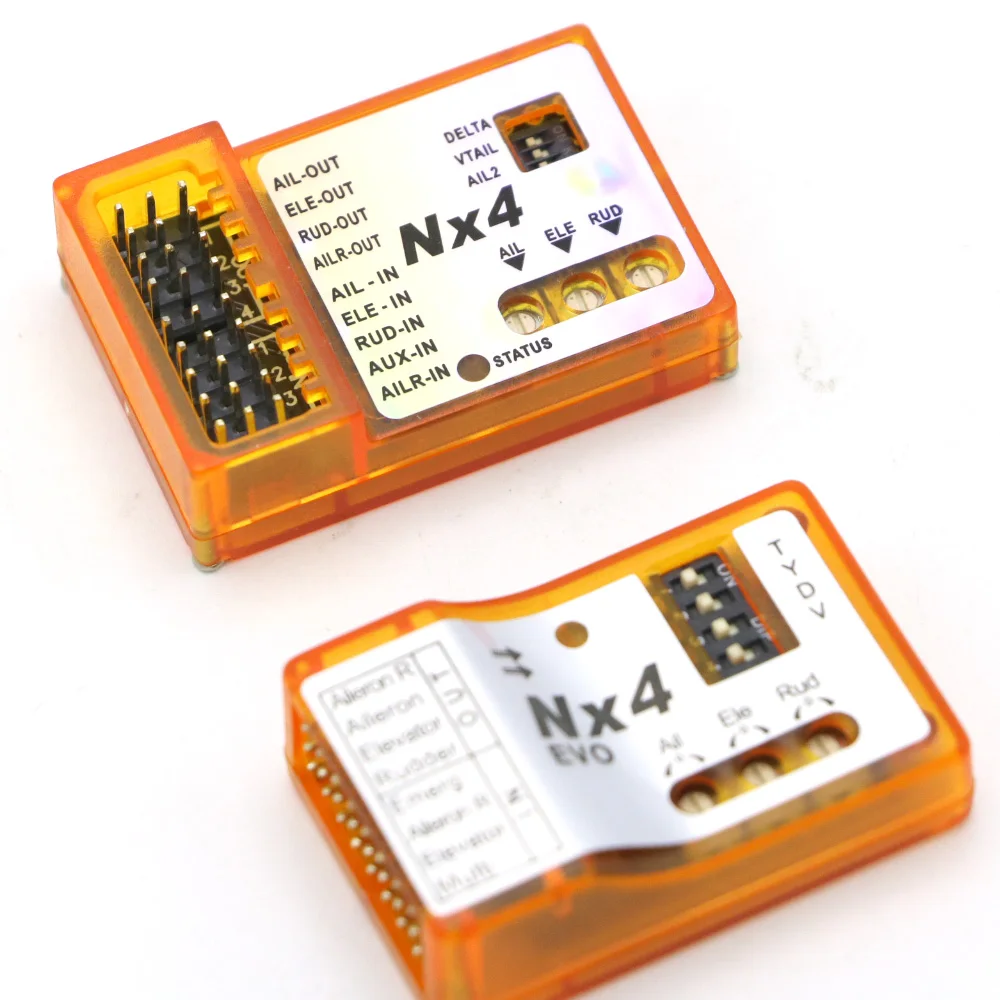

ZMR NX4 PRO EVO Flight Controller 3D Flight Gyroscope Balance For Fixed-wing Aircraft Support Rate/Hold/Gyro Off Mode
Price range: $73.64 through $94.00
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: NX4
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Connectors/Wiring
Recommend Age: 14+y
Remote Control Peripherals/Devices: NX3 Flight Controller
Size: 43 x 28 x 15mm
Technical parameters: value 2
Tool Supplies: NX4 EVO Flight Controller
Upgrade Parts/Accessories: NX4 PRO Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
NX4 EVO Flight Controller:
Voltage scope: DC 4.5 – 6V
Response Frequency: 100Hz
Operating Temperature: 0-50°C
Dimension: 43 x 28 x 15mm
Weight: 11g
Features:
Provides four levels of flight modes: 1- Beginner; 2 – Practice; 3 – Intermediate; 4 – Expert.
Four Model Types Support : singal aileron,dual ailerons,triangle and V-tail.
Two kinds of Gain Control Method supported:Control Gain from the radio,Independent Axis-Gain from the Variable resistor on the Controller board.
Emergency mode guarantee safety flight.
Automatic aileron leveling.
3D AVCS flight,Attitude locking.
Provide Y-wiring for aileron.
NX4 PRO Flight Controller:
Voltage scope: DC 5 – 6V
Dimension: 40mmx25mm
Weight: 6.5g
Features:
Four Model Types Support : singal aileron,dual ailerons,flapperons,deita and V-tail.
Three Flight Modes supported:
a.Rate Mode,Rate Mode for offset correction.
b.Hold Mode,HOLD mode for attitude hold.
c.Gyro-Off Mode,transsmiter control the plane directly.
Two kinds of Gain Control Method supported:Control Gain from the radio,Independent Axis-Gain from the Variable resistor on the Controller board.
Using superior algorithm,Bring a more comfortable and more sensitive sense of control.
Additional information
| Color | NX4 EVO, NX4 PRO |
|---|
