ZMR 2-6S 30A 60A ESC Bidirectional Self Starting Brushless Electric Regulation Speed Controller ESC for DIY Tools
Price range: $31.64 through $79.40
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: HRLH247
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: many size
Technical parameters: value 2
Tool Supplies: Brushless ESC
Upgrade Parts/Accessories: Brushless ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
This is a brushless electric regulator suitable for DIY modification, not an aircraft model electric regulator.
This electric regulator can be widely used for brushless power systems such as water pumps, fans, knife grinders, hand grinders, electric hand drills, etc.

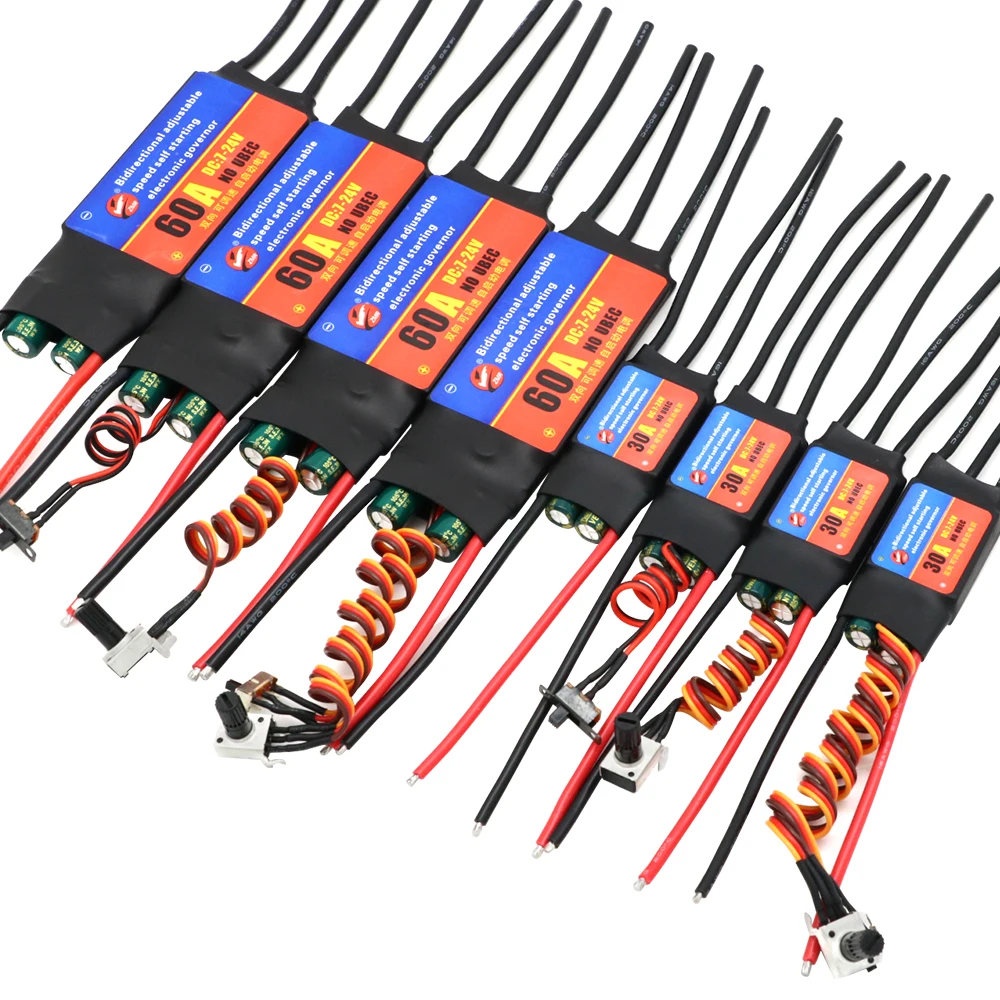

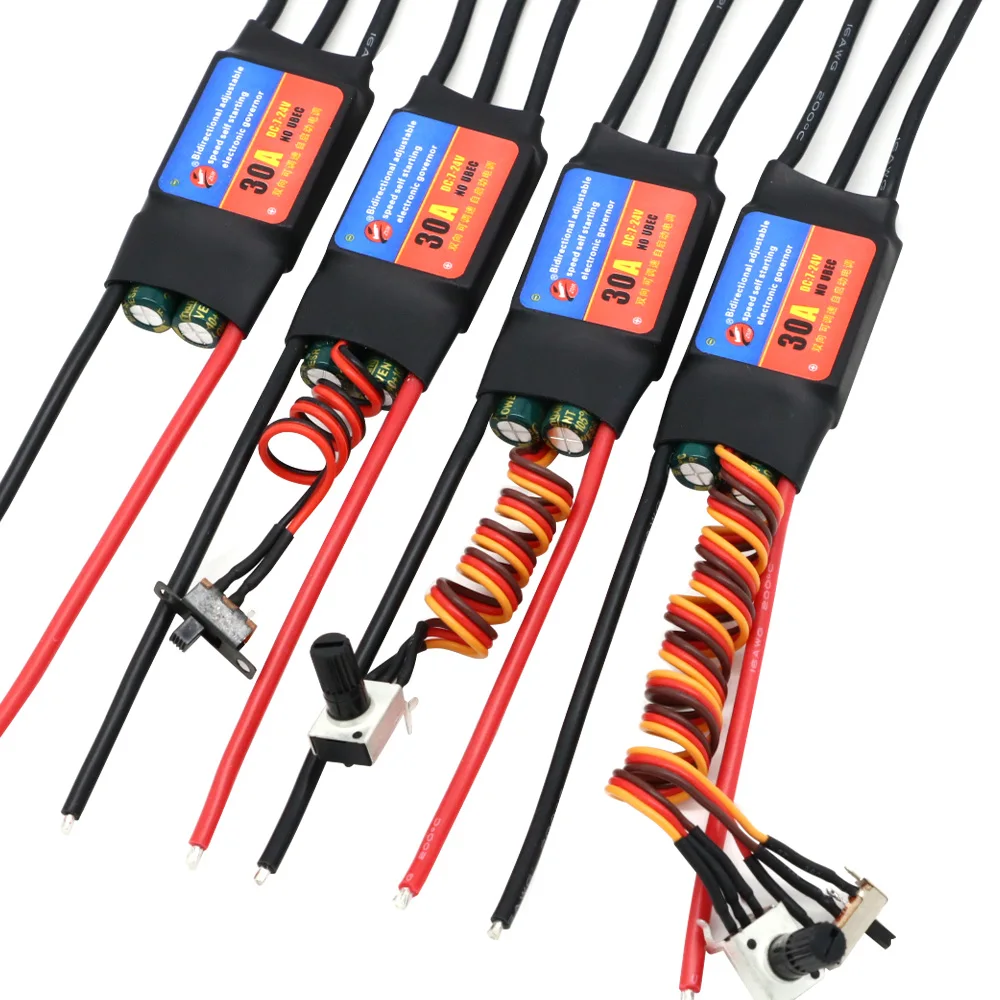

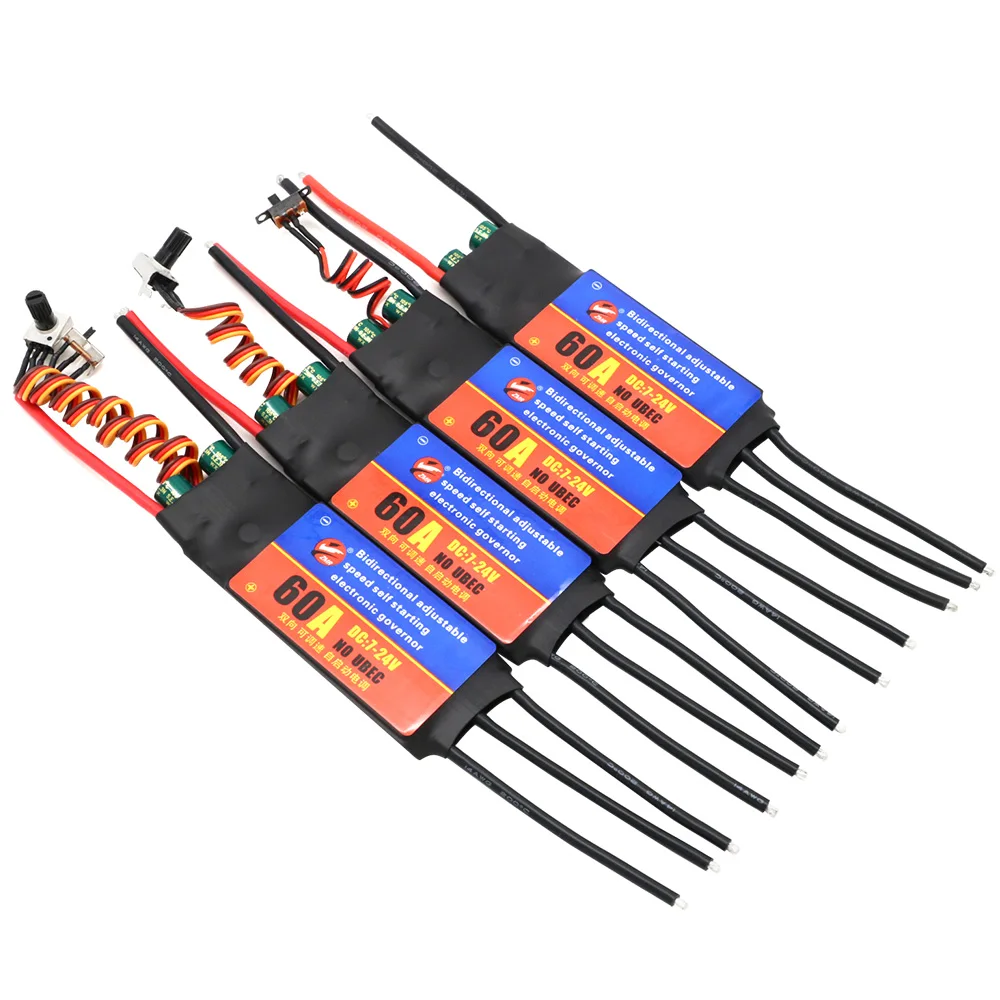

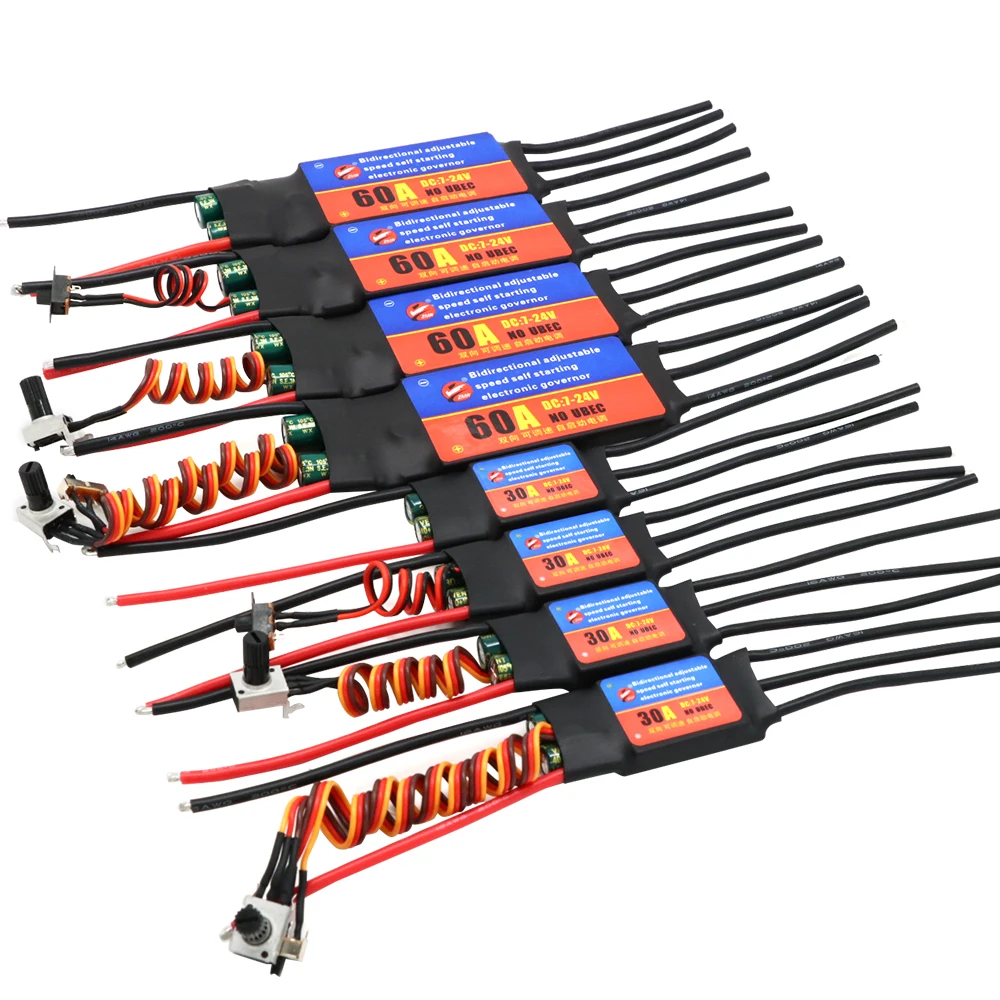

This electric regulator is divided into two series and eight varieties

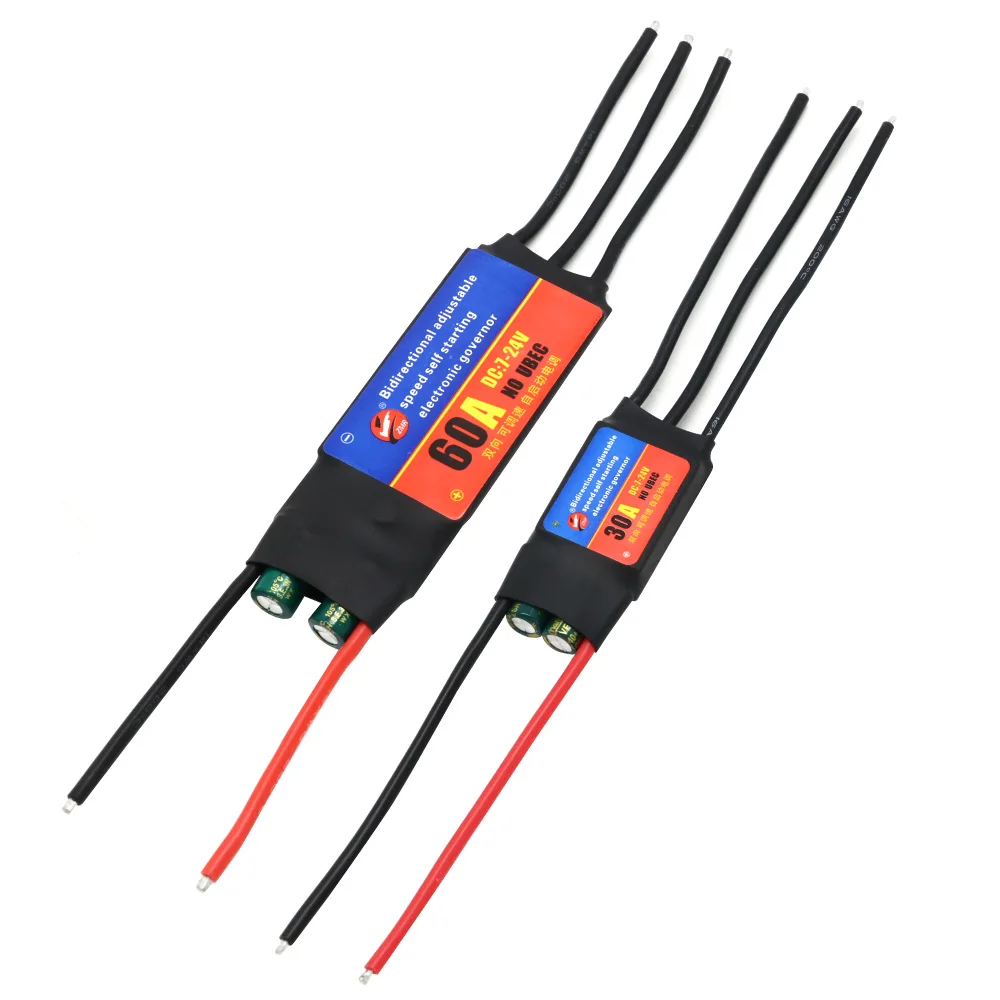

Two series: 30A 60A

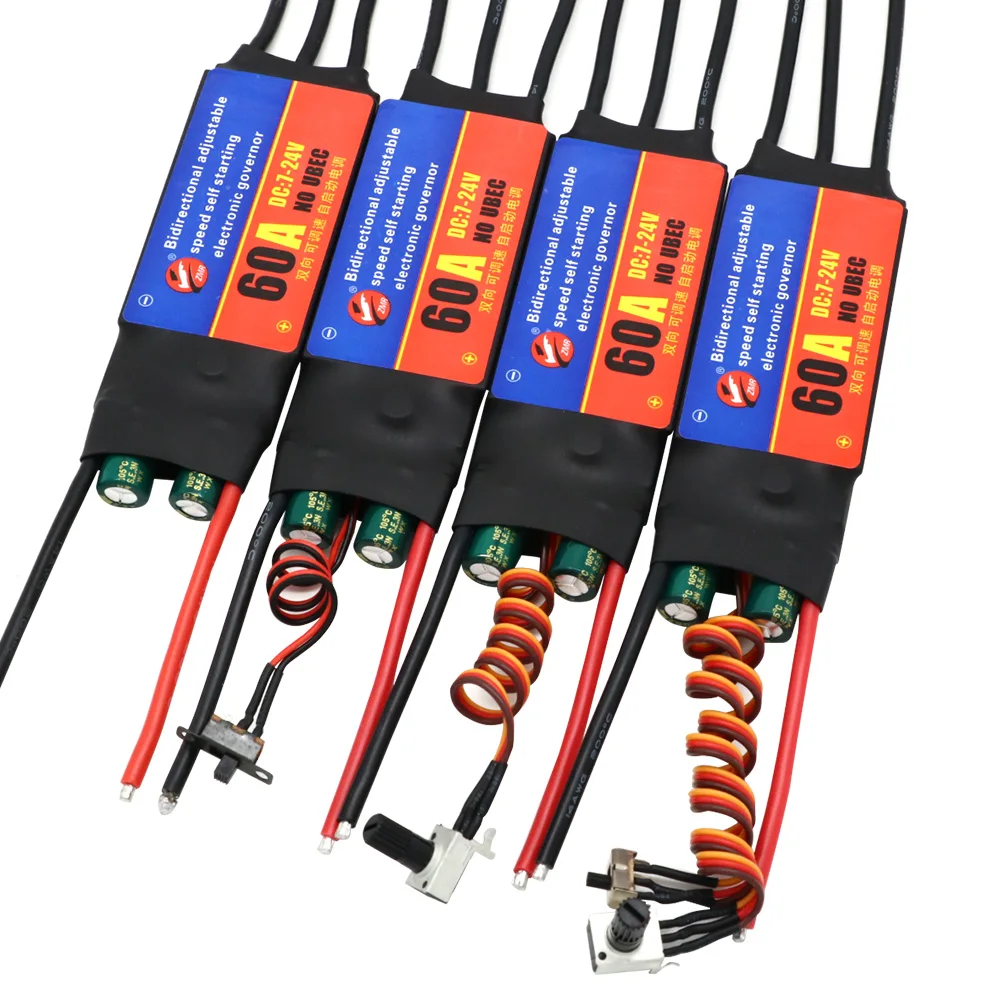

Each model has the following four sub categories:

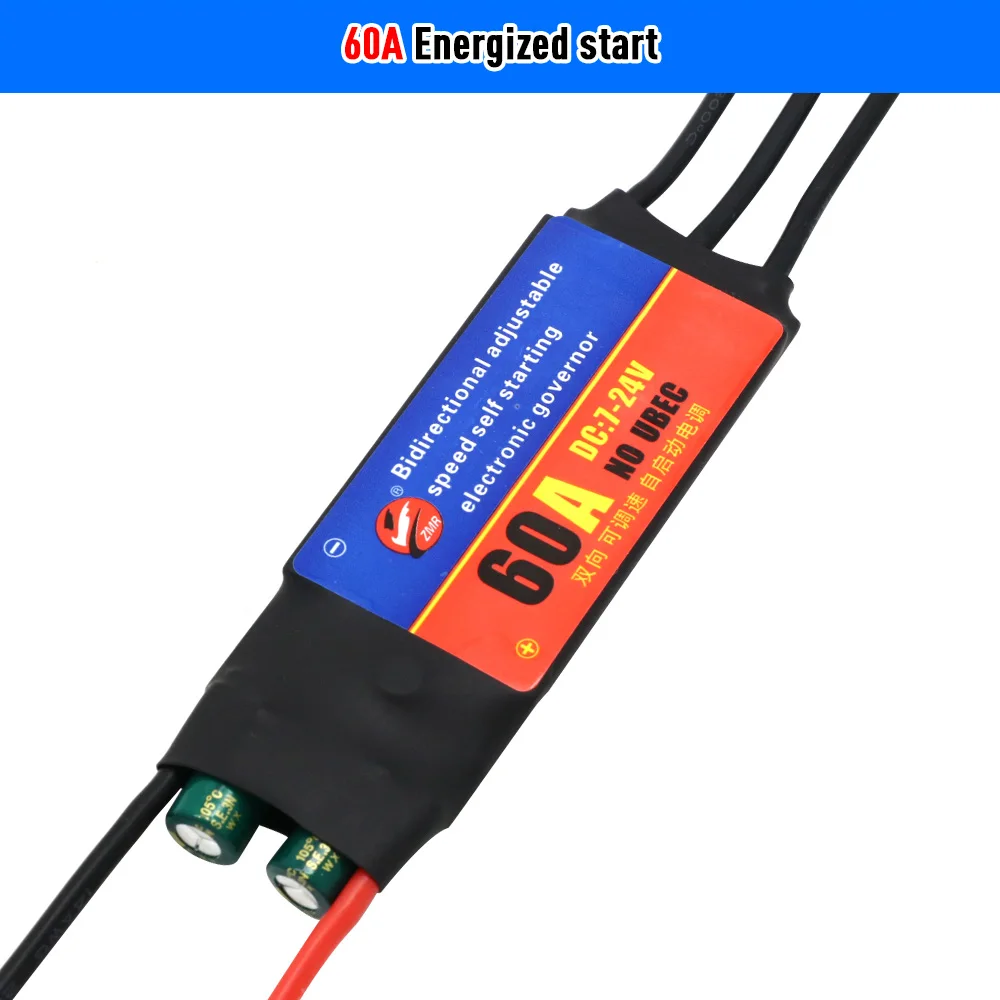

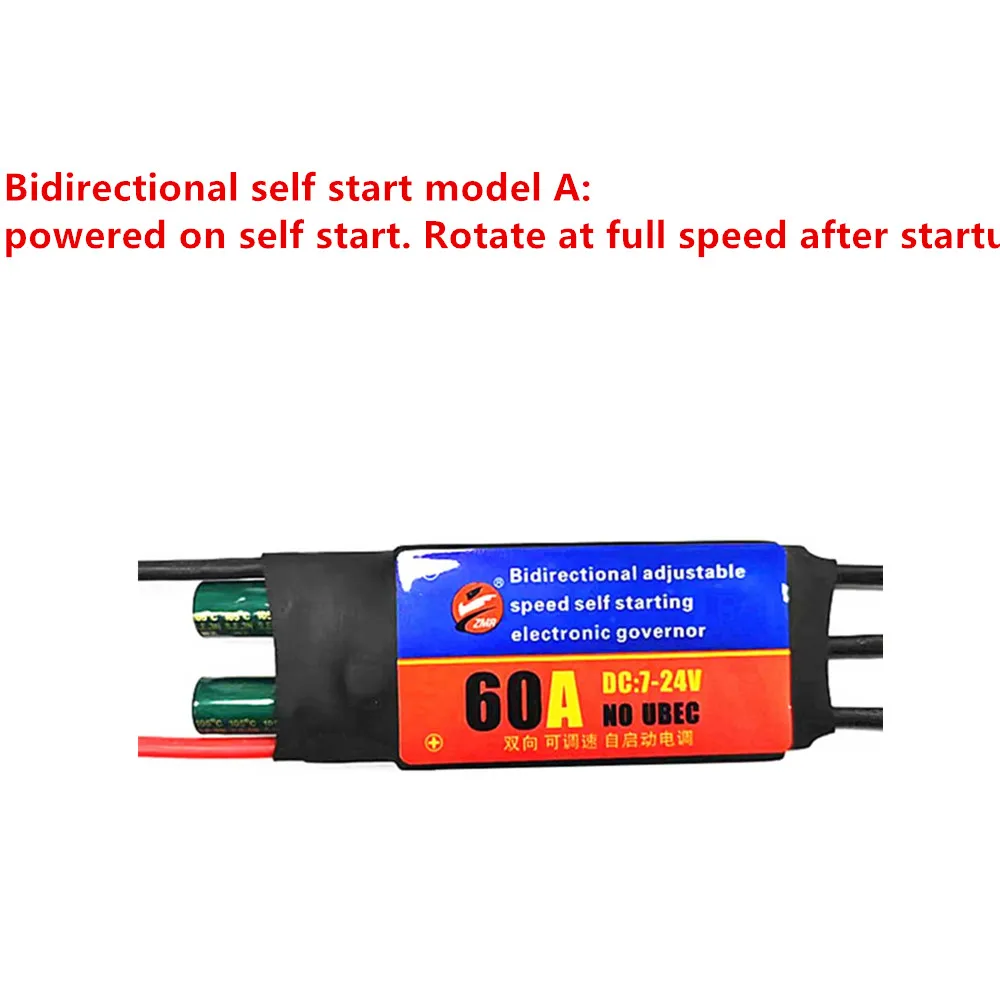

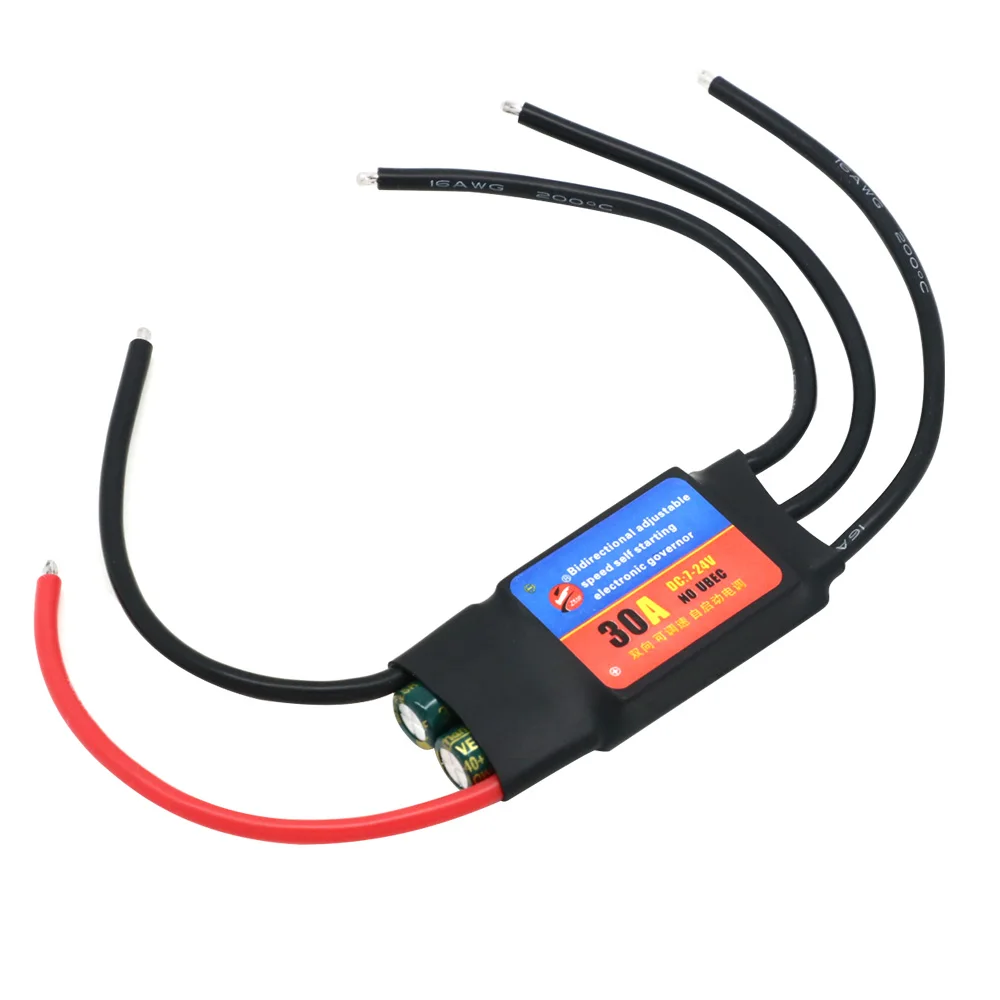

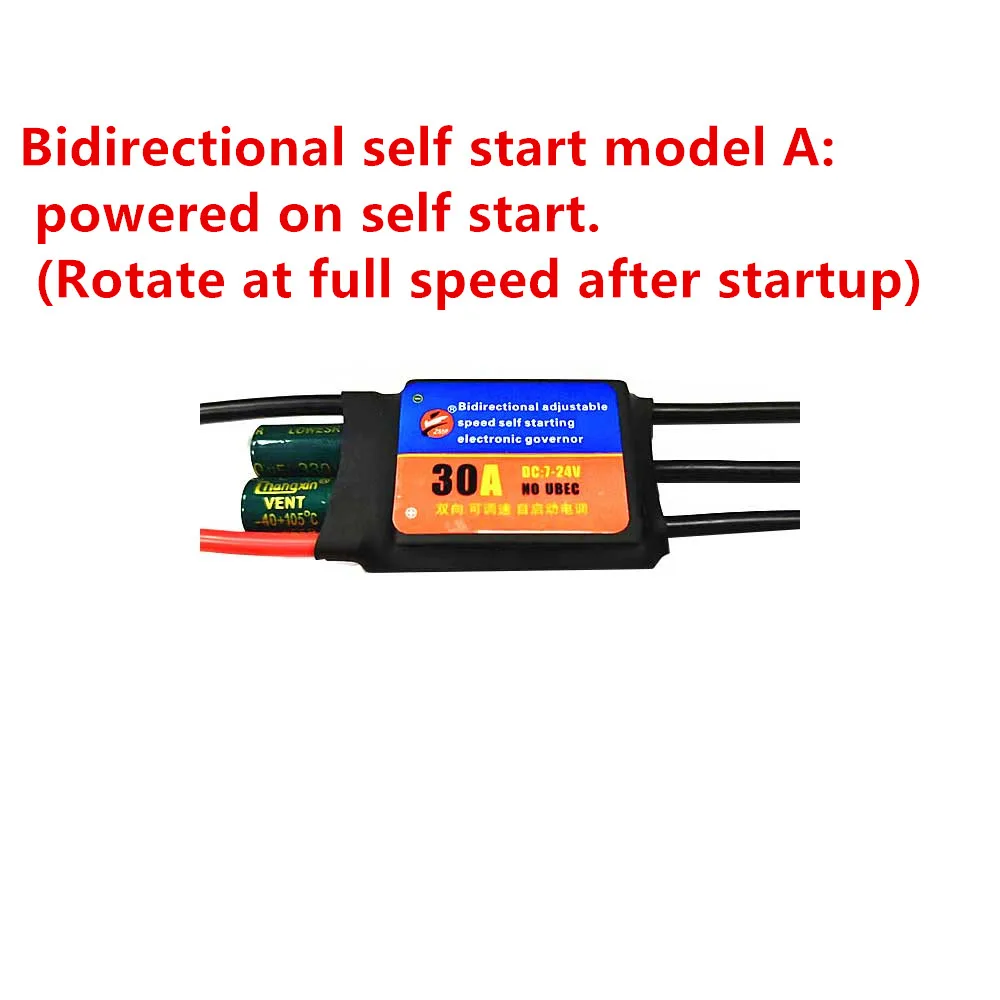

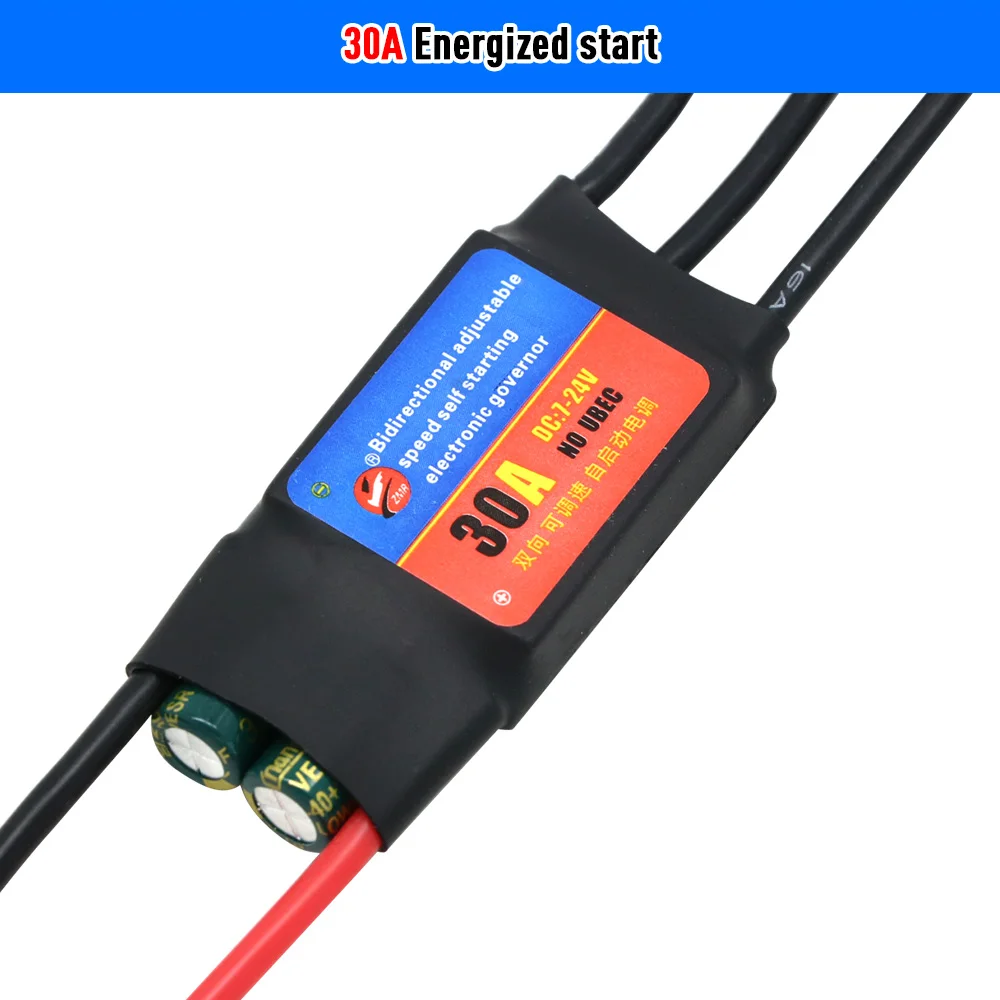

Bidirectional self start Model A: Powered on self start. (Rotate at full speed after startup)

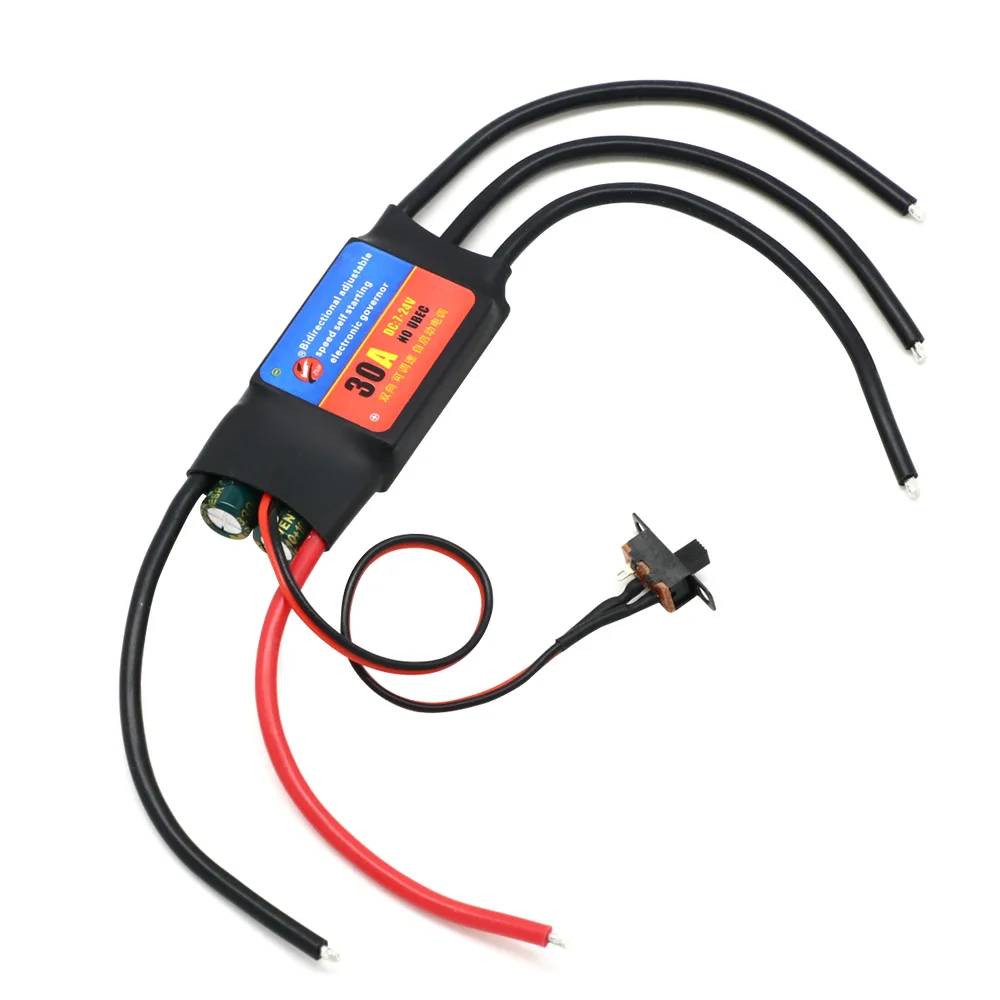

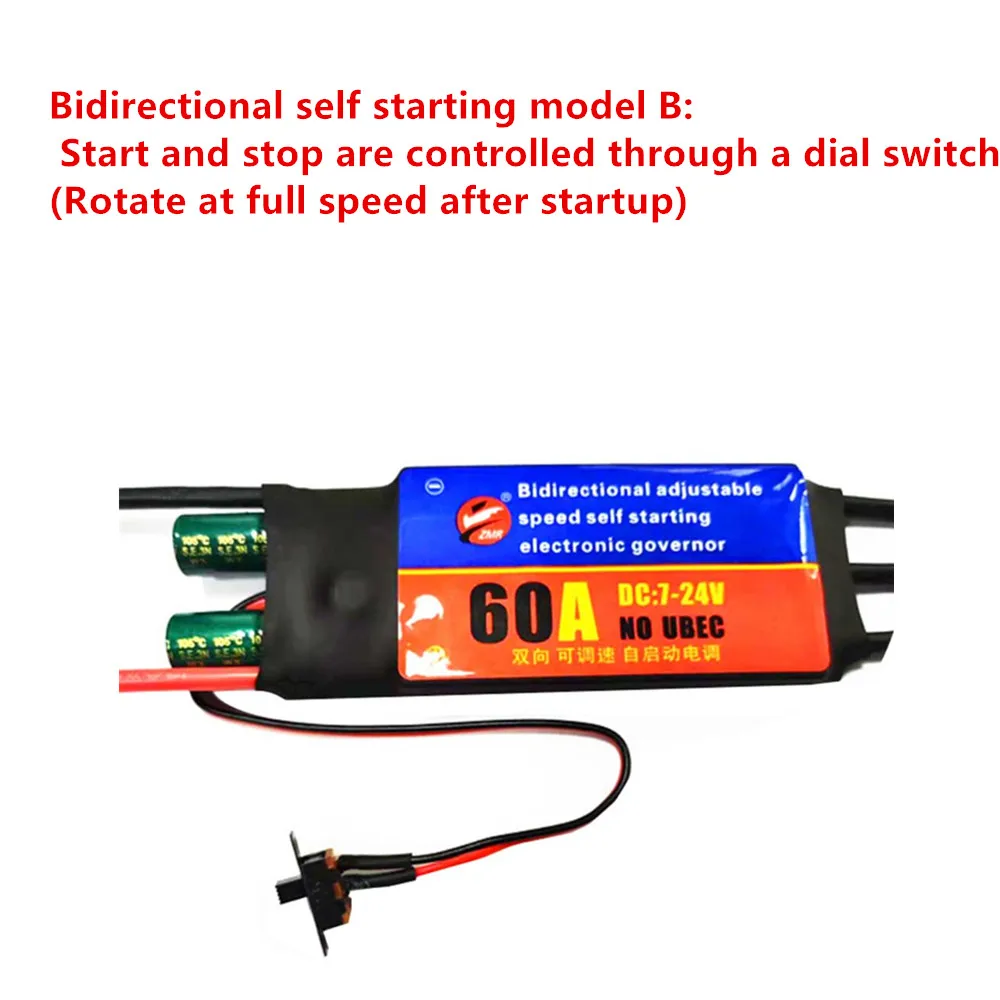

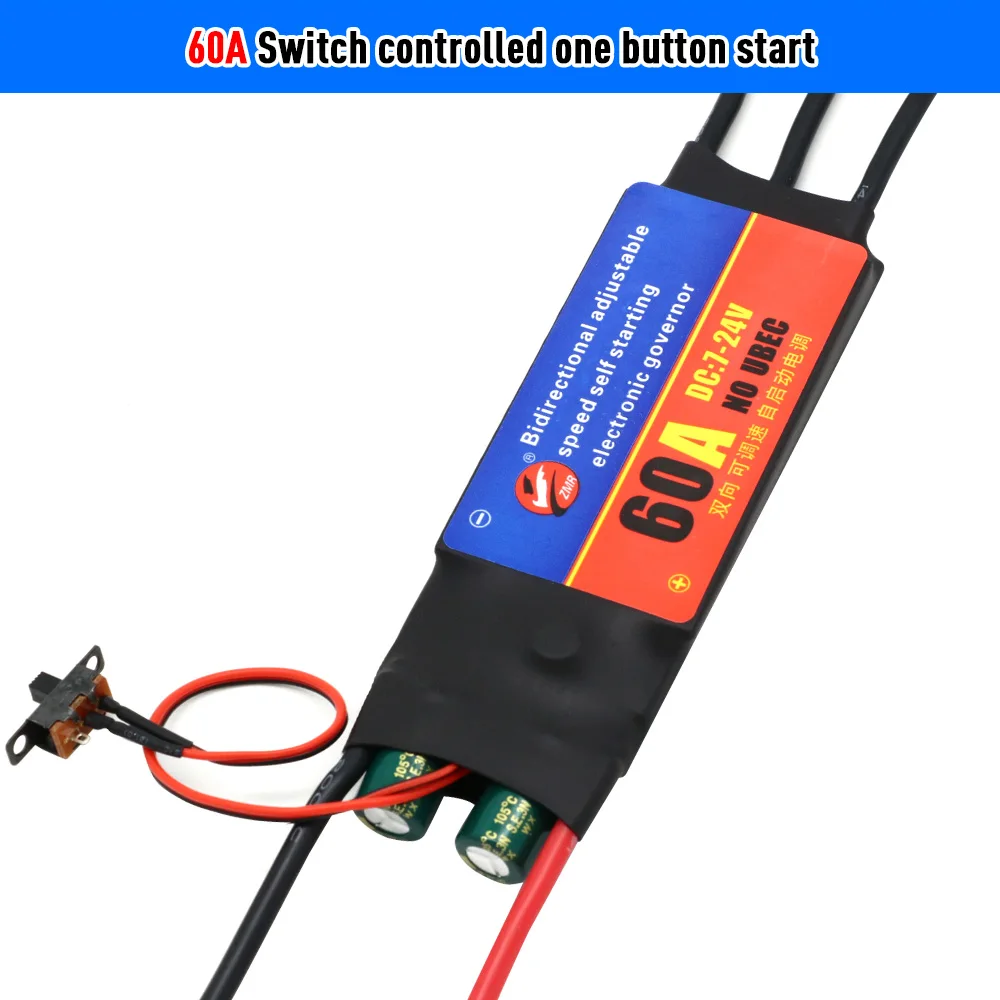

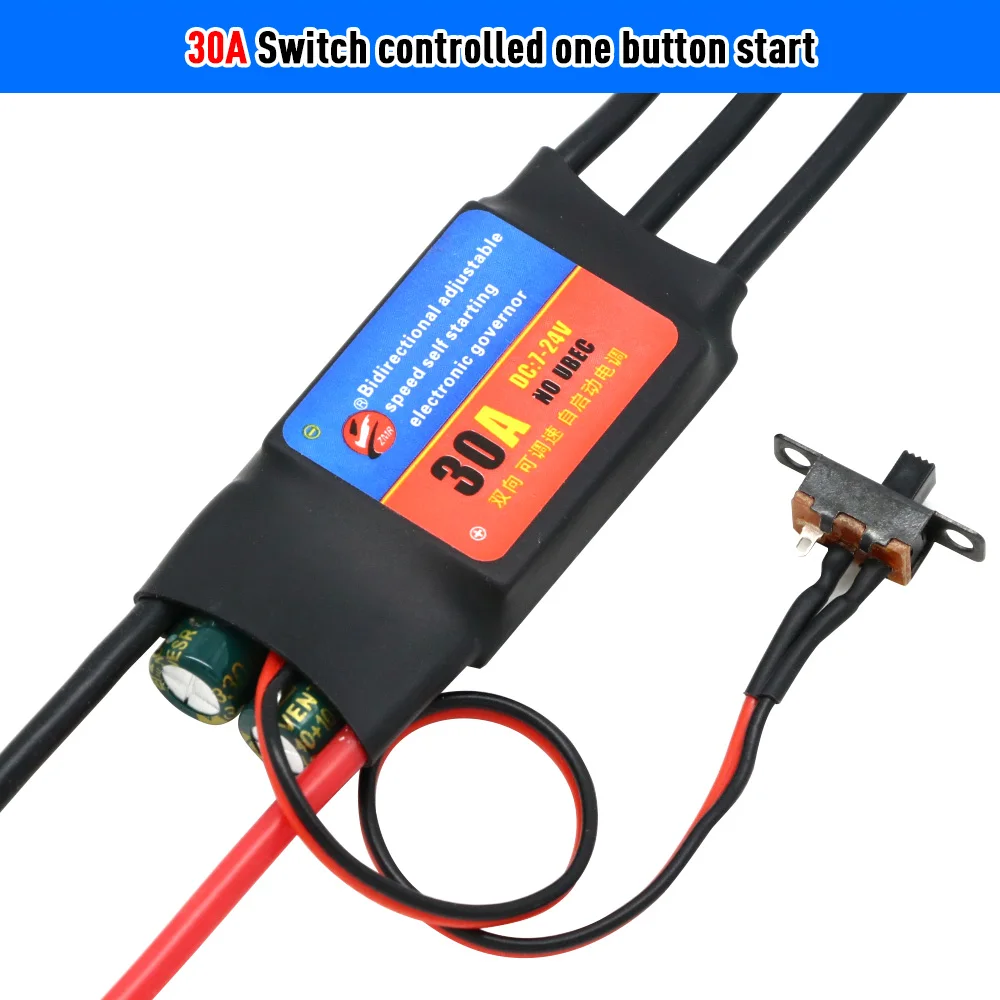

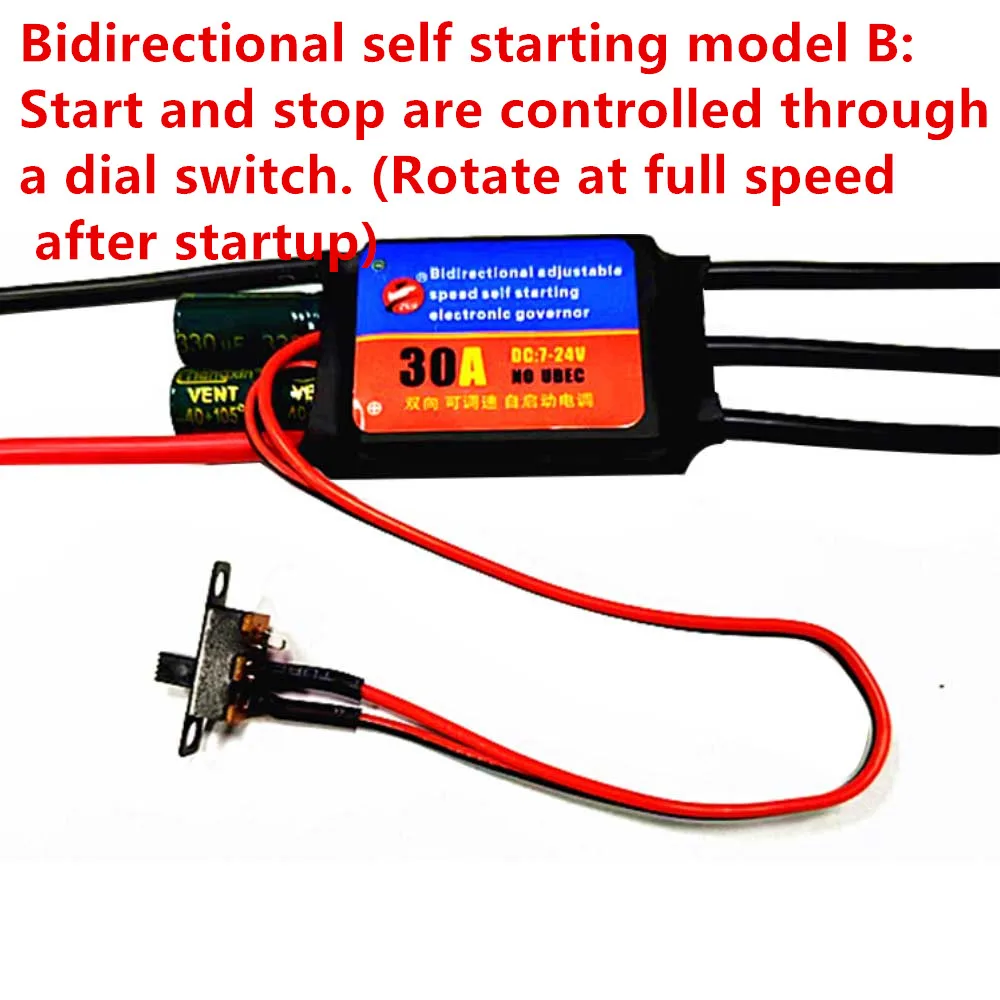

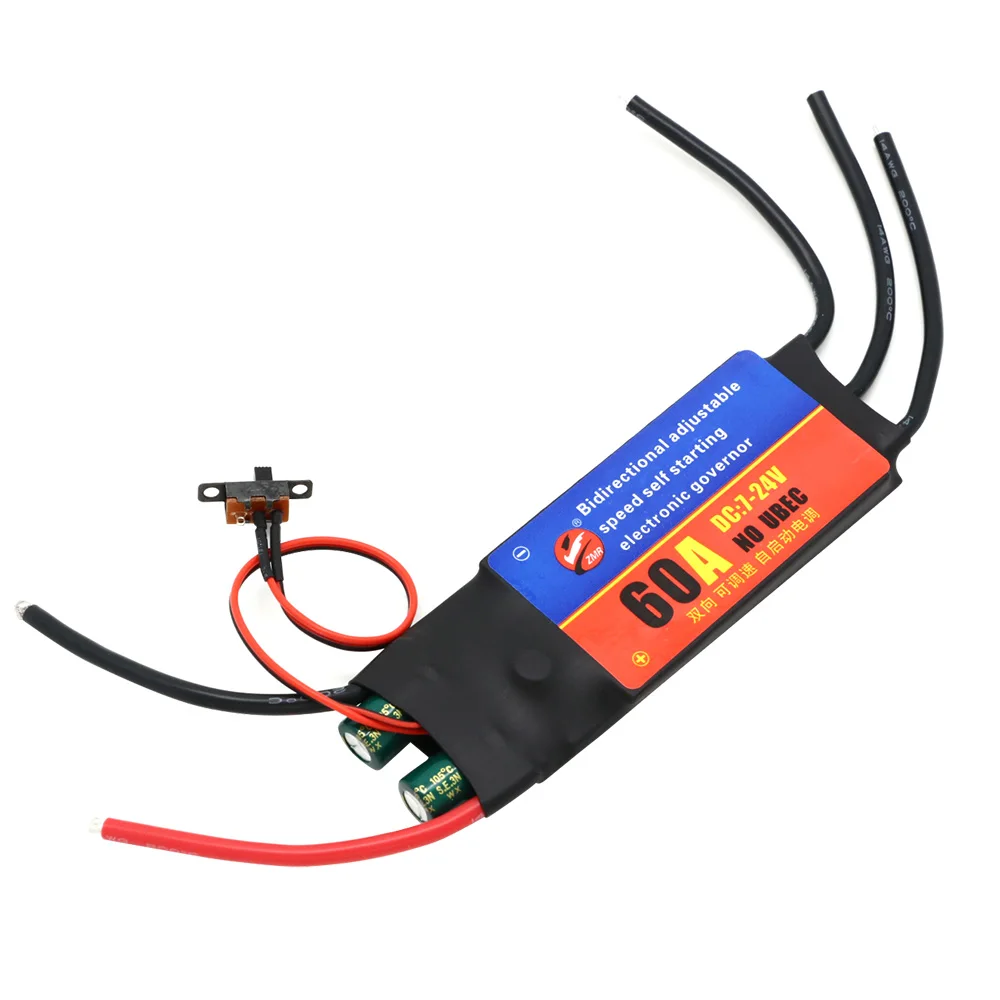

Bidirectional self start Model B: Start and stop are controlled through a dial switch. (Rotate at full speed after startup)

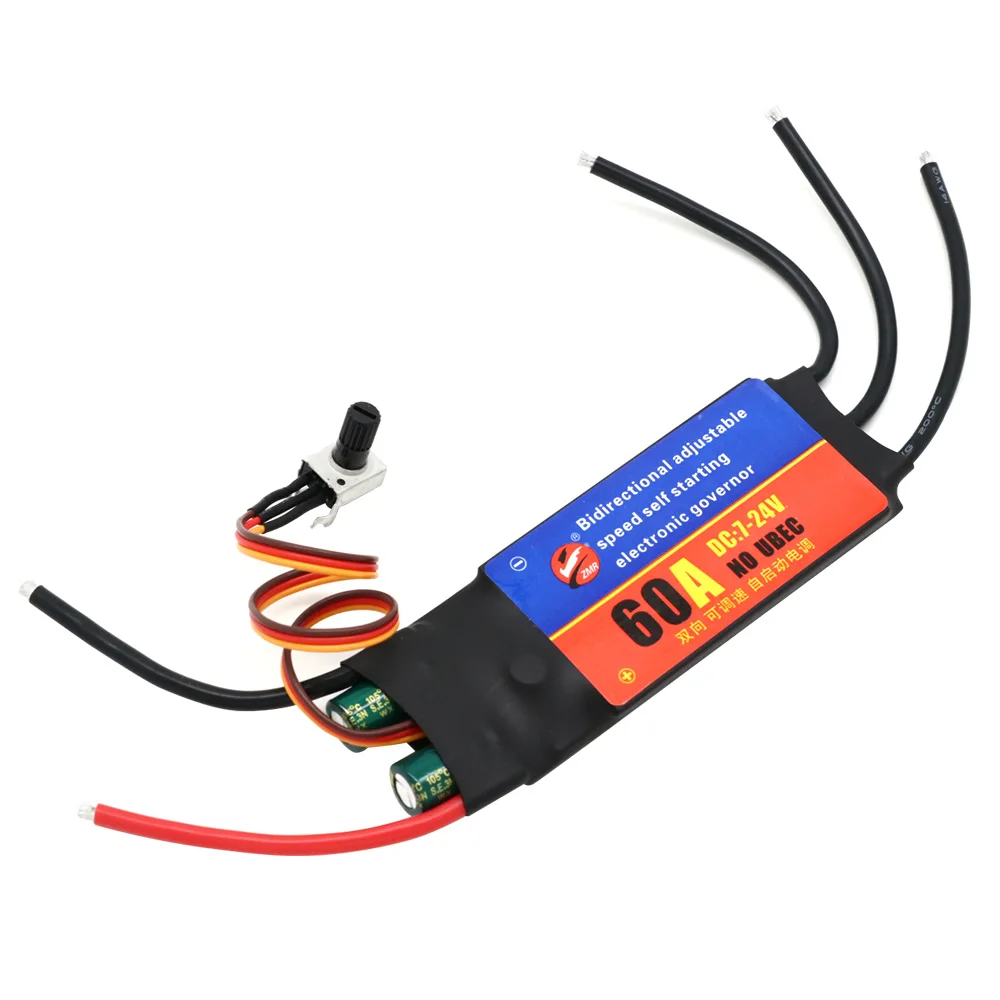

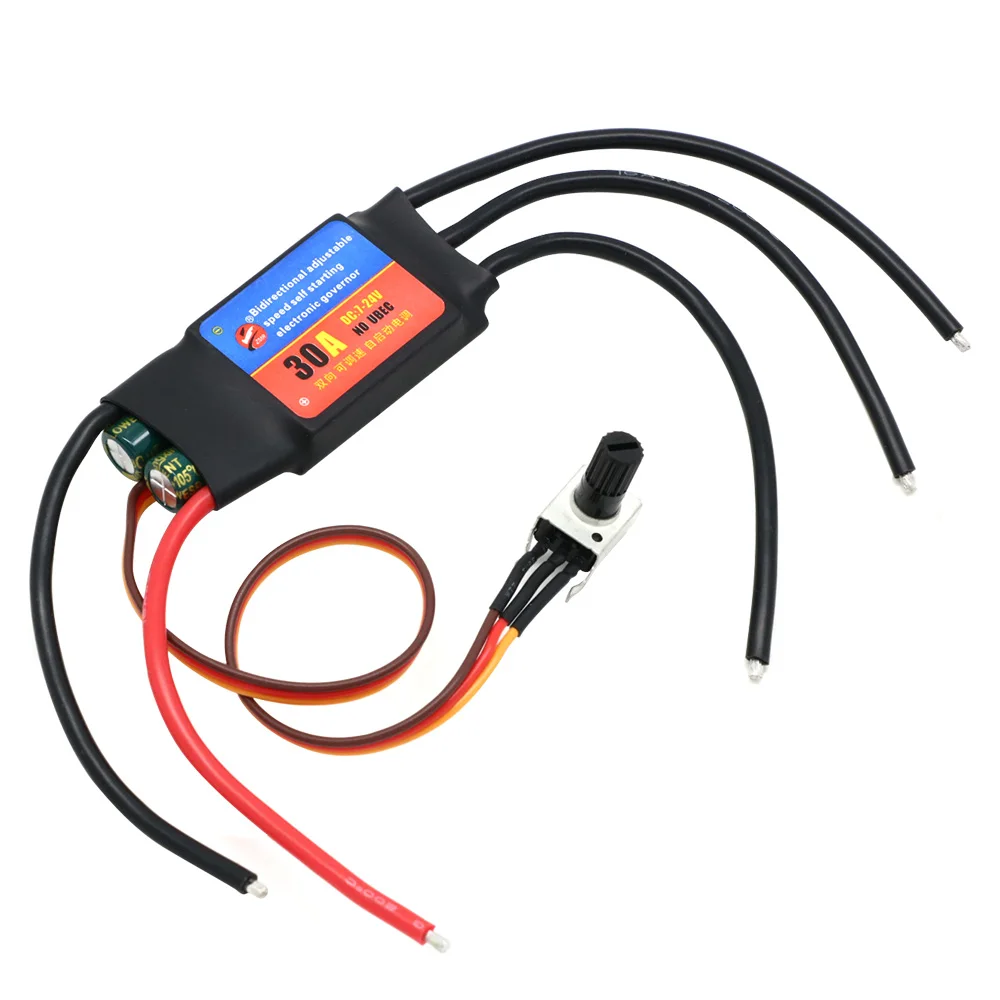

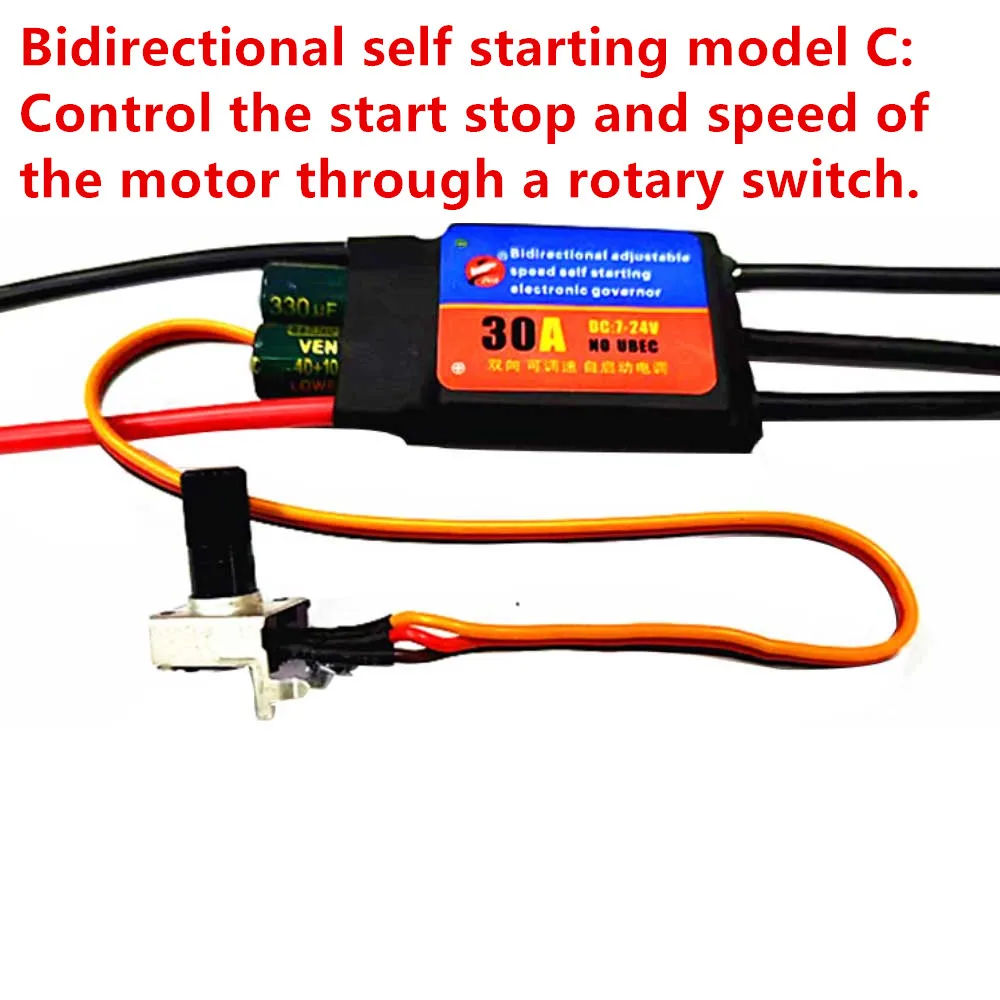

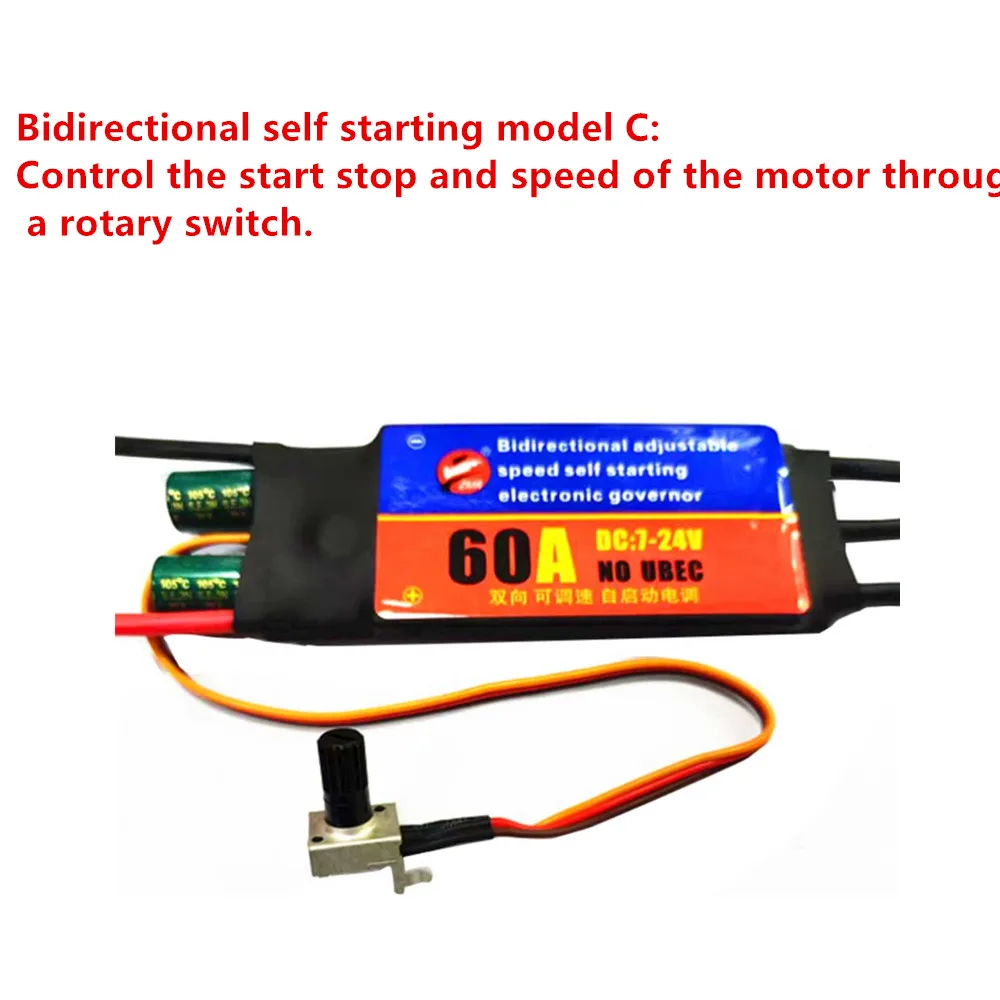

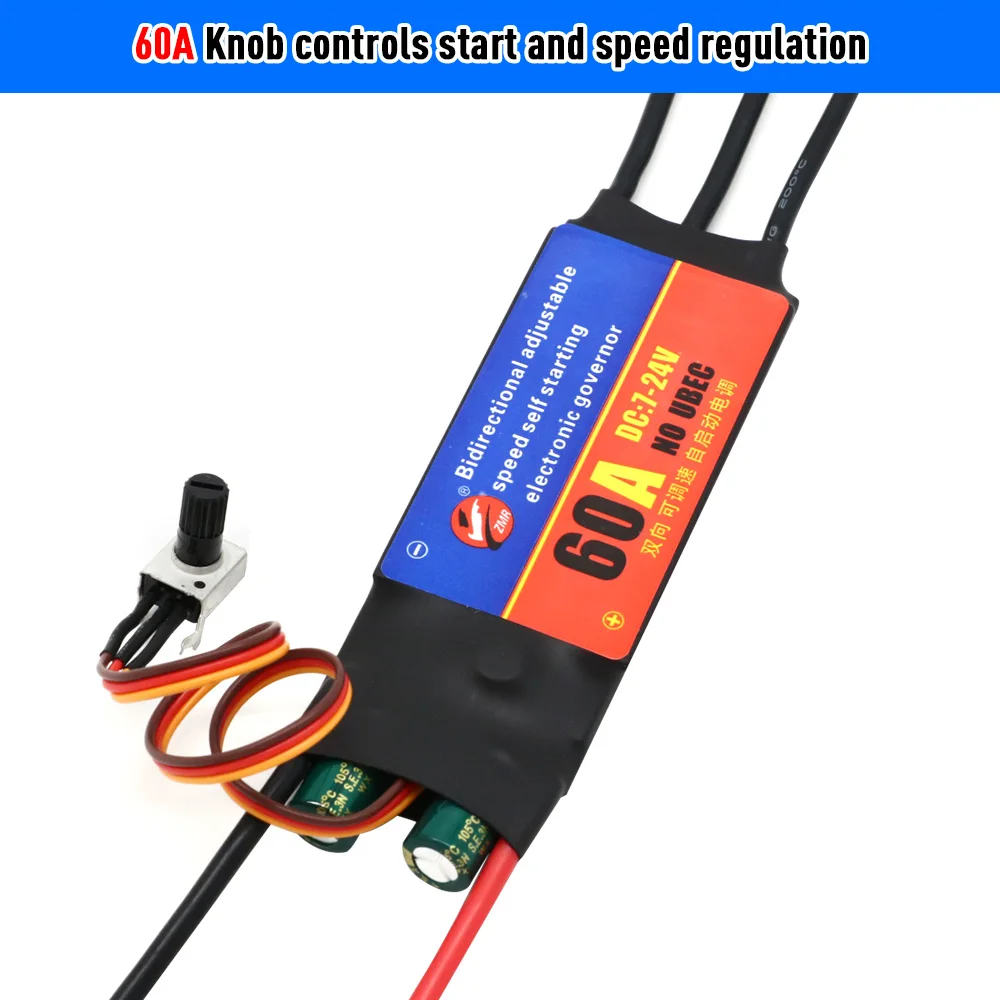

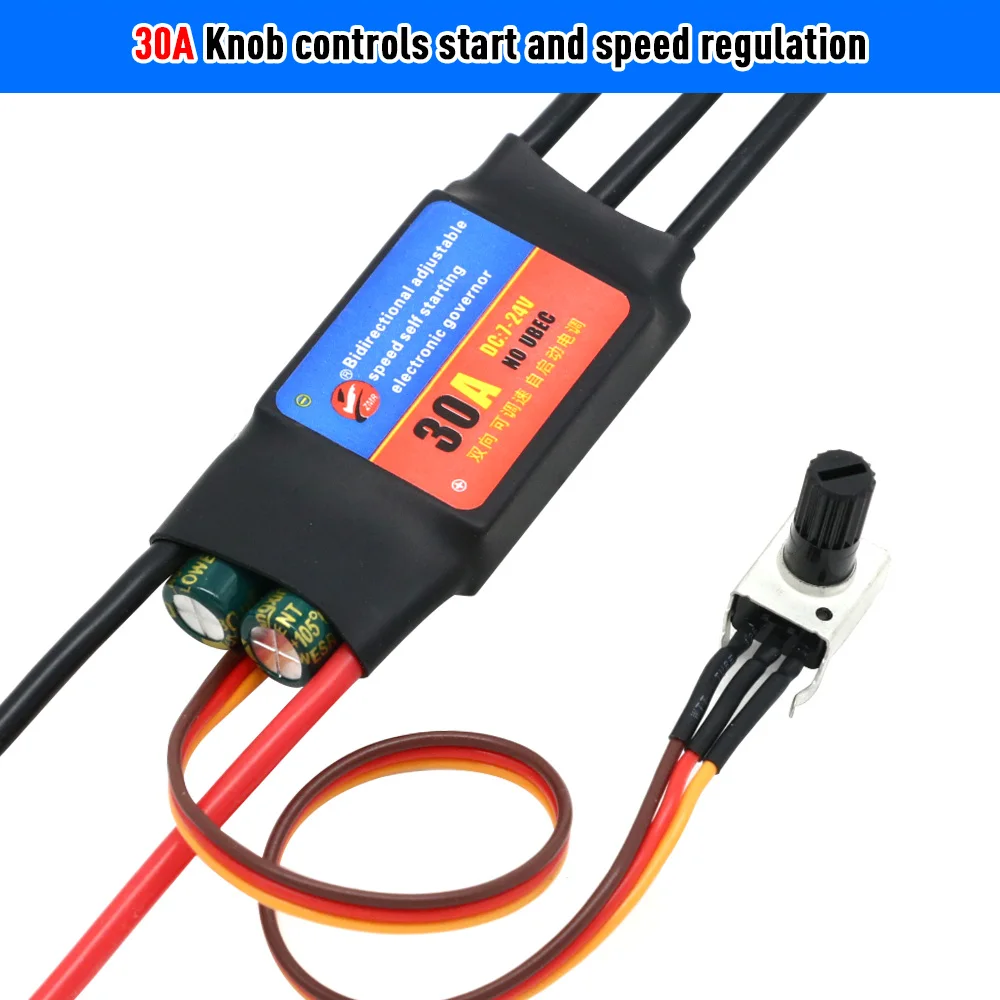

Bidirectional self start Model C: Control the start stop and speed of the motor through a rotary switch.

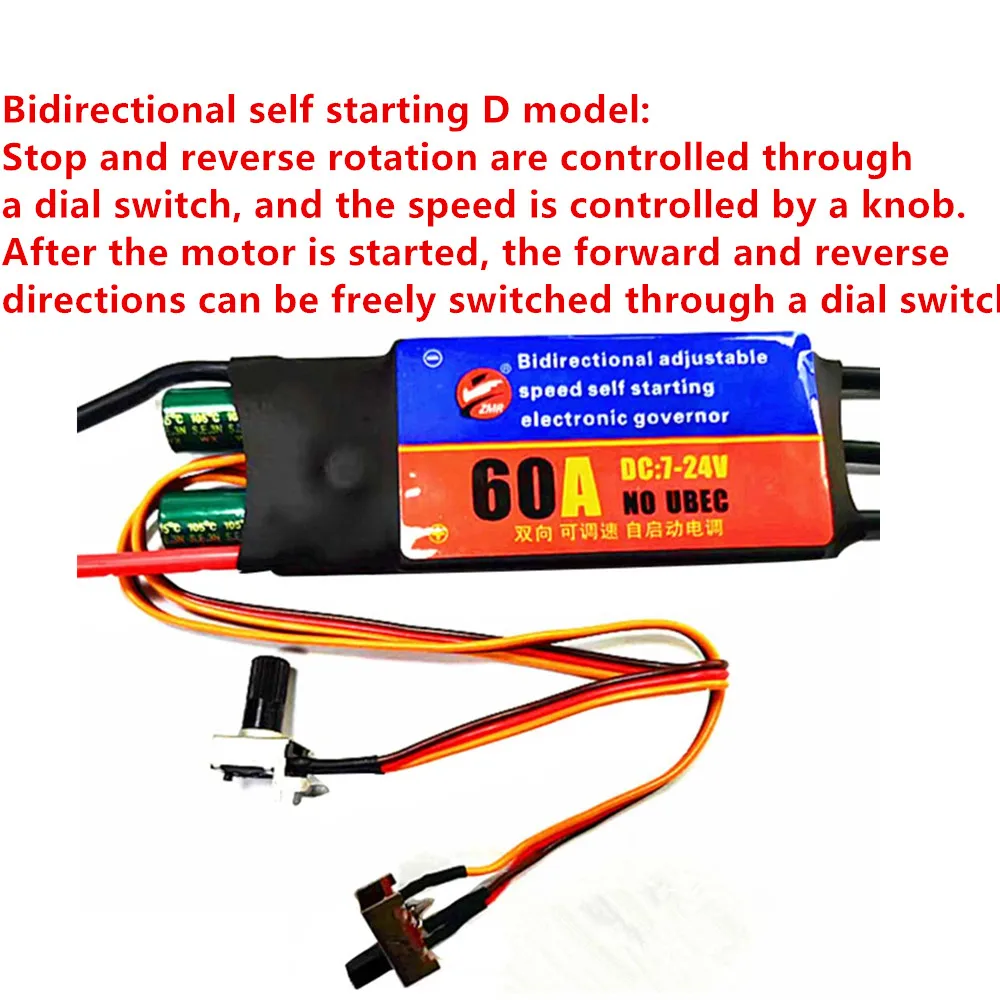

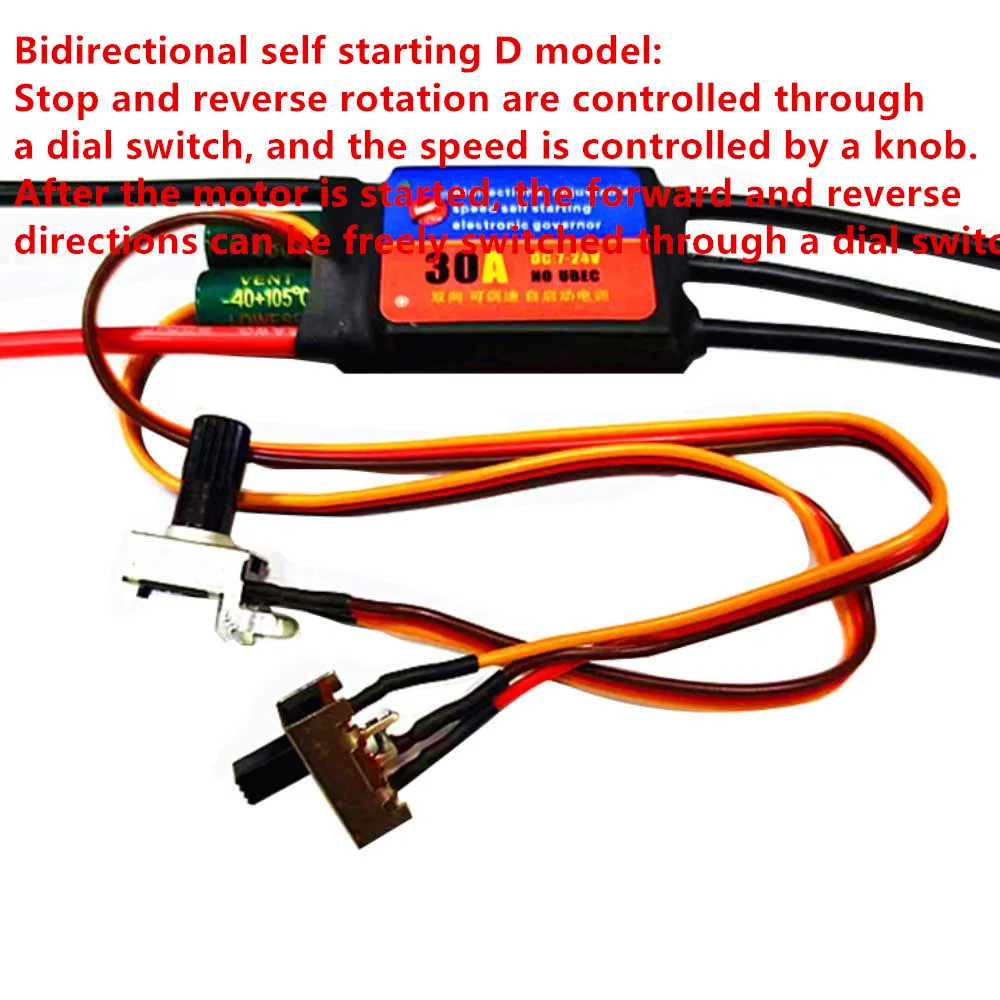

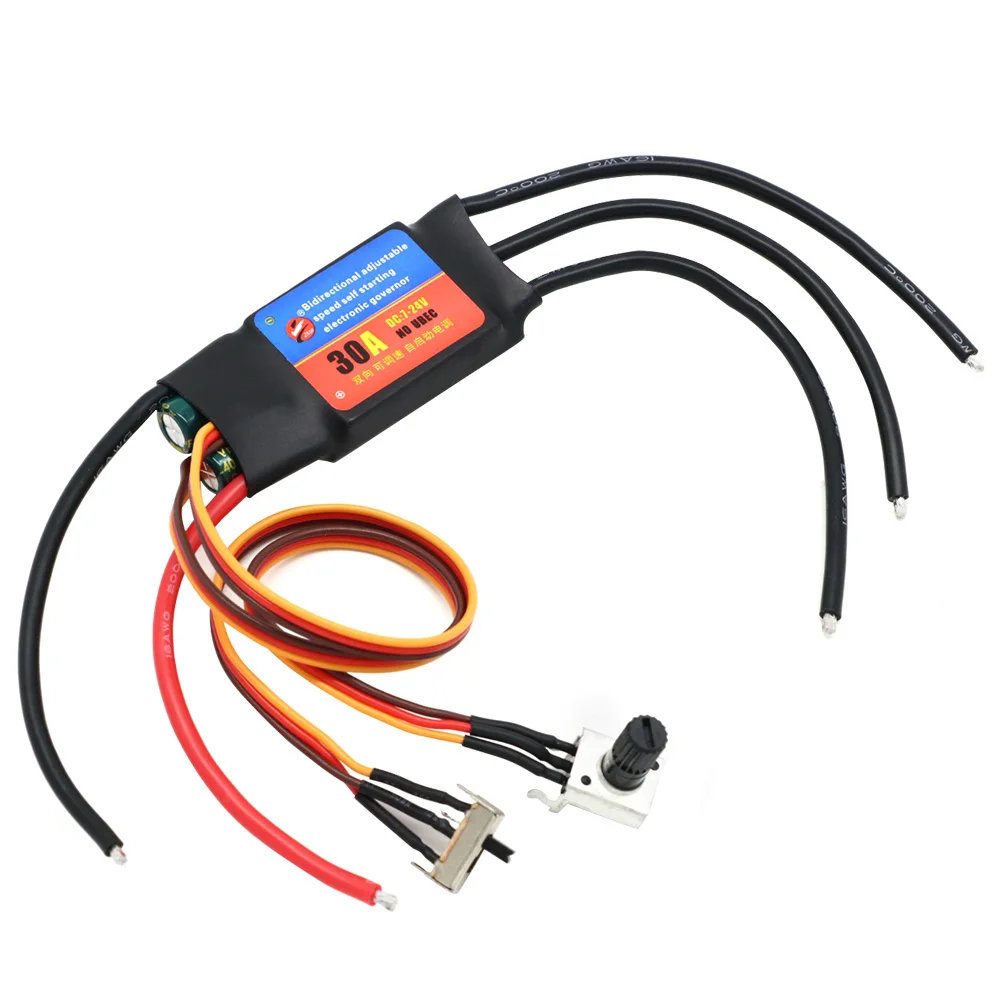

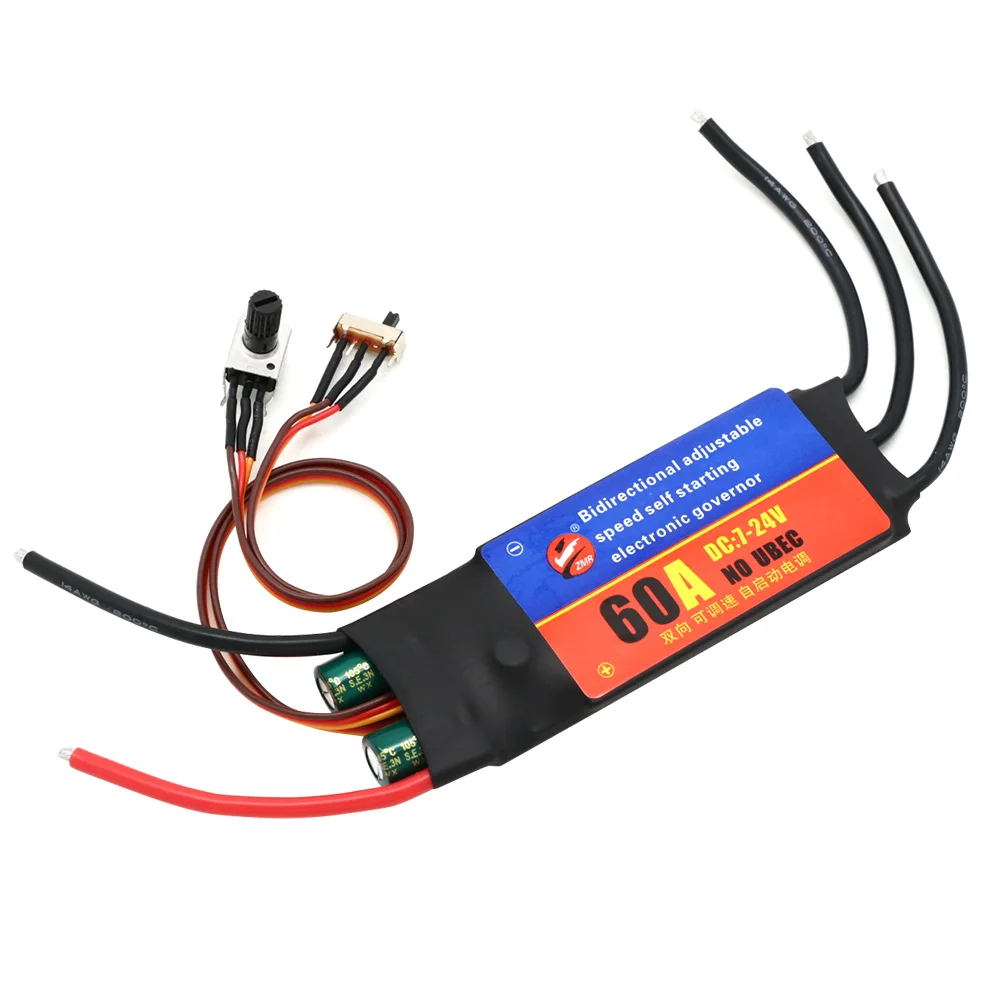

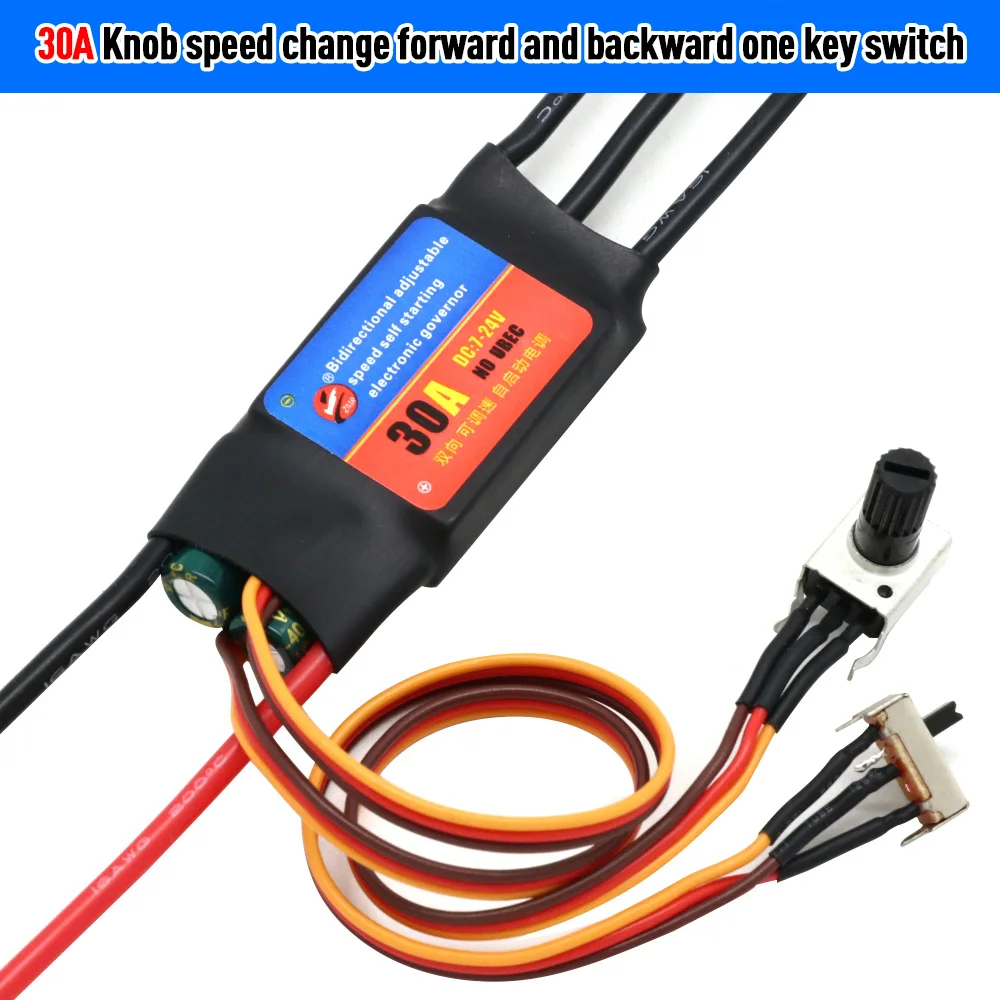

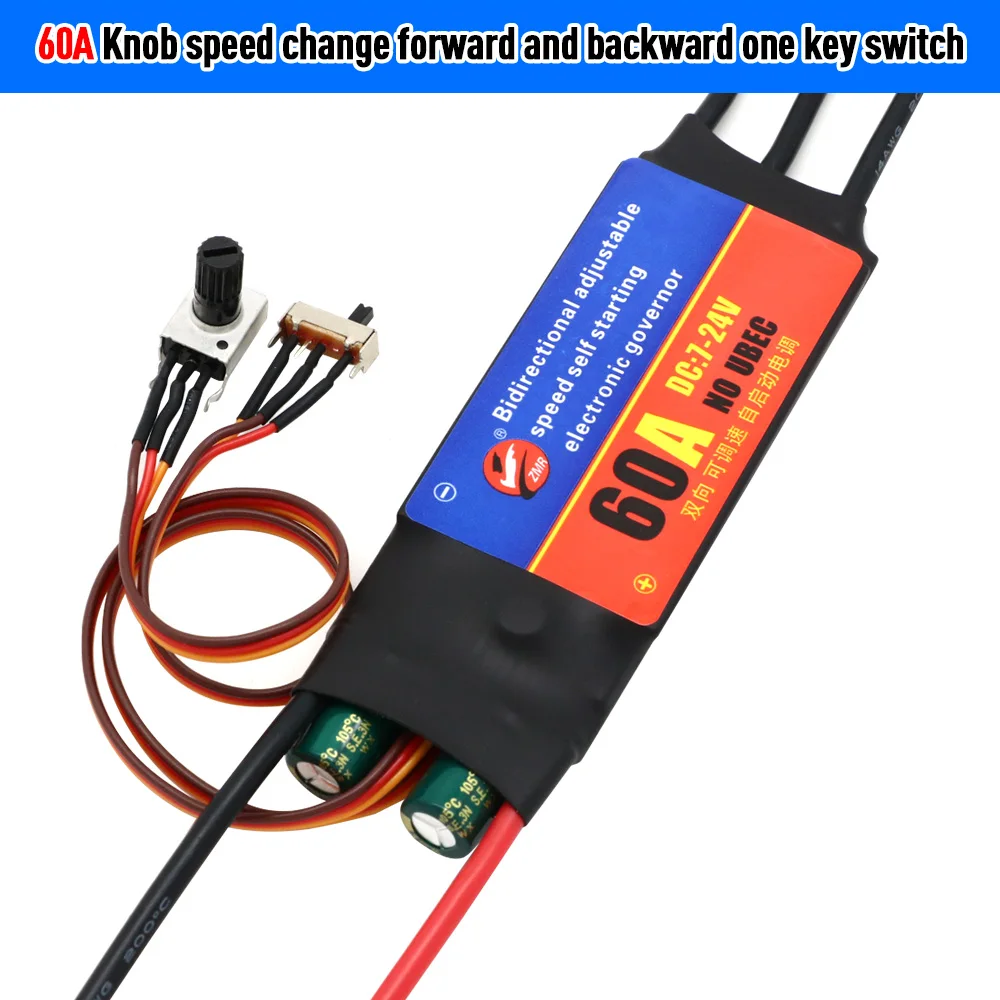

Bidirectional self start Model D: Stop and reverse rotation are controlled through a dial switch, and the speed is controlled by a knob. After the motor is started, the forward and reverse directions can be freely switched through a dial switch.
Special reminder: For numbers 1 and 2, as they rotate at full speed after startup, please pay attention to heat dissipation. If necessary, forced cooling can be done, such as forced air cooling and water cooling. You can also purchase our enhanced version of heat dissipation.
Regarding load: If the motor load is within 20A, 30A electric adjustment can be selected.
For motors with a load of less than 35A, 60A electric adjustment can be selected.
(Because the biggest fear of brushless electric regulators is heat generation, forced heat dissipation is necessary for long-term use)
Product technical parameters:

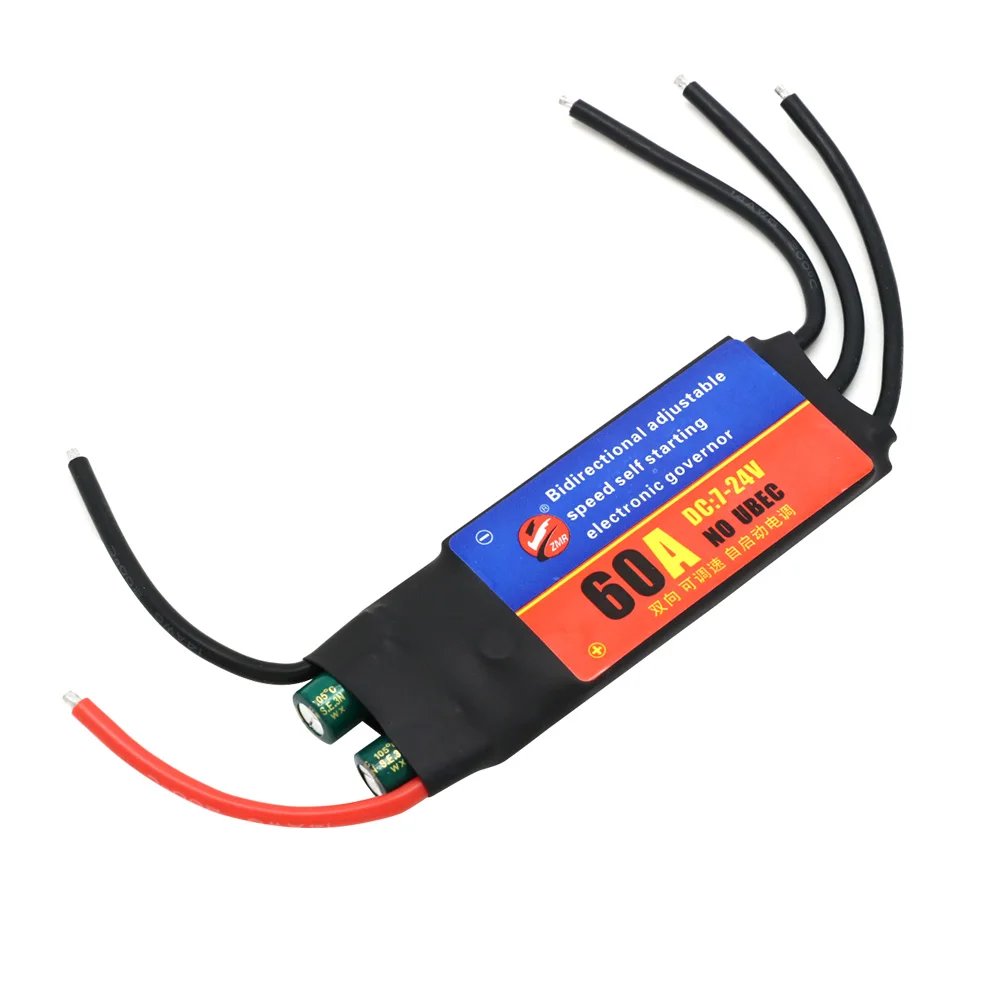

Bidirectional self starting electrical regulation 30A 60A
Working voltage: 7-25.2V (2-6S Lipo)
Maximum power: 30A: 500W 60A: 1000W
Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000 RPM (14-pole motor).
Temperature protection: Yes
Locked rotor protection: Yes
Overcurrent protection: Yes
Precautions:
1. Do not connect load devices that do not match the parameters of this electrical regulation. The positive and negative poles cannot be reversed, otherwise it will damage the electrical regulator.
2. If the customer modifies the heat dissipation on their own, please note that the components on the exposed circuit board must not be short circuited or have water ingress, otherwise it may damage the electrical regulator.
3. Please be careful when using it for the first time, as it is a power on switch.
Additional information
| Color | 60A One click switch, 30A Start, 30A Start Speed, 30A Switch Start, 60A Start, 30A One click switch, 60A Start Speed, 60A Switch Start |
|---|
