Zmpt101b 2ma Voltage Transformer Module Board Single Phase Ac Active Output Voltage Sensor Signal Acquisition
Original price was: $13.98.$9.32Current price is: $9.32.
876 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: NONE
Coil Number: Other
Coil Structure: Toroidal
High-concerned chemical: None
Model Number: ZMPT101B
Origin: Mainland China
Phase: SINGLE
Use: Current
is_customized: Yes
Product description:

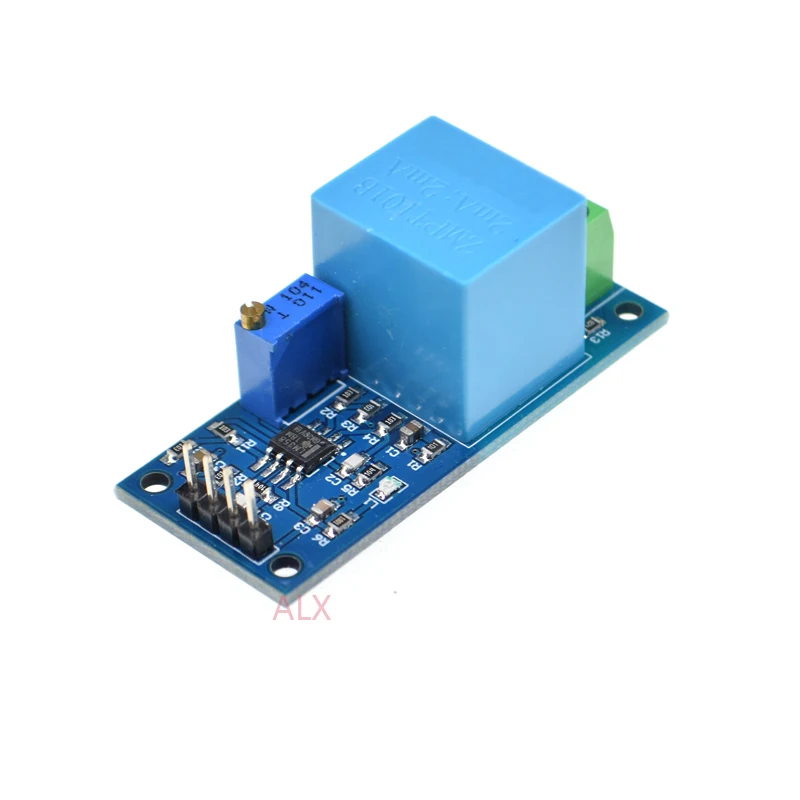

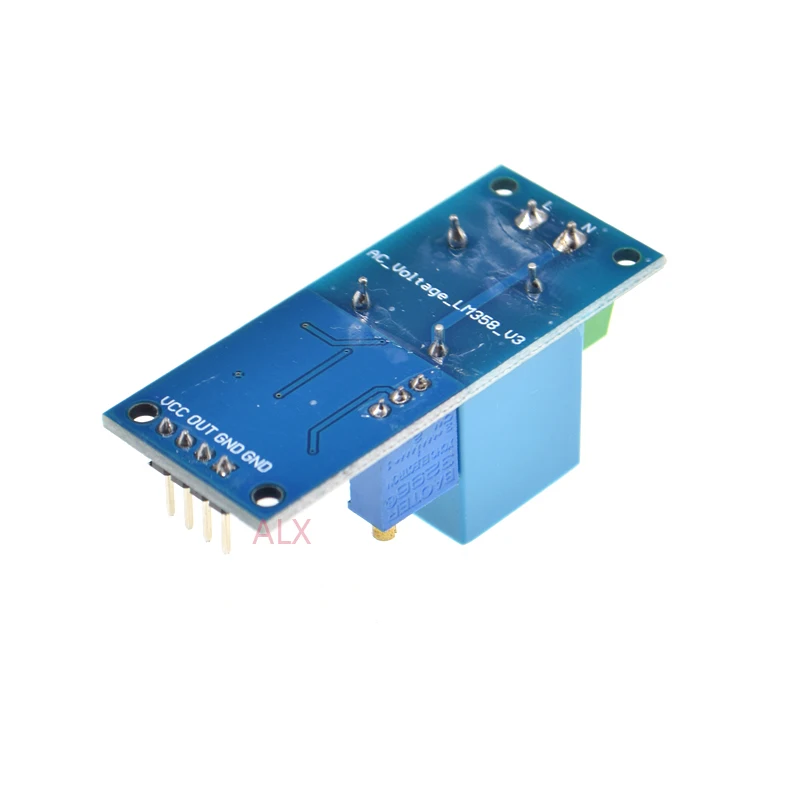

Single-phase AC active output voltage mutual inductance module equipped with ZMPT101B series of high-precision voltage transformer and high-precision op amp current, easy to 250v within the AC power signal acquisition.
Product parameters:
Voltage Transformer: Onboard Precision Micro Voltage Transformer
Operational amplifier circuit: high-precision on-board amplifier circuit, the signal to do the exact sampling and appropriate compensation and other functions
Mode voltage output: the module can measure AC voltage within 250V, the corresponding output mode can be adjusted
Output signal: the output signal for the sine wave, the waveform of the median (DC component)
Supply voltage: 5-30v
Package Included:
1 x ZMPT101B 2MA Voltage Transformer Module
