Price range: $189.67 through $283.47

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: d6lpink0r2fg009td6hg Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Battery

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: ToolkitRC M7

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Batteries – LiPo

Recommend Age: 14+y

Remote Control Peripherals/Devices: Battery Charging Units

Size: 84*79*39 mm

Technical parameters: value 2

Tool Supplies: Battery

Upgrade Parts/Accessories: Lithium Battery

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

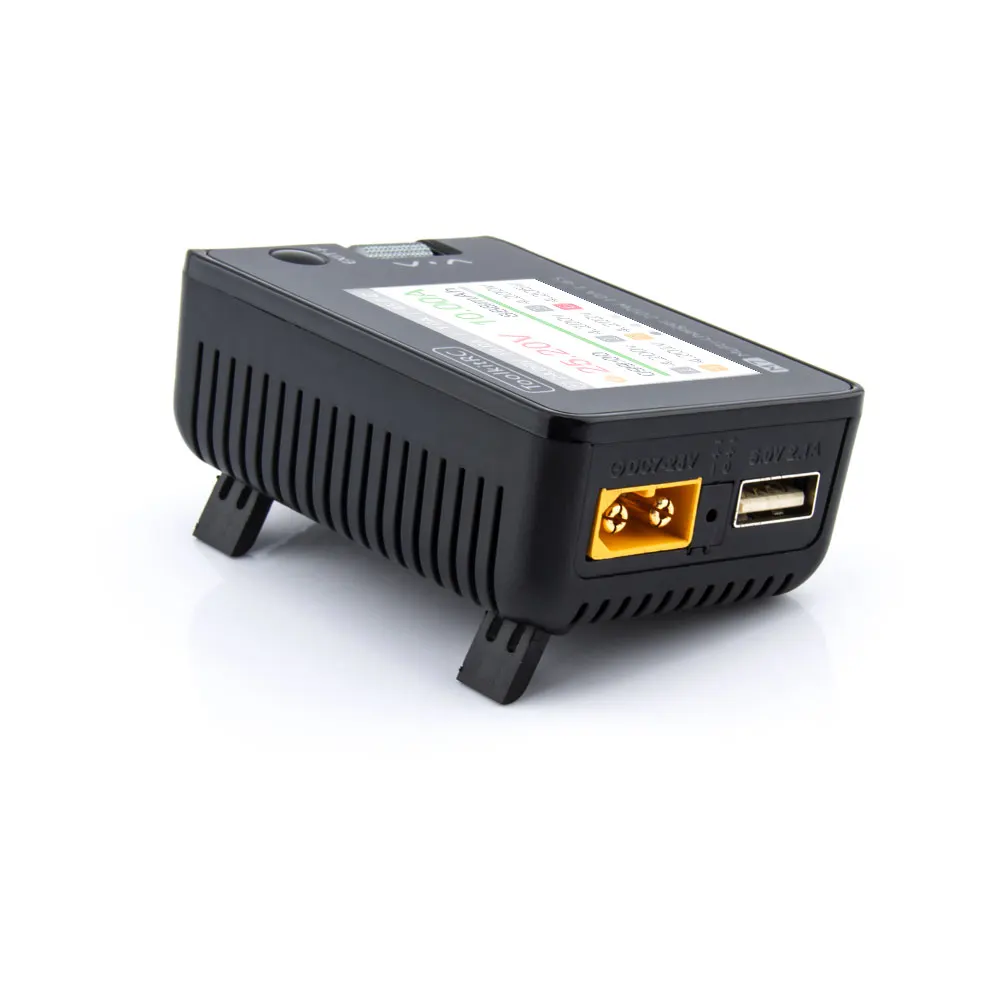

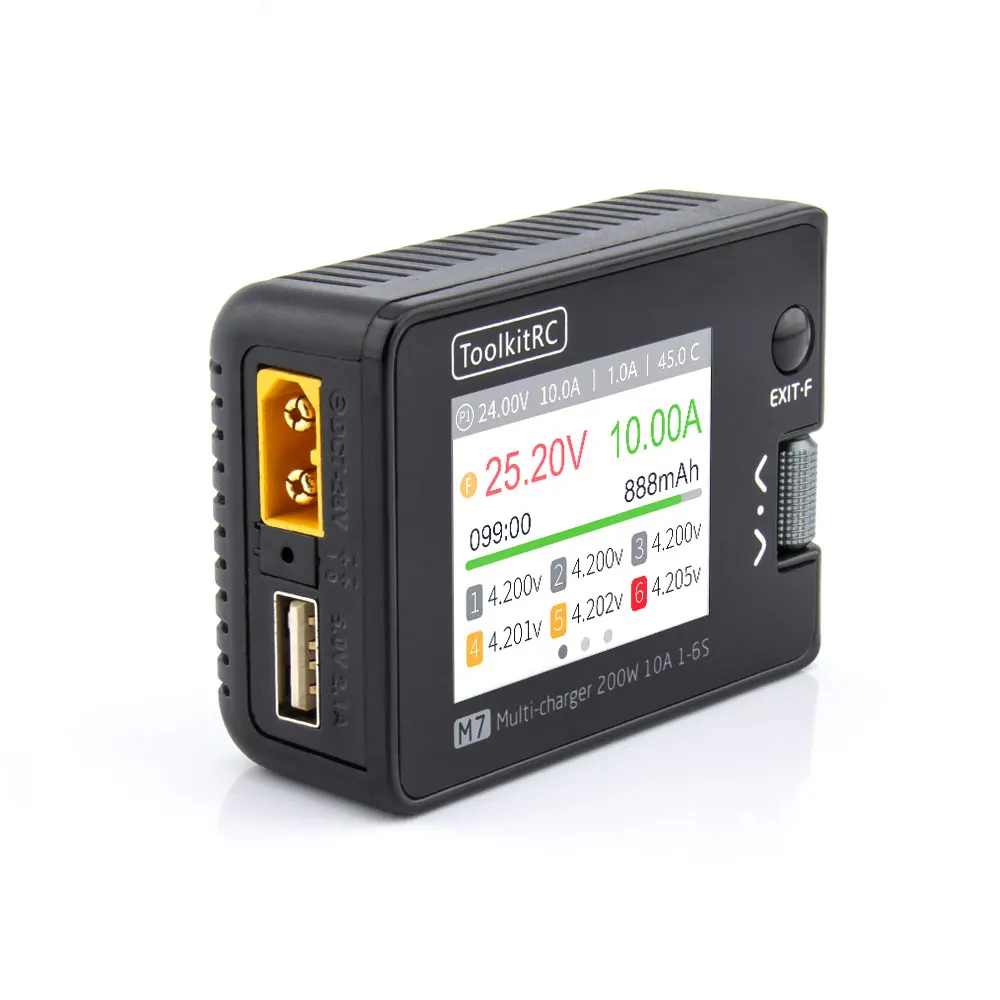

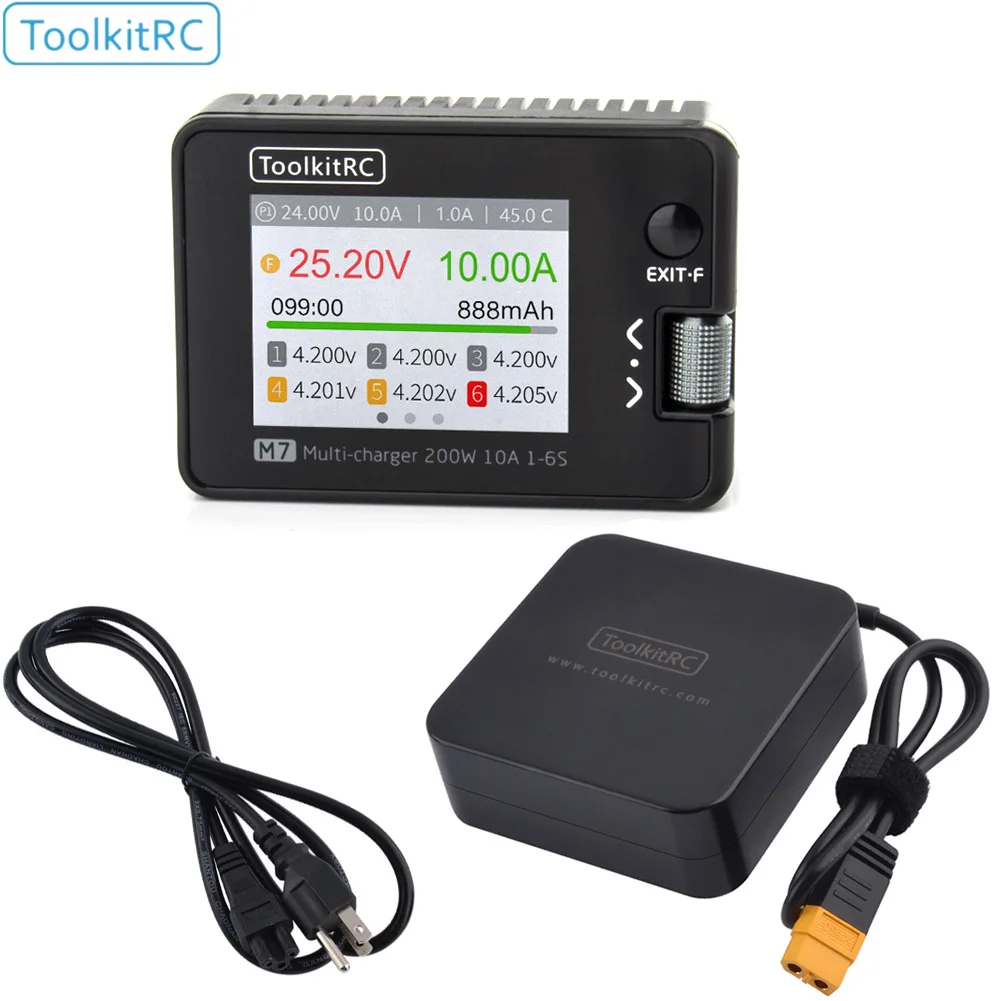

M7 is a multifunctional tool chain product that integrates functions such as a balanced charger and discharger, an electric display, a signal measuring device, and a signal source.

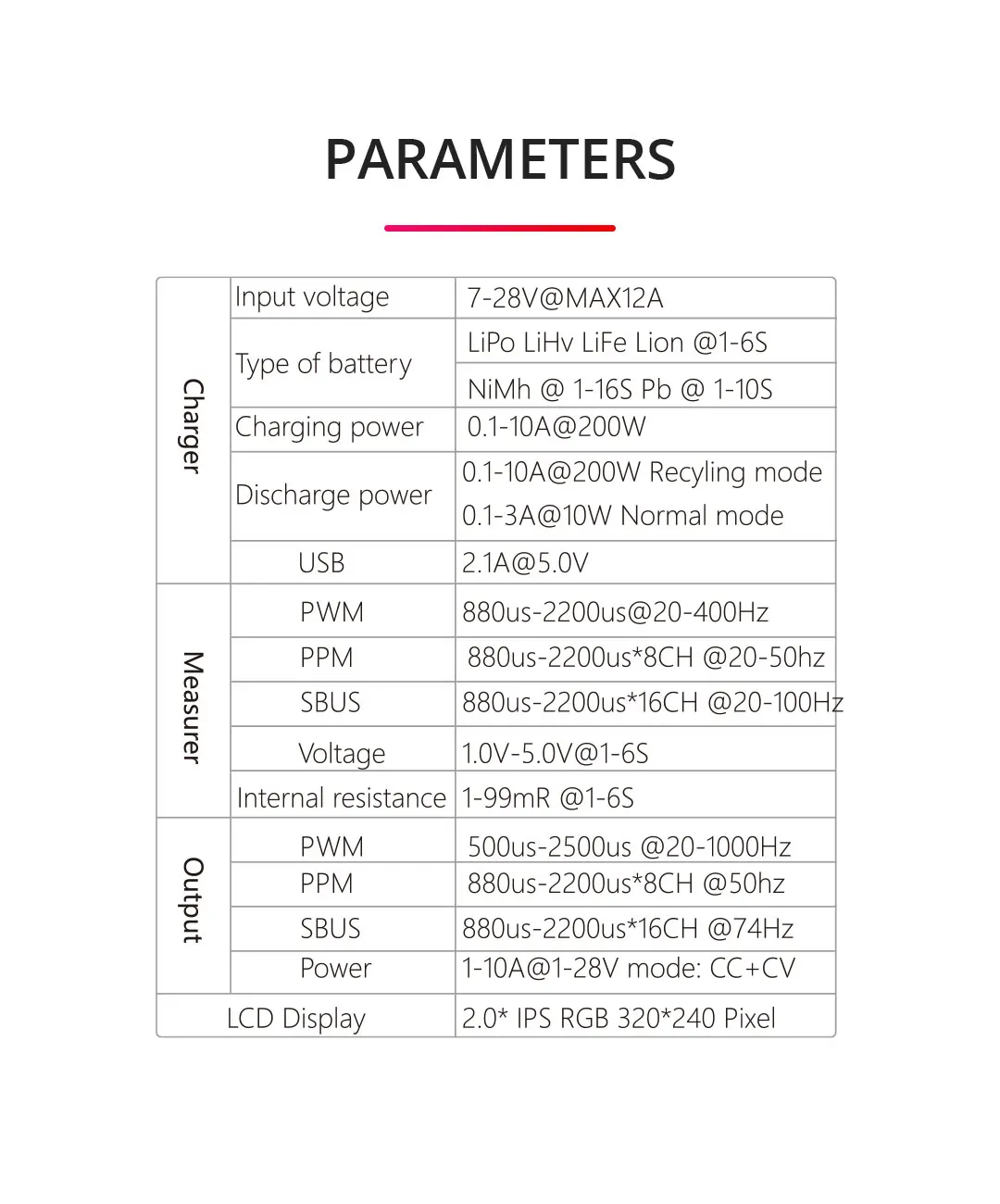

M7 SPECS:

Product size: 73*51*27 mm
Product weight: 90g
Pack size: 84*79*39 mm
Pack weight: 150g
LCD: IPS 2.0inch LCD 320*240 Pixel
Input voltage: 7.0-28.0V @MAX 12A
Type of battery: Lipo LiHV LiFe Lion@1-6
NiMh @1-16S Pb @1-10S
Balance current: 400mA @2-6S
Charger power: 200W @MAX 10A
Discharge power: 200W @MAX 10A Recycle mode
10W@3A Normal mode
USB: 2.1A @5.0V or Upgrade

Input:

PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 1-99mR @1-6S
ESC: 200W@10A PWM Output

Output:

PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
OverCurrent Cutoff time: <5ms

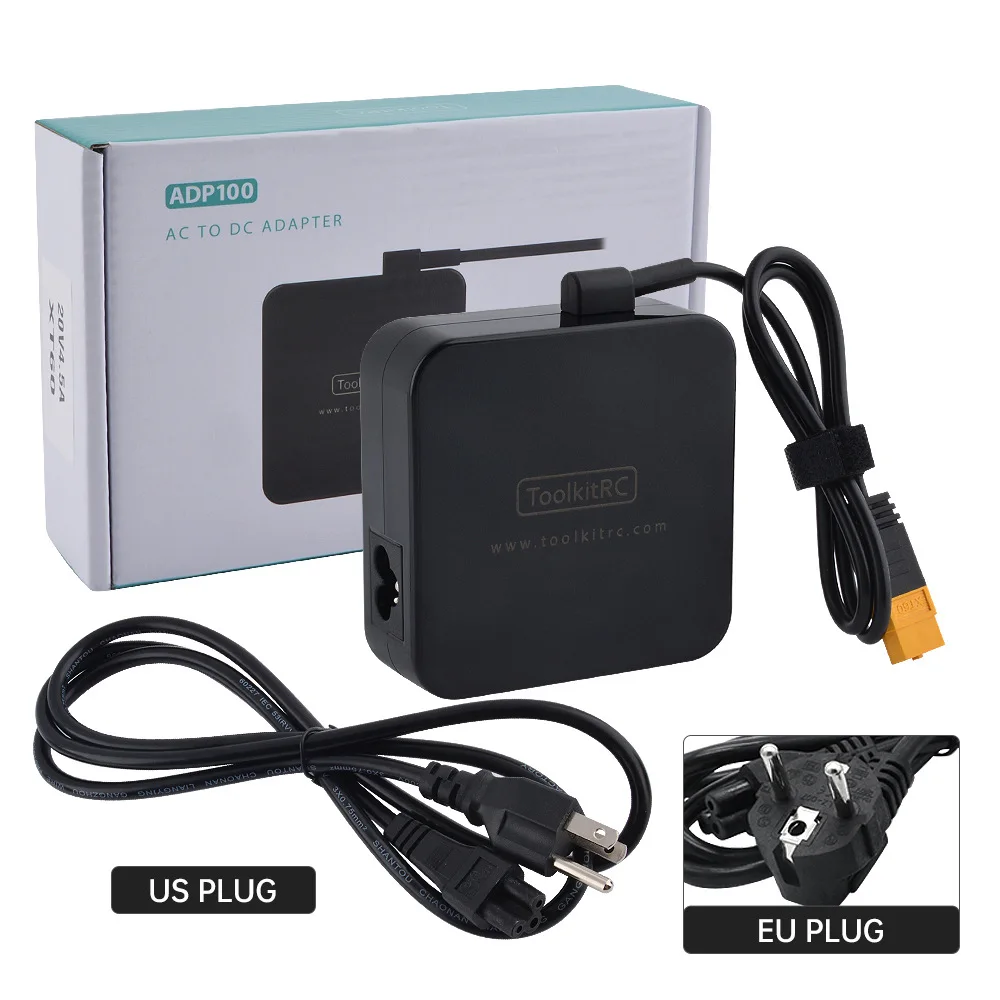

The ToolkitRC ADP100 Compact power supply unit is an ideal companion for your ToolkitRC M series DC charger. Small and light it can easily be stored in your backpack or travel bag.
Specs

Model: ADP100
Input AC 100-240v 50-60hz 1.5A
Power: 100w
Output DC: 20V 5A XT60
Main Plug: EU or US (Choose when ordering)
Features
Safe case design (no bare metal or wire terminals)
Over Current Protection
Compact and portable


Additional information
ColorM7, M7 And EU Plug, M7 And US Plug
