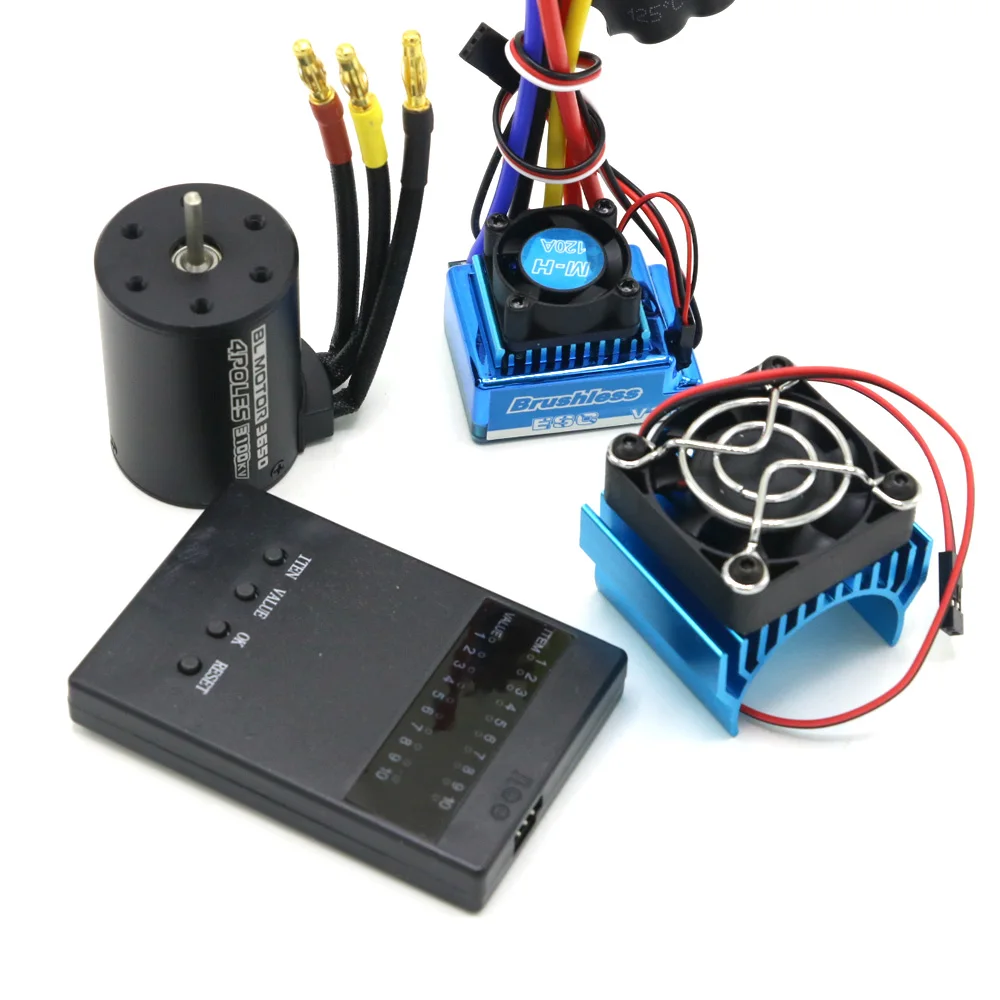

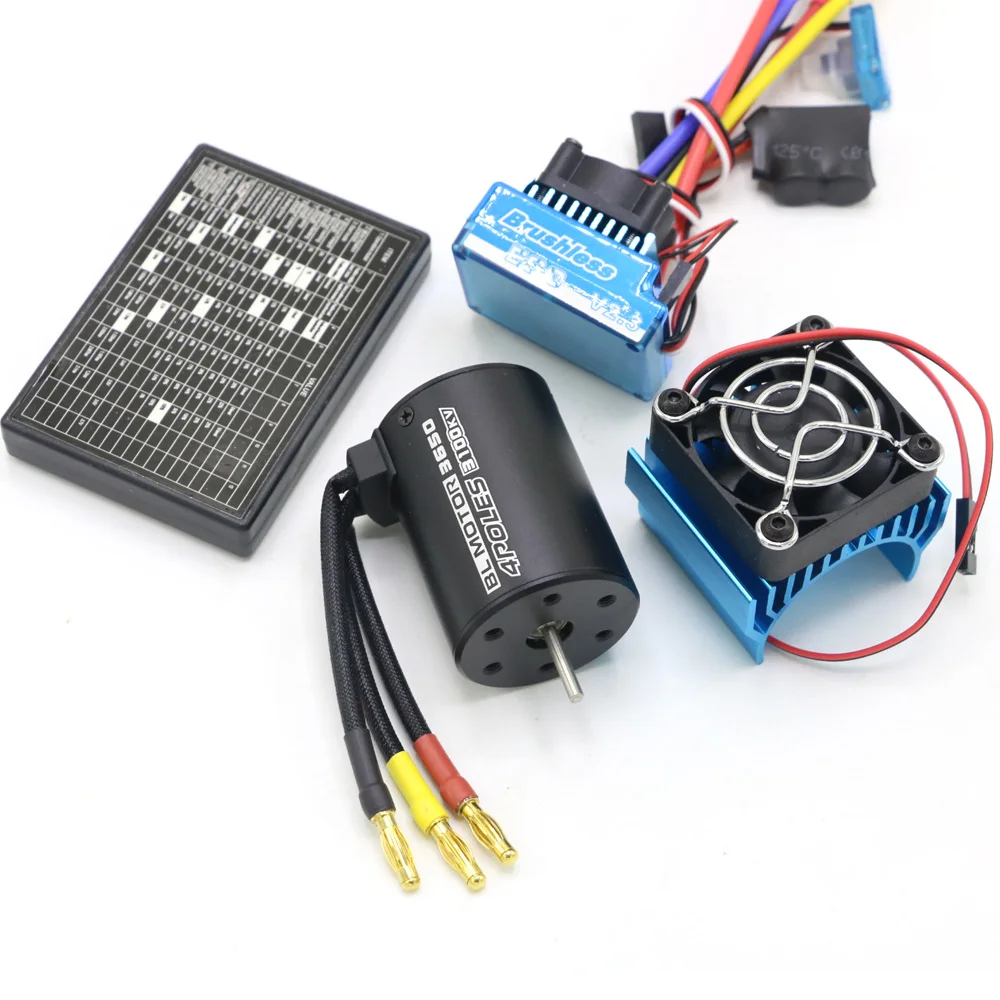

RC Motor 3650 3100KV / 3900KV / 4300KV / 5200KV Brushless Motor & 45A 60A 80A 120A ESC Combo Set for 1:10 RC Car RC Boat Part
Price range: $194.74 through $198.21
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: 120A ESC
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HLW046
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 50*36*15mm
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: 3650 3900KV Motor
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

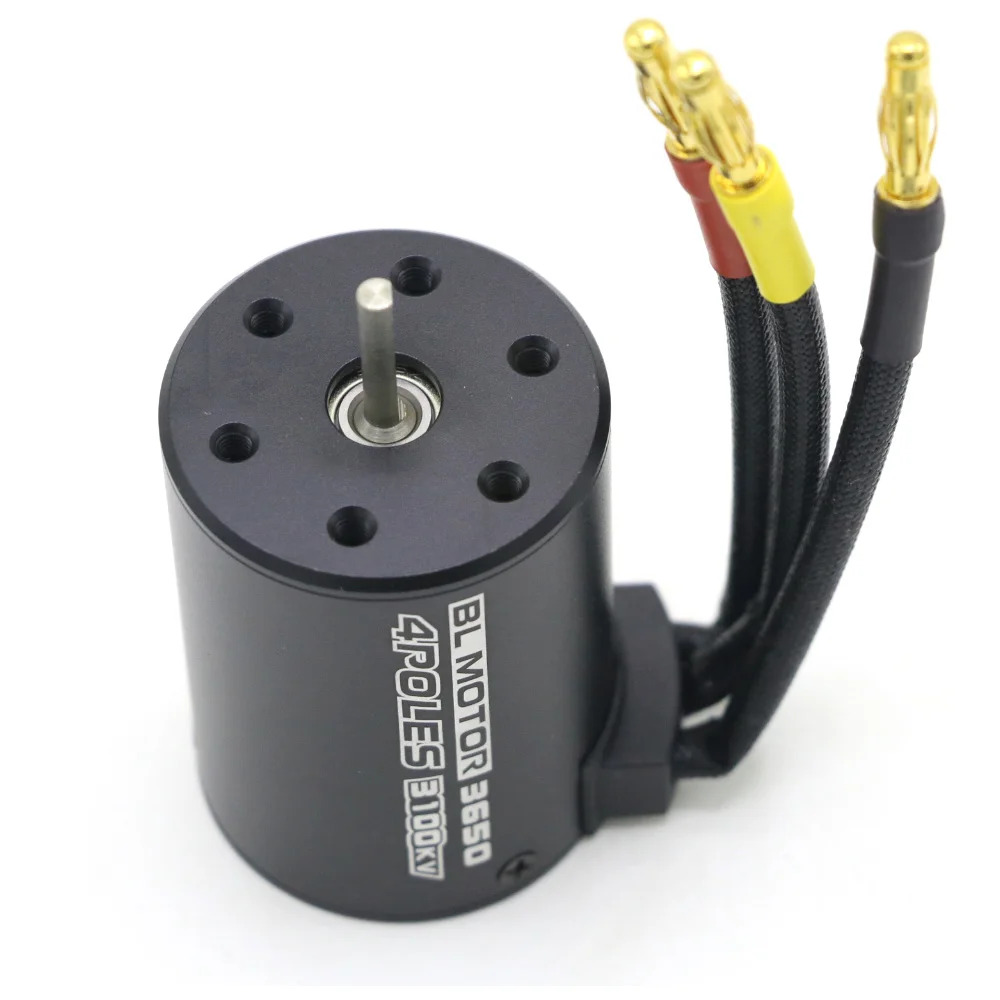

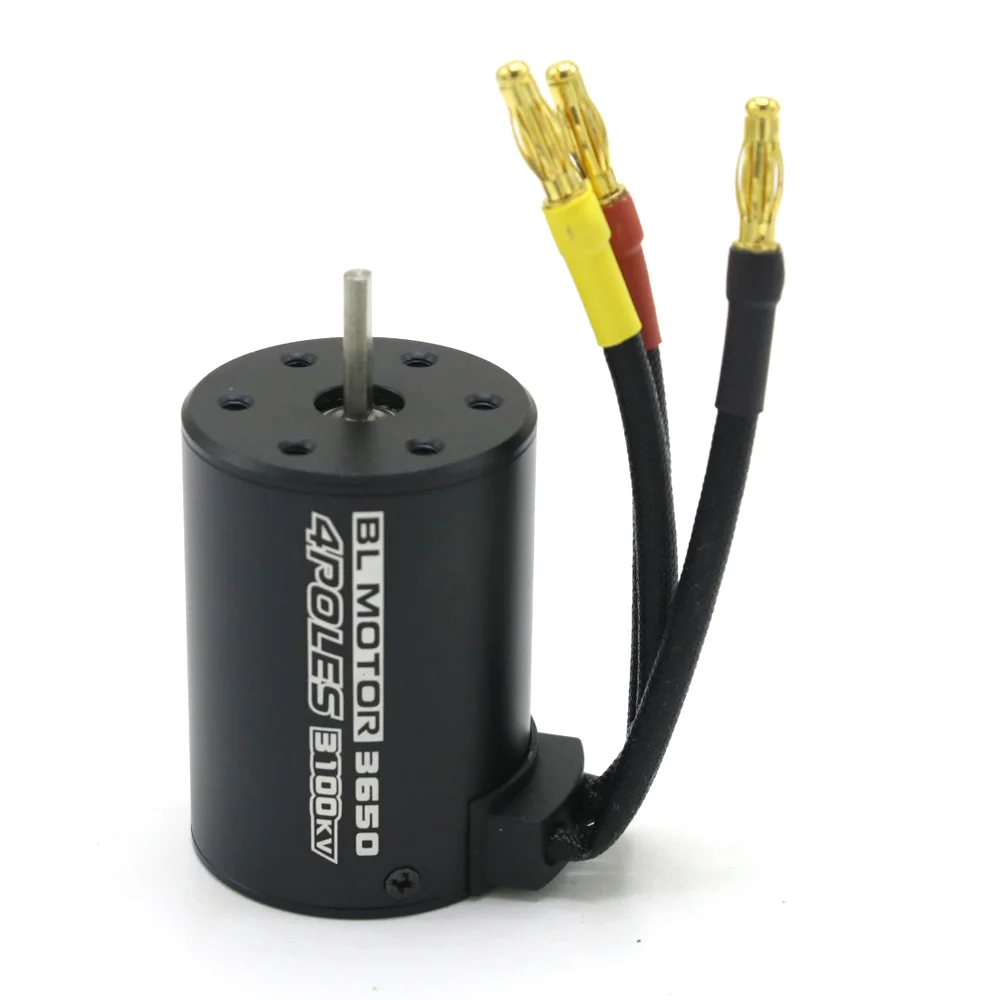

3650-3100kv Specifications:
Watts: 900W
Max voltage: <16V
Max Amps: 56A
KV(RPM/Volt): 3100KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650-3900kv Specifications:
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug

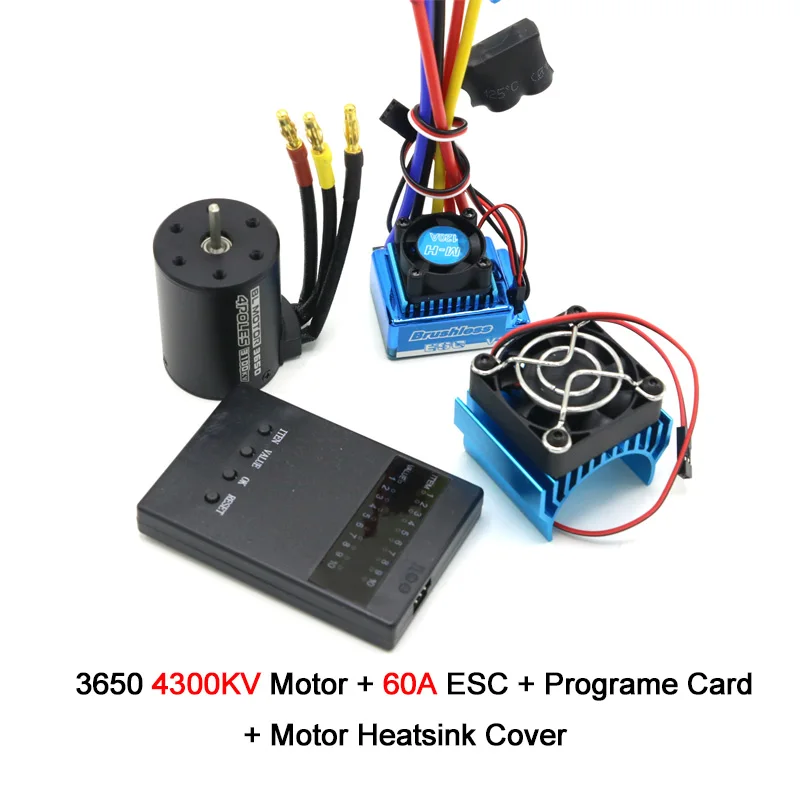

3650 4300kv motor Specifications: ( only support 2s battery )
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 4300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Outer Shaft diameter: 3.175mm
Inner Shaft diameter: 5.00mm
Plug type: 4mm golden banana plug
3650 5200KV Motor ( only support 2s battery )
Watts: 900W
Max Voltage: <9.6V
Max Amps: 94A
Rotor Poles: 4
KV(RPM/Volt): 5200KV
Max RPM: 50000
Length: 50mm
Diameters: 36mm with fins
Shaft diameter: 3.175mm
Length of Extend Shaft: 15mm
Plug Type: 4mm golden banana plug
45A ESC Specification:
Continuous Current: 45A
Burst Current: 180A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: T Plug Male
60A ESC Specifications:
Item Name: Waterproof ESC
Continue Current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
80A ESC Specifications:
Continue Current: 80A
Burst Current: 480A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Female Plug
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

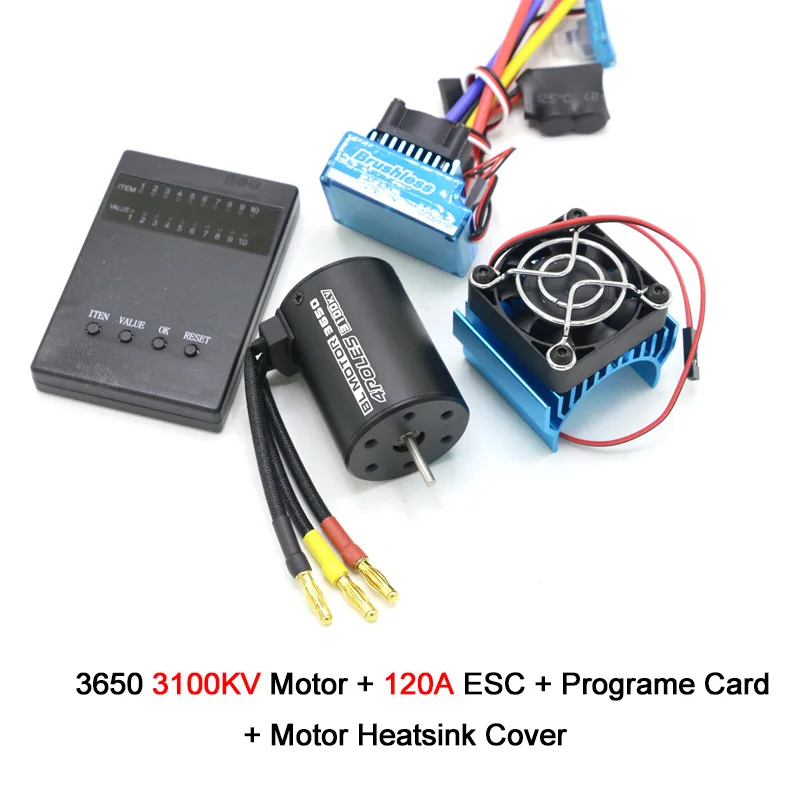

120A ESC Specifications:
Continuous Current: 120A
Burst Current: 480A / 10sec
Battery: 2-3s LiPo / 4-12s NiMh
BEC output: 5.3V / 5A(Switch Mode)
Power Supply Plug: T Male
Motor Plug: Female 5mm Bullet Connector
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

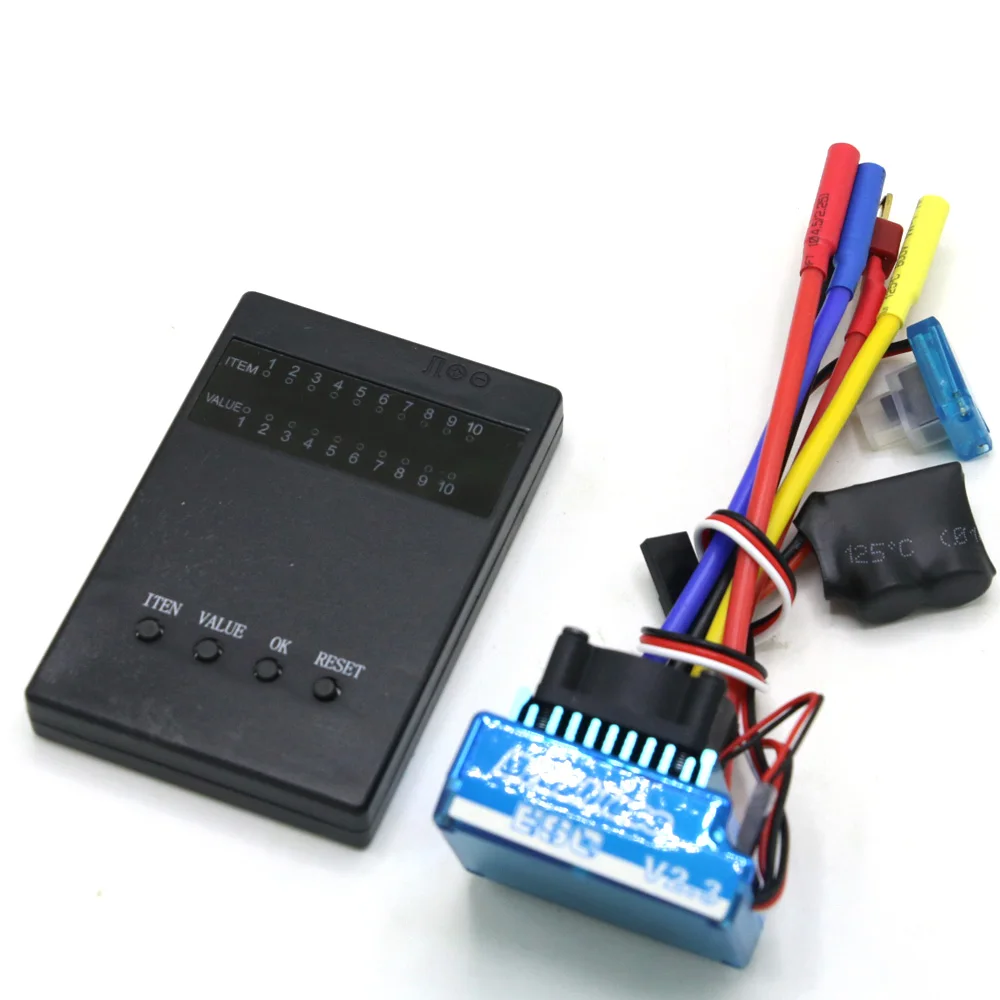

Programming Card for RC Car ESC Brushless Electronic Speed Controller
Features:
Light weight
Easy to use
Portable design
Programming Card for RC Car ESC Brushless Electronic Speed Controller, which
was specially designed for Brushless Electronic Speed Controller selled in our store.
Specifications:
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
Additional information
| Color | 4300KV 45A Combo, 4300KV 60A Combo, 4300KV 80A Combo, 4300KV 120A Combo, 5200KV 60A Combo, 3100KV 45A Combo, 3100KV 60A Combo, 3100KV 80A Combo, 3100KV 120A Combo, 3900KV 45A Combo, 3900KV 60A Combo, 3900KV 80A Combo, 3900KV 120A Combo |
|---|
