SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 2
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 3
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 4
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 5
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 6
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 7
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 8
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 9
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 10
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 11
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 12
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 13
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 14
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 15
SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone - Image 16

SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone

Price range: $179.52 through $227.29

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: d6lc0sofkvj000dobc20 Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: VTX 5.8G 48CH

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: RUM012

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Propellers

Recommend Age: 14+y

Remote Control Peripherals/Devices: Airframe

Size: 28mm*28mm

Technical parameters: value 2

Tool Supplies: 5.8G VTX

Upgrade Parts/Accessories: SpeedyBee TX800 VTX

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

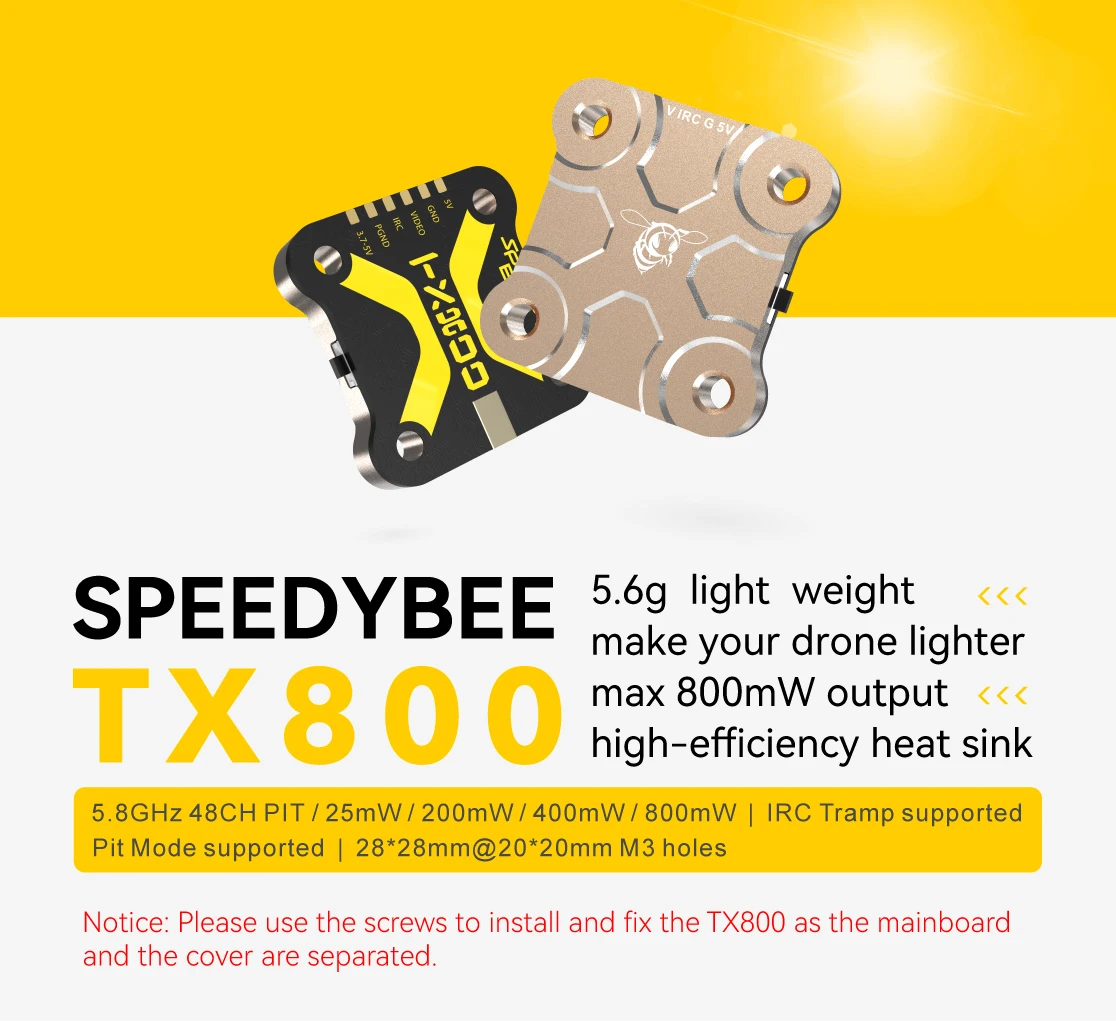

Item: SpeedyBee TX800 5.8G VTX

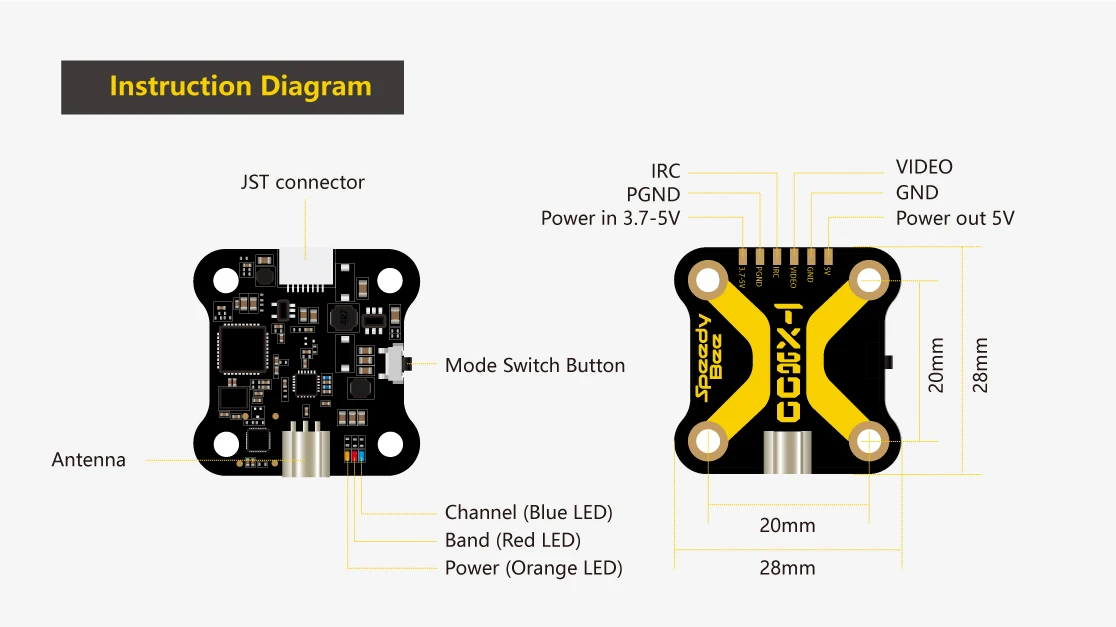

Parameters:Frequency Channel:5.8G 48CH
Output Power:PIT/25mW/200mW/400mW/800mW
Working Current:5V@250~750mA
Voltage out:5V@max 250mA
Voltage in:3.7-5.5V
Video input impedance:75 Ohm
Antenna Connector:MMCX
Weight:5.3g
PCB Size:28mm*28mm@20*20 M2

  • Package Included:

  • SpeedyBee TX800 VTX x1

  • Accessories

Additional information

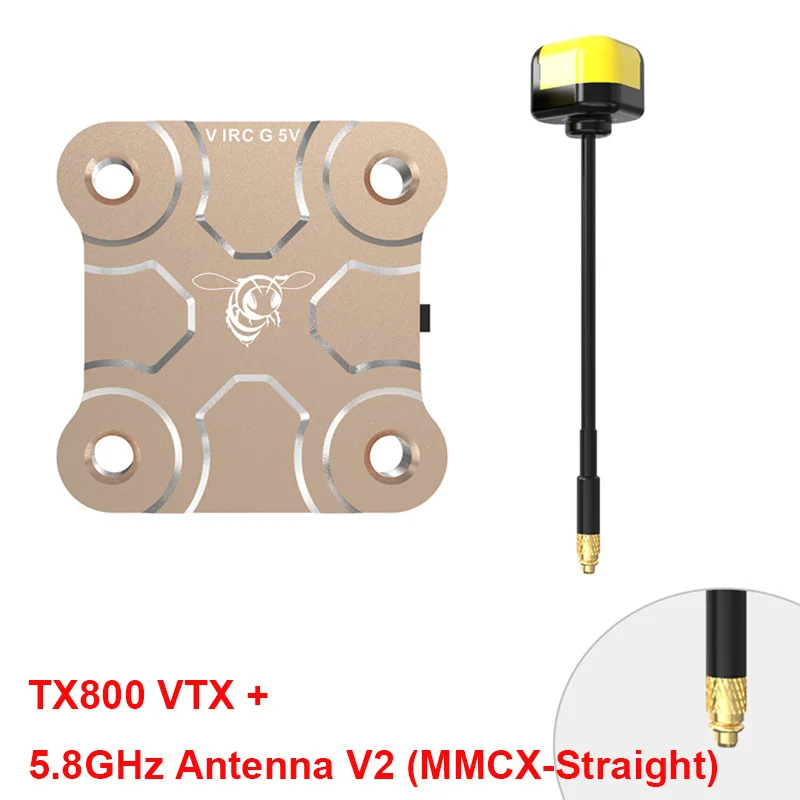

ColorTX800 MMCX-90, TX800 MMCX-Straight, TX800 SMA, TX800 VTX
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SpeedyBee TX800 VTX 5.8G 48CH PitMode 25mW/200mW/400mW/800mW Output Long Range Transmitter with 5.8 GHz Antenna For RC FPV Drone”
