Finder JHE42B JHE42B_S JHE20B 5V Super Loud Buzzer Tracker 110dB With LED Buzzer Alarm For FPV Racing Drone Flight Controller
Price range: $18.55 through $21.98
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: LED Buzzer Alarm
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: JJB034
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Batteries – LiPo
Recommend Age: 14+y
Remote Control Peripherals/Devices: Finder JHE20B
Size: 25*17*17mm
Technical parameters: value 2
Tool Supplies: Finder JHE42B_S
Upgrade Parts/Accessories: Finder JHE42B
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

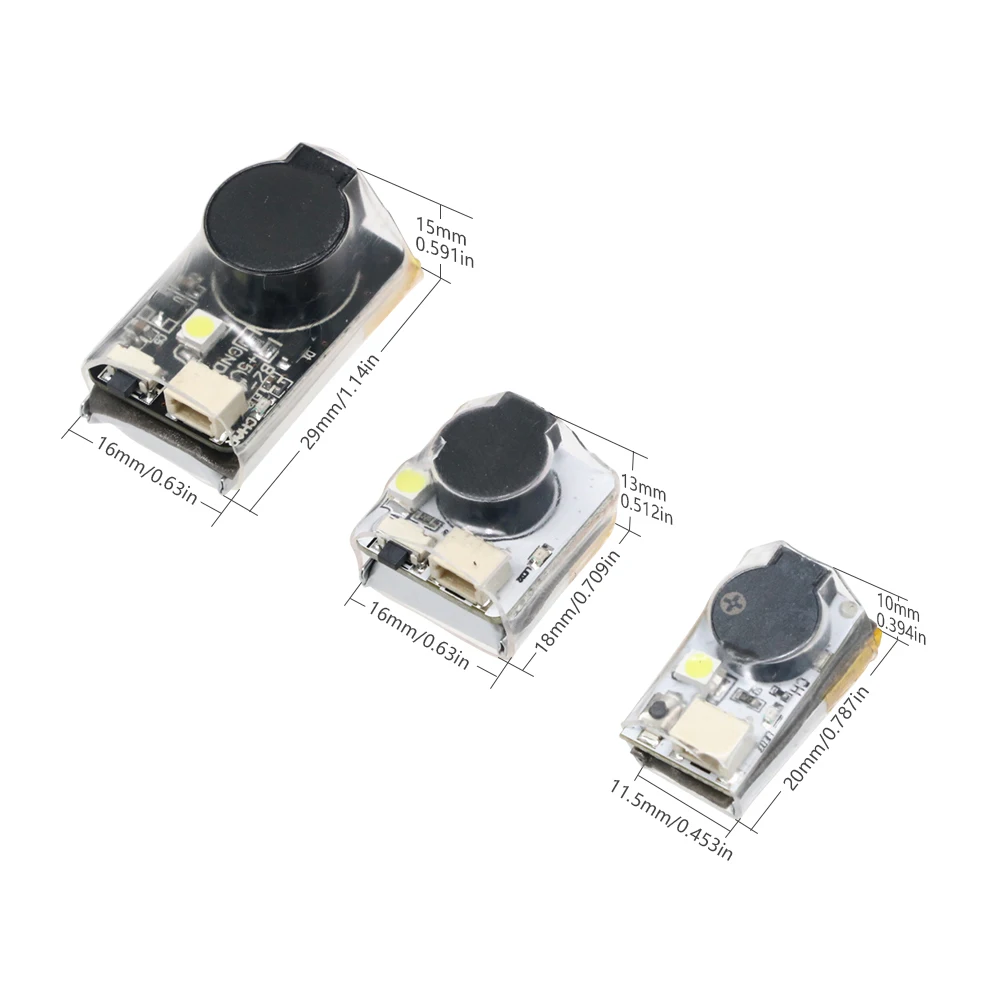

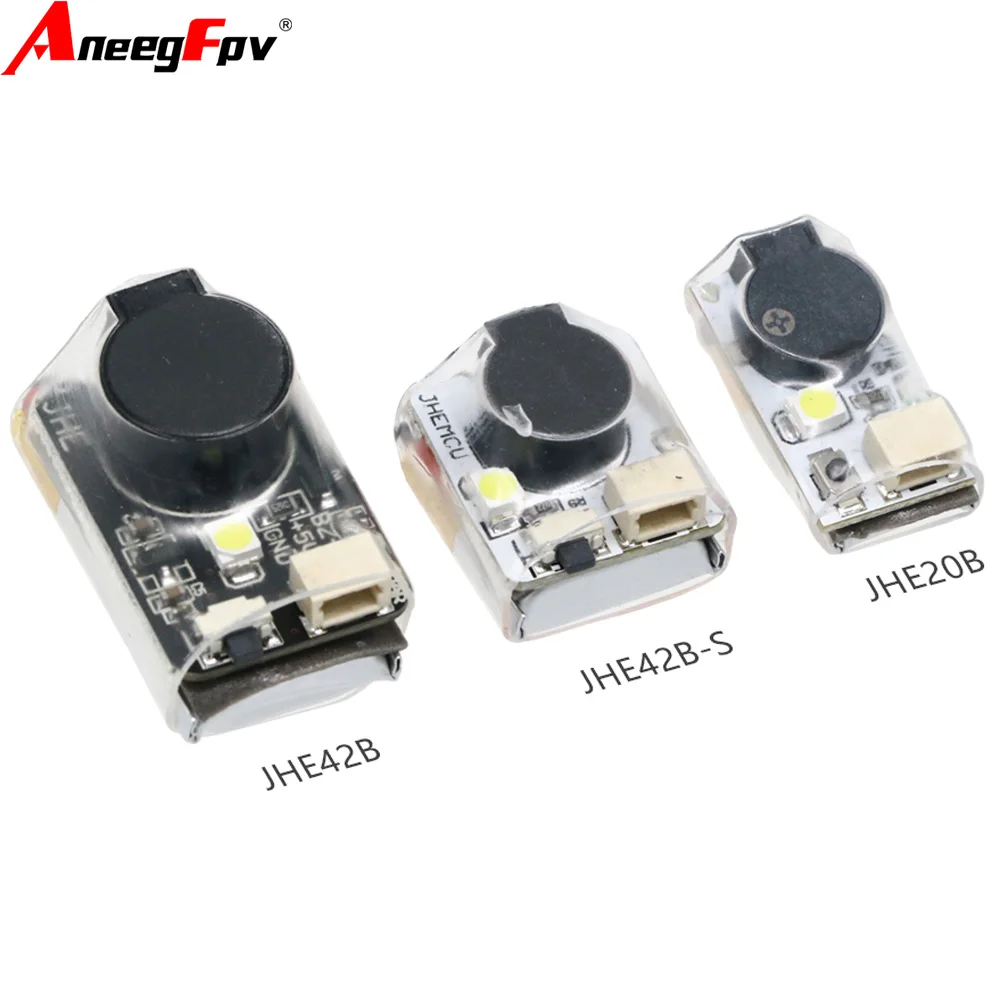

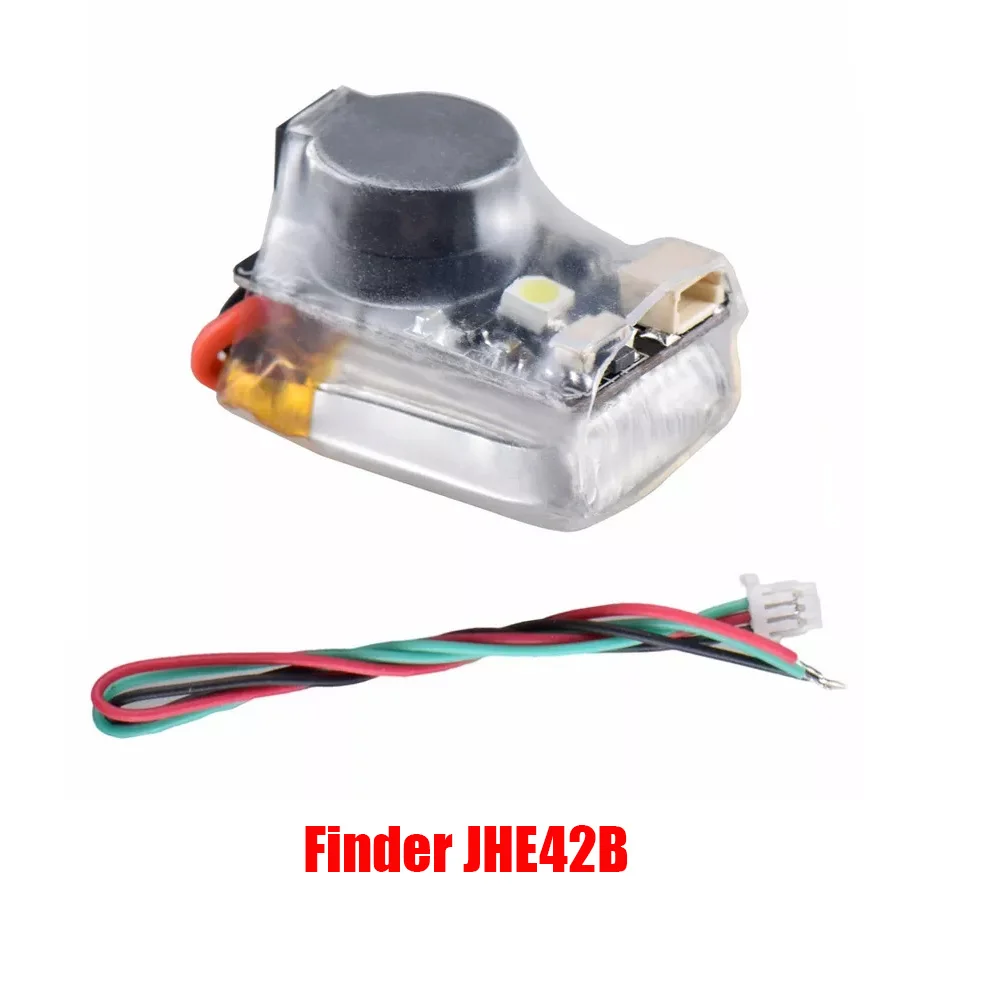

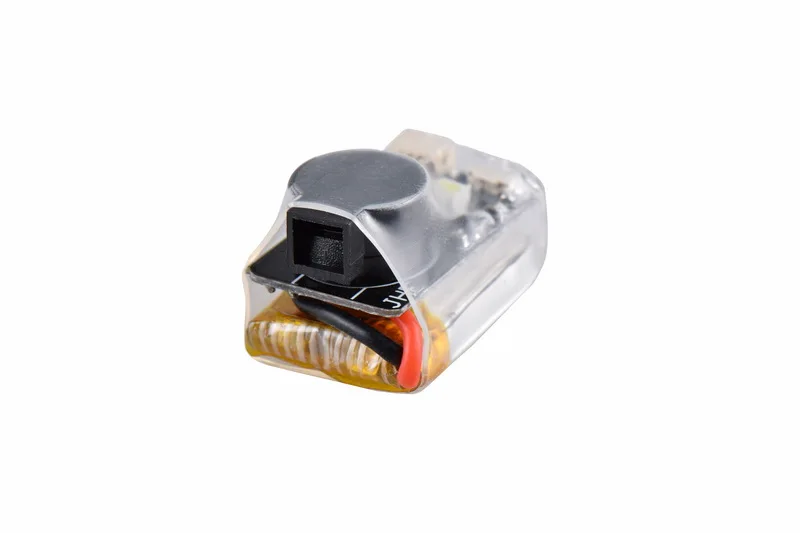

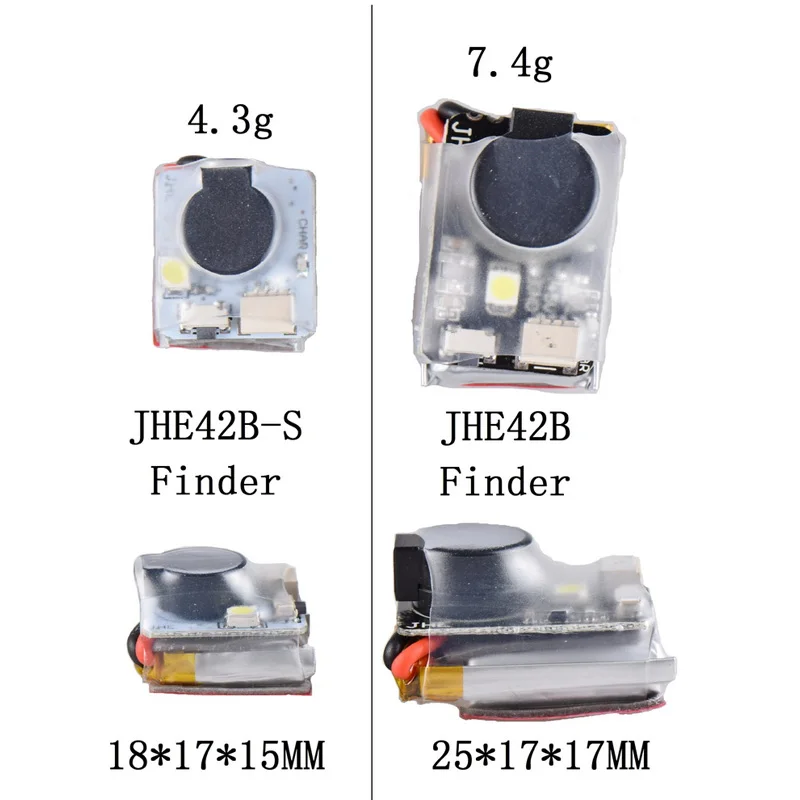

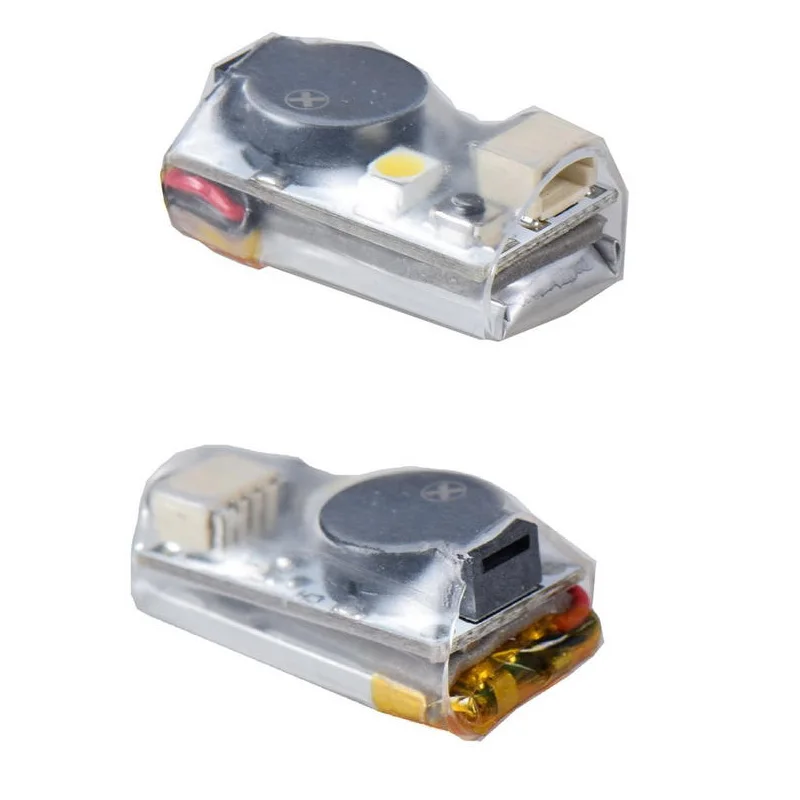

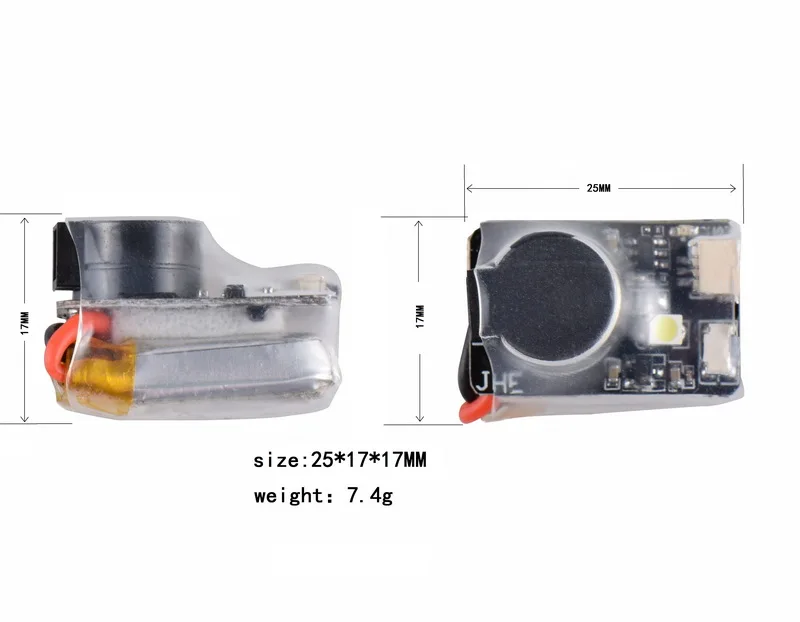

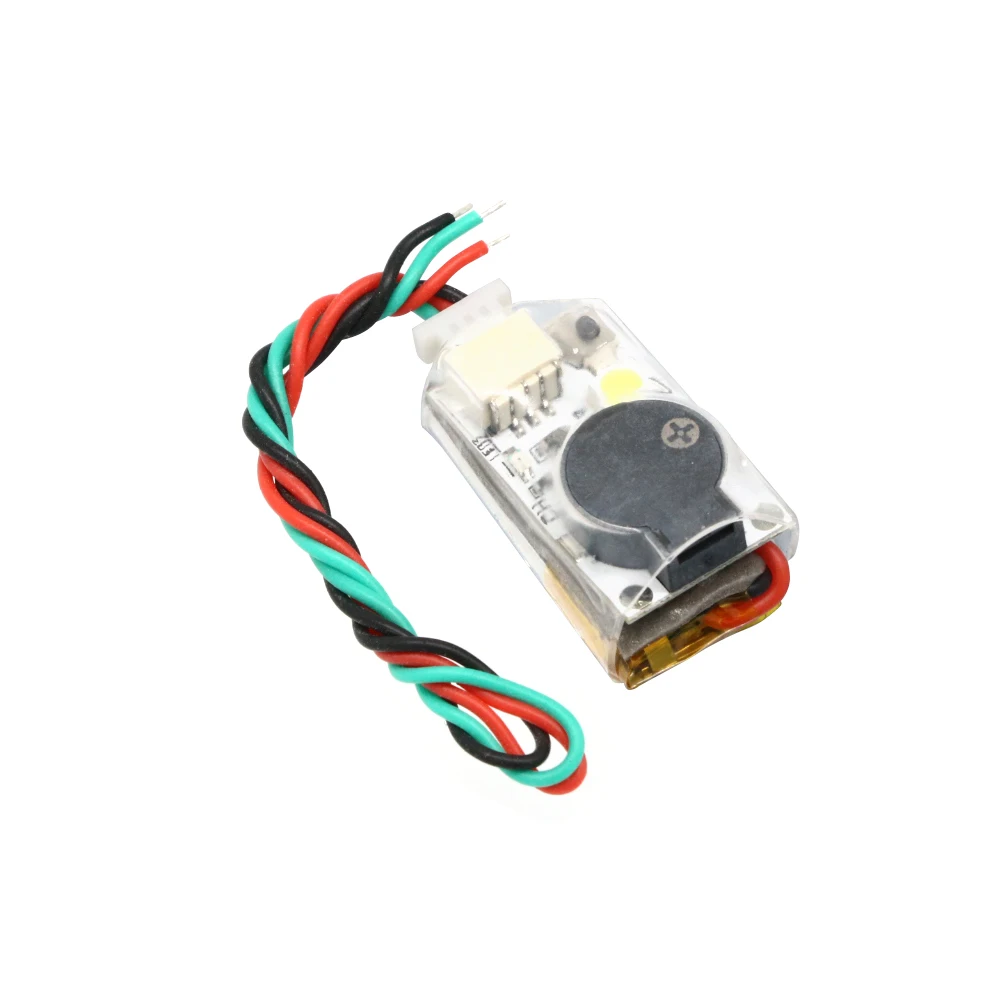

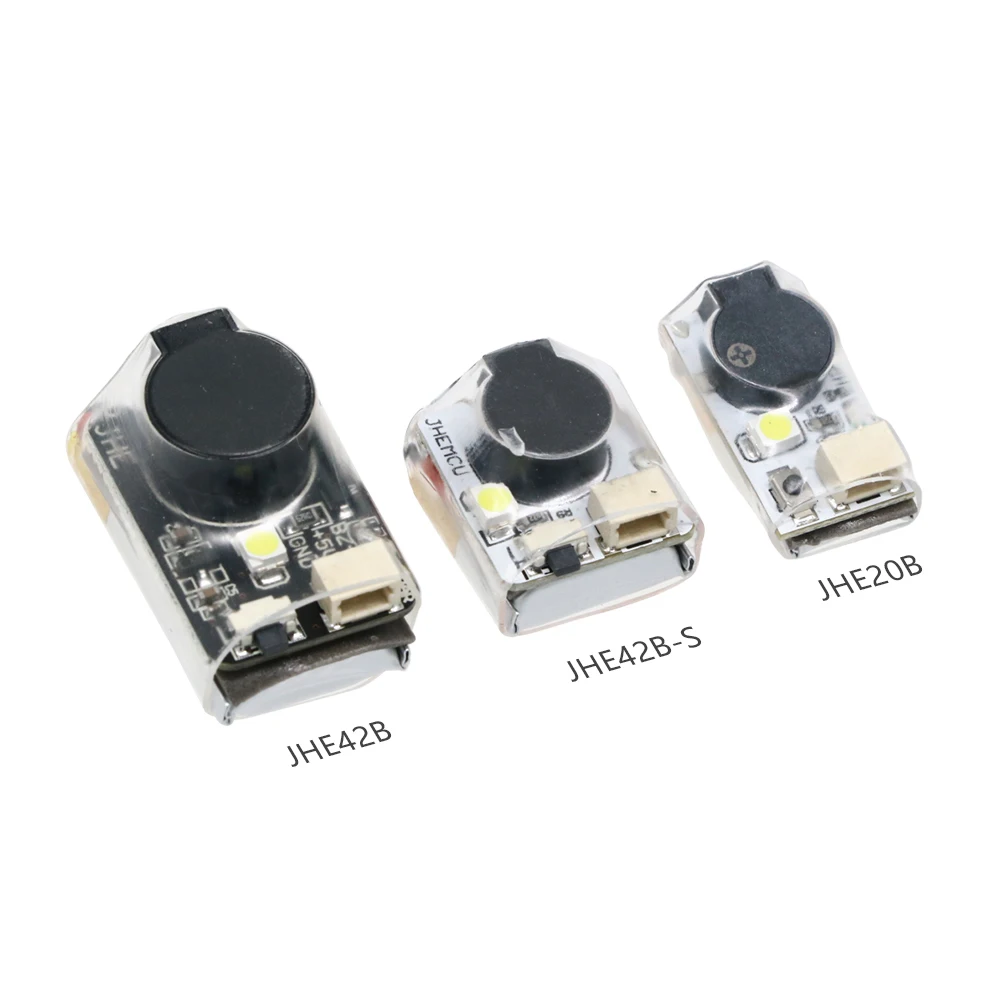

JHE42B Finder
Size: 25*17*17MM
Weight:7.4 g

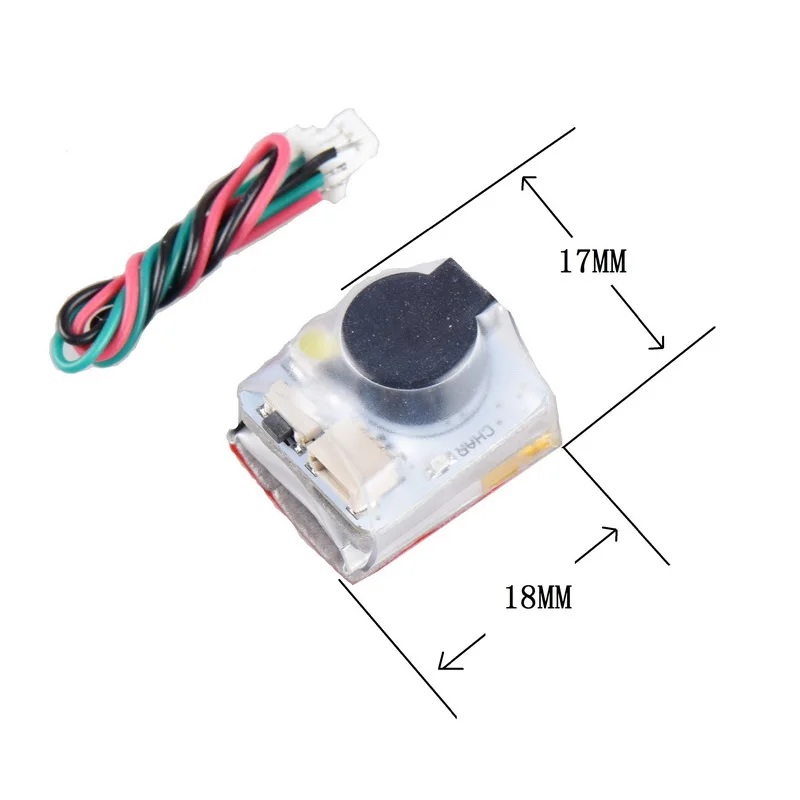

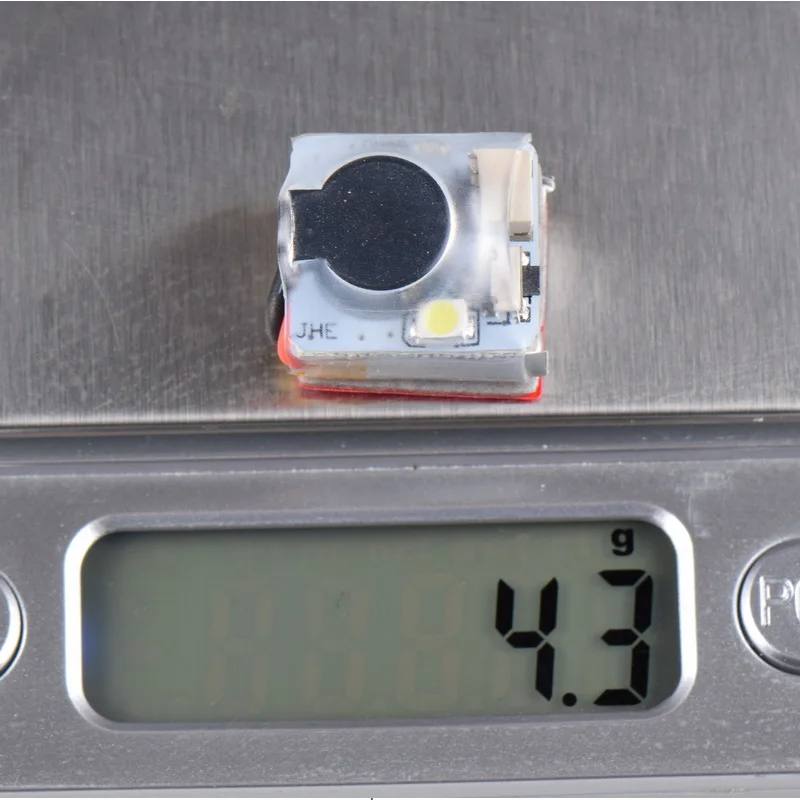

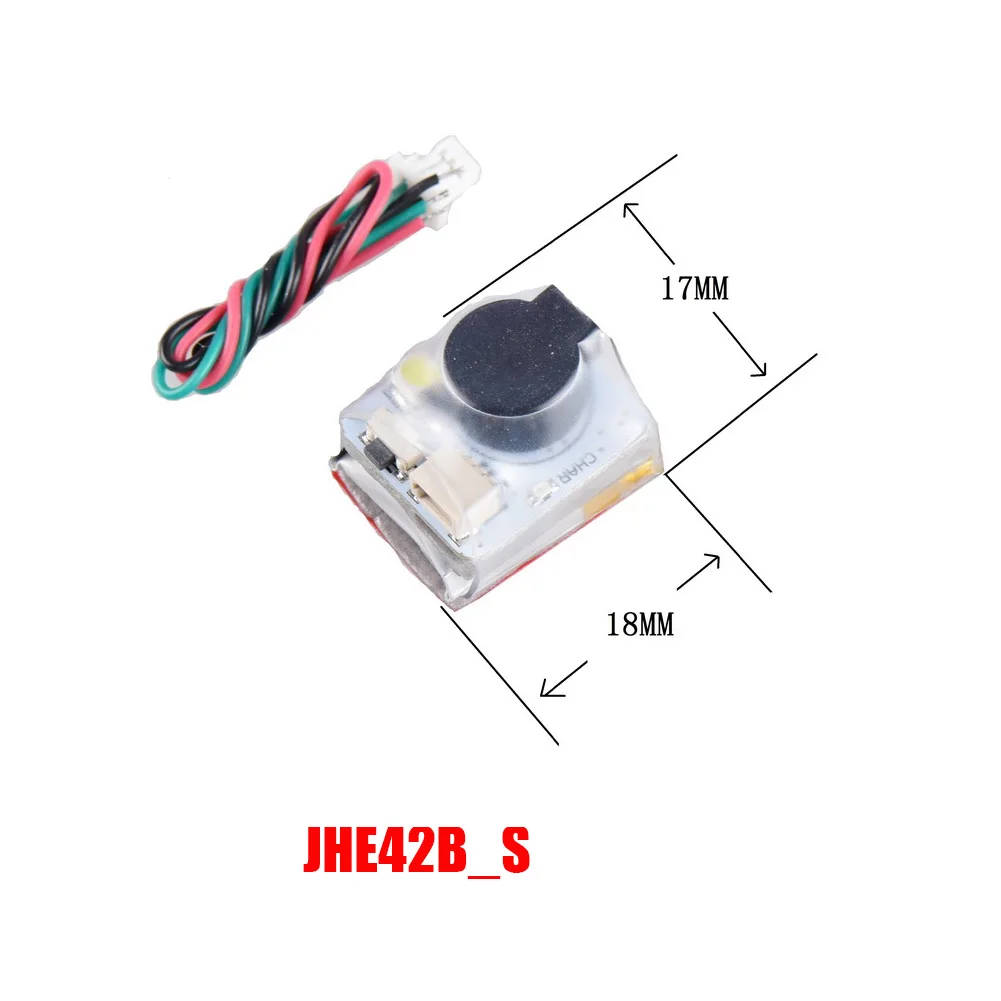

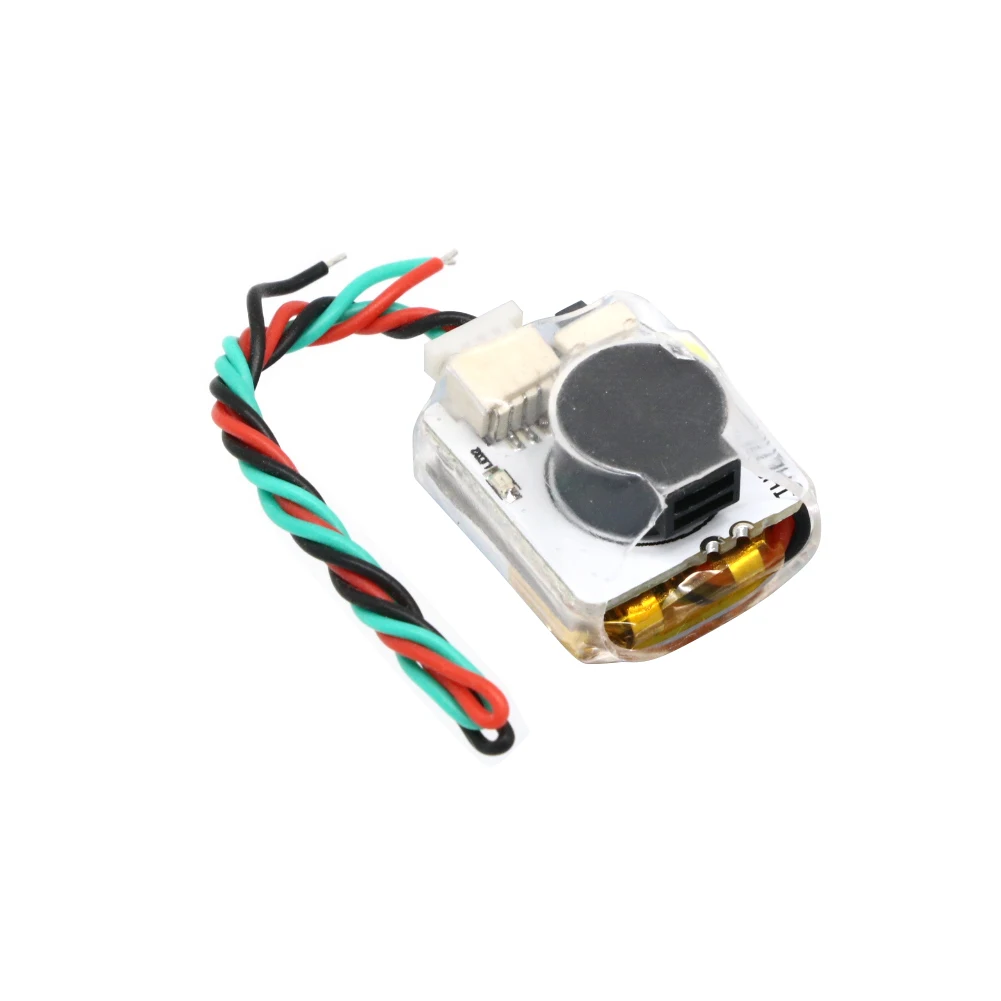

JHE42B_S Finder
Size:18*17*15MM
Weight: 4.3 g

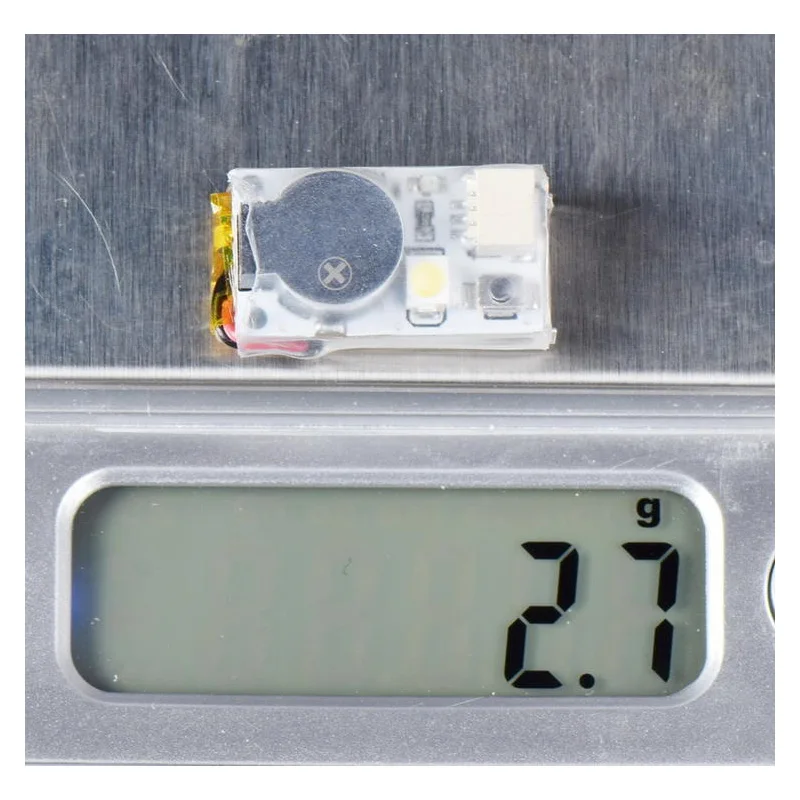

JHE20B Finder :
Size:22*12*9.5MM
Weight: 2.7 g
The buzzer has two modes of operation:
1. It is compatible with the functions of the traditional active buzzer and synchronized with the flight control.
2. When the flight control is normally connected, if the main battery in the flight is powered off, it can still automatically emit 100 dB of drip sound after 30 seconds of power failure, and the LED will emit white light, and the sound is louder than the general buzzer. Much bigger.

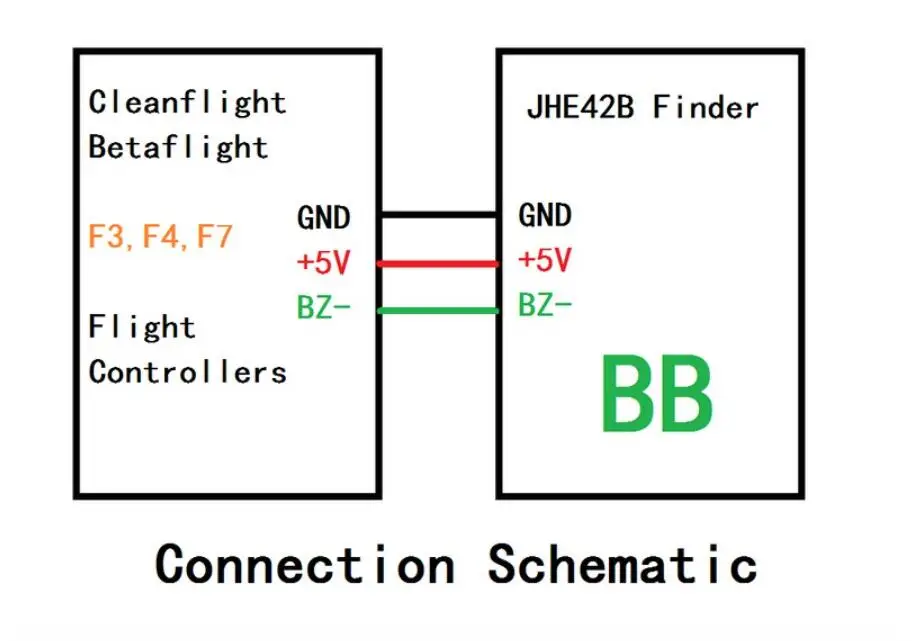

The JHE42B Finder is compatible with all BF and CF flight controls.

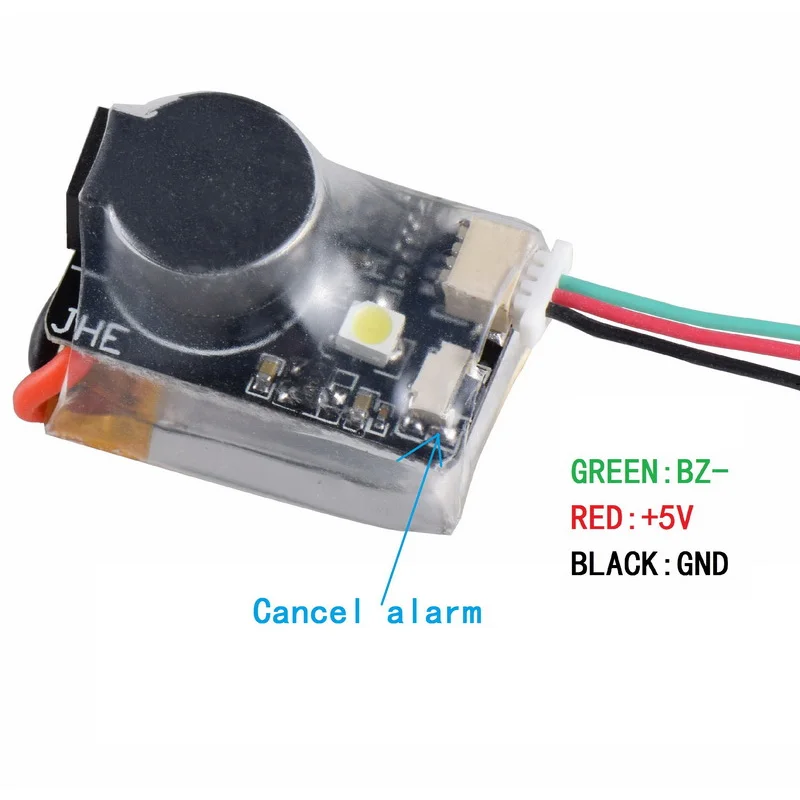

Just connect to the buzzer interface of the flight controller and it will work. When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will automatically charge the JHE42B Finder (the red LED will light to indicate that charging is in progress).

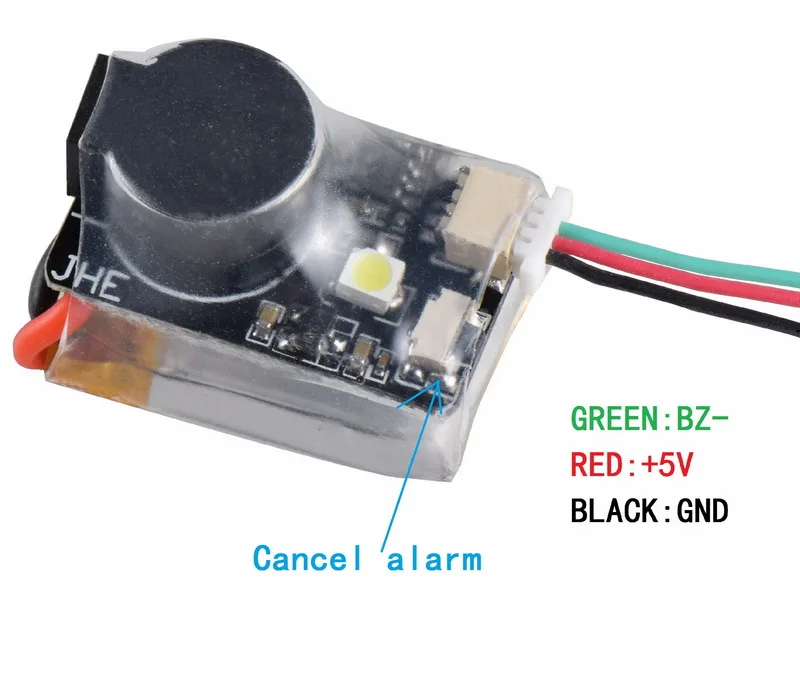

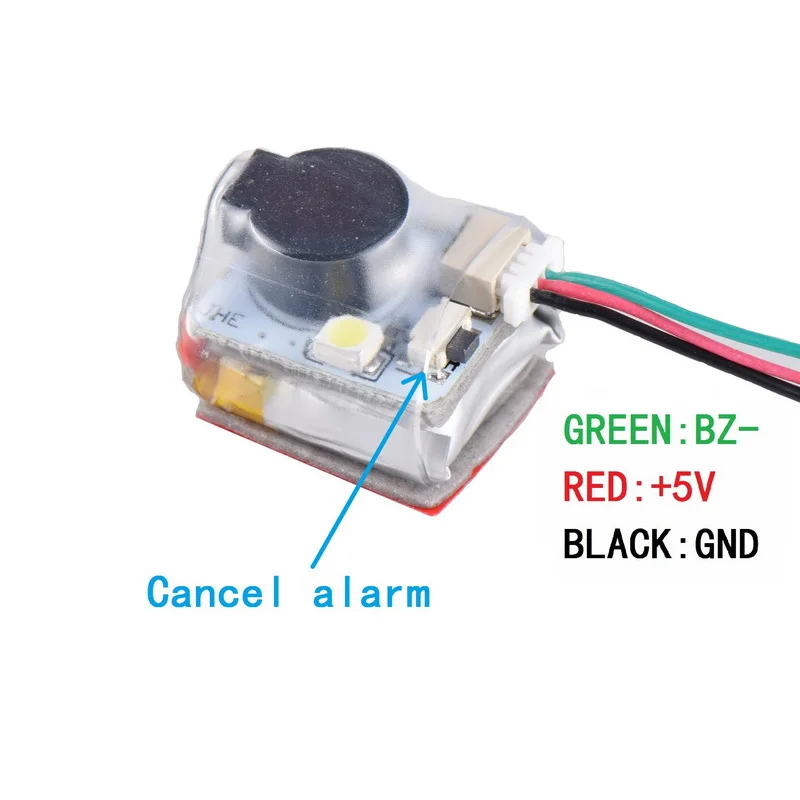

How to turn off the buzzer:
Press and hold the release button for more than 2 seconds, the JHE42B_S Finder turns off the sound. The JHE42B_S Finder is compatible with all BF and CF flight controls. Just connect to the buzzer interface of the flight controller and it will work. When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will automatically charge the JHE42B_S Finder (the red LED will light to indicate that charging is in progress,Red LED off means charging is saturated; red light flashing means flight controller is powered off, wait 30 seconds waiting time).
How to turn off the buzzer:
Press and hold the release button for more than 2 seconds, the JHE20B Finder turns off the sound.
The JHE20B Finder is compatible with all BF and CF flight controls. Just connect to the buzzer interface of the flight controller and it will work. When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will automatically charge the JHE20B Finder (the red LED will light to indicate that charging is in progress, Red LED off means charging is saturated; red light flashing means flight controller is powered off, wait 30 seconds waiting time).
Additional information
| Color | JHE20B, JHE42B, JHE42B S |
|---|
