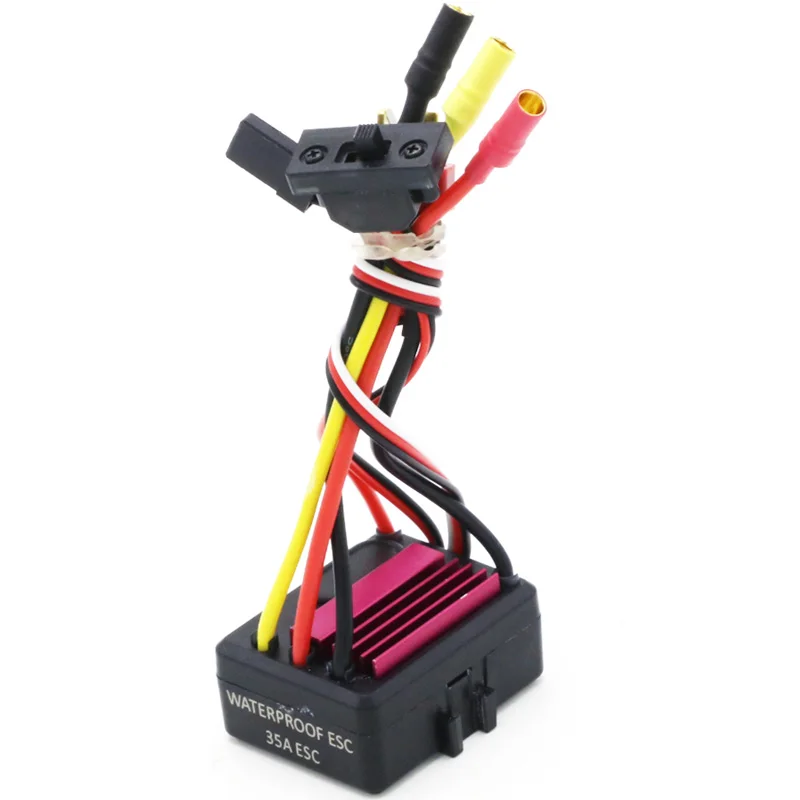

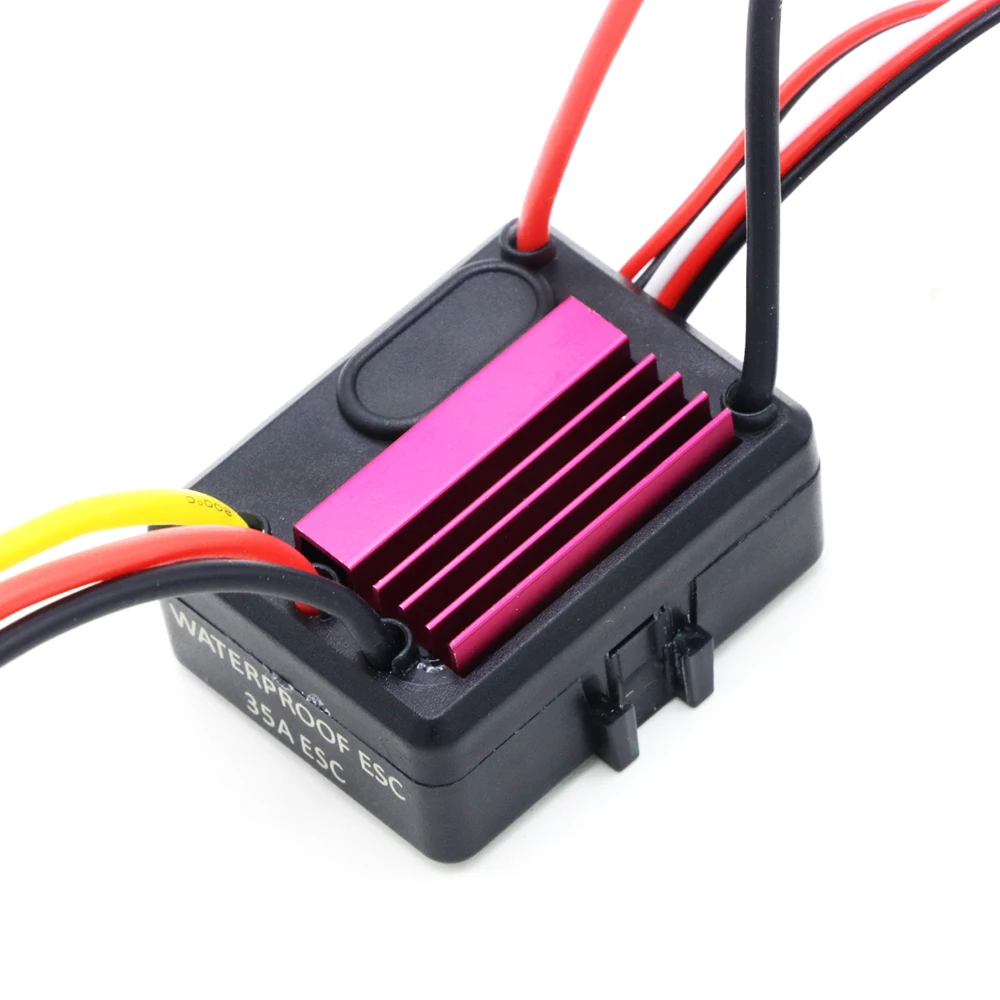

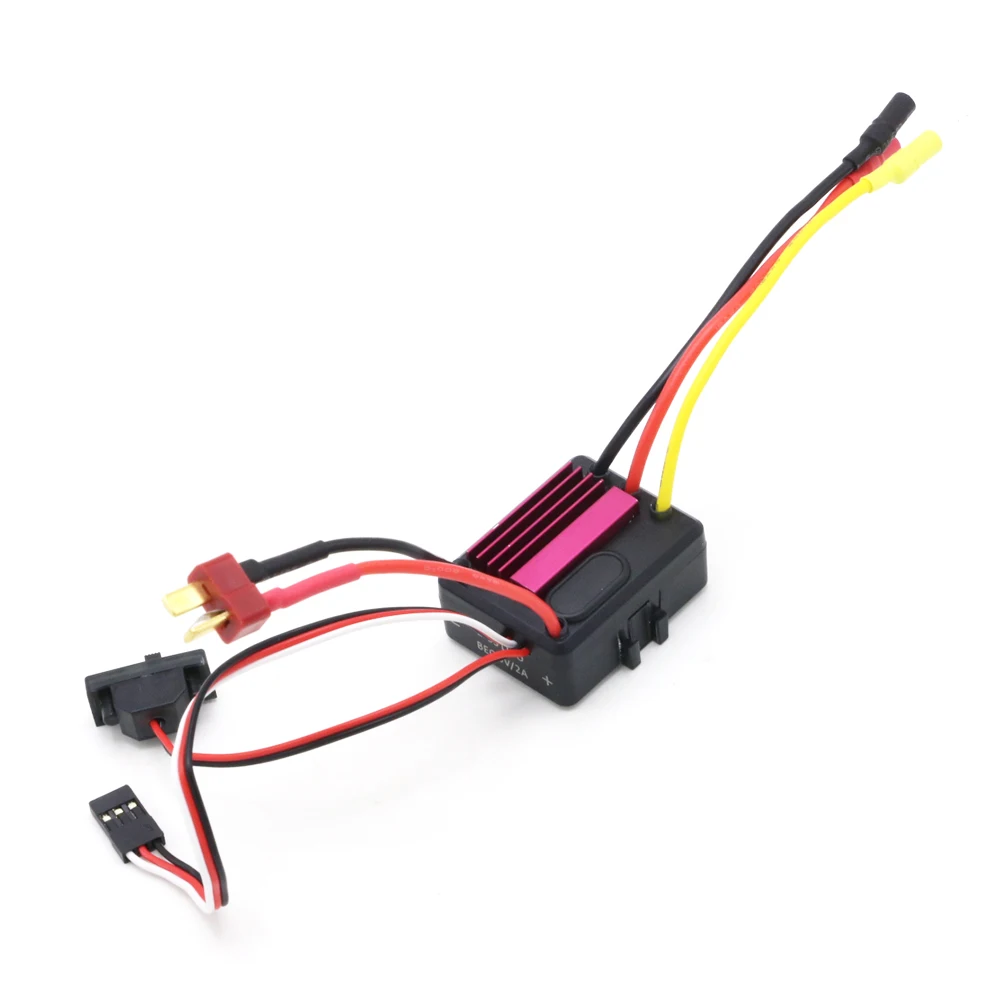

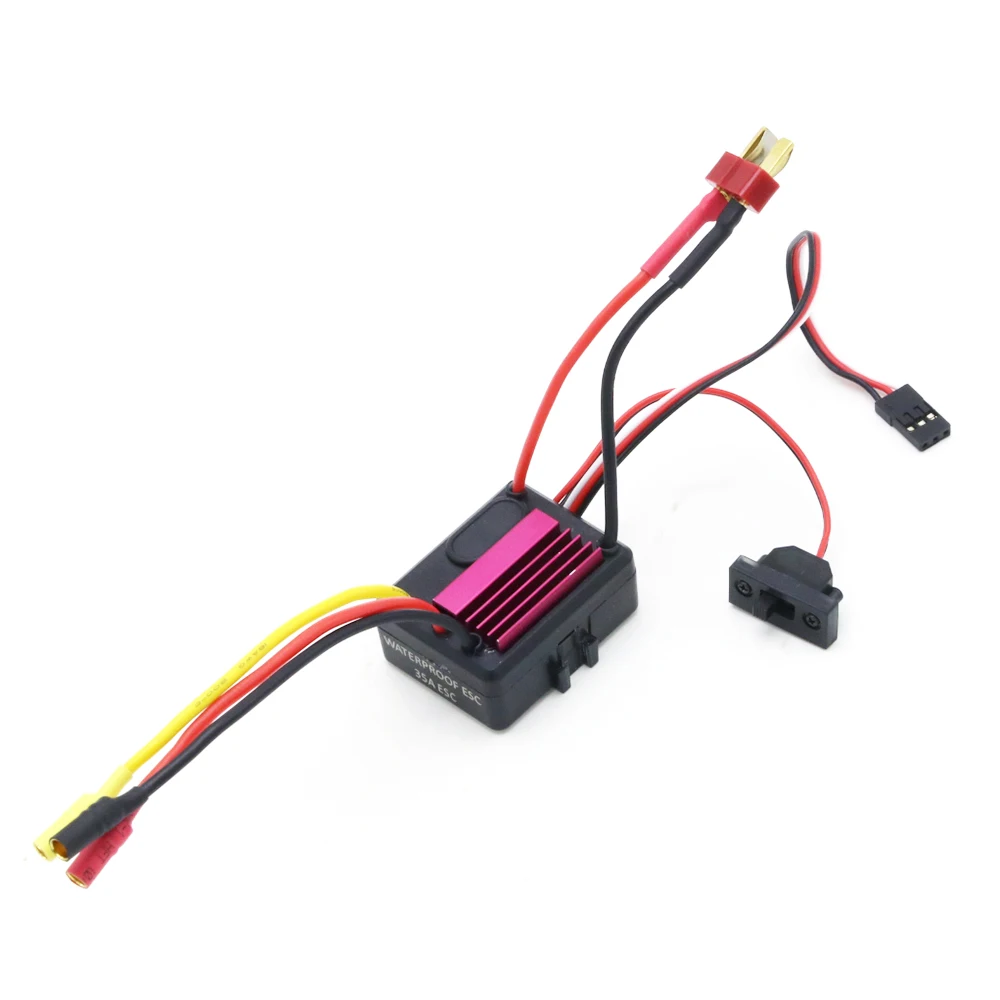

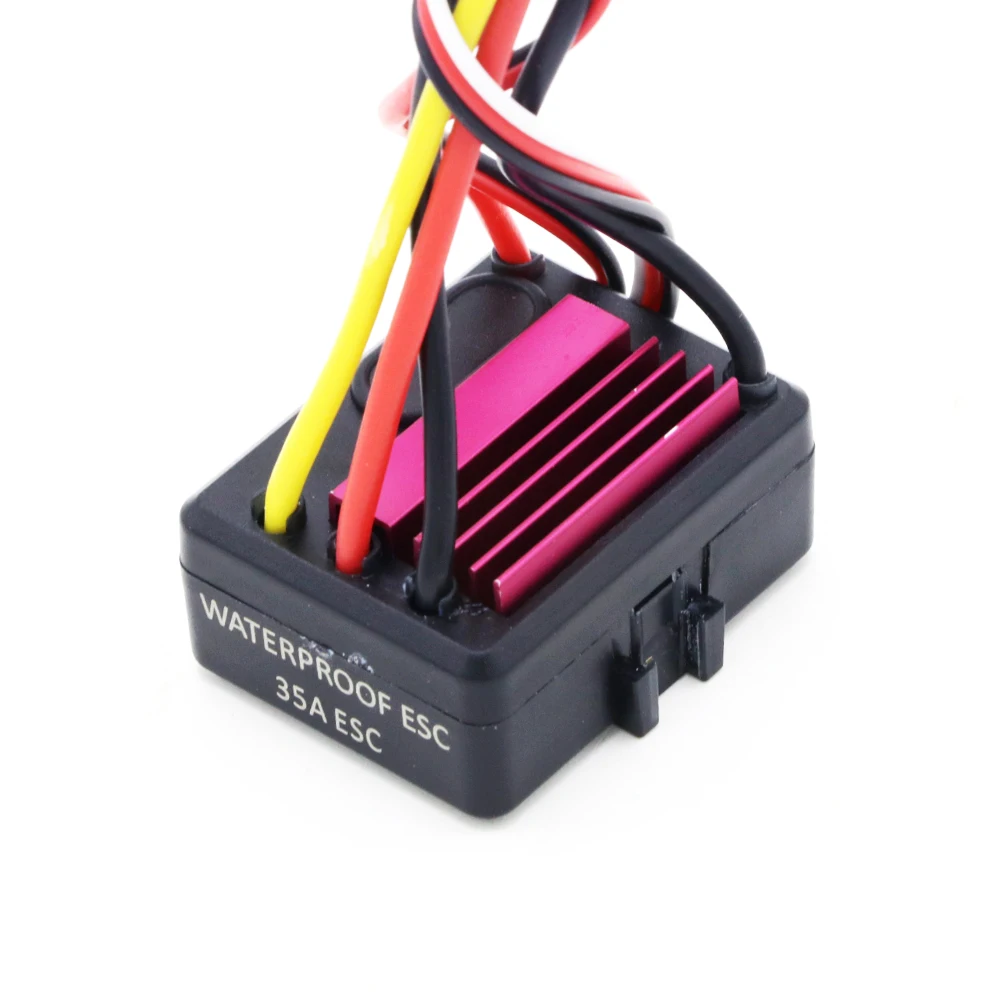

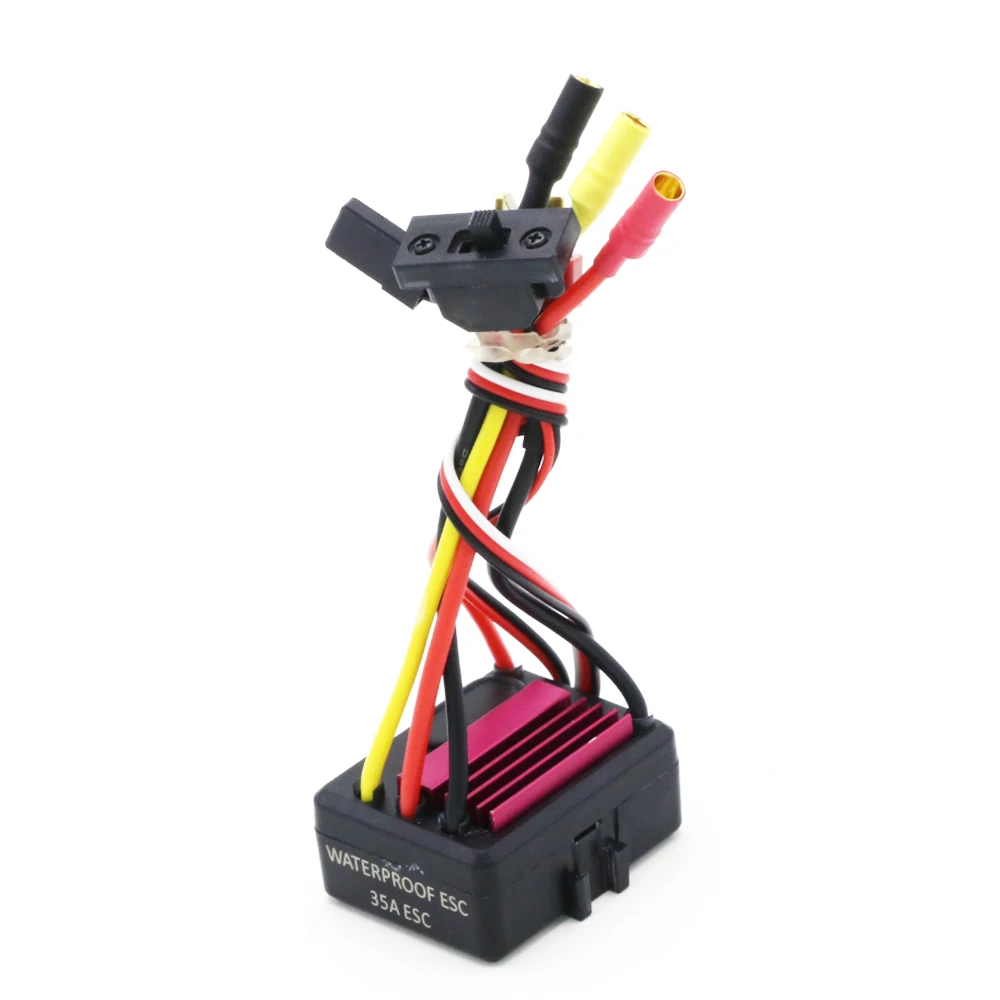

Rc KK 35A brushless Motor ESC Waterproof 2-3S Lipo programmable for 1/14 1/16 RC Car
Original price was: $93.66.$62.44Current price is: $62.44.
8 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HLW069
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motor Components
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 40*32*20
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Brushless Motor
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
This is Electronic Speed Controller (ESC) for car. High power system for RC model isvery dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or
maintenance of our products, we'veno liability shall be assumed nor accepted for anydamages,losses or costs resulting from the use of the product. Any claimsarising from theoperating, failure of malfunctioning etc. will be denied.We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.
ESC Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
ESC Specification:
Name: 35A ESC
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV
<3000KV
Suitable Car: 1/16 1/14 Car
Resistance: 0.0004ohm

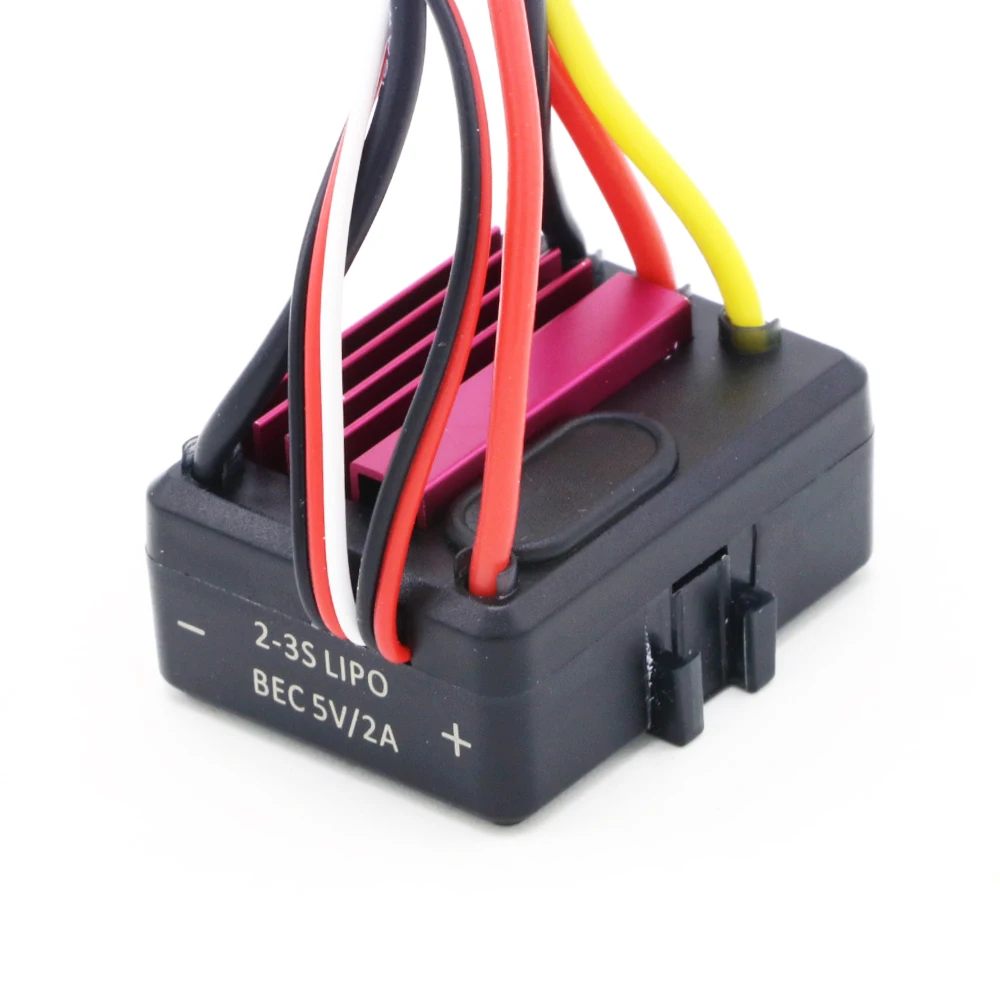

Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.0V/2A(analog mode)
Dimensions/Weight: 40x31x17mm/44g
