Rc Antenna 5.8G 14dBi SMA / RP-SMA Image Transmission Reception Orientation Plate Antenna Ultra Long Distance
Price range: $32.62 through $33.15
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Antenna
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HLW057
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Antennas
Recommend Age: 14+y
Remote Control Peripherals/Devices: Antenna
Technical parameters: value 2
Tool Supplies: Antenna
Upgrade Parts/Accessories: Antenna
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

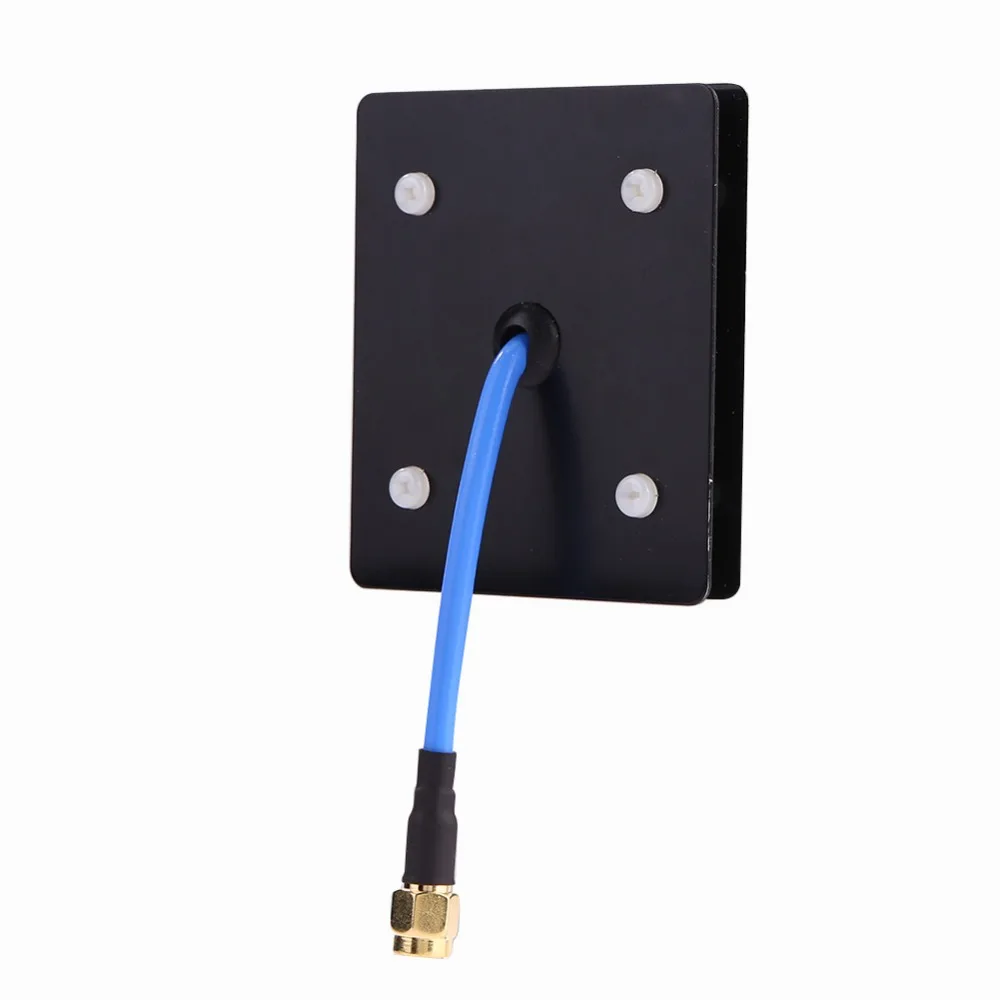

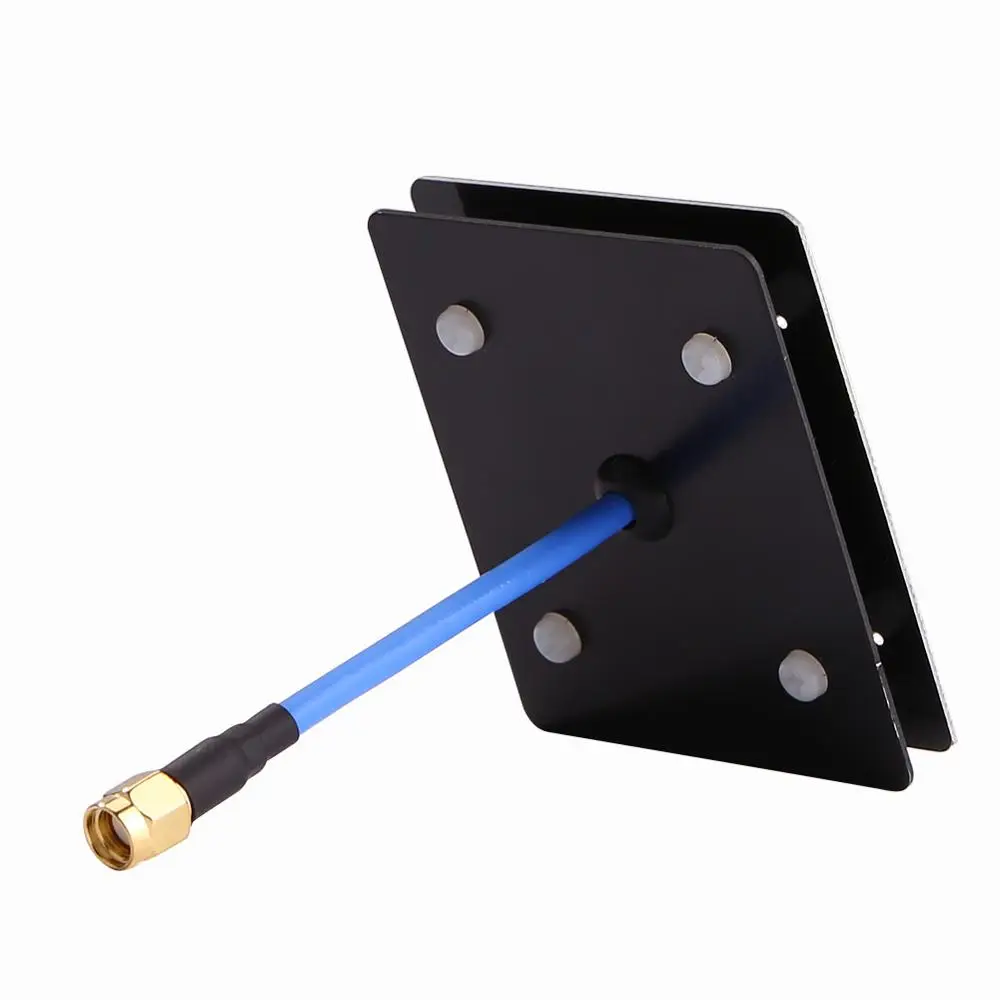

It's a newly designed directional antenna with an operating frequency range of 5-6GHz and a gain of 13-14dBi.

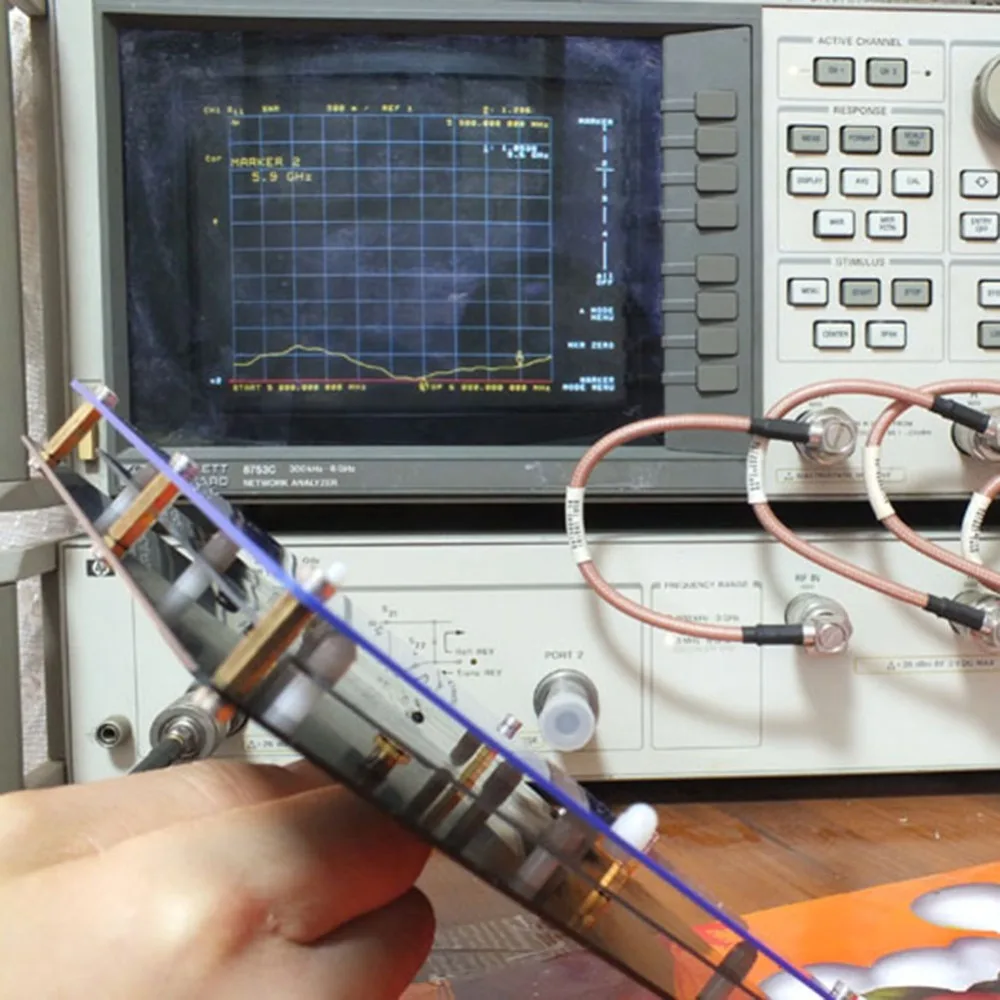

The signal receiving range is 40 degrees, and the optimal frequency of the indicator is 5800-5900MHZ.
Under the net field conditions, the transmission power is 600mW, which can realize the transmission of 10km. Under complex electromagnetic conditions, the transmission distance of the image is shortened accordingly.

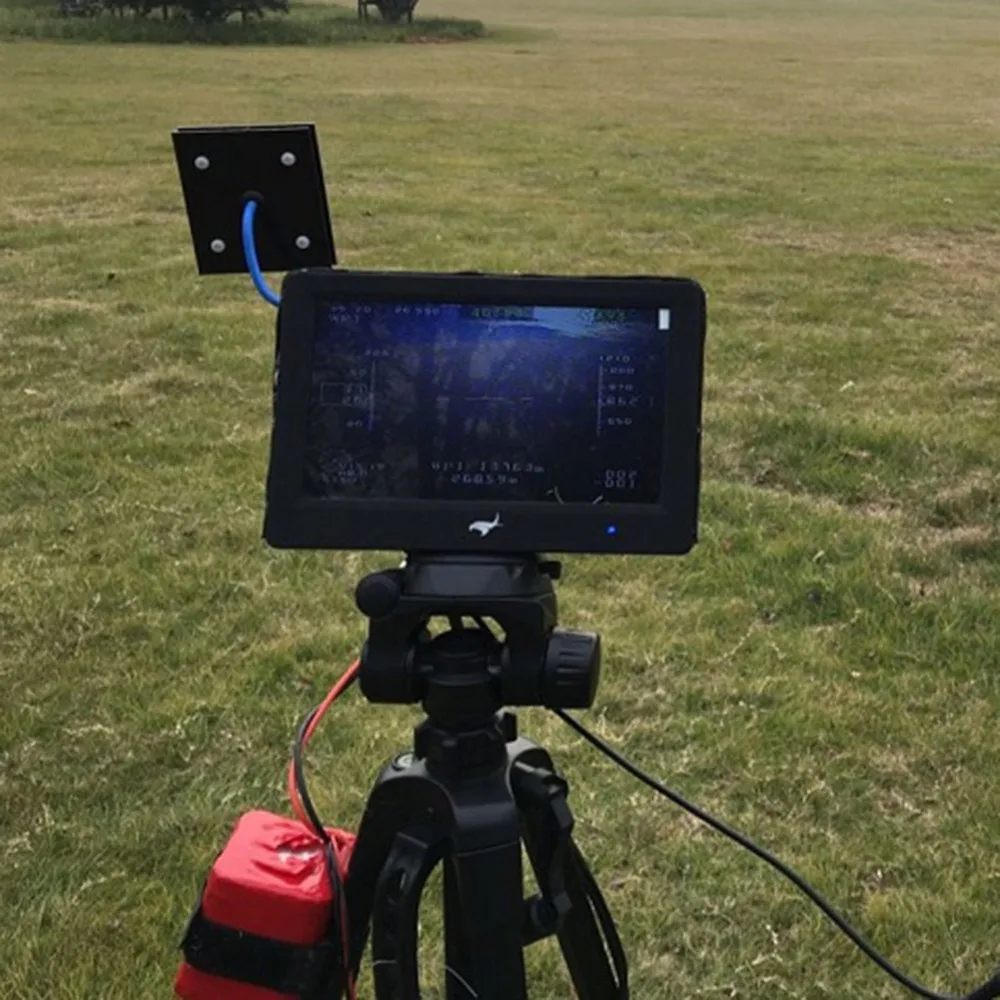

Try to ensure that there are no obvious obstacles between the aircraft and the receiving antenna when using it;
Make sure that the picture transmission is at least one meter away from the 433 extended range (as far as possible), which can significantly improve the reception quality.
The antenna can be appropriately adjusted up and down, left and right, so that the maximum radiation direction of the antenna is aligned with the aircraft to ensure optimal results.

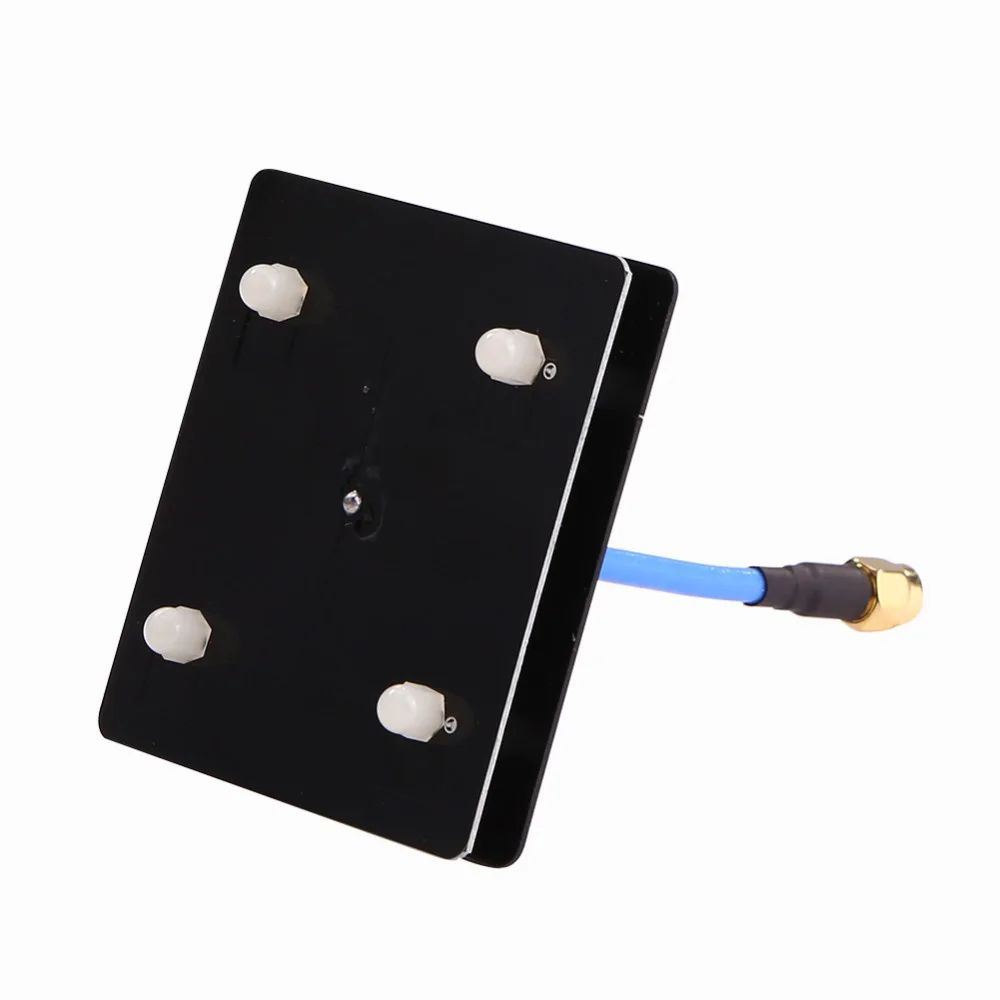

(Note: The antenna PCB board is the maximum radiation direction).
The antenna feeder can't be pulled hard, and it can't be bent too much, avoiding rapid folding and folding, otherwise it will affect the use of the antenna.
Additional information
| Color | RP-SMA Hole, SMA Pin |
|---|
