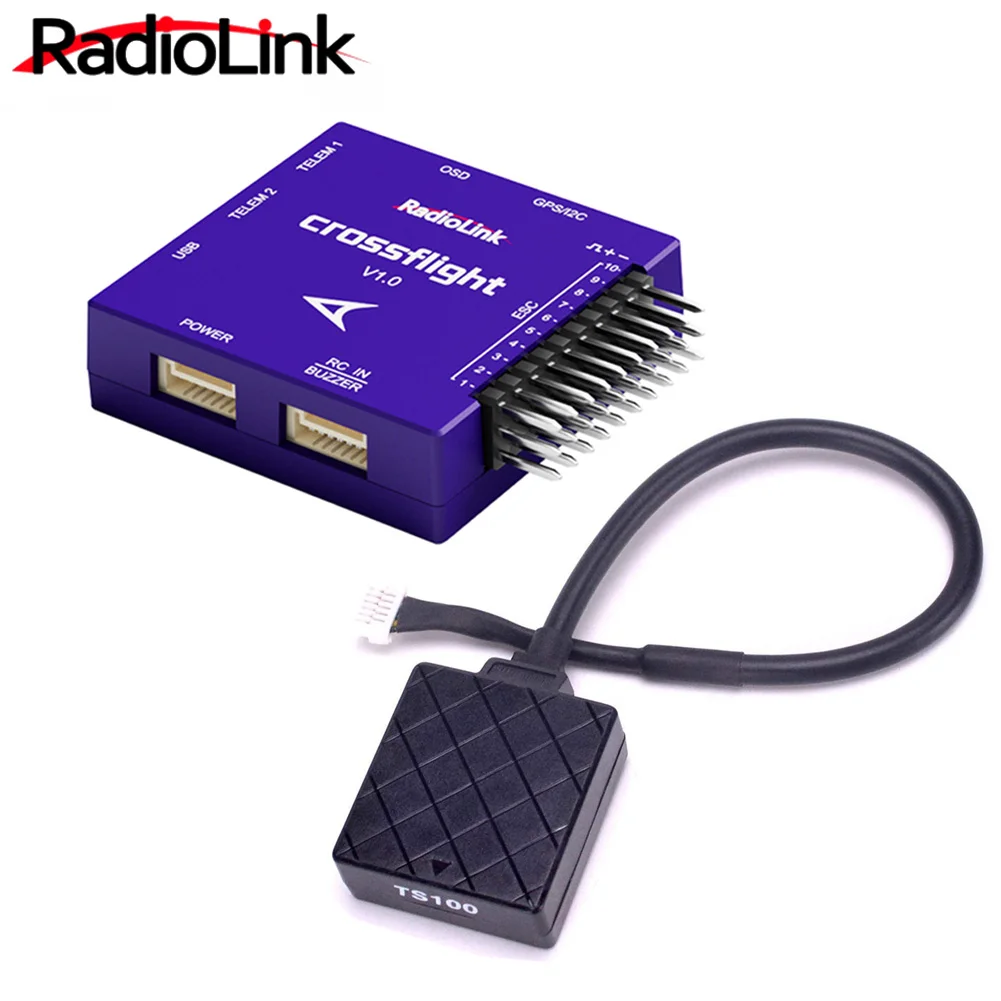

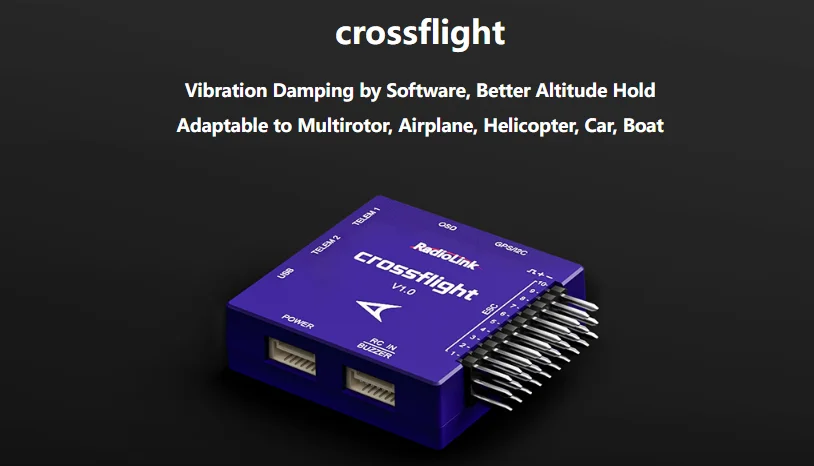

Crossflight FC Main Features:

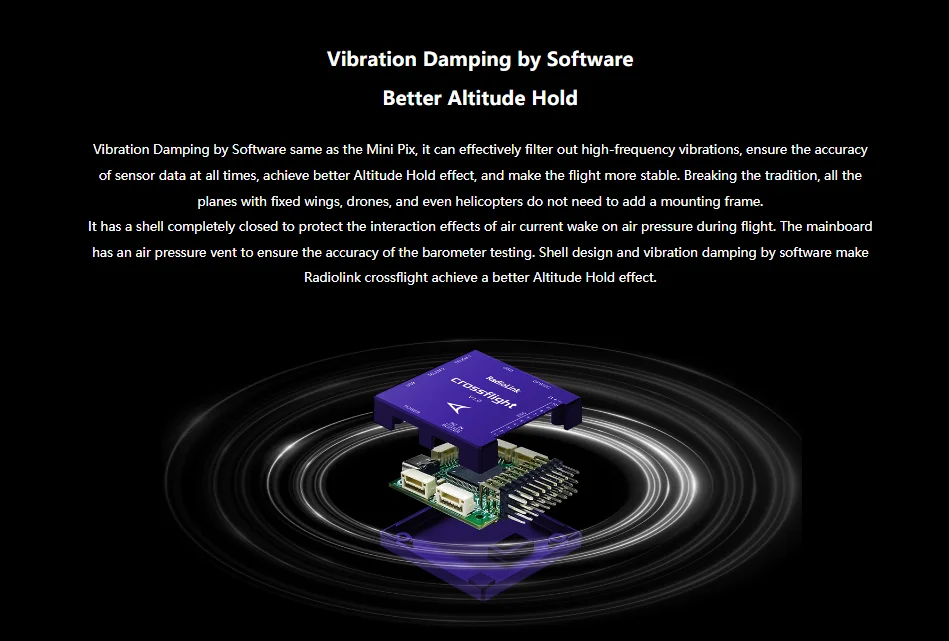

• Vibration Damping by Software: Ensure the accuracy of sensor data at all times, achieve better Altitude Hold effect, and make the flight more stable.

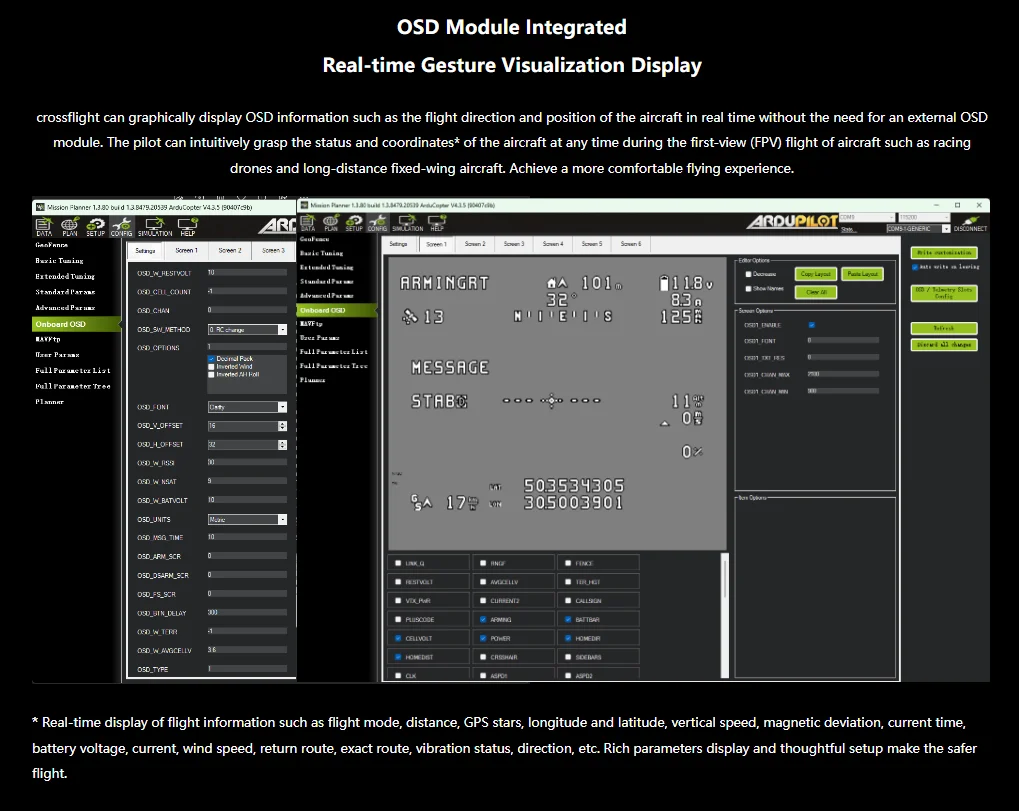

• OSD Module Integrated: Support real-time graphically display OSD information such as the flight direction and position of the aircraft without the need for an external OSD module.

• 10 Channels PWM Output: Adaptable to 3-8 Axis Multirotor, Airplanes, helicopters, cars, boats and multiple industries.

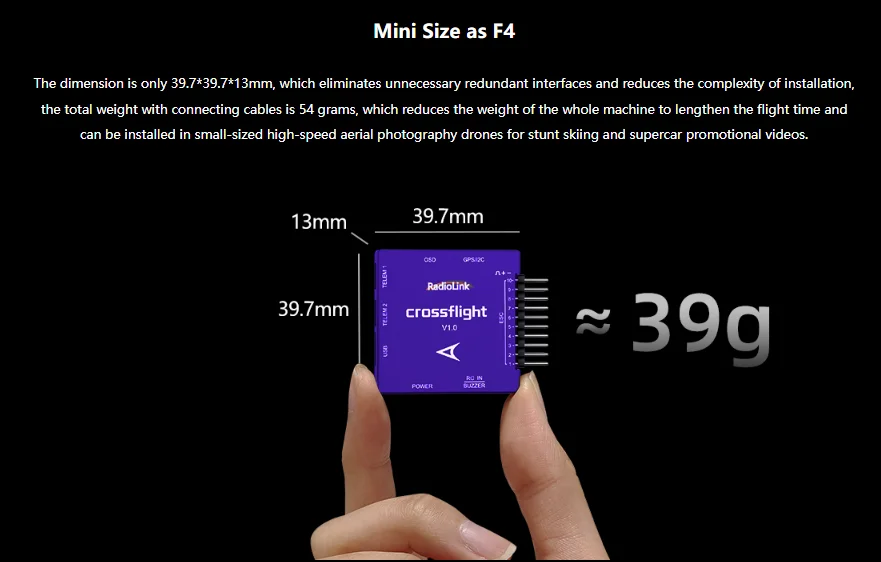

• Mini Size as F4: Only 39.7*39.7*13mm and 16.5g, helps save space and reduce total weight to lengthen the flight time.

• Easier Installation and Setting: Offer comprehensive technical support including the usage guidance needed for all functions from basic use, PID parameter adjustment, log viewing, etc. of each model.

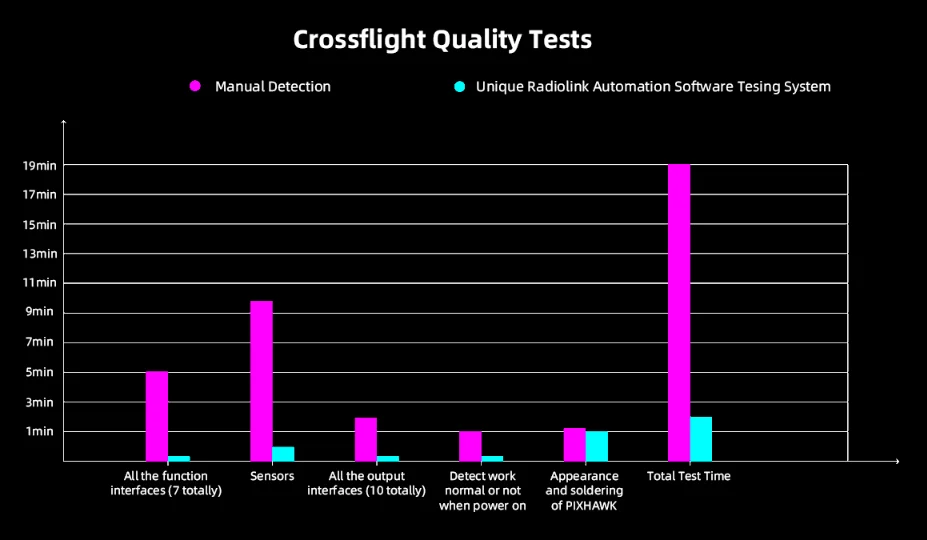

• Automation Software Testing System: The same Automation Software Testing System as PIXHAWK and Mini Pix helps realizes test automation from the sensor to connection ports and interface.

Note:

* The crossflight can set parameters by Radiolink Mission Planner, ArduPilot Mission Planner, and QGC Mission Planner.

* The crossflight only can upgrade the firmware by Radiolink Mission Planner, and only can upgrade the firmware from Radiolink.

* You could download the Radiolink mission planner and firmware via our official website: https://radiolink.com/crossflight

Parameters:

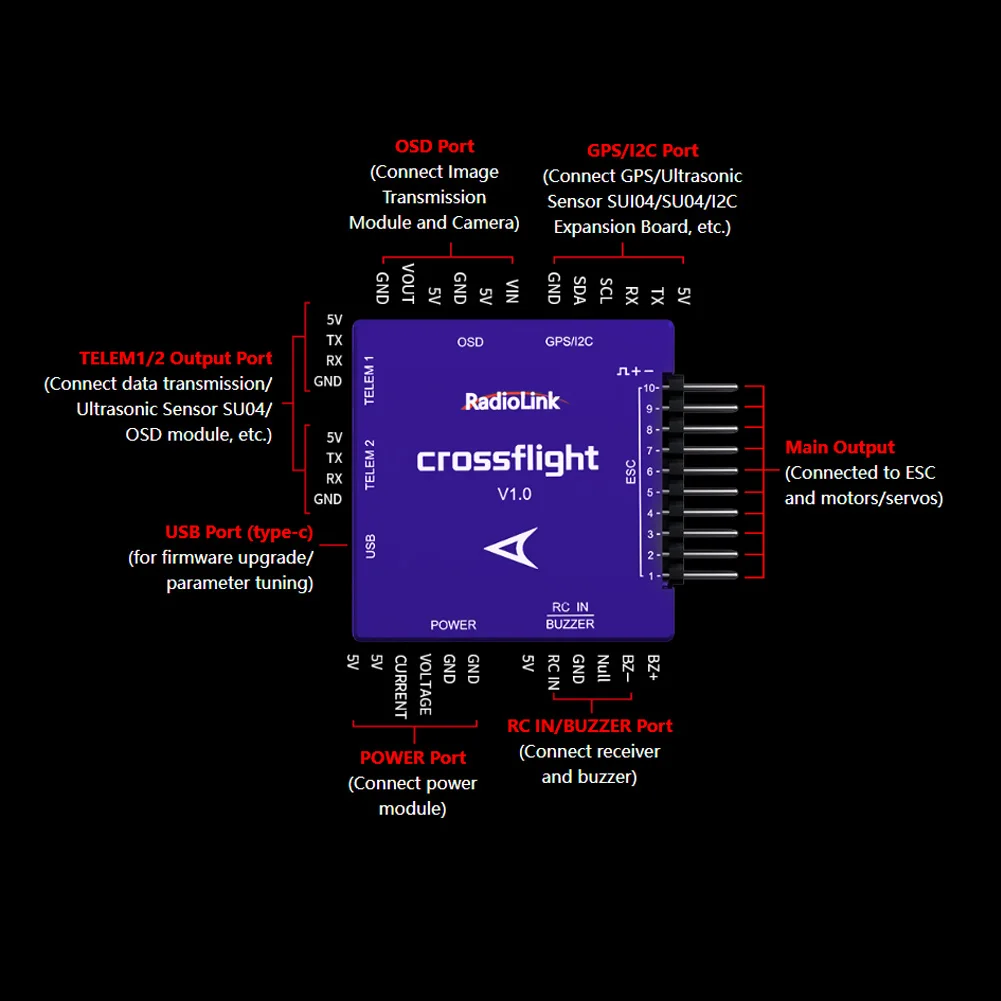

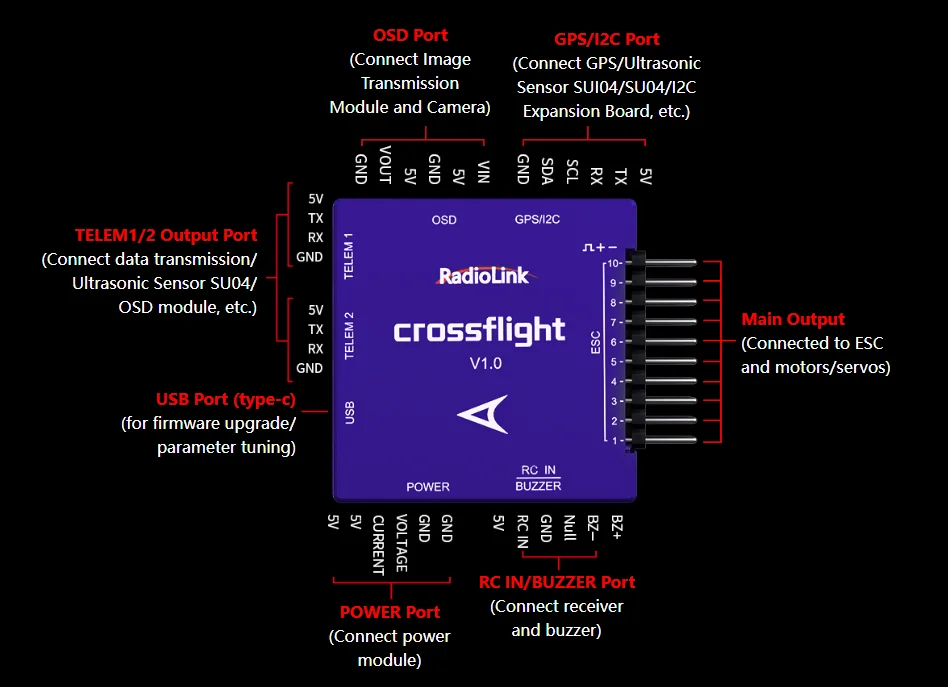

• Connector: JST GH1.25 Connector

• PWM Output: 10 PWM Output

• Mavlink UART: 2(without CTSRTS)

• USB Port: 1(Type-C)

• GPS UART/I2C Port: 1

• RC In Signal Input: PPM/SBUS

• RSSI Output: Do not support

• OSD Module: OSD Module Integrated

• ESC Protocol: PWM

• DSHOT Protocol: Do not support

• ONESHOT Protocol: Do not support

• Neopix Led: Support

• Gripper Function: Support

• RTK：Support

• USB Voltage: 5V±0.3V

• Servo Voltage: Not applicable

• Operating Temperature: -40~80℃

• Adaptable Models: 3-8 copter/Airplane/Helicopter/Car/Boat

• Dimention: 39.7*39.7*13mm (1.56"*1.56"*0.51")

• Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)

Power Module Specifications:

• Input Voltage: 2-12S

• Input Current: 90A

• Output Voltage: 5.1V

• Output Current(BEC): 2.5A

• Input Current(connect to one ESC only): 20A

Hardware Specification:

• Processor: HC32F4A0PITB

• Gyro: ICM42670

• Compass: VCM5883

• Barometer: LPS22HB

• FRAM: Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes

Features:

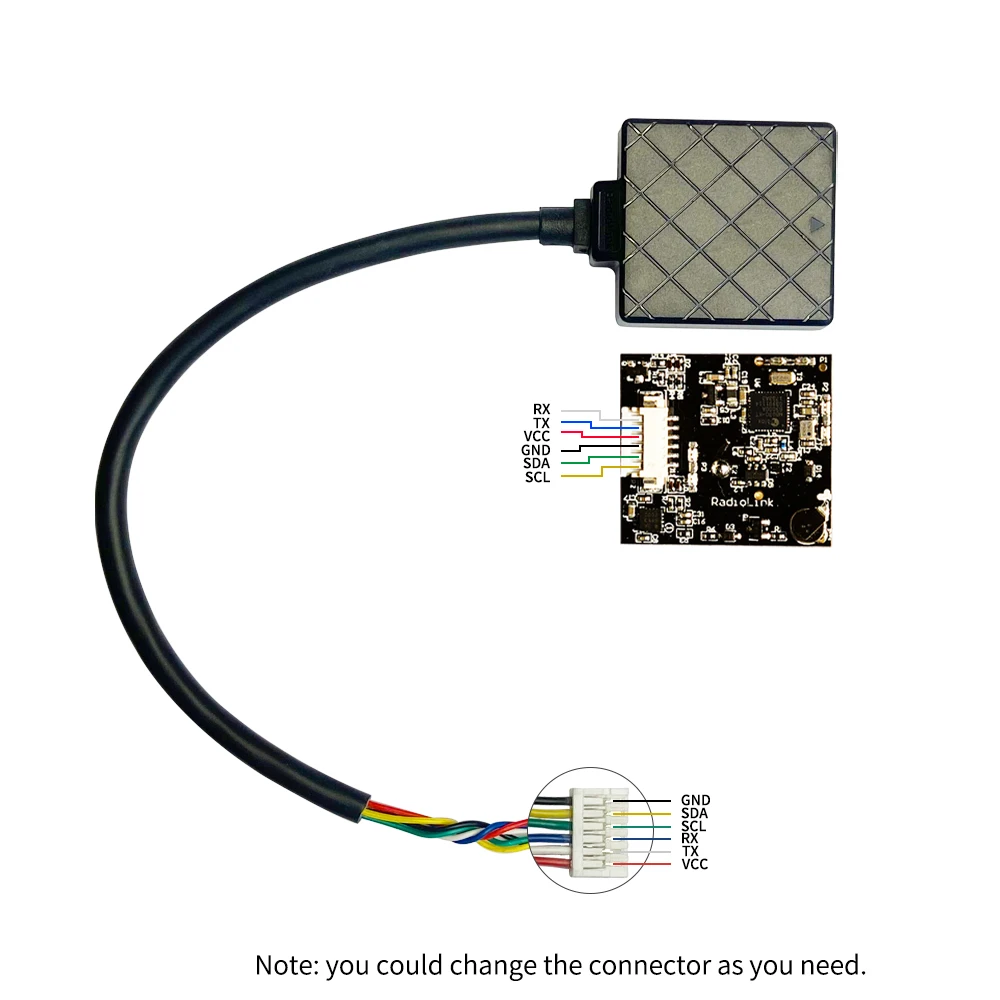

• 【Super Mini Size】: This mini GPS for Radiolink mini PIX flight controller, only 1.25*1.18*0.47in,0.7oz, it’s perfect for you racing drone and quadcopter.

• 【Excellent Stable】: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.

• 【Top Configuration】: Design with U-box UBX-M8030(M8), 72-channel, is better than GNSS 7N. 2.5dbl ceramic antenna.

• 【Positional Accuracy and Quick】: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1.
