SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Watt Meter

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: HLW106

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motor Components

Recommend Age: 14+y

Remote Control Peripherals/Devices: Watt Meter

Size: 125MM *70MM*25MM

Technical parameters: value 2

Tool Supplies: Watt Meter

Upgrade Parts/Accessories: Watt Meter

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

SPECIFICATIONS:

Operates from 4.8-60 V

0V with optional auxiliary battery

Measures 0-200 A, resolution 0.01A;

0-60 V, resolution 0.01V;

0-6554 W, resolution 0.1W;

0-65 Ah, resolution 0.001Ah;

0-6554 Wh, resolution 0.01Wh;

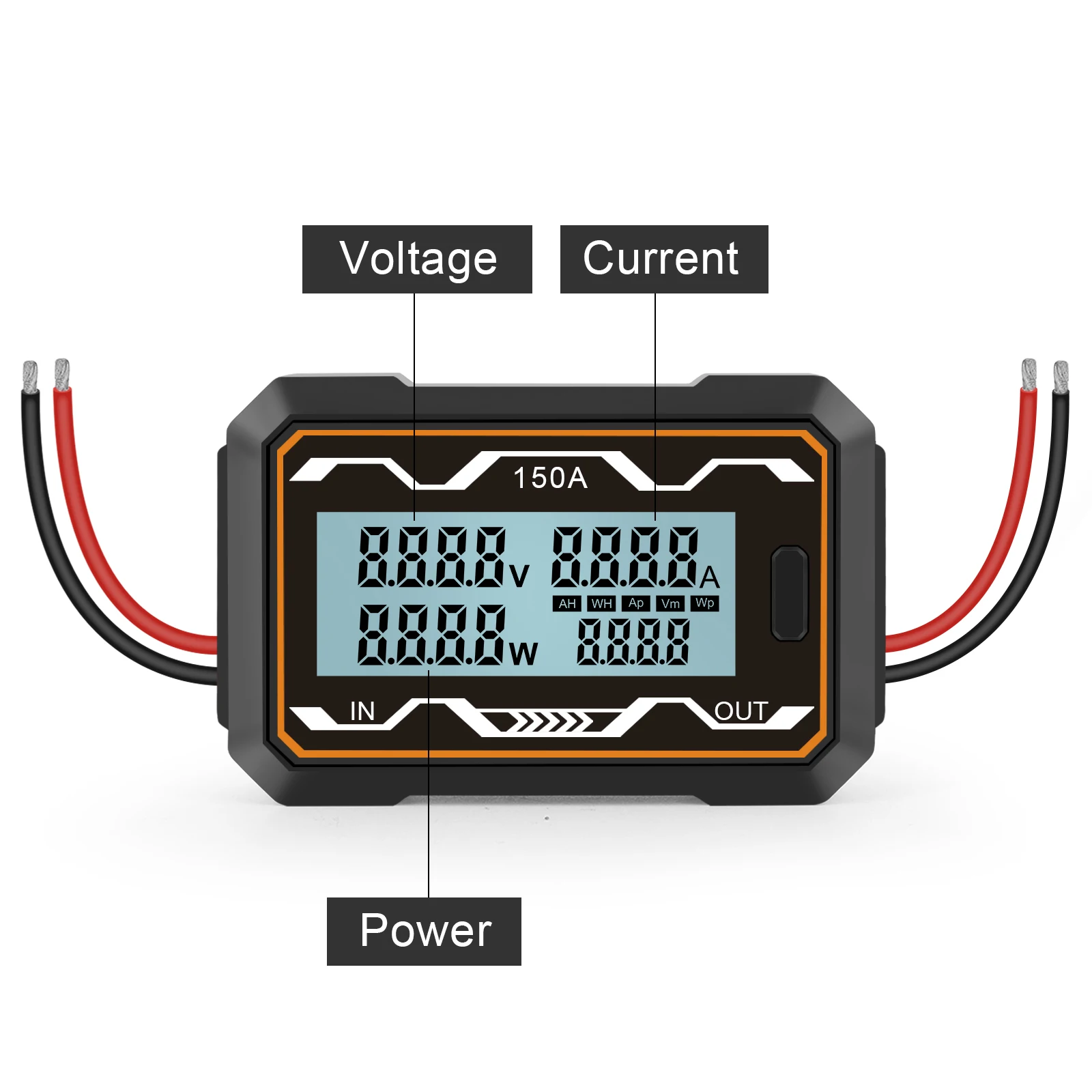

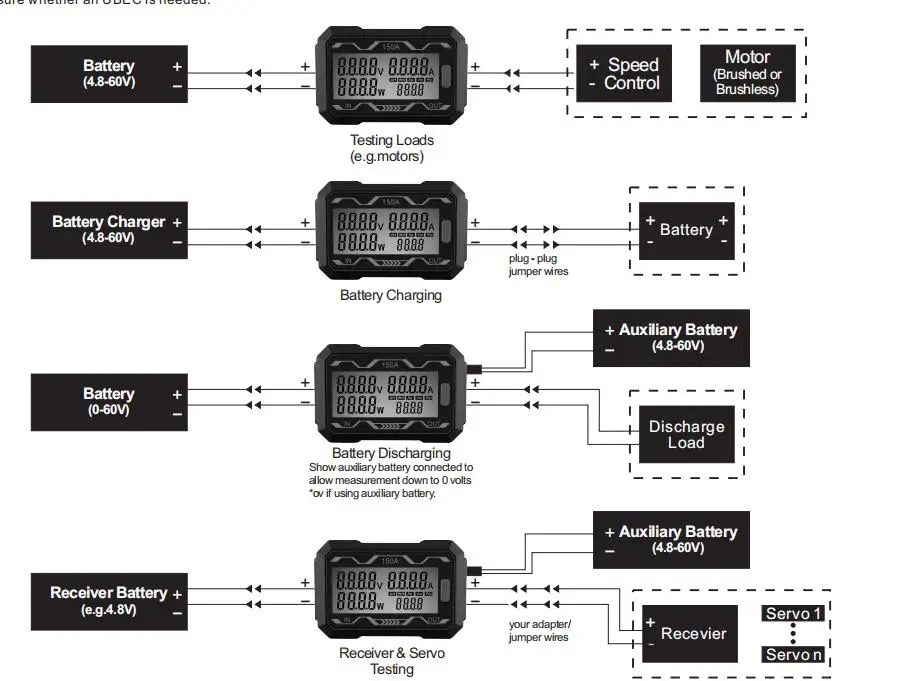

Functions “Watt Meter” and Power Analyzer

Measures EIGHT parameters key to electric power safety & performance, Use it to: Prevent peak currents damaging battery. Motor

Control, motors, wiring and connectors. Verify sufficient operating voltage under load. Set cutoff voltages, cheek battery capacity &

health. Balance battery cells. Confirm proper battery charger operation. Detect receivers and actual operating currentso as to make

sure whether an UBEC is needed.



CAUTION:Shouting a rechargeable battery or Wat Meter connected to a rechargeable battery can supply huge currents, causing fire, Explosions, personal injury, And damage to equipment. Ensure that all wiring and connections are rated to handle the input or output Current, and are properly assembled for each application. 1.1 Input Voltage & Current Handing Limitations The Watt Meter is designed to be safe in systems using less than 60 V and carrying currents up to 200A.

CAUTION: Exceeding these Limits will damage the Watt Meter and may cause personal injury
