"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Brushless ESC
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 25A ESC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 160*85*23
Technical parameters: value 2
Tool Supplies: Brushless ESC
Upgrade Parts/Accessories: Brushless ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

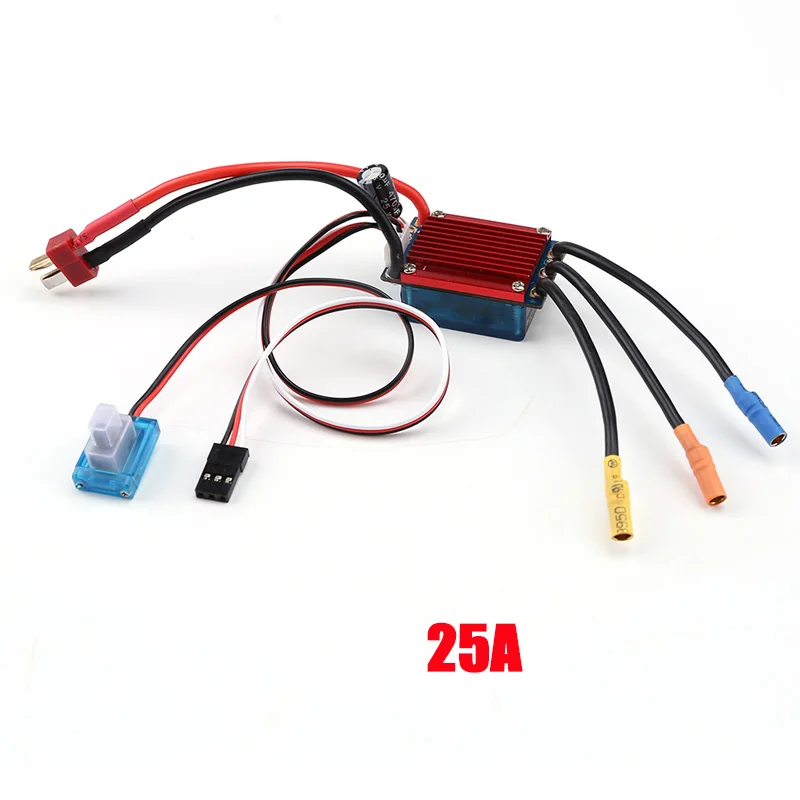

25A ESC:
Cont.Current/Burst Current:25A/120A
Motor Type
Sensorless Brushless Motor
For 2s Lipo or 6 cells NIMH:
1.on-road：28XX-size or smaller motor with the KV<6000
2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<4000
For 3s Lipo or 9 cells NIMH:
1.on-road：28XX-size or smaller motor with the KV<4000
2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<3000
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits “Beep-Beep” tone.
6. When the throttle stick is in the neutral position, the motor re-emits “Beep-Beep” tone.
7. The ESC is workable.
35A ESC:
Cont.Current/Burst Current:35A/120A
Motor Type
Sensorless Brushless Motor
For 2s Lipo or 6 cells NIMH:
1.on-road：28XX-size or smaller motor with the KV<6000
2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<4000
For 3s Lipo or 9 cells NIMH:
1.on-road：28XX-size or smaller motor with the KV<4000
2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<3000
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits “Beep-Beep” tone.
6. When the throttle stick is in the neutral position, the motor re-emits “Beep-Beep” tone.
7. The ESC is workable.

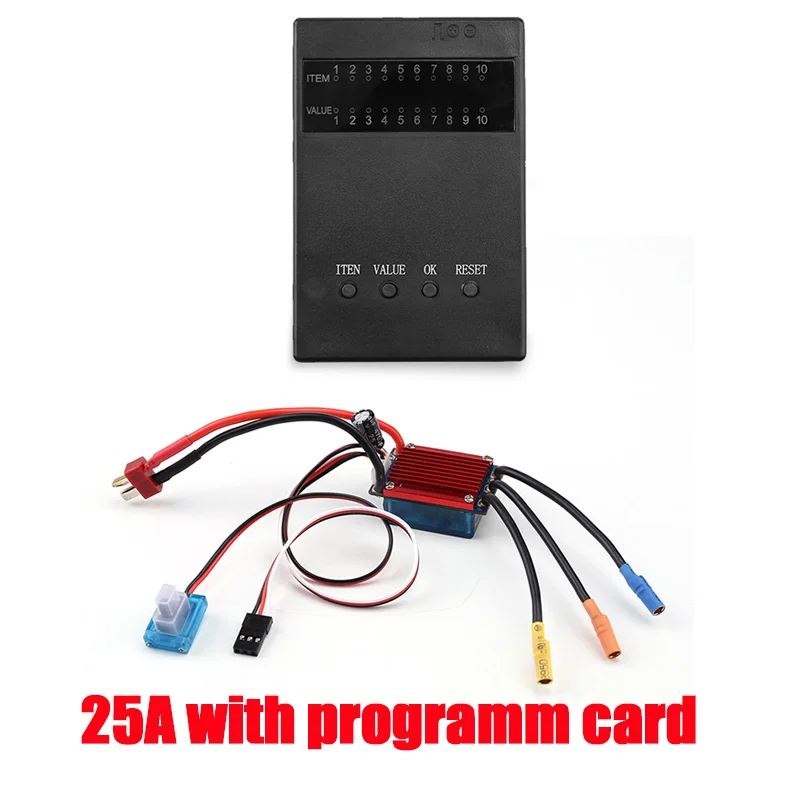

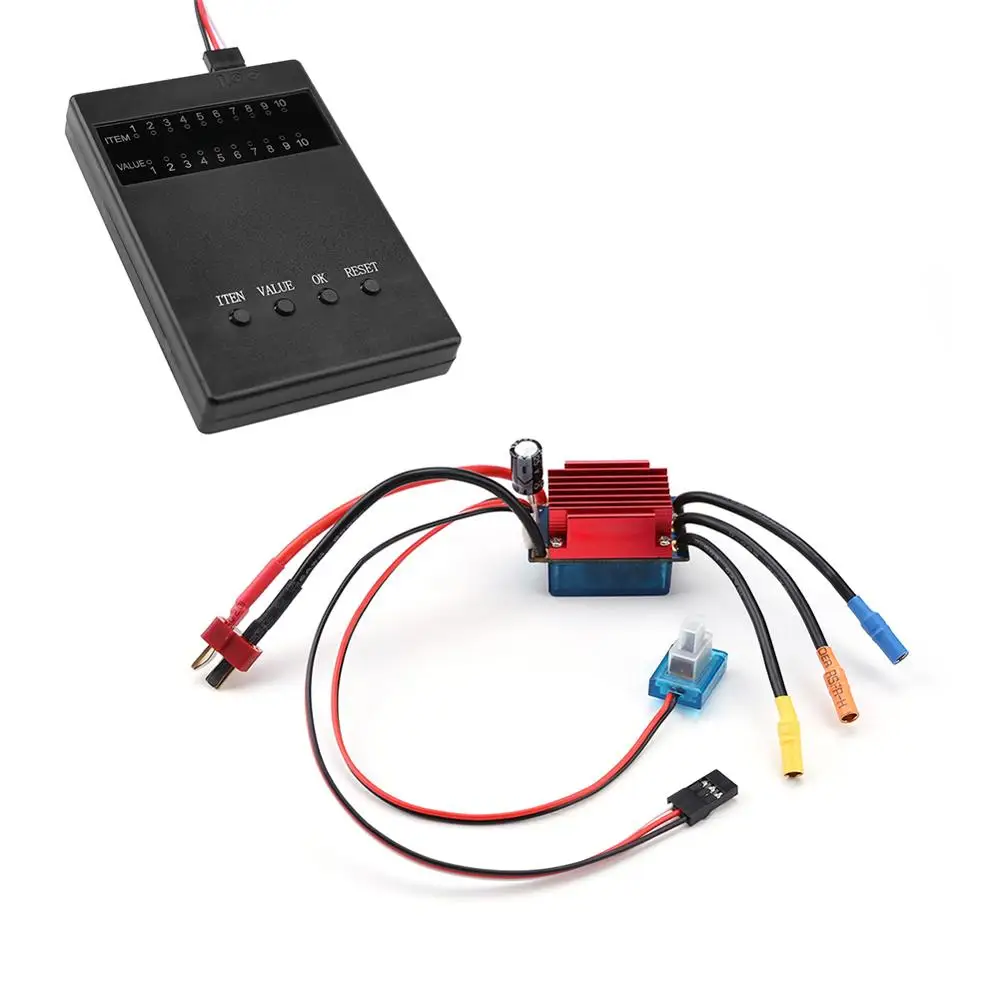

Programe card:
This card is only applicable to the models sold in our shop.
• Water-proof and dust-proof for all-weather races;
(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the
use for avoiding the connectors get rusty.)
• External programming port, easy to connect to the Program Card when setting the ESC;
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment;
• 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds
of models, tires and tracks;
• Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss
protection / Motor lock-up protection;
• One-button(the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the
factory default settings;
• Compatible with the optional device-the portable Digital LED Program Card, especially convenient
for outdoor use.
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone.
7. The ESC is workable.
Package information:
Package size: 8.1* 5.5*1.2cm/3.18*2.16*0.47in
Package weight: 32g
Additional information
| Color | 35A with Card, 25A ESC, 35A ESC, 25A with Card |
|---|
