Multi Servo Tester 3CH ECS Consistency Speed Controler Power Channels CCPM Meter For Rc Drone Car Boat Airplane Models
Original price was: $15.24.$8.89Current price is: $8.89.
16 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Servo tester
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: S812
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Technical parameters: value 2
Tool Supplies: Servo tester
Upgrade Parts/Accessories: Servo tester
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

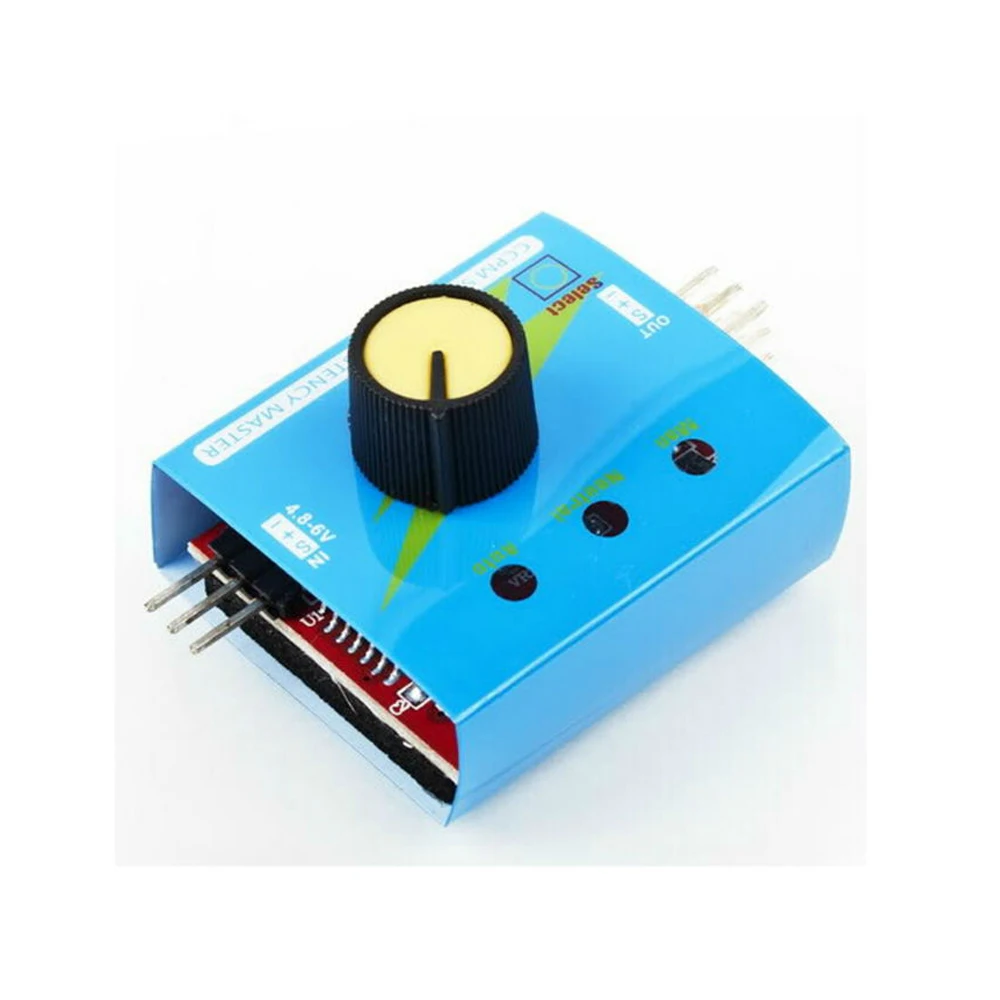

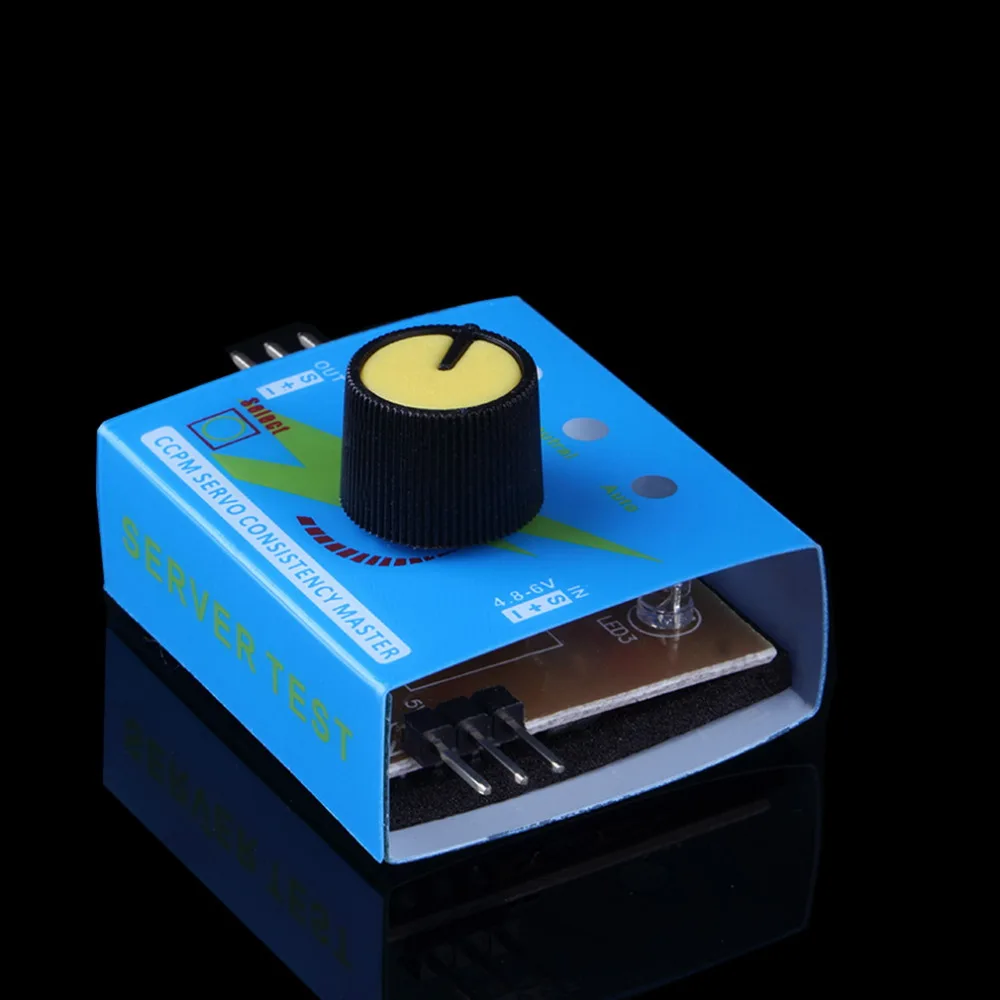

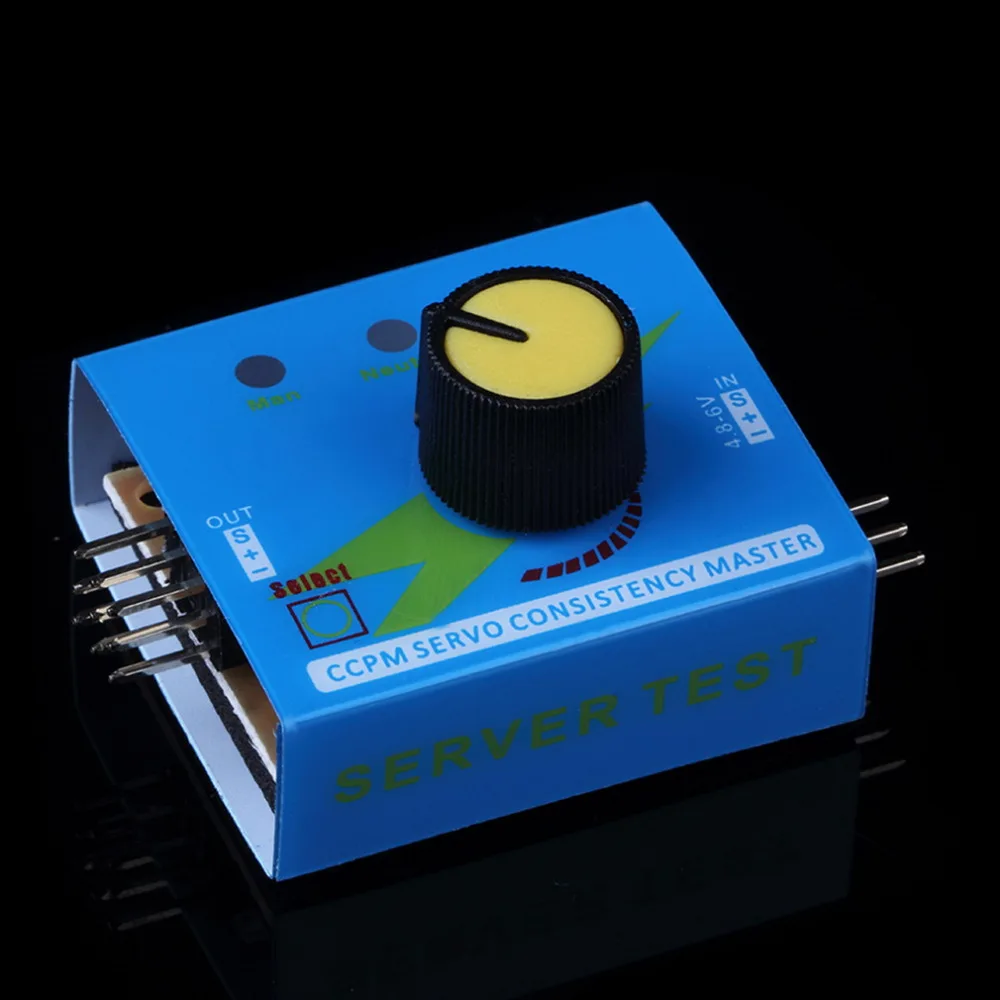

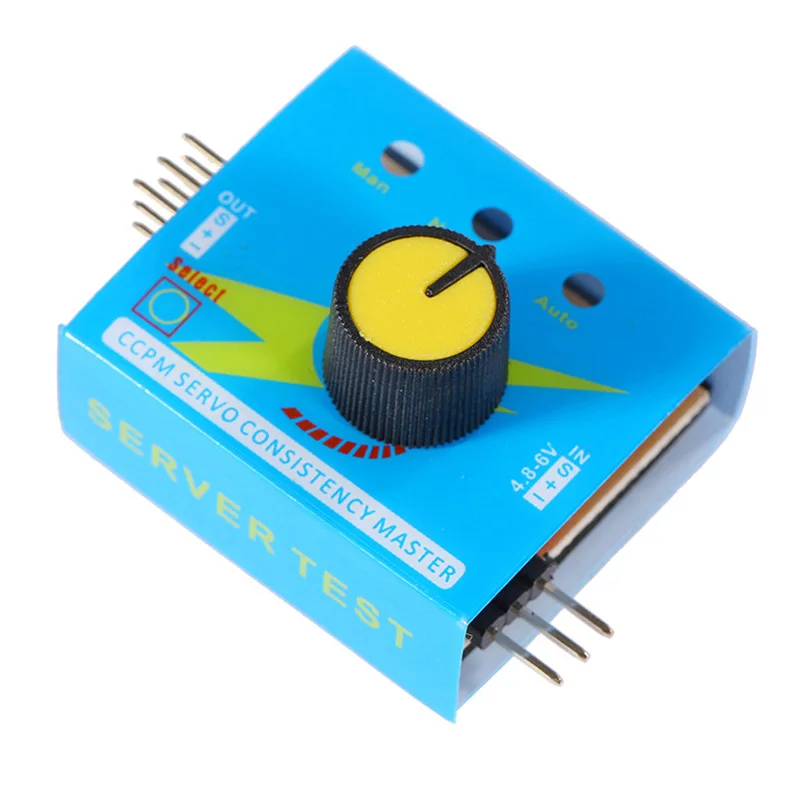

CCPM Servo Consistency Master / Servo tester

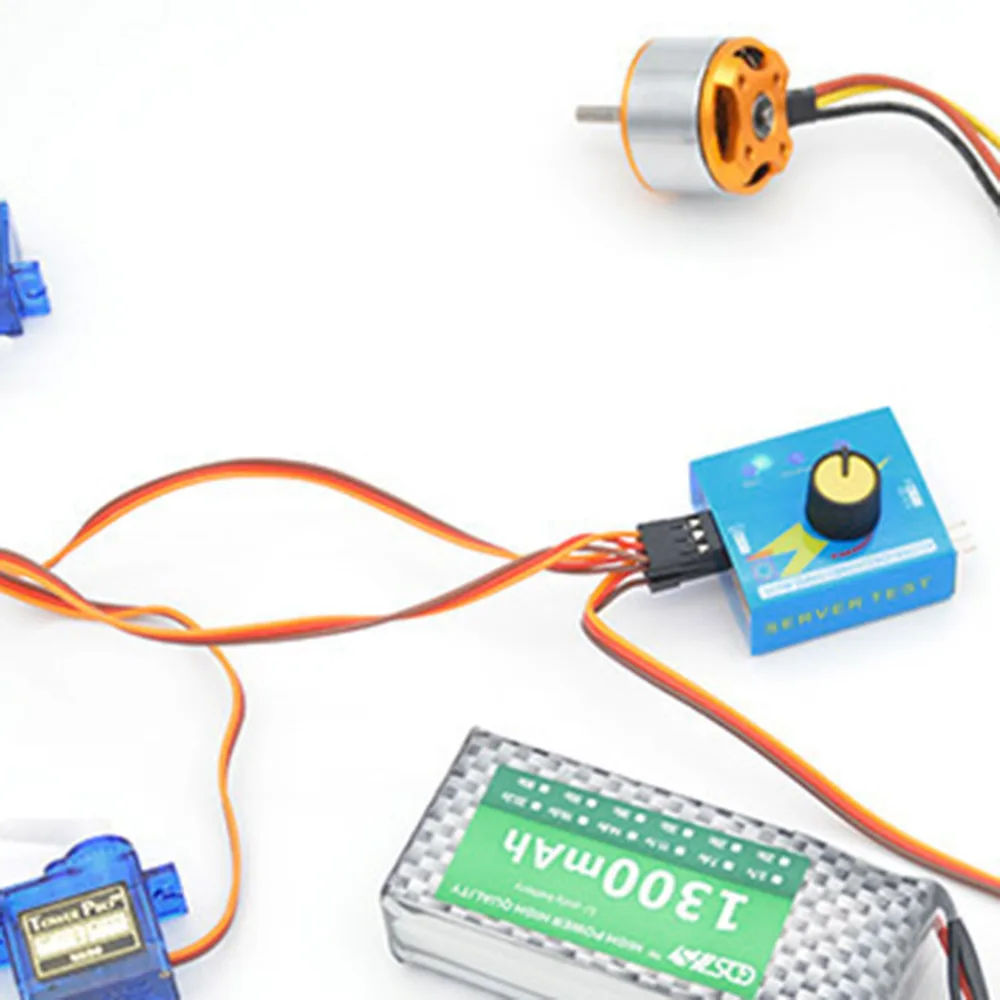

The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

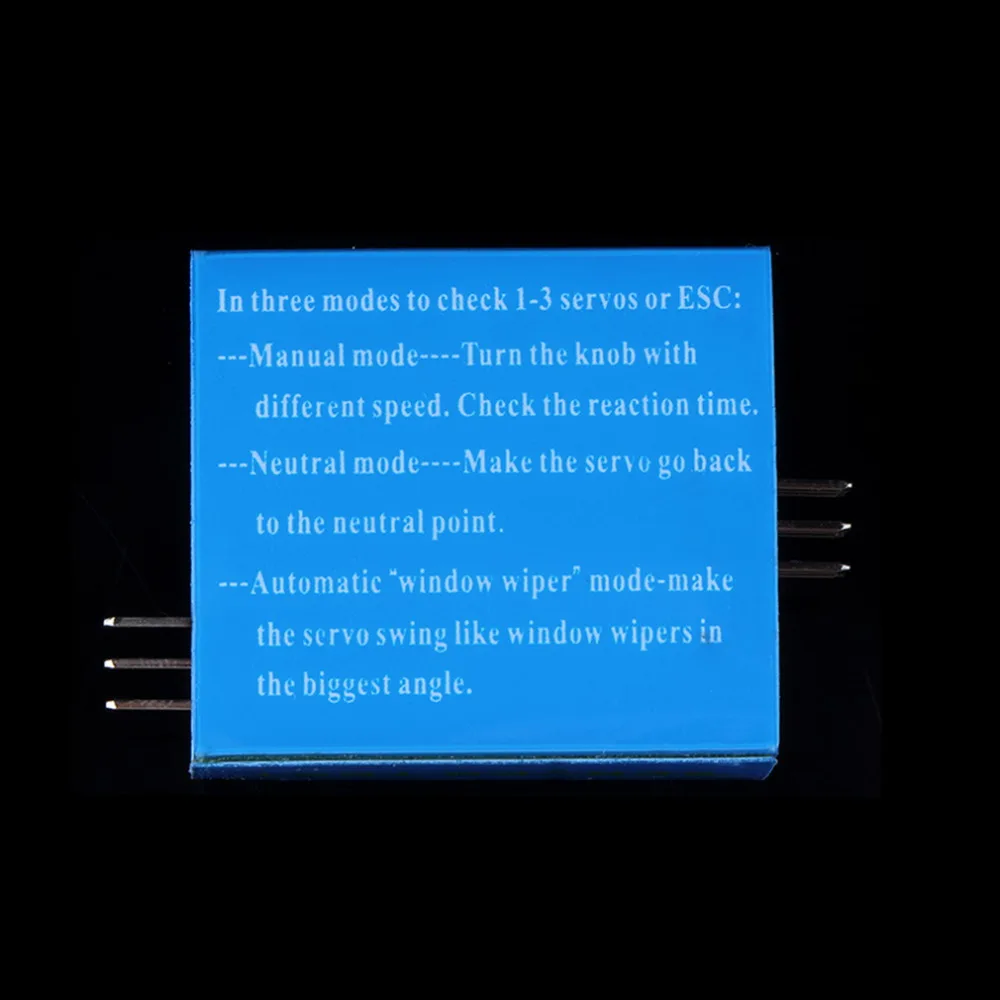

There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.
Voltage consumption: DC4.8-6V
Size: 48 x 42 x 17mm
Weight: 31.5 g
