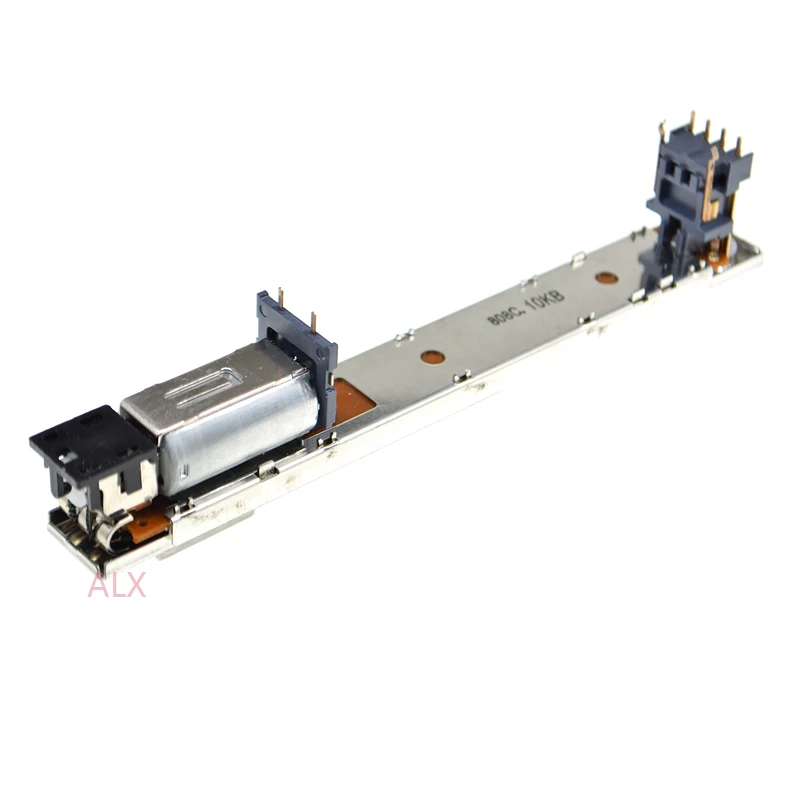

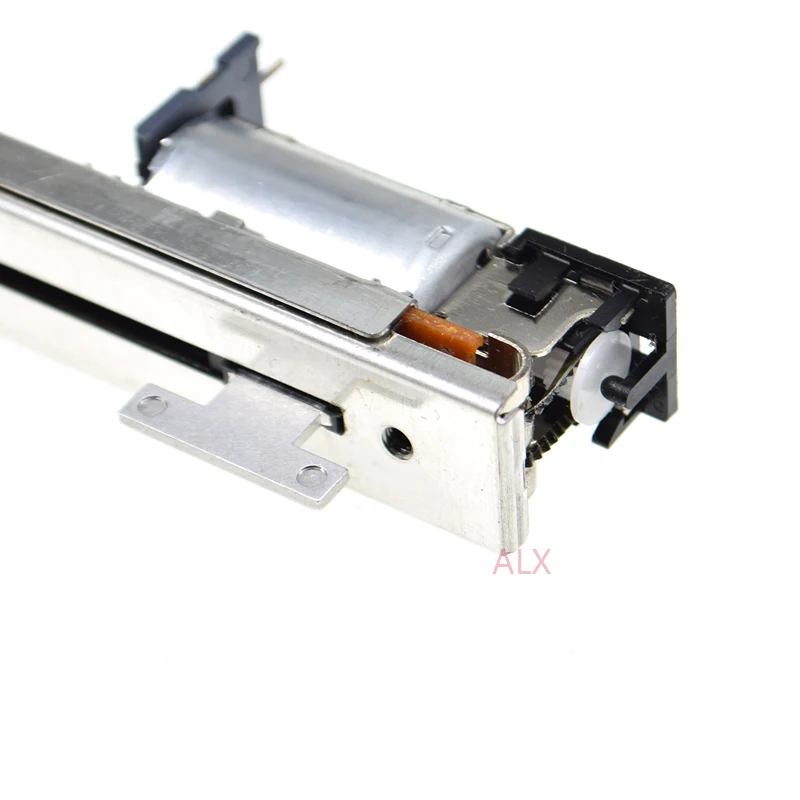

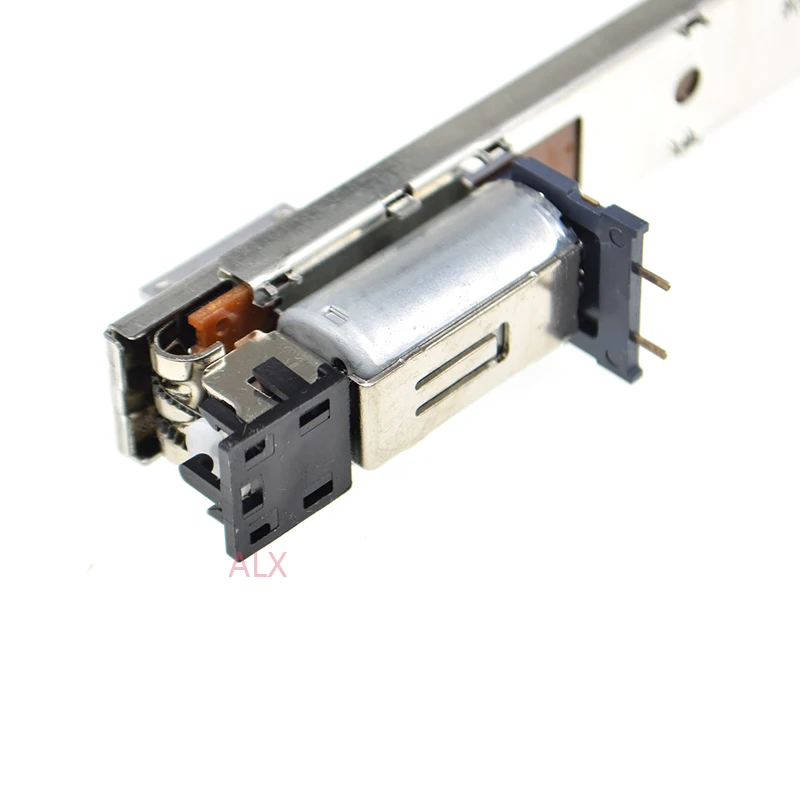

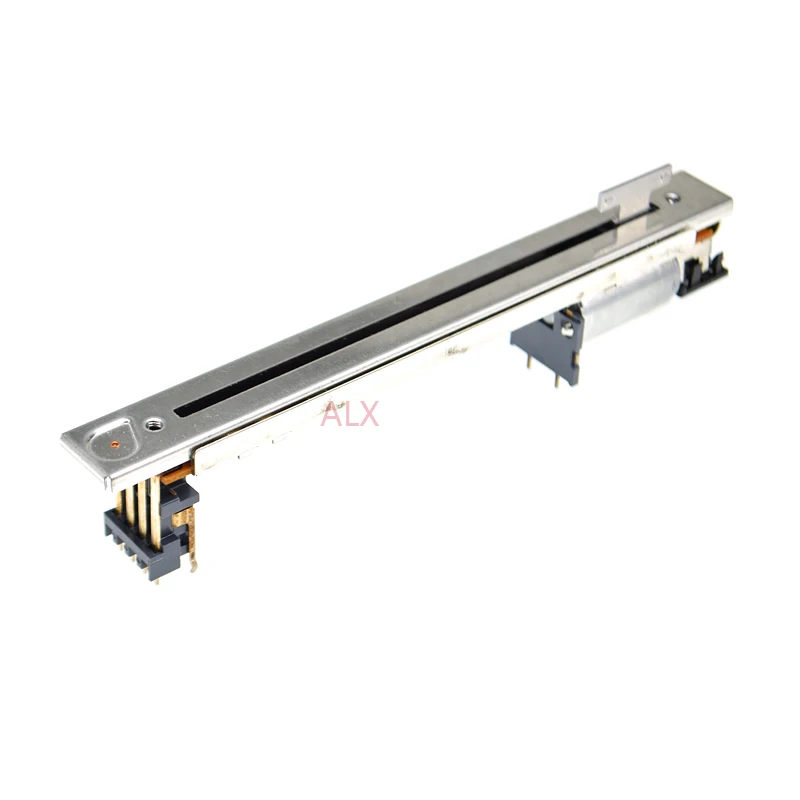

Mixer Reverb Electric Fader RSA0N11M9A0J b10k slide motor drive Potentiometer Switch for Yamaha LS9 M7CL DM1000 DM200
Original price was: $122.82.$57.32Current price is: $57.32.
887 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Certification: CE
High-concerned chemical: None
Model Number: RSA0N11M9A0J
Origin: Mainland China
Voltage: None
Japan imported 14.4 cm motor drive master B10kT handle 100mm
Motor N Fader, Motor K Fader
detailed information
Product number RSA0N11M9A0J
Number of resistors
Installation direction Vertical
Stroke 100mm
Type Motor N fader
Operating part shape 9-T
(T-Bar)
Rod length 8.2mm
Total resistance value 10K
Impedance change performance 1B
Terminal shape For PC board
Touch track
Minimum order unit (PCs.) 160
Use the temperature range -10 C to +60 C
The total resistance value of electric performance is 20%
Maximum operating voltage 500V AC, 10V DC
Motor rated voltage 10V DC
Motor maximum current 800mA or less (at 10V DC)
Mechanical performance 0.3 to 1.3N
Terminal stop strength 100N
The tensile strength of the operating part 50N
Transverse vibration of the operating part (both sides) 2 (2 x L) /25mm
Operating part of the eccentric (side) 0.5mm max.
Welding heat resistance manual welding 350 C max. max. 3S
260 ~ C max. 5S max. dip
Durability operation life 30000 cycles
Resistance to environmental performance cold resistance -30 + 2 C for 96h
Heat resistance 70 + 2 C for 240h
