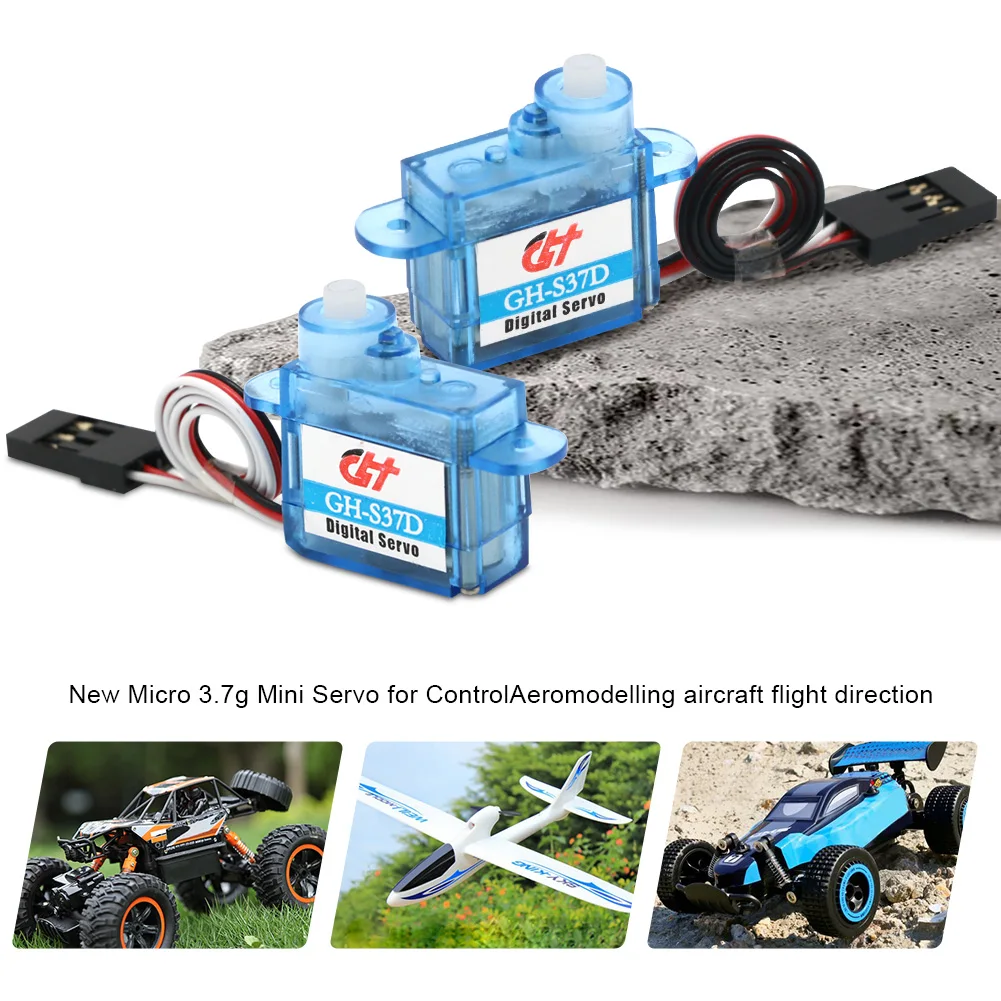

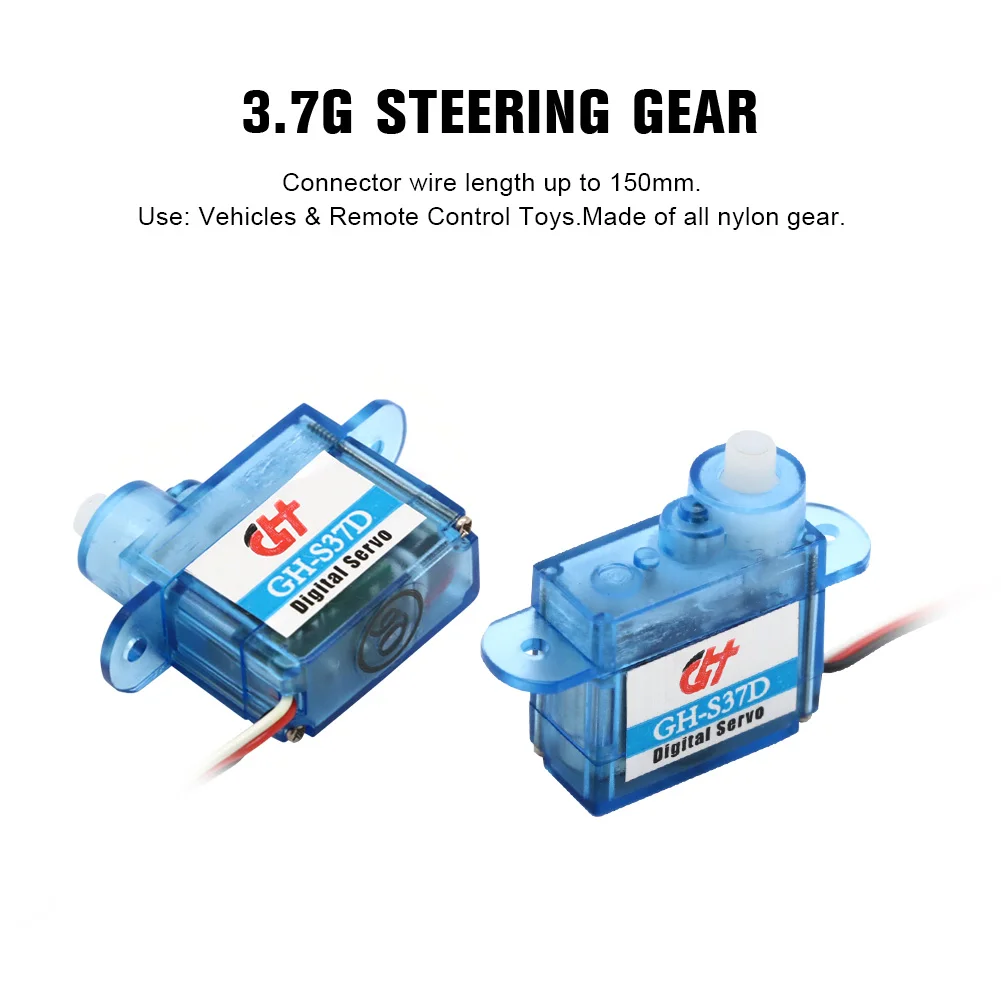

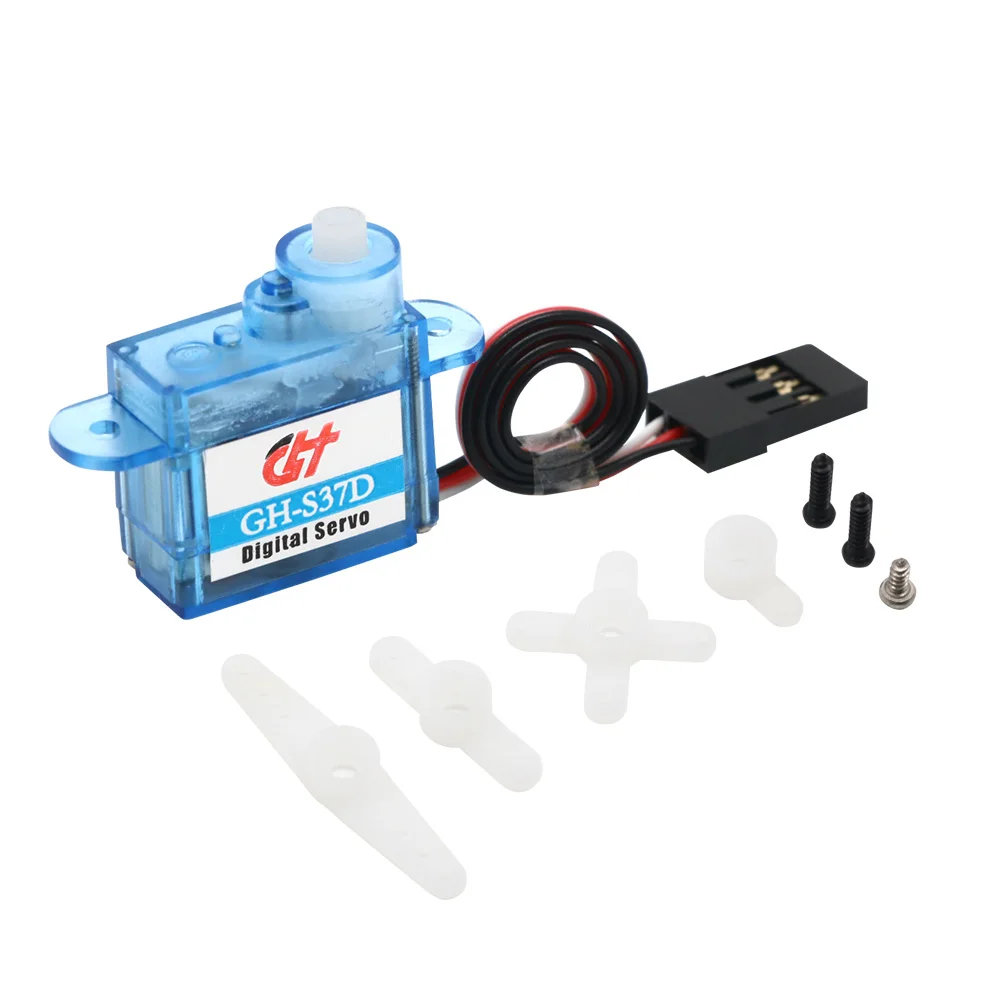

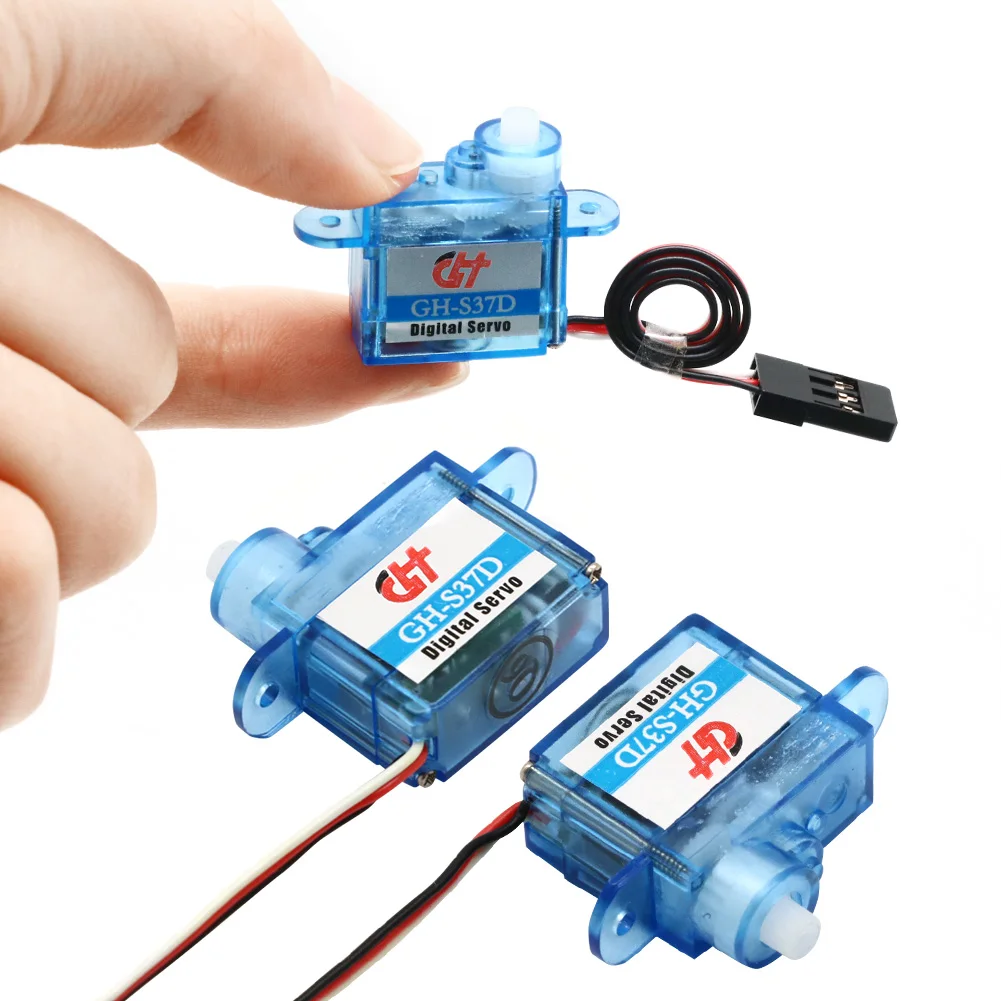

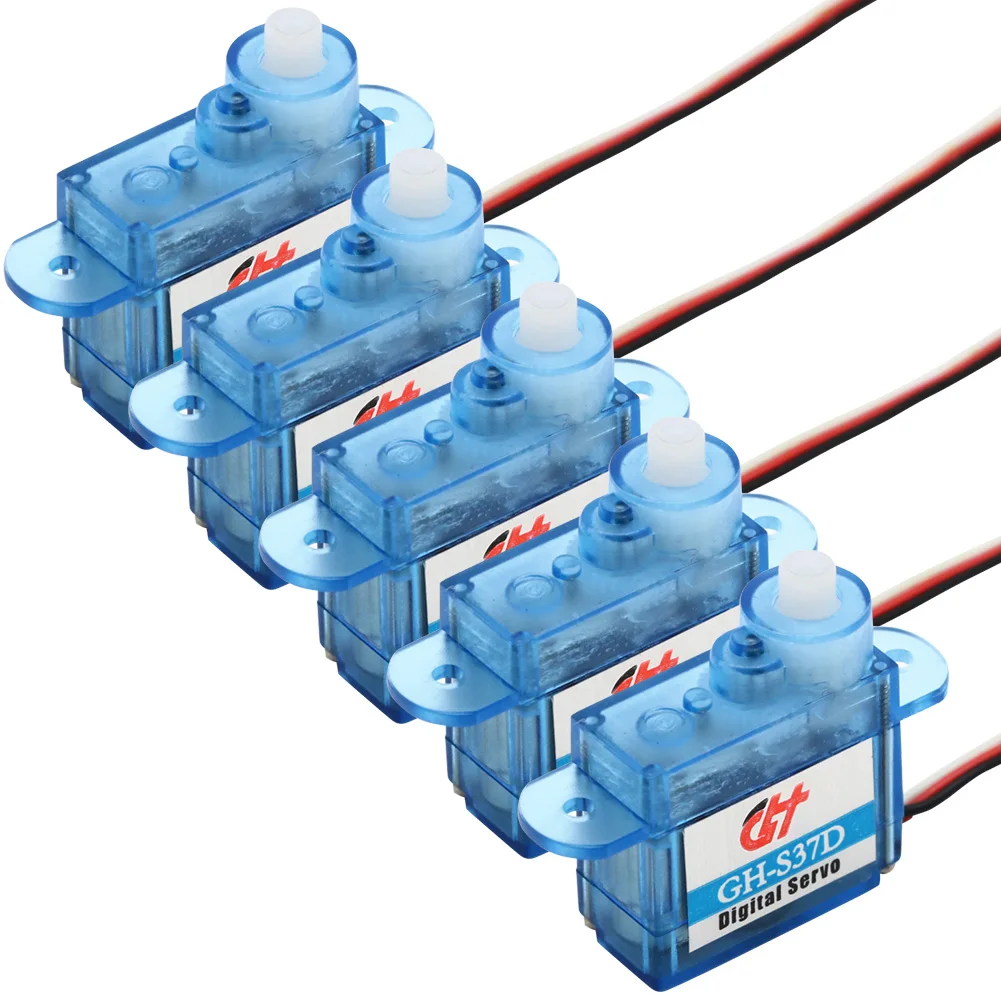

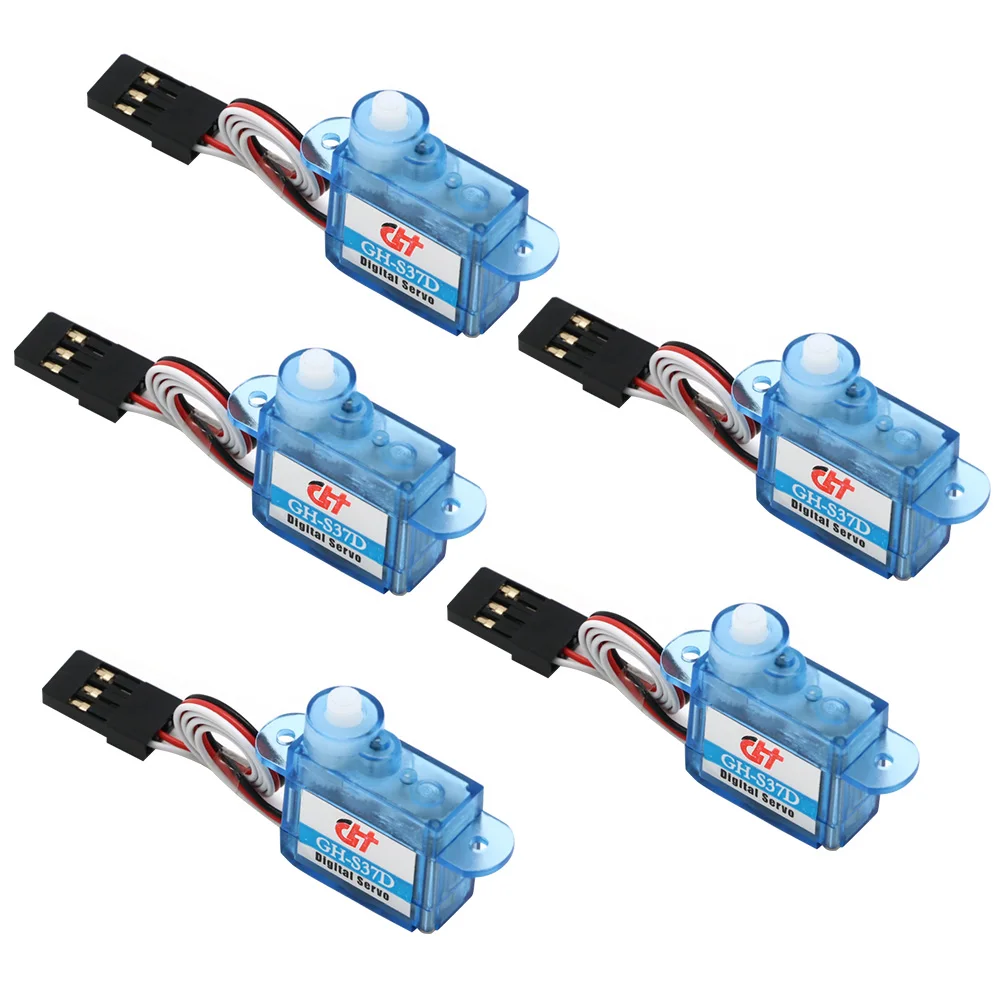

Micro 3.7g Servo GH-S37D Mini Digital Servo for Control Aeromodelling Aircraft Flight Direction RC Plane Helicopter Boat
Original price was: $27.24.$15.89Current price is: $15.89.
35 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Other
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: H301
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: 20.0 x 8.75 x 22.0 mm
Technical parameters: value 2
Tool Supplies: 3.7g Servo
Upgrade Parts/Accessories: Micro 3.7g Servo
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Weight: 3.7g
Servo Type: digital servo

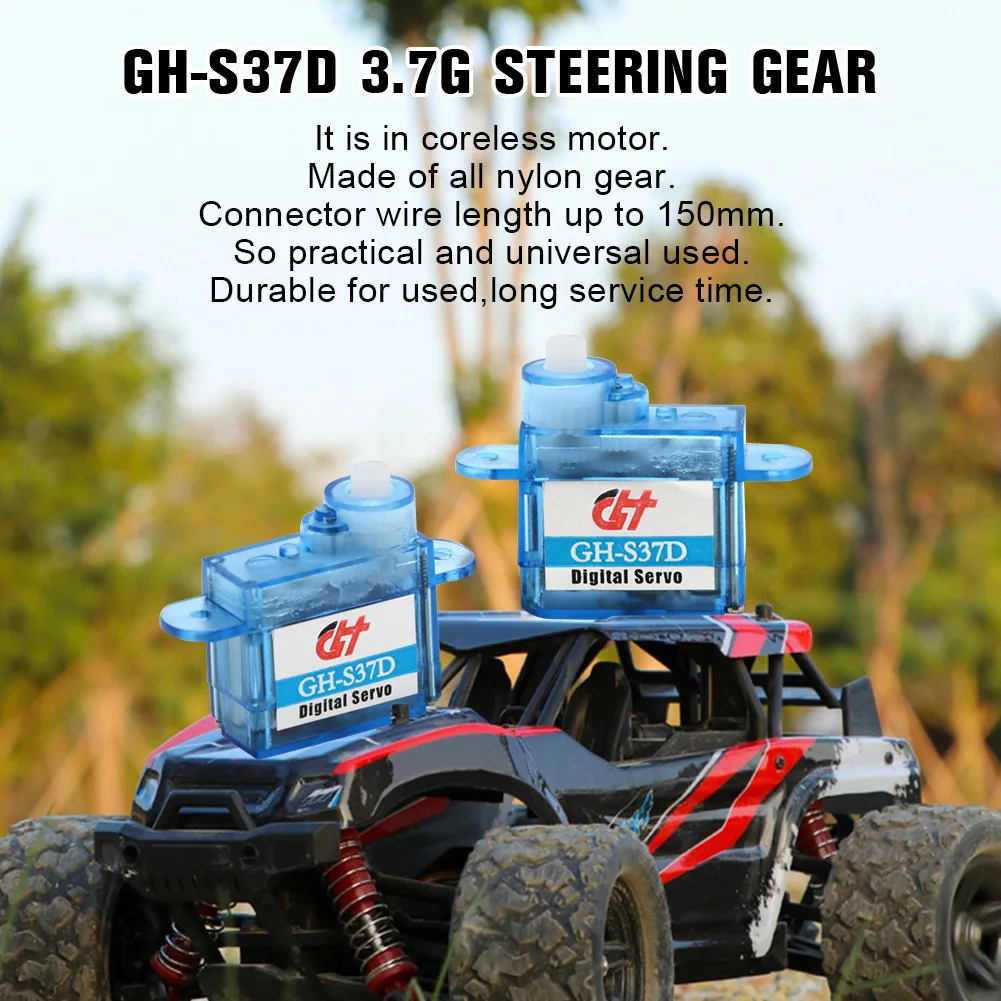

Motor Type: hollow cup
Use: vehicles & remote control toys
Line Length: 150mm

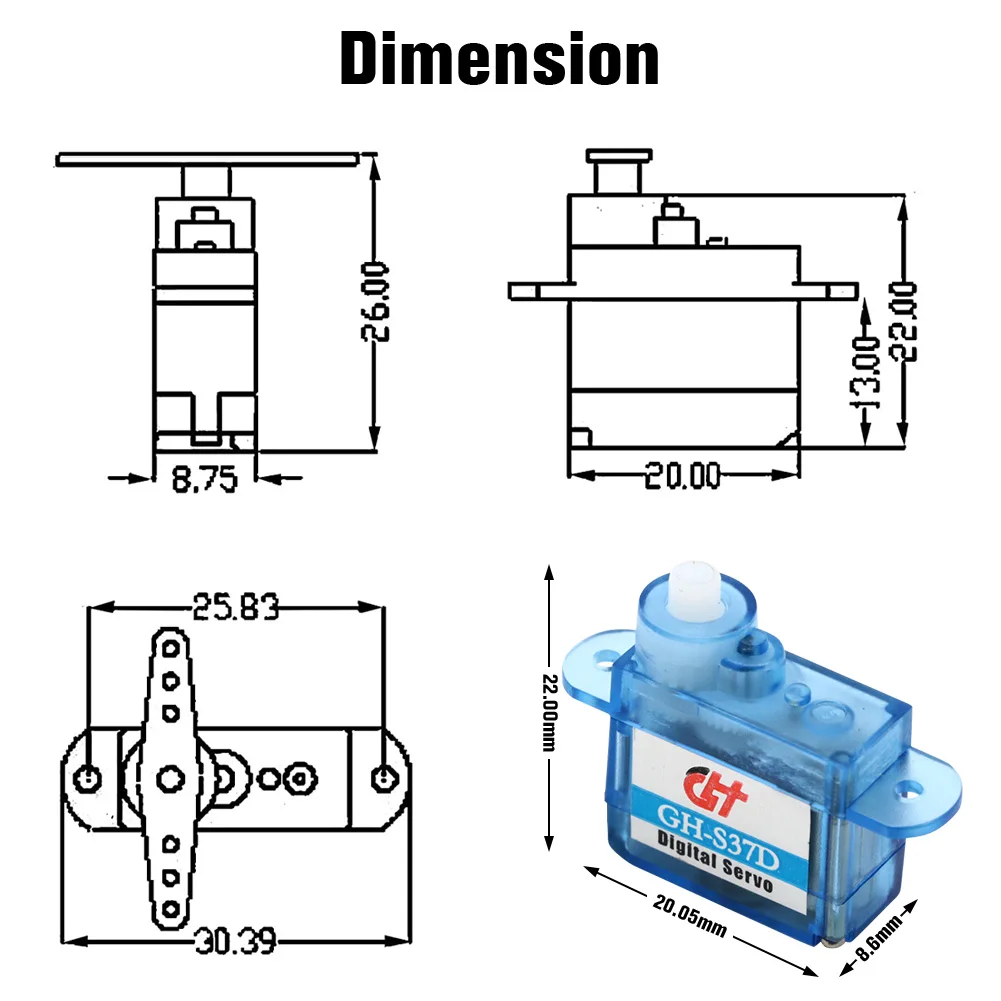

Dimensions: 20.0 x 8.75 x 22.0 mm
Torque: 0.5kg/cm (at 3.6V) 0.7kg/cm (at 4.8V)
Speed: 0.13sec/60°(at 4.8V) 0.10sec/60°(at 6V)
Working Voltage: 3.6v-4.8v
Operating Temperature: 0 °C -60 °C
Standard Signal: 1000 to 2000 microseconds
Working Angle: 90°
Current: <300mA
Dead Zone Setting: 4 usec
Operating Speed(at no load): 0.15 Sec/60° 0.1 Sec/60°
Running Current(at no load): ≤ 10 m A ≤40 m A
Stall Torque(at locked): 0.42±0.1 kg-cm 0.6±0.1 kg-cm
Stall Current(at locked): ≤60 m A ≤200 m A
