Dual BEC H Type

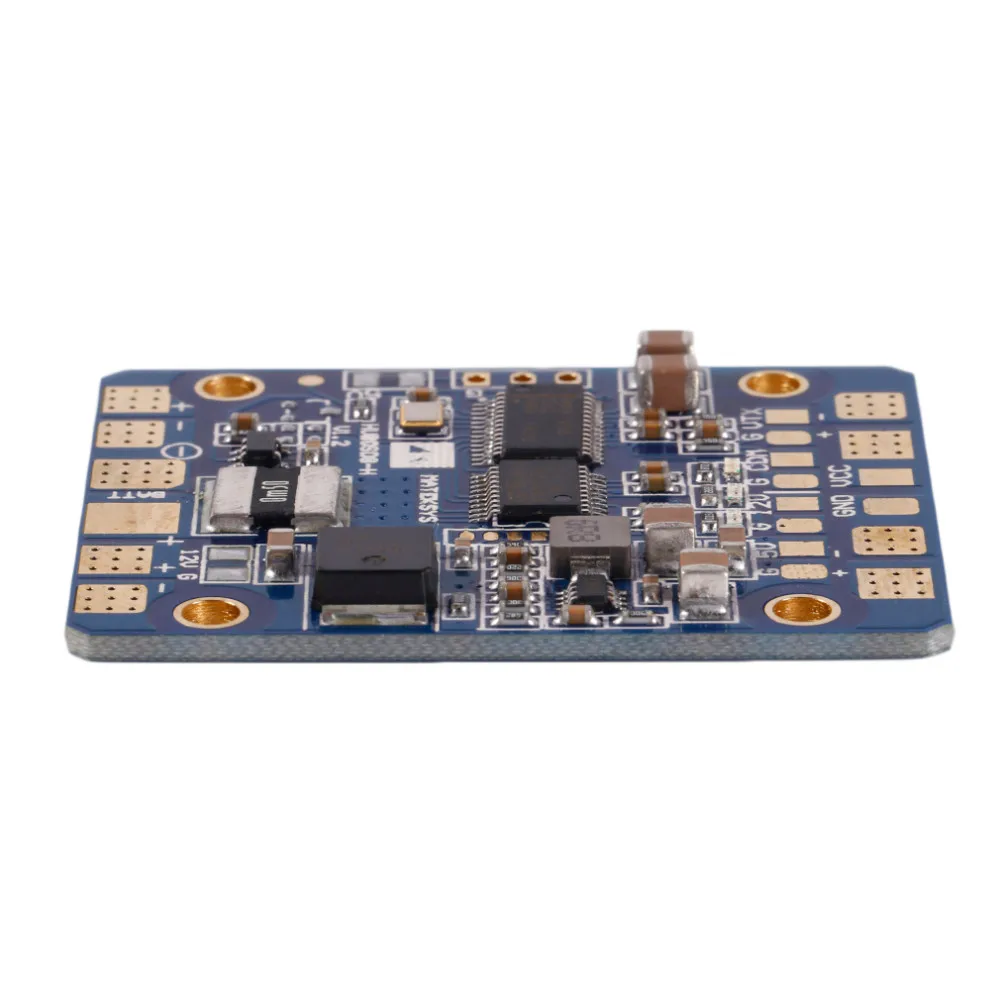

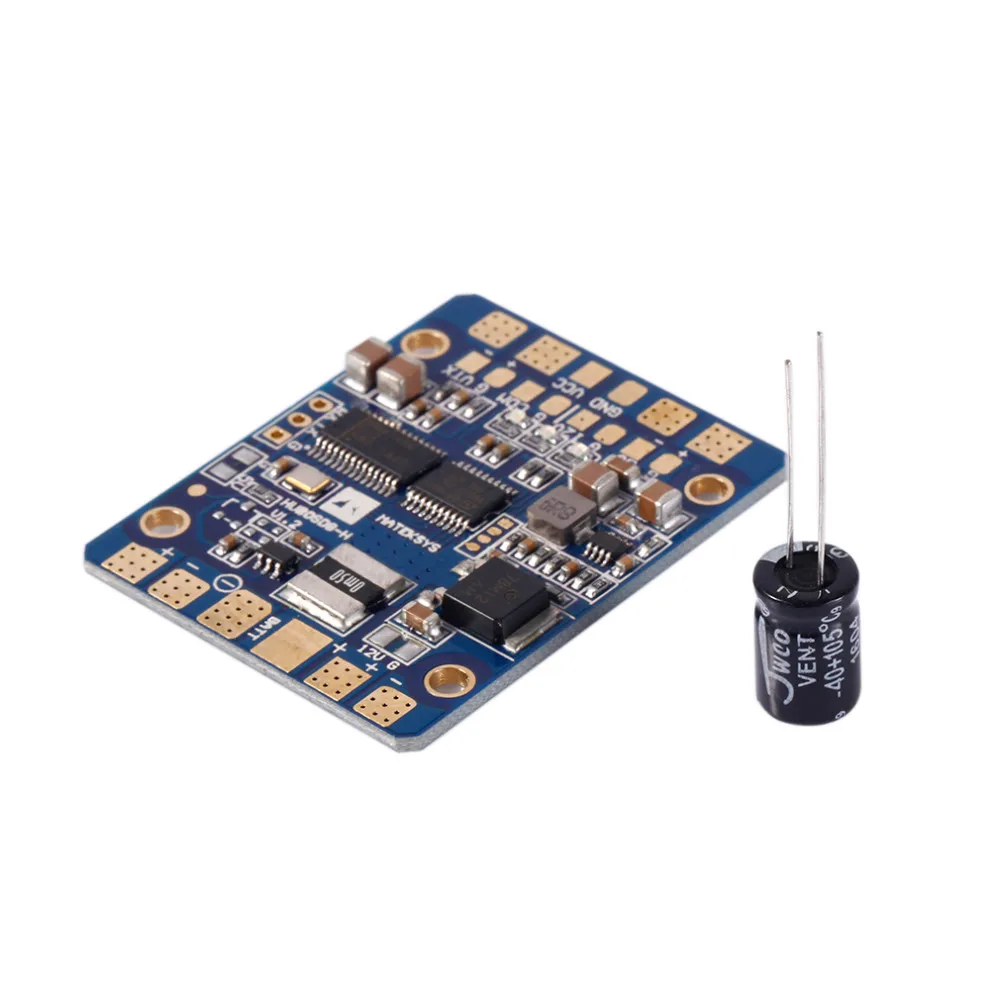

The HUBOSD8 has been engineered to provide the highest possible performance and reliability in a 4 layers PCB.
It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, Current sensor 140A, STOSD8.
The BEC 12V is linear regulator, no LC Filter needed.
Built-in STOSD8 can support Plug & Play, no complicated settings needed.
It is specially made for the mini FPV Quad.

Specifications:

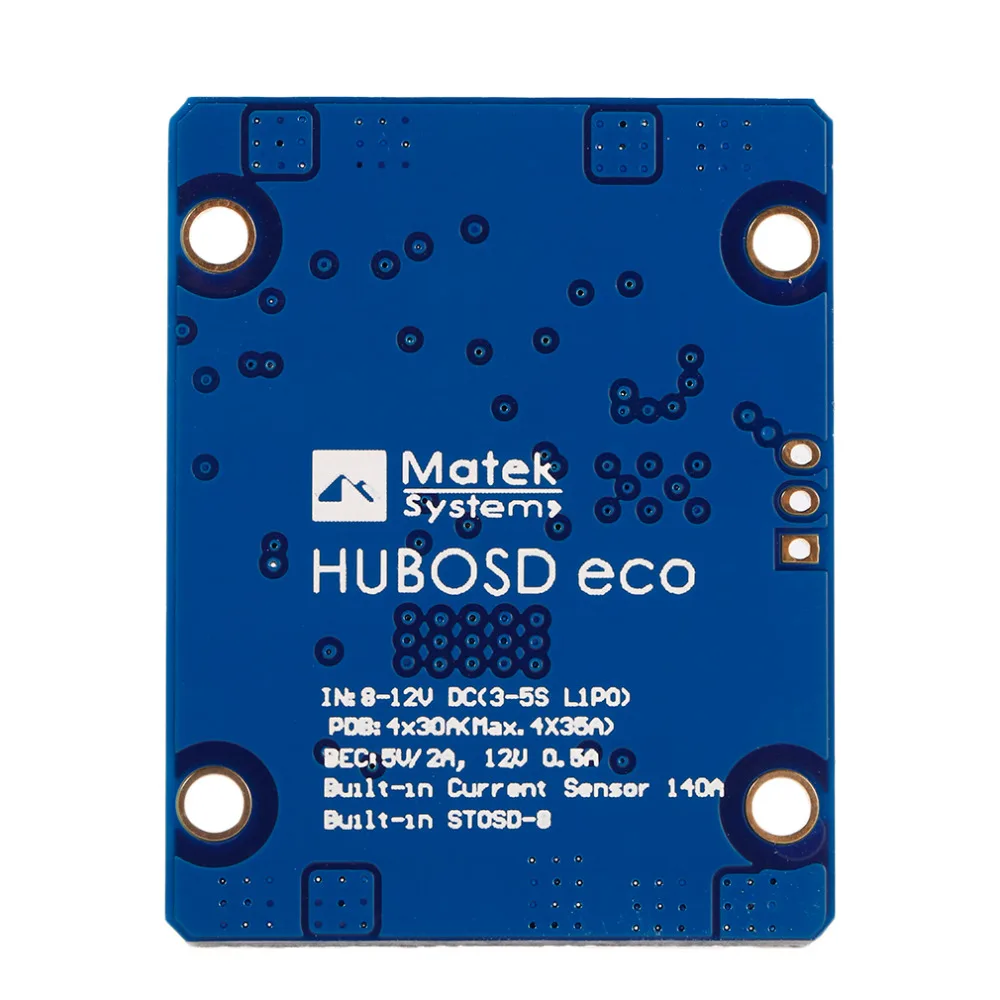

General:
In: 8-21VDC (3-5S LIPO)
PDB: 4 X 30A (MAX. 4 x 35A)
BEC: 5V/2A, 12V/0.
Color: blue

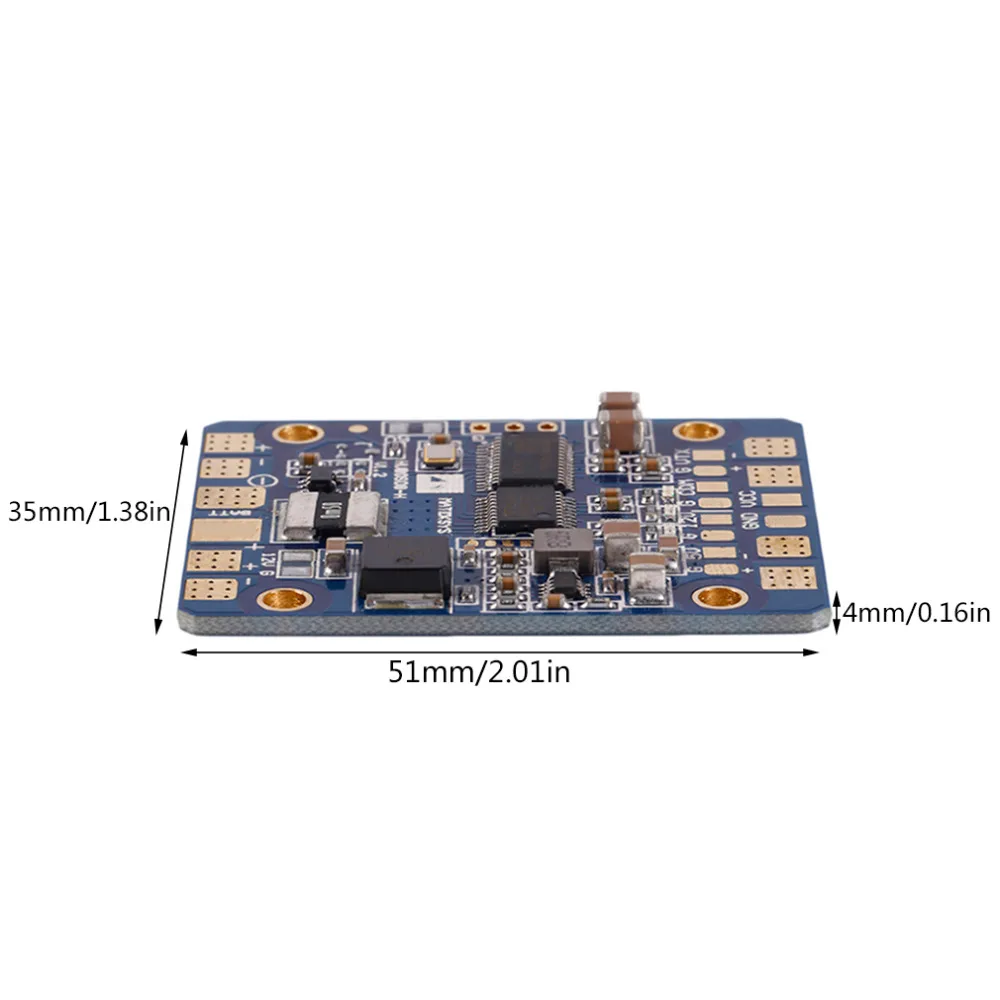

Size: 45 x 35 x 4mm/1.78 x 1.38 x 0.16 inch
Package size: 146 x 90 x 5mm
Net weight: 12g
Package weight: 17g

PDB: (ESC outputs)
Continuous current: 30A per output
Peak current (10 seconds/minute): 35A per output

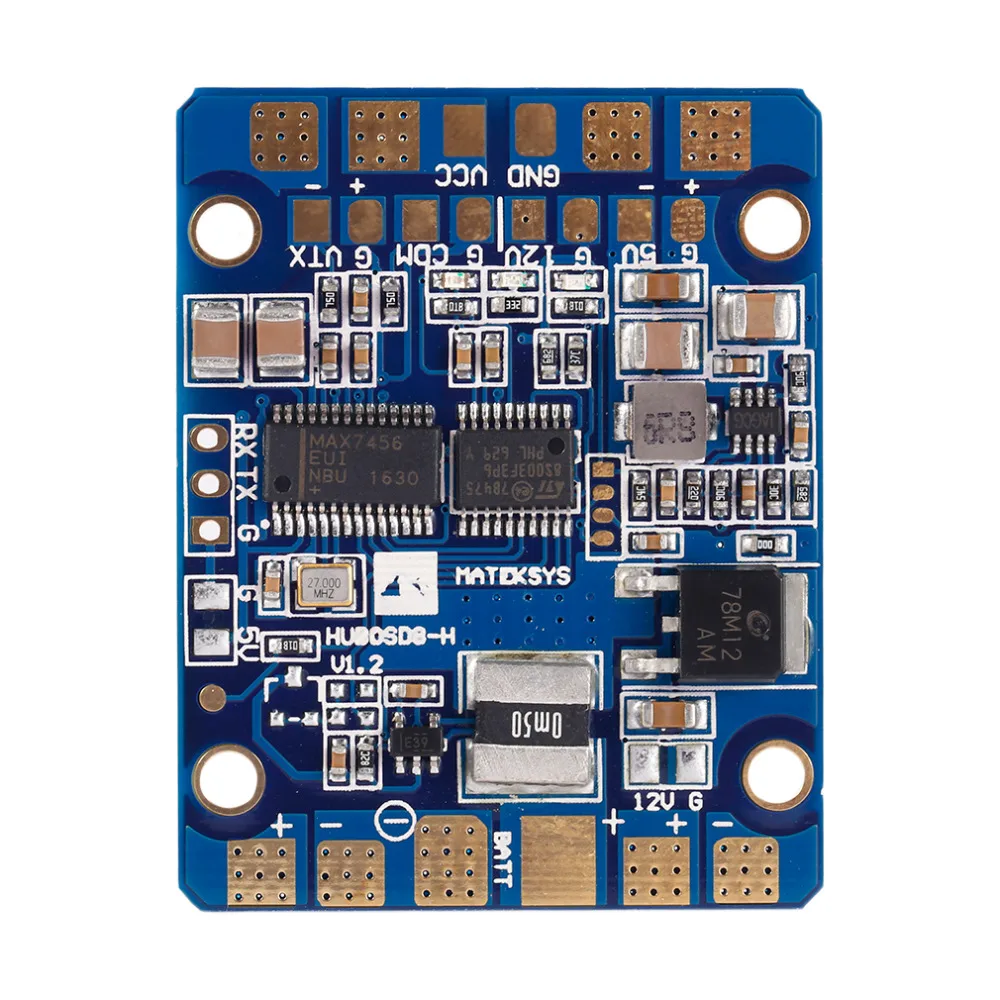

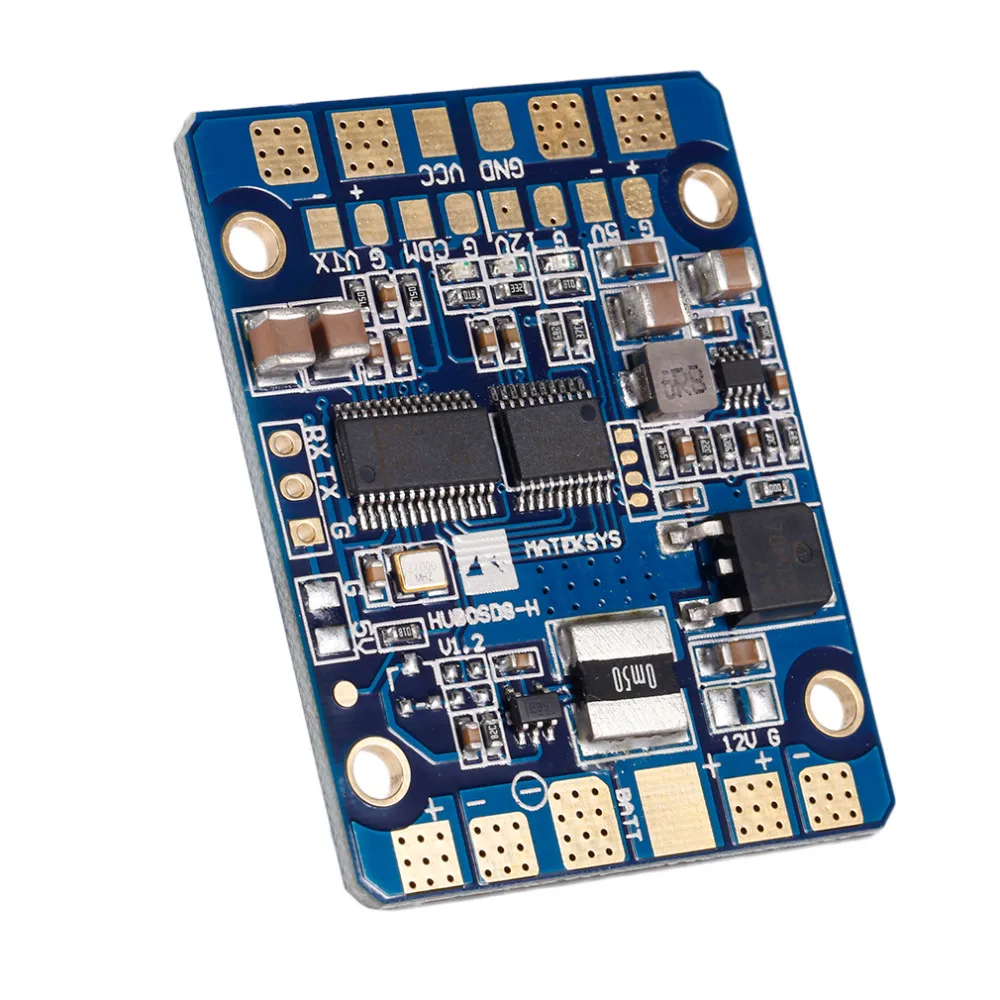

Physical:
2oz copper, 4-layers &1.6mm PCB.

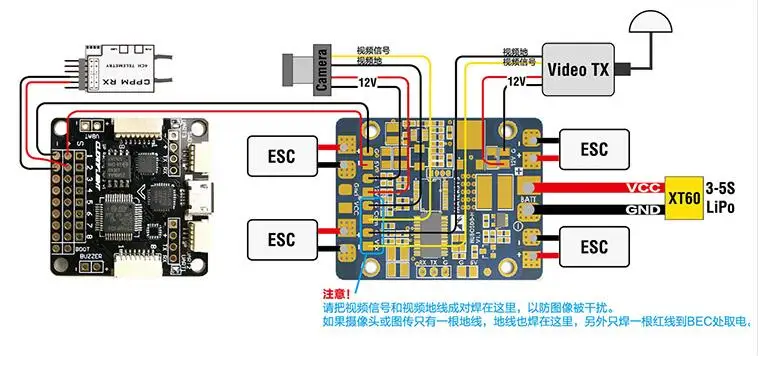

1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 2x BEC 12V outputs.
Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads
1x Serial port (RX, TX, G)
Mounting holes 30.5mm square spacingΦ3mm

BEC 5V (outputs)
Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)

BEC 12V (outputs)
Linear regulator, very low noise. LC Filter is needless.
Designed for Video TX or FPV camera.
Voltage: 12.0 +/- 0.3VDC (4-5S operation)
Continuous current: 500mA@16V IN, 400mA@20V IN
Short-circuit tolerant (2 seconds/minute)
If the battery is 3S LiPo, Output voltage=3S LiPo voltage – 1V

Current Sensor
140A
If current >140A. STOSD display 140A

STOSD-8
1) Running indicator
Blue LED blinks: STOSD is initializing
Blue LED light: STOSD is working.
2) Autodetect PAL/NTSC
Auto sense PAL / NTSC cam at OSD startup. Default is NTSC without Cam signal
3) Dynamic on screen info
Current < 2A & keep 5 seconds
Current > 2A
4) Min.Volt & Max.Amp recorder
5) Automatic flight timer
Current > 2A, Time in.
Current < 2A,Time out.
6) Auto battery cells detection
If the Input voltage is in the range of following, The HUBOSD will detect the cell
numbers automatically.
11.1-13.05V: 3cells LiPo, 14.8-17.4V: 4cells LiPo, 18.5-21V: 5cells LiPo
If the input voltage is out of the range. The voltage value will blink on screen.
Pls check if the battery total voltage is below 3.7V*cells
7) Low vlotage alarm
(Value blinks): Default 3.6V* cells
8) Exceeding mAh alarm
(Value blinks): Default 1000mAh
9) Onscreen Pilot ID
Default is disable. you can type some words & enable it in GUI
10) Firmware upgradable
Voltage precision: +/- 0.4%, Voltage resolution: 0.01V
Current precision: +/- 1.5%, Current resolution: 0.1A

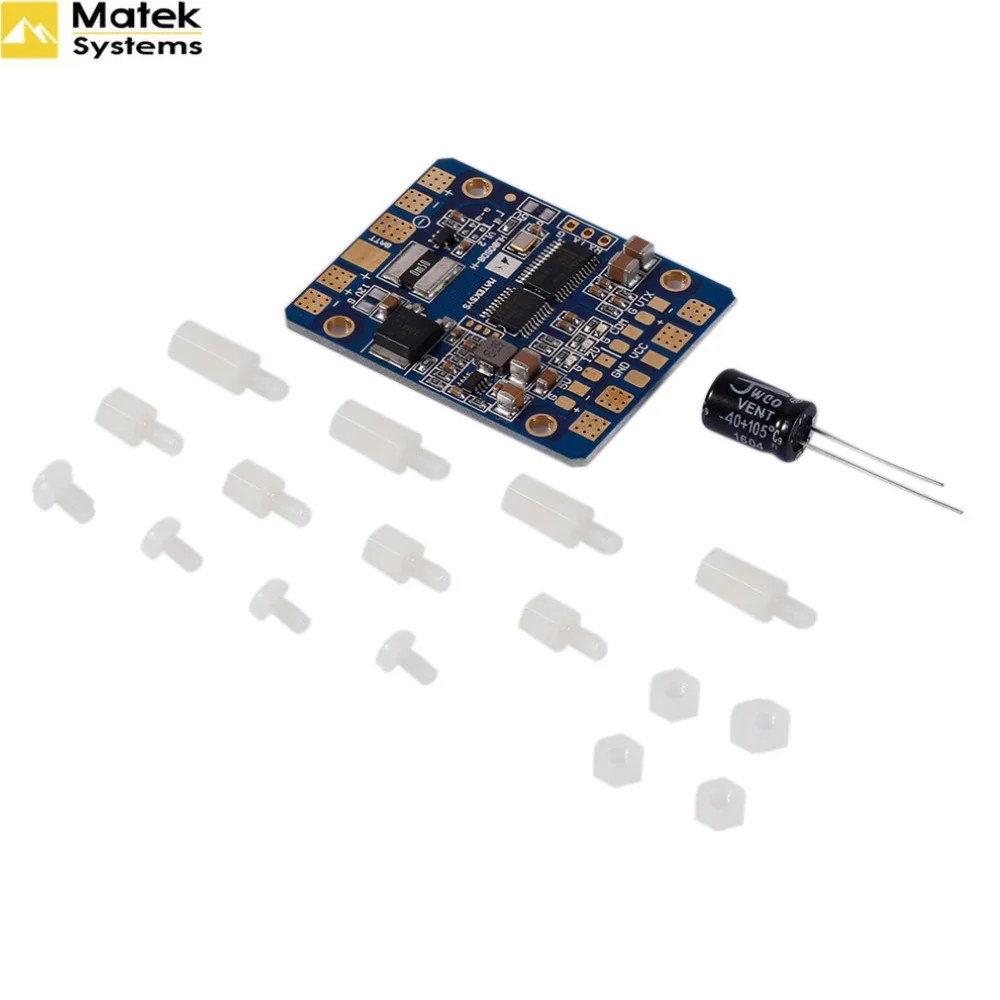

Package included:

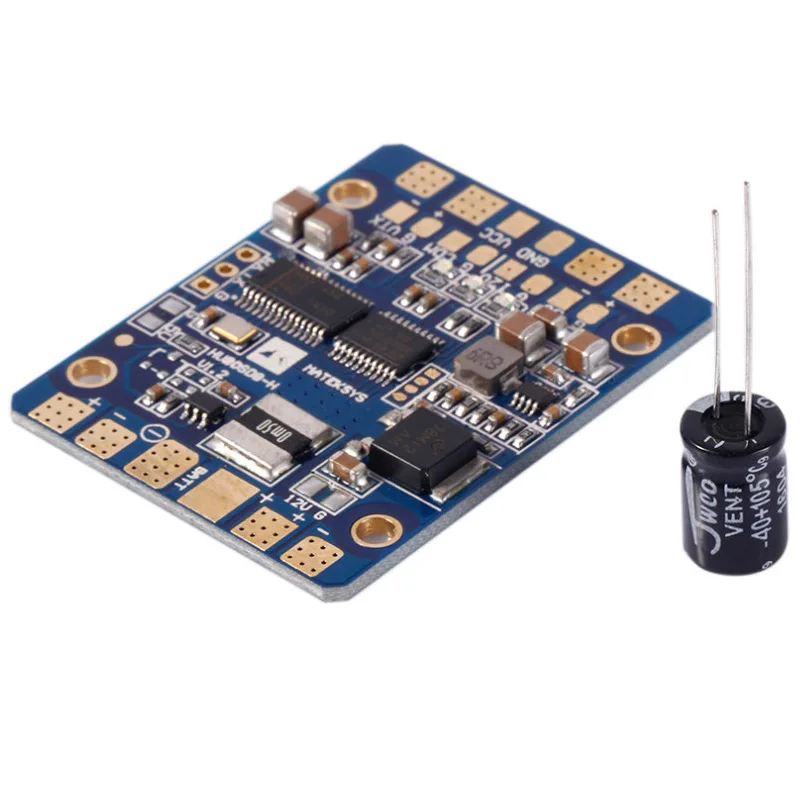

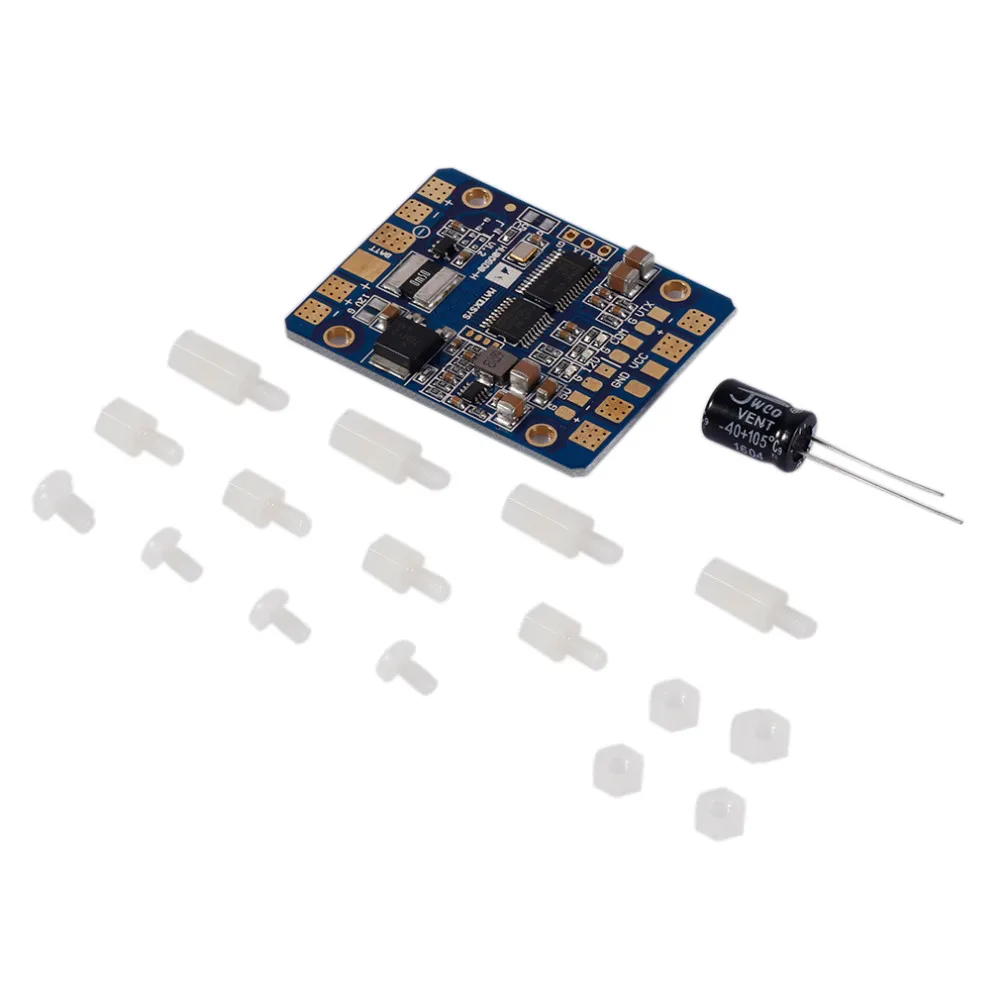

1 x Dual BEC OSD Distribution Board
1 bag of accessories
