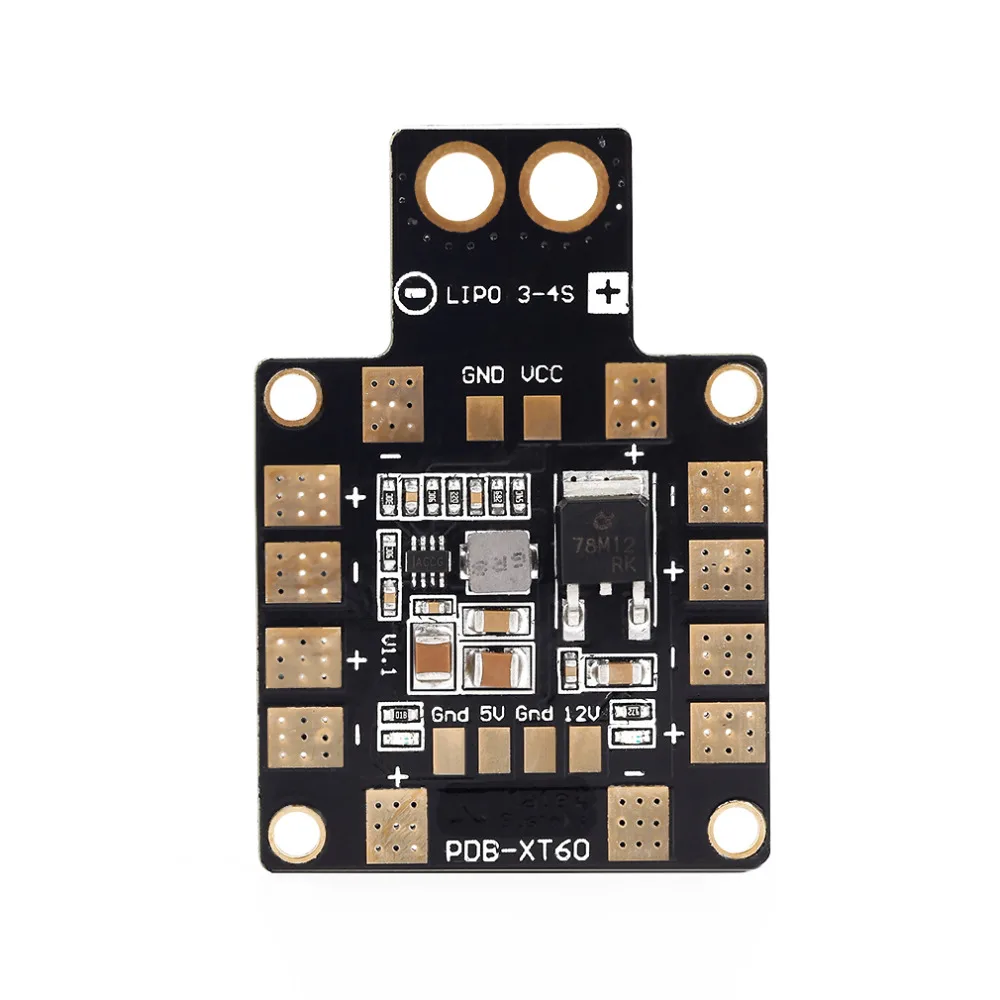

Matek 3A PDB Power Distribution Board BEC 5V 2A 12V 0.5A with XT60 Plug for DIY Quadcopter
Original price was: $26.94.$15.72Current price is: $15.72.
16 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Other
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: VMGR15134
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Other
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Technical parameters: value 2
Tool Supplies: Other
Upgrade Parts/Accessories: Other
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

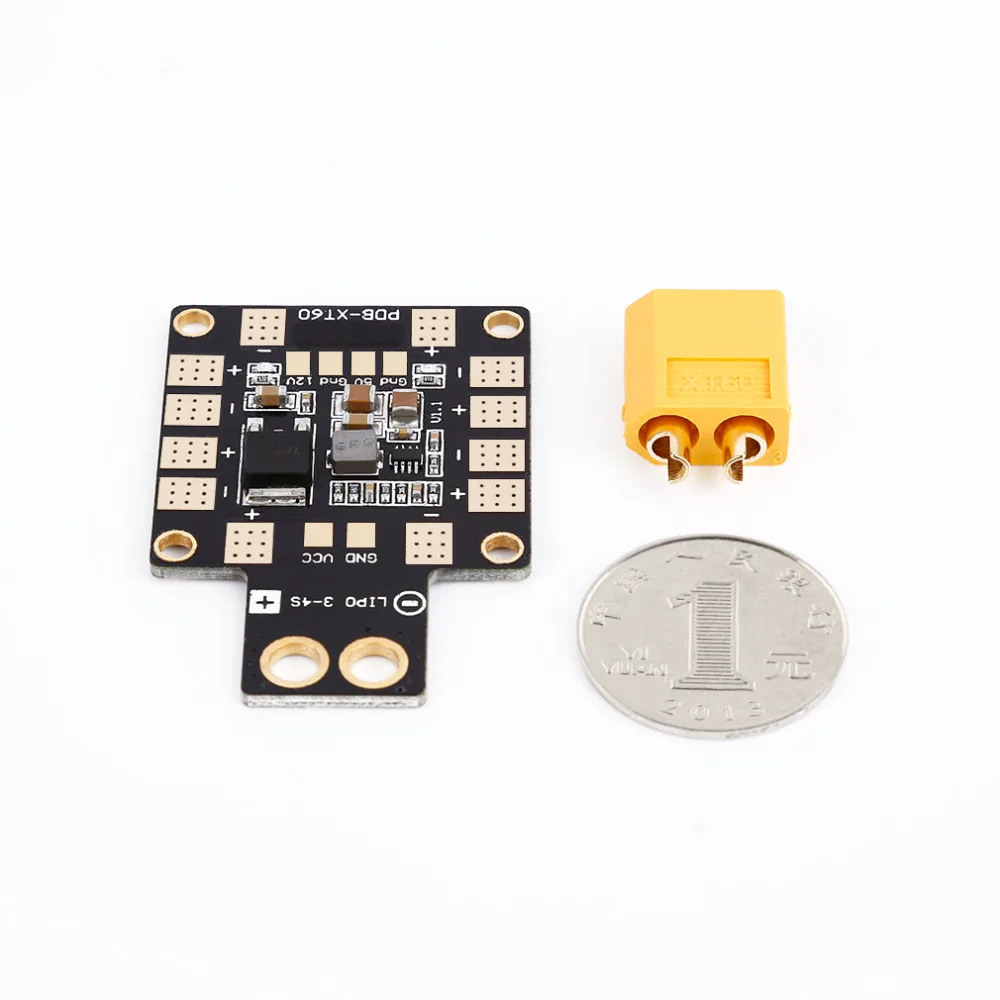

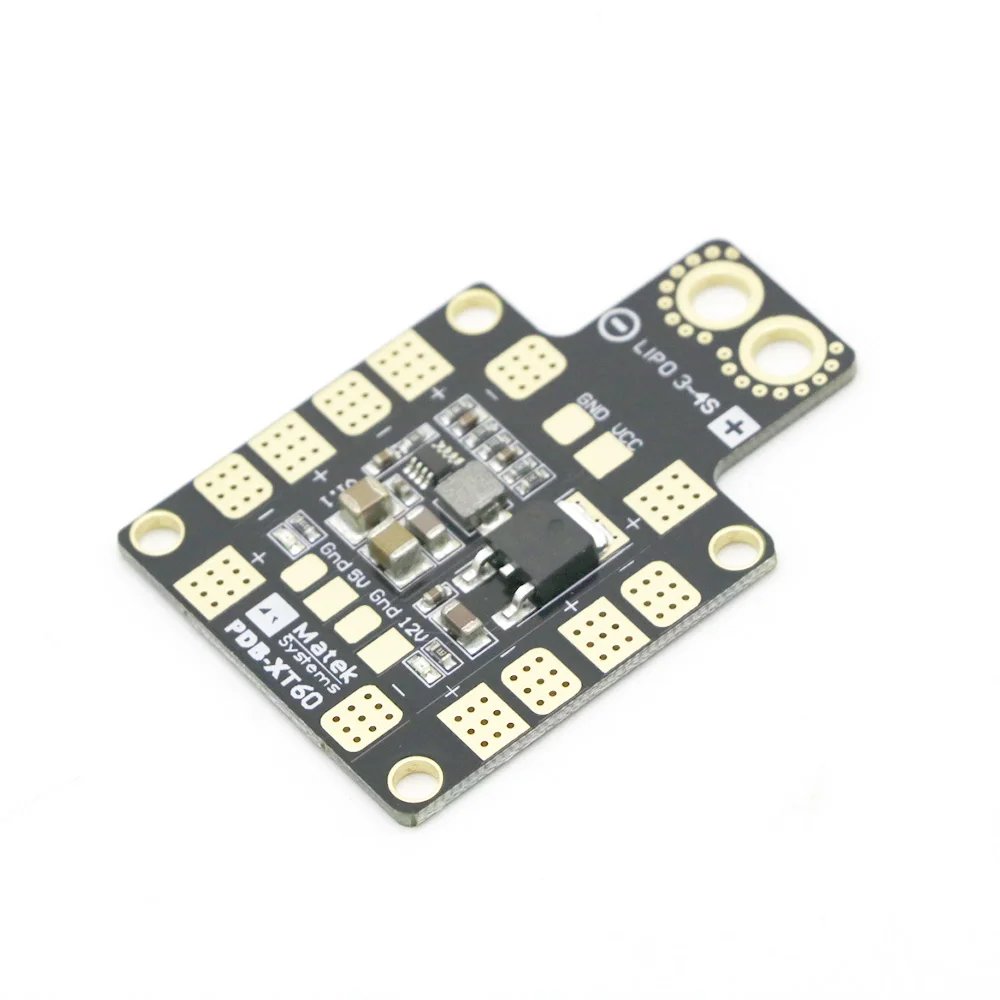

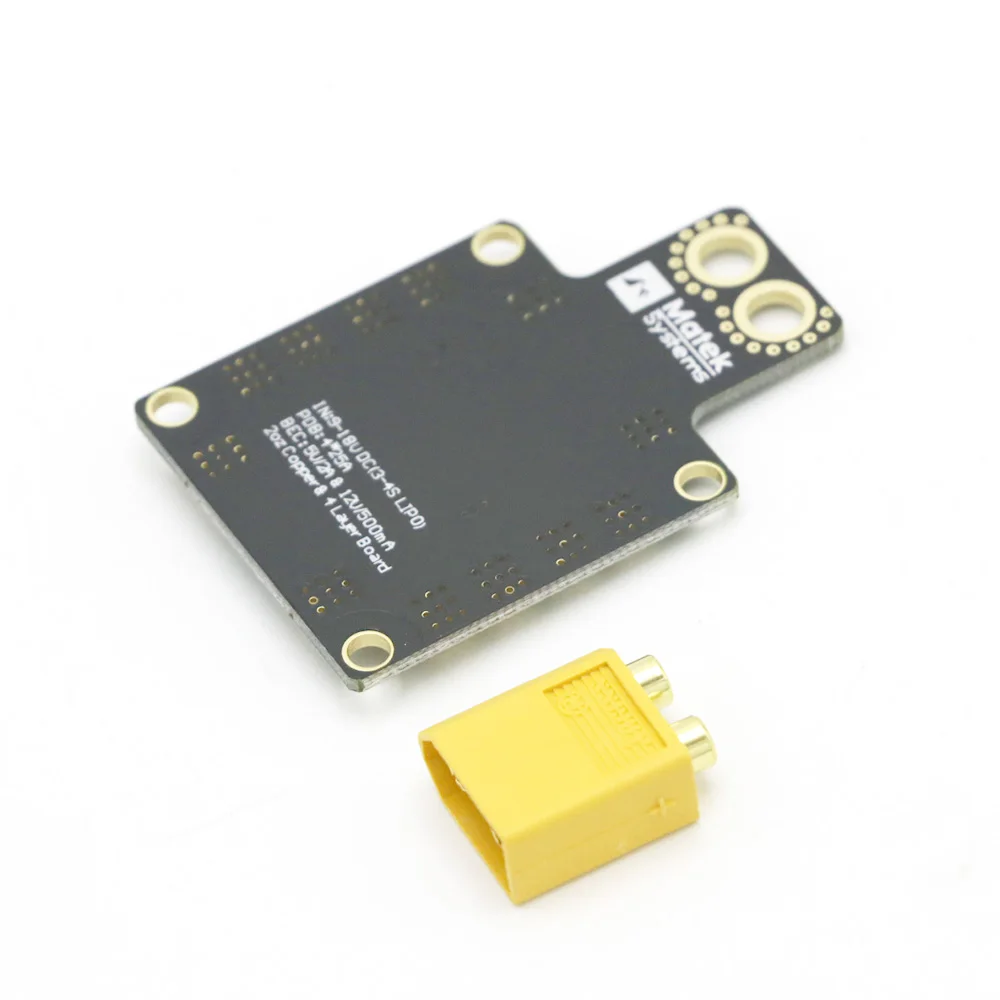

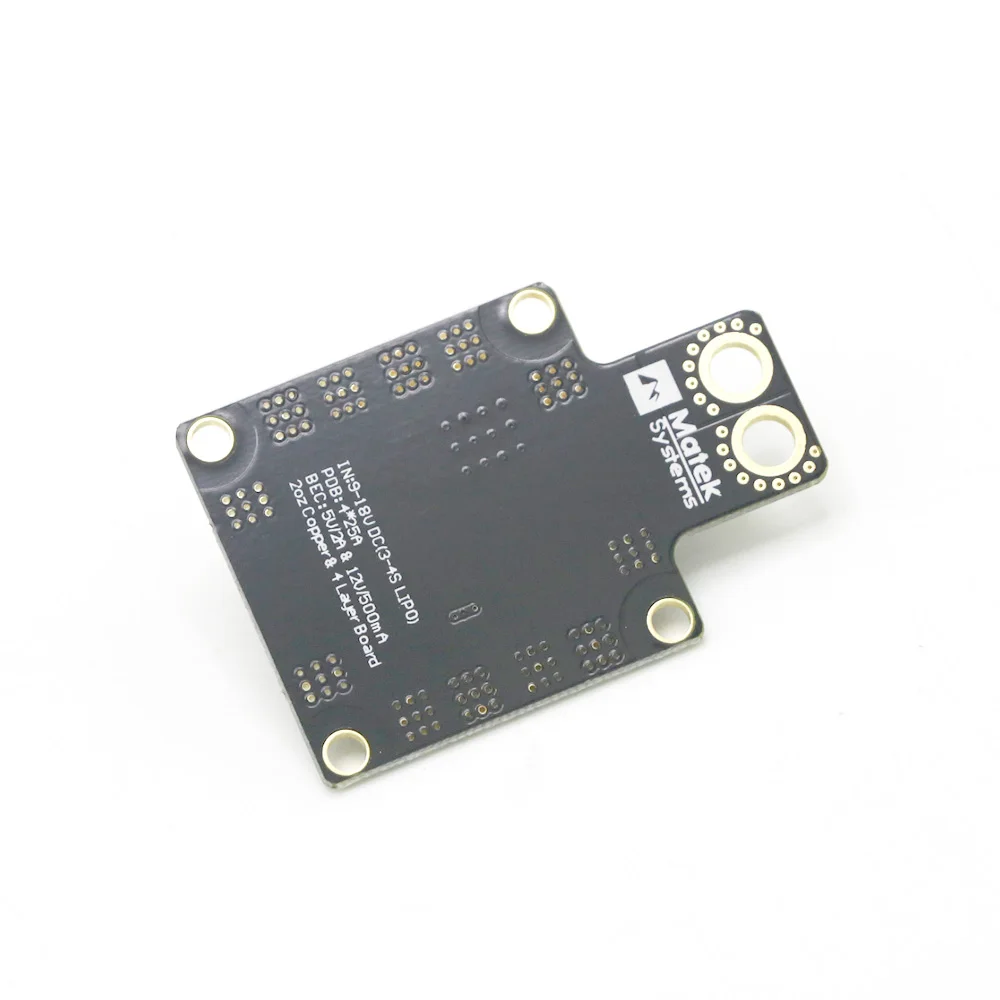

2oz copper, 4-layers &1.6mm PCB.

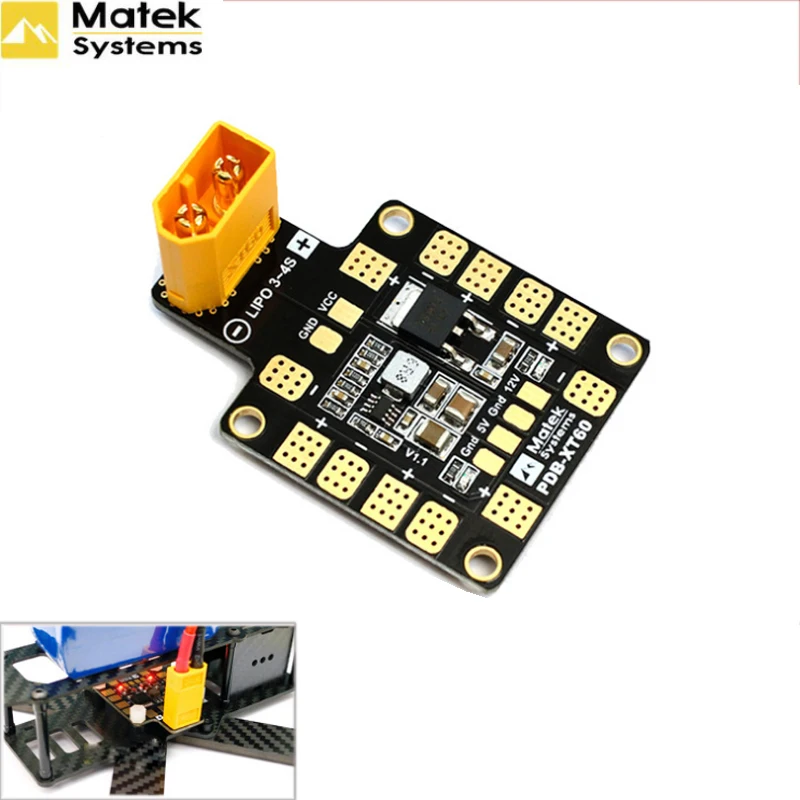

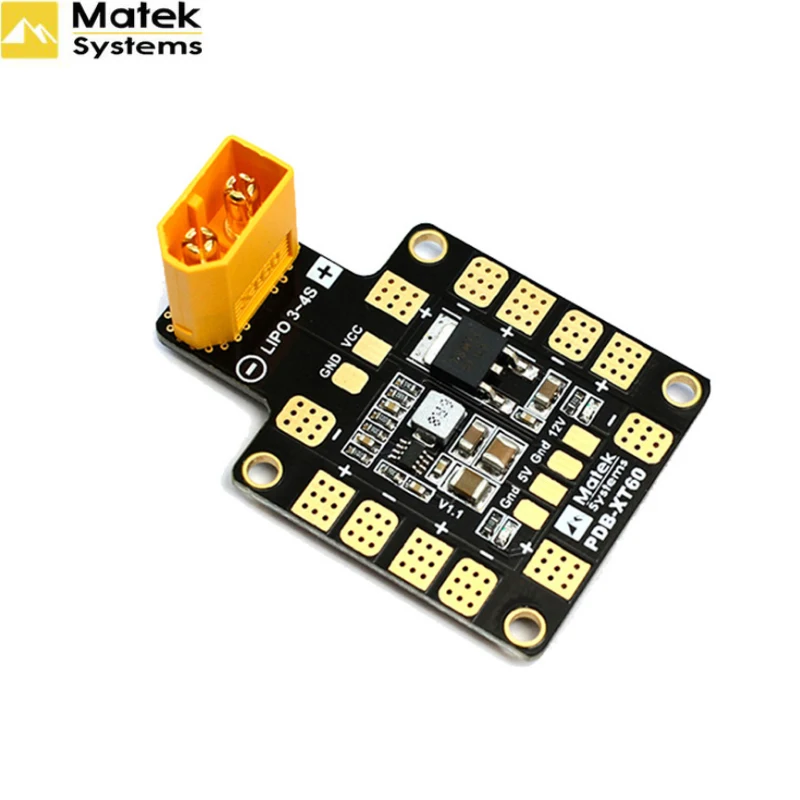

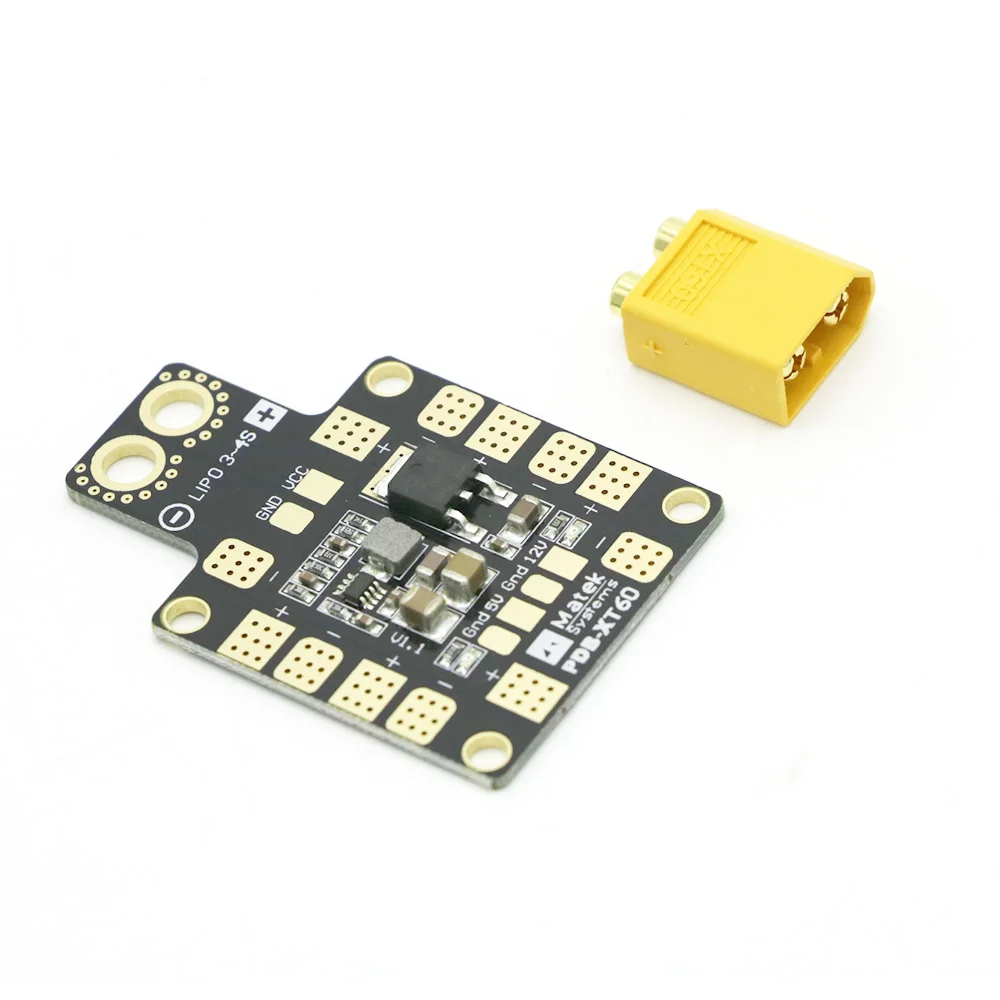

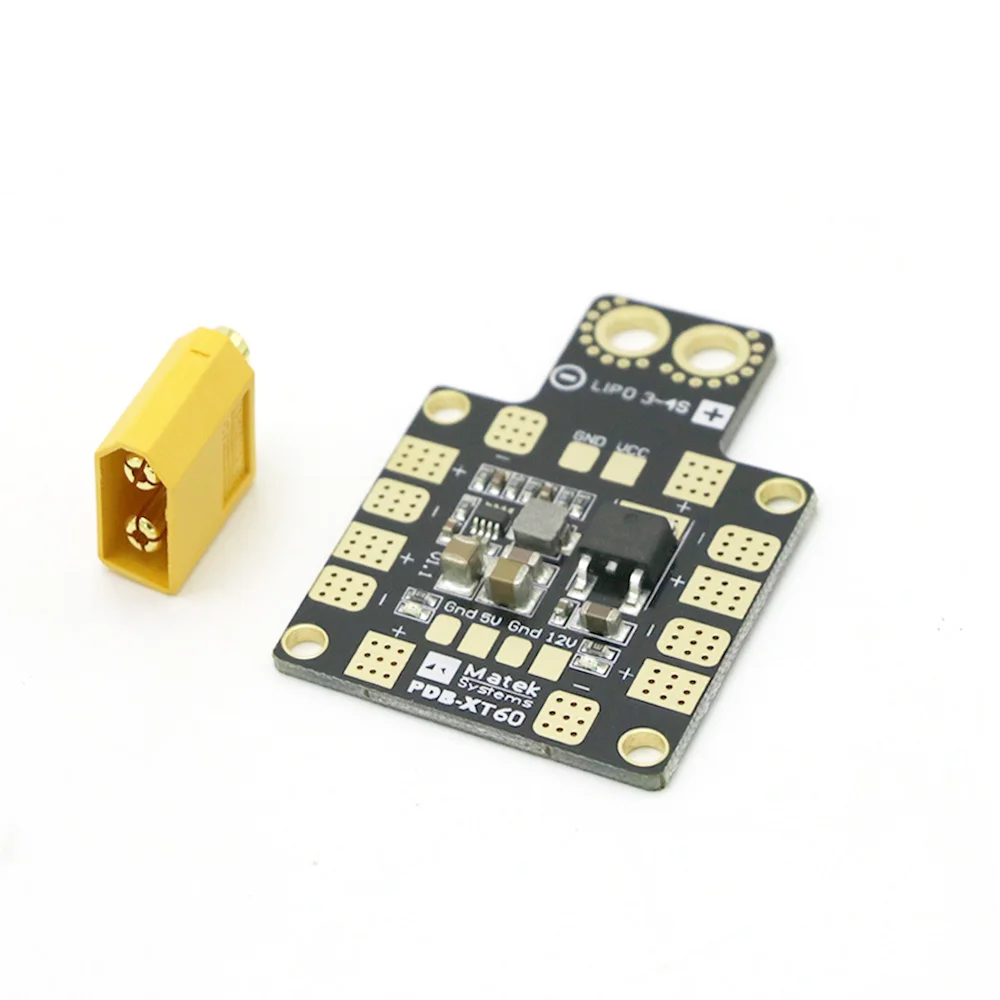

Built-in XT60 Socket
Total 6 pairs ESC solder tabs are fit for H or X type frame
5V & 12V Output LED indicators & Short circuit tolerant
Specifications
Input voltage range (3S-4S LiPo operation): 9 – 18V DC
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs )
6 ESC outputs & 1 pair VCC/GND pads
ESC outputs:
Continuous current: 25A*4 or 15A*6
Peak current (10 seconds/minute): 30A*4 or 20A*6
BEC 5V output:
Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)
BEC 12V output:
Designed for Video TX or FPV camera with linear regulator.
The battery should be 4S LiPo (13~18V DC)
Voltage: 12.0 +/- 0.3VDC
Continuous current: 500mA (Max.0.8A 5s/minute)
Short-circuit tolerant (2 seconds/minute)
BEC 12V @ 3S LiPo
Output voltage= 3S LiPo voltage -1V
Size: 50 x 35 x 3mm/2 x 1.4 x 0.1 inch
Package size: 145 x 88mm/5.7 x 3.5 inch

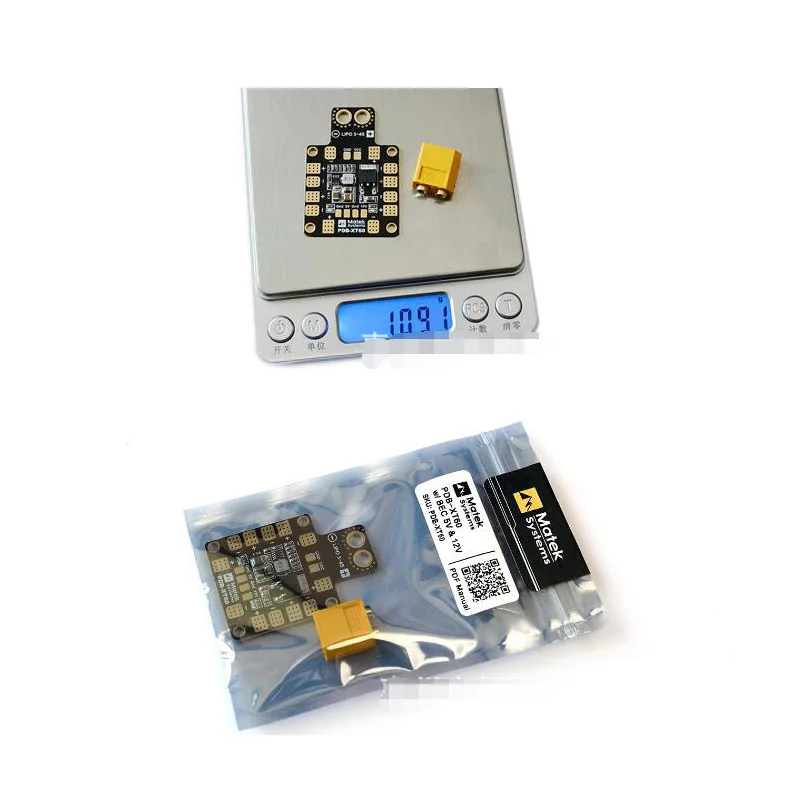

Net Weight: 10g
Package weight: 15g

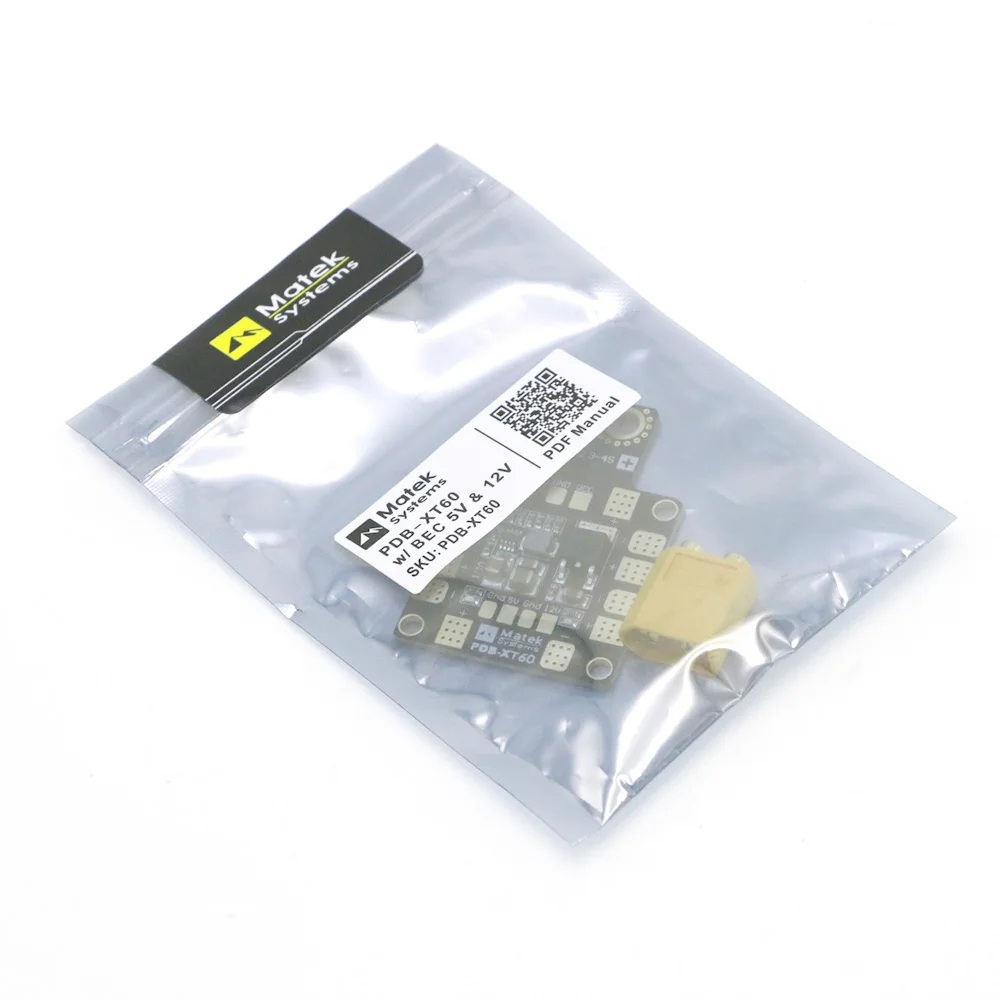

Package included:
1 x Distribution Module
1 x XT60
