SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: MARK4 V2 10inch Frame

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Carbon Fiber

Model Number: HTX078

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Principal Axis

Recommend Age: 14+y

Remote Control Peripherals/Devices: Airframe

Size: MARK4 V2 10inch Frame

Technical parameters: value 2

Tool Supplies: MARK4 V2 7inch Frame

Upgrade Parts/Accessories: 10inch Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

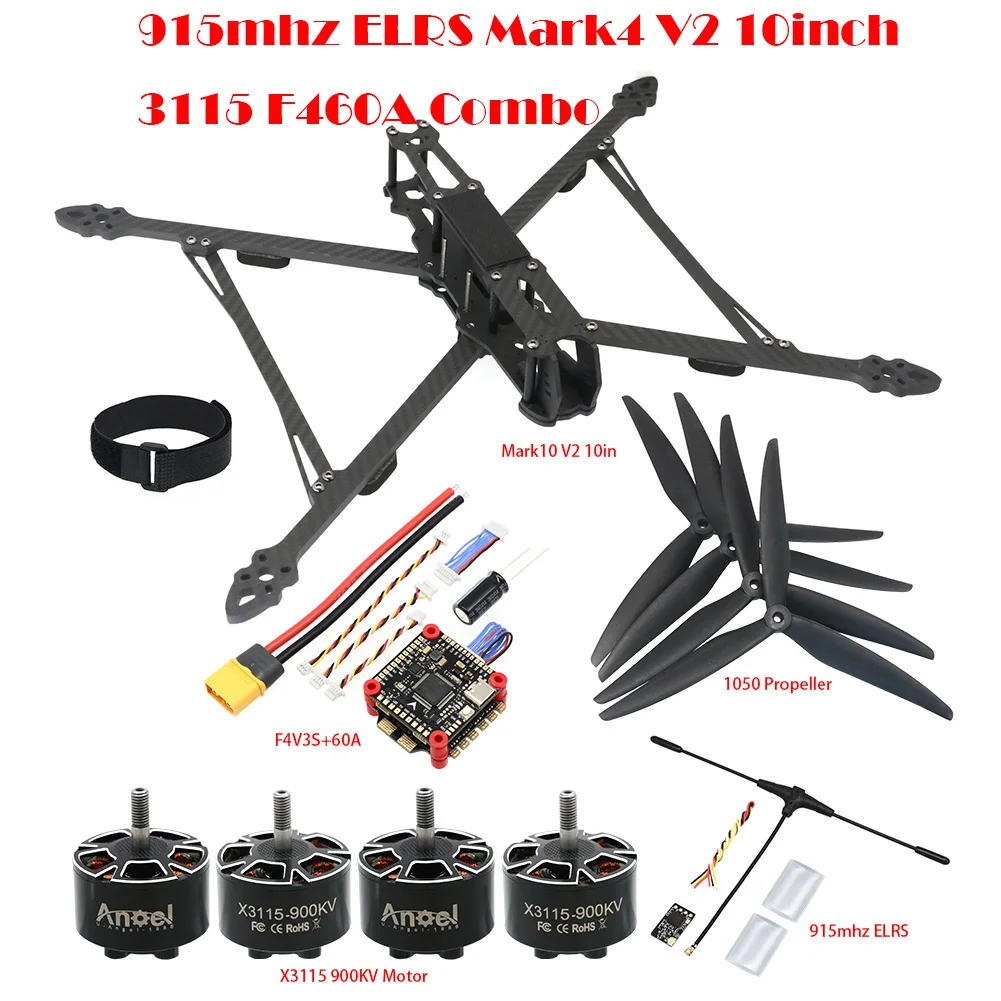

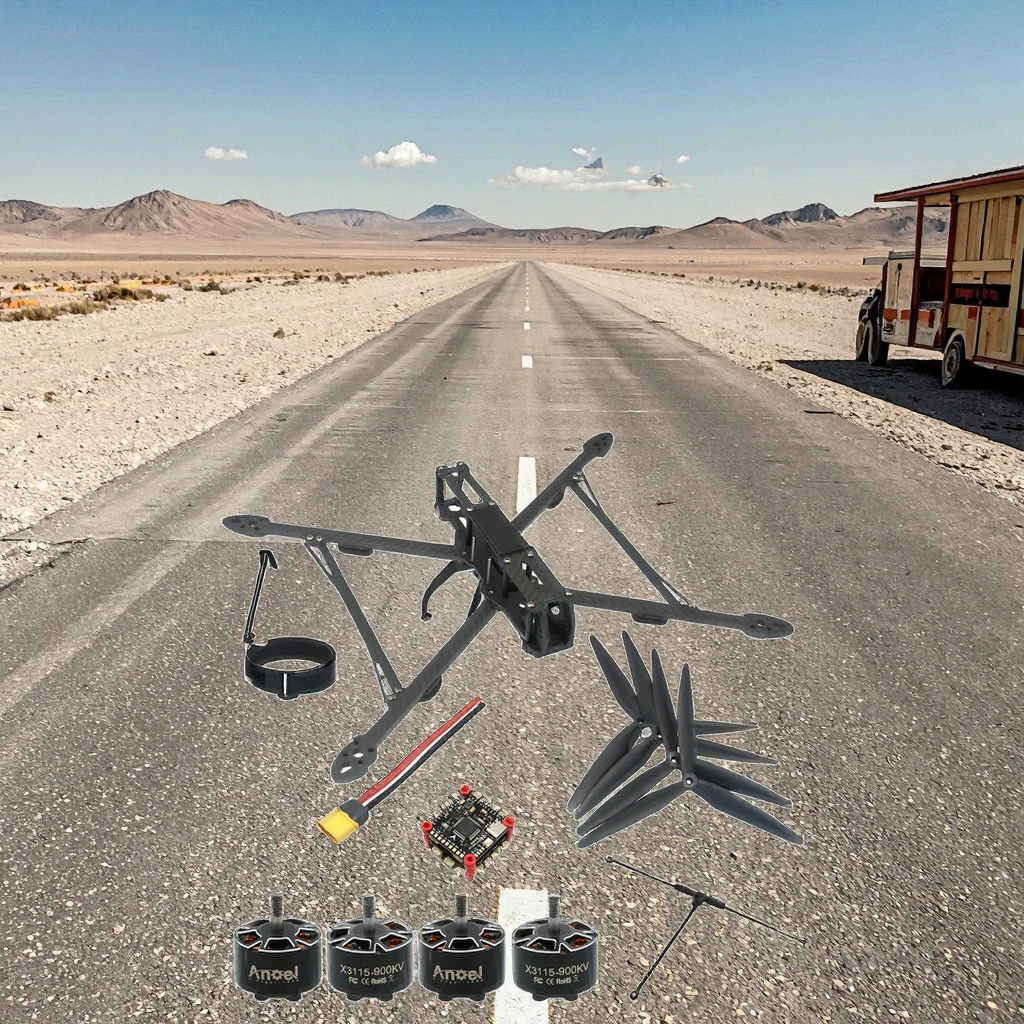

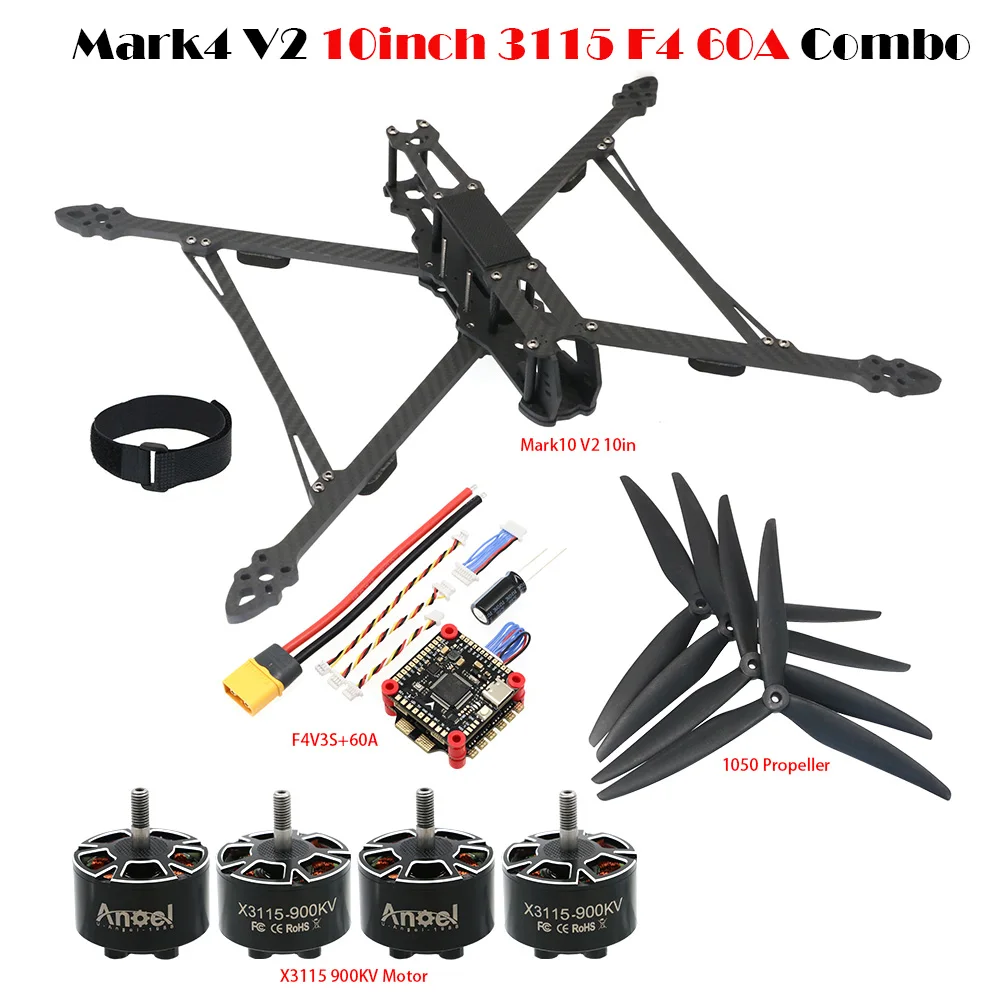

1x Mark4 V2 10inch 427mm Carbon Fiber frame (unassembled)

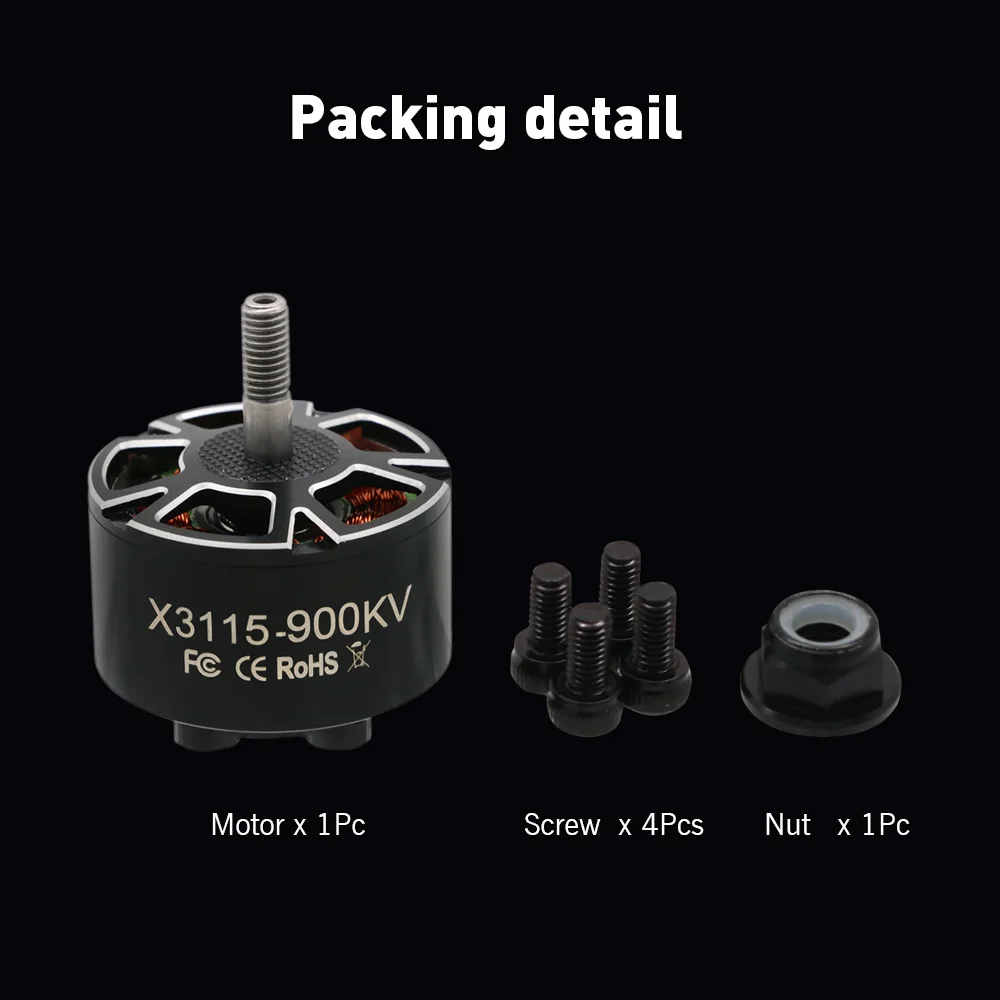

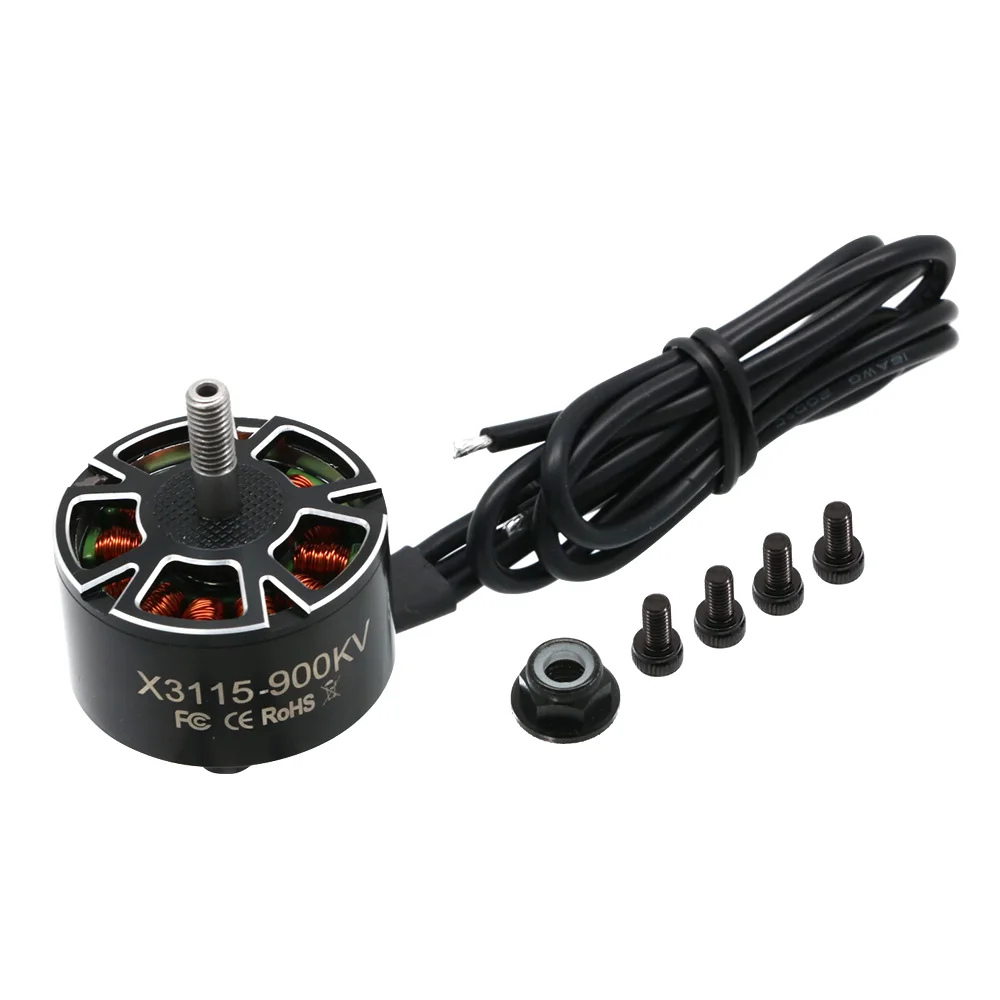

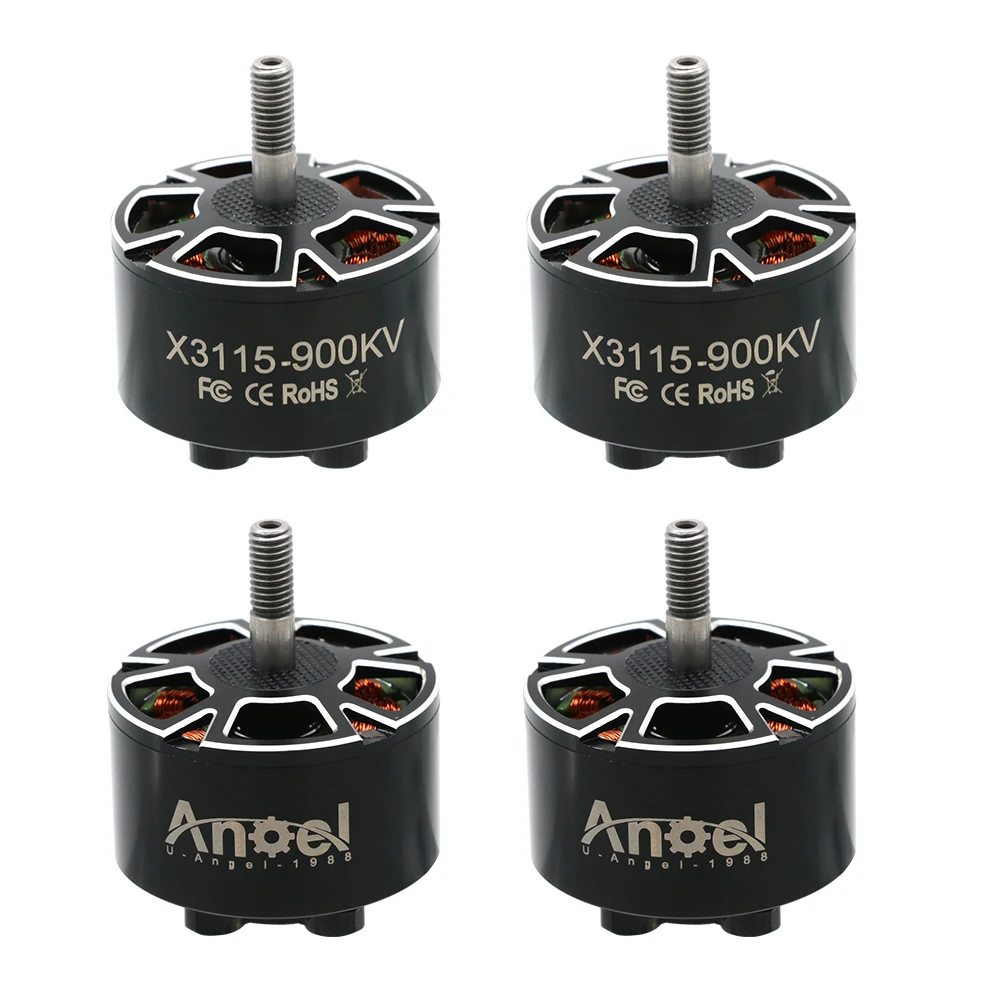

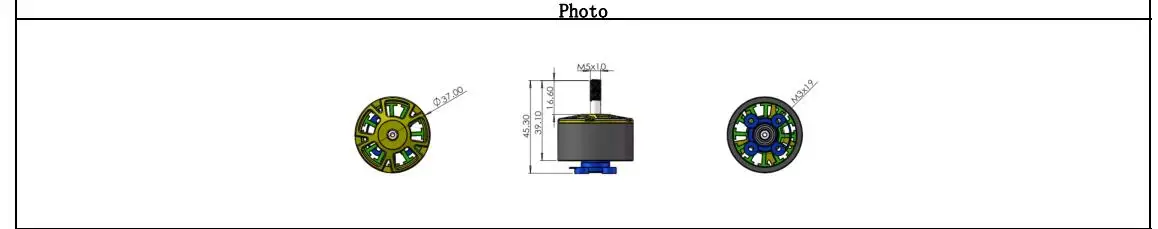

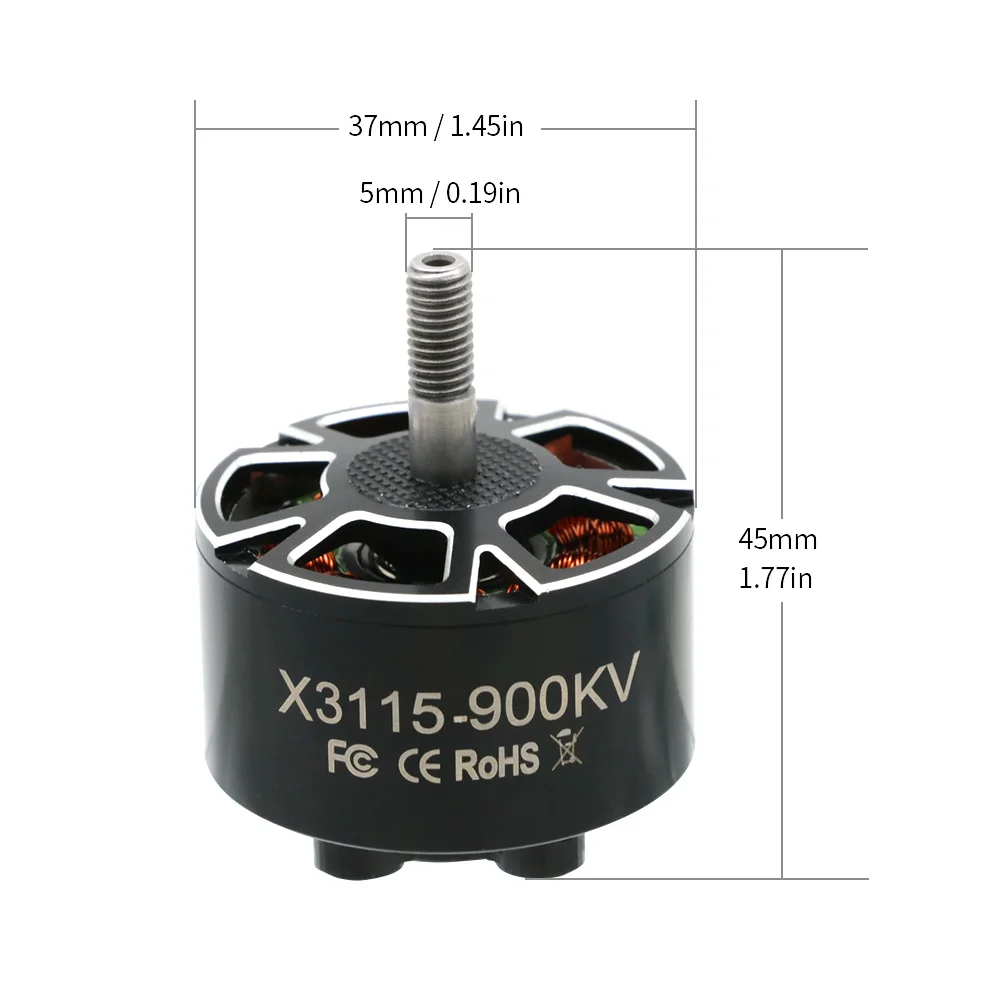

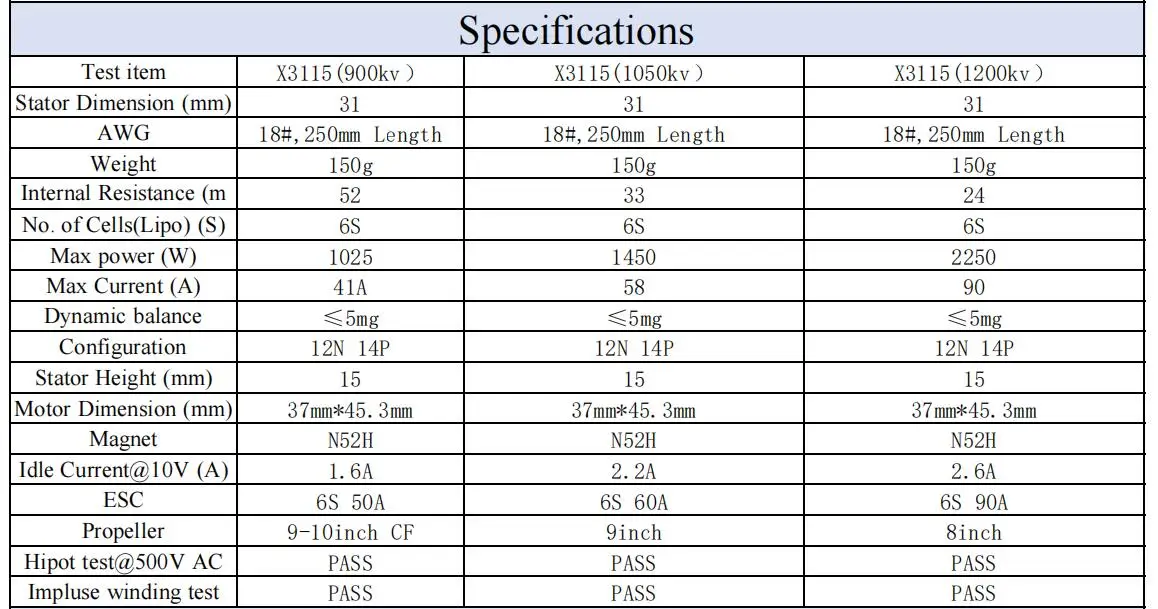

4PCS x Angel X3115 900KV Brushless Motor

1PCS x F4 Flight Control Board

1PCS x 60A BLheli_S 4In1 ESC

2Pairs x 1050 3-blades Propeller

1PCS x Battery Strap

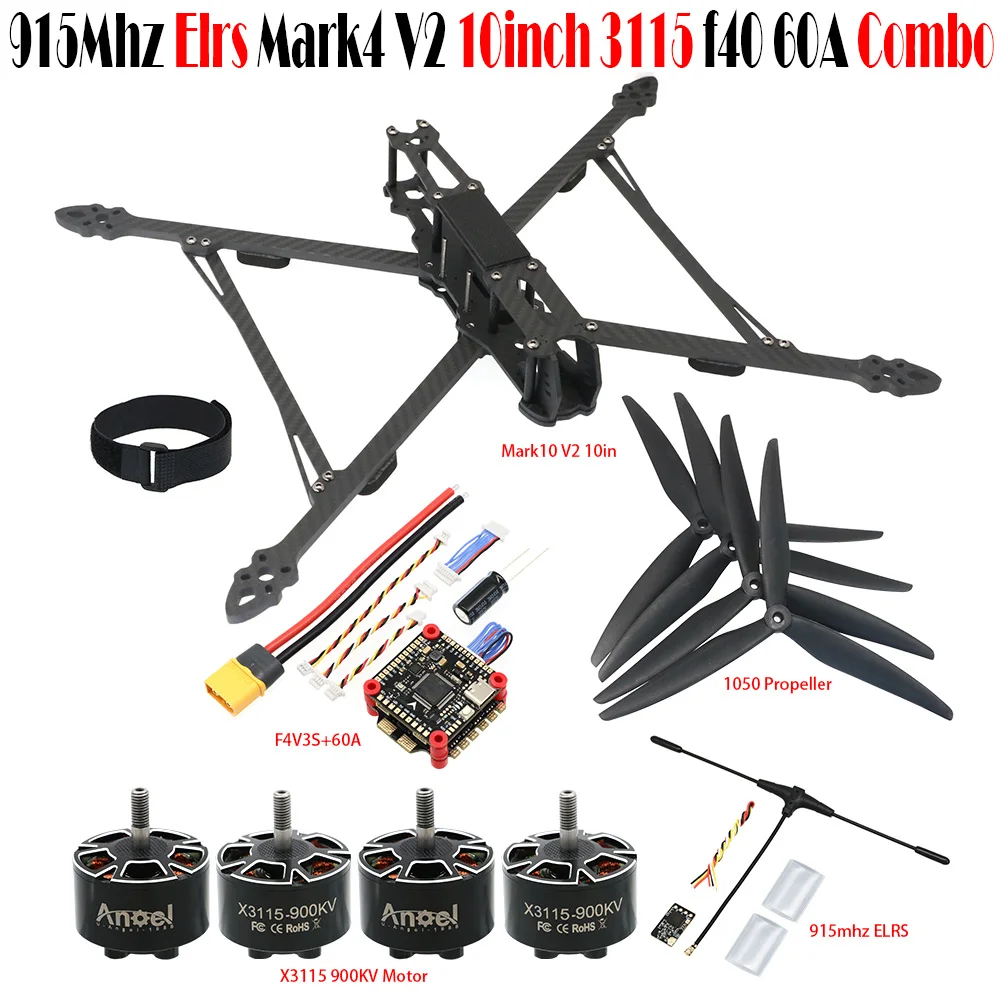

1x Mark4 V2 10inch 427mm Carbon Fiber frame (unassembled)

4PCS x Angel X3115 900KV Brushless Motor

1PCS x F4 Flight Control Board

1PCS x 60A BLheli_S 4In1 ESC

2Pairs x 1050 3-blades Propeller

1PCS x Battery Strap

1PCS x 915mHz Elrs Receiver

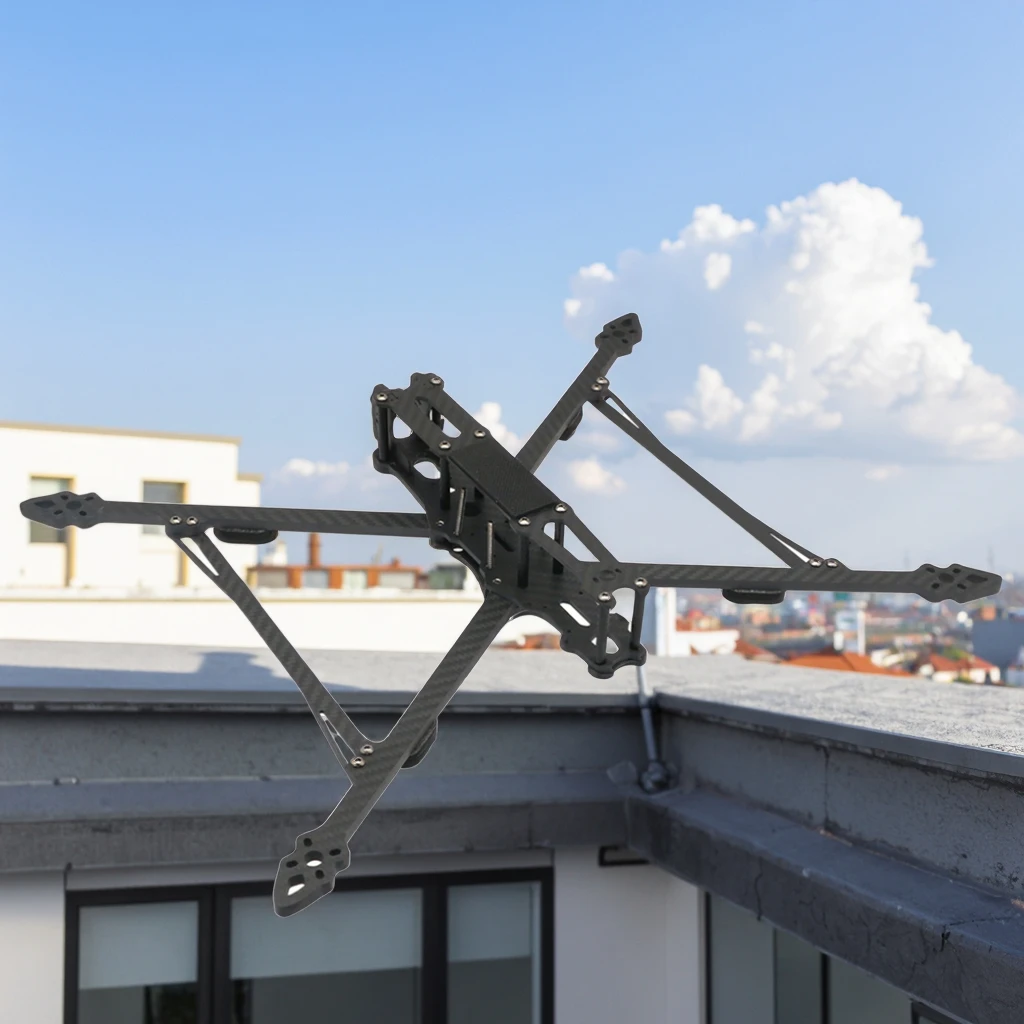

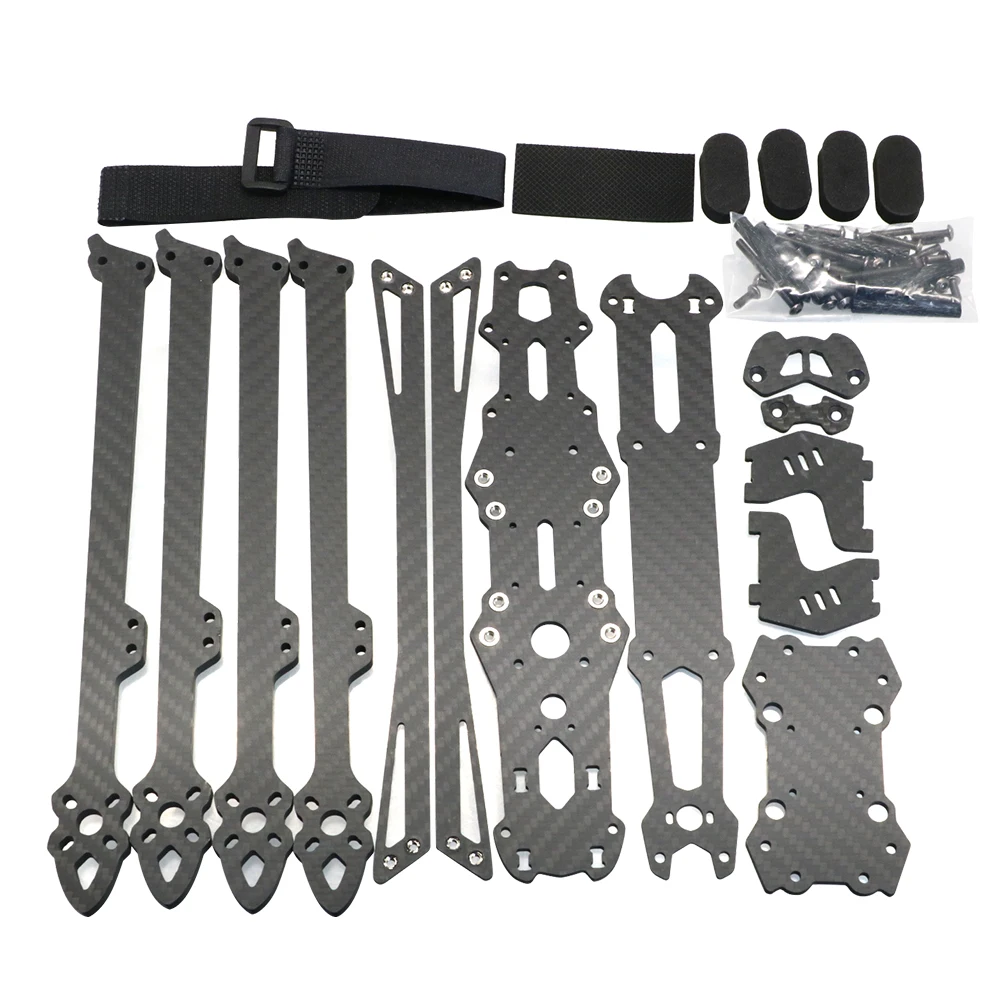

Mark4 V2 10Inch 427mm Carbon Fiber Frame:

Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.5mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm

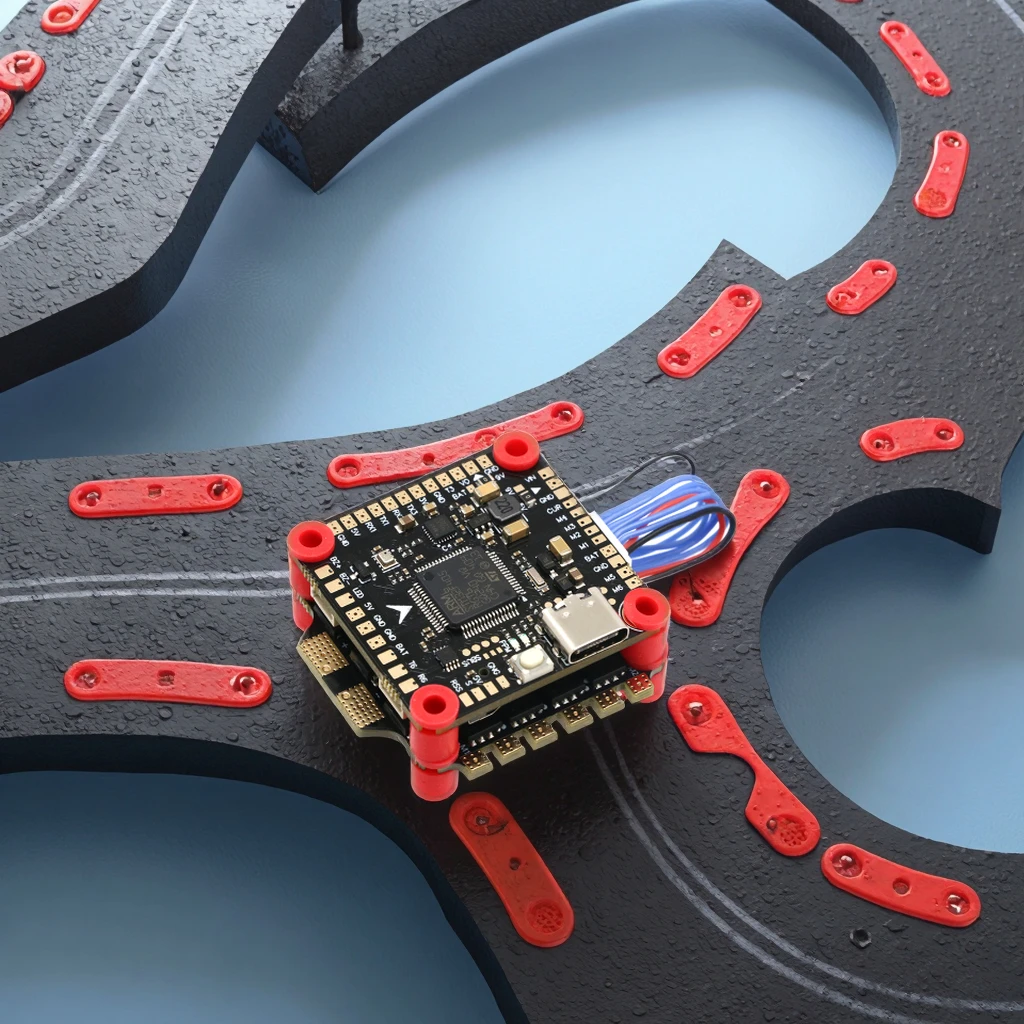

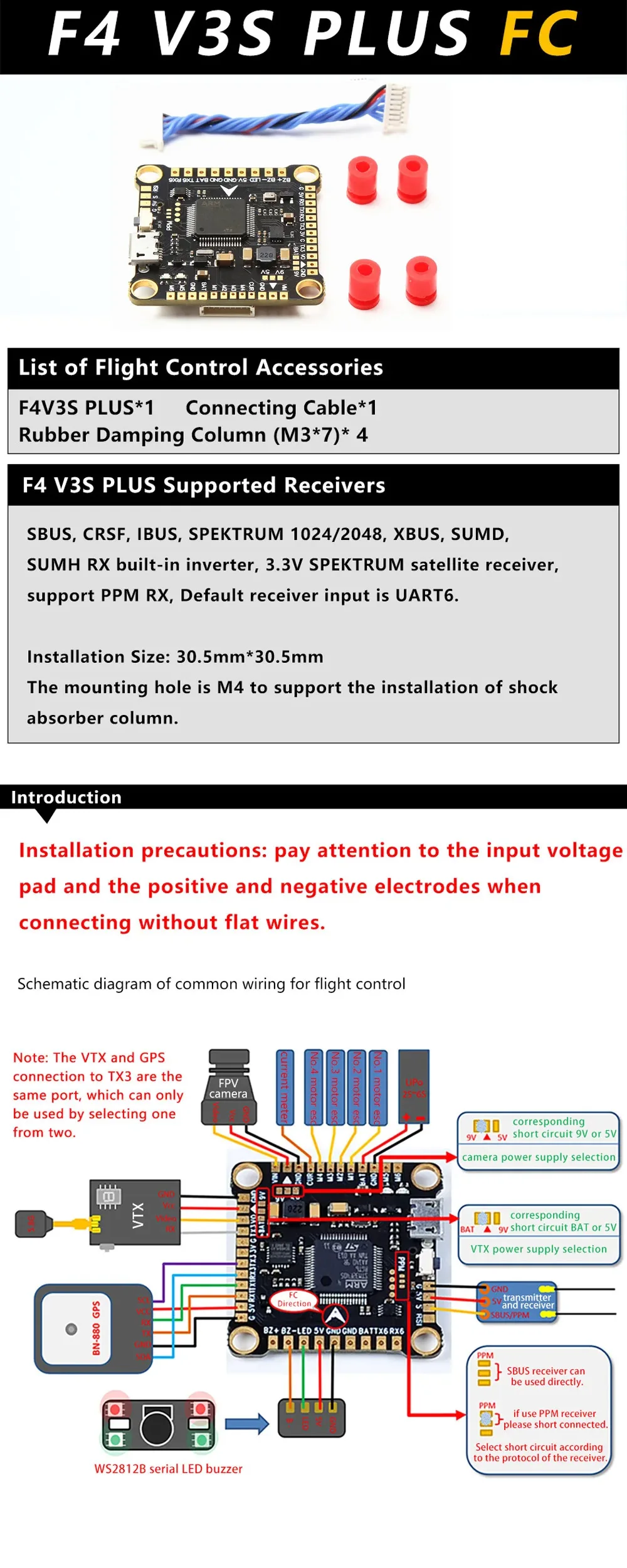

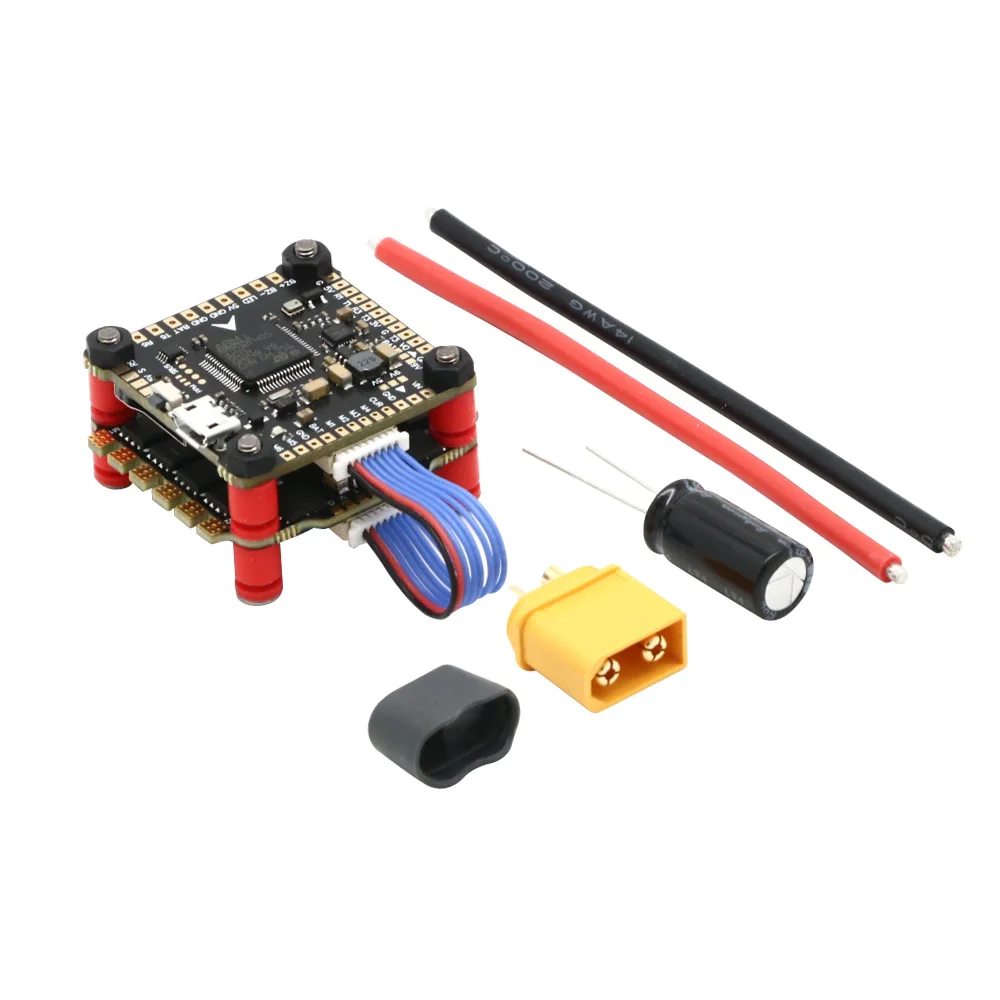

F4 V3S PLUS FC:

Item name: F4 V3 PLUS Flight Controller

Size: 36x36mm

Mounting holes: 30.5×30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

Gyro:BMI270

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

BEC:5v3a 9V3A

On-board video filters (only 5V to VTX and camera)

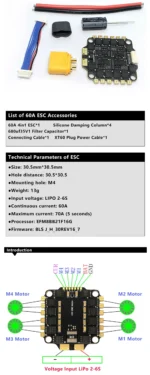

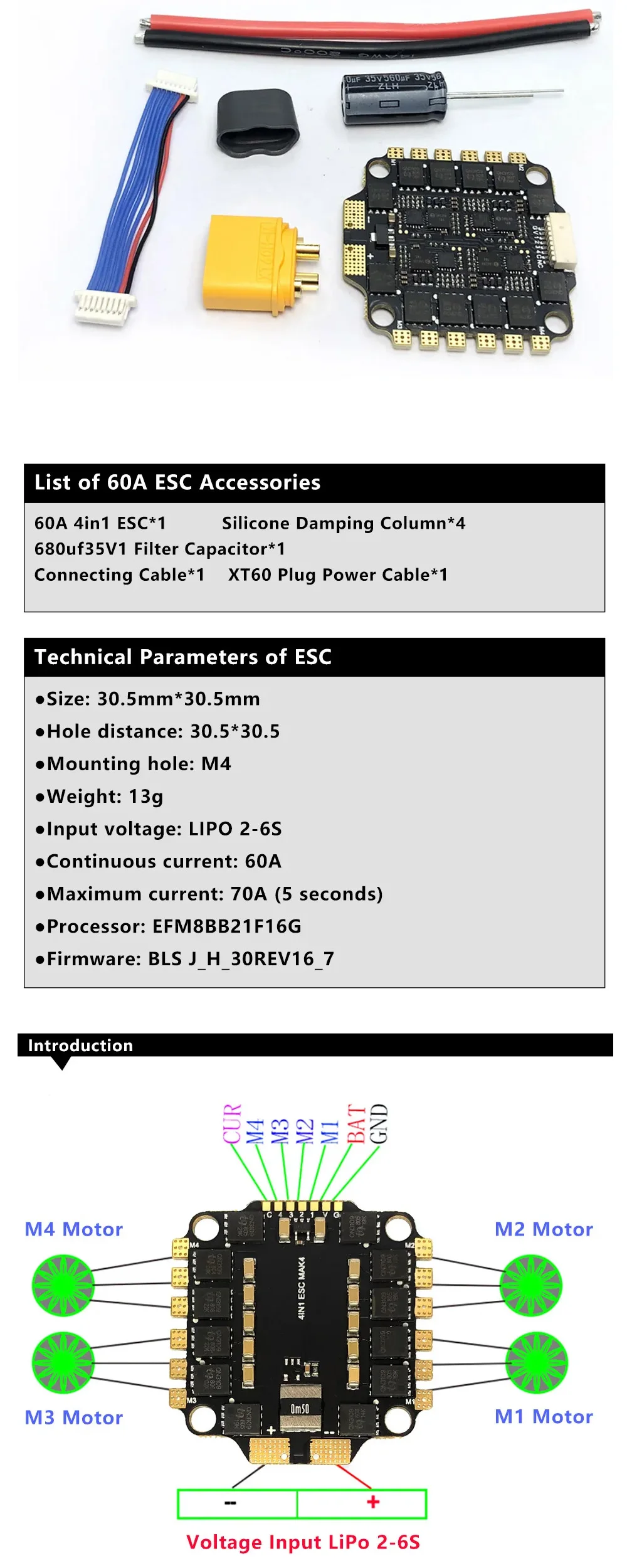

60A ESC:

60A 4-in-1 ESC

The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation

ESC onboard current sensor.

Continuous current: 60A

Instantaneous current [5 seconds]: 70A

Firmware: BLS J_H_30_REV16_7

The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize

the battery voltage, and protect the precision components of the flight control ESC

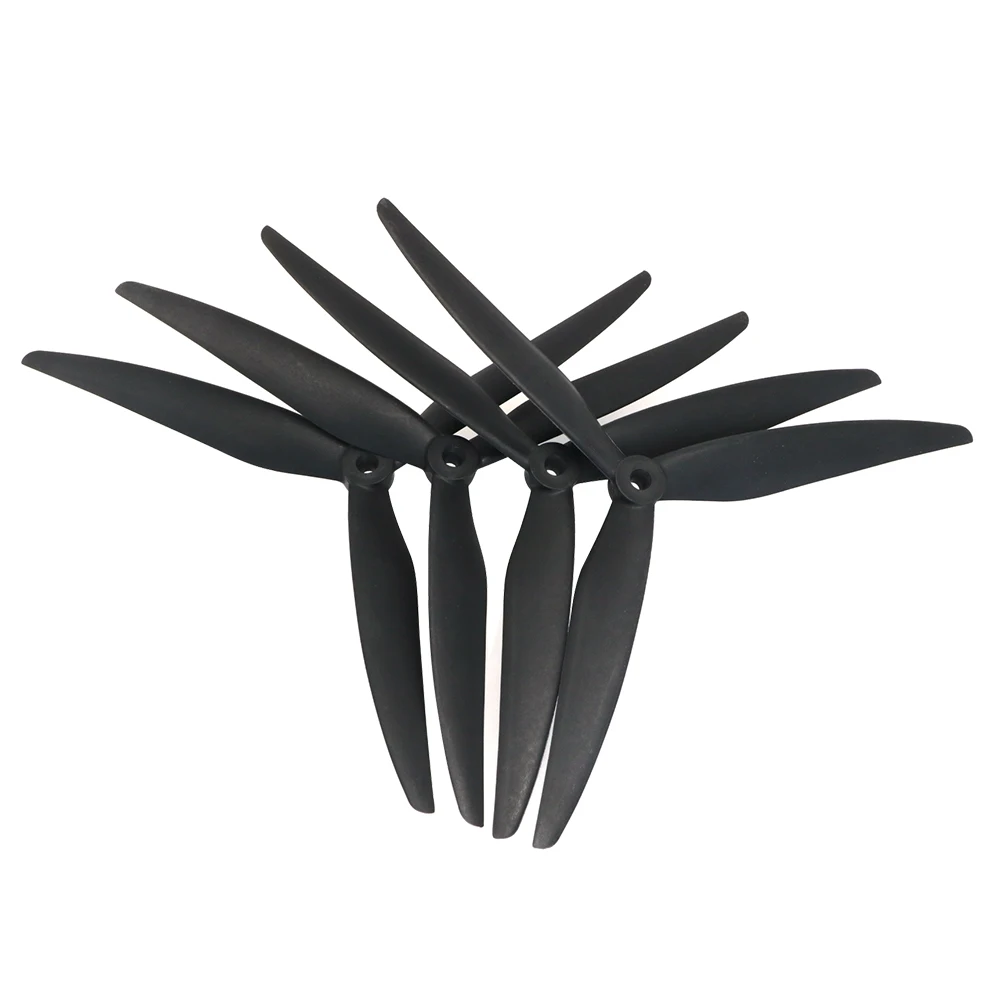

1050 Propeller:

Model: Tracker

Color: Black

Material: Fiberglass Nylon

Weight: 34g

Model: 10X5X3(CW CCW)

Length: 10 inches

Pitch: 5 inches

Blade: 3-Blade

Material: Carbon Nylon Propeller

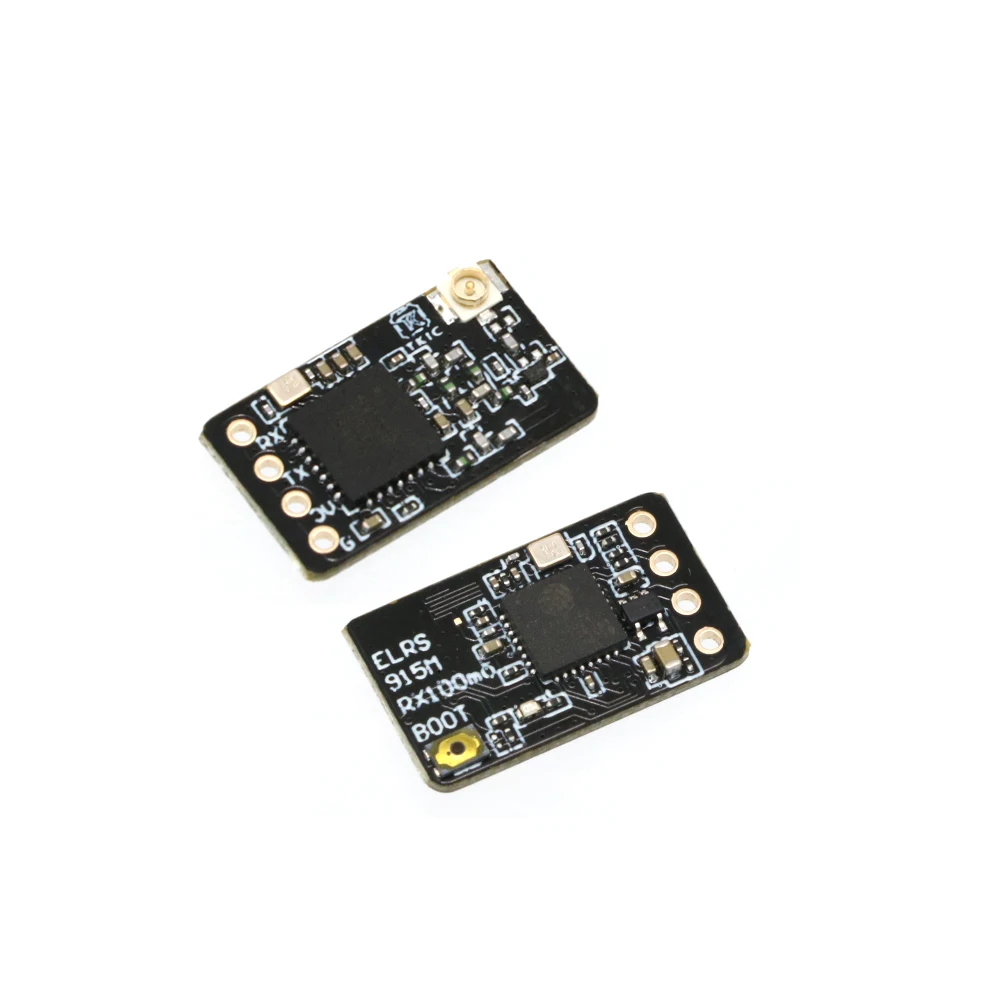

ExpressLRS

ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency. Vast support of hardware in both 900 Mhz and 2.4 GHz frequencies.

SPECIFICATIONS

Brand:TKIC

Model:ELRS 915M NANO

RF Freq:915Mhz

IC:SX1276+ESP8285

Color:Black

Connector:IPEX 1

Input Power:3.6-5.5V

Weight:0.6g(receiver only)

Size:11mm*18mm
