AneegFpv F4V3S F4 V3 V3S PLUS FC Flight Controller Board Barometer OSD BLS 60A 4 in 1 ESC for 7inch 10inch RC FPV Racing Drone
Original price was: $463.20.$270.20Current price is: $270.20.
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: BLHELI_S 60A 4 in 1 ESC
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: F4 V3S FC Flight Controller Board
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 30.5*30.5mm
Technical parameters: value 2
Tool Supplies: 10inch RC FPV Racing Drone
Upgrade Parts/Accessories: F4V3S PLUS
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

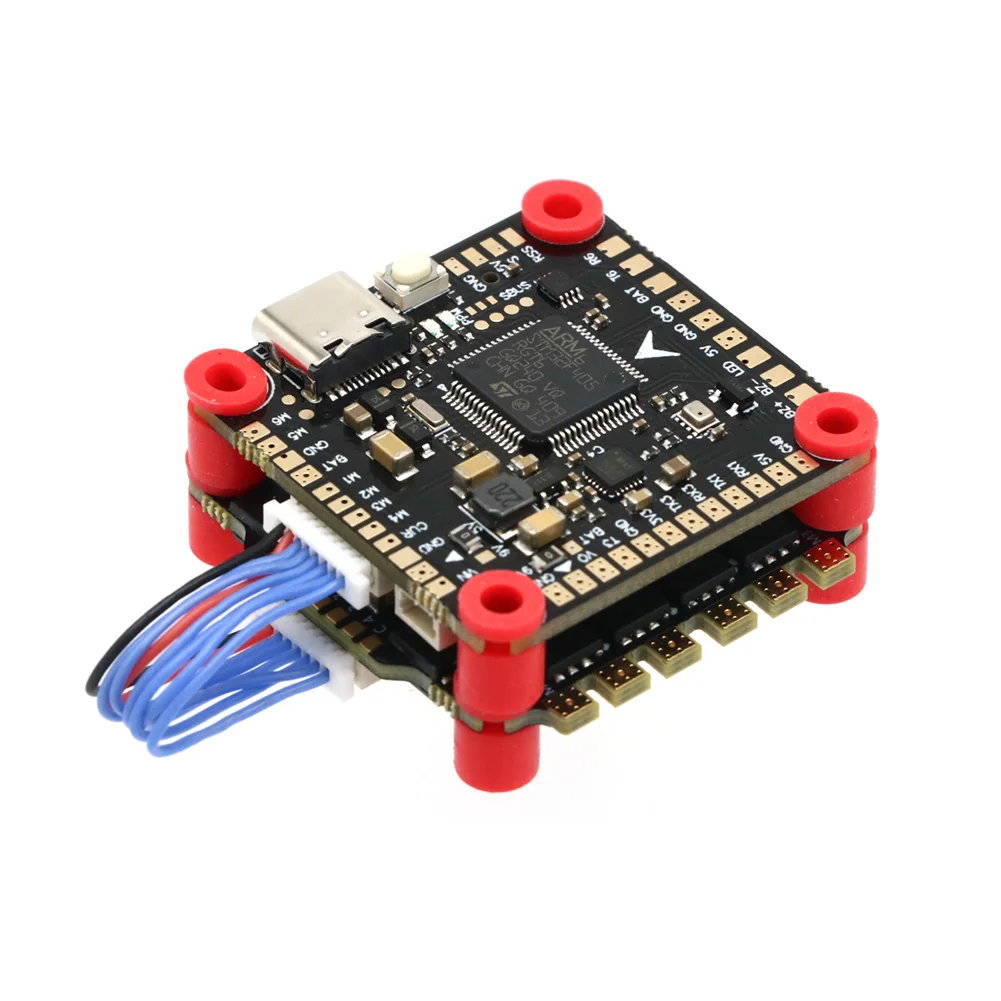

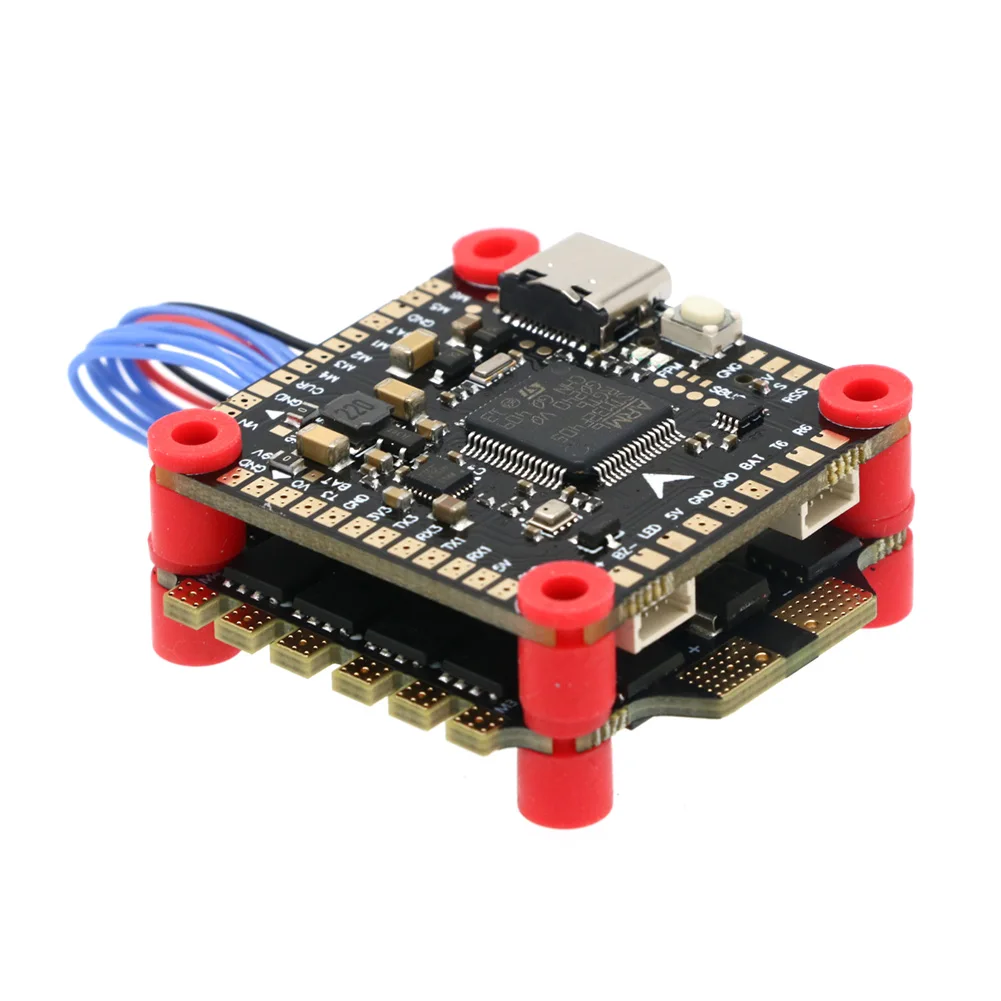

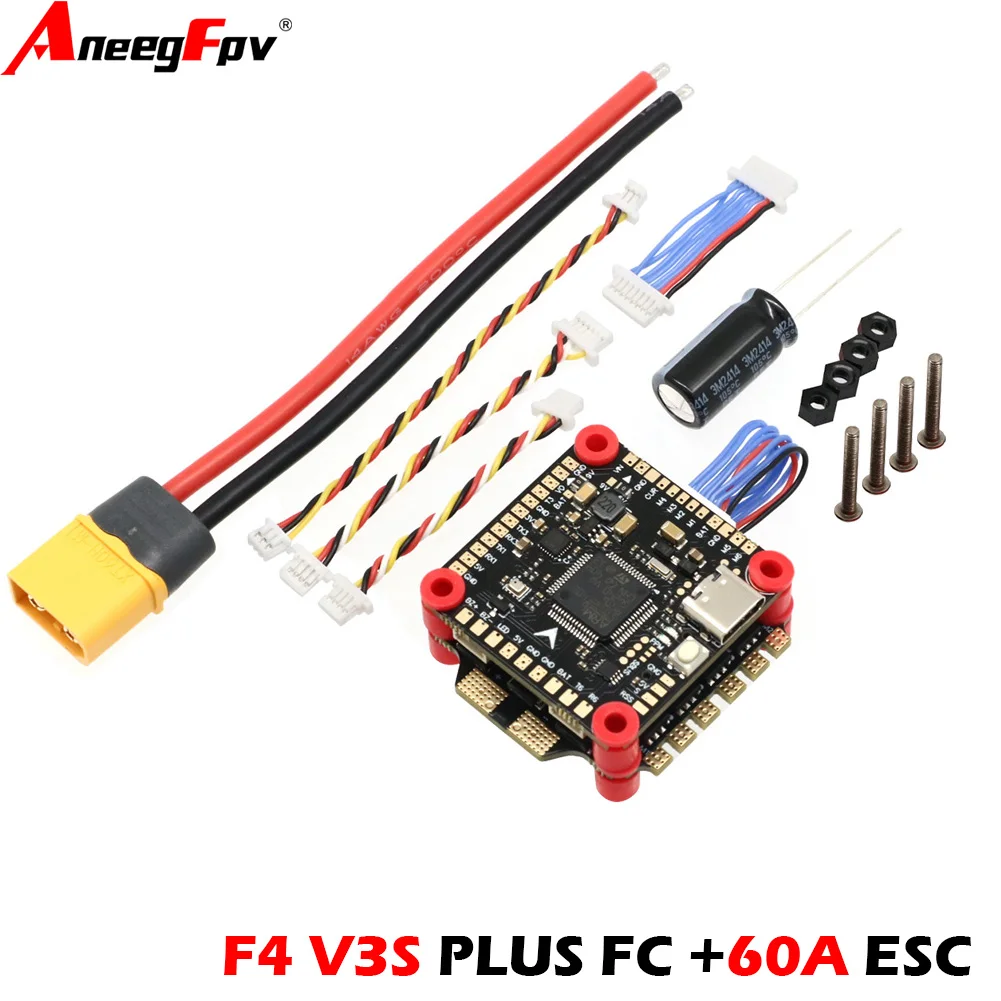

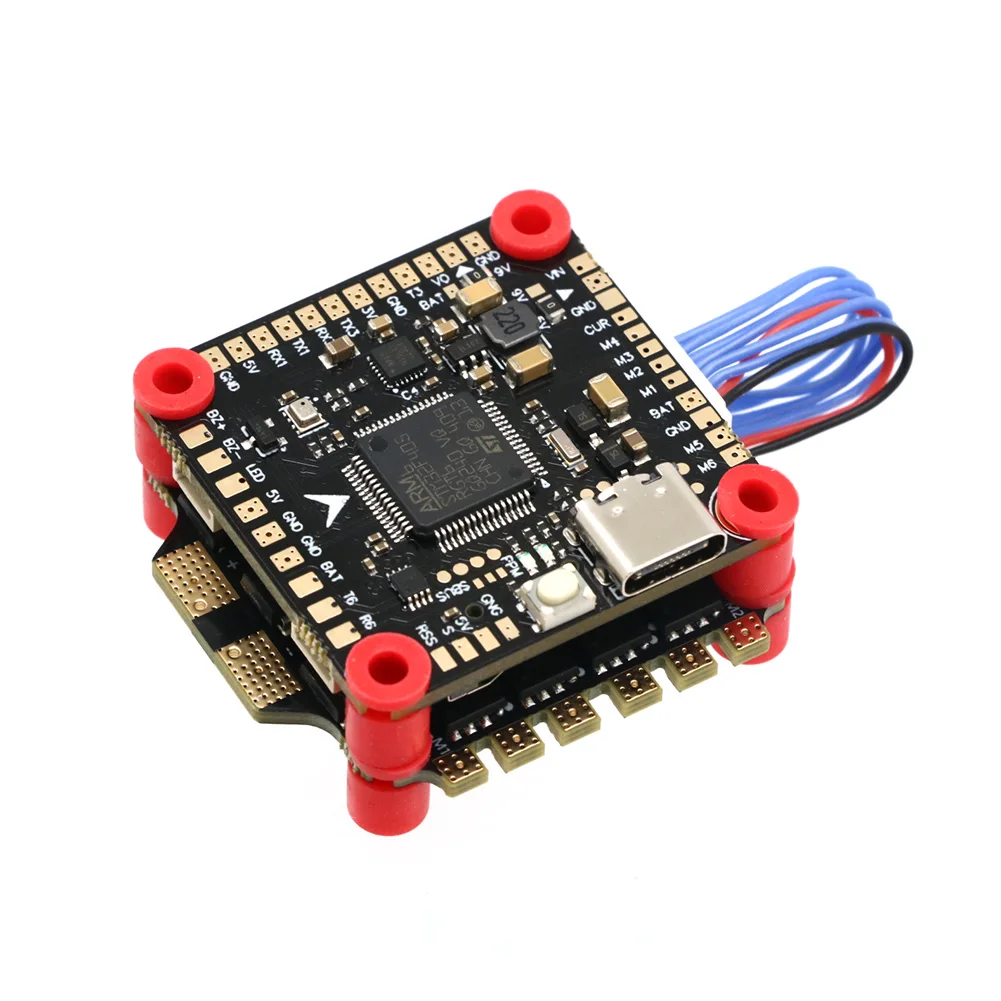

AneegFpv F4V3S F4 V3 V3S PLUS FC Flight Controller Board Barometer OSD BLS 60A ESC for MARK 4 Quadcopter 7in RC Drone FPV Racing

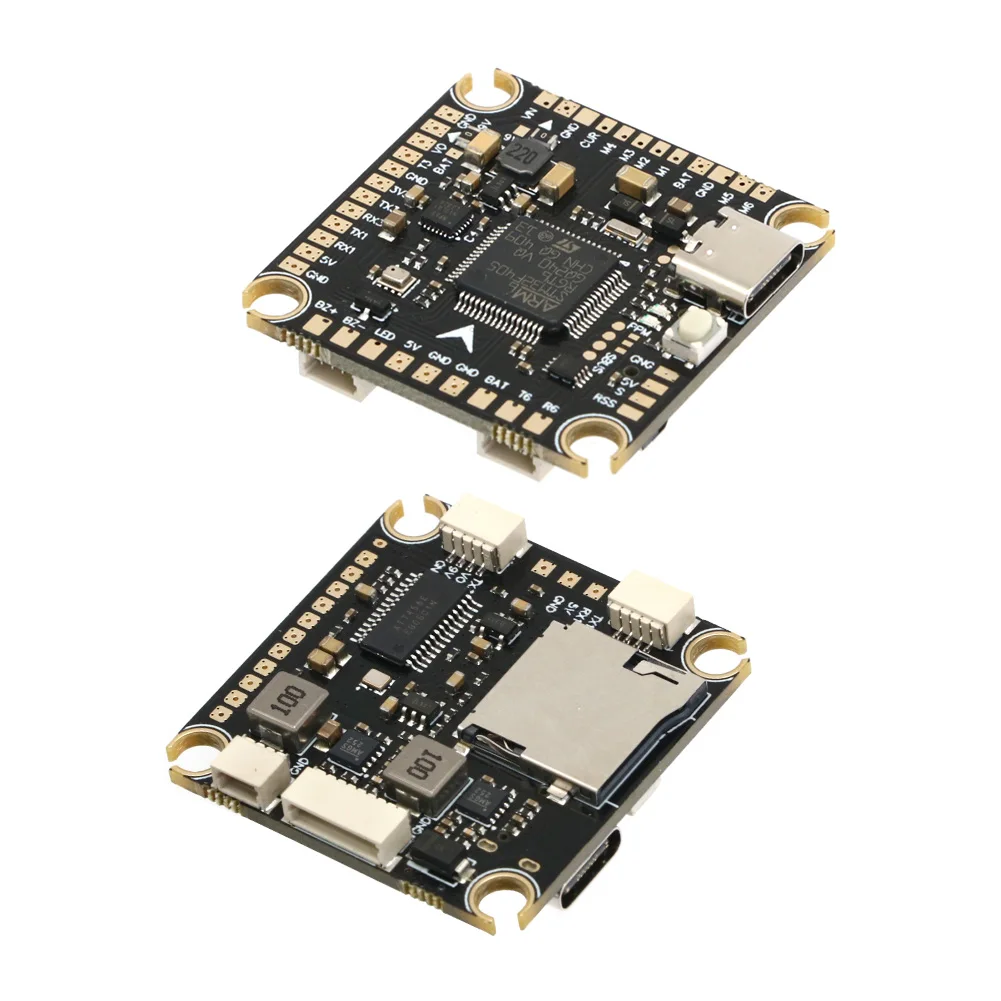

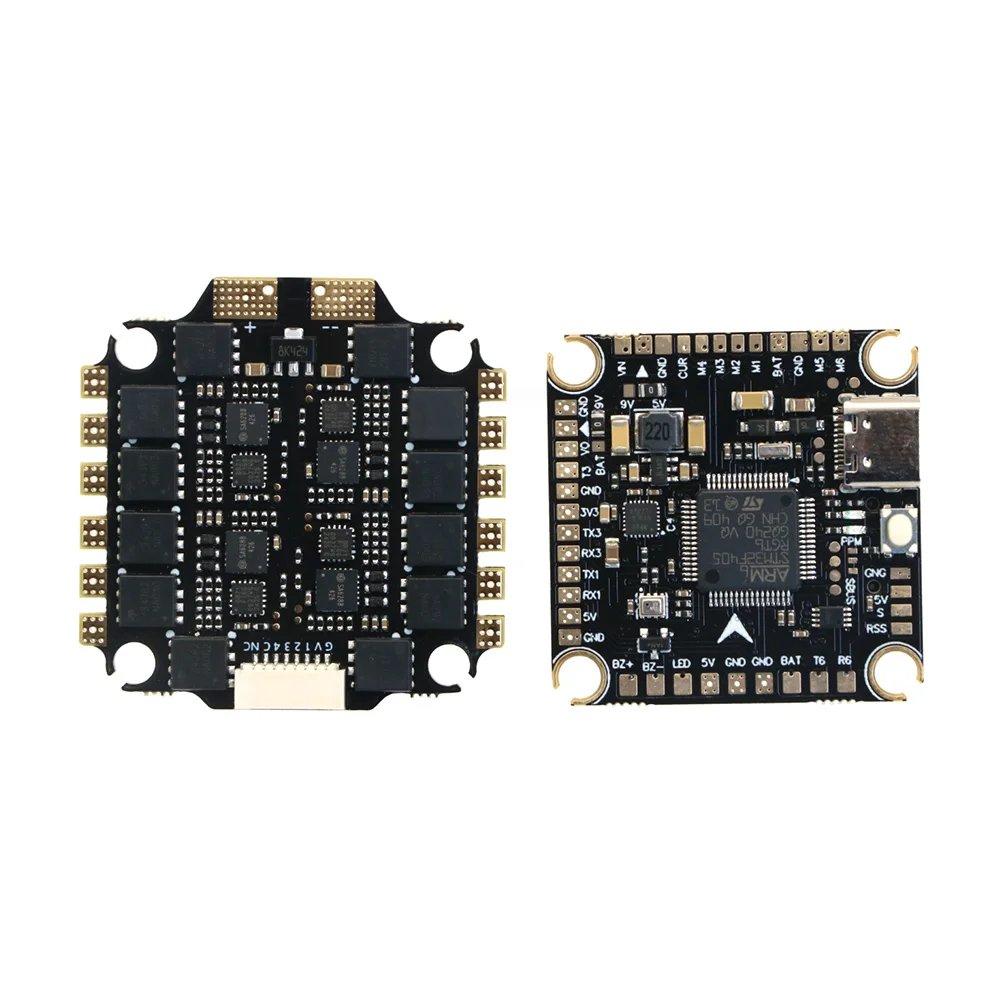

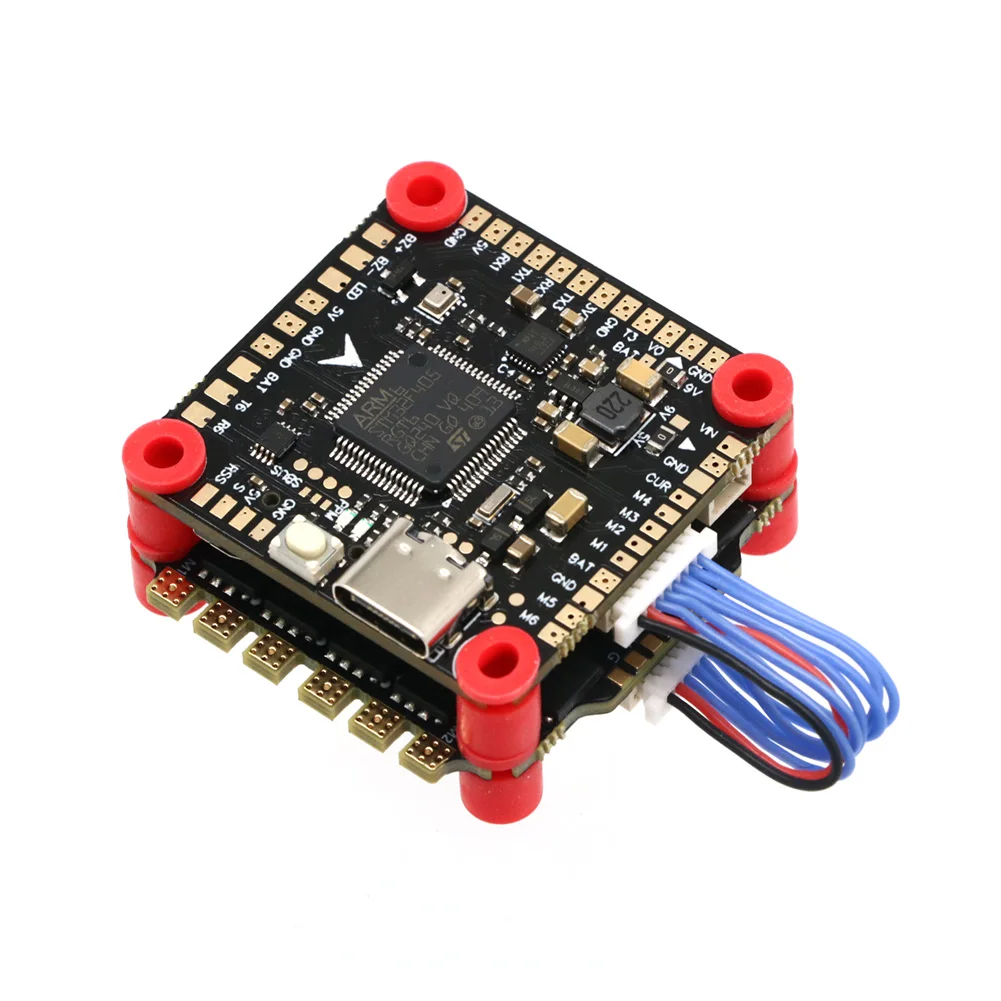

F4 V3S PLUS FC Specification:
Item name: F4 V3 PLUS Flight Controller

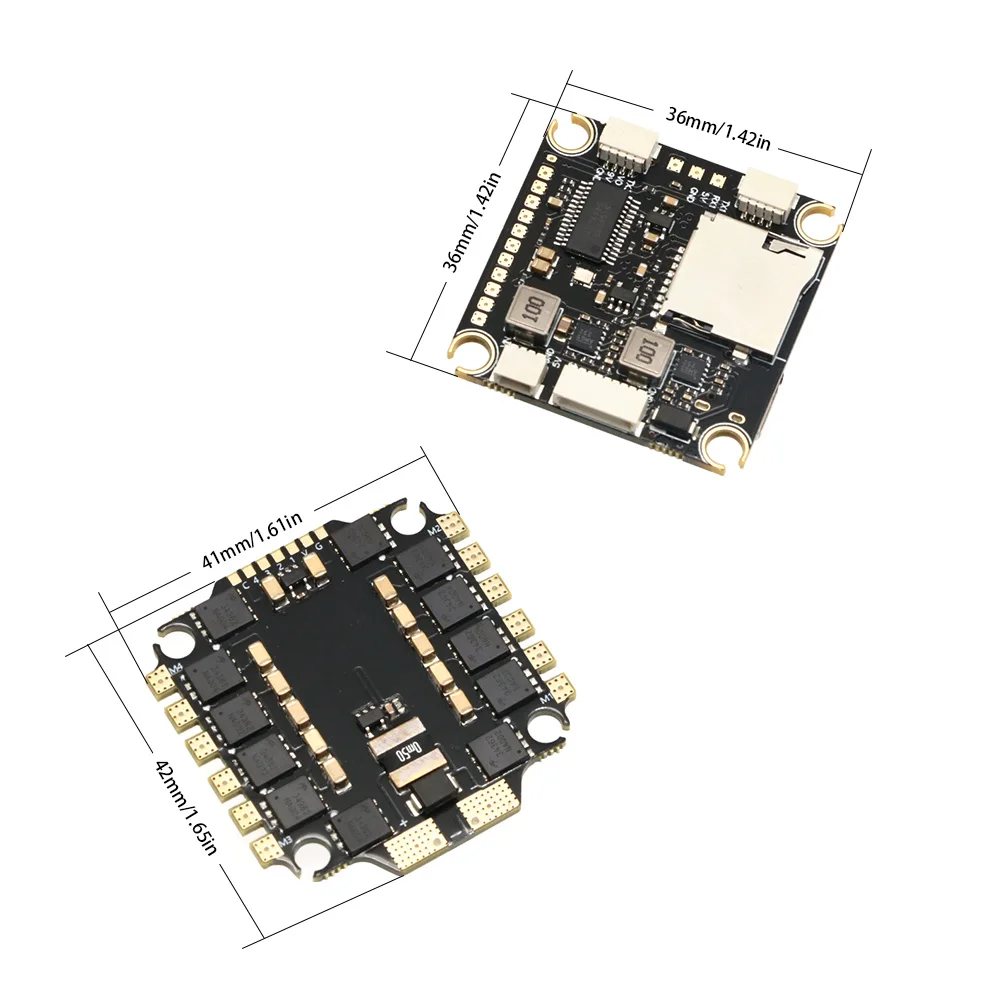

Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC:5v3a 9V3A
On-board video filters (only 5V to VTX and camera)

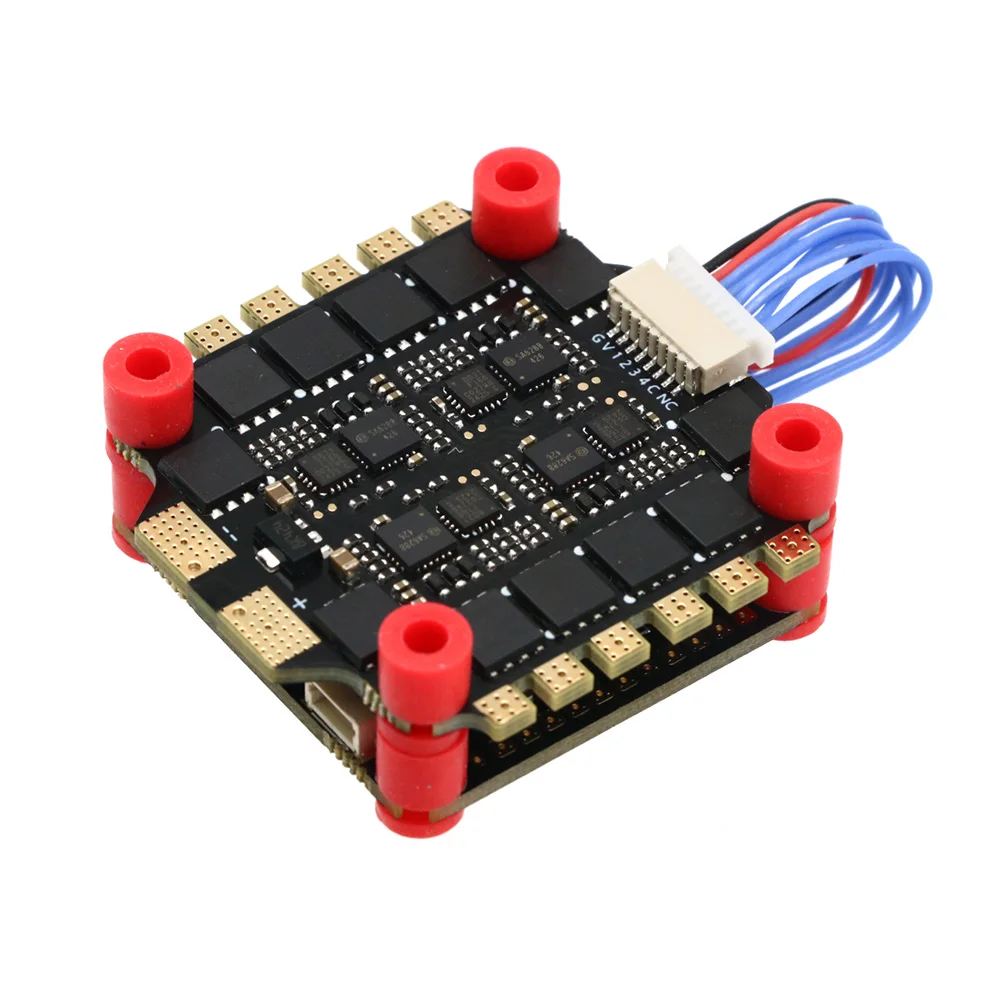

60A ESC

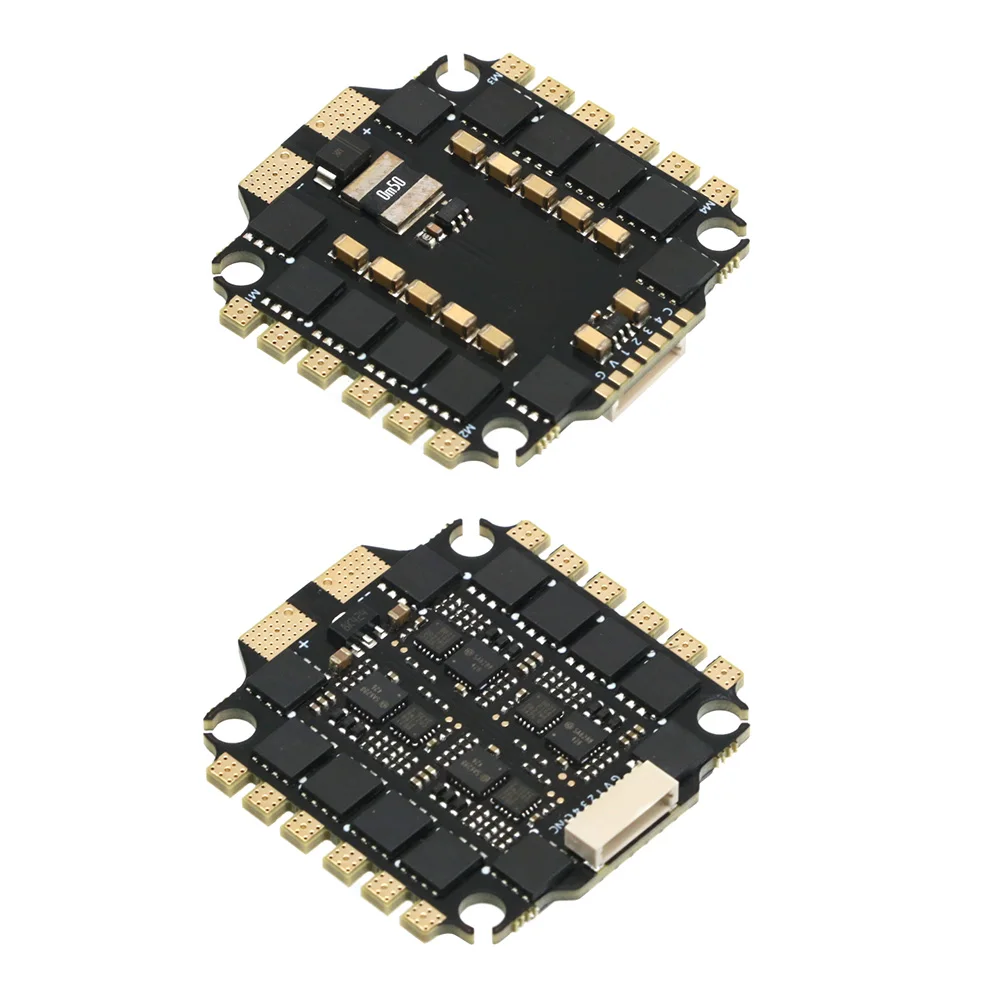

60A 4-in-1 ESC
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize
the battery voltage, and protect the precision components of the flight control ESC
| Color | F4 V3S 60A ESC |
|---|
