SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: MARK4 V2 10inch Frame

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Carbon Fiber

Model Number: HTX078

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Principal Axis

Recommend Age: 14+y

Remote Control Peripherals/Devices: Airframe

Size: MARK4 V2 7inch Frame

Technical parameters: value 2

Tool Supplies: MARK4 V2 7inch Frame

Upgrade Parts/Accessories: MARK4 7inch Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

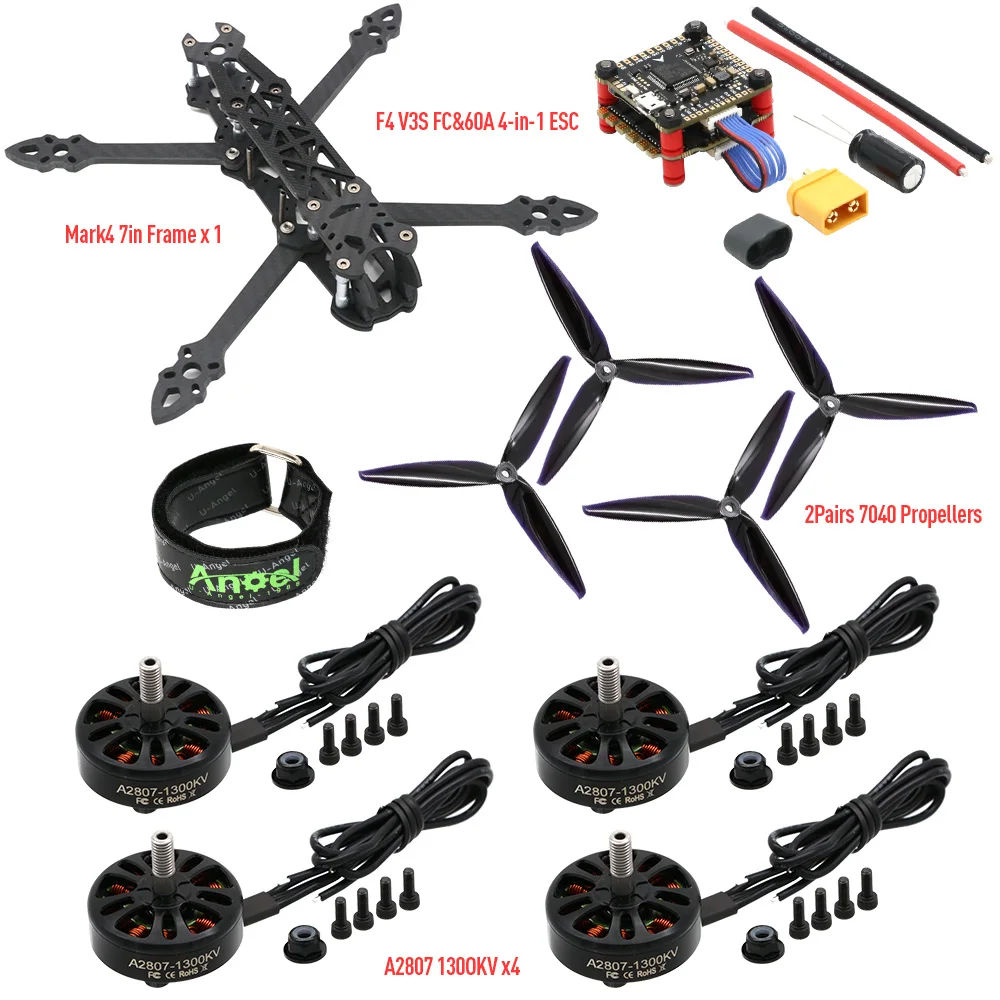

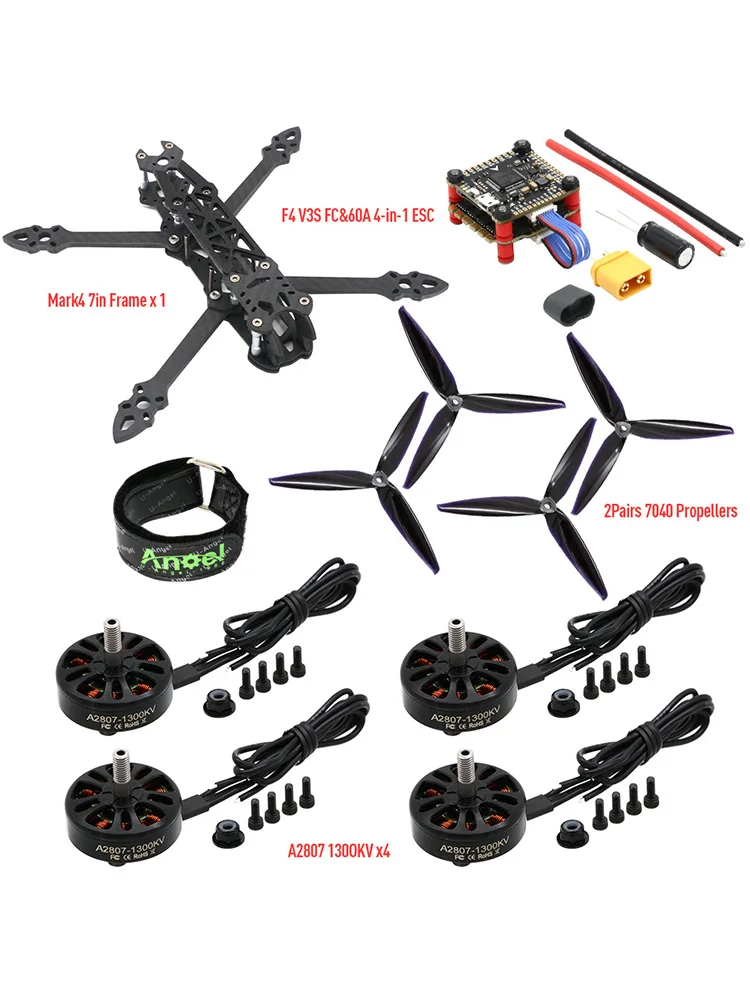

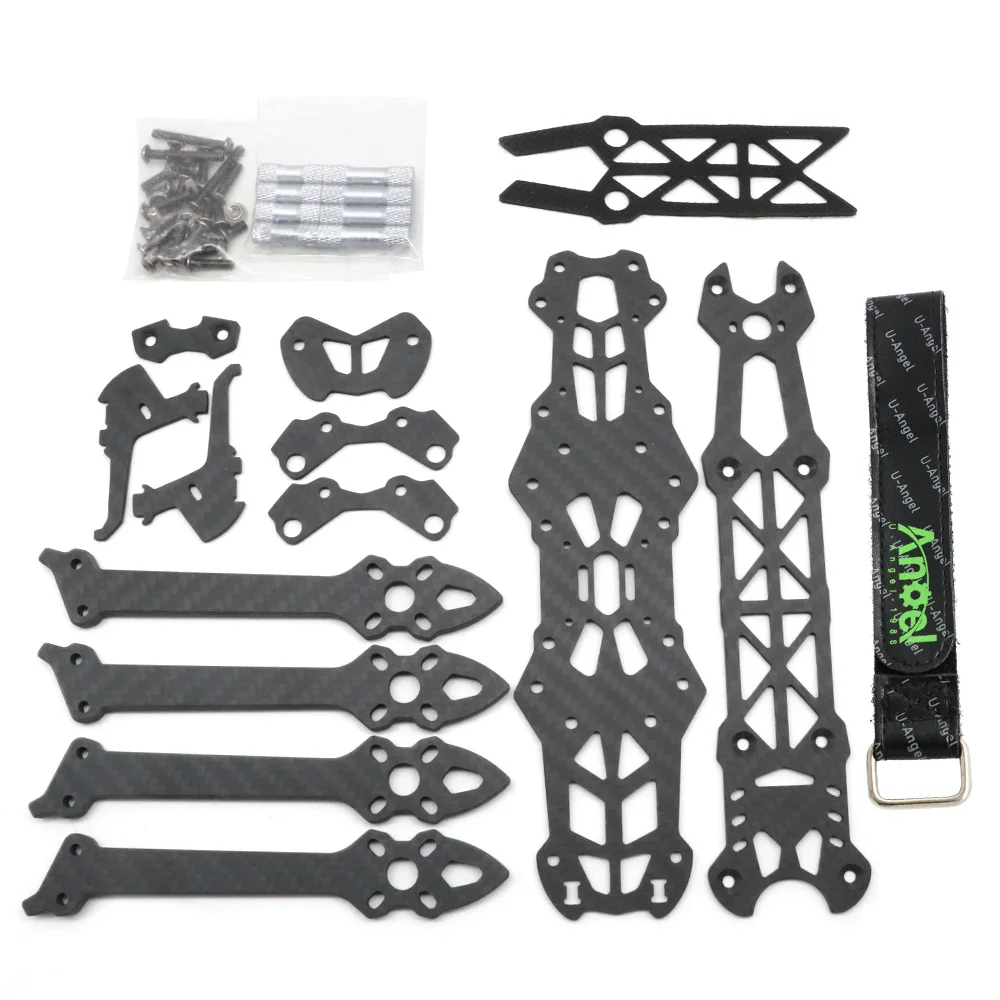

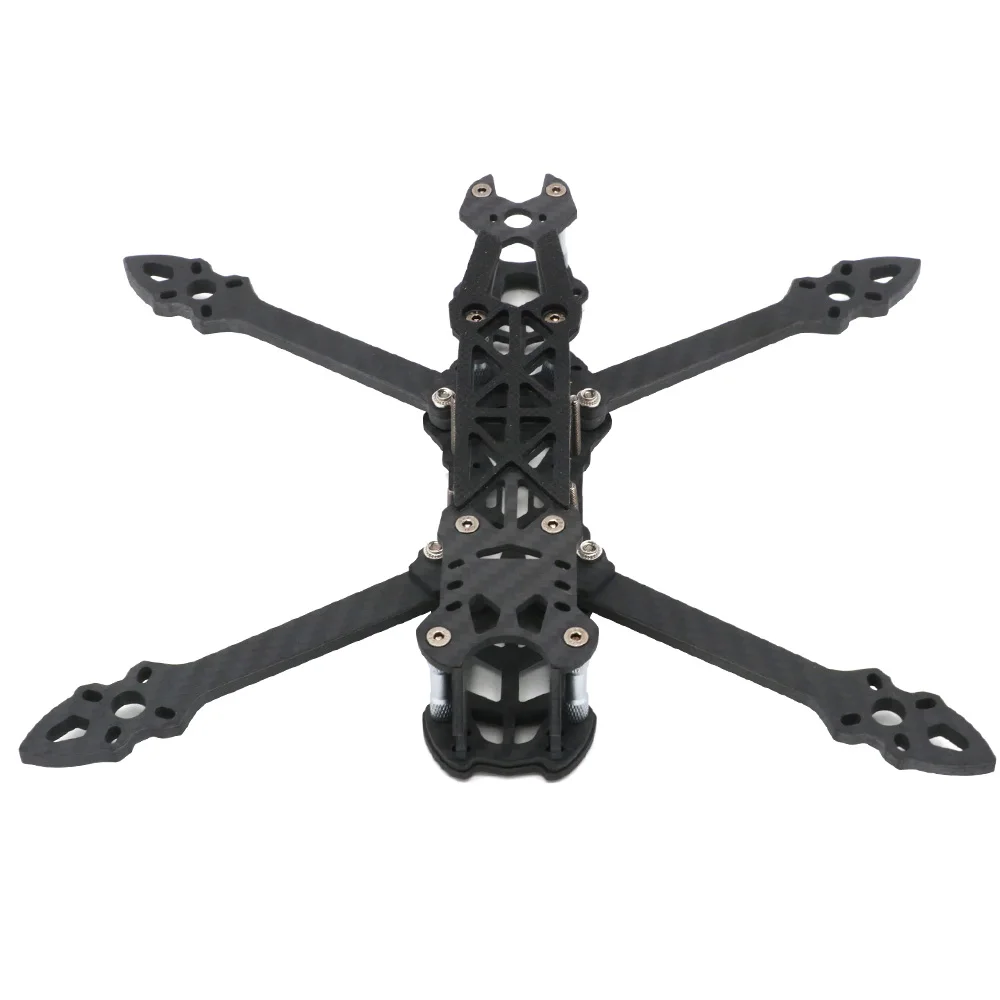

Name: Mark4-7inch

Propeller: 7 inch

Weight: 121g

Motor to moto: 295MM

Size: 193*223MM

Arms plate: 5MM

Top plate: 2.5MM

Bottom plate: 2.5MM

Side plate: 2.5MM

Camera mount size:19.3mm

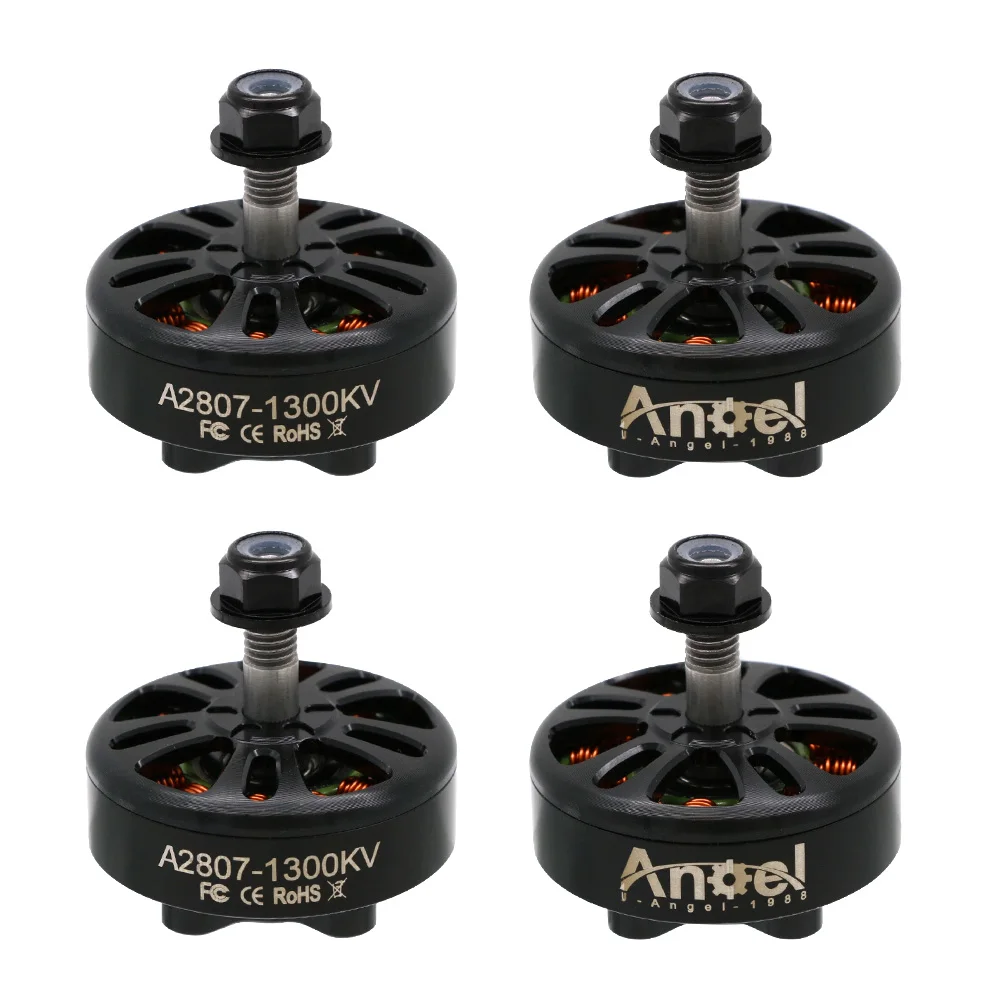

A2807KV 1300KV Motor

Specification:

Max pull: 1996g

Volts: 24V (6S)

Suggested ESC: 40A~ 60A

Max imum Power: 895. 7W

Suggested Prop: GF7043 inch prop

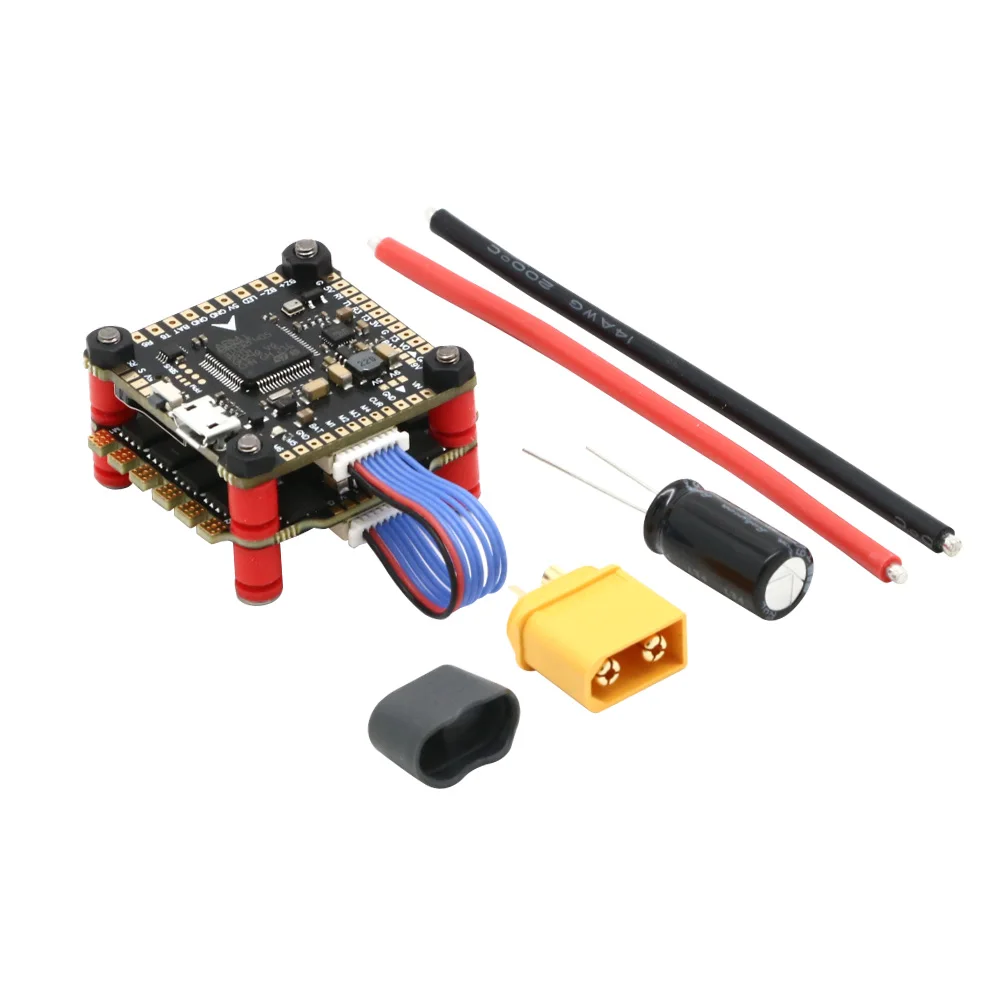

F4 V3S PLUS FC:

Item name: F4 V3 PLUS Flight Controller

Size: 36x36mm

Mounting holes: 30.5×30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

Gyro:BMI270

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

BEC:5v3a 9V3A

On-board video filters (only 5V to VTX and camera)

60A ESC:

60A 4-in-1 ESC

The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation

ESC onboard current sensor.

Continuous current: 60A

Instantaneous current [5 seconds]: 70A

Firmware: BLS J_H_30_REV16_7

The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize

the battery voltage, and protect the precision components of the flight control ESC

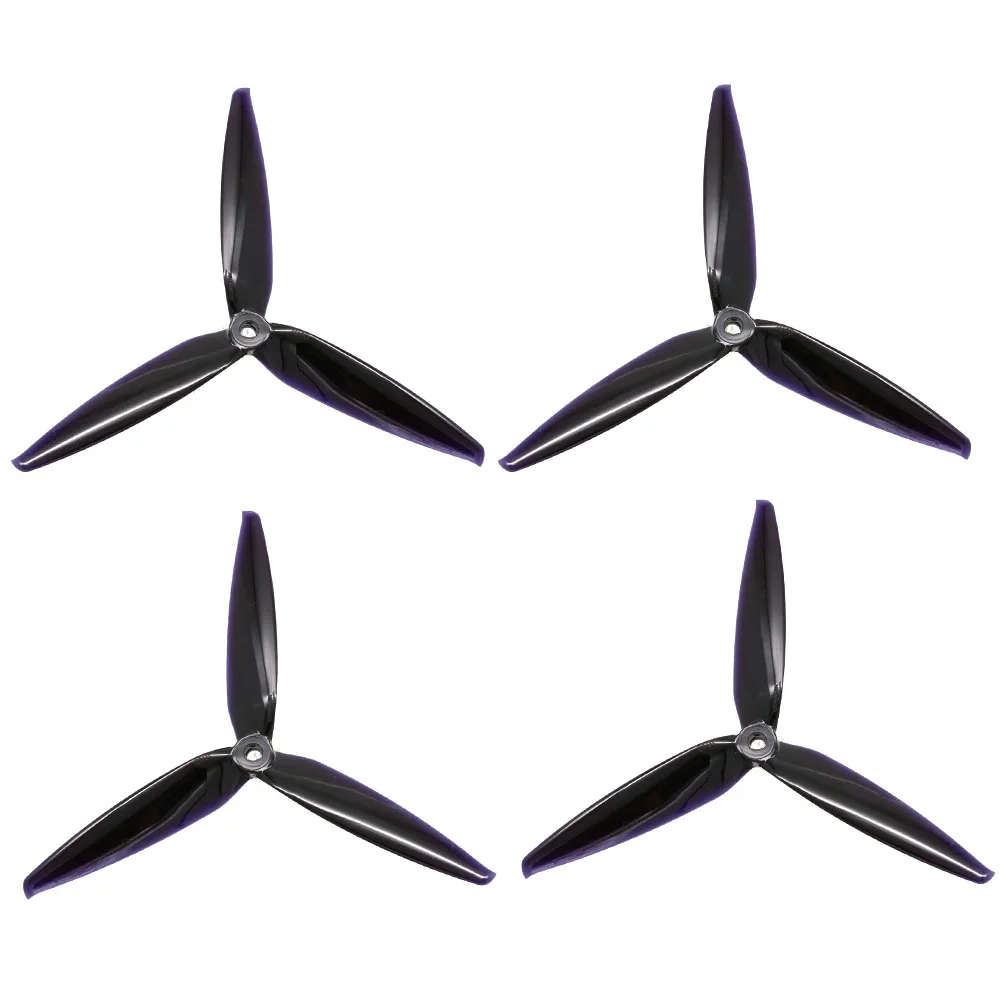

Tracker 7x4x3 Durable Tri-Blade Light Grey (2CW+2CCW)-Poly Carbonate:

Propeller Diameter: 7 inch

Pitch: 4

Blades: 3

Material: Poly Carbonate

Weight: 9.1g

Hub Diameter: 13.5mm

Hub Thickness: 7.5mm

Shaft: 5mm

Adaptor Rings : NO
