Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: f405 v3 Flight Controller
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 55A ESC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Gyros
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 30.5*30.5mm
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: speedybee f405 v3 50a stack
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

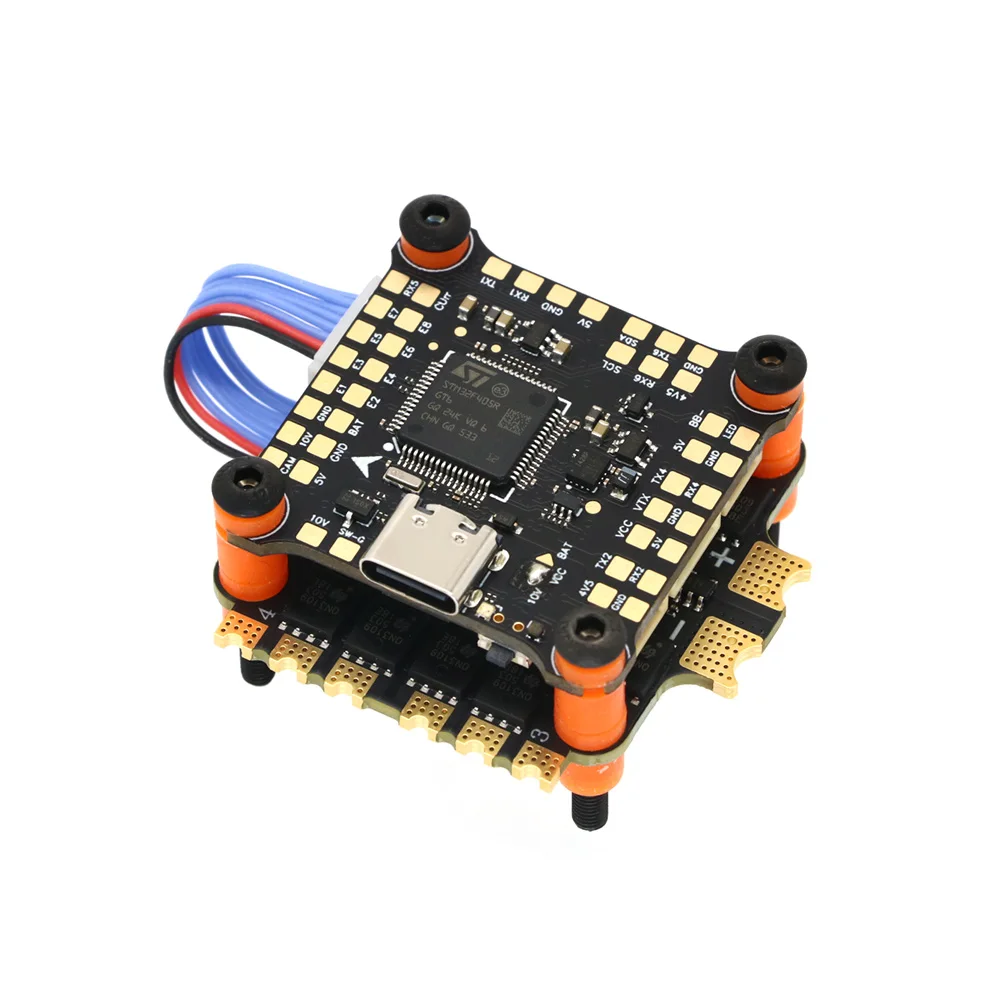

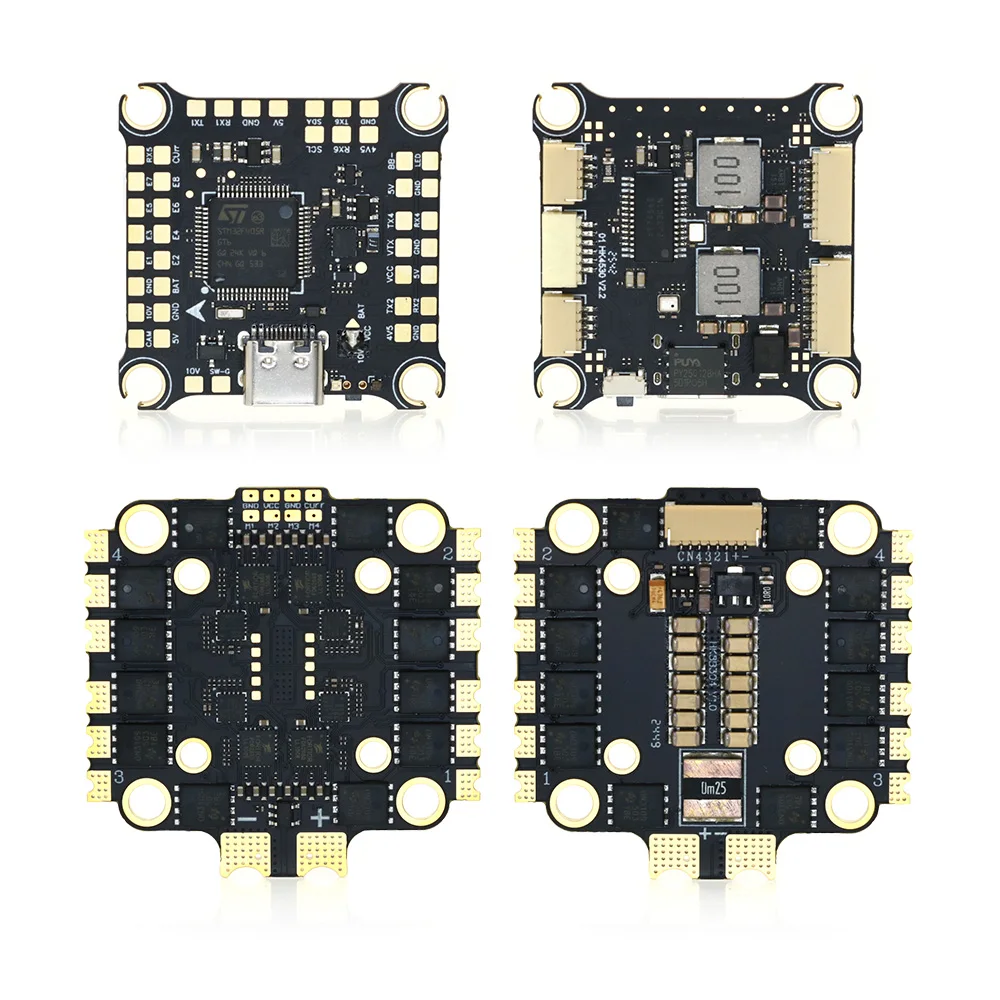

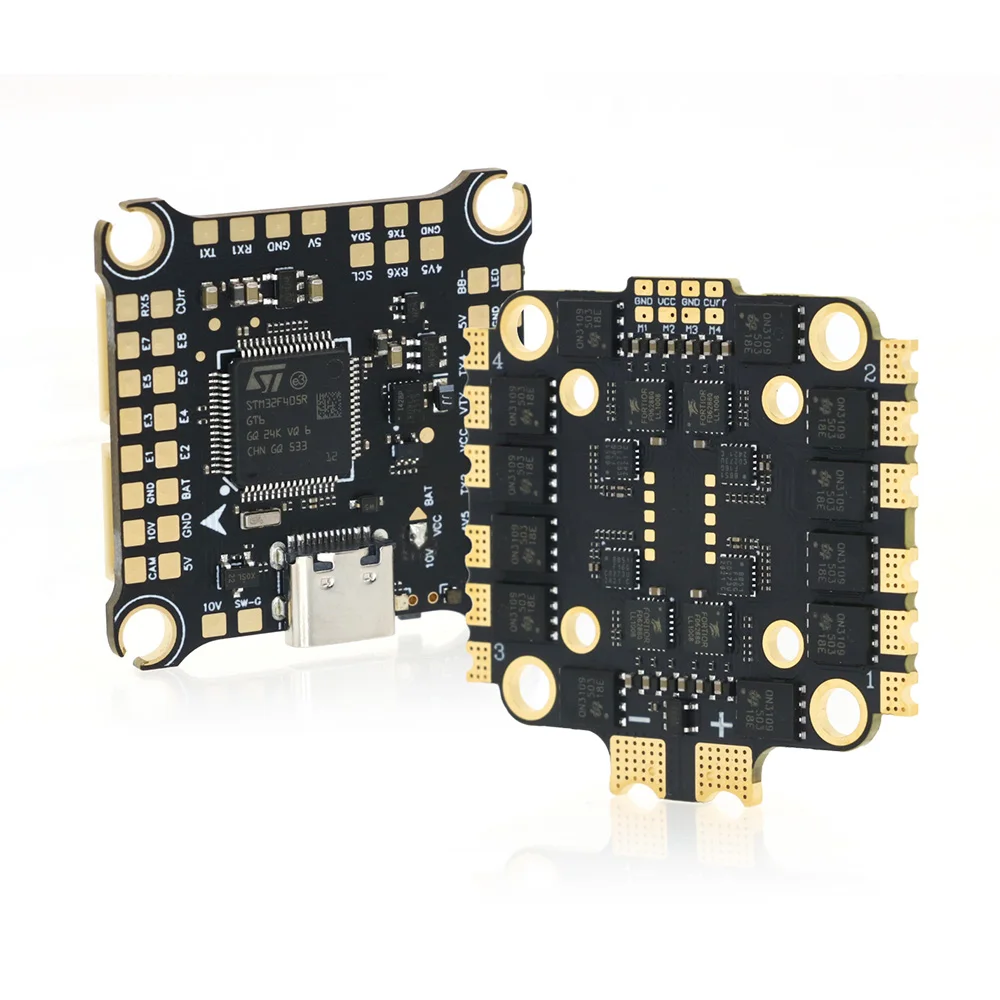

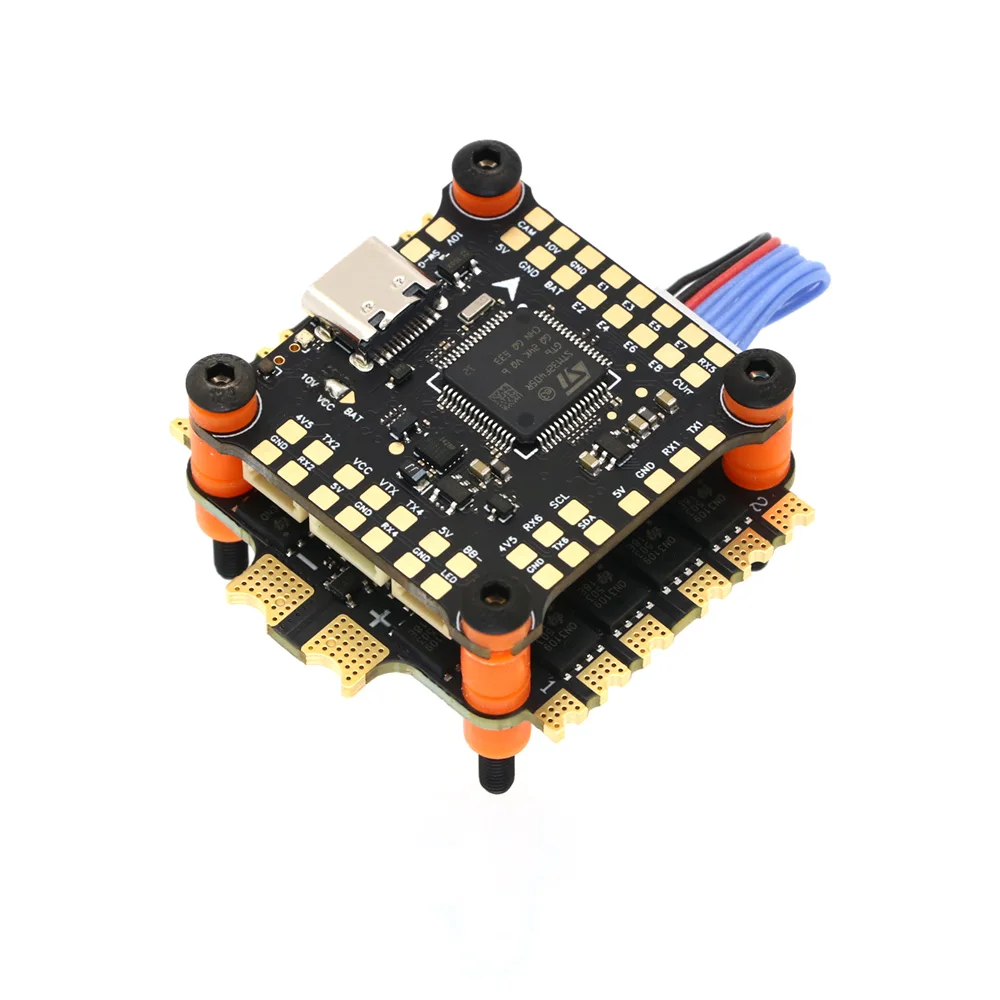

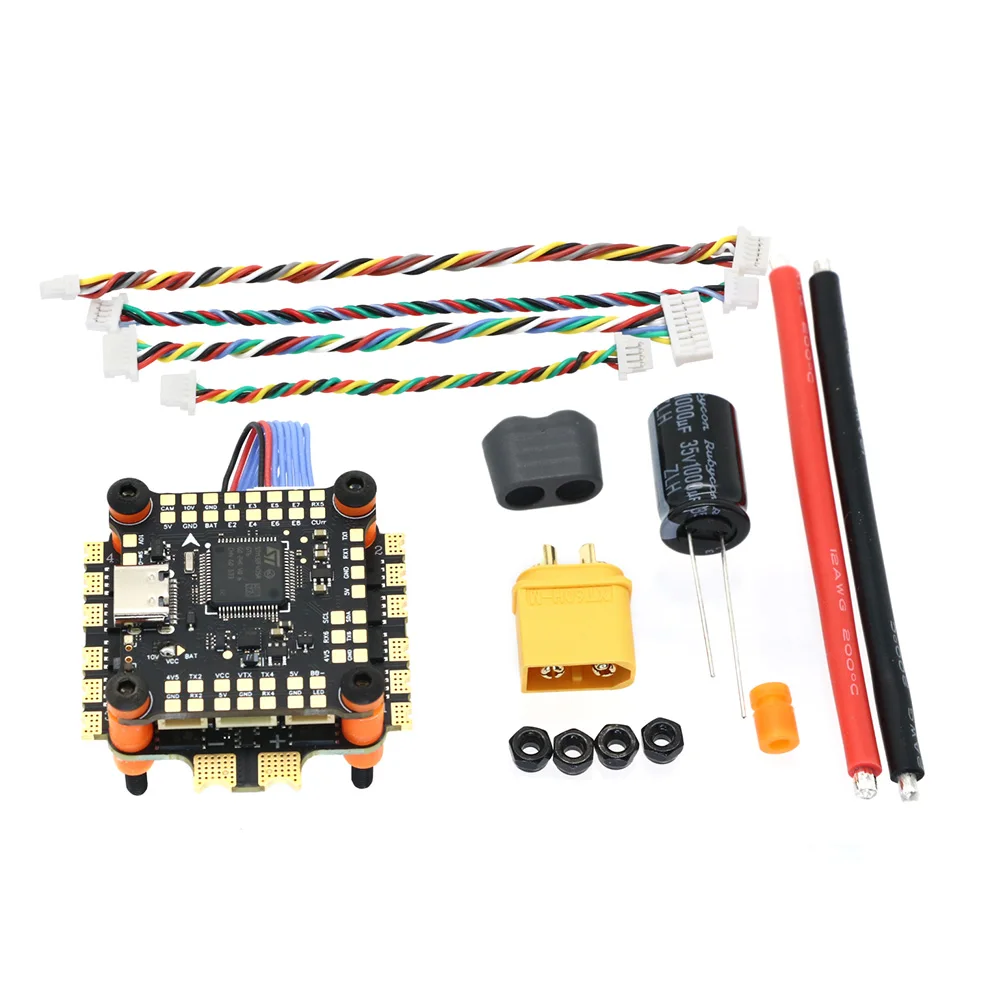

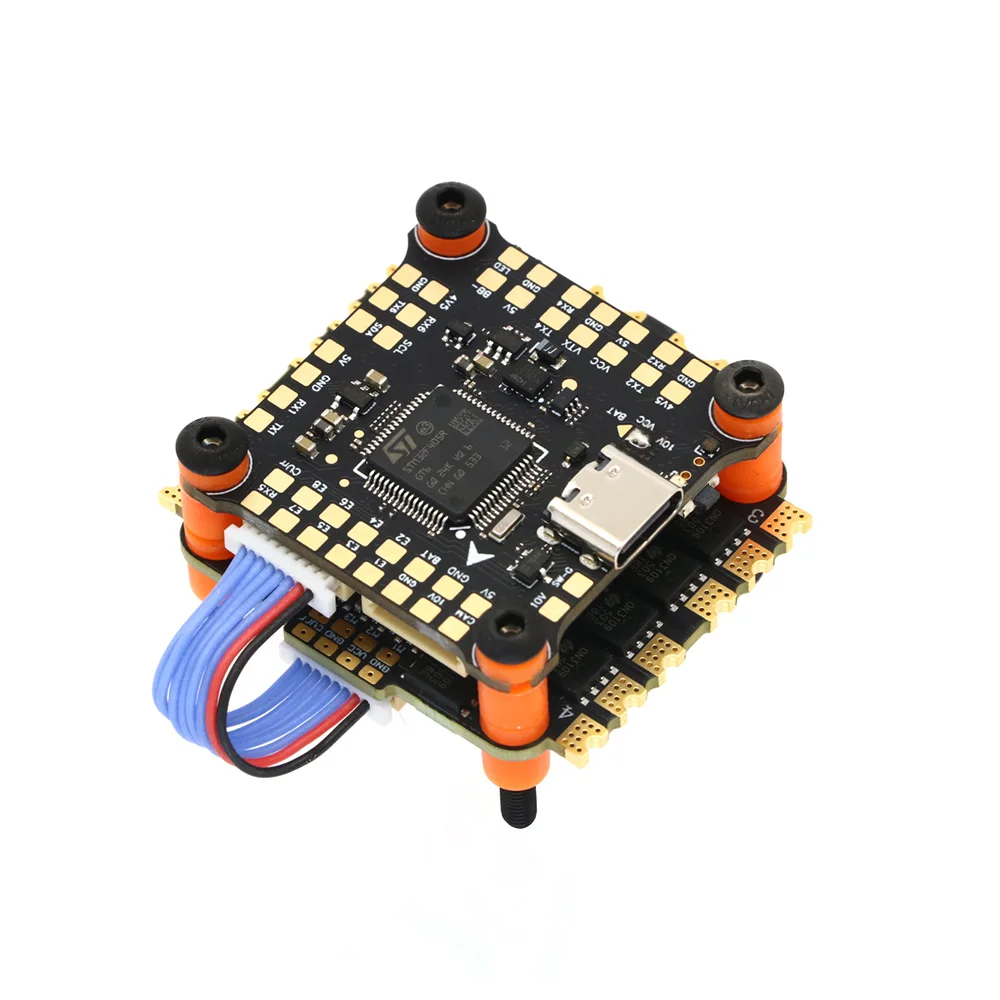

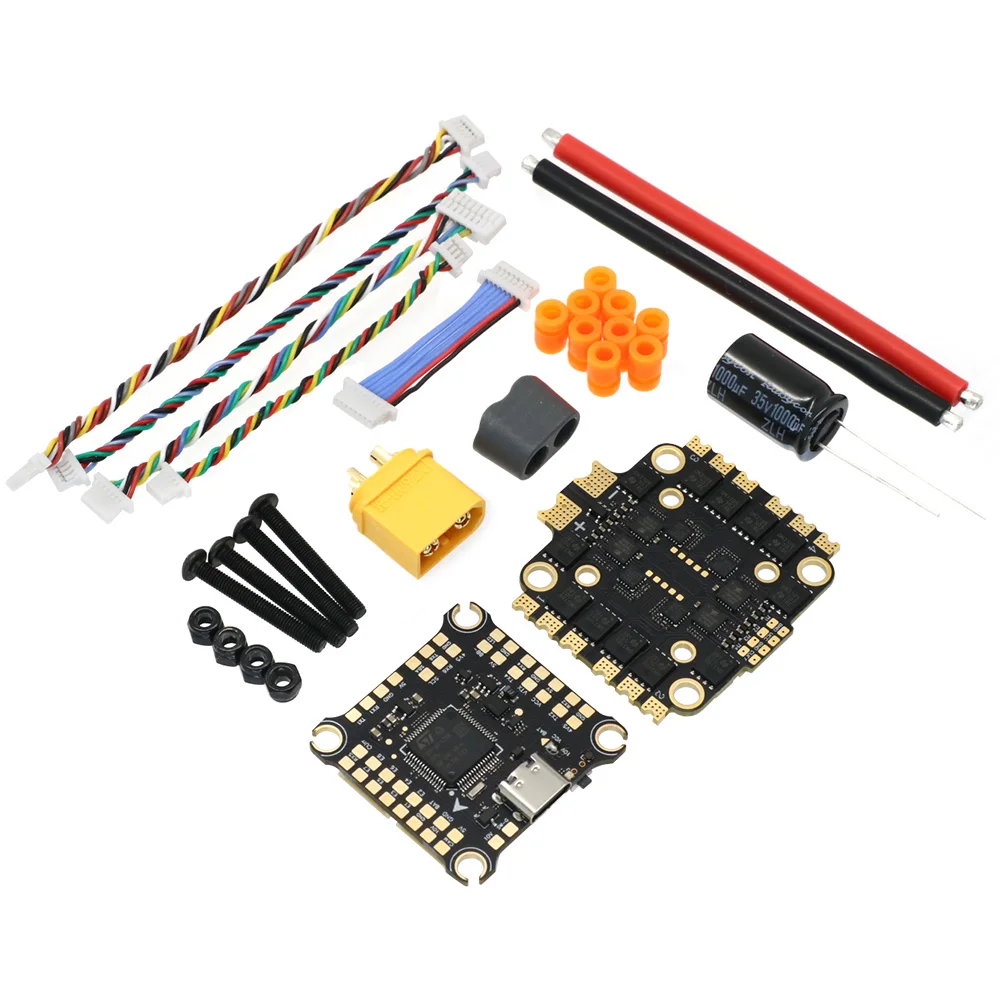

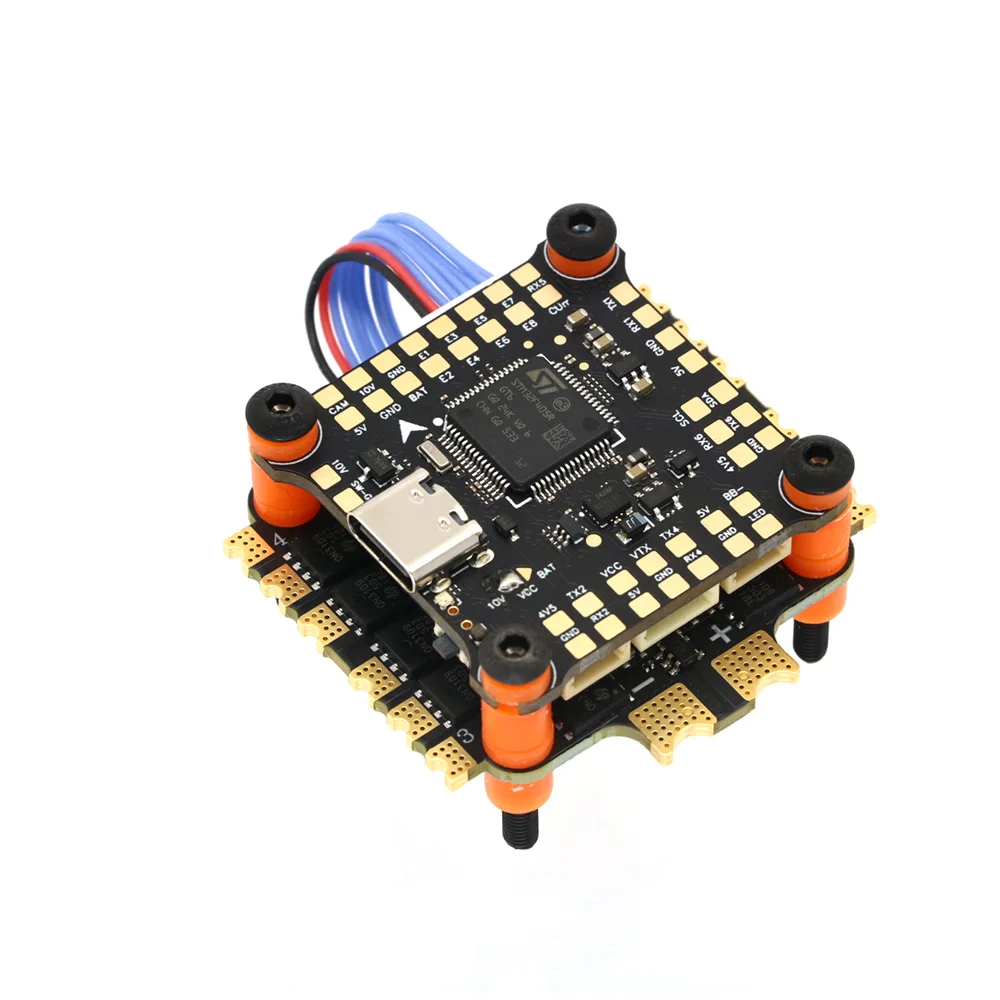

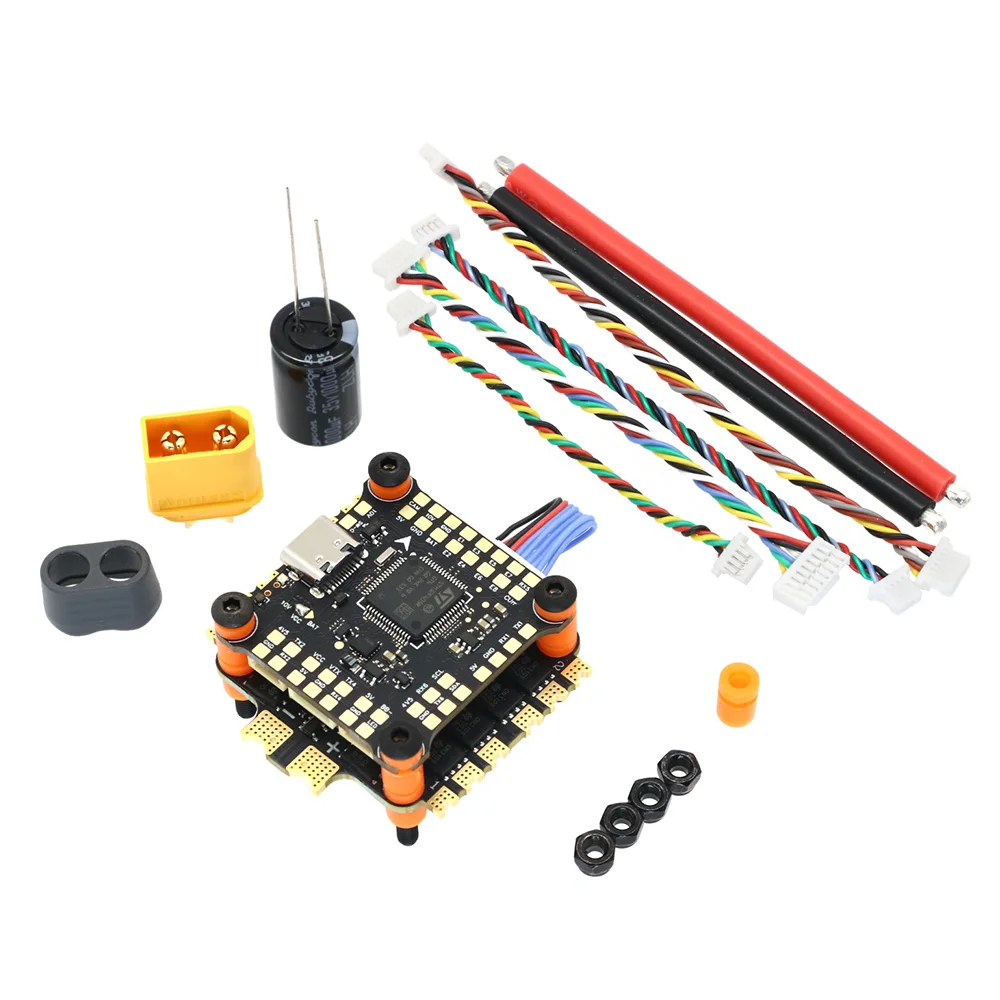

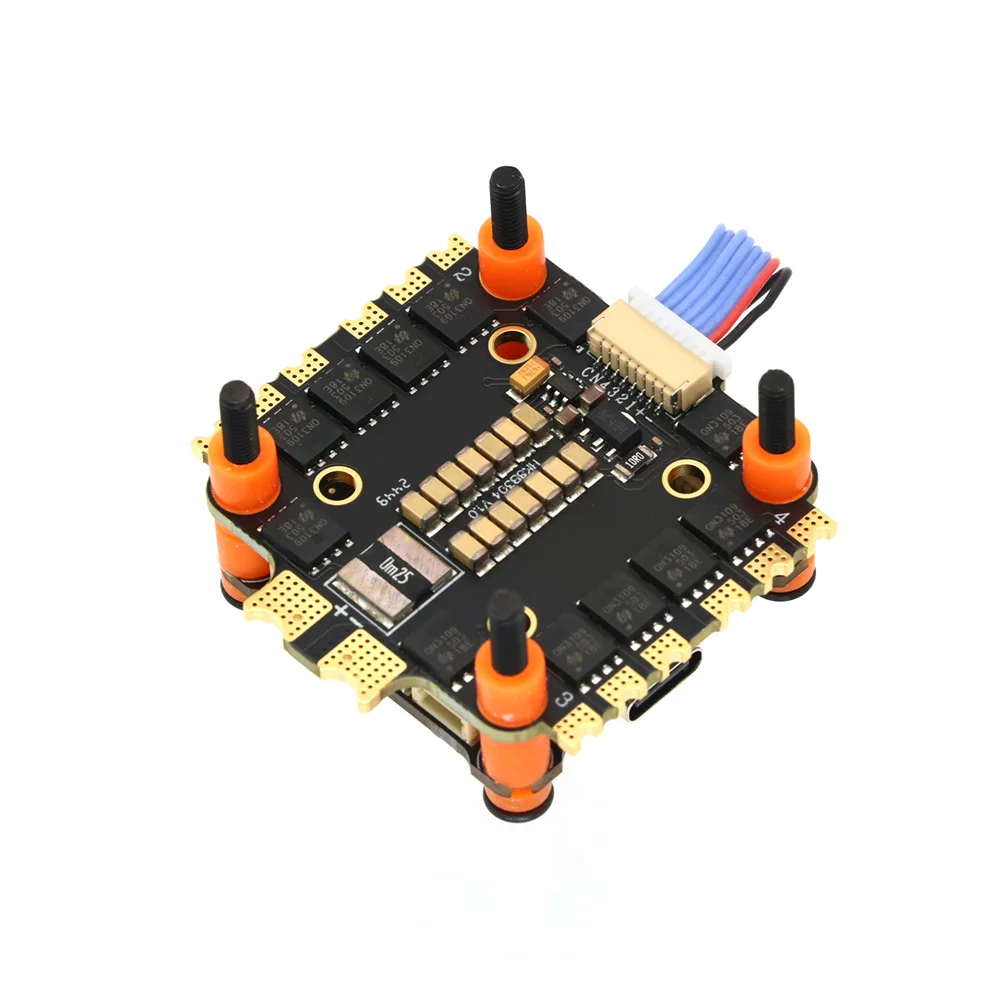

HAKRC 55AF4 flying tower is equipped with BLS 45A four-in-one ESC and F405 flight control, which provides powerful power with a 30.5×30.5mm installation.F405 flight controller is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions!Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including Sbus,ELRS， PPM, CRSF, DSMX, iBus, DUMD, etc.
F405 FC Specifications：

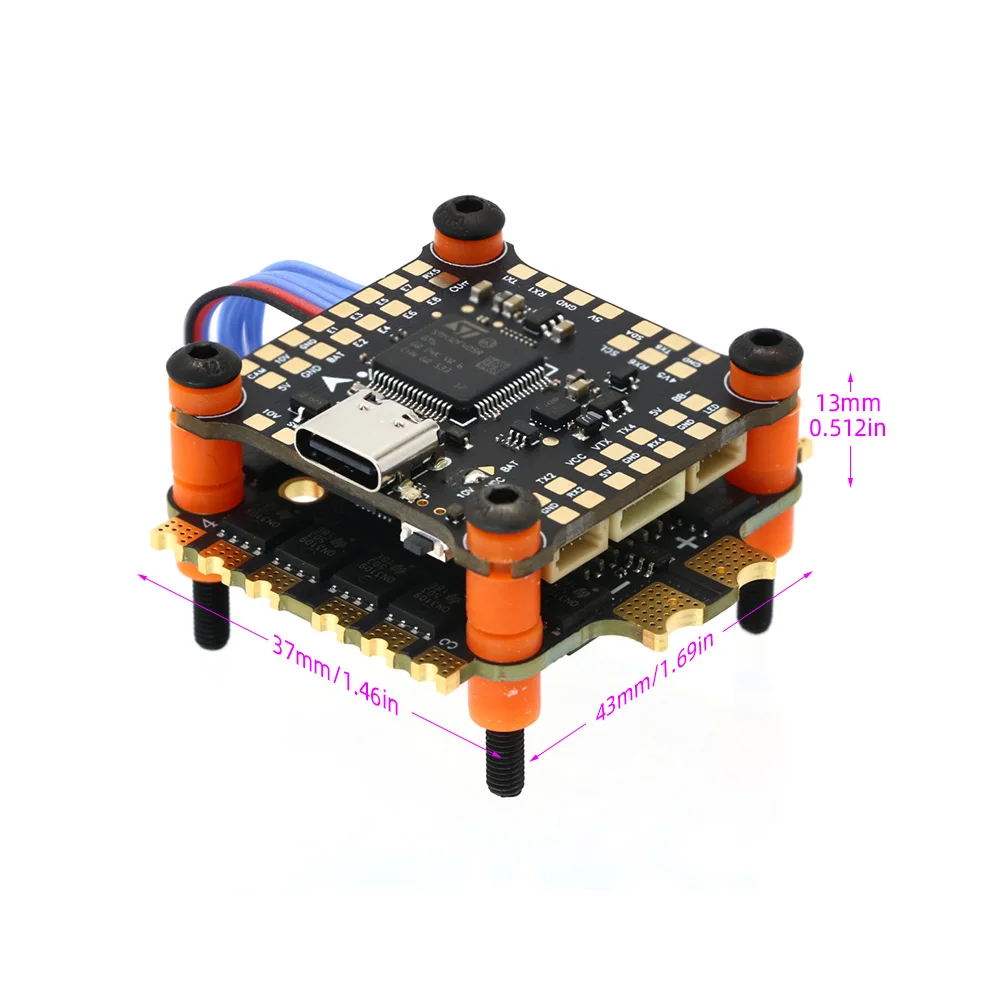

Product size: 36x36mm
Packing size: Φ62*33mm
Installation hole distance: 30.5×30.5mm φ4mm

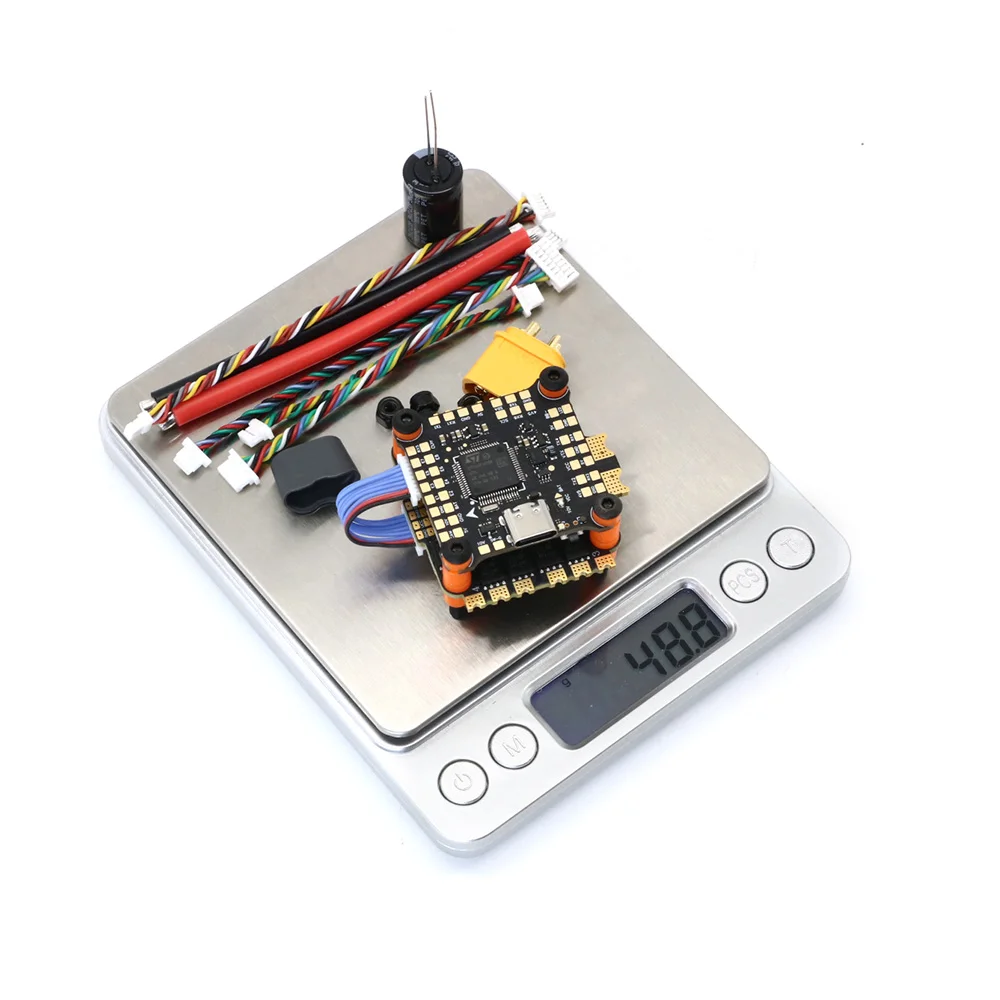

Weight: 6g
Packing weight: 20g
MCU: STM32F405RGT6
IMU:MPU6500
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: 16MB
B E C：5V/3A ; 9V/2.5A
USB interface: TYPE-C
Input voltage: 3—6S
Firmware: betaflight_4.2.9HAKRCF405D
Uart serial port: 5
Assistant software：betaflight-configurator
DJI digital image transmission：support

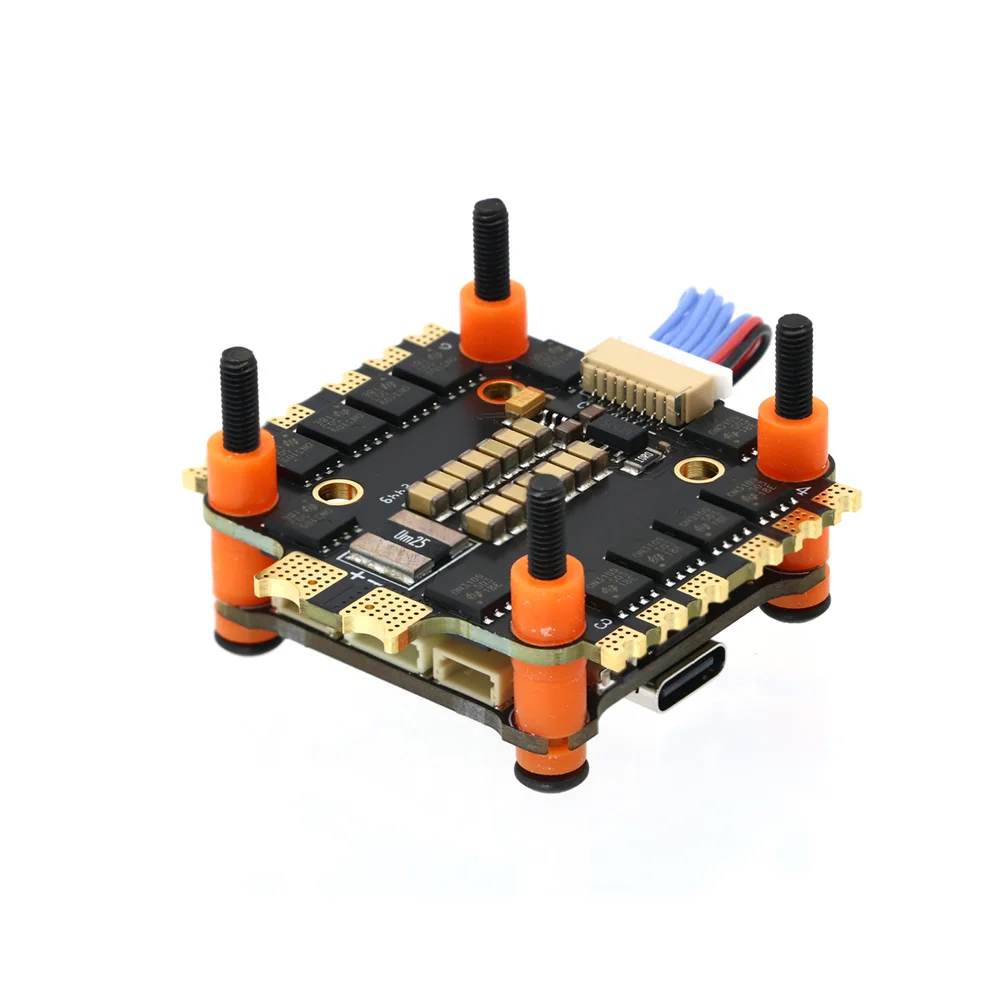

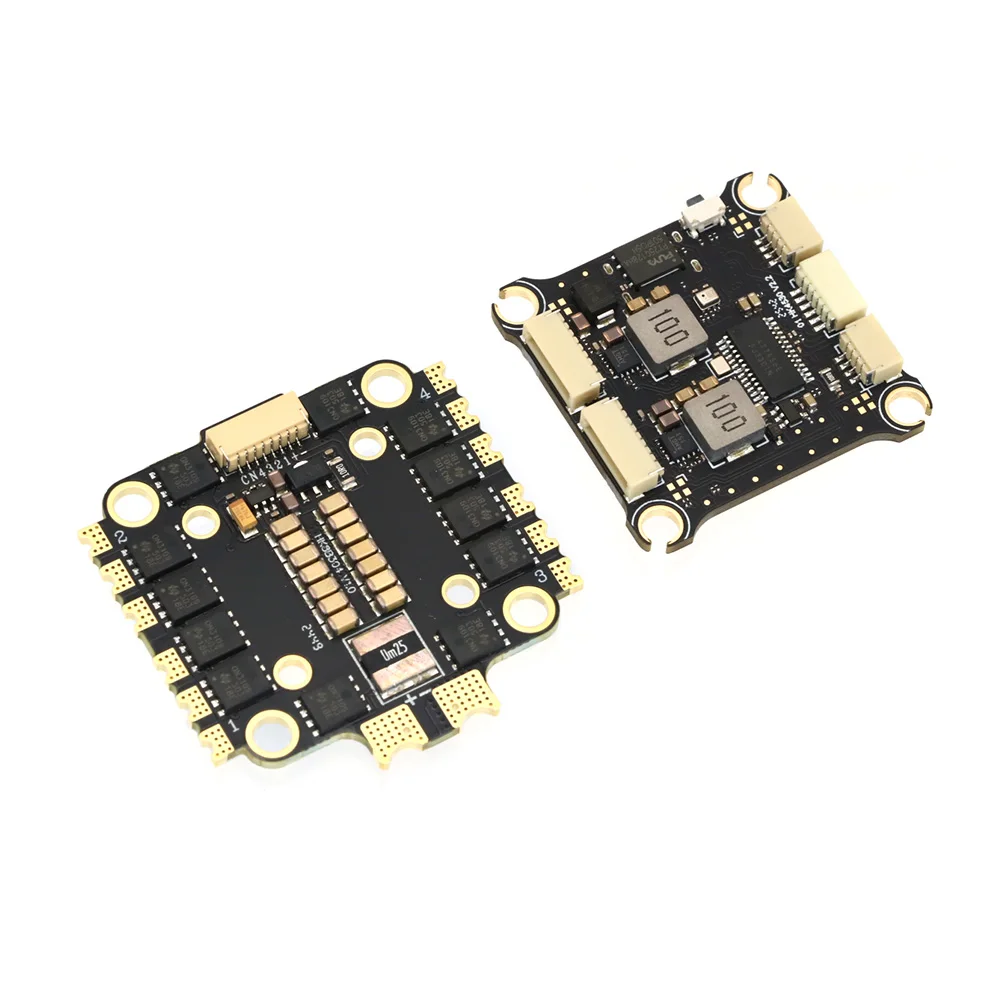

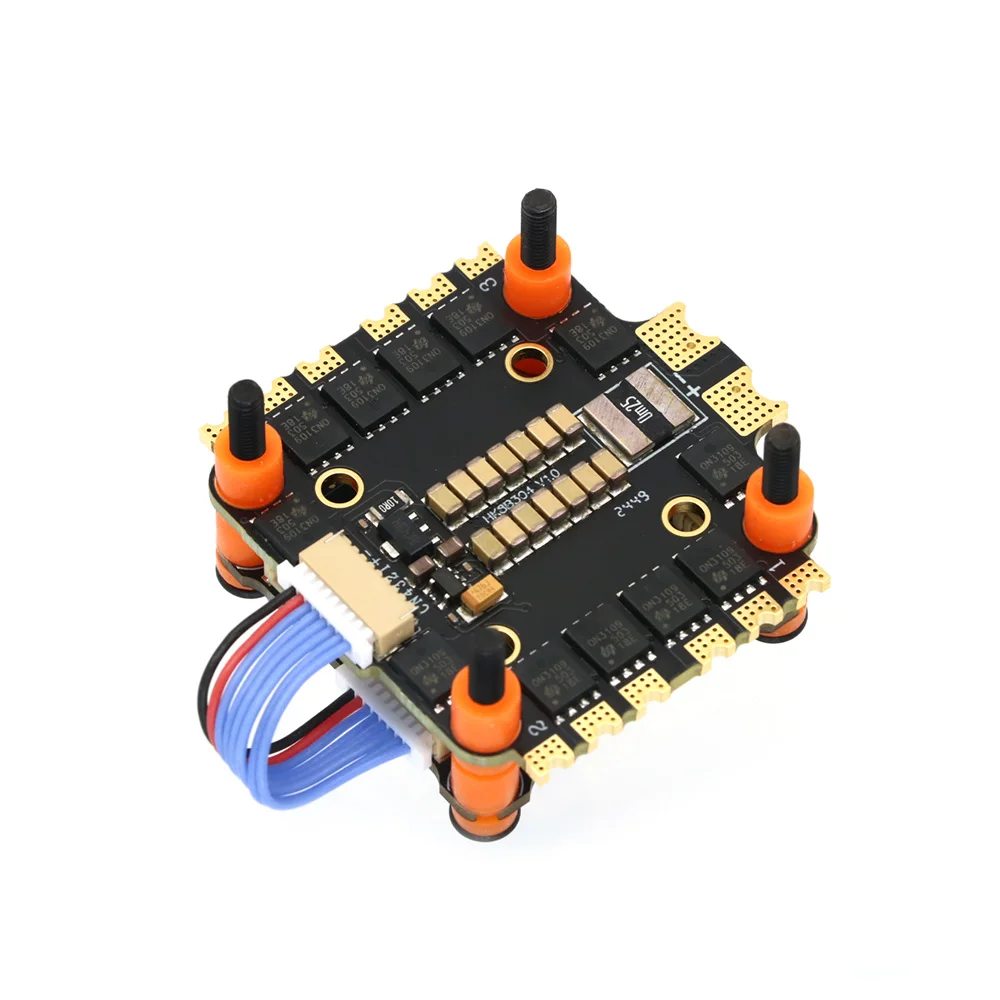

ESC parameters
Electrical adjustment size: 39mm * 41mm * 6.5mm
Net weight of electric adjustment: 12.5g
Fixed hole spacing: 30.5mm * 30.5mm Φ 4mm
Continuous current: 55A
Maximum current: 60A (sustainable for 10S)
Input voltage: 2-6S
Current ratio: 160
Parameter adjustment software: BLHeliSuite16714900
Driver signal support: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Additional information
| Color | FC and ESC |
|---|
