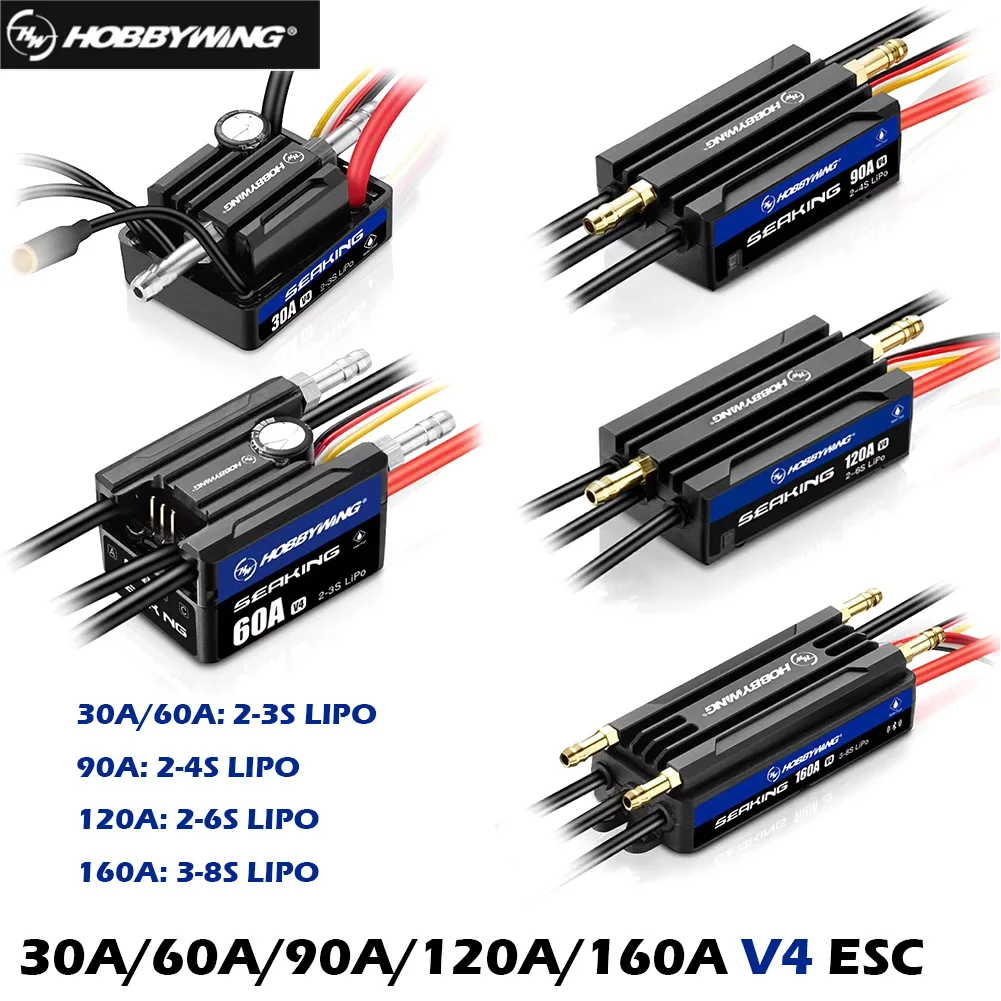

HOBBYWING Seaking Brushless ESC Boat Sensorless ESC 30A 60A 90A 120A 160A V4 Series IP67 Waterpoof Built-in BEC For RC Model Boats
Features:

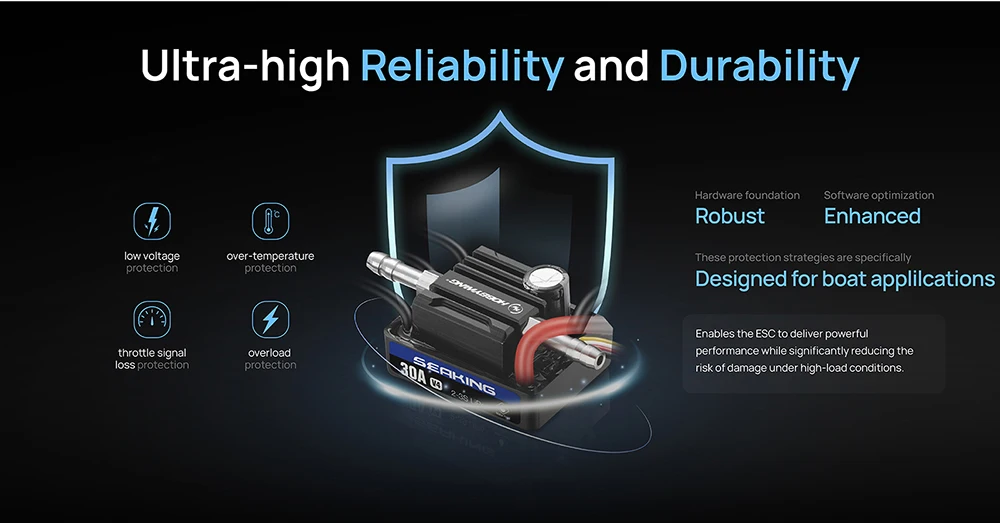

1. Ultra-high Reliability and Durability.

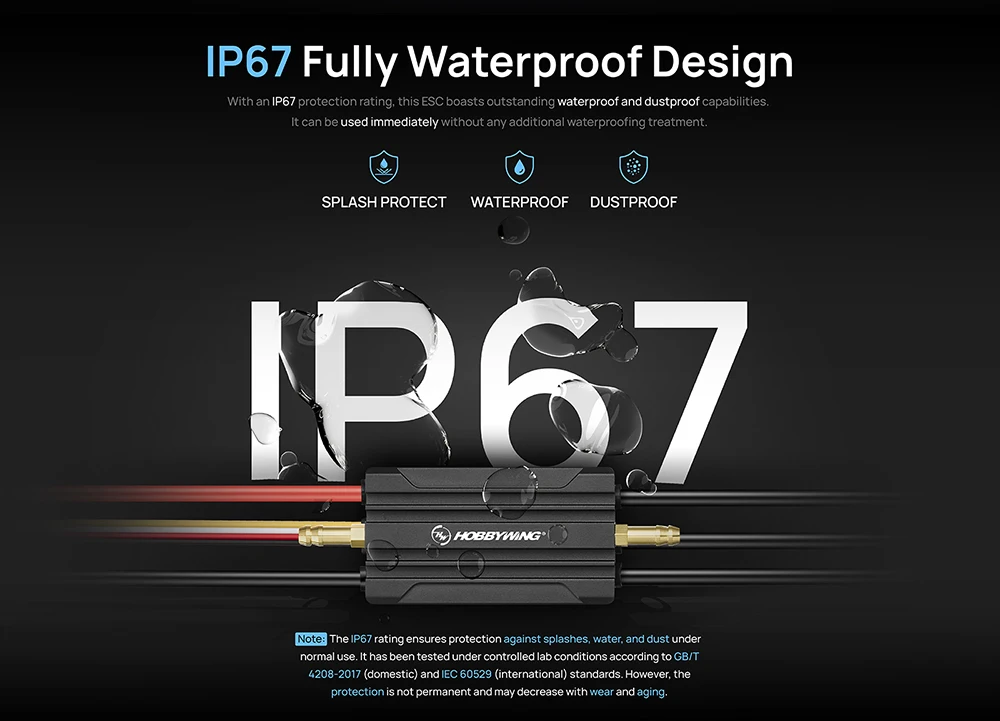

2. lP67 protection rating, this Esc boasts outstanding waterproof and dustproof capabilities.

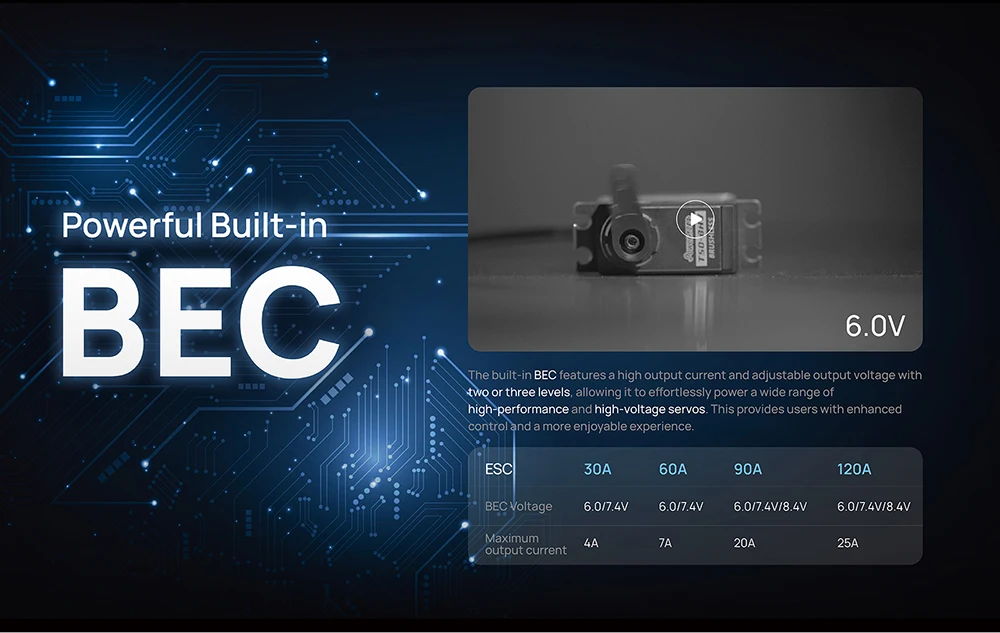

3. The built-in BEC features a high output current and adjustable output voltage withtwo or three levels,

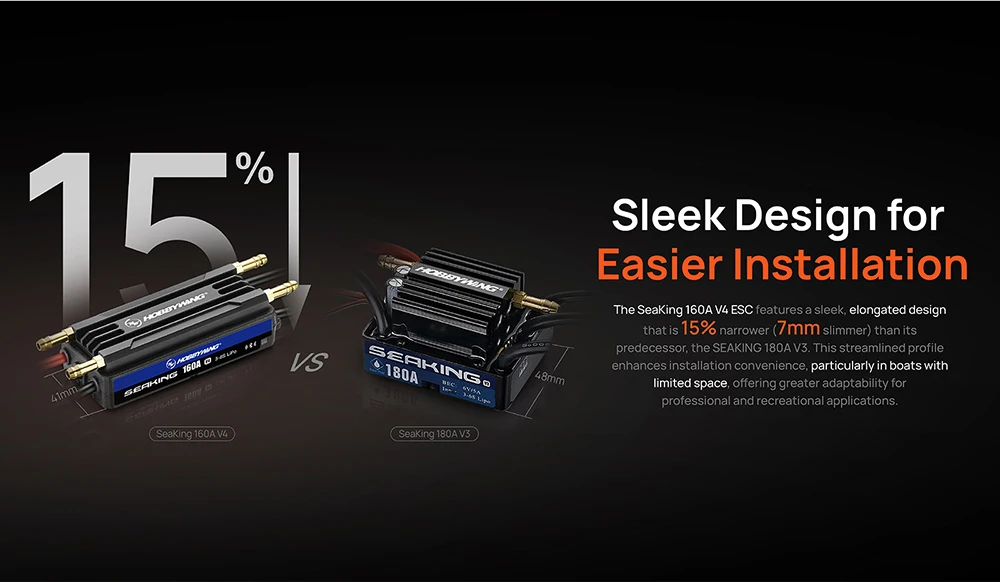

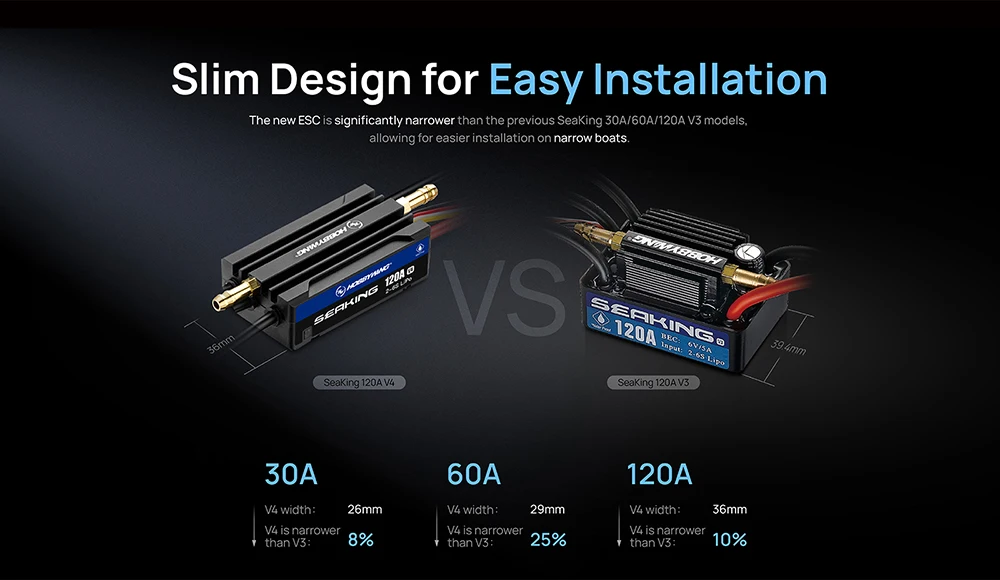

4. Slim Design,allowing for easier installation on narrow boats.
5. By connecting the ESC to the OTA Bluetooth module,Built-in Data Logging for Performance Monitoring.

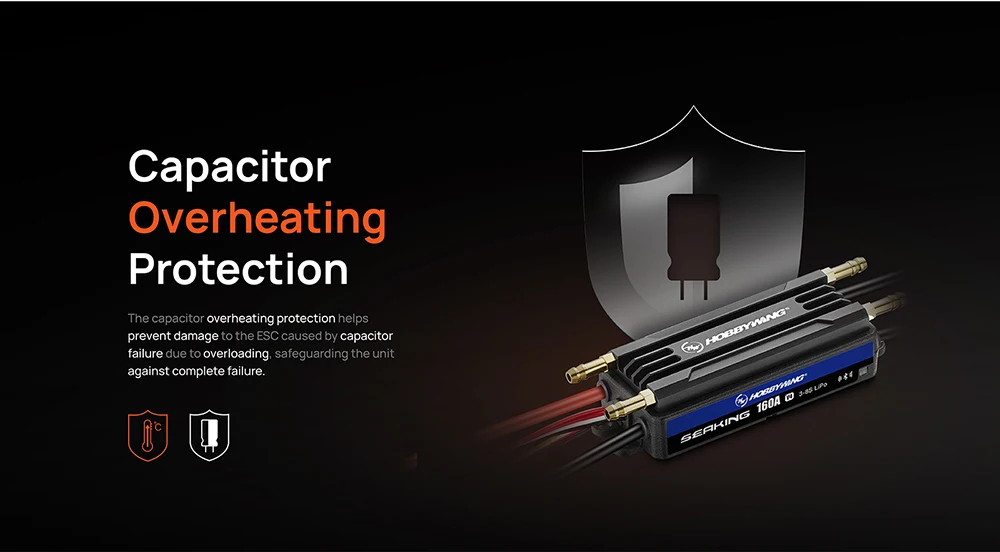

6. The capacitor overheating protection helpsprevent damage to the ESC caused by capacitor failure due to overloading

Description:

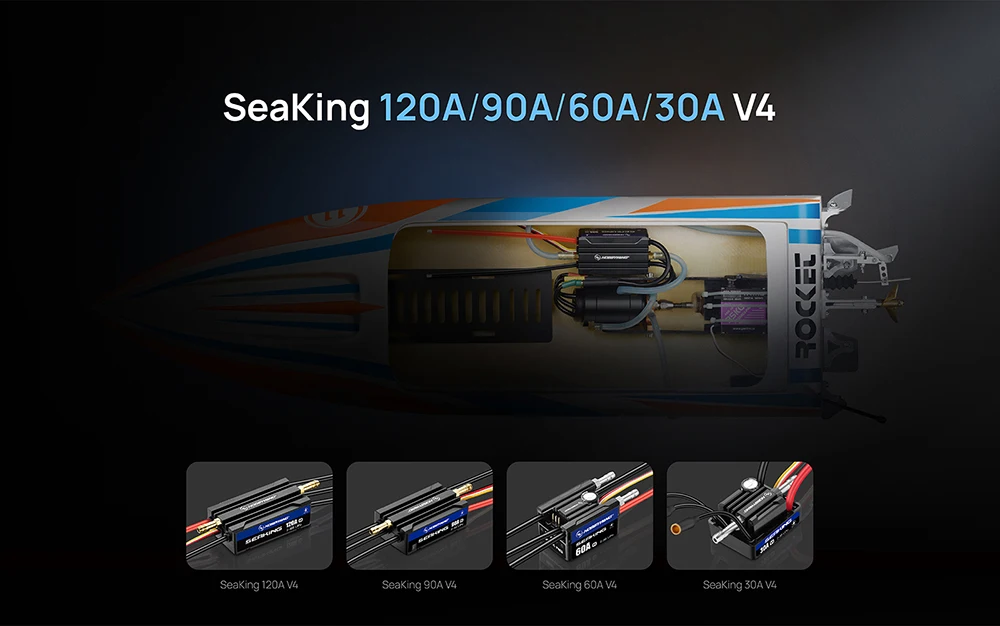

Seaking 160A/120A/90A/60A/30A V4 Brushless ESC,The built-in BEC features a high output current and adjustable output voltage with two or three levels, significantly narrower than the previous SeaKing 30A/60A/120A V3 models,allowing for easier installation on narrow boats.

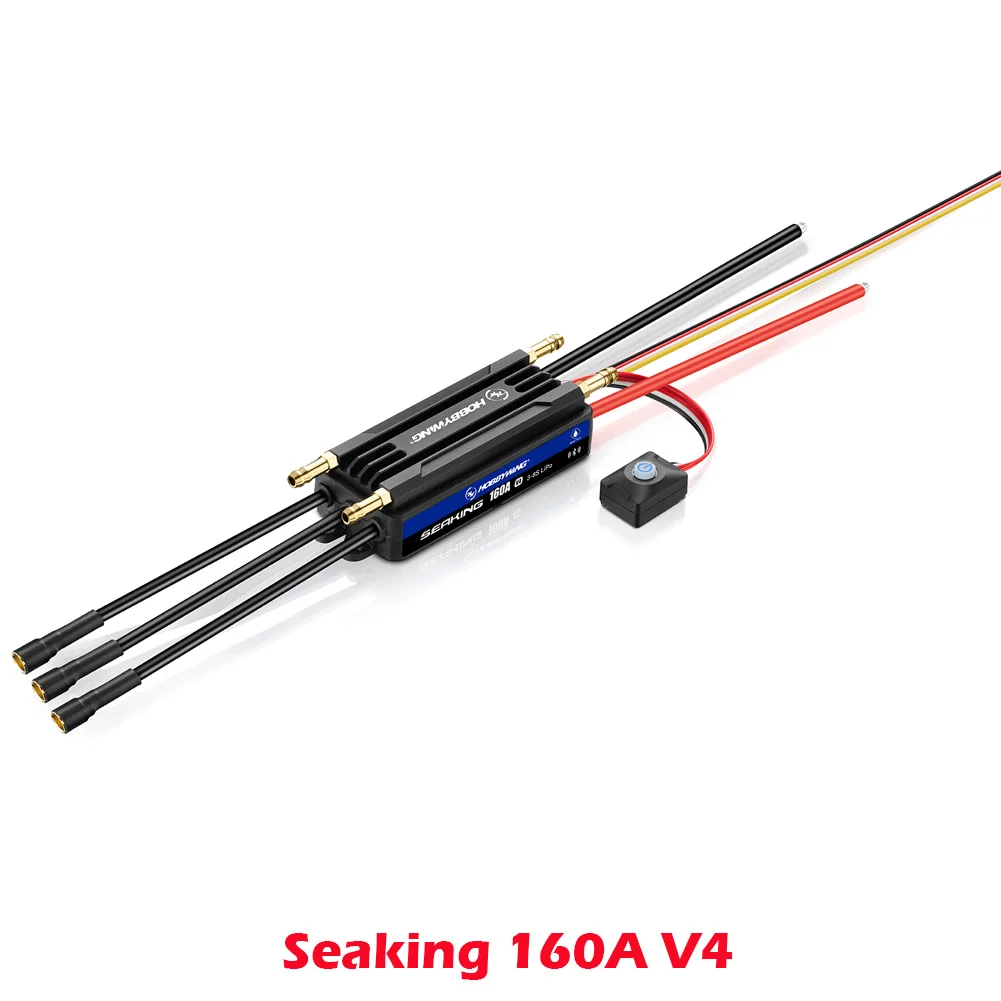

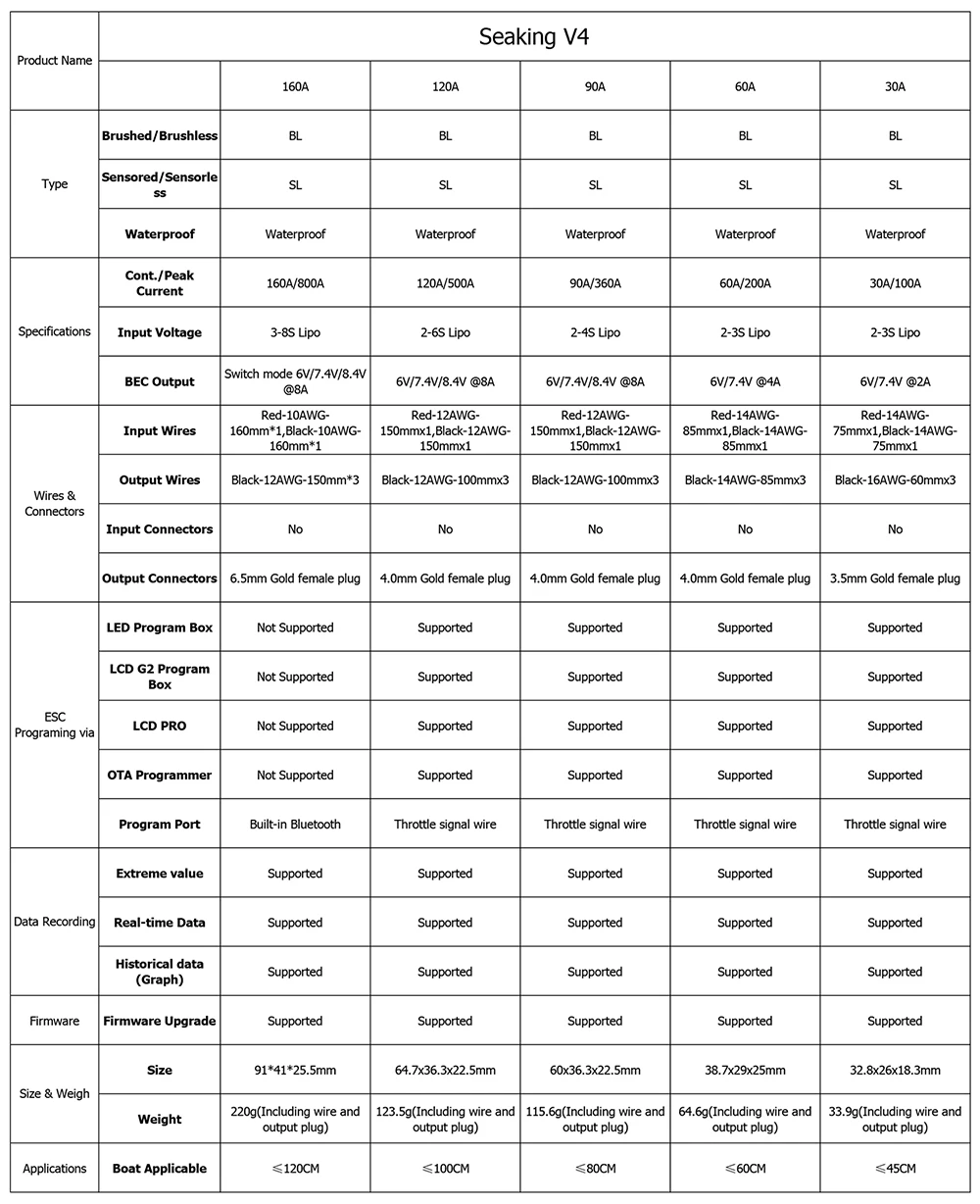

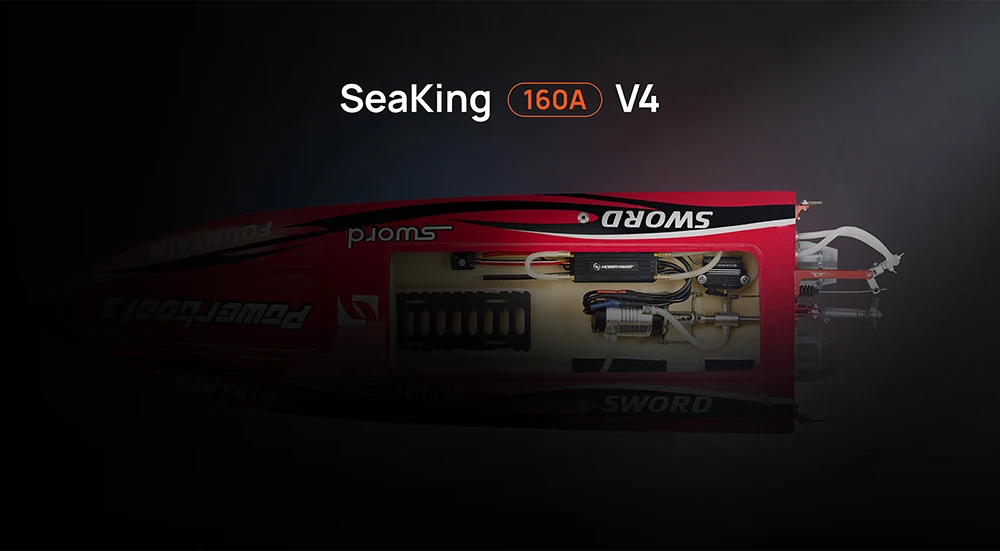

160A ESC Specifications:
Item: 160A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 160A/800A
Input Voltage: 3-8S Lipo
BEC Output: Switch mode 6V/7.4V/8.4V @8A
Output Connectors: 6.5mm Gold female plug
Size: 91*41*25.5mm
Weigh: 220g(Including wire and output plug)
Boat Applicable: ≤120CM

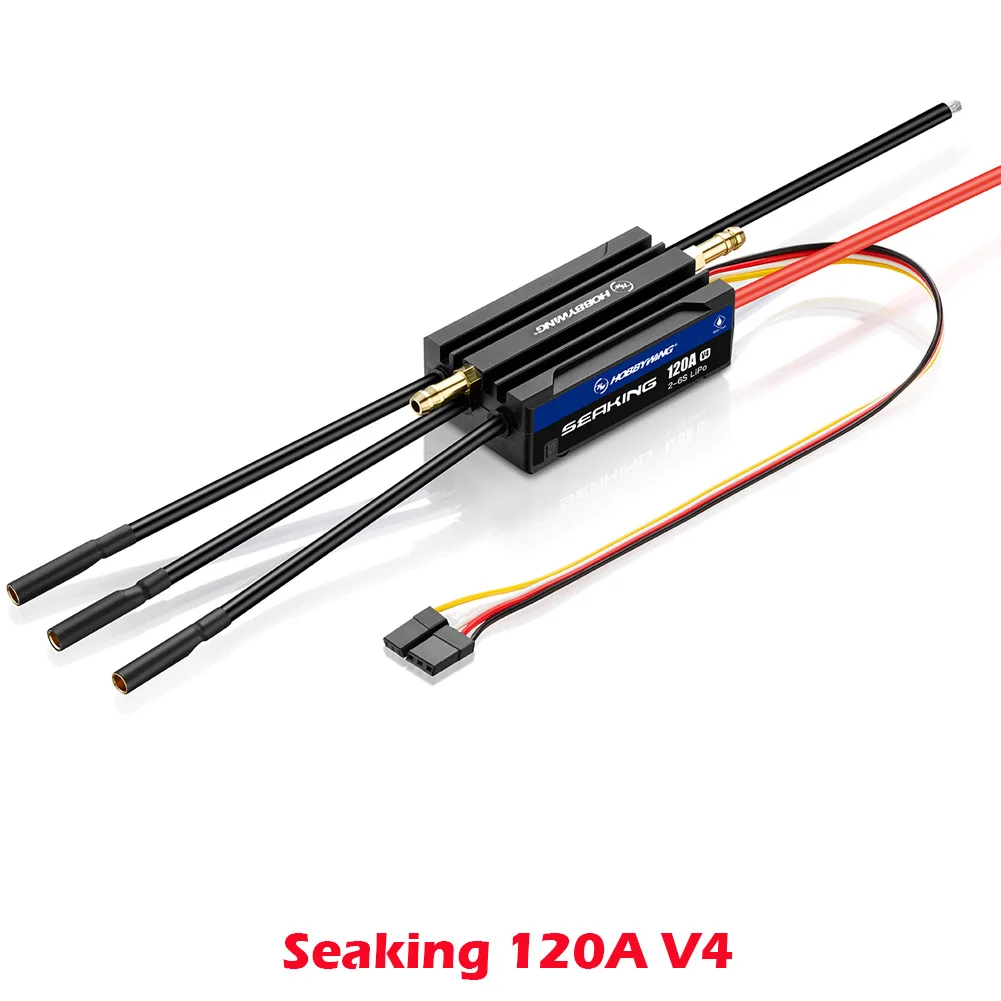

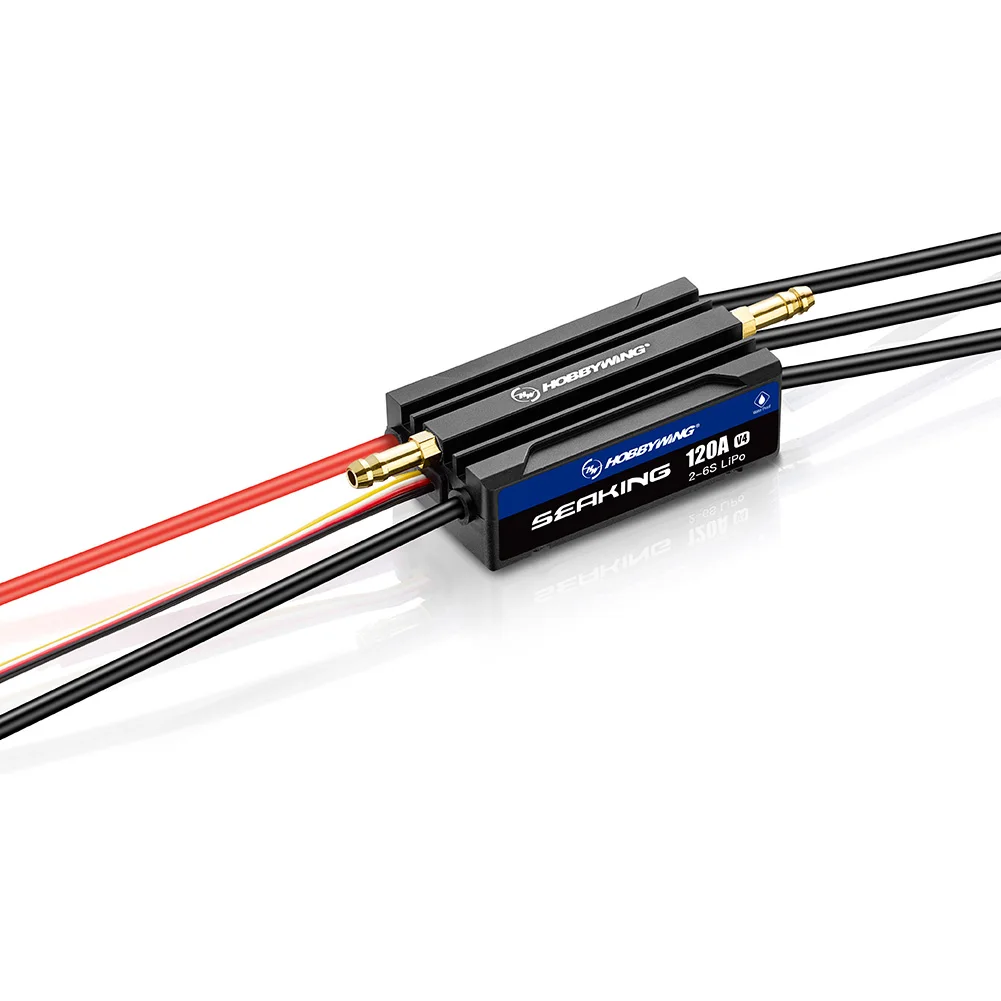

120A ESC Specifications:
Item: 120A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 120A/500A
Input Voltage: 2-6S Lipo
BEC Output: 6V/7.4V/8.4V @8A
Output Connectors: 4.0mm Gold female plug
Size: 64.7×36.3×22.5mm
Weigh: 123.5g(Including wire and output plug)
Boat Applicable: ≤100CM

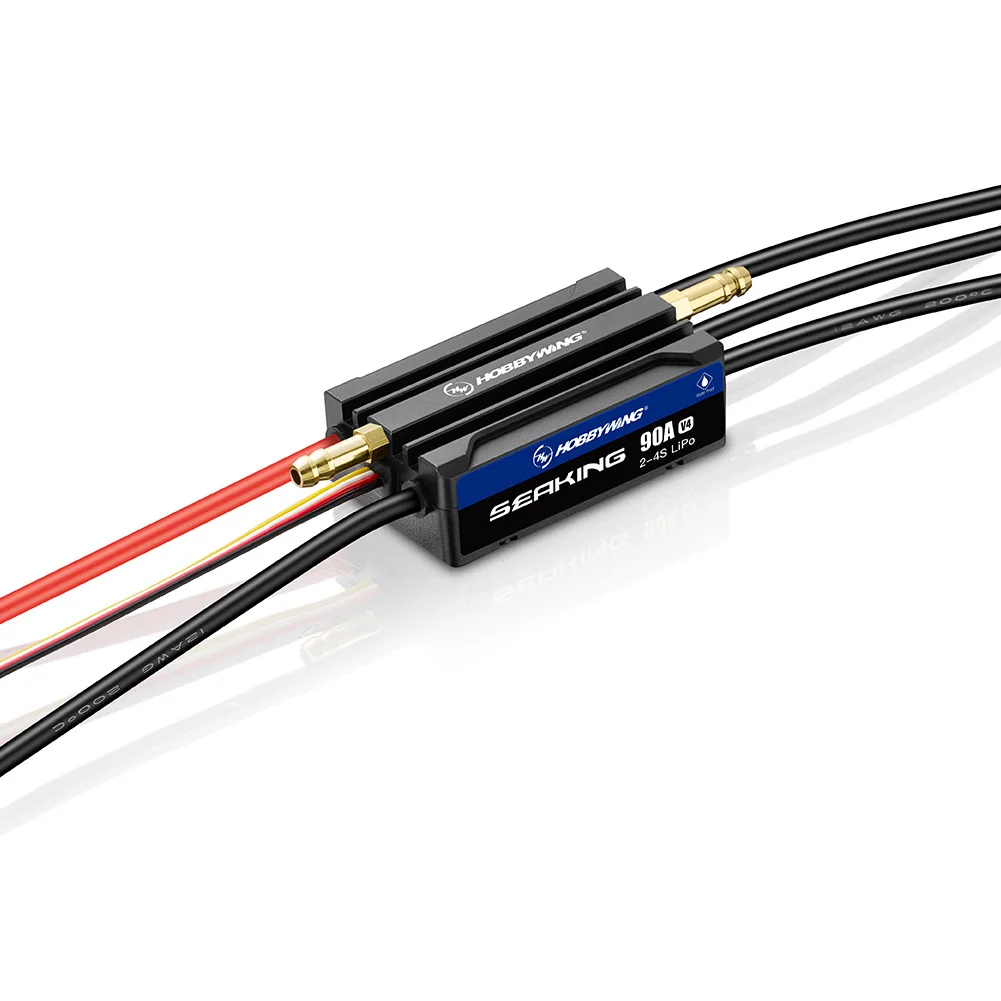

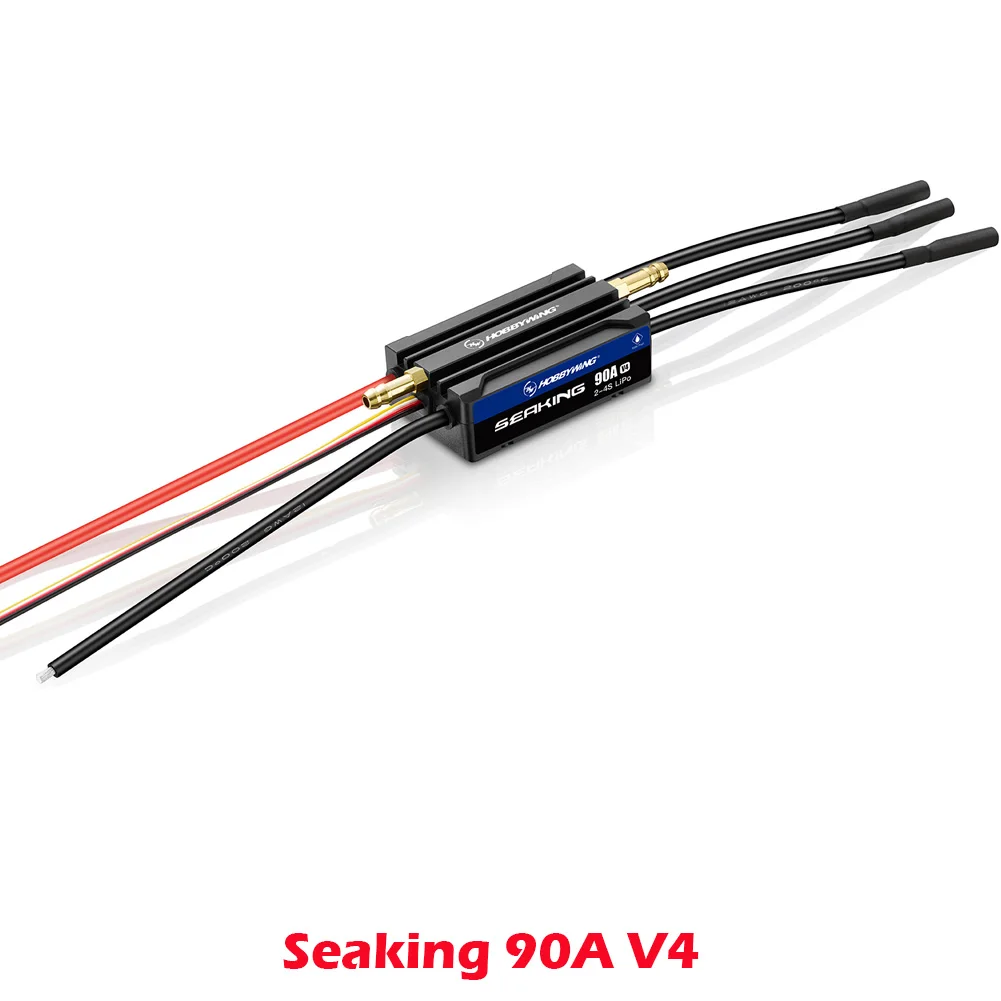

90A ESC Specifications:
Item: 90A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 90A/360A
Input Voltage: 2-4S Lipo
BEC Output: 6V/7.4V/8.4V @8A
Output Connectors: 4.0mm Gold female plug
Size: 60×36.3×22.5mm
Weigh: 115.6g(Including wire and output plug)
Boat Applicable: ≤80CM

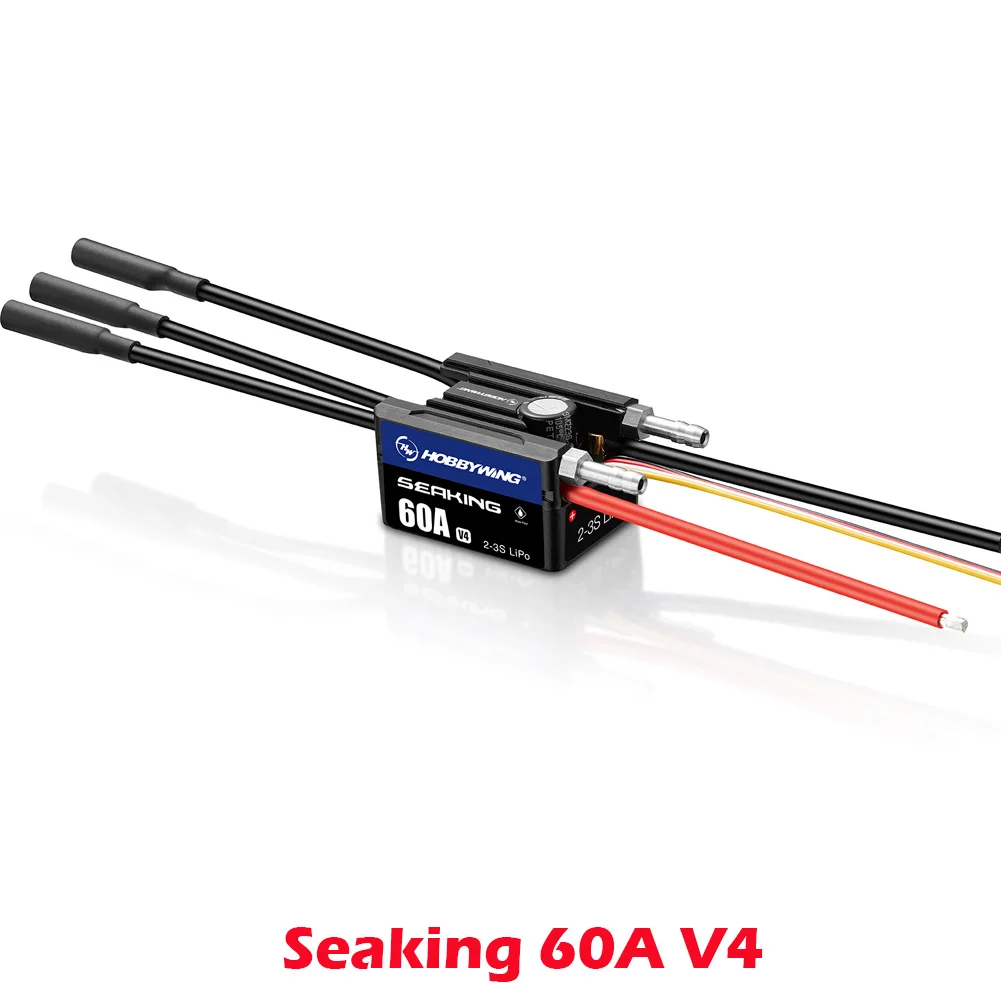

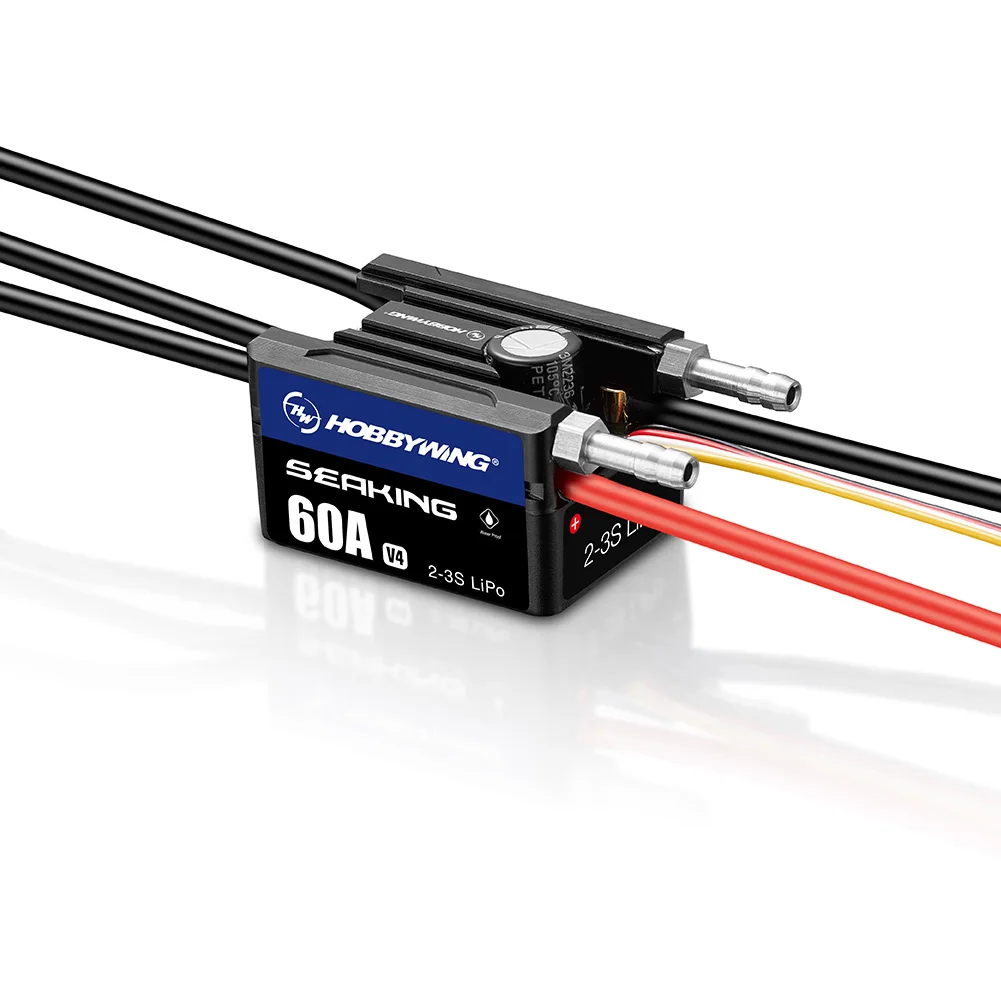

60A ESC Specifications:
Item: 60A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 60A/200A
Input Voltage: 2-3S Lipo
BEC Output: 6V/7.4V @4A
Output Connectors: 4.0mm Gold female plug
Size: 38.7x29x25mm
Weigh: 64.6g(Including wire and output plug)
Boat Applicable: ≤60CM

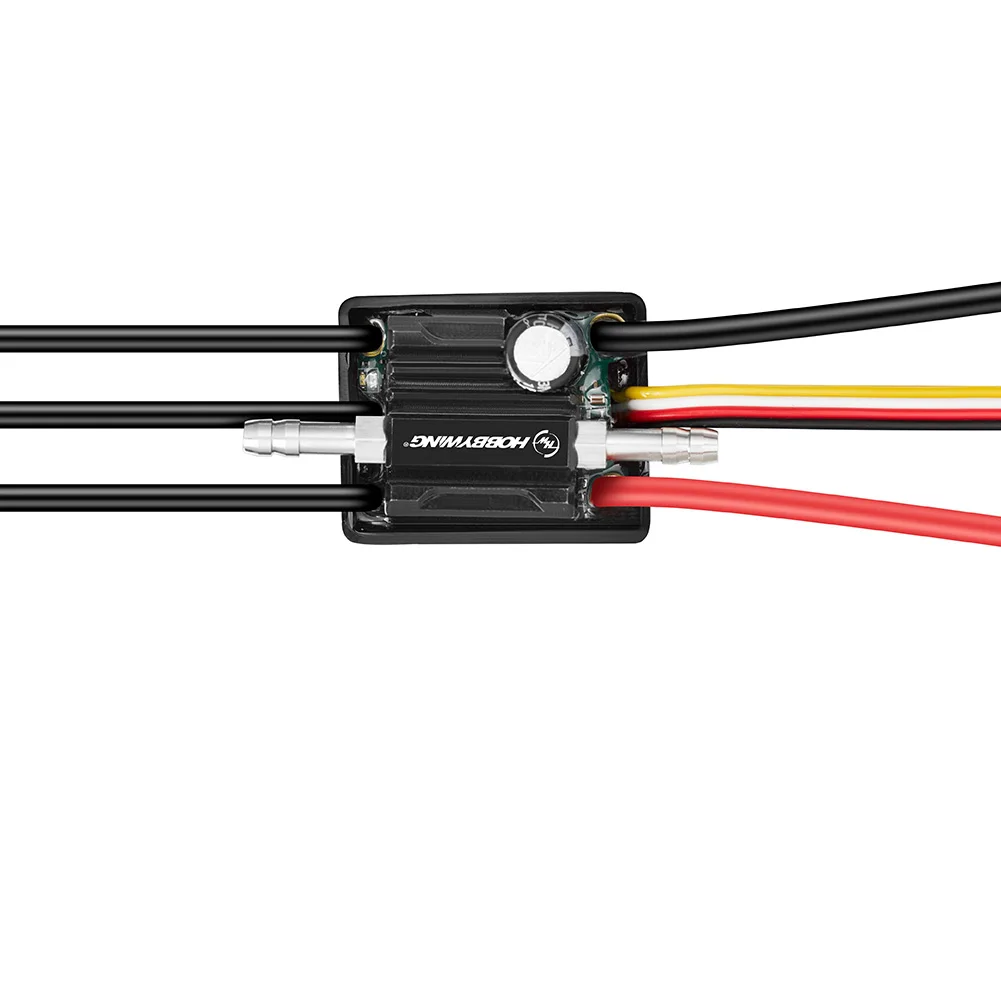

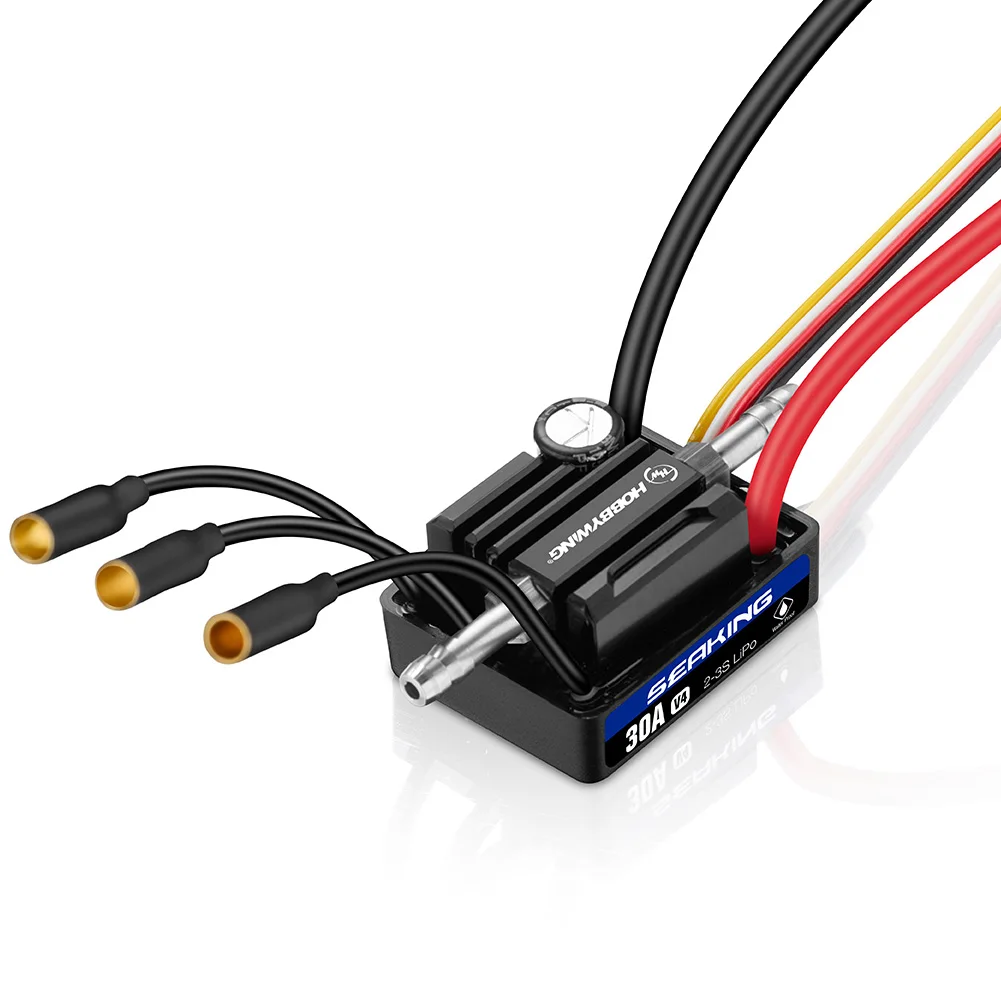

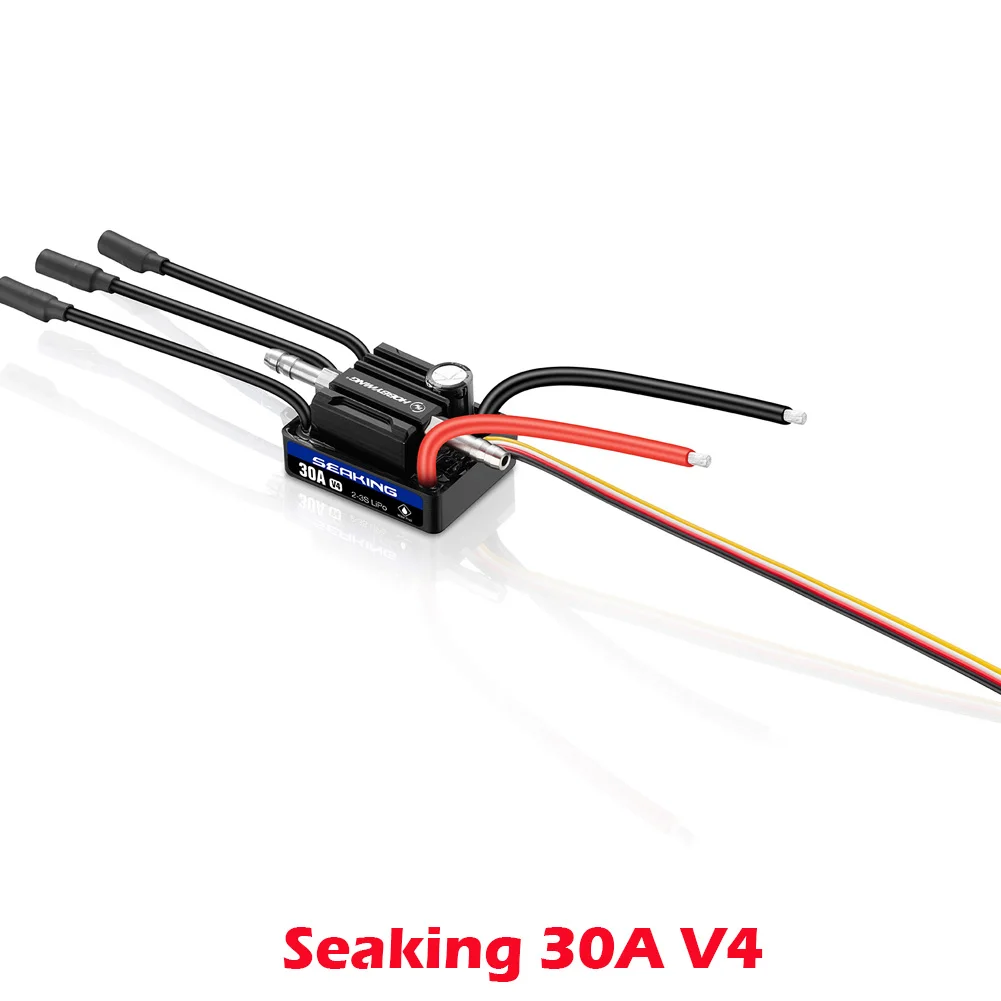

30A ESC Specifications:
Item: 30A Brushless Sensorless ESC
Waterproof: IP67
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S Lipo
BEC Output: 6V/7.4V @2A
Output Connectors: 3.5mm Gold female plug
Size: 32.8x26x18.3mm
Weigh: 33.9g(Including wire and output plug)
Boat Applicable: ≤45CM
