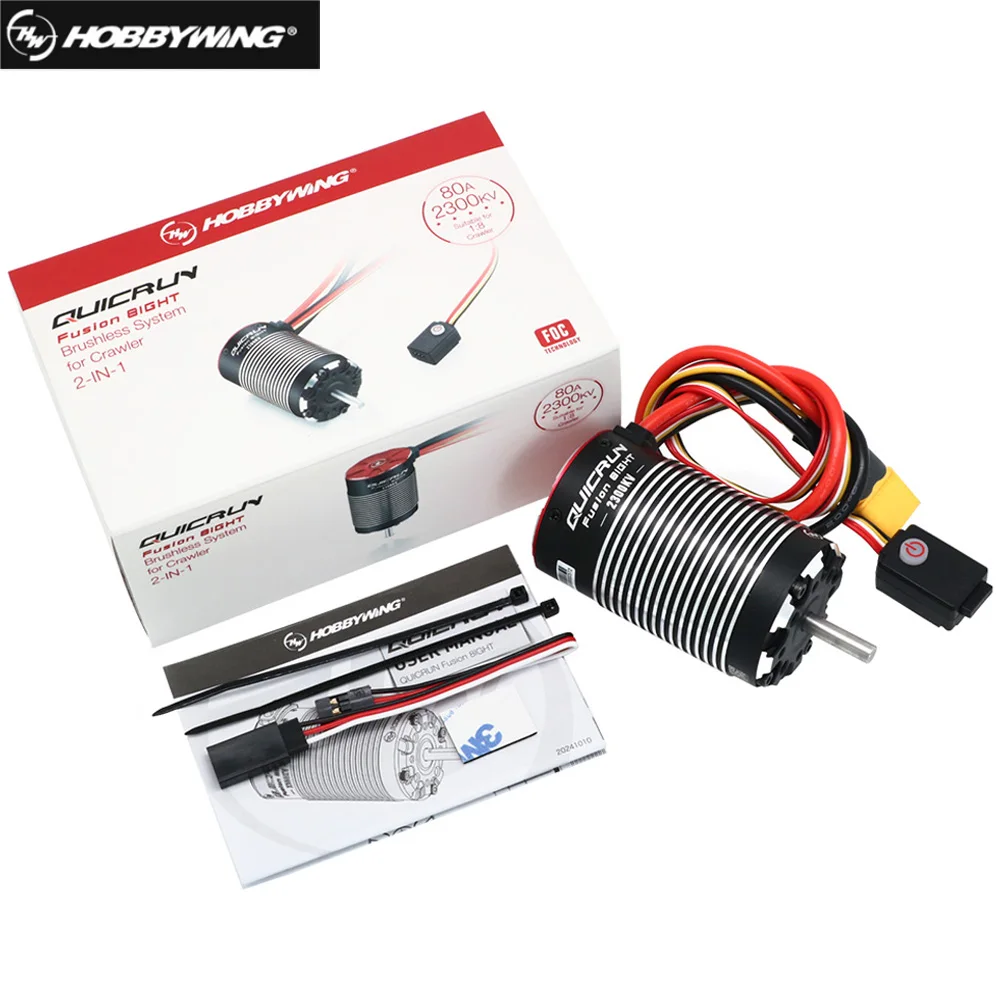

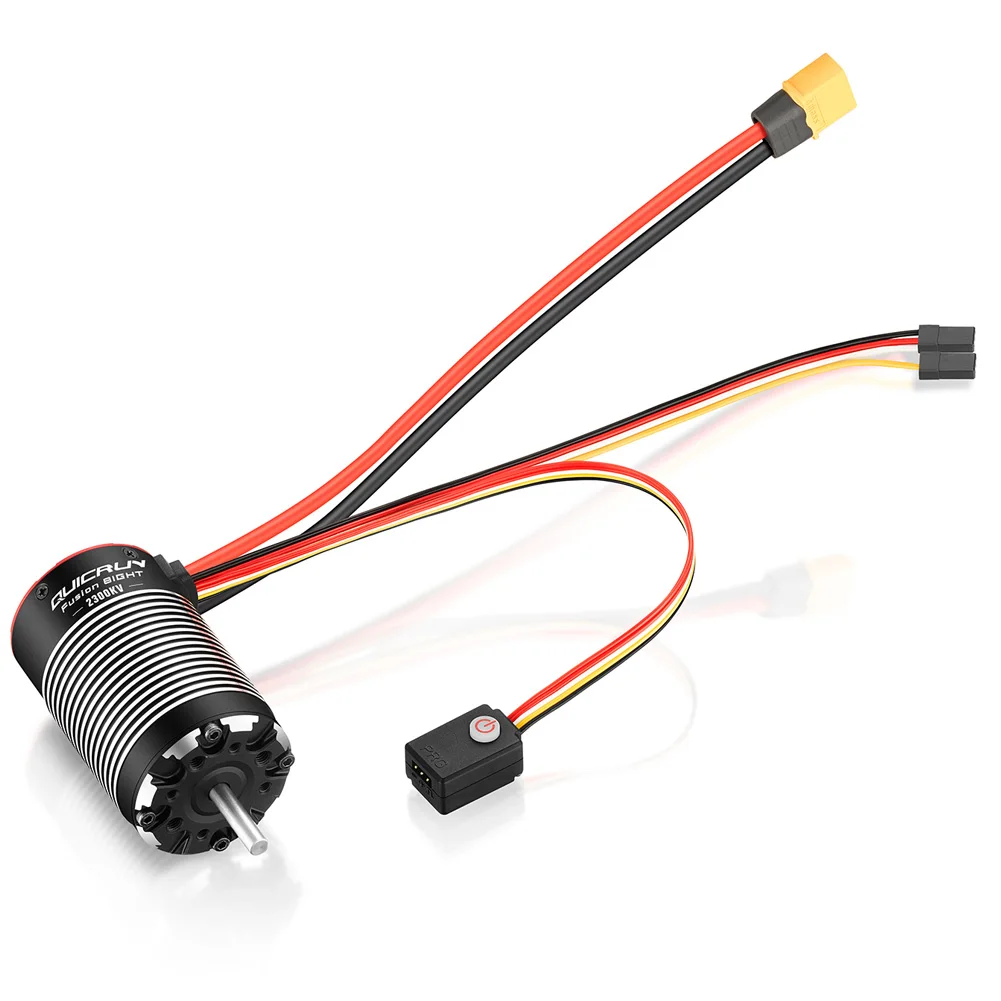

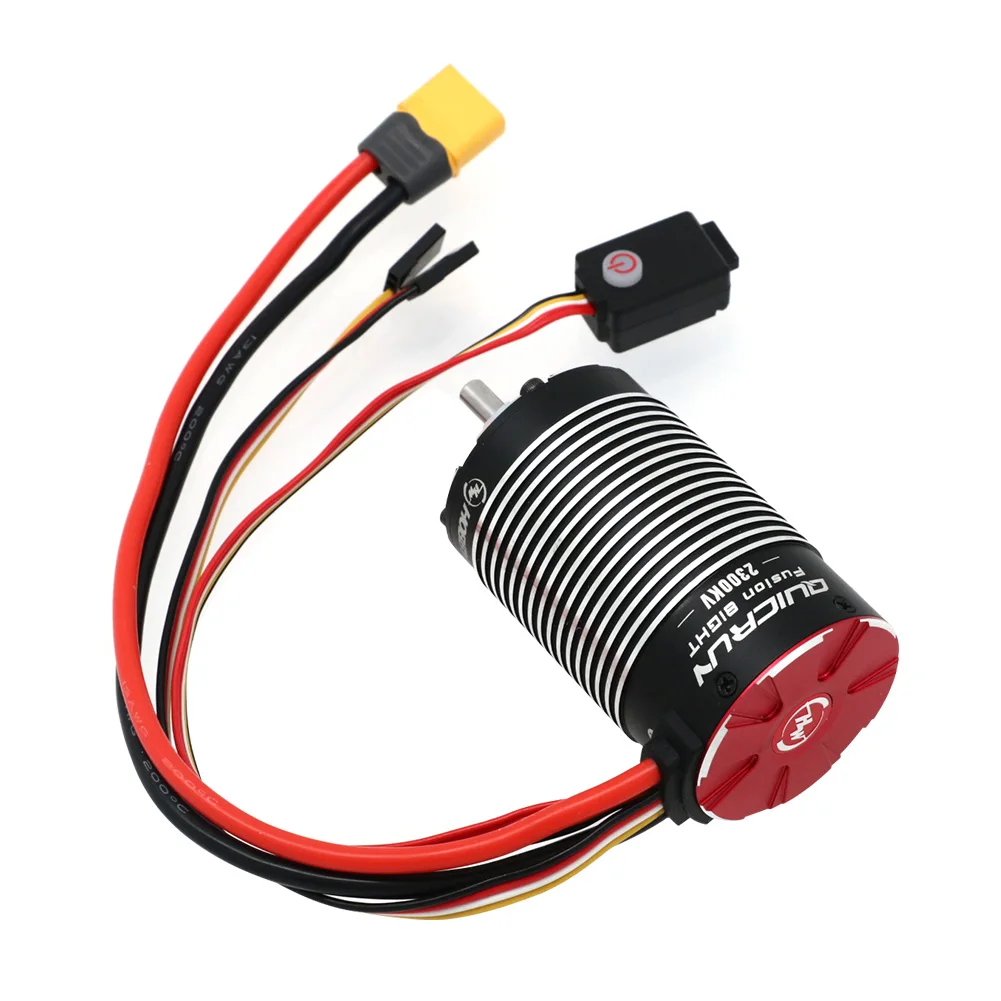

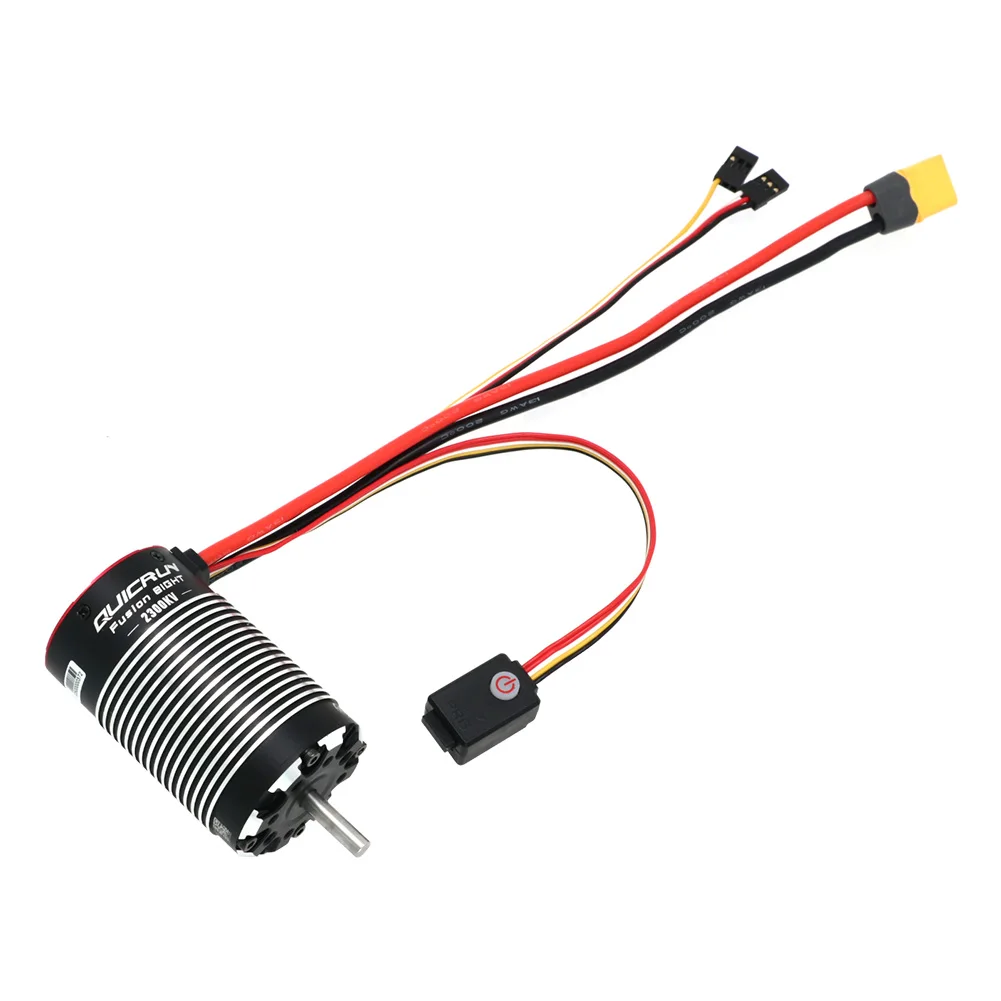

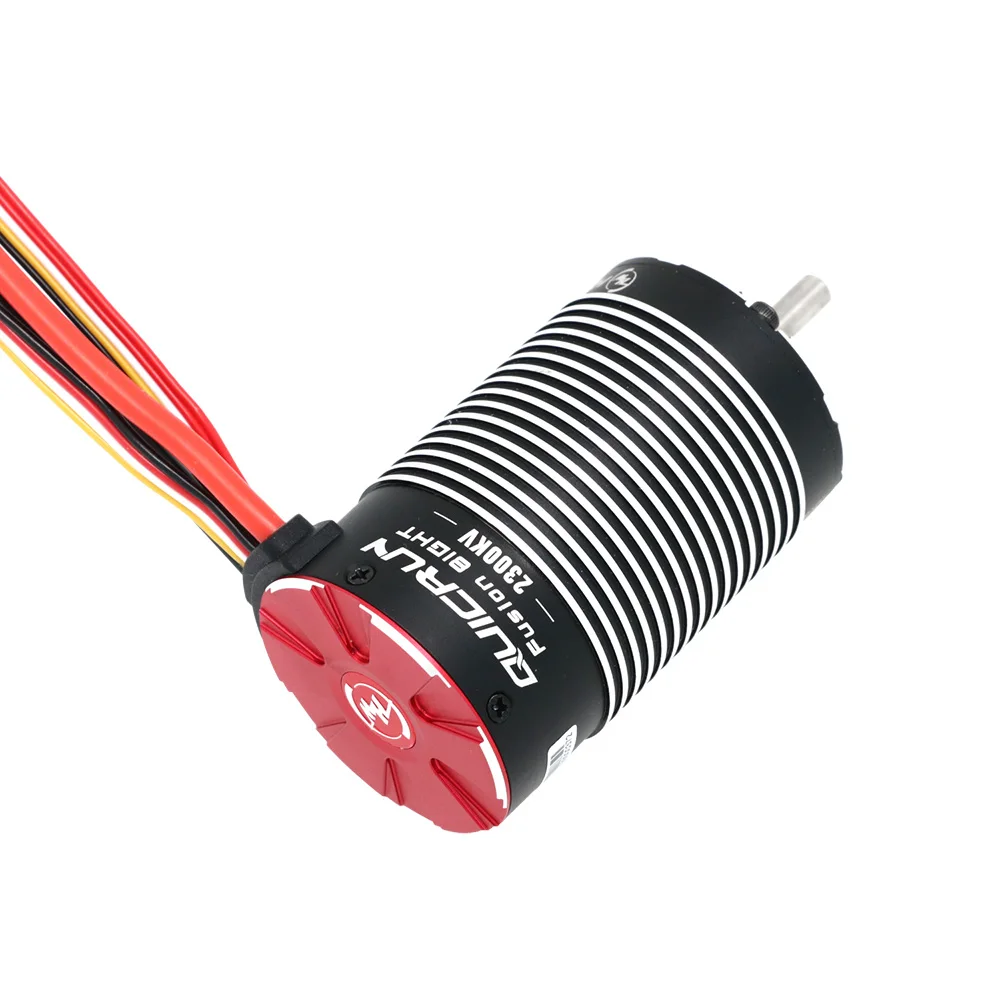

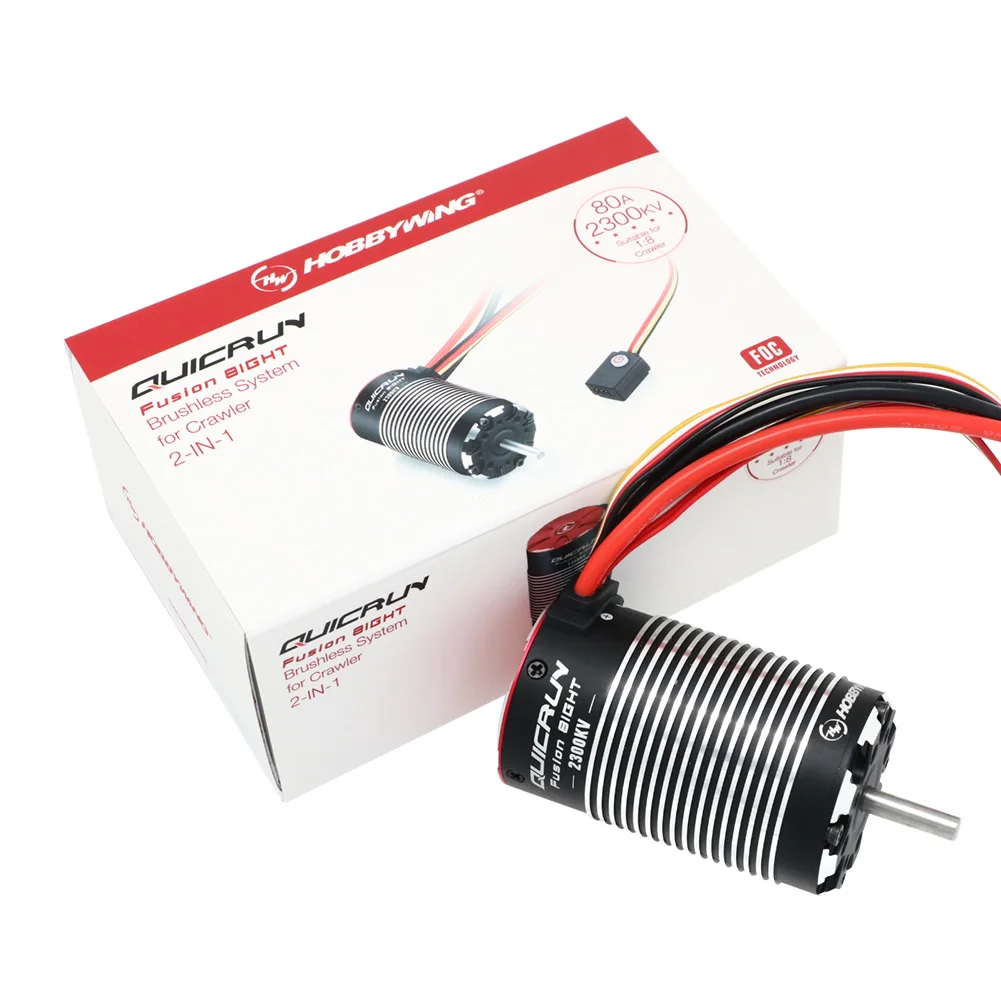

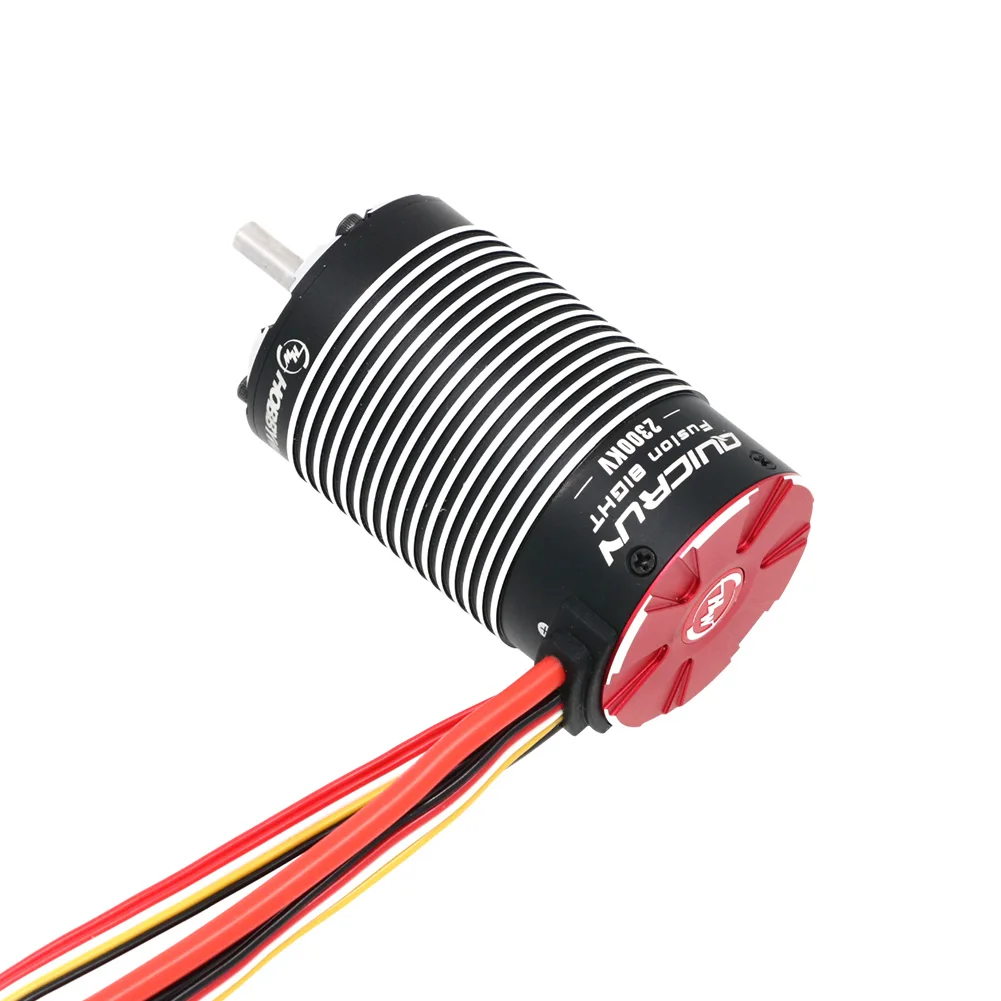

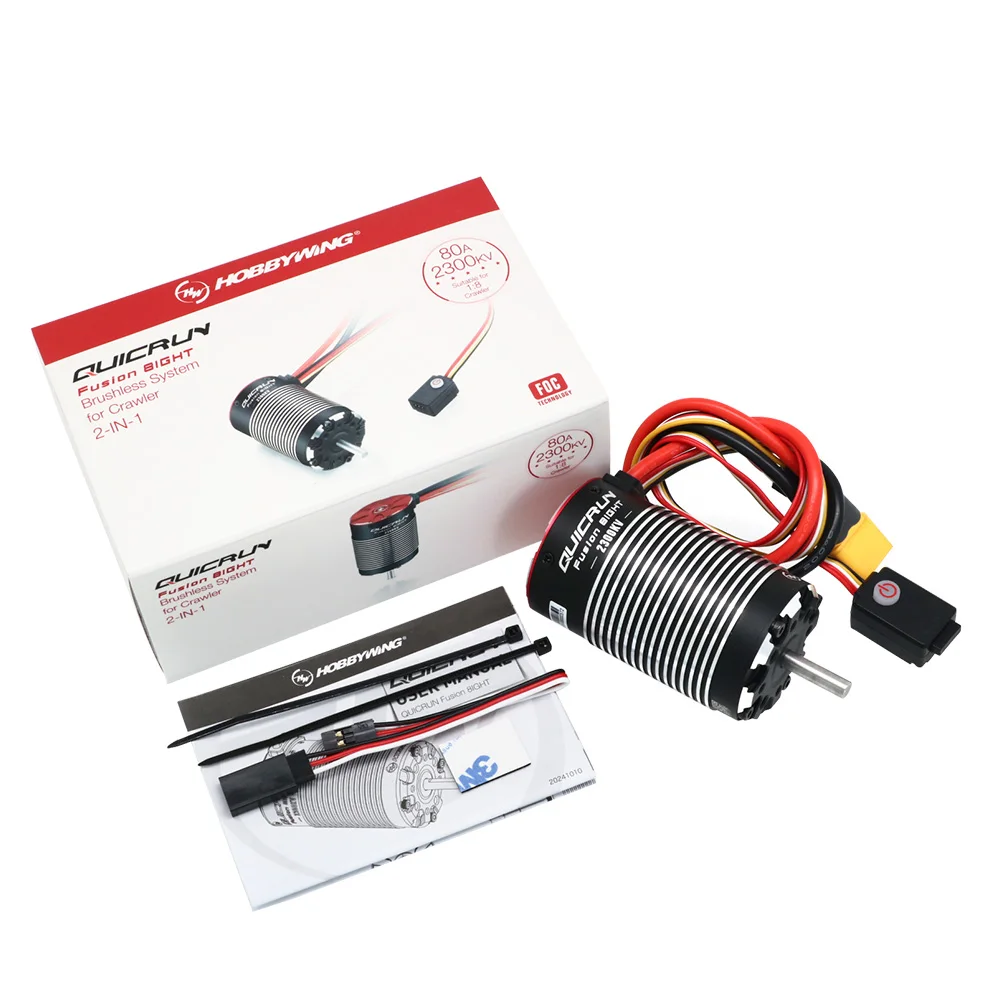

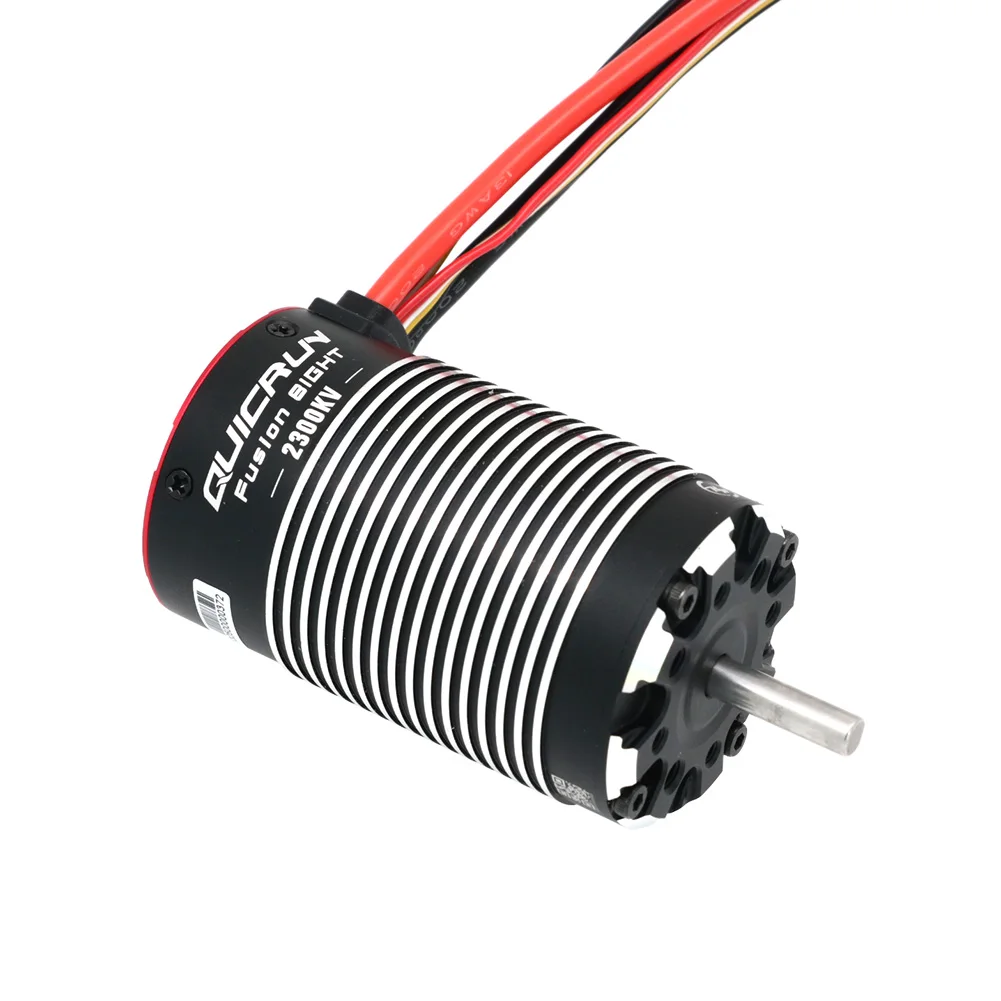

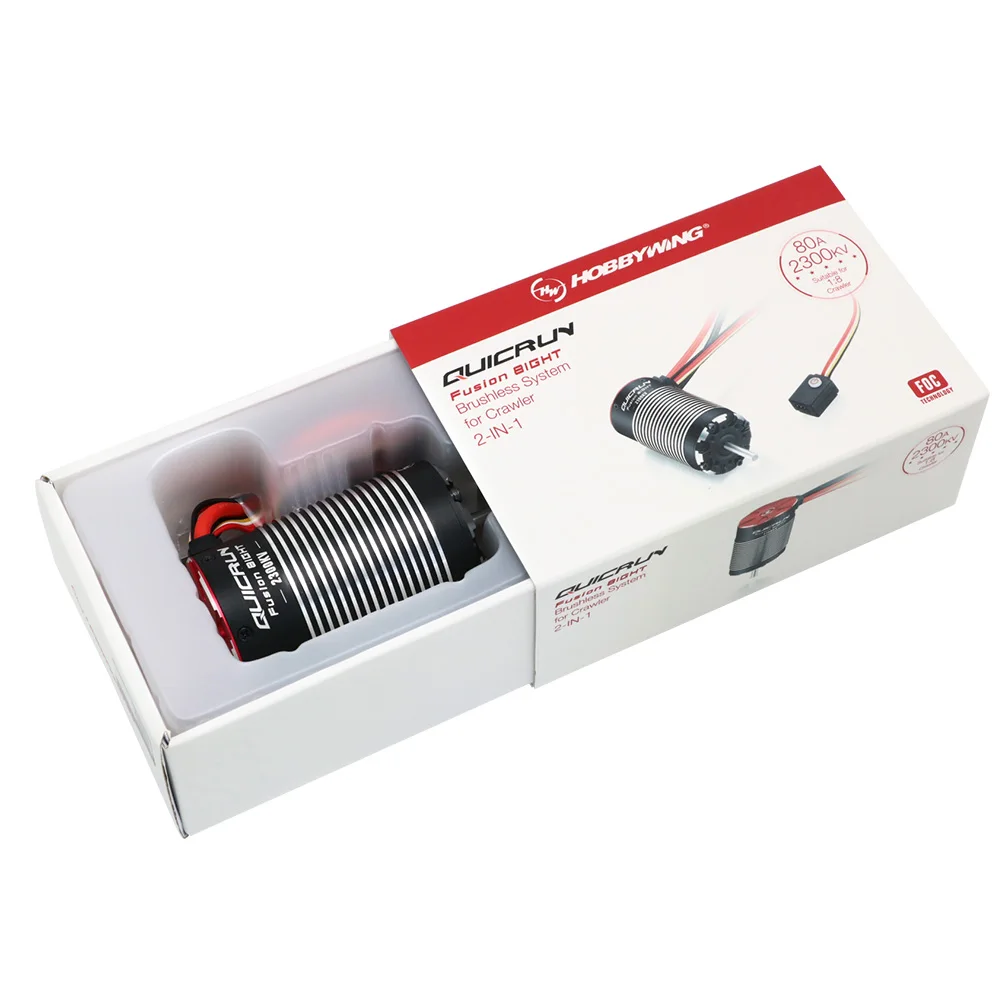

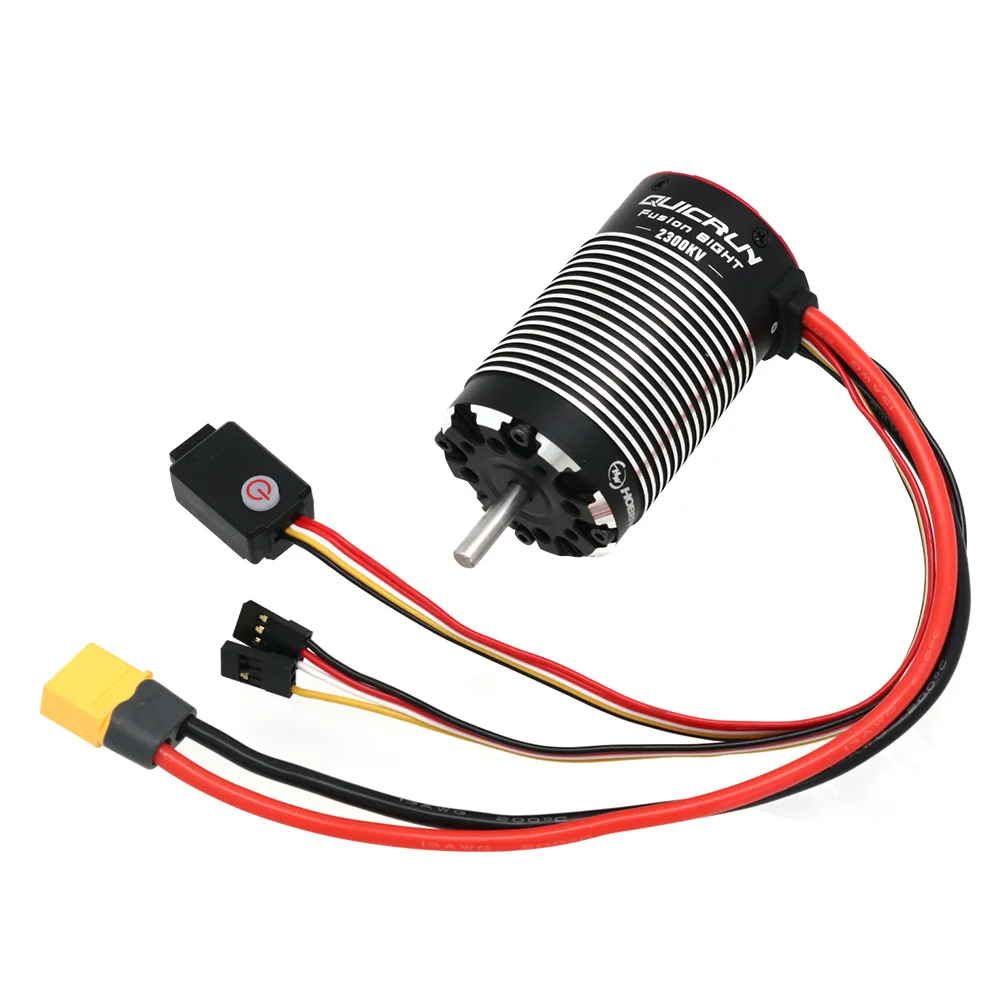

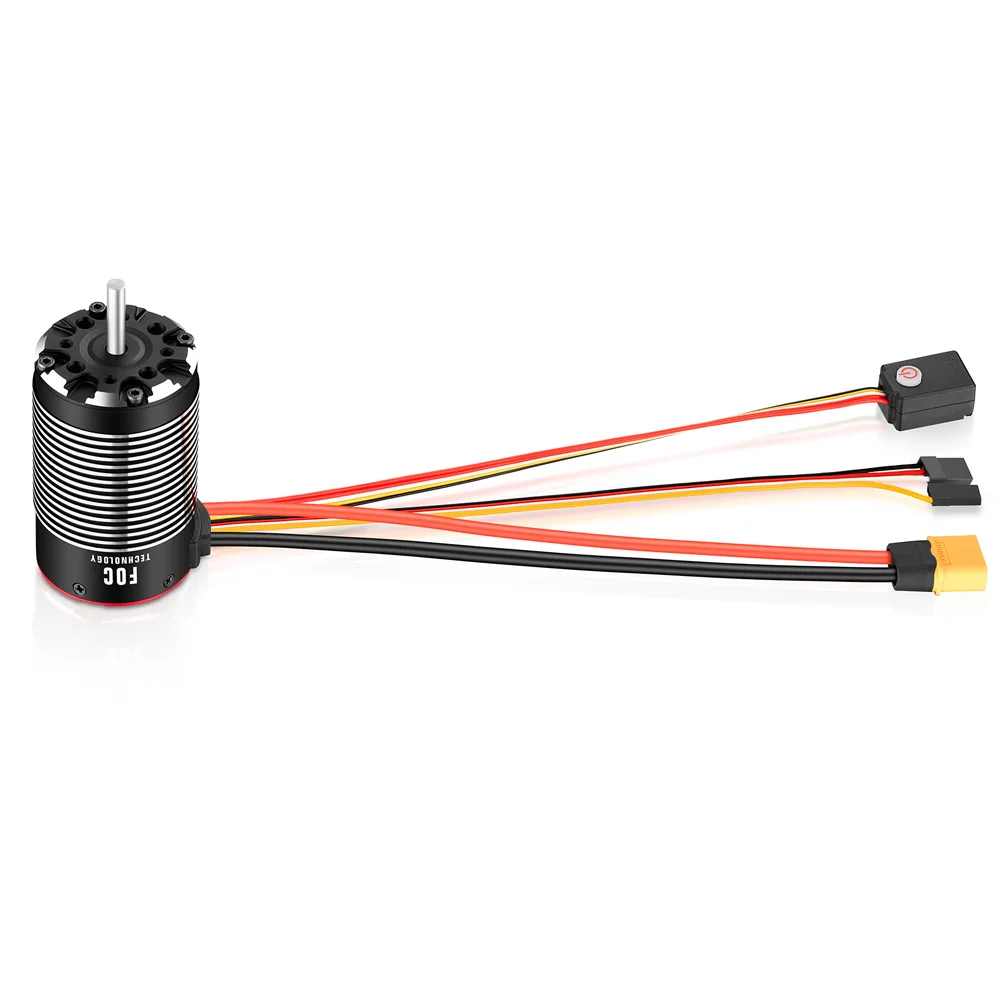

HOBBYWING QUICRUN Fusion 8IGHT 2-IN-1 80A 2300KV Brushless Sensored Motor ESC Integrated for 1/8 RC Car Rock Crawler
Price range: $661.75 through $697.17
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: 2300KV Brushless Sensored Motor
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HB656
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 42mm/69mm
Technical parameters: value 2
Tool Supplies: 2-IN-1 80A 2300KV Brushless Sensored Motor ESC
Upgrade Parts/Accessories: QUICRUN Fusion 8IGHT
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Product Name:QuicRun Fusion 8IGHT
Product Number:30120404
Type:
Scale:1/8th
Brushed/Brushless:Brushless
Sensored/Sensorless:Sensored
Waterproof:Waterproof
Specifications:
Cont./Peak Current:80A/240A

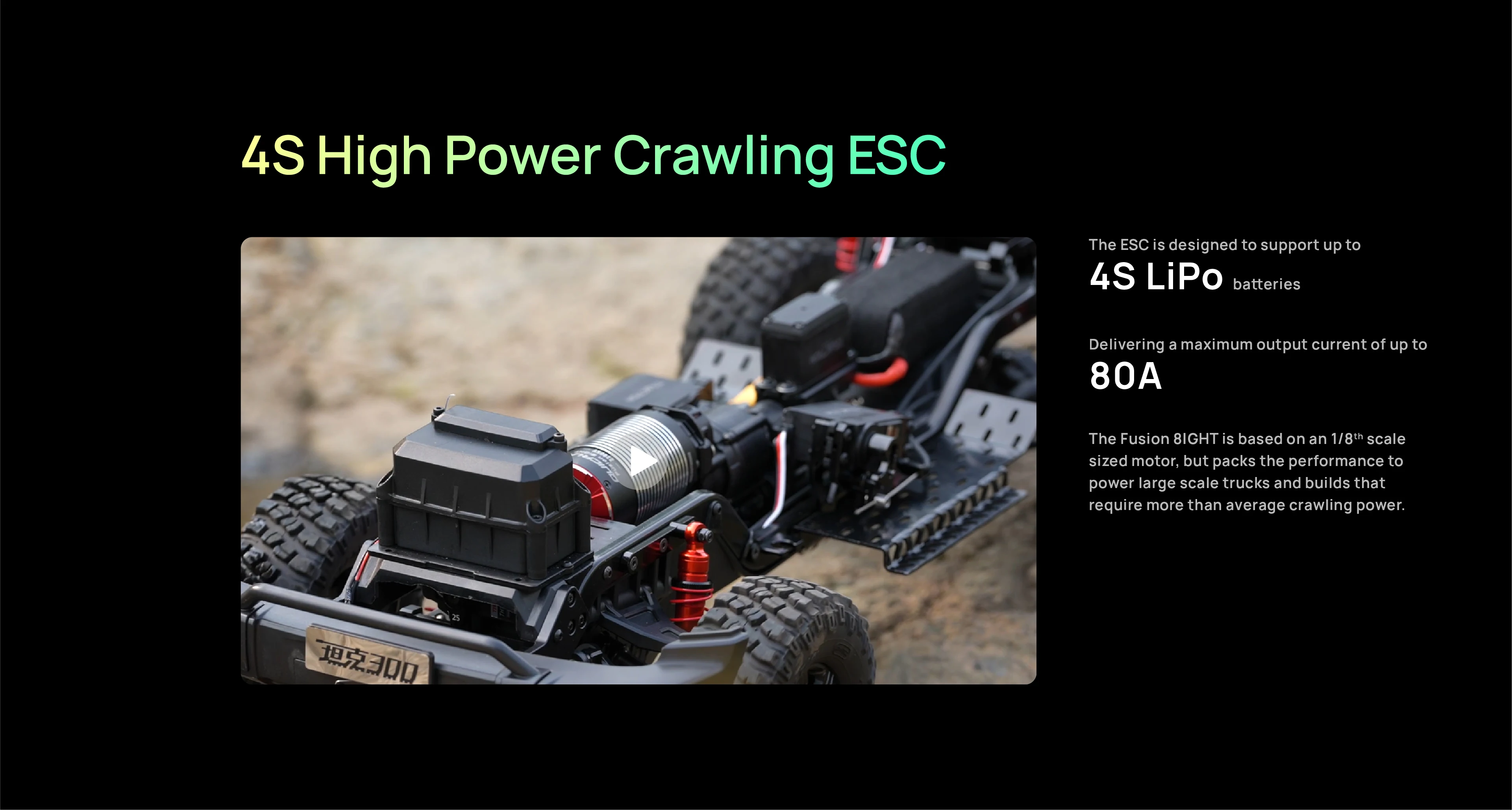

Input Voltage:2-4S LiPo,6-12 Cells NiMH
BEC BEC Output:6V/7.4V/8.4V adjustable,continuous current 6A (Switch mode)
KV:2300KV
Motor Poles:4

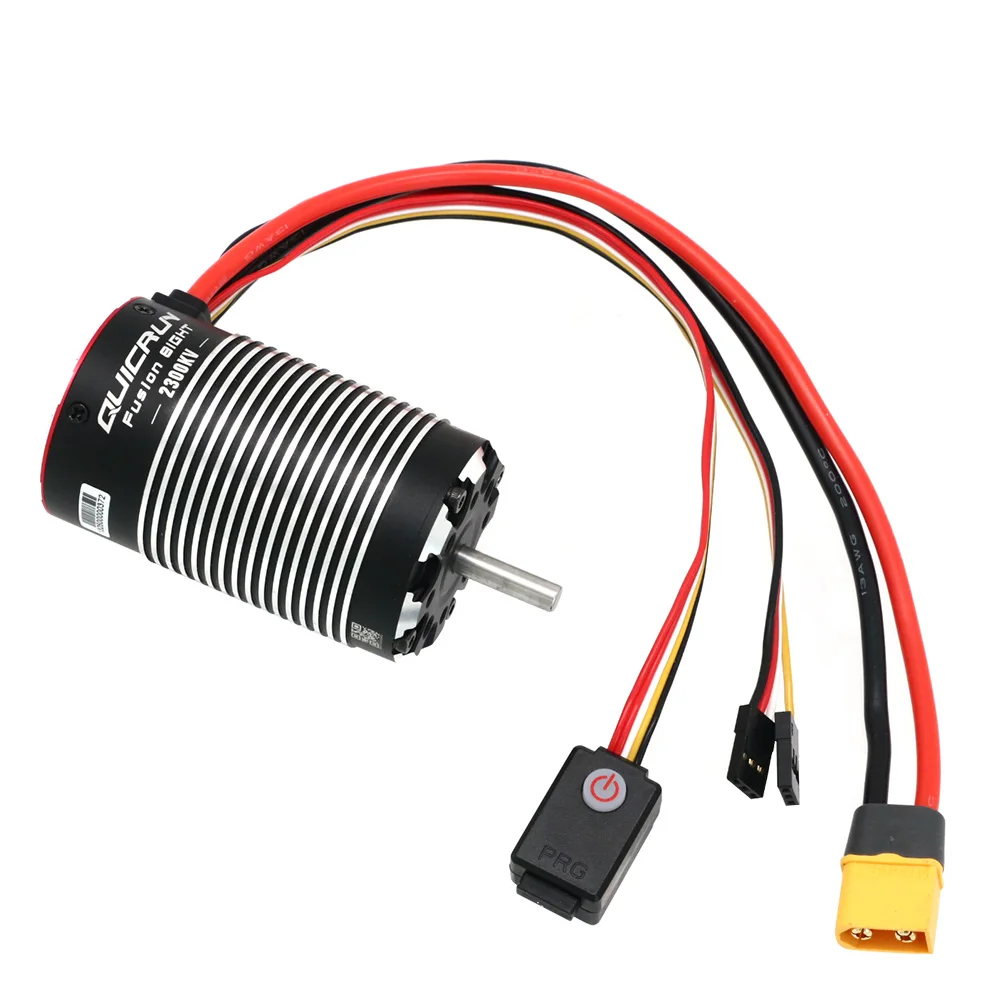

Wires & Connectors:
Input Wires : Black-13AWG-250mm*1 Red13AWG-250mm*1
Input Connectors : XT60
ESC Programing via:
SET Button on ESC : Not Supported

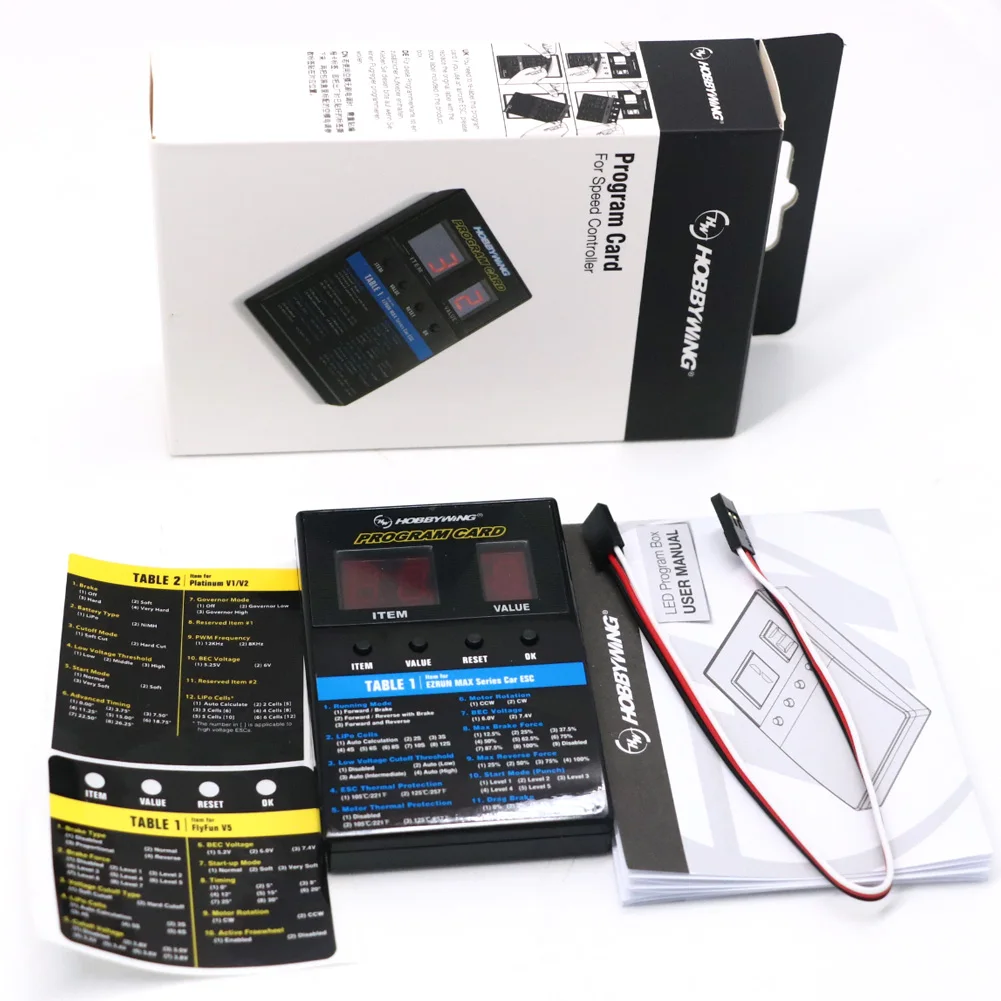

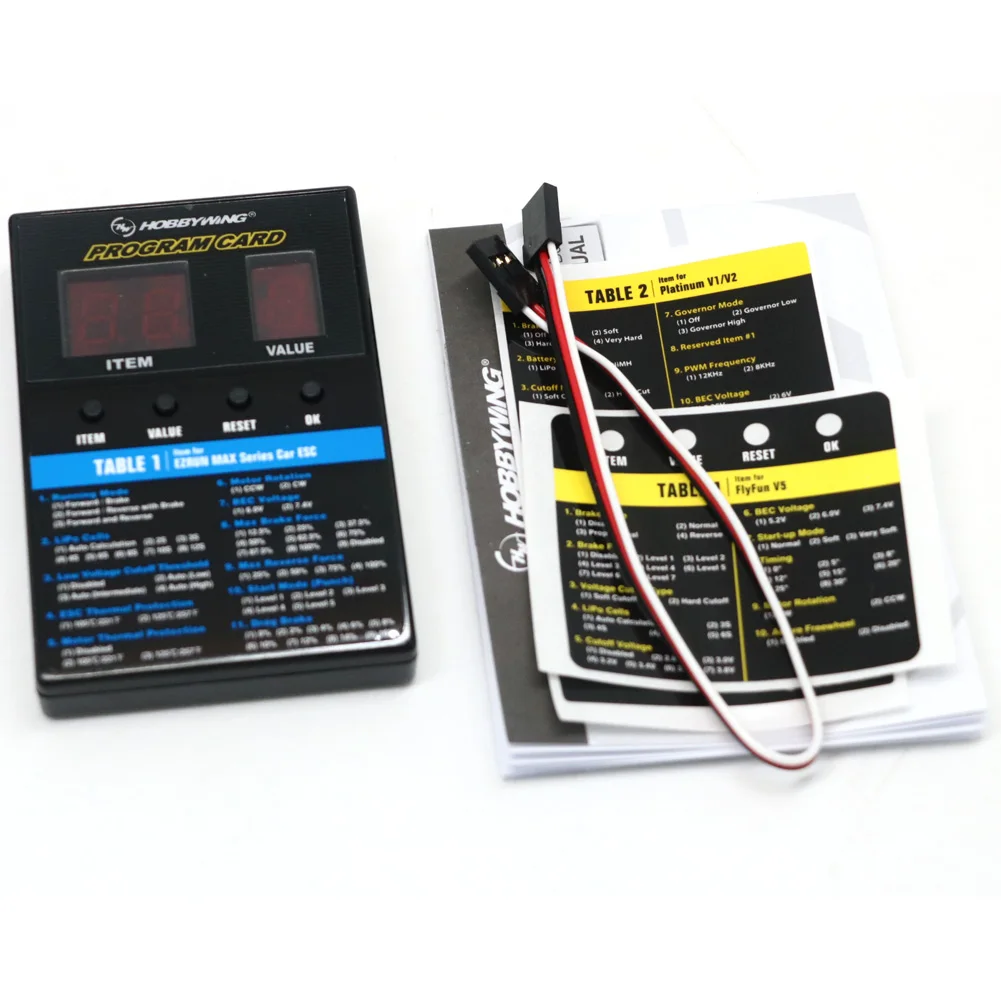

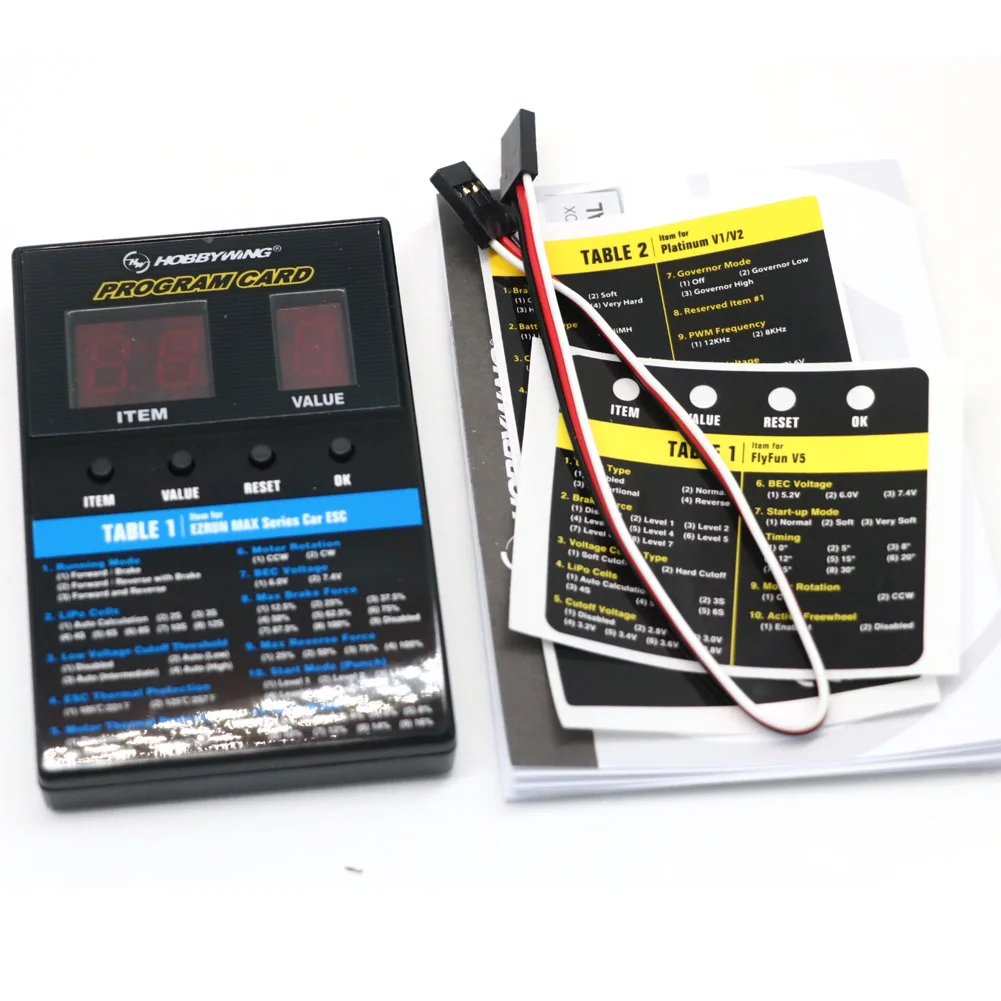

LED Program Box : Supported
LCD G2 Program Box/LCD PRO : Supported
OTA Programmer : Not Supported
Program Port : Independent programming port(switch position)
Firmware:
Firmware Upgrade : Not Supported
Size & Weight:

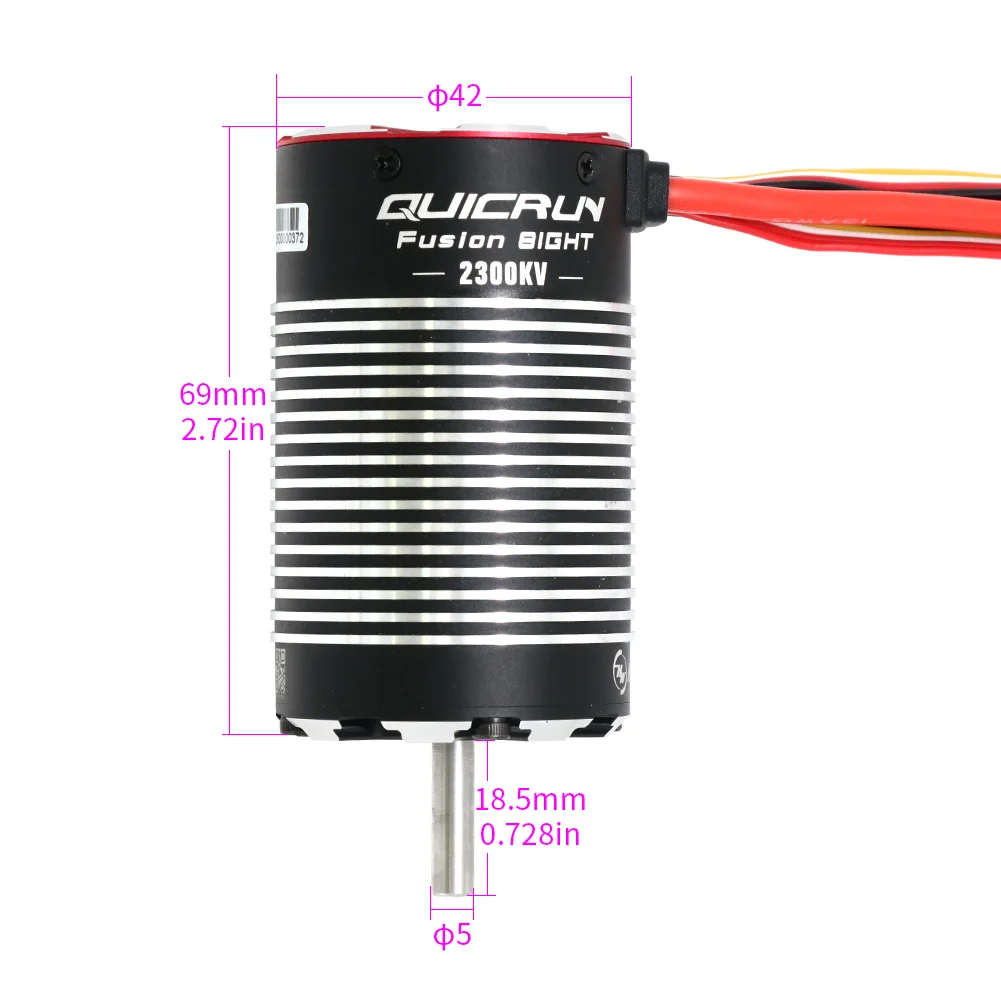

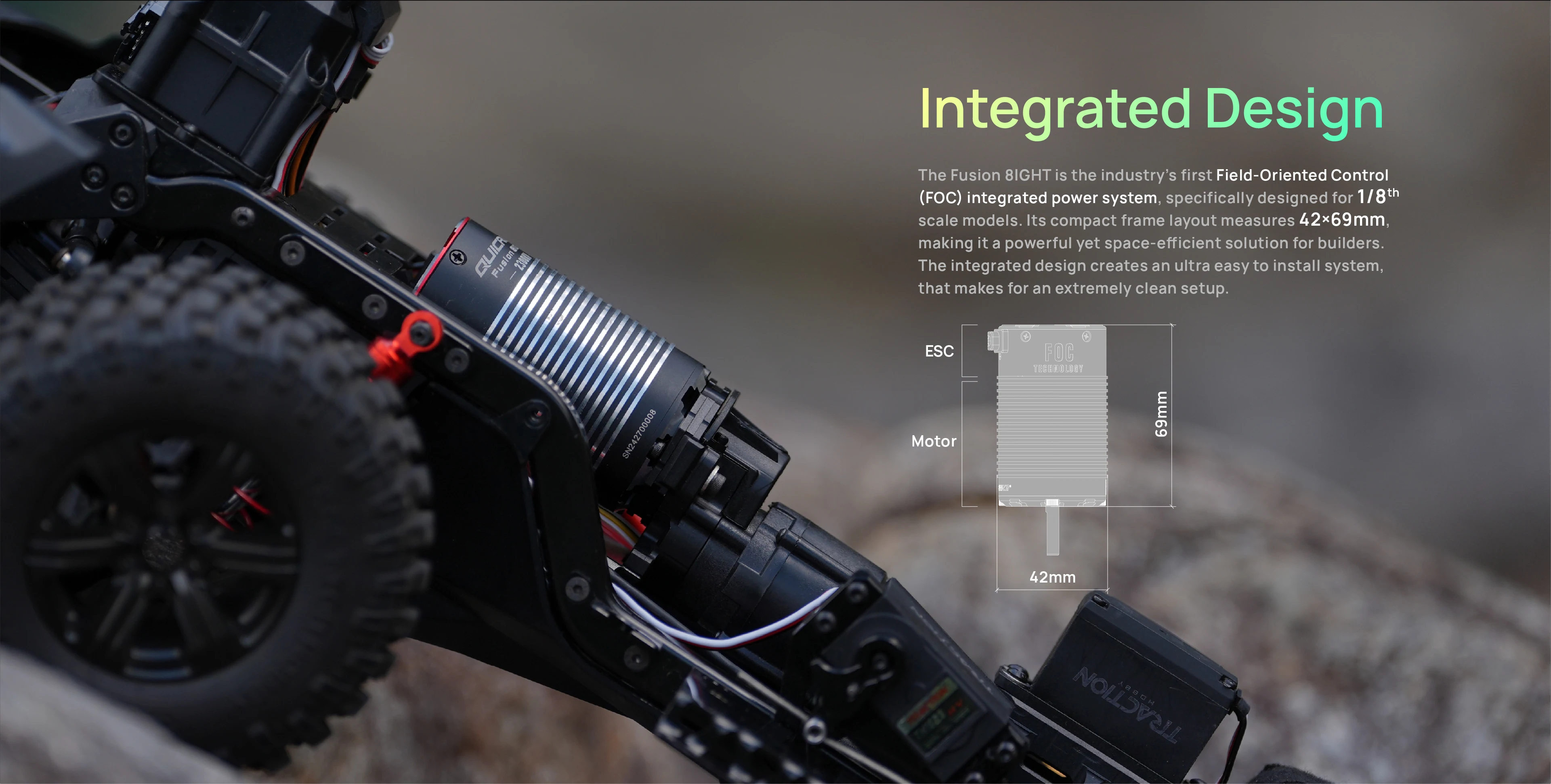

Diameter / Length of motor : 42mm/69mm
Shaft diameter / exposed shaft length : 5mm/18.5mm

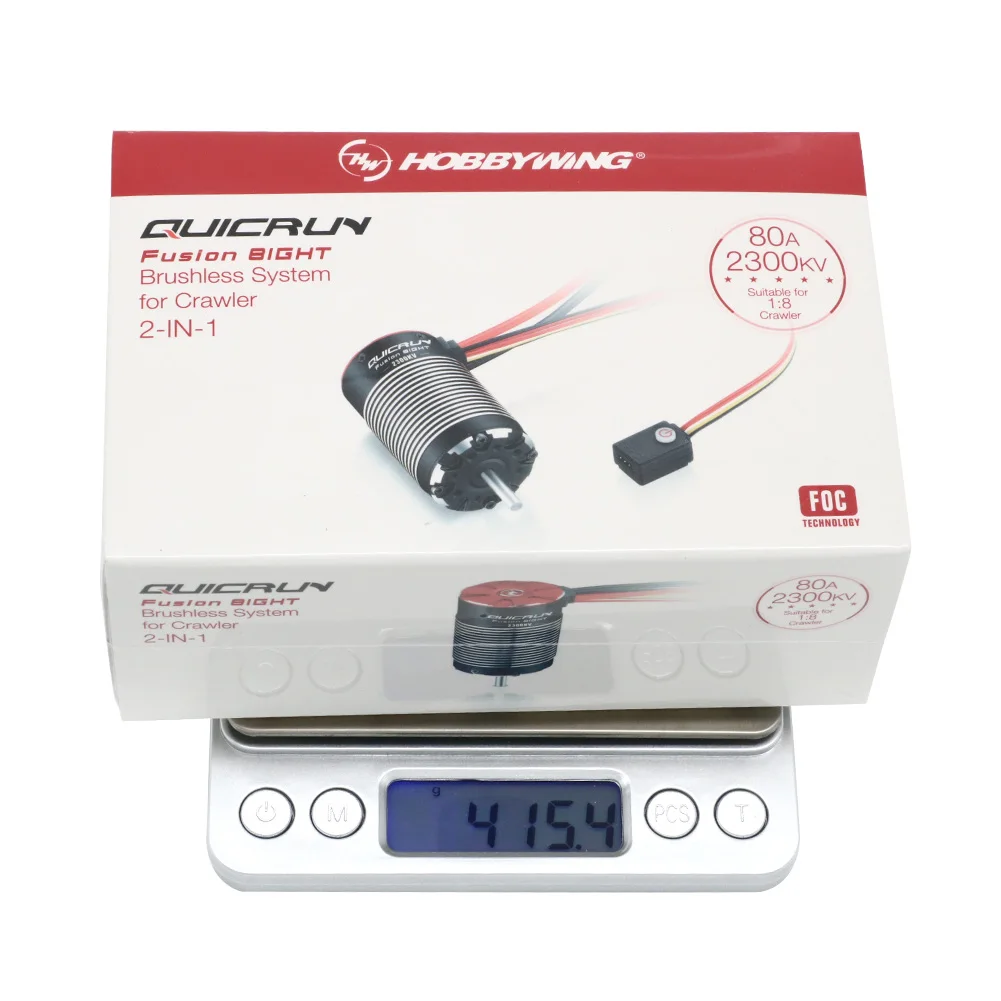

Weight : 338（including wires&connectors）

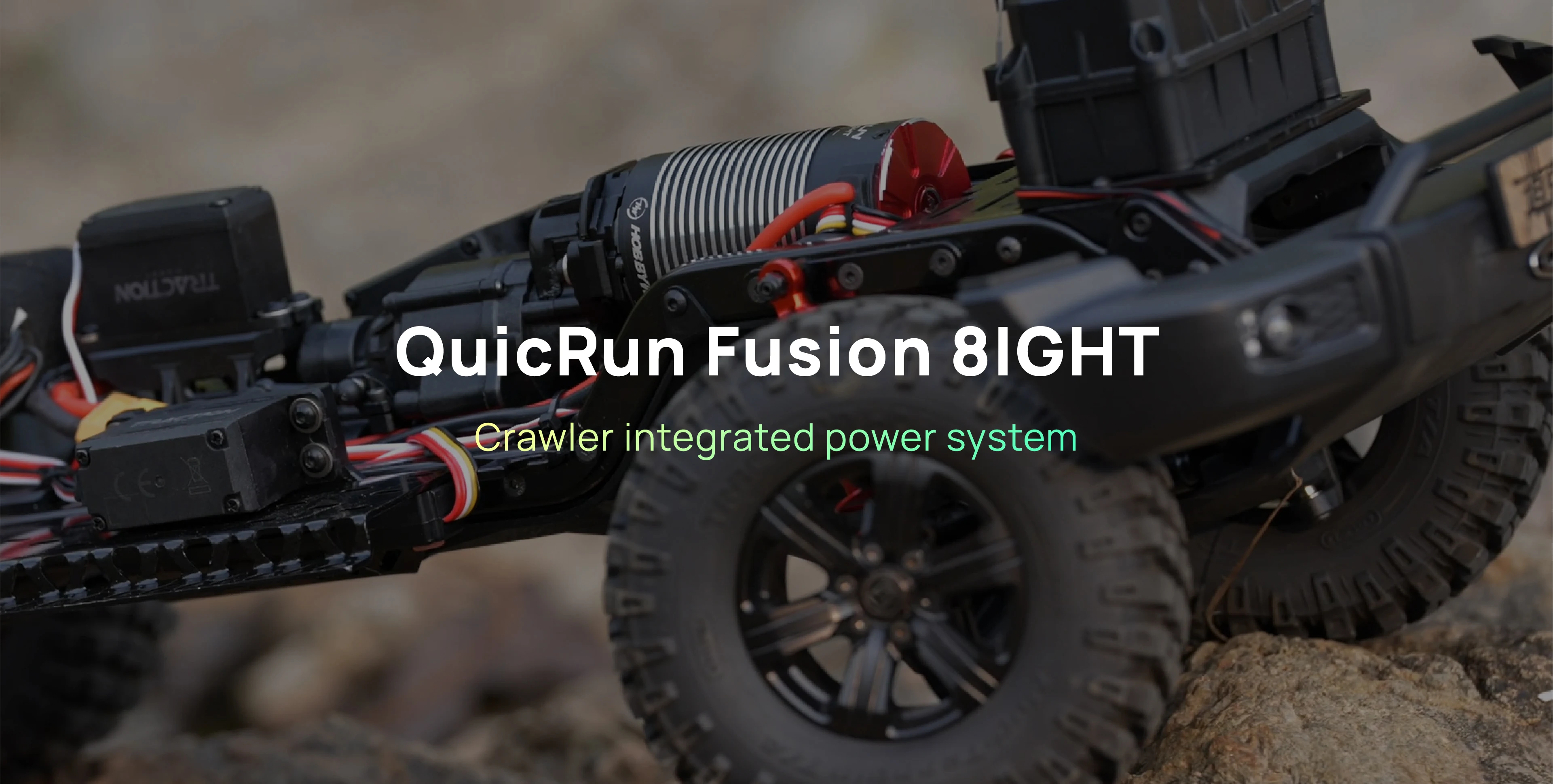

Applications : Vehicles 1/8th Rock Crawler

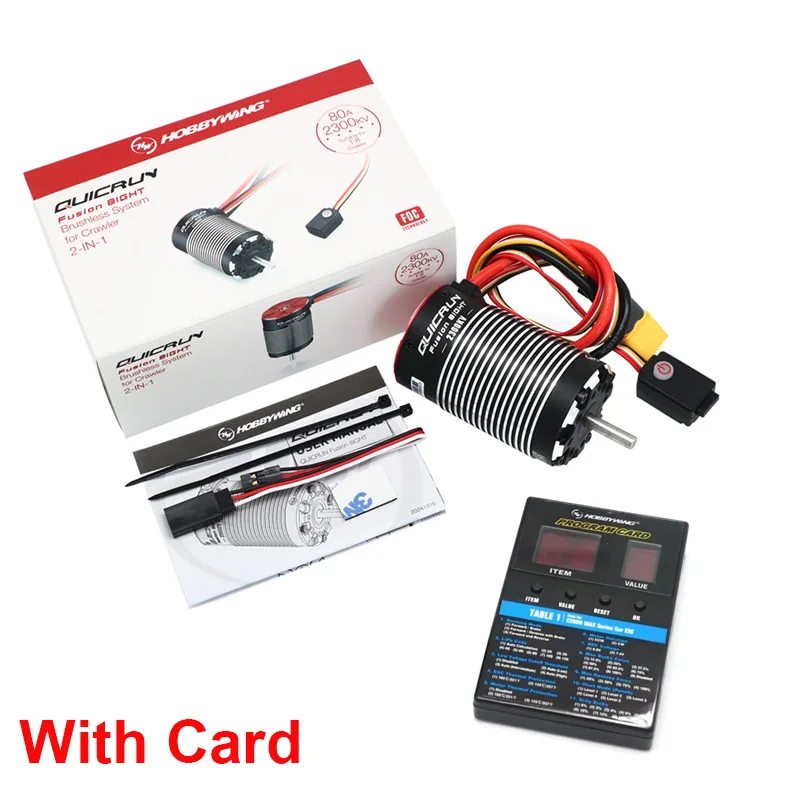

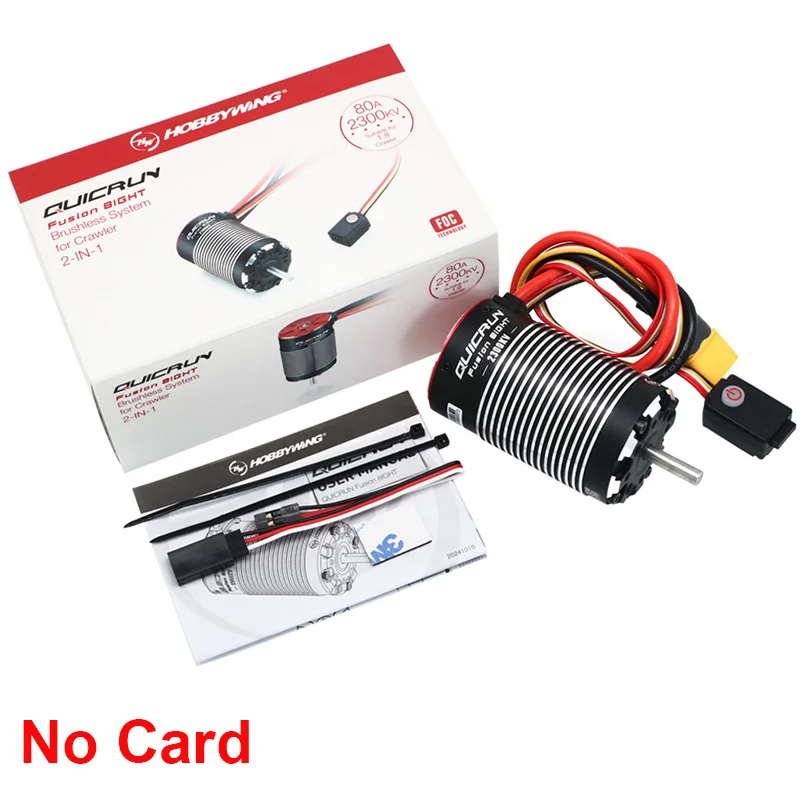

| Color | No Card, With Card |
|---|
