SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Carbon Fiber

Model Number: OEM237

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Spinners

Recommend Age: 14+y

Remote Control Peripherals/Devices: Other

Size: 250mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Other

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

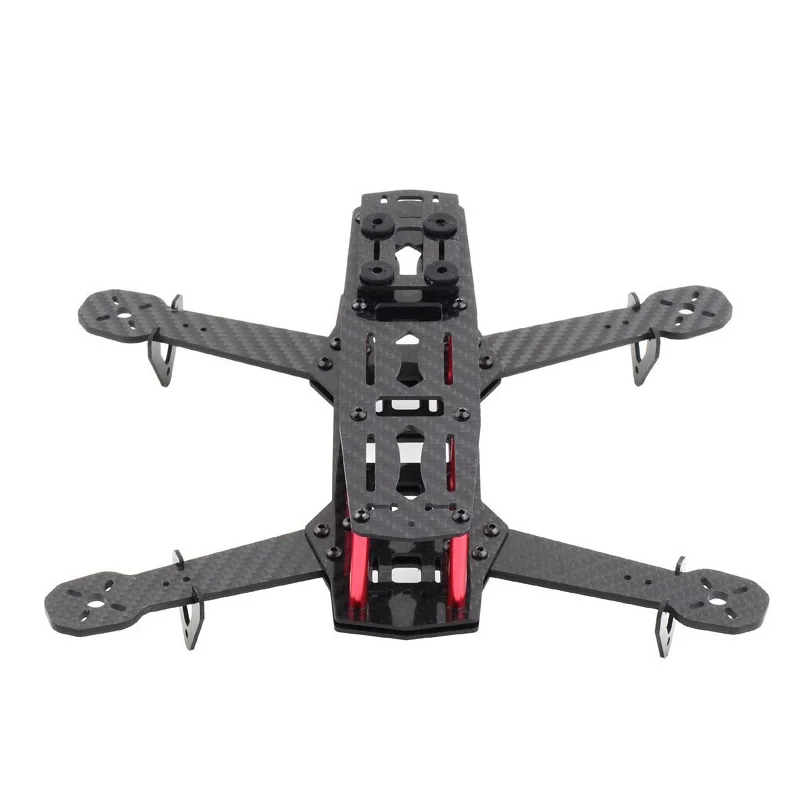

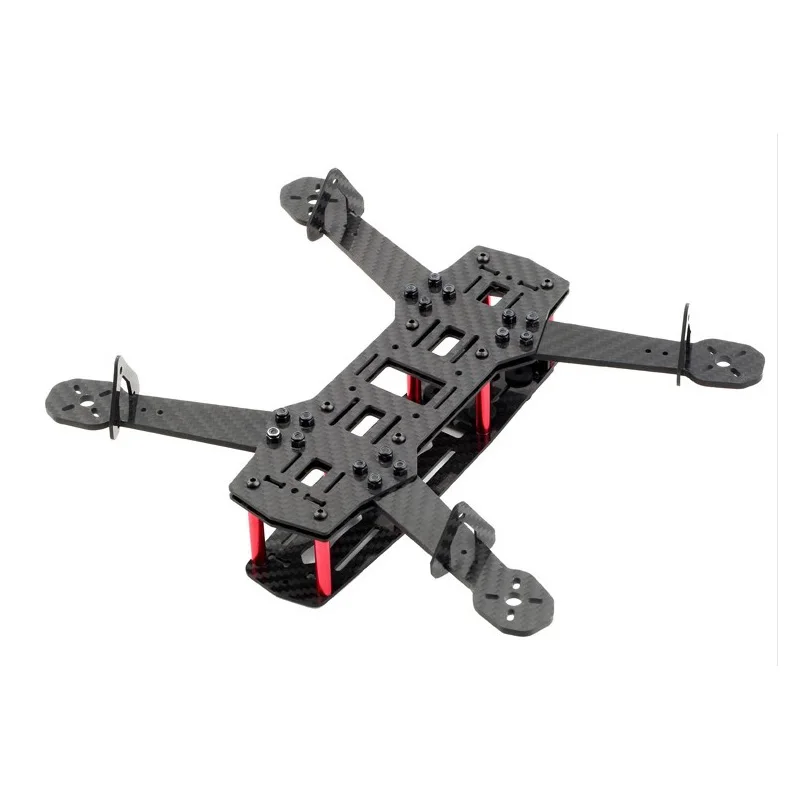

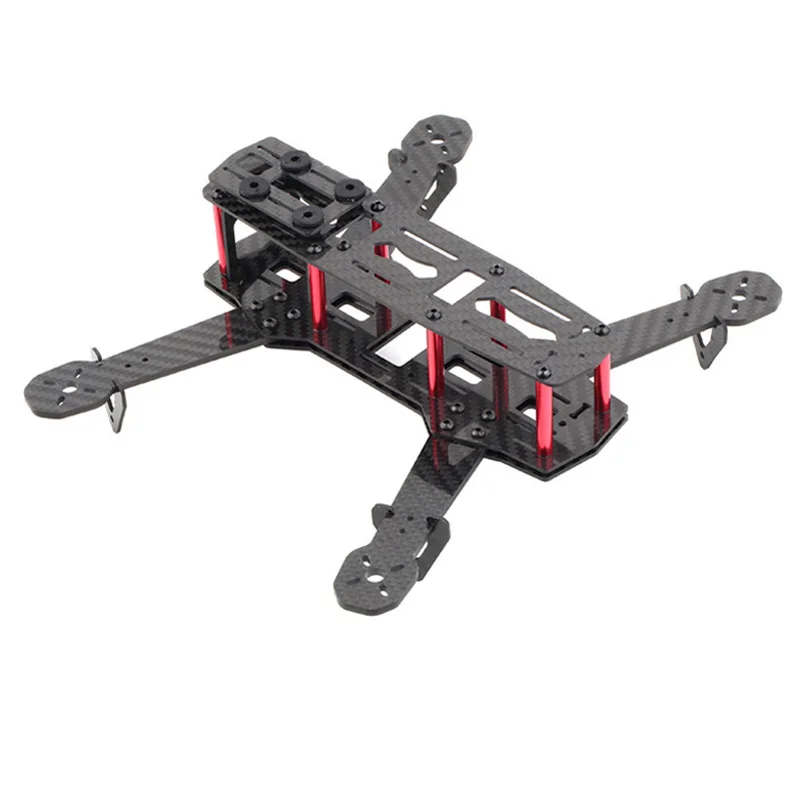

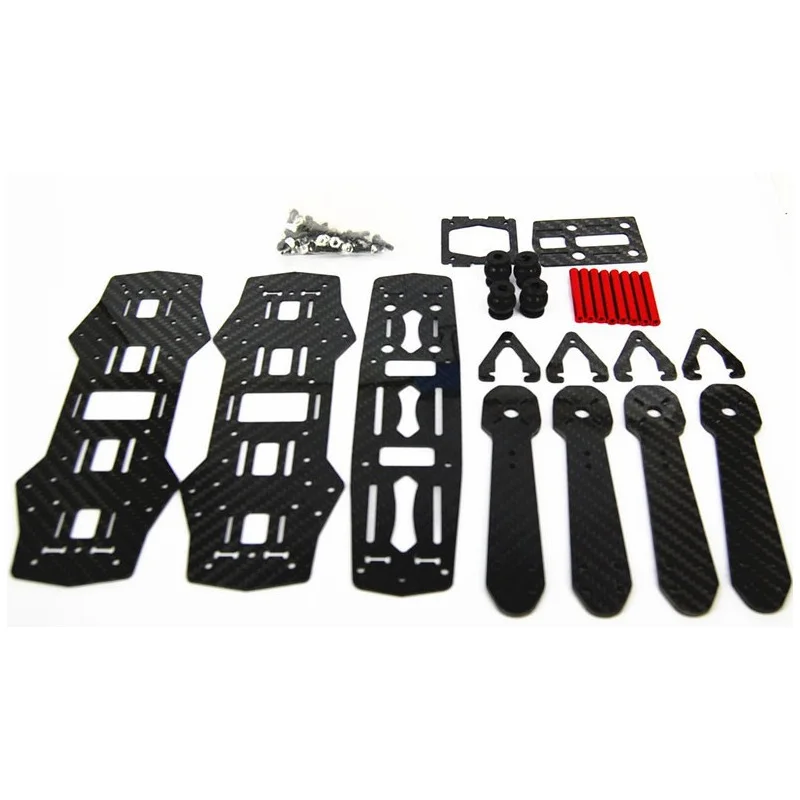

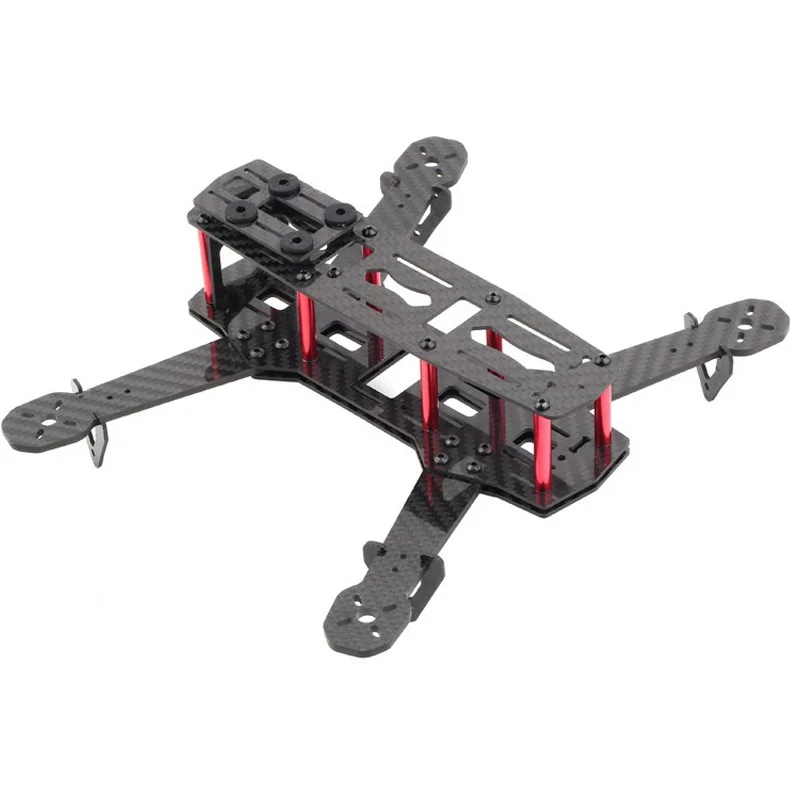

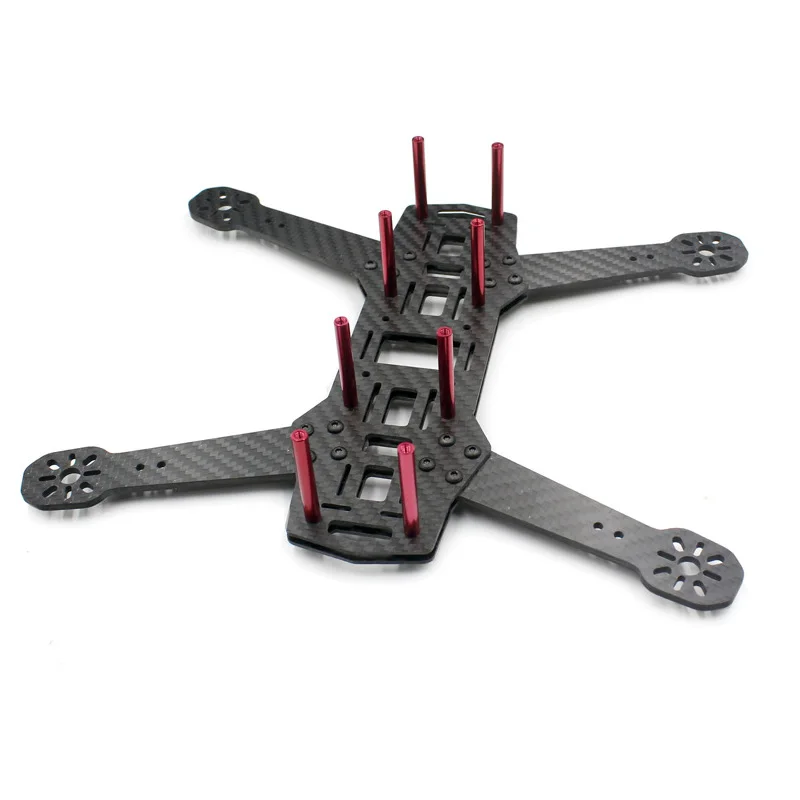

The Mini Quad is a low weight Mini Sport FPV Quadcopter frame.

It was designed to make use of standard sized electronic equipment commonly used in RC.

This allows the quadcopter to compete with larger quadcopters, while being smaller and agile !

Working on Mini Quadcopters requires a lot of soldering, wire shortening and creation of power distribution systems.

This product requires a good knowledge of RC systems and is not recommended for beginners.



Specifications

Materials: 3k Weave Carbon Fiber

Fasteners: Stainless Steel & Red Metal 8/8

Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter

Maximum Propeller: 5"

Motor Mount: M2 12mm – 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)

Flight Controller Mount: 30.5mm x 30.5mm

Board Camera Mount: 32mm x 32mm

Suggested Components

Motors: 1806 "Blackout 3S" 2300kv Motor

Propeller: 5×3

ESC: 12amp SimonK ESC

Battery: 3S 1300mah

Flight Controller: MW,KK, Naze32, Flip Pro
