SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: M100 GPS Module

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: GPS Module

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Gyros

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 21x21x8.02mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: HGLRC M100 PRO GPS

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Features:
Adopting the new 10th generation chip, the number of satellite searches is 50+
QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.

Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200  Protocol: UBX
Antenna: ceramic antenna  Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g  Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃

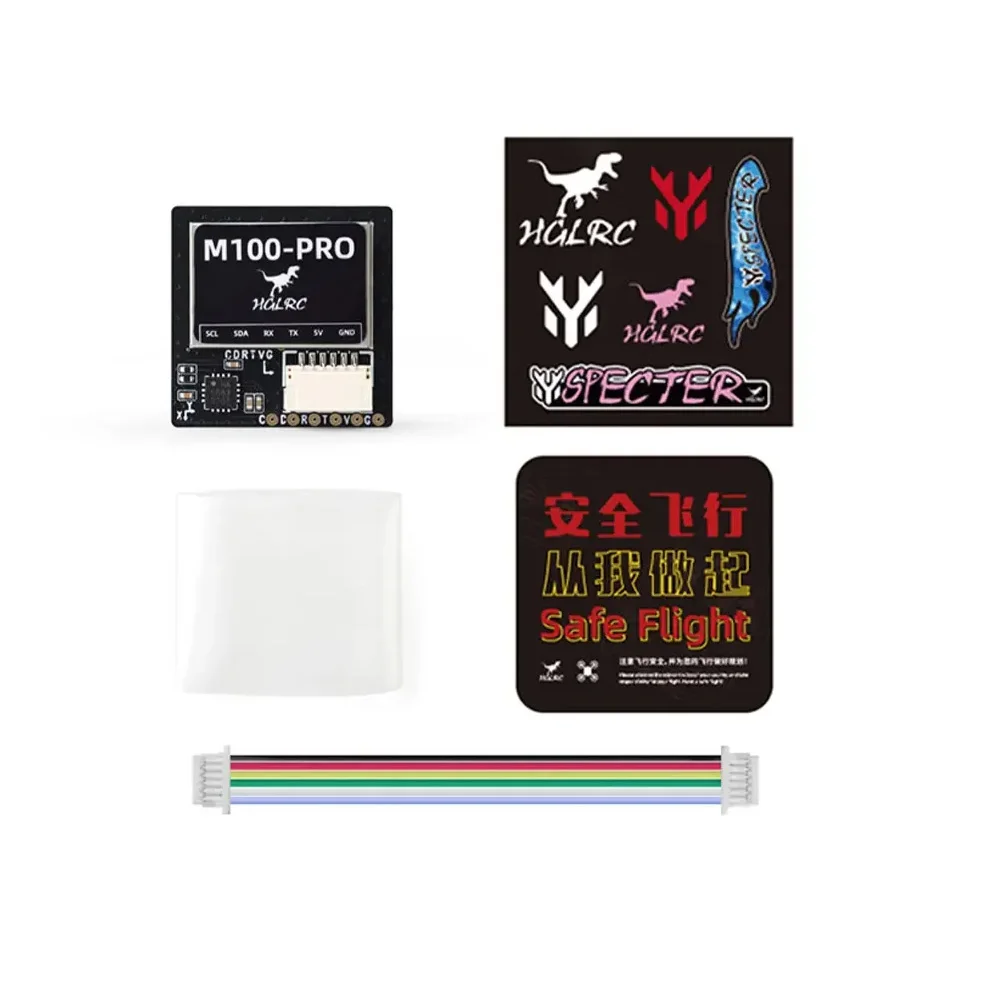

Product List
HGLRC M100 PRO GPS x 1
Heat shrink tube (φ18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1
