HappyModel ES900 DUAL RX ELRS Diversity Receiver 915MHz / 868MHz Built-in TCXO for RC Airplane FPV Long Range Drones DIY Parts
Price range: $130.06 through $133.46
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: ES900 DUAL Receiver
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: Receiver 915MHz
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: Other
Size: 21.5mm x 16mm
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: HappyModel ES900 DUAL Receiver
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Type: 915MHz/868MHz true diversity receiver

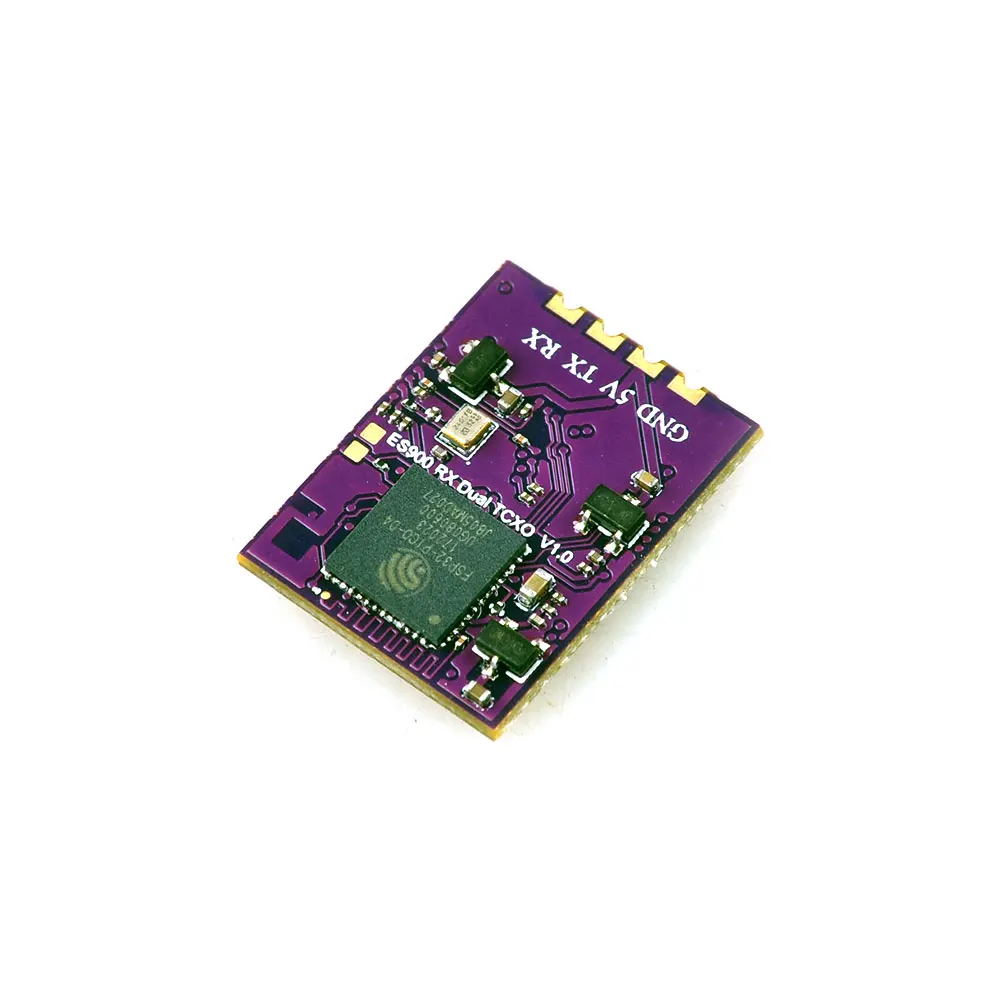

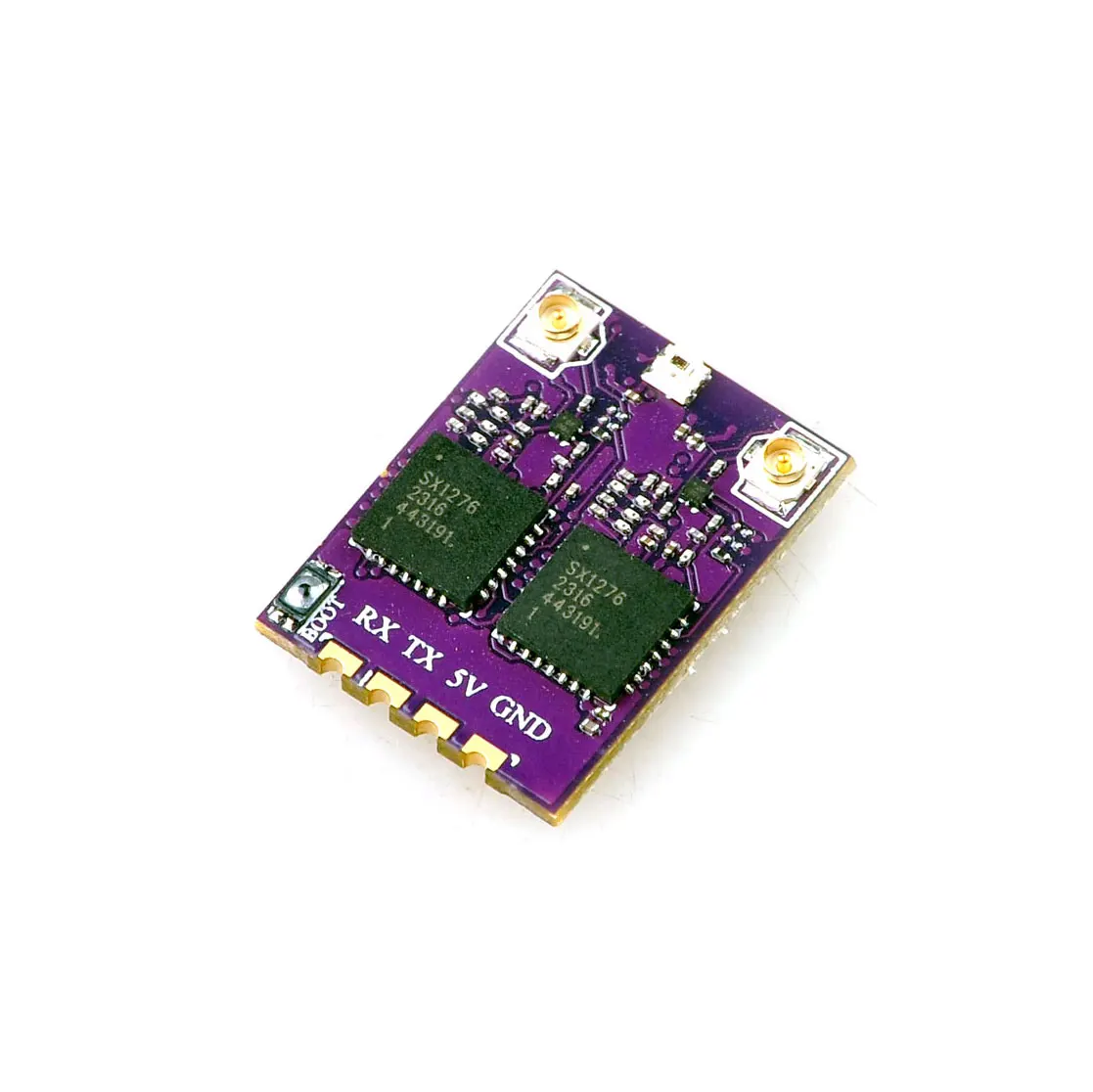

ESP32 PICO D4, dual SX1276
Antenna connector: IPEX MHF 1/U.FL
RF Frequency: 915MHz or 868MHz
Telemetry power: 17dbm
Receiver protocol: CRSF
Input voltage: +5V DC @ “5v” pad
PCB size: 21.5mm x 16mm

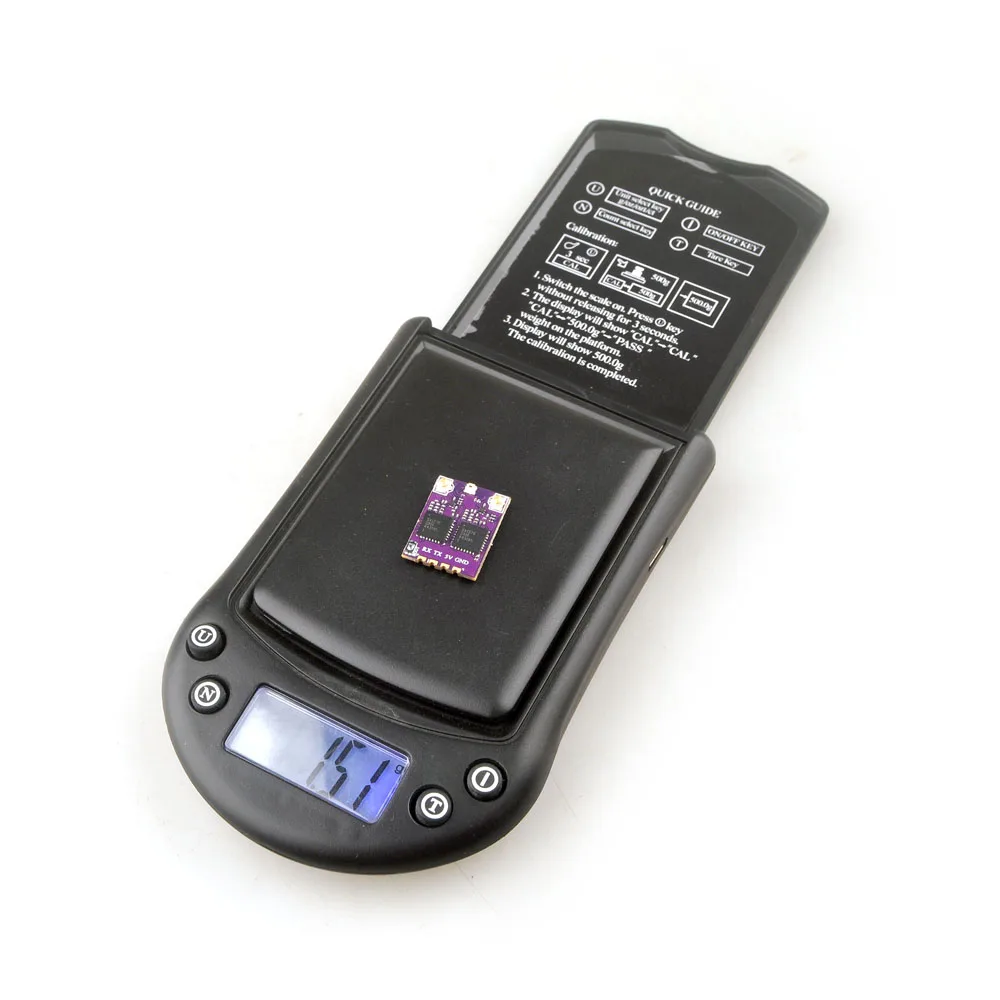

Weight: 1.5gram exclude antenna
Built-in a TCXO (temperature compensated crystal oscillator)
Firmware target: HappyModel ES900 Dual RX (Would be available on the latest version soon)
| Color | 868MHZ, 915MHz |
|---|
