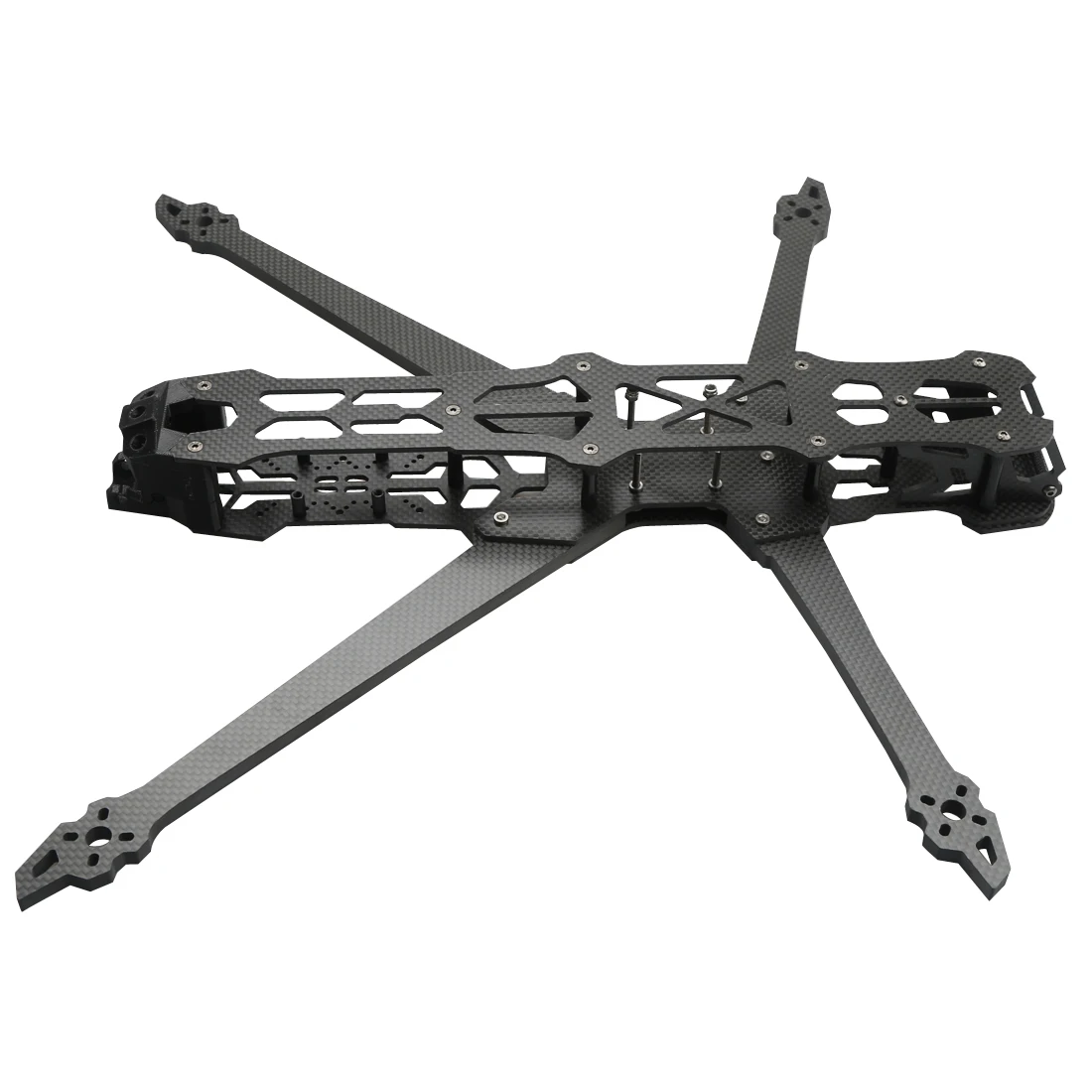

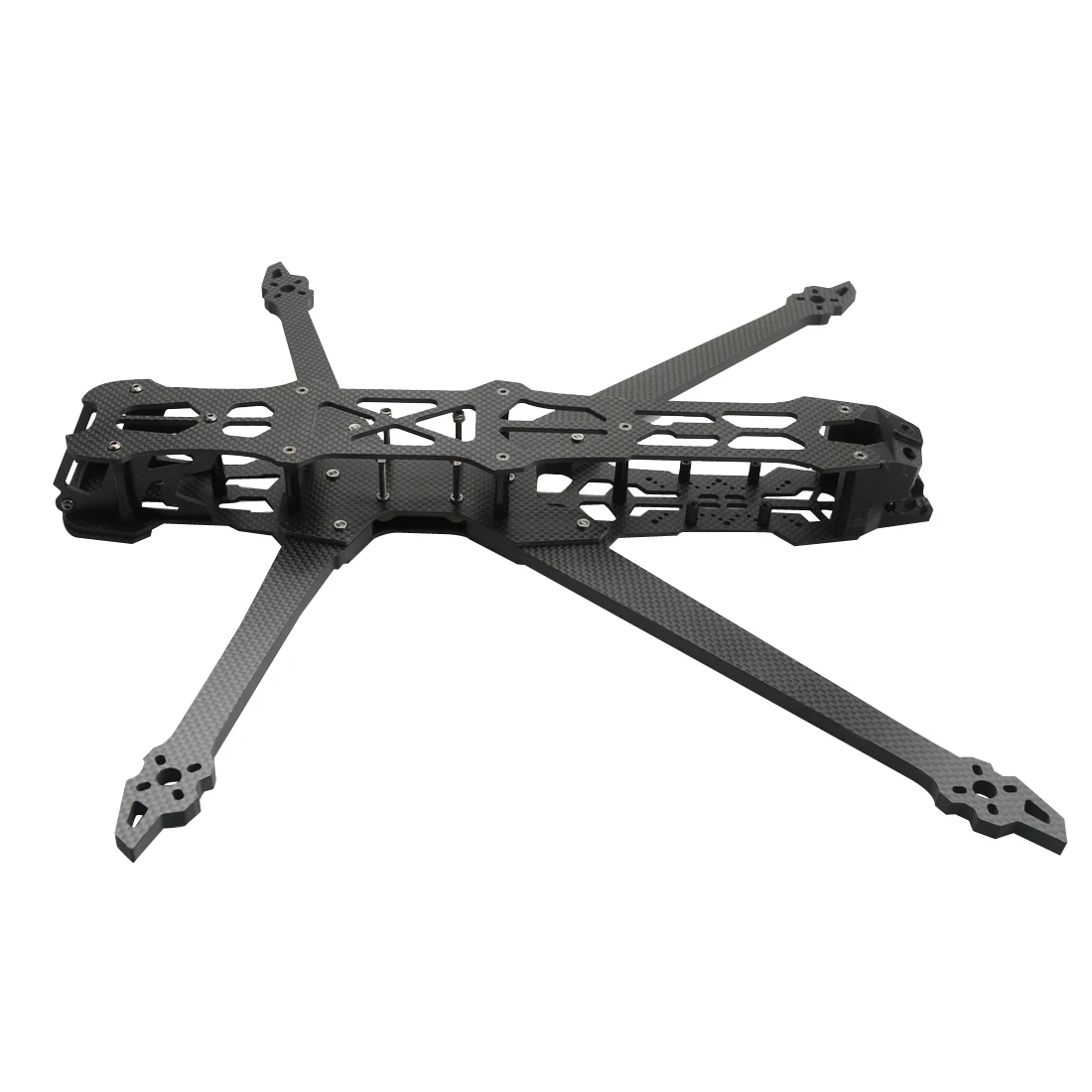

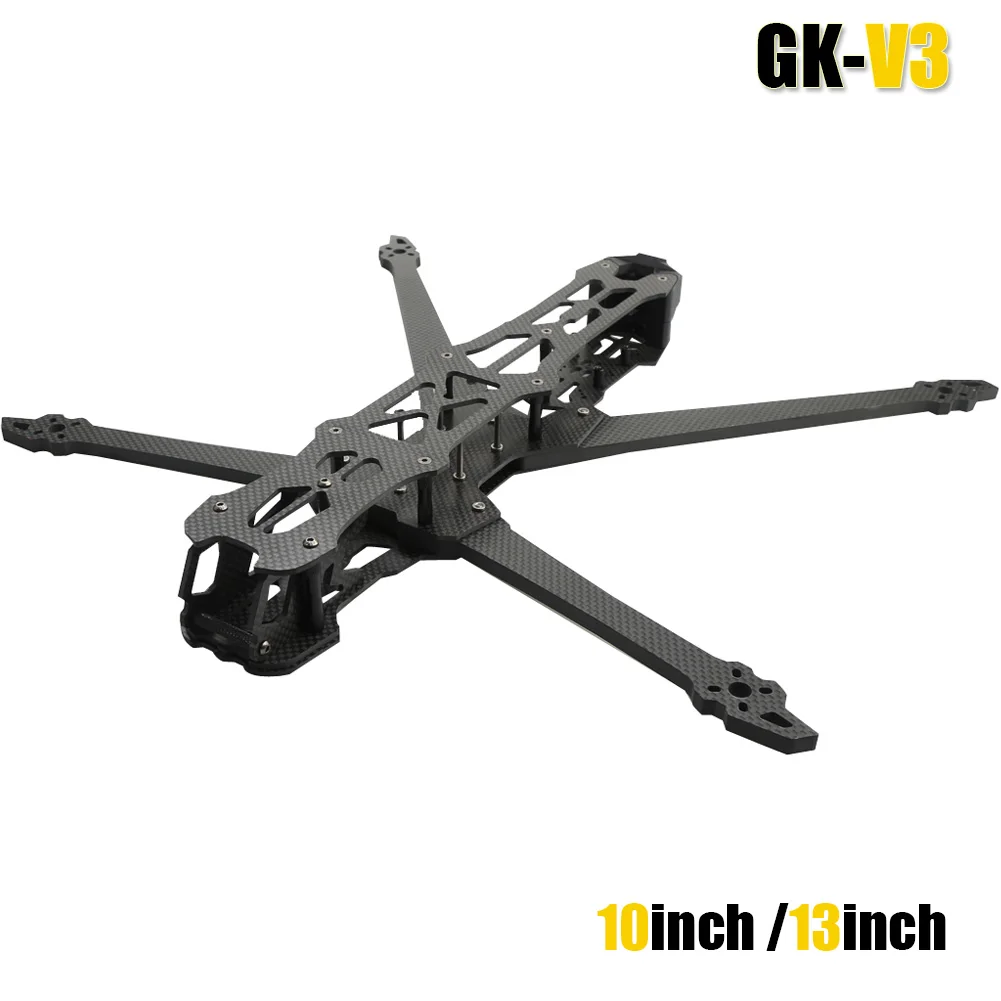

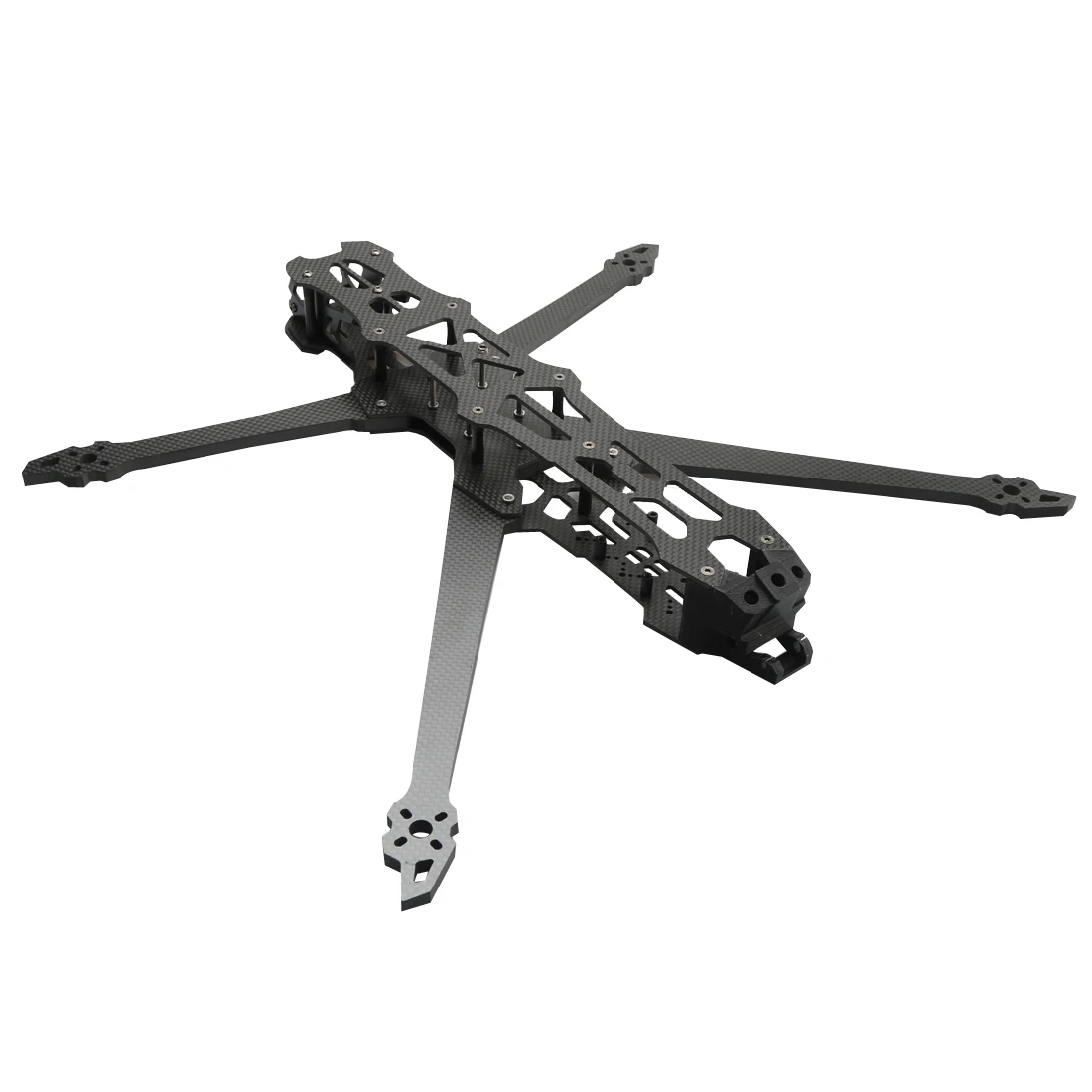

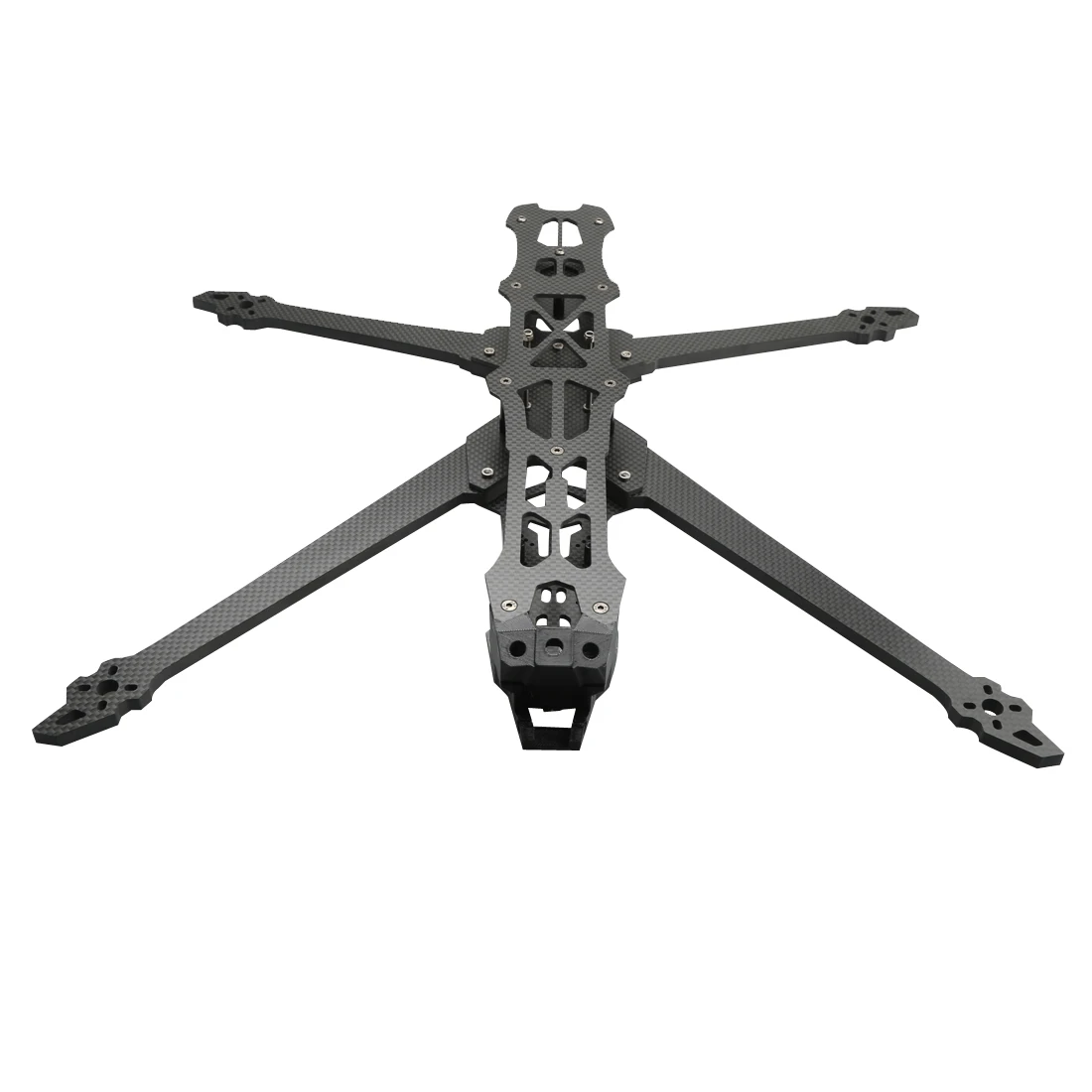

GK-V3 10 inch / 13 inch FPV Drone Frame KIT 435mm/550mm Carbon Fiber For RC FPV Freestyle Long Range Racing Drone Quadcopter
Price range: $279.16 through $329.67
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: 7 inch fpv frame
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Carbon Fiber
Model Number: KSX6033
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Principal Axis
Recommend Age: 14+y
Remote Control Peripherals/Devices: Airframe
Size: MARK4 V2 8inch Frame
Technical parameters: value 2
Tool Supplies: 10 inch fpv frame
Upgrade Parts/Accessories: 13 inch fpv frame
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Attention: This model has been upgraded to the latest thickened model for greater durability and stability.
The 10-inch and 13-inch models have been upgraded to 7MM arms
Advantages: high-quality pure carbon fiber material, strong stability and durability, long top and bottom plate design, can carry a larger capacity battery and load weight

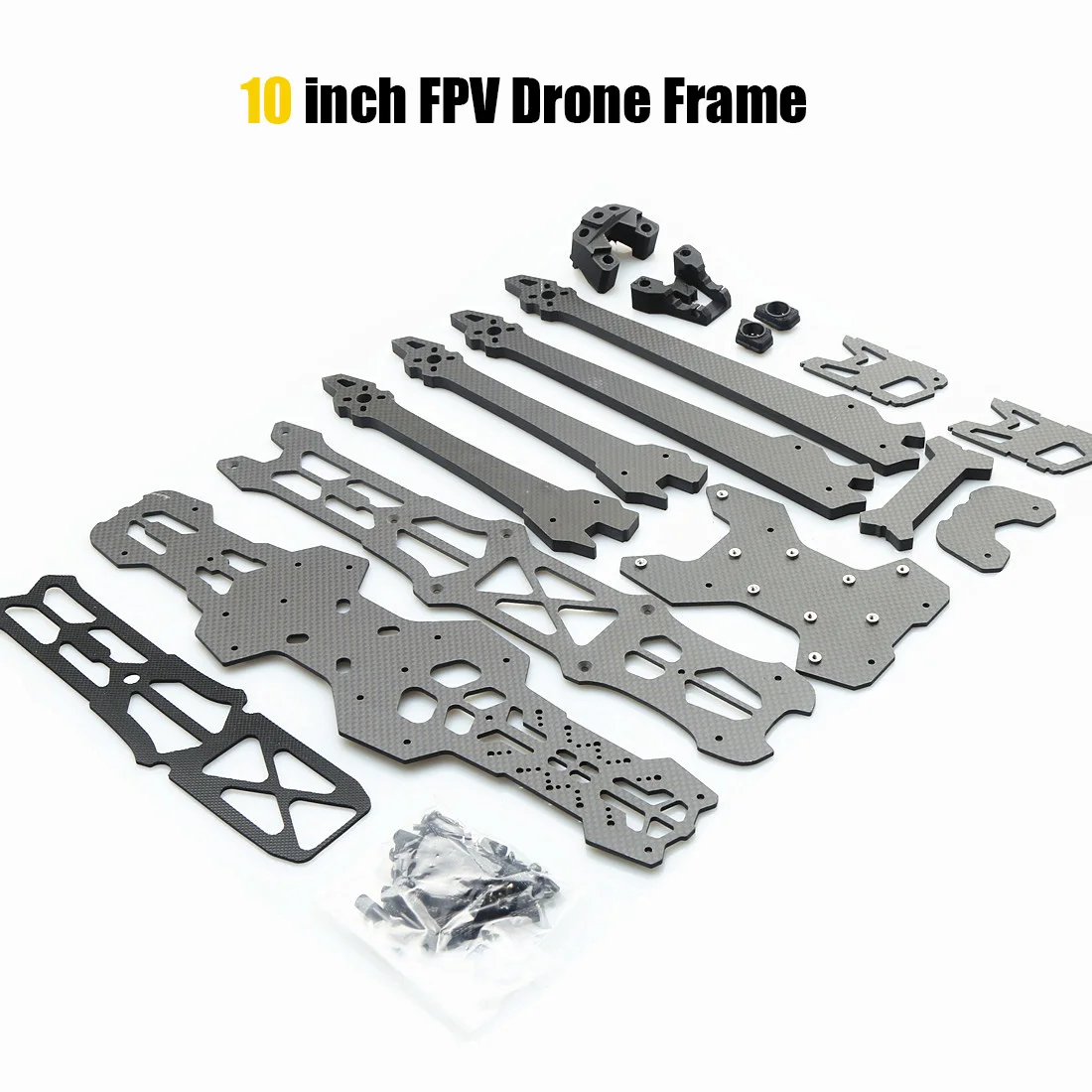

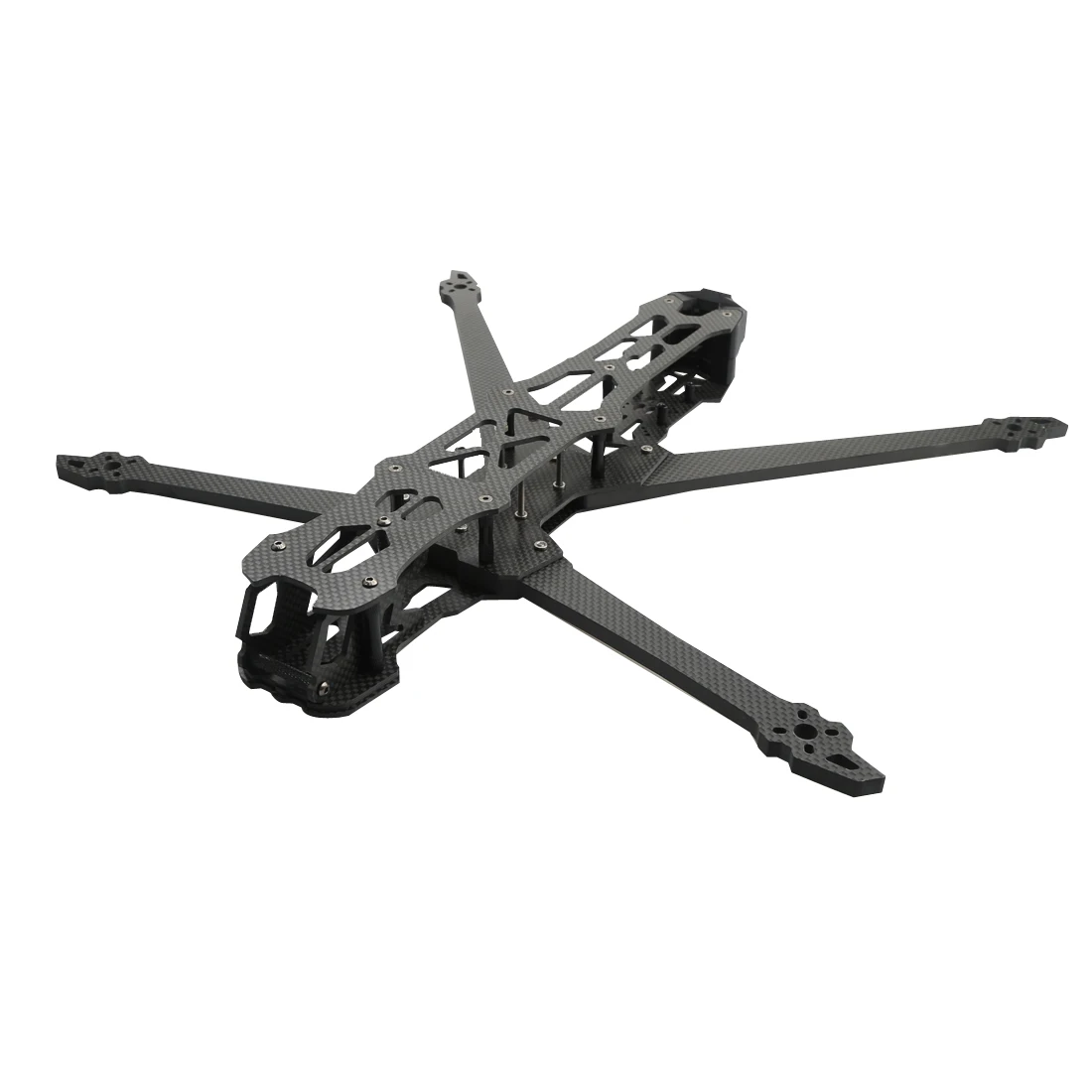

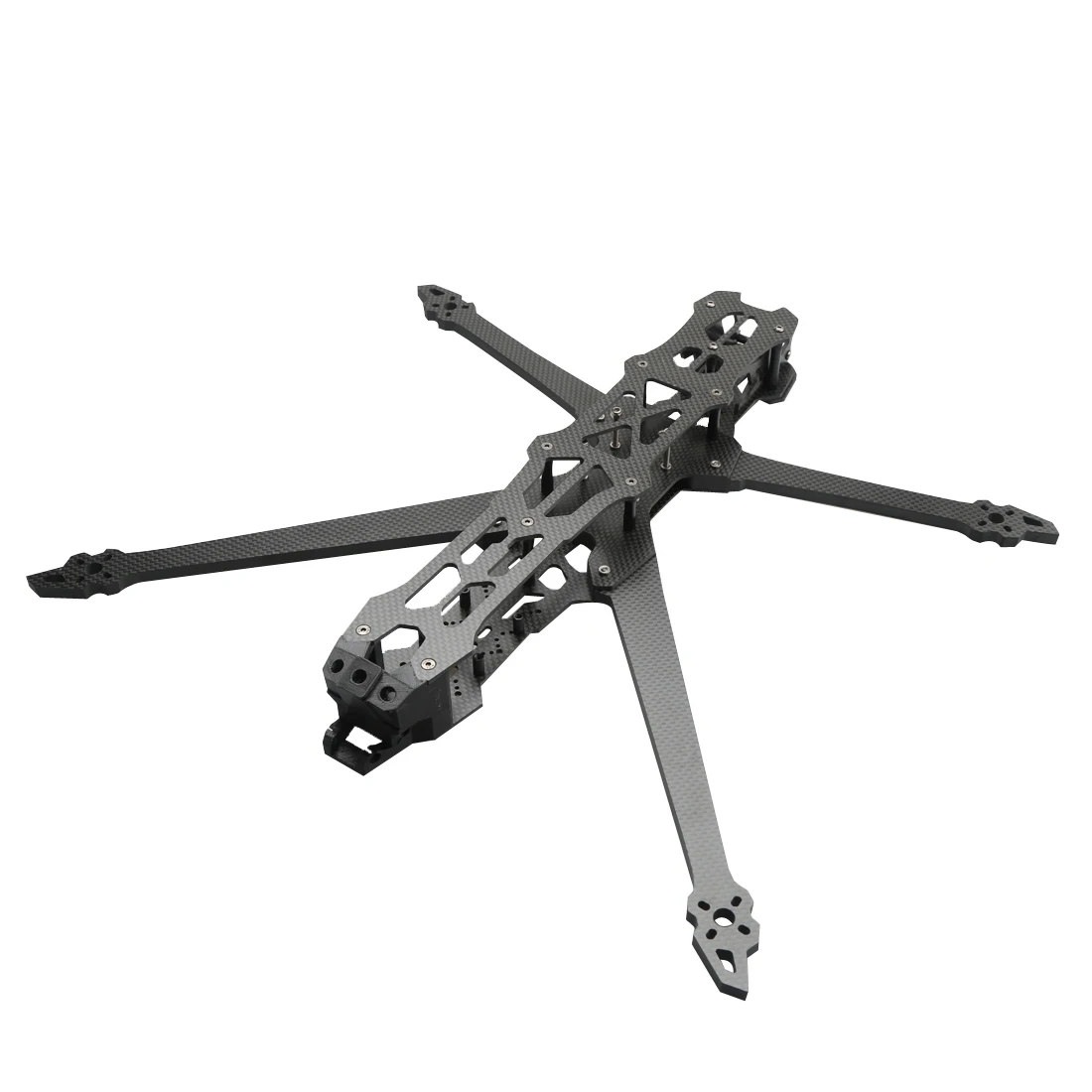

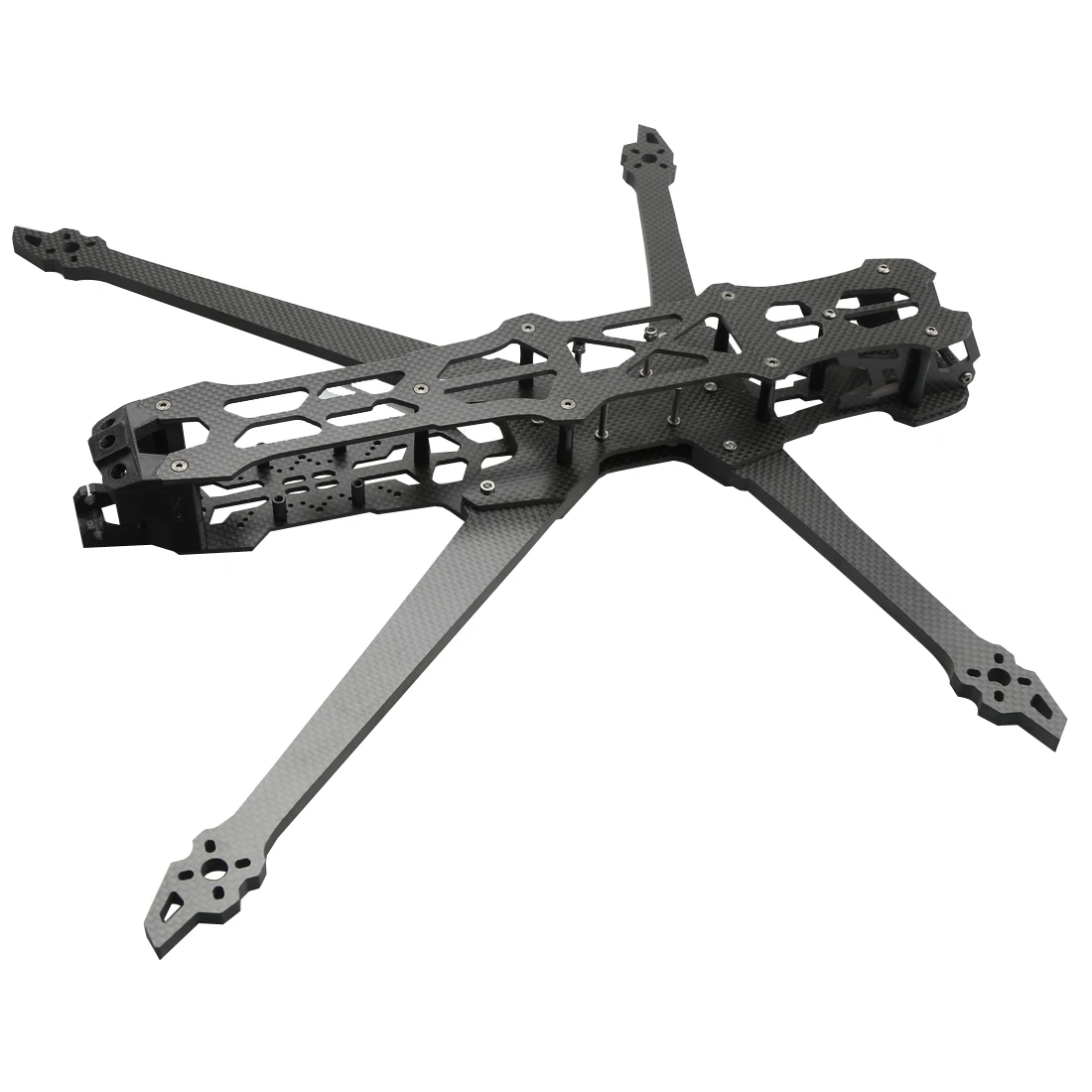

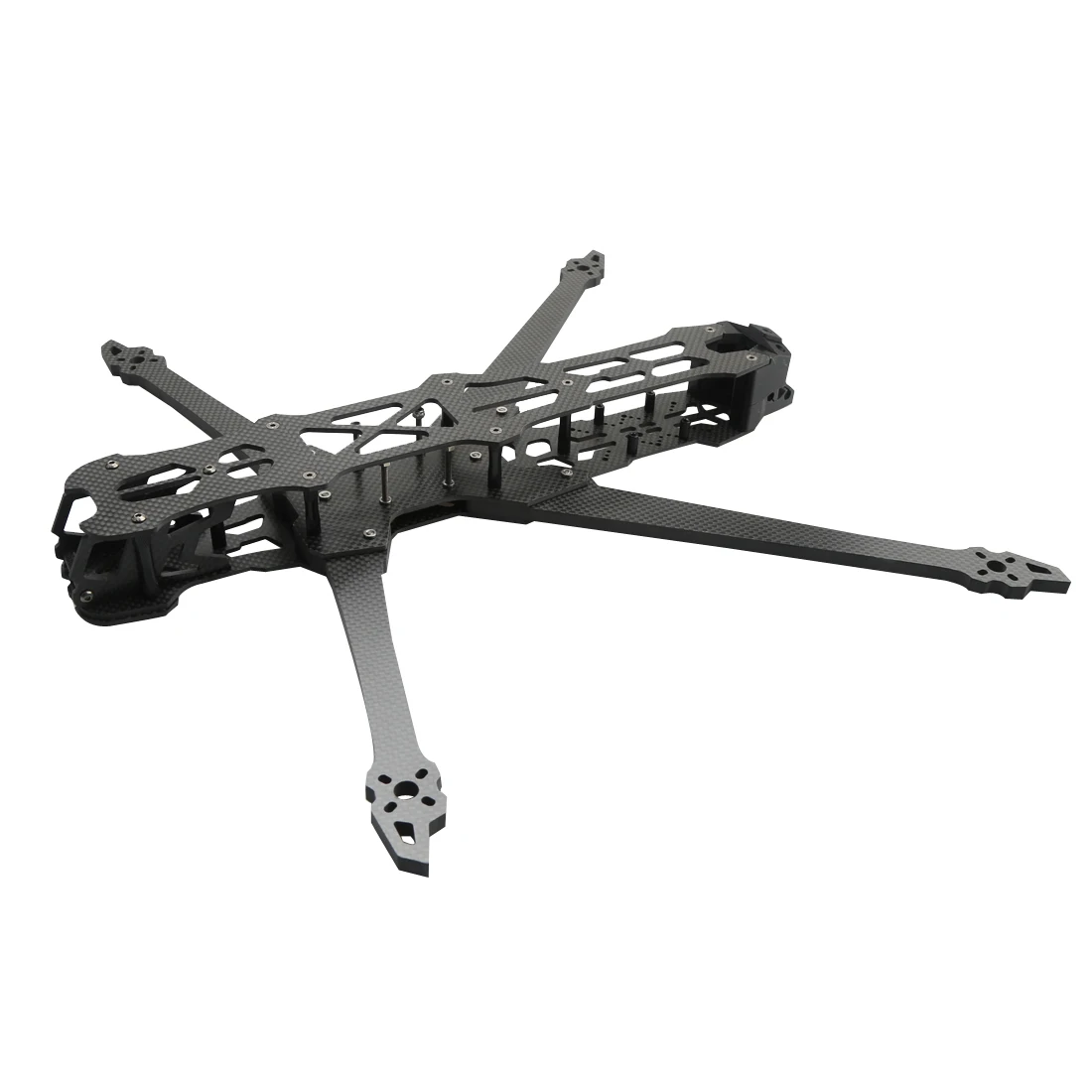

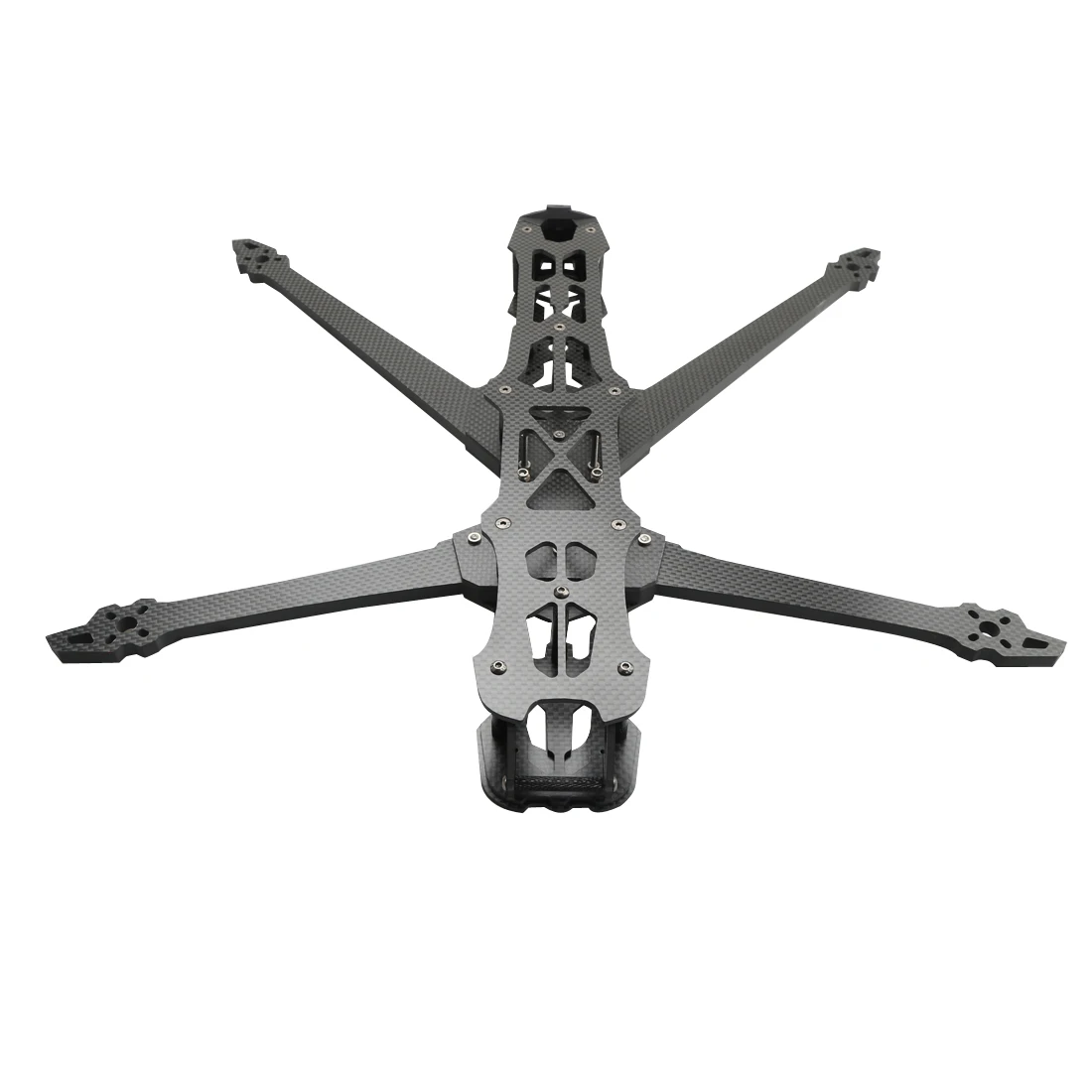

GK-V3 10inch FPV Drone Frame KIT Carbon Fiber
Model: GK-10inch-V3 Carbon Fiber
wheelbase：435mm
size：490*490*42mm
weight：457g
top thickness:2.5mm
Base plate thickness: 2.5 mm
arm thickness: 7 mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

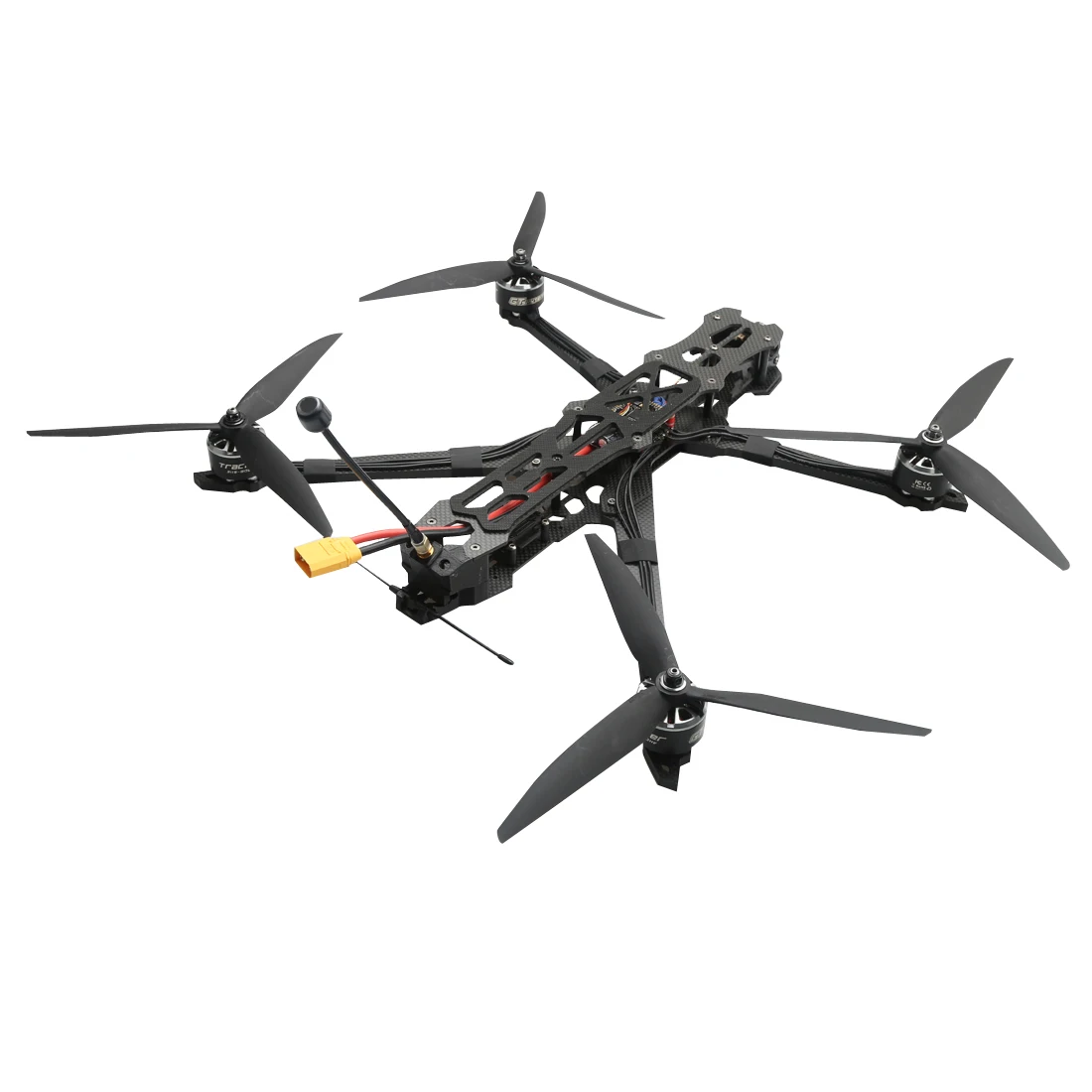

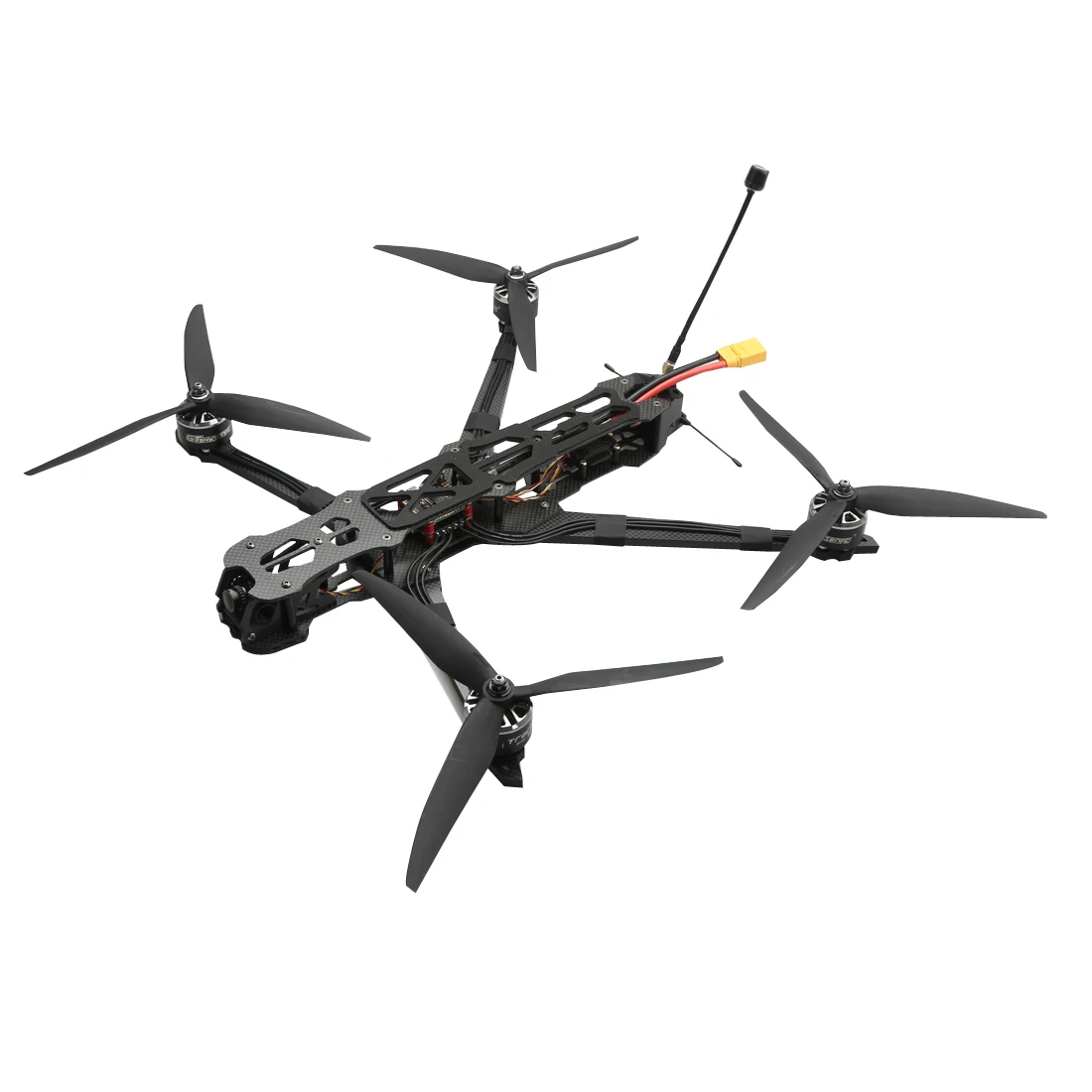

Recommended Configuration: (not included)
motor: 3115/3210/3214
ESC: 70A-80A 6s
propeller: 10 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6S-8000MAH-12000MAH
GK-V3 13inch FPV Drone Frame KIT Carbon Fiber
Model：GK-13inch-V3 Carbon Fiber
wheelbase：550mm
size：630*630*42mm
weight：594g
top thickness:2.5mm
Base plate thickness:2.5mm
arm thickness：7mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 25*25mm & 30*30mm
Recommended Configuration: (not included)
motor: 4215/4218/4312
ESC: 80A-100A 6s-8s
propeller: 13 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6s-8s-8000MAH-16000MAH

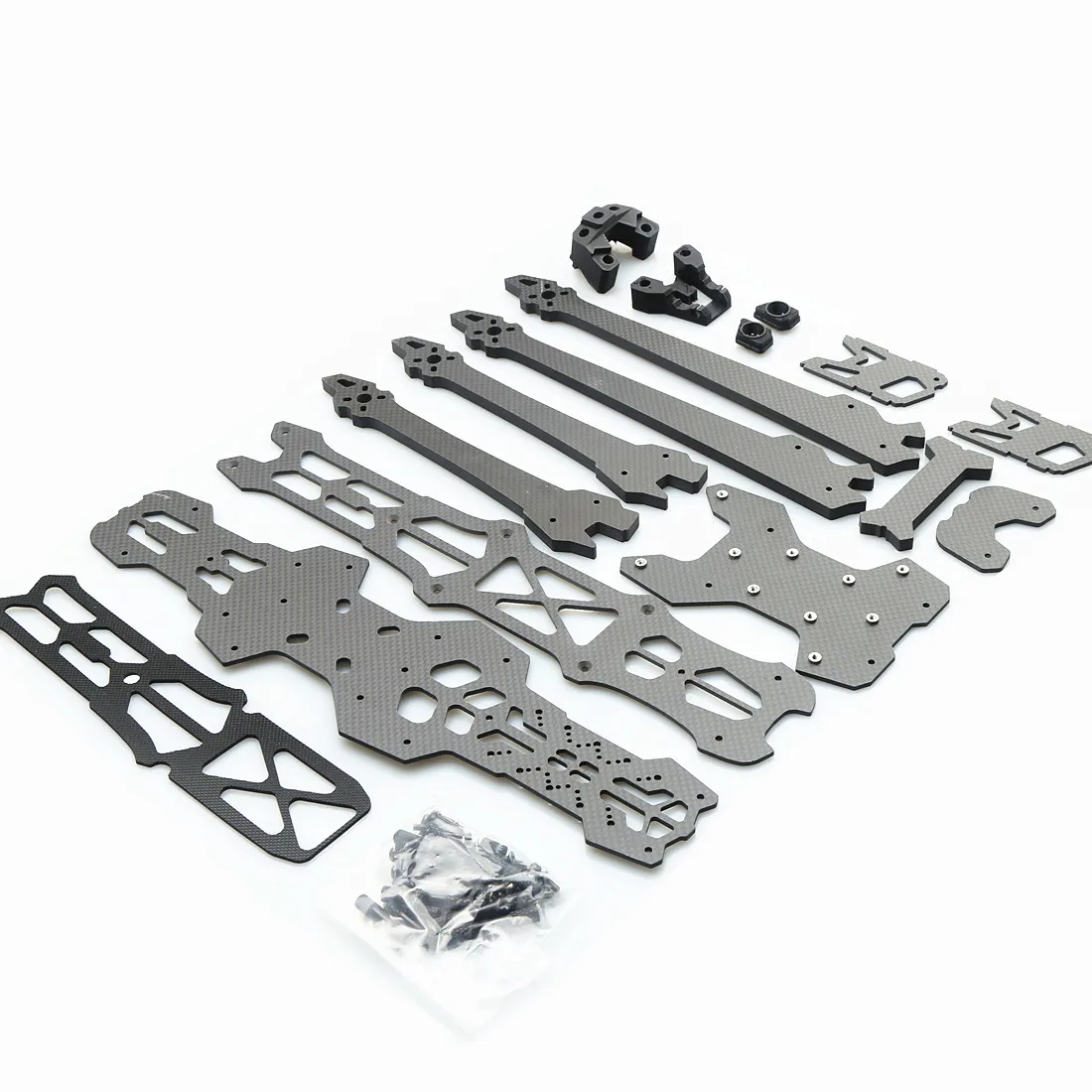

Package included:
1*GK-10inch/13inch-V3 FPV Drone Frame 435/550mm Carbon Fiber
| Color | 10 inch, 13 inch |
|---|
