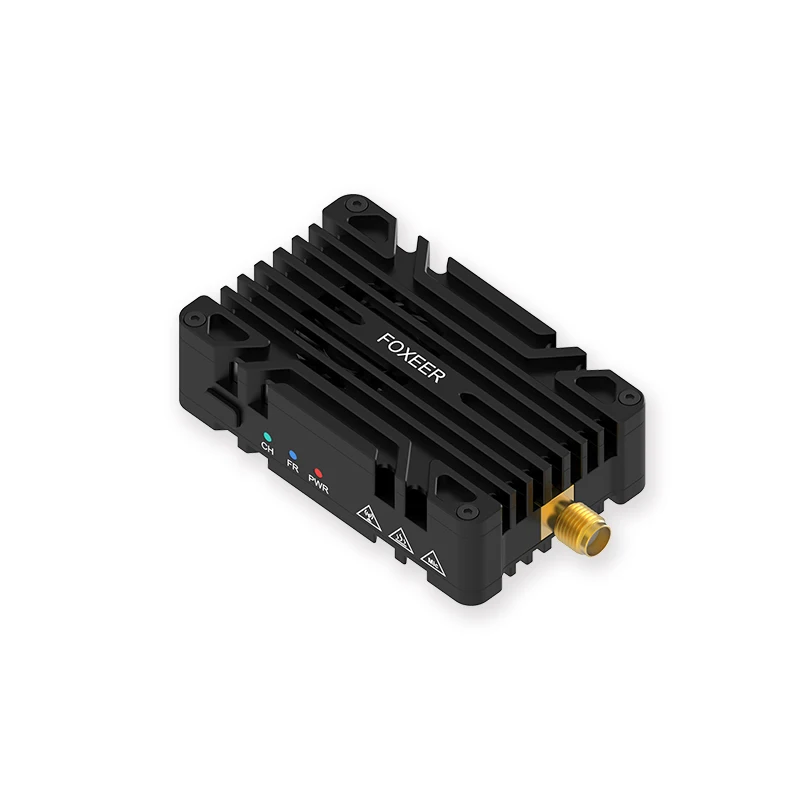

Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 2
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 3
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 4
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 5
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 6
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 7
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 8
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 9
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 10
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 11
Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range - Image 12

Foxeer Reaper Infinity 4.9G-6G Reaper Infinity 5.8G 5W 80CH VTX Build-in MicFan CNC Heat Dissipation Shell for RC FPV Long Range

Original price was: $883.74.Current price is: $515.52.

15 in stock

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: _d6lqtnofkvj000dobip0 Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: Foxeer Reaper Infinity

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Other

Size: 41*20*17mm

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: 5.8G 40CH 5W VTX

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

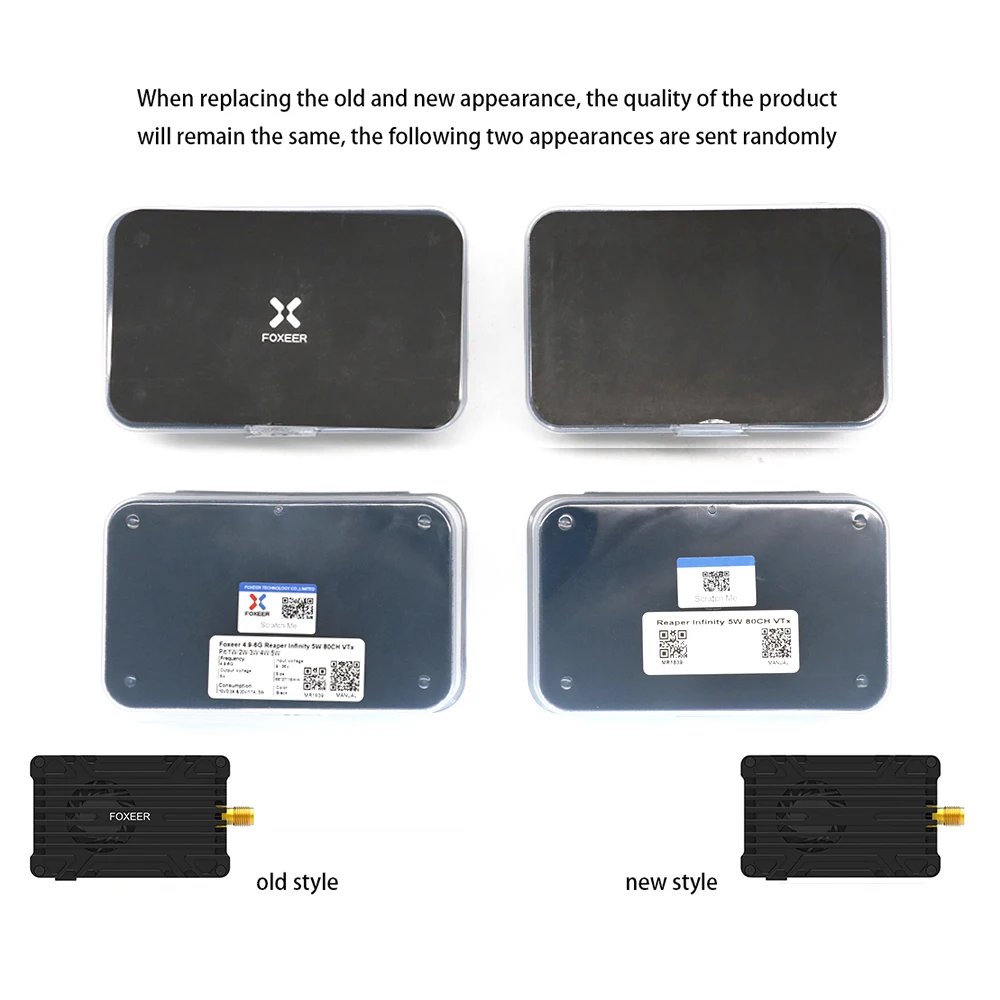

Dear friend, because of FOXEER brand  output Policy ,the VTX machine ifself without logo name on it ,but it is orignal and brand new  Foxeer Reaper Infinity 5W 80CH VTX,It has vevify code, you can check at officel websitehttps://www.foxeer.com/

Adjust the power level and frequency: If the Tramp Rx pin cable on VTx is connected with FC, then the button doesn't work.

Name

Reaper Infinity 5W

Input Voltage

9~36V

Output Voltage

5V

Channels

80CH

Power

1W/2W/3W/4W/5W

Pit

Double click to enter

Weight

48g

Mounting Hole

20*20mm M2 with 2.5mm depth

Size

66*37*16mm

Connector

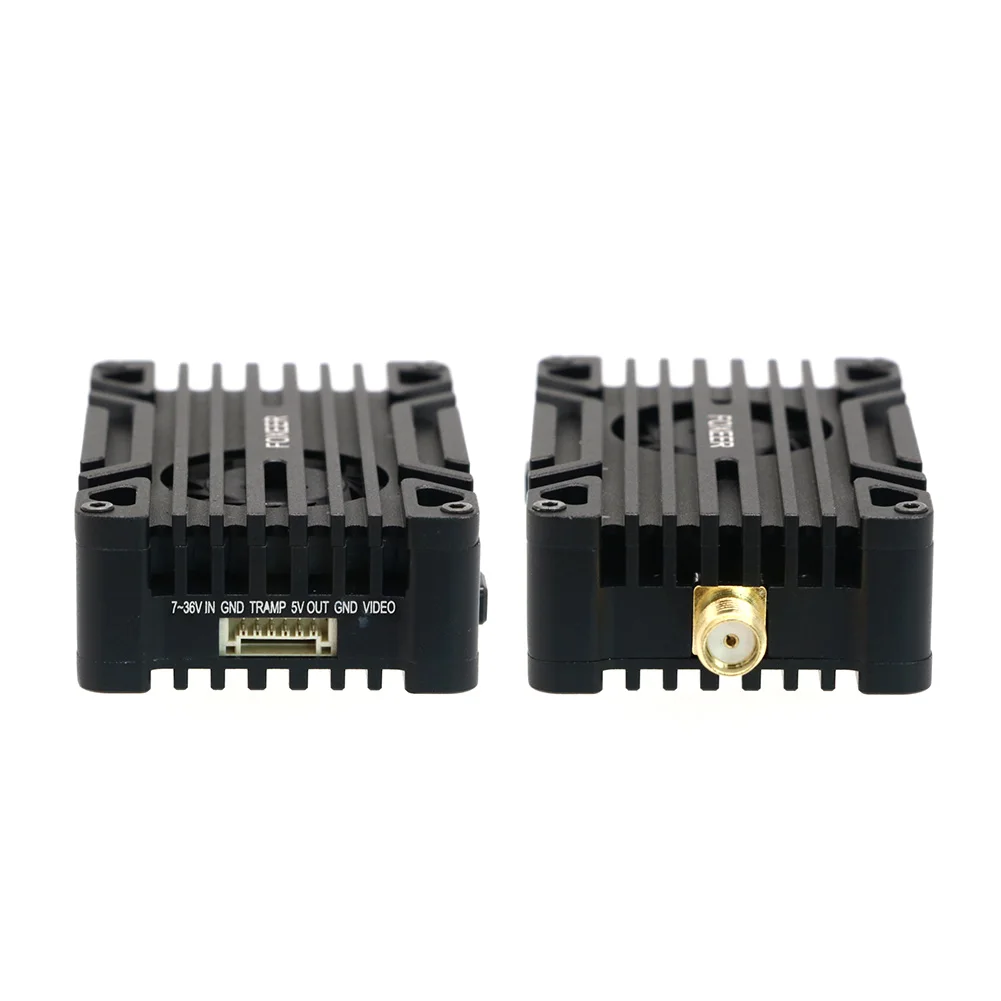

SMA

Cable Connector

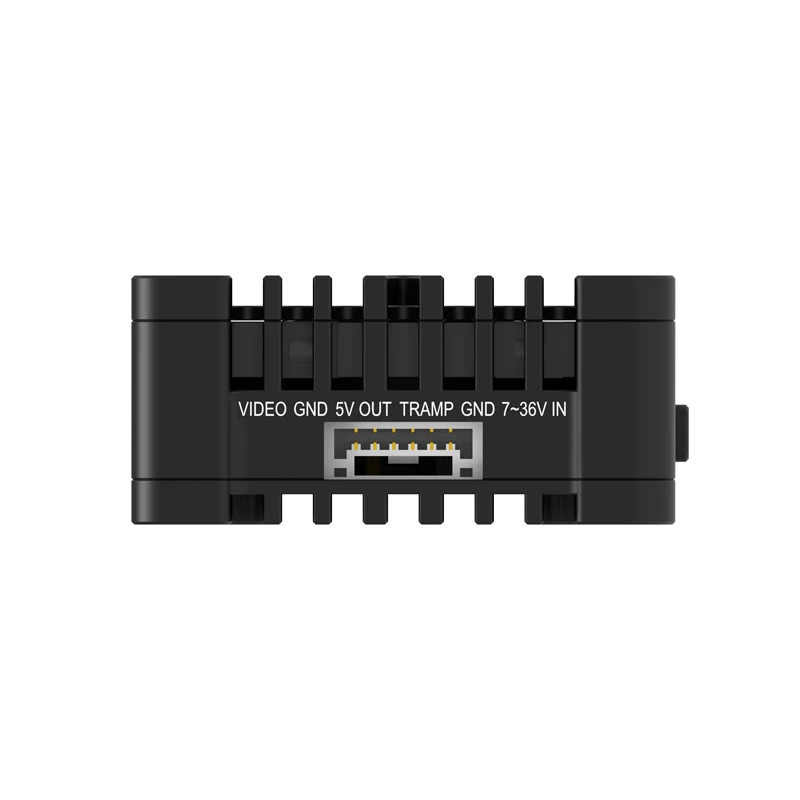

GH1.25  6P

Consumption

10V/2.3A, 5W

Package Include

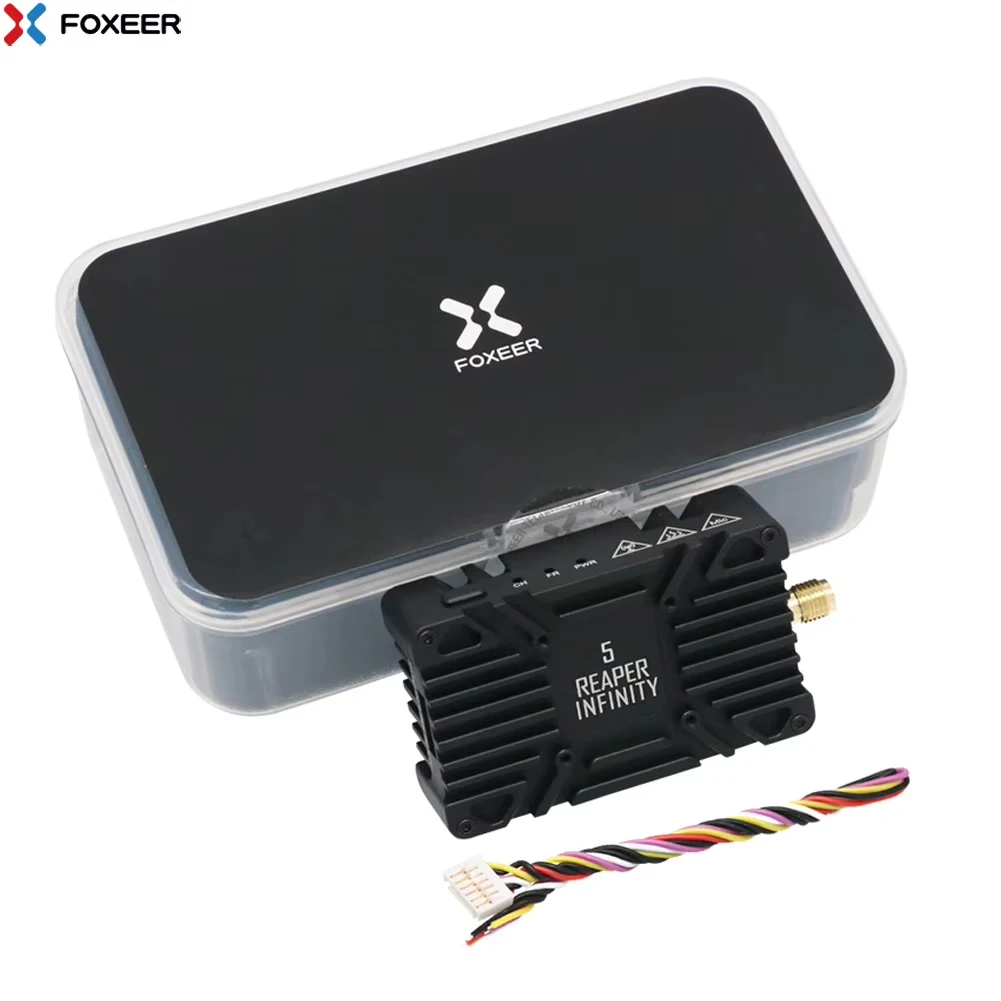

1 x VTx, 1 x silicon cable

Band

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Band A

5865

5845

5825

5805

5785

5765

5745

5725

Band B

5733

5752

5771

5790

5809

5828

5847

5866

Band E

5705

5685

5665

5645

5885

5905

5925

5945

Band F

5740

5760

5780

5800

5820

5840

5860

5880

Band R

5658

5695

5732

5769

5806

5843

5880

5917

Band H

5653

5693

5733

5773

5813

5853

5893

5933

Band L

5333

5373

5413

5453

5493

5533

5573

5613

Band U

5325

5348

5366

5384

5402

5420

5438

5456

Band O

5474

5492

5510

5528

5546

5564

5582

5600

Band X

4990

5020

5050

5080

5110

5140

5170

5200

PIT On/Off:

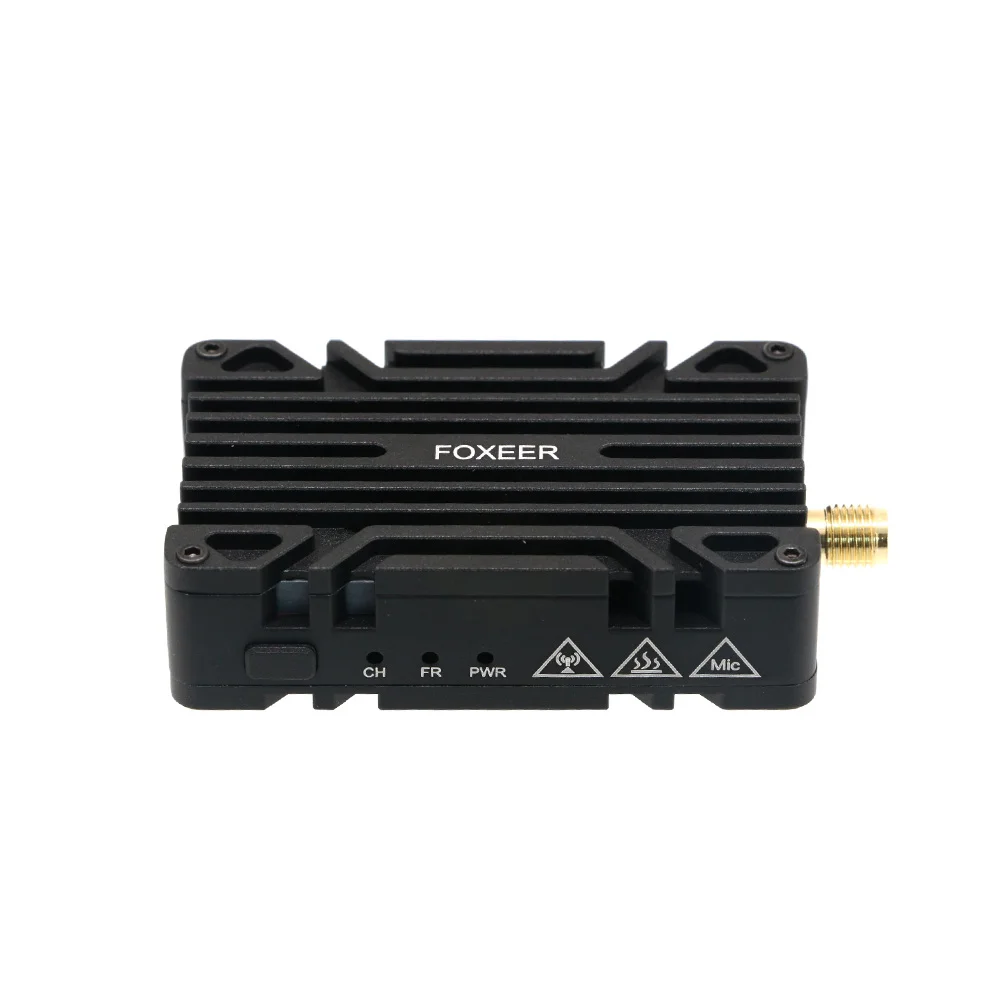

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
