Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 1
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 2
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 3
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 4
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 5
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 6
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 7
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 8
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 9
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 2
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 3
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 4
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 5
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 6
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 7
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 8
Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range - Image 9

Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25mW 200mW 500mW 1.5W 2.5W Adjustable FPV VTX 2-8S 20X20mm for FPV Long Range

Original price was: $438.00.Current price is: $255.50.

15 in stock

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: _d6lc0rnkgkfg00ch6ai0 Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: Reaper Extreme

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Other

Size: 36*27.5*8mm

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: 2.5W 72CH VTX

Use: Vehicles & Remote Control Toys

Wheelbase: Screws


Name

Reaper Extreme V2

Input Voltage

9~36V

Output Voltage

5V

Channels

72CH

Power

25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly

Pit

Double click to enter

Weight

13g

Mounting Hole

20*20mm M2 2.8mm depth

Size

36*27.5*8mm

Consumption

1.2A/9V

Package Includes

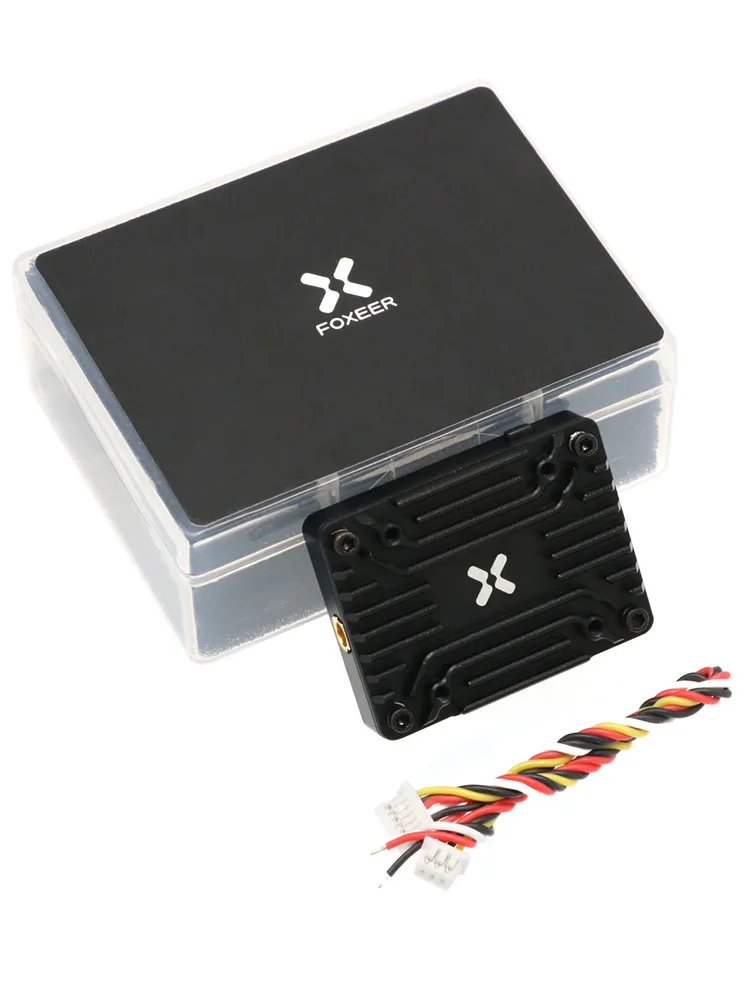

1 x VTx; 1 x silicon cable;

Band

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Band A

5865

5845

5825

5805

5785

5765

5745

5725

Band B

5733

5752

5771

5790

5809

5828

5847

5866

Band E

5705

5685

5665

5645

5885

5905

5925

5945

Band F

5740

5760

5780

5800

5820

5840

5860

5880

Band R

5658

5695

5732

5769

5806

5843

5880

5917

Band H

5653

5693

5733

5773

5813

5853

5893

5933

Band L

5333

5373

5413

5453

5493

5533

5573

5613

Band U

5325

5348

5366

5384

5402

5420

5438

5456

Band O

5474

5492

5510

5528

5546

5564

5582

5600

Unlock the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.

PIT Mode On/Off

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
