FOXEER 4.9G-6G Reaper Infinity 5.8G 10W 80CH VTX 2-8S Lipo 400mW/2W/5W/7.5W/10W Switchable Transmitter for Long Range RC FPV
Original price was: $1,285.02.$749.60Current price is: $749.60.
10 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: Foxeer Reaper Infinity
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: Other
Size: 66*37*16mm
Technical parameters: value 2
Tool Supplies: 5.8G 80CH 5W VTX
Upgrade Parts/Accessories: 5.8G 80CH 10W VTX
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Adjust the power level and frequency: If the Tramp Rx pin cable on VTx is connected with FC, then the button doesn't work.
|
Name |
Reaper Infinity 10W |
|
Input Voltage |
9~36V |
|
Output Voltage |
5V |
|
Channels |
80CH |
|
Power |
1W/2.5W/5W/7.5W/10W |
|
Pit |
Double click to enter |
|
Weight |
48g |
|
Mounting Hole |
20*20mm M2 with 2.5mm depth |
|
Size |
66*37*16mm |
|

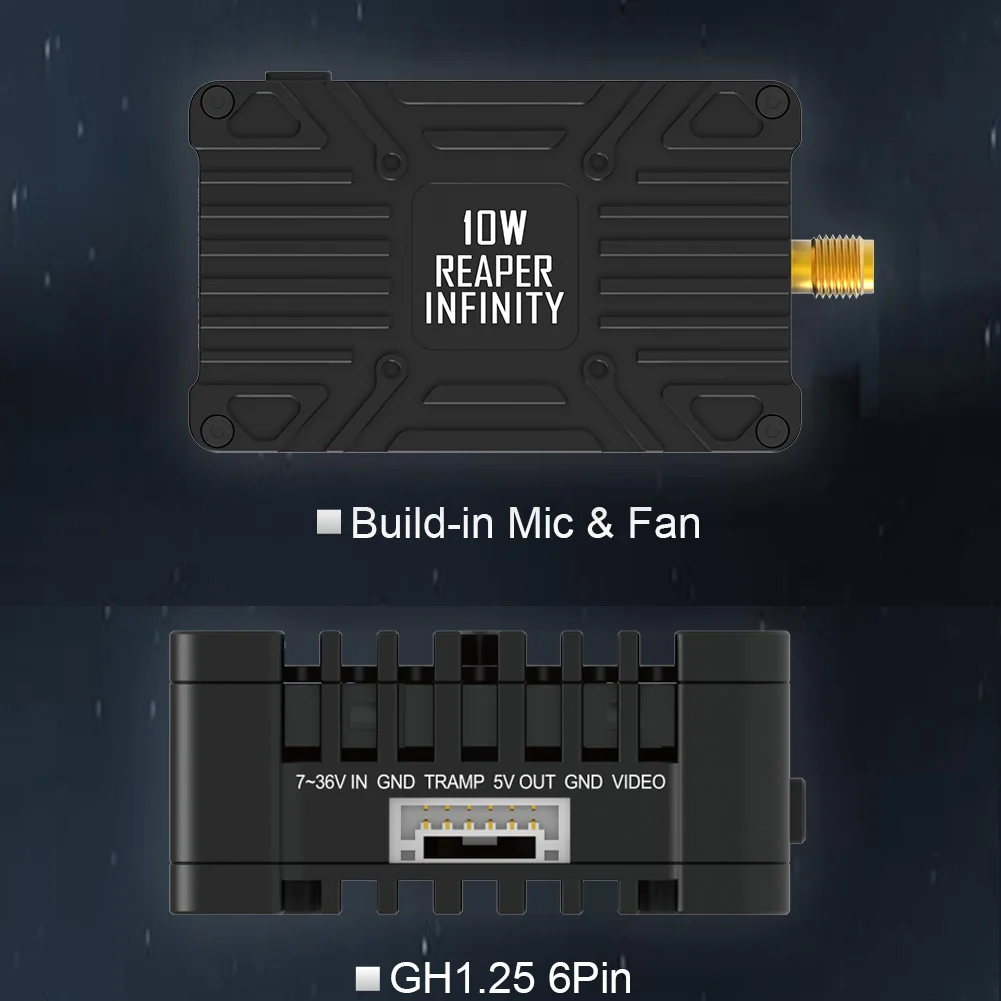

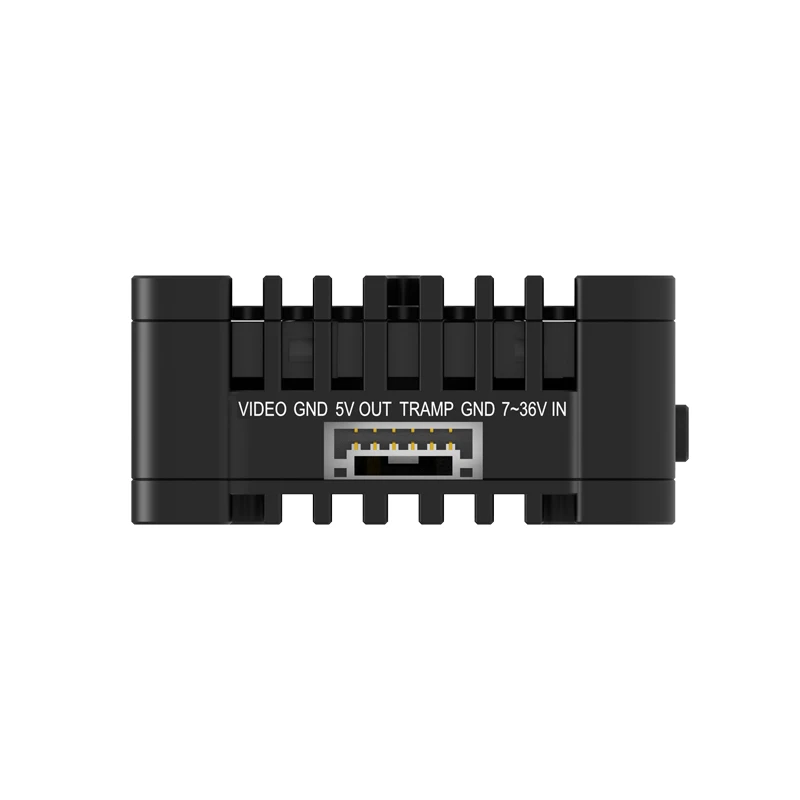

Connector |
SMA |
|
Cable Connector |
GH1.25 6P |
|
Consumption |
10V/3.3A & 20V/1.5A; 10W |
|
Package Include |
1 x VTx, 1 x silicon cable |
|
Band |
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
|
Band A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
|
Band B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
|
Band E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
|
Band F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
|
Band R |
5658 |
5695 |
5732 |
5769 |
5806 |
5843 |
5880 |
5917 |
|
Band H |
5653 |
5693 |
5733 |
5773 |
5813 |
5853 |
5893 |
5933 |
|
Band L |
5333 |
5373 |
5413 |
5453 |
5493 |
5533 |
5573 |
5613 |
|
Band U |
5325 |
5348 |
5366 |
5384 |
5402 |
5420 |
5438 |
5456 |
|
Band O |
5474 |
5492 |
5510 |
5528 |
5546 |
5564 |
5582 |
5600 |
|
Band X |
4990 |
5020 |
5050 |
5080 |
5110 |
5140 |
5170 |
5200 |
PIT On/Off:
Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
Note:
If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
