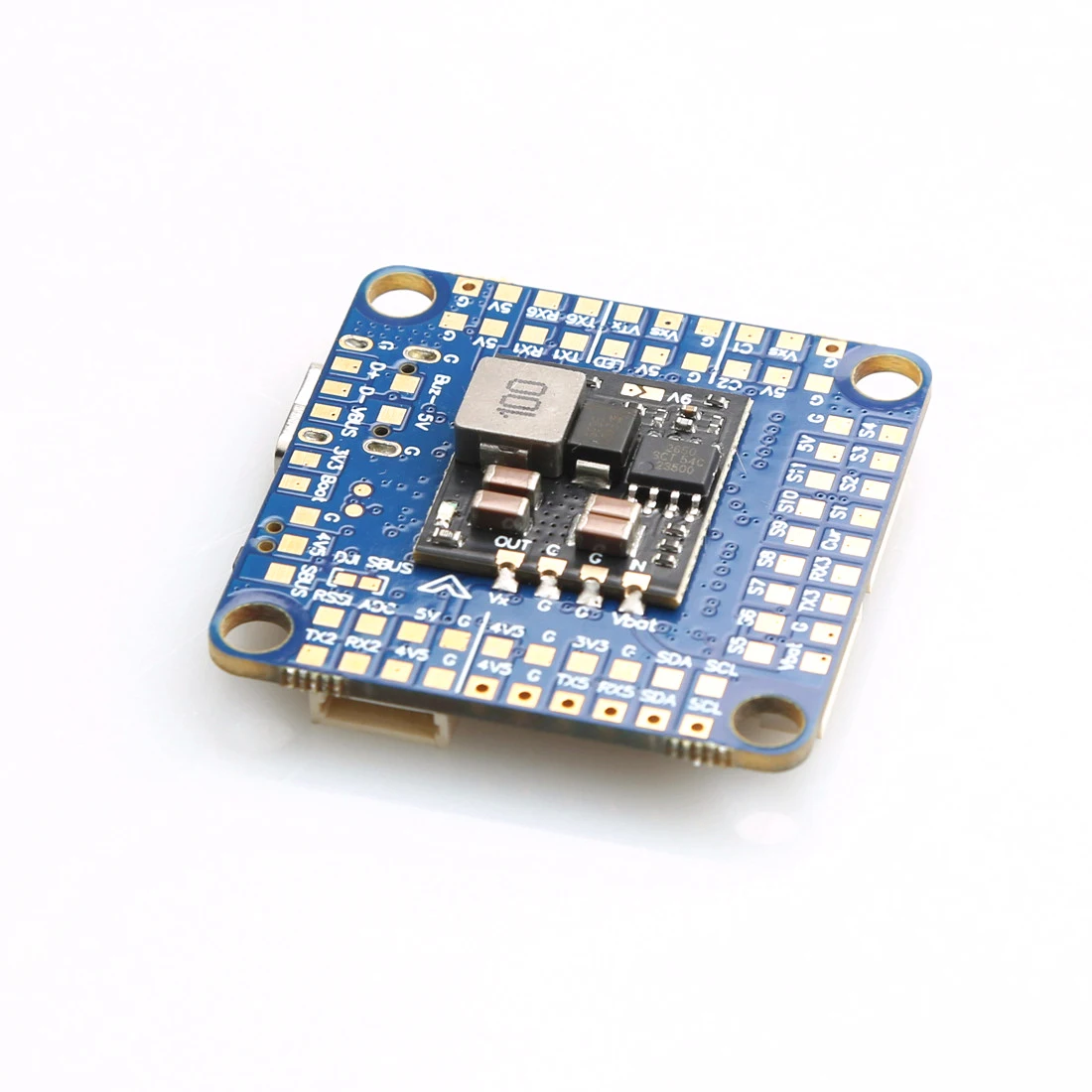

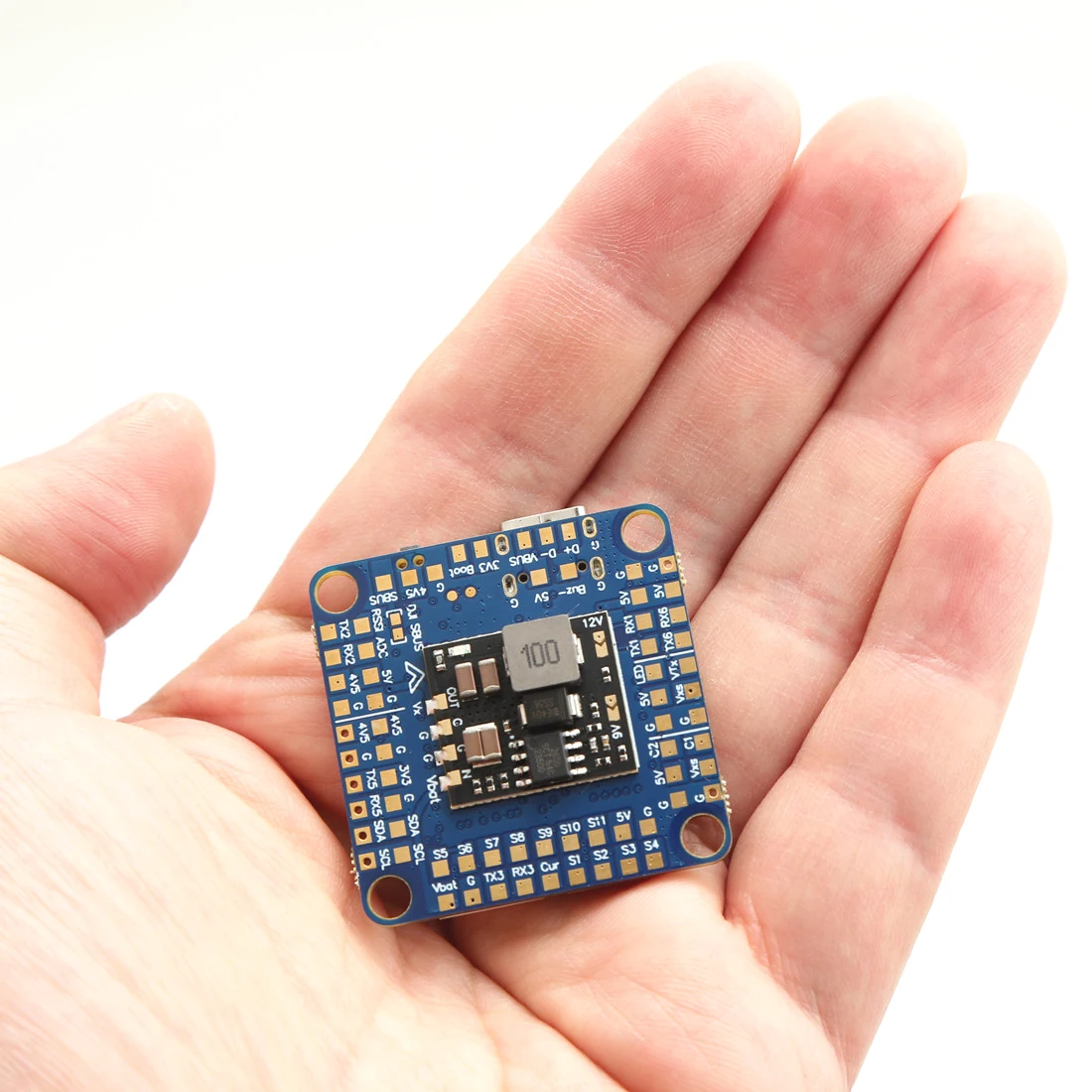

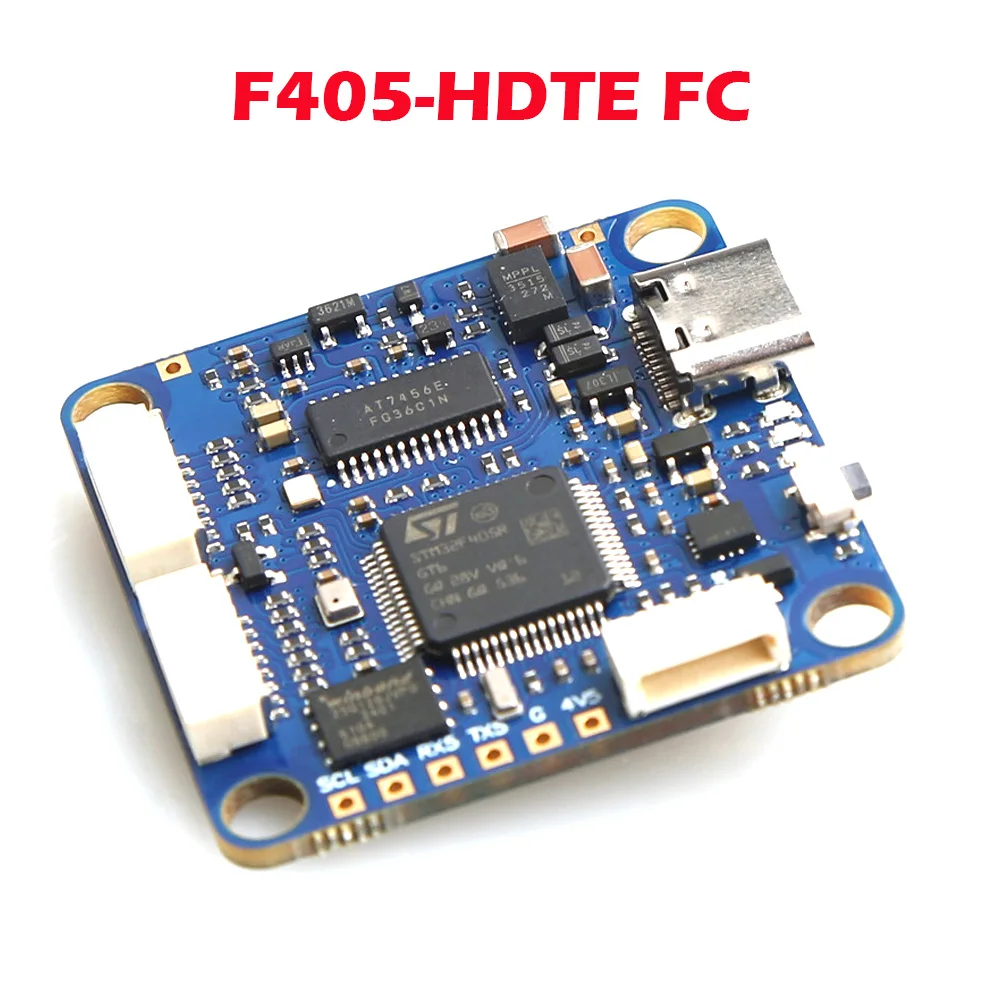

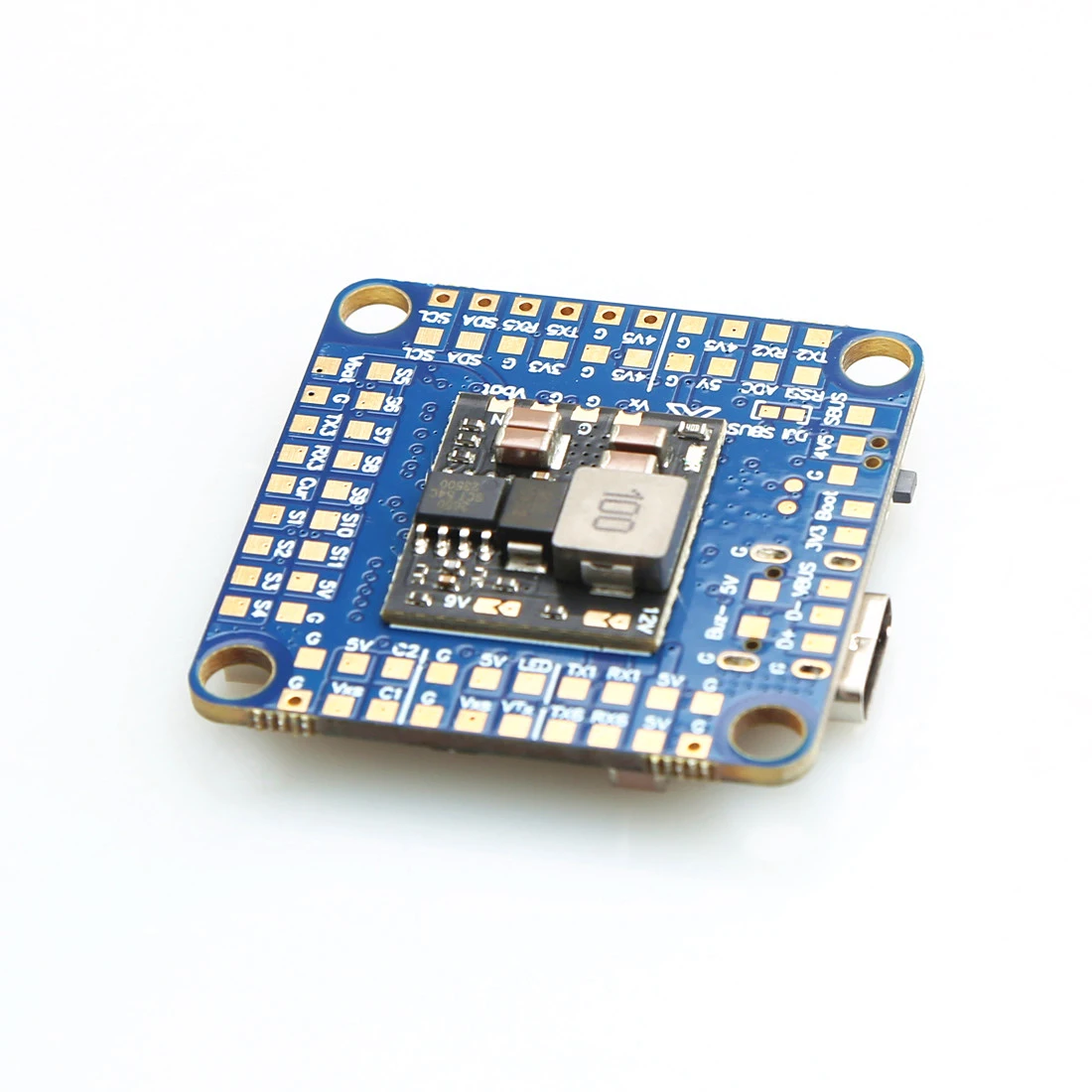

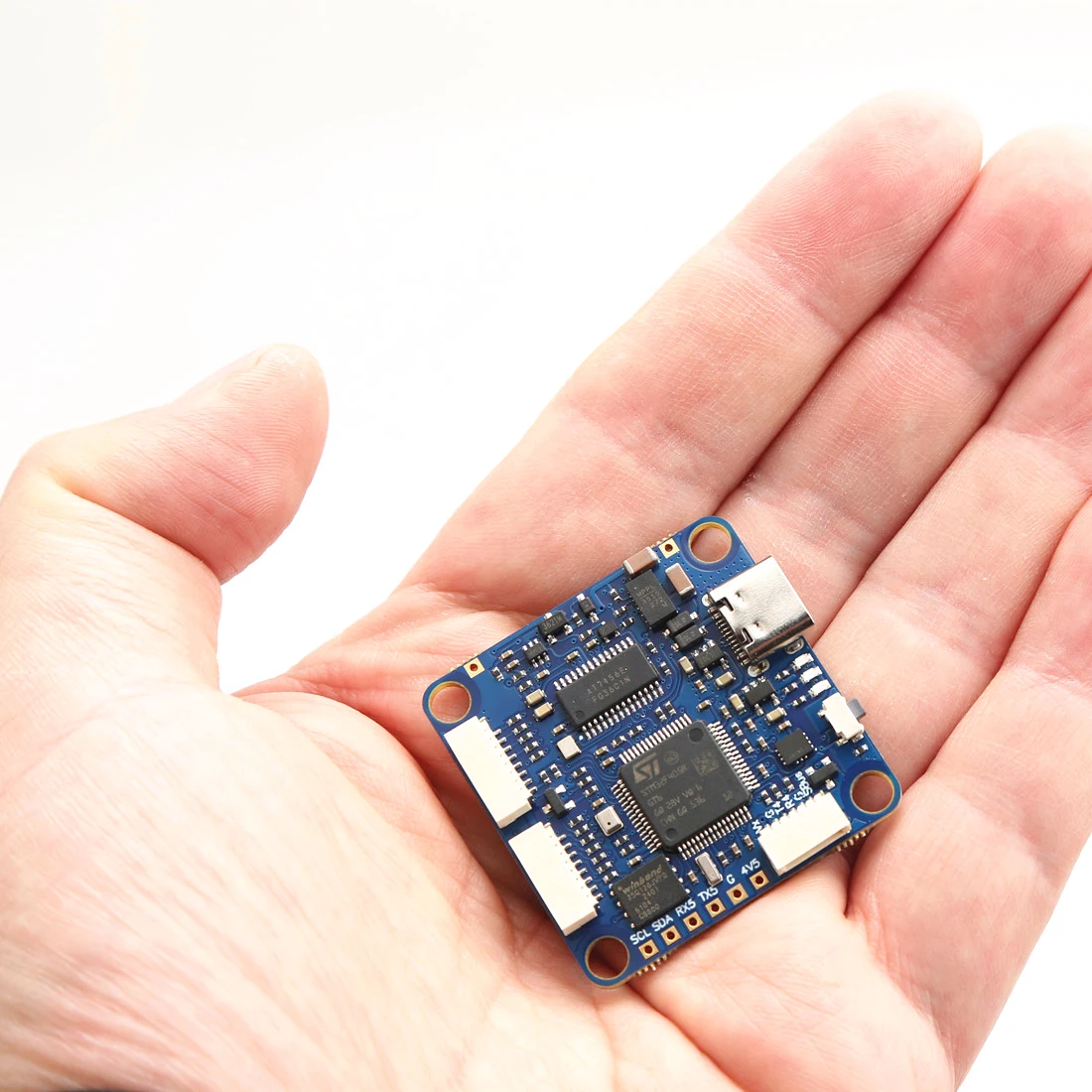

F405-HDTE F4 Flight Controller STM32F405 Built-in Dual BEC OSD Blackbox 3~12S LiPo For RC FPV Long Range Drones
Original price was: $289.32.$192.88Current price is: $192.88.
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Power Distribution Board
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: KSX6088
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Antennas
Recommend Age: 14+y
Remote Control Peripherals/Devices: f405 hdte flight controller
Size: 30.5 x 30.5mm
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: F4 Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Features
-
STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
-
InvenSense the 3rd generation IMU ICM42688-P
-
9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX.
-
8motors+3servos in INAV/BF multirotor mixer.
-
2x SH1.0_8pin connector for PnP with 2x 4in1 ESC
-
1x SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
-
USB pin breakout for connecting to external USB adapter.
Specifications
-

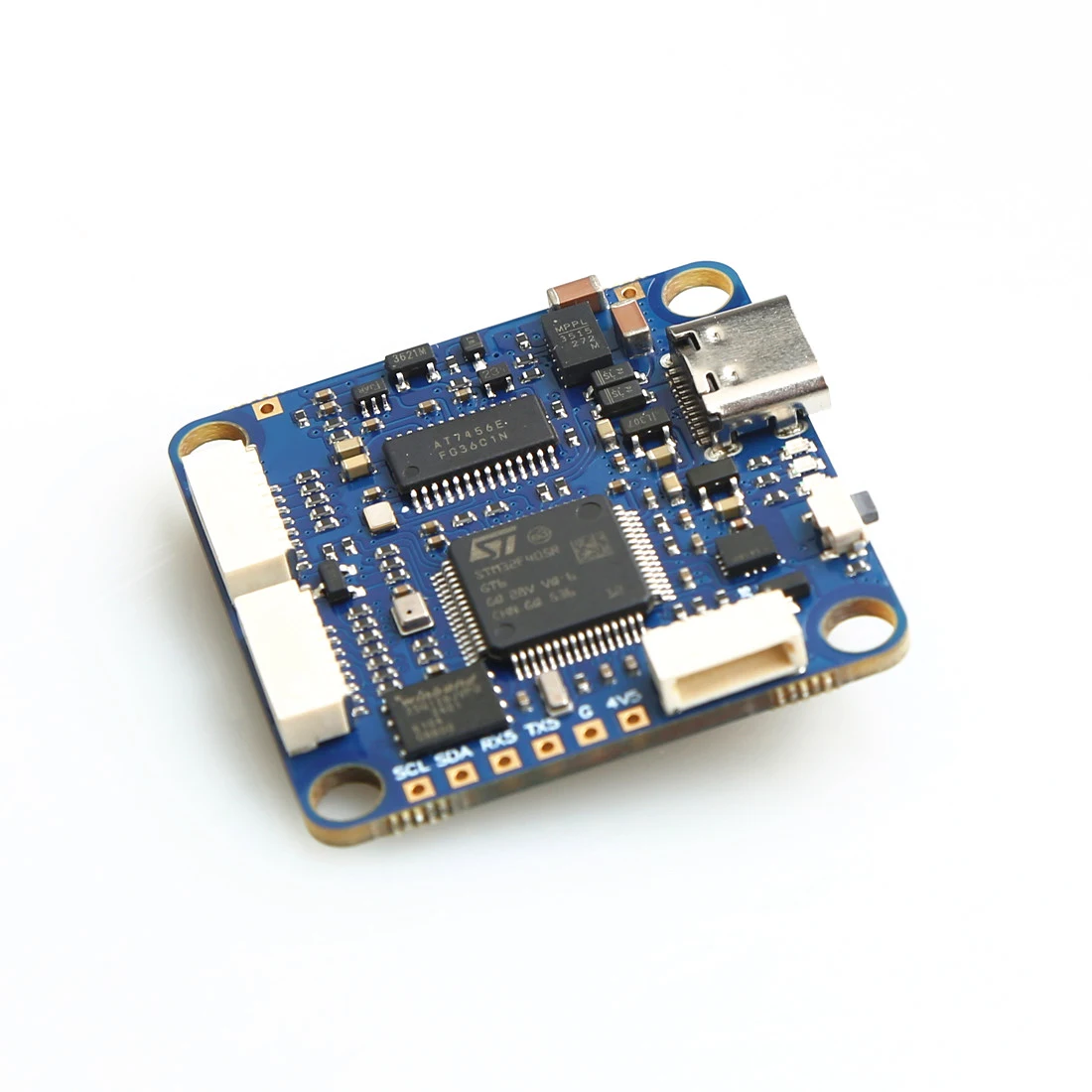

MCU: STM32F405RGT6
-
IMU: ICM42688-P
-
OSD: AT7456E, DJI OSD
-
Baro: SPL06-001 (I2C)
-
Blackbox: 16M-byte Flash memory
-
6x UARTs, 1x Softserial_Tx option
-
12x PWM outputs (8x Dshot)
-
1x I2C
-
4x ADC (VBAT, Current, RSSI, Airspeed)
-
2x PINIO
-
2x SH1.0_8pin connector for 4in1 ESC
-
1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)
-
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
-
9~16V(Vxs) output ON/OFF switchable
-
Dual analog camera signal switchable
Power
-
Input: 9~60V (3~12S LiPo)
-
BEC: 5V 1.5A
-
BEC: Vx, 9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
-
Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
-
No Current Sensor built-in, supports external current sensor of PDB/4in1
Firmware
-
ArduPilot: F405-TE
-
INAV: F405TE
-
BetaFlight: F405TE
Physical
-
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
-
Dimensions: 36 x 36 x 5 mm
-
Weight: 7g

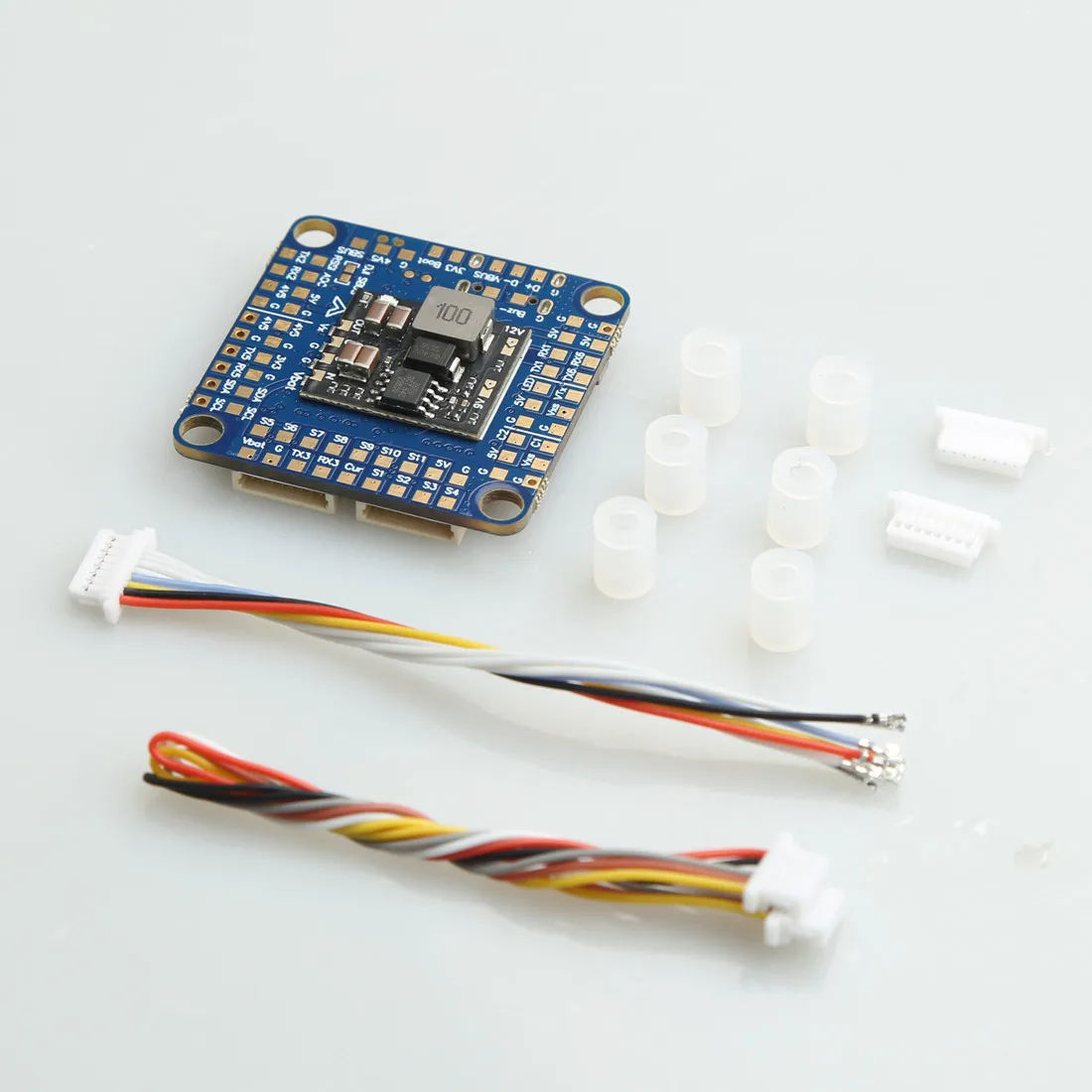

Including
-
1x FC F405-HDTE
-
6x Silicon grommets M4 to M3
-
1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
-
1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)
| Color | 1 piece |
|---|
