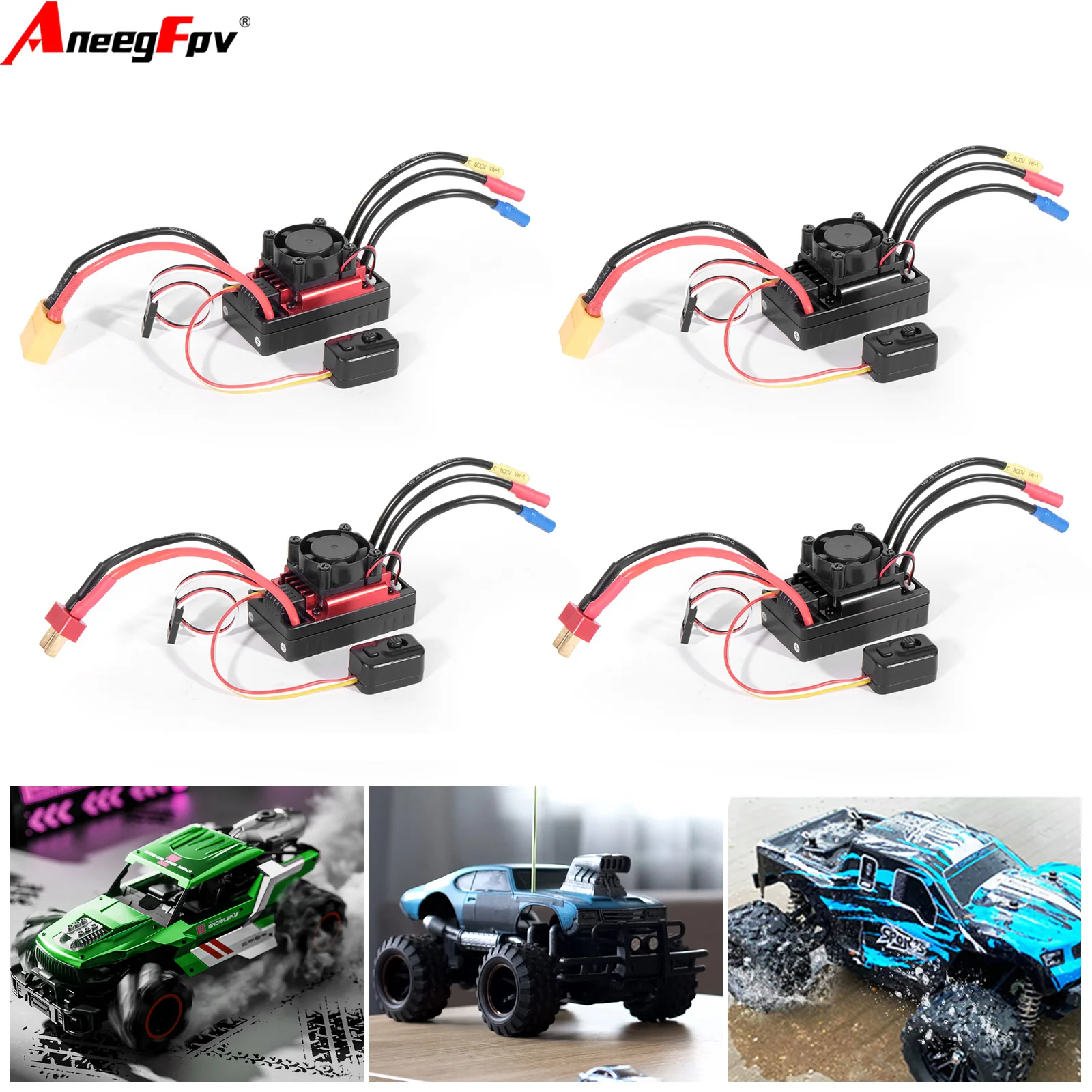

AneegFpv HG 35A 60A 80A Waterproof Sensorless Brushless ESC 2-3S 2-4S for 1/10 1/12 1/14 1/16 RC Car F540 3650 Brushless Motor
Price range: $79.70 through $105.32
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: 80A Brushless ESC
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HLW193
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC

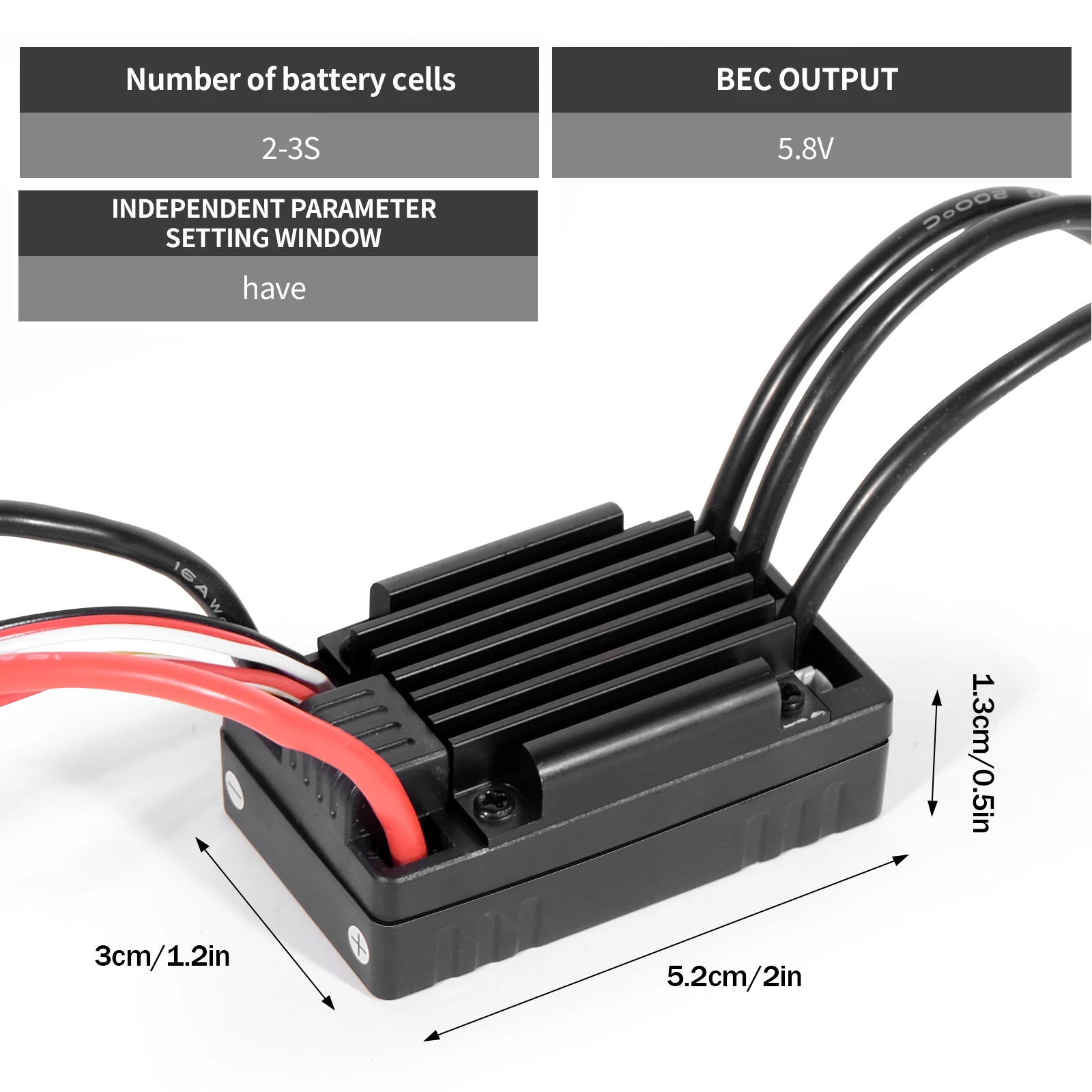

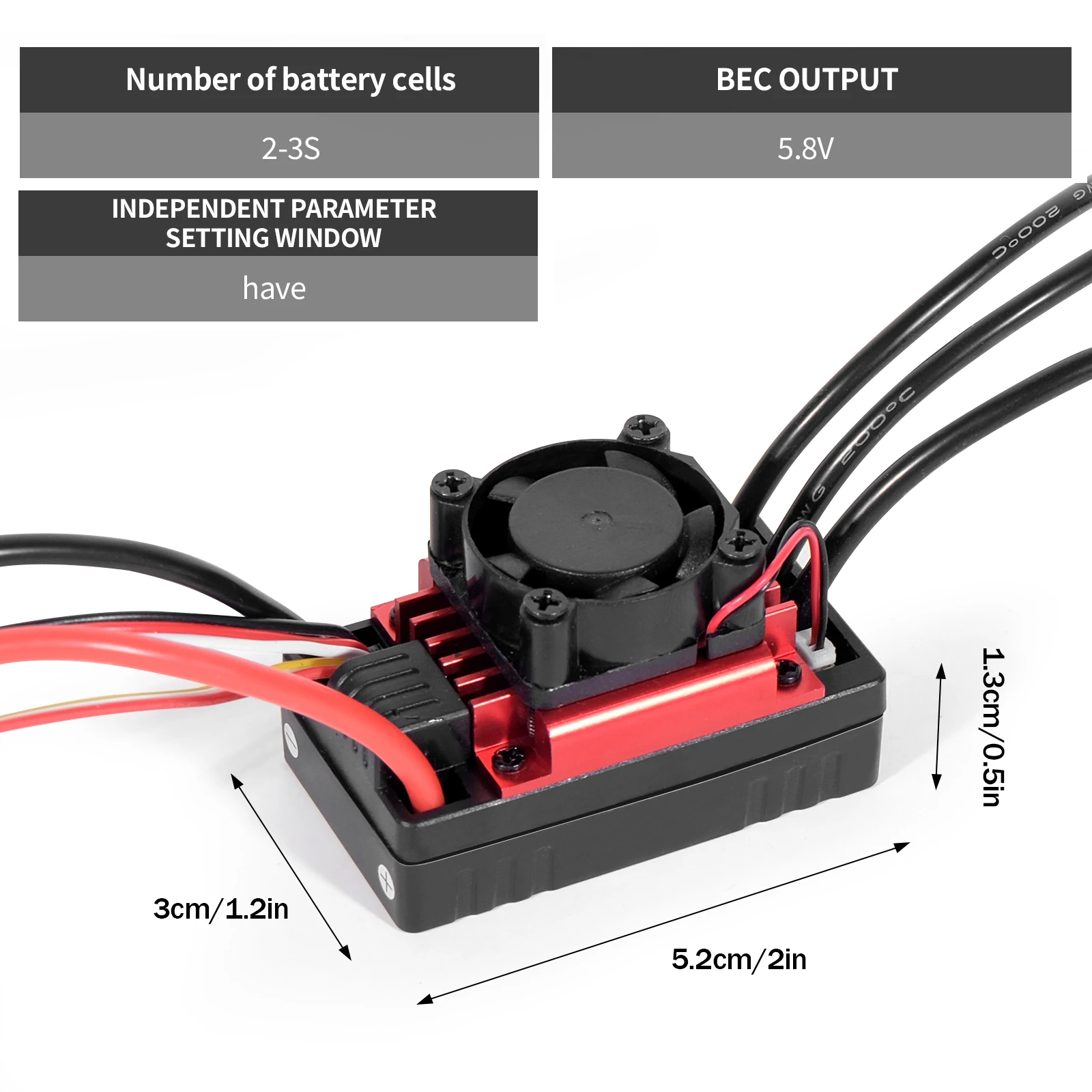

Size: 150x55x38MM
Technical parameters: value 2
Tool Supplies: 35A Brushless ESC
Upgrade Parts/Accessories: 60A Brushless ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

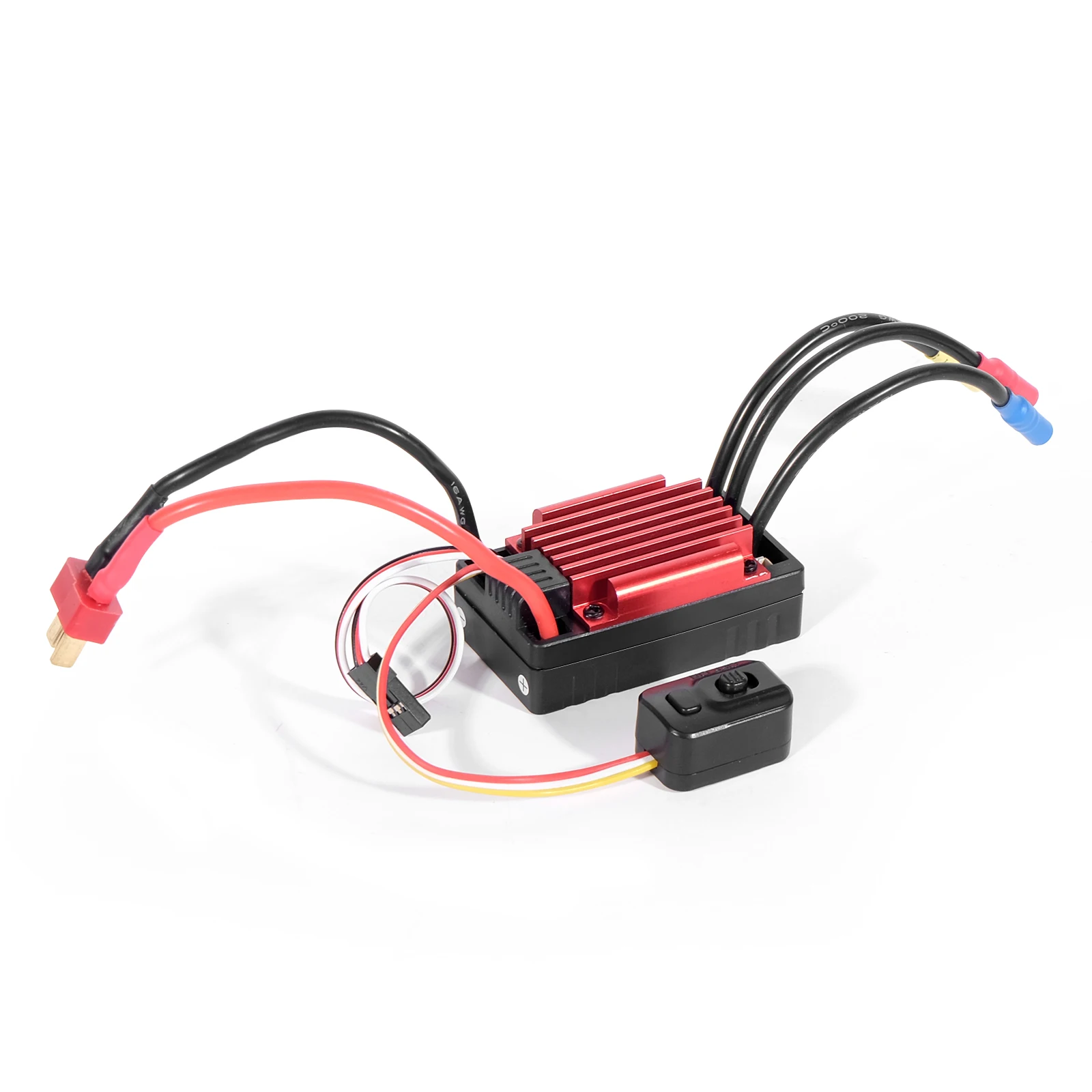

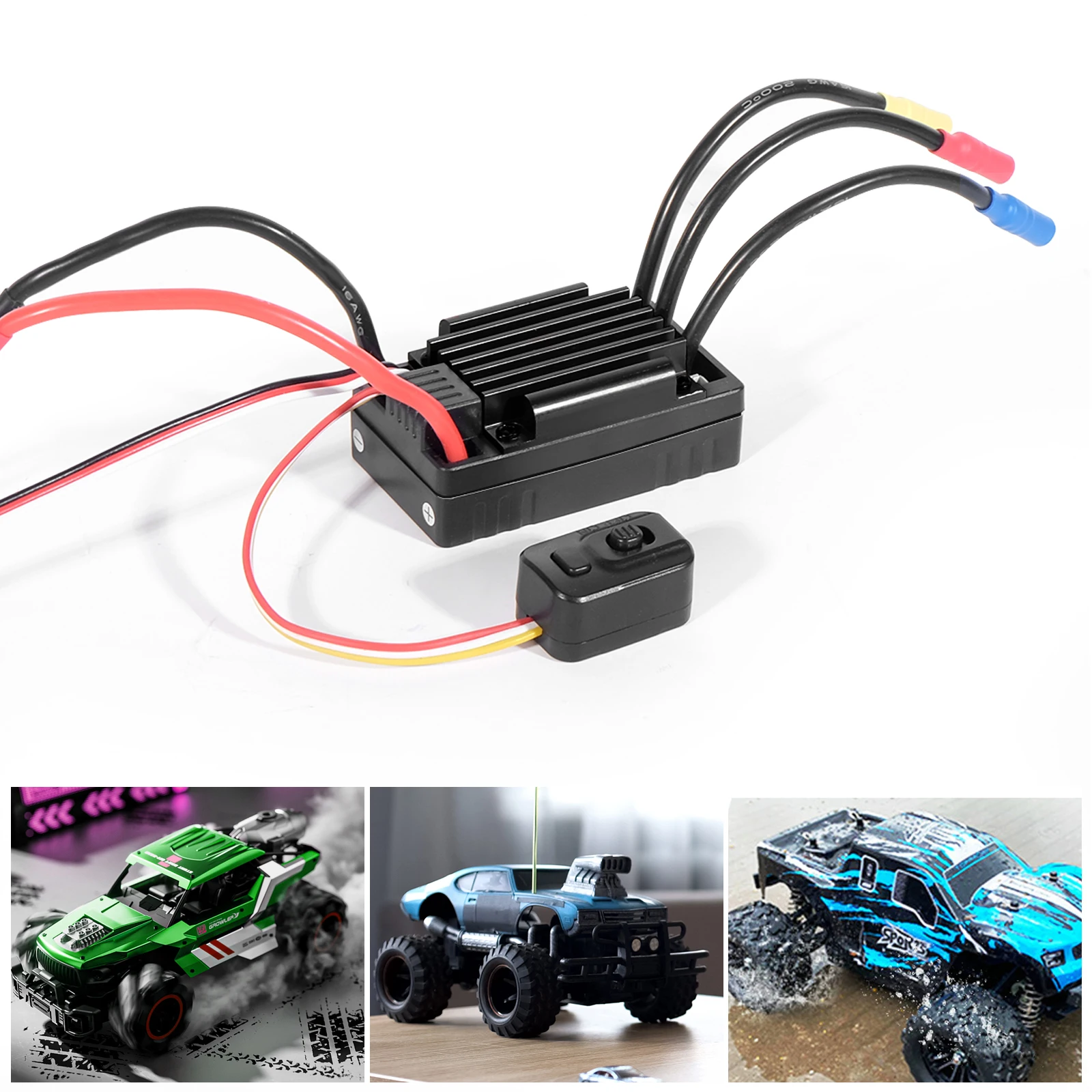

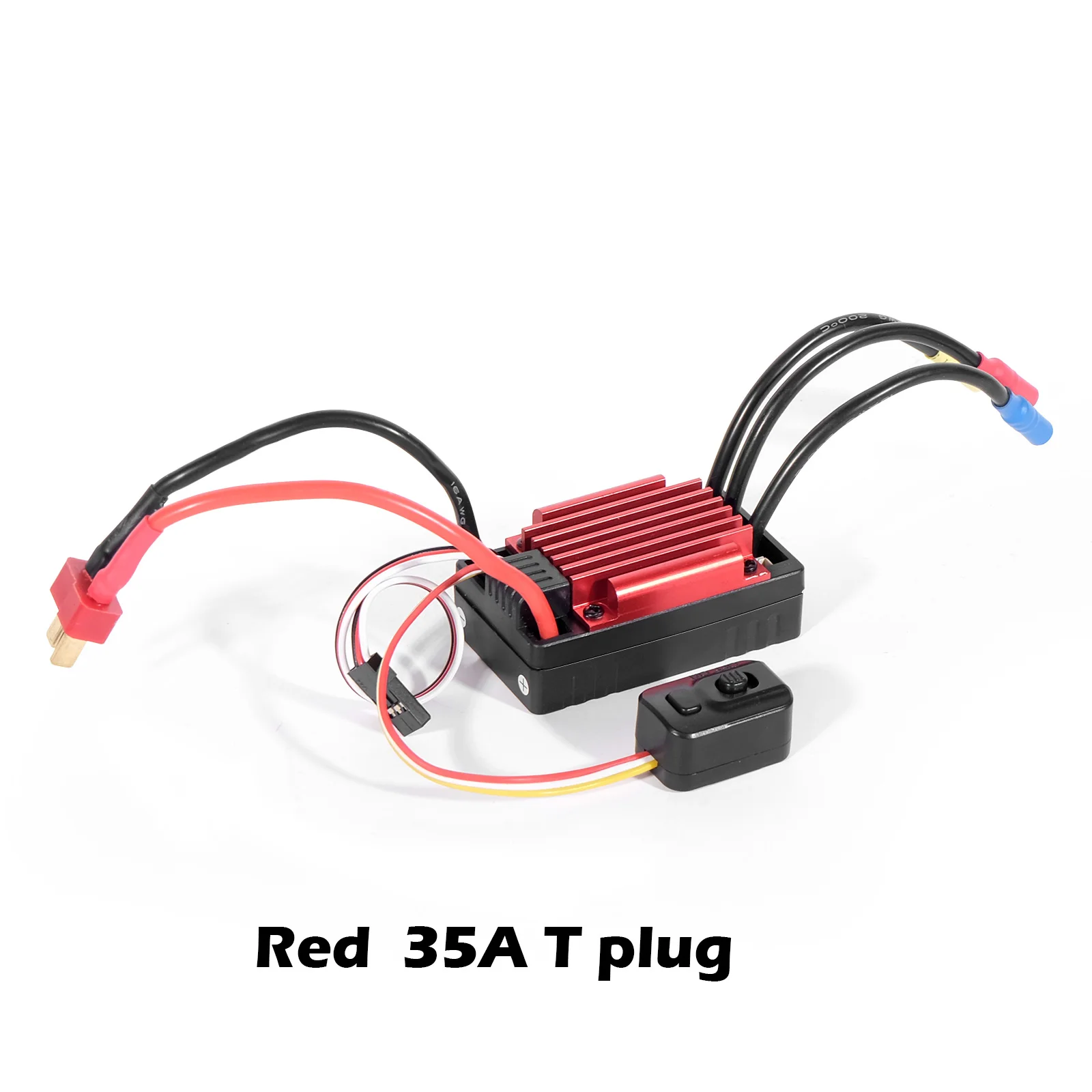

HG35A RC sensorless brushless waterproof 35A ESC suitable for 1/18 RC ,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players
Specifications:
Brand Name: SENSORLESS BRUSHLESS ESC FOR CAR
Model: HG60A
Cont. Current: Fwd. 35A / Rev. 35A
Peak Current: Fwd. 105A / Rev. 105A
Resistance: 0.0015Ω
Cars Applicable: 1:18 On-road/Off-road/Buggy/Monster
Battery: 4-9 Cells NiMH, 2-3S Lipo
Motor Limit:
For 2S Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<6000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<4000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<3000.
BEC Output: 5.85V/3A
Cooling Fan:
From battery directly without regulating
The stock fan can work with 2S and 3S Lipo
Weight: 55G

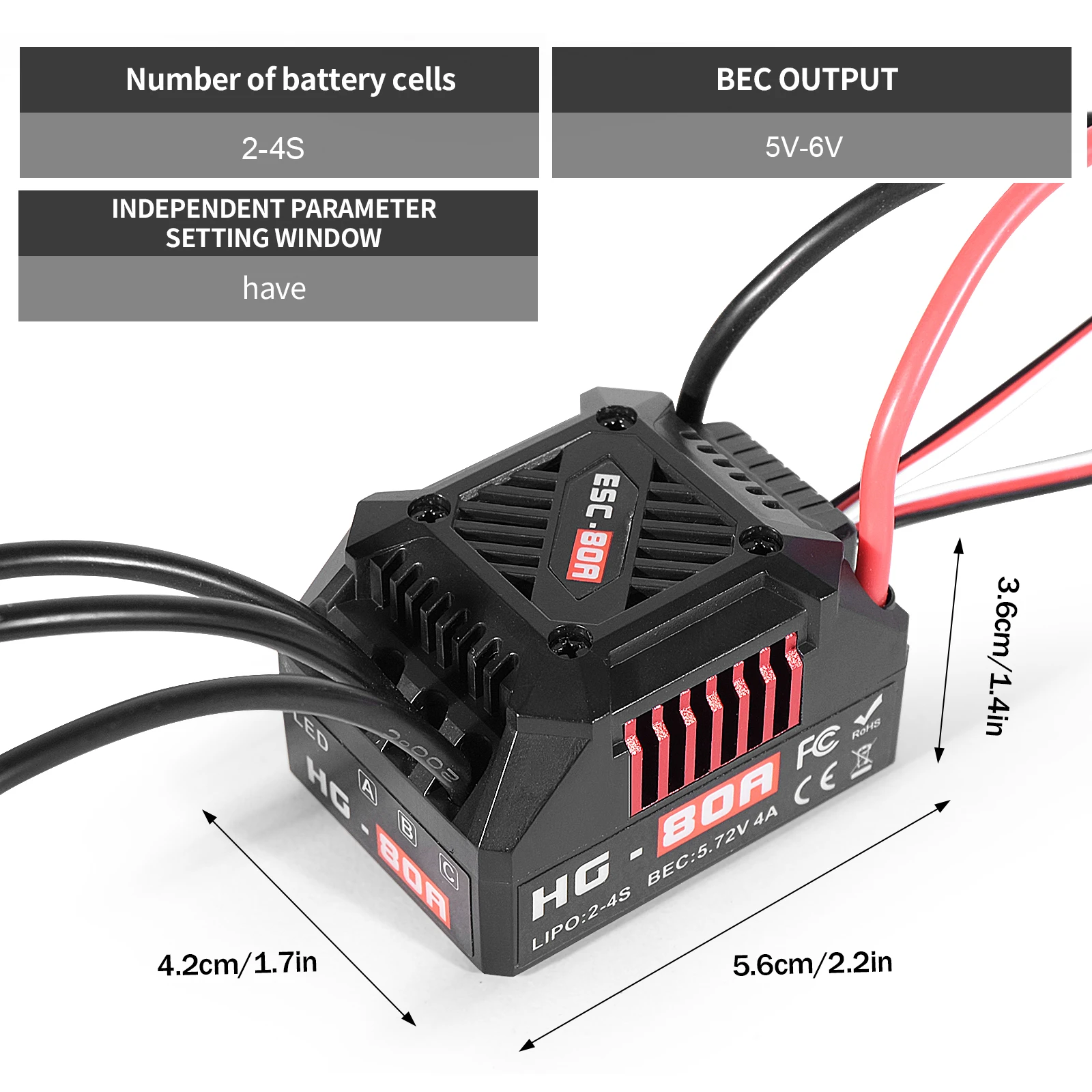

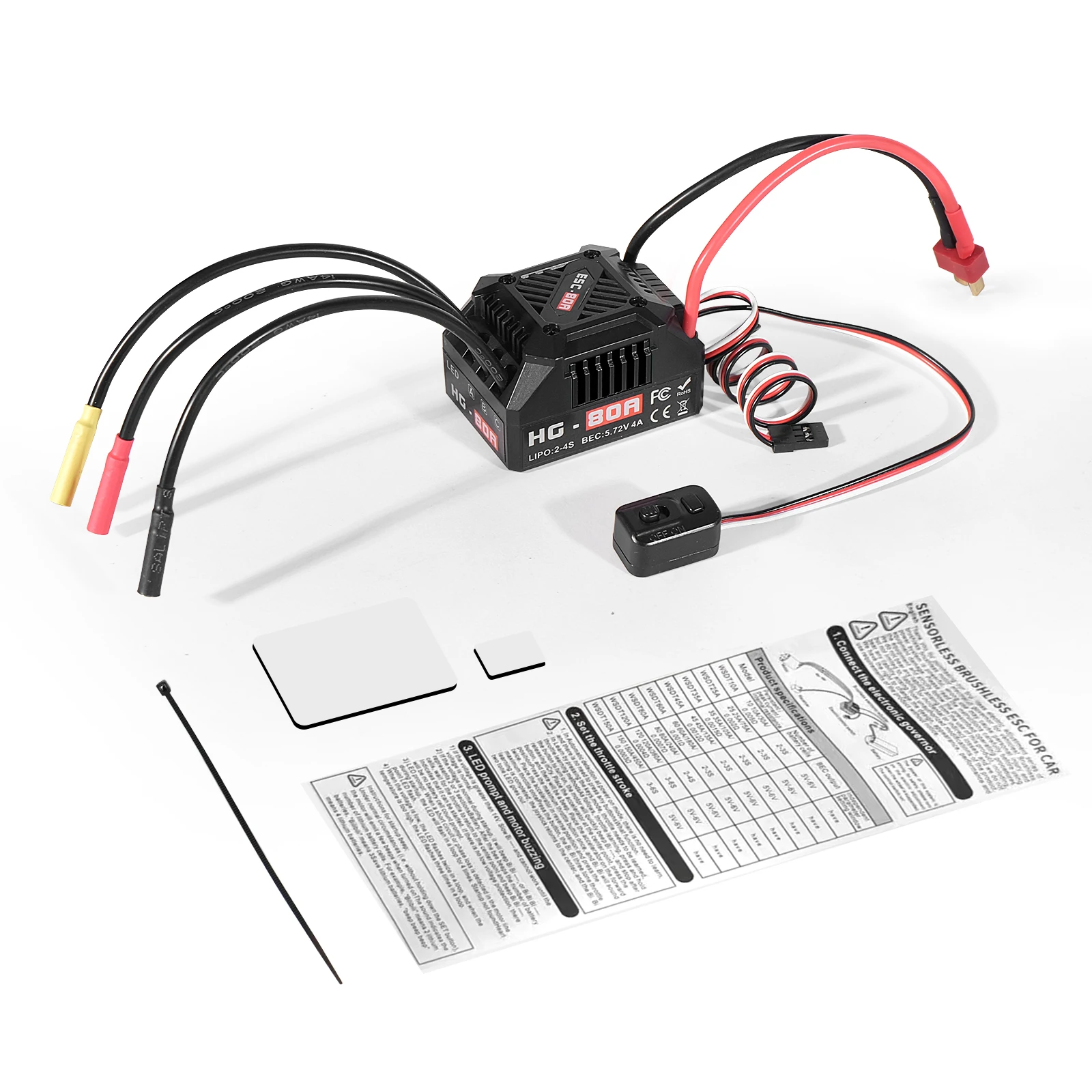

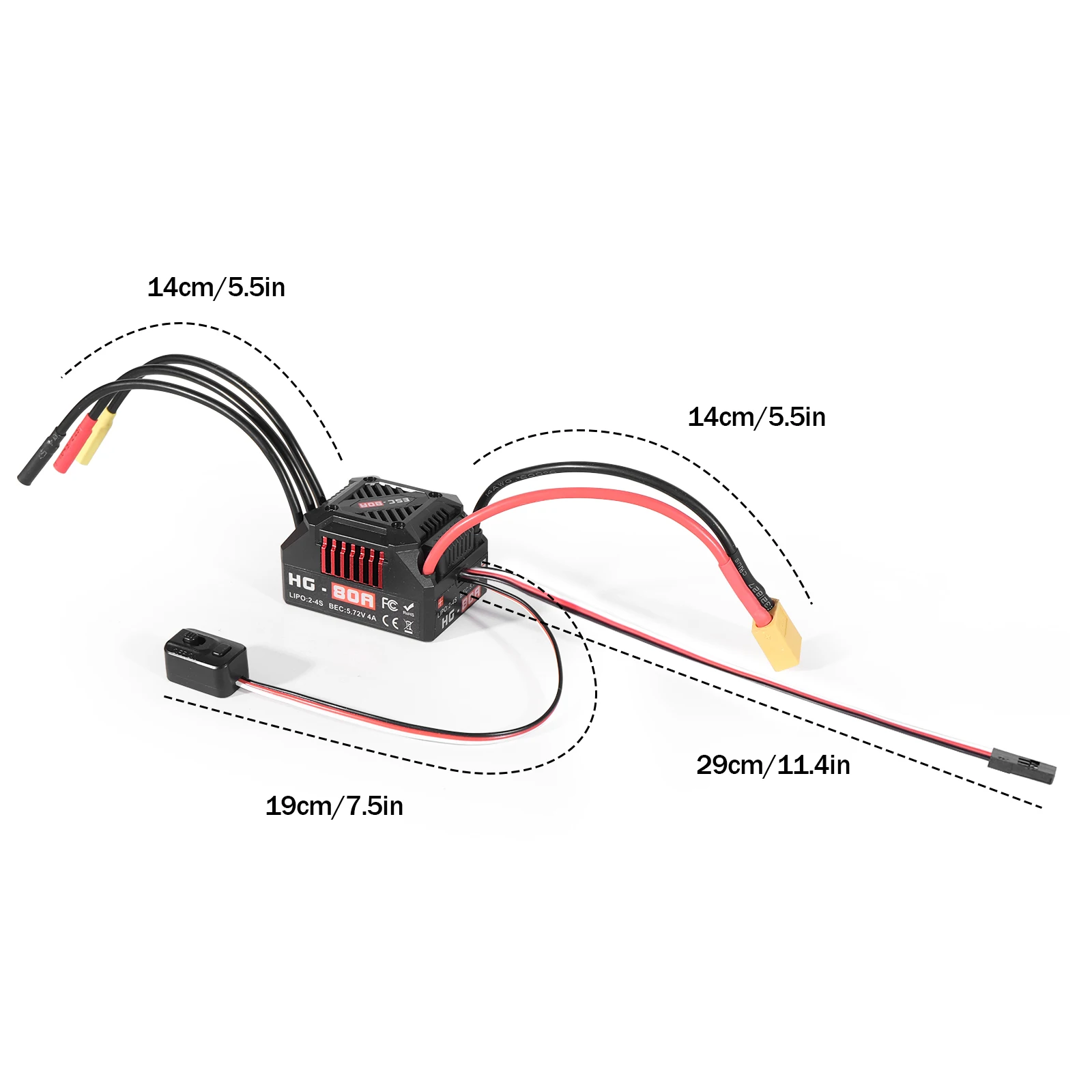

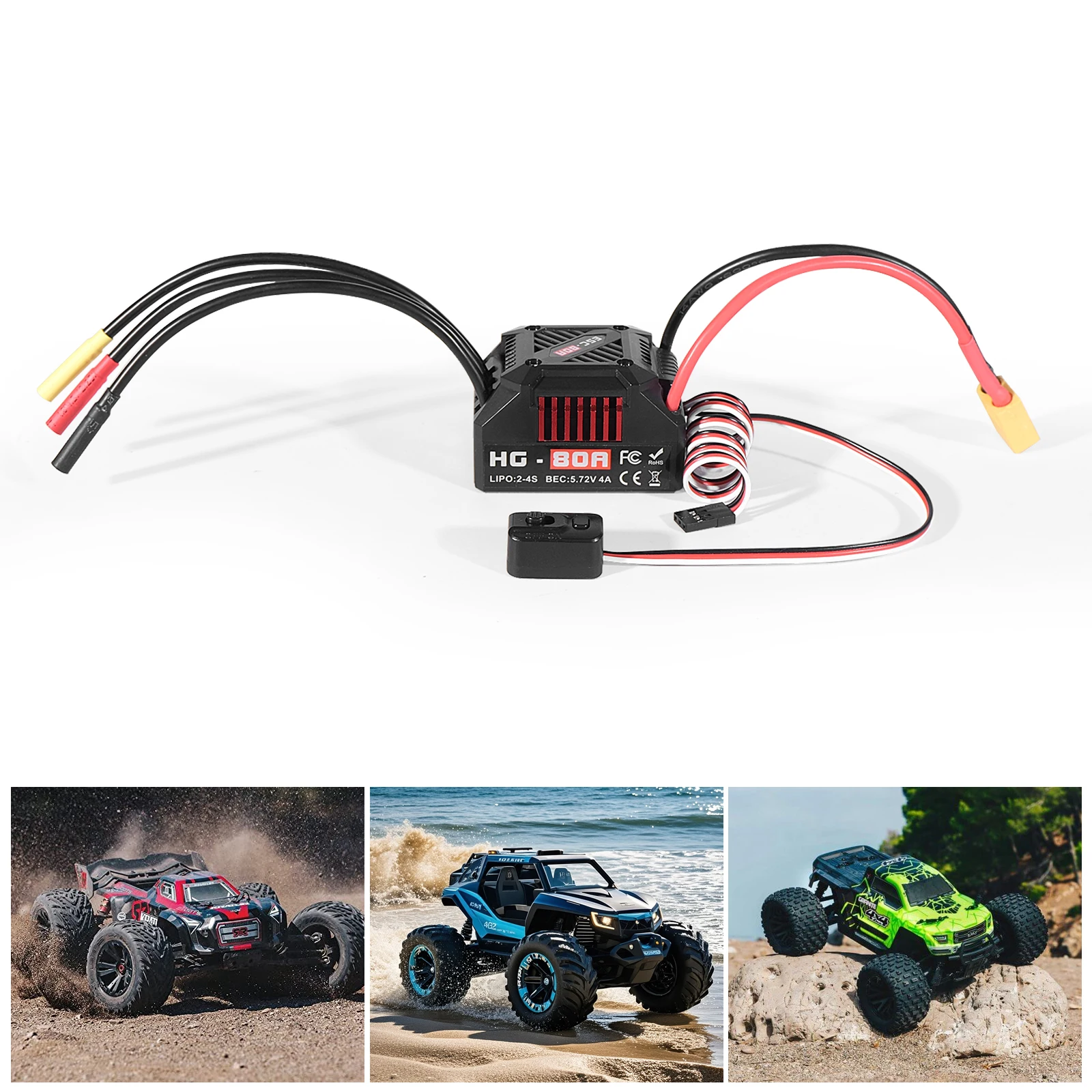

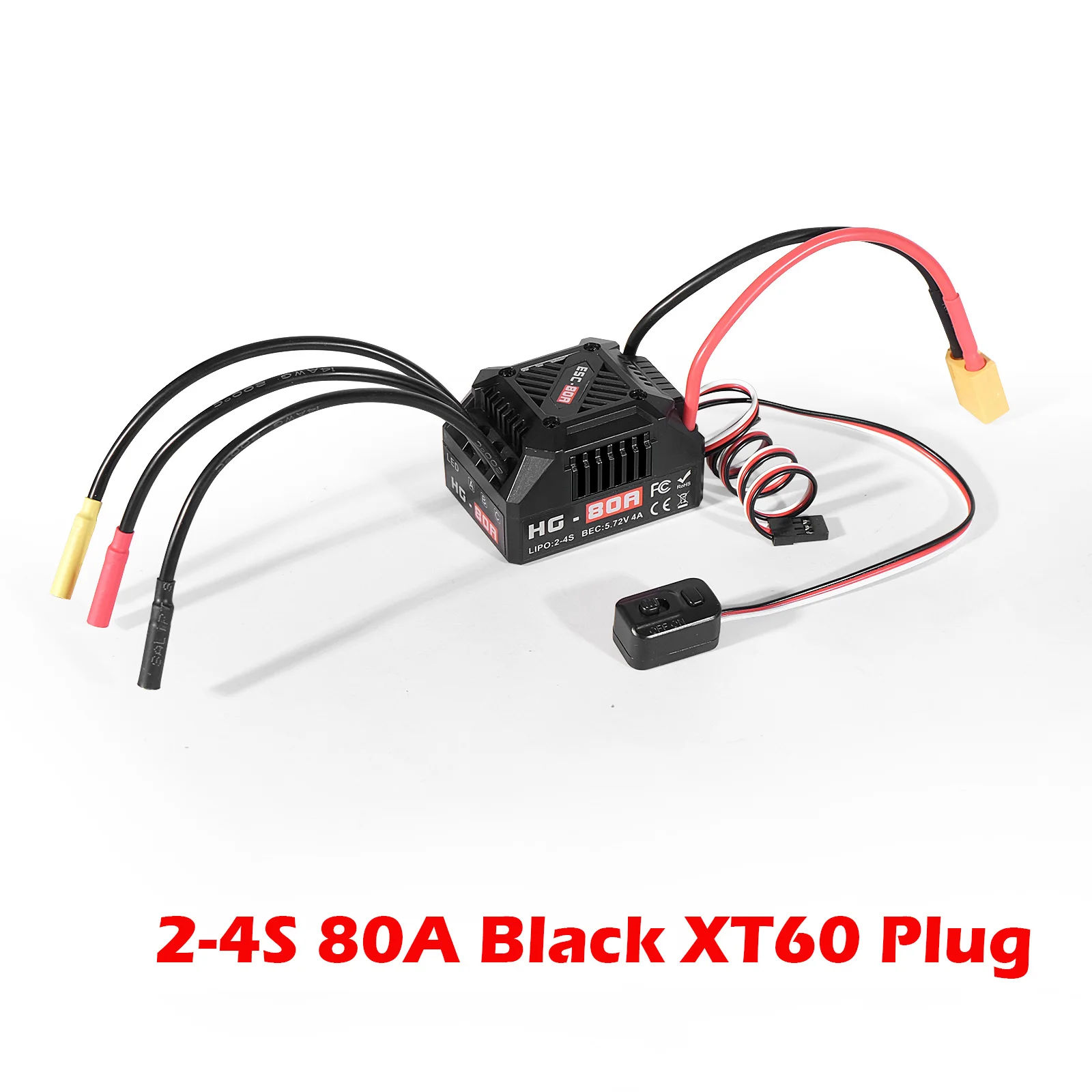

HG-80A
Features:

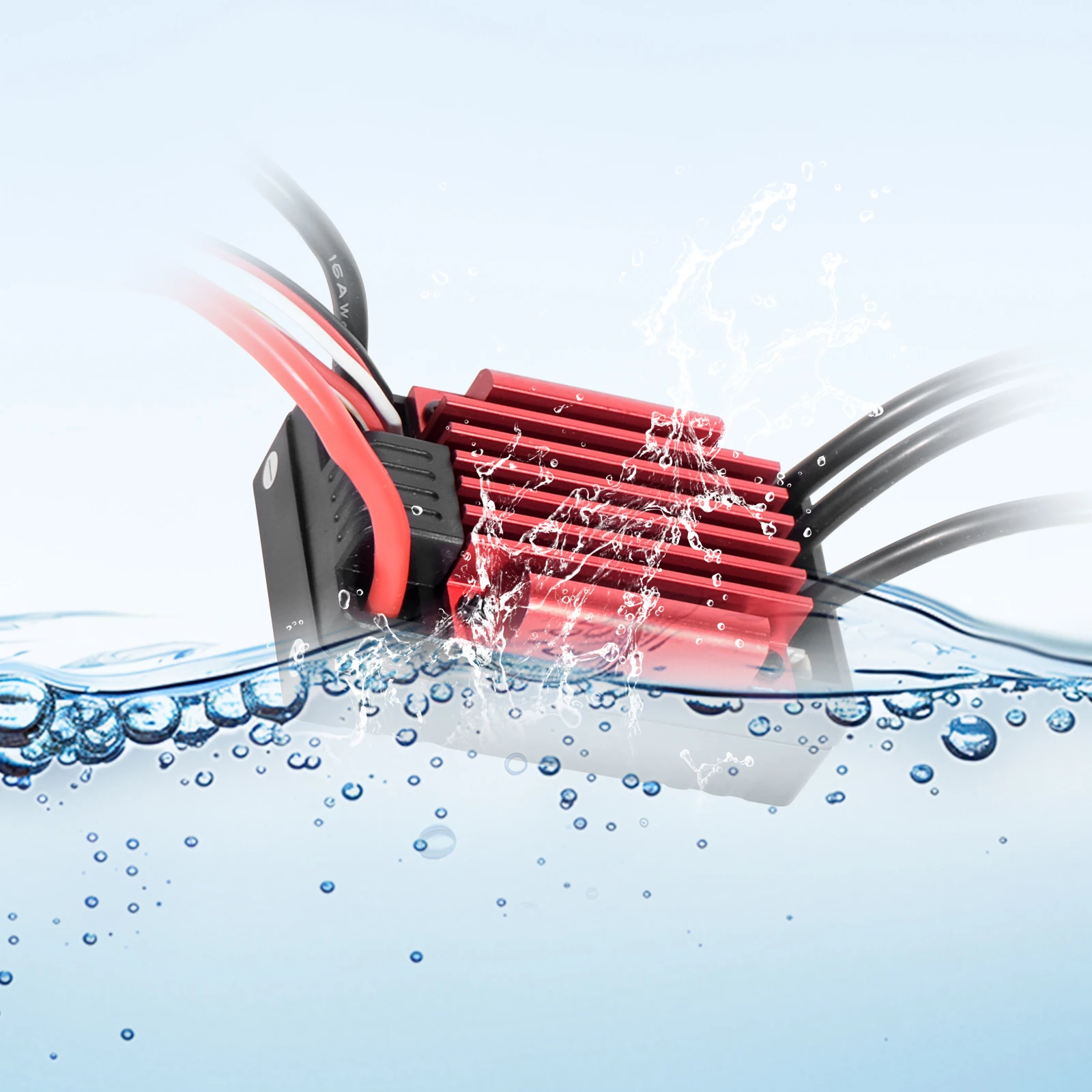

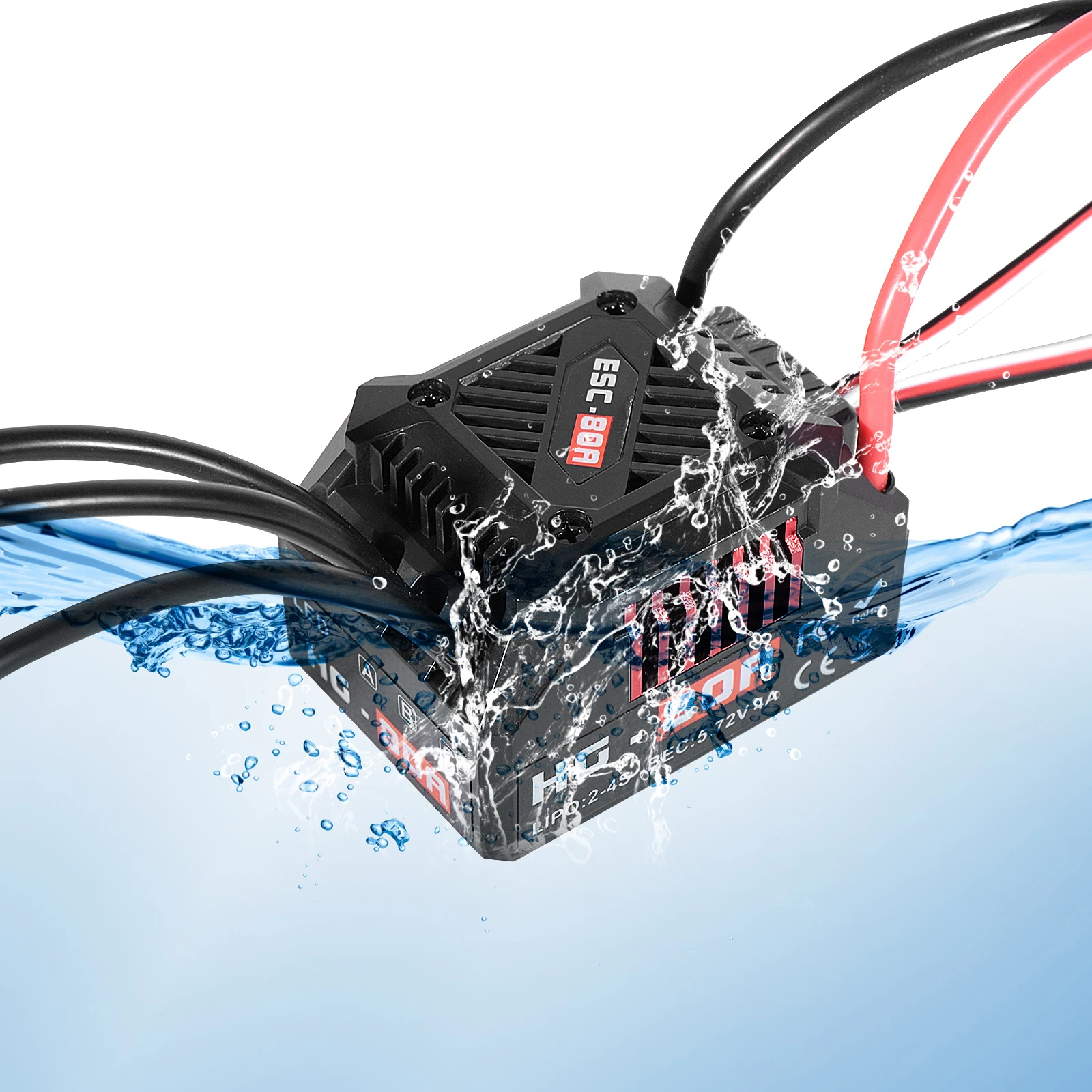

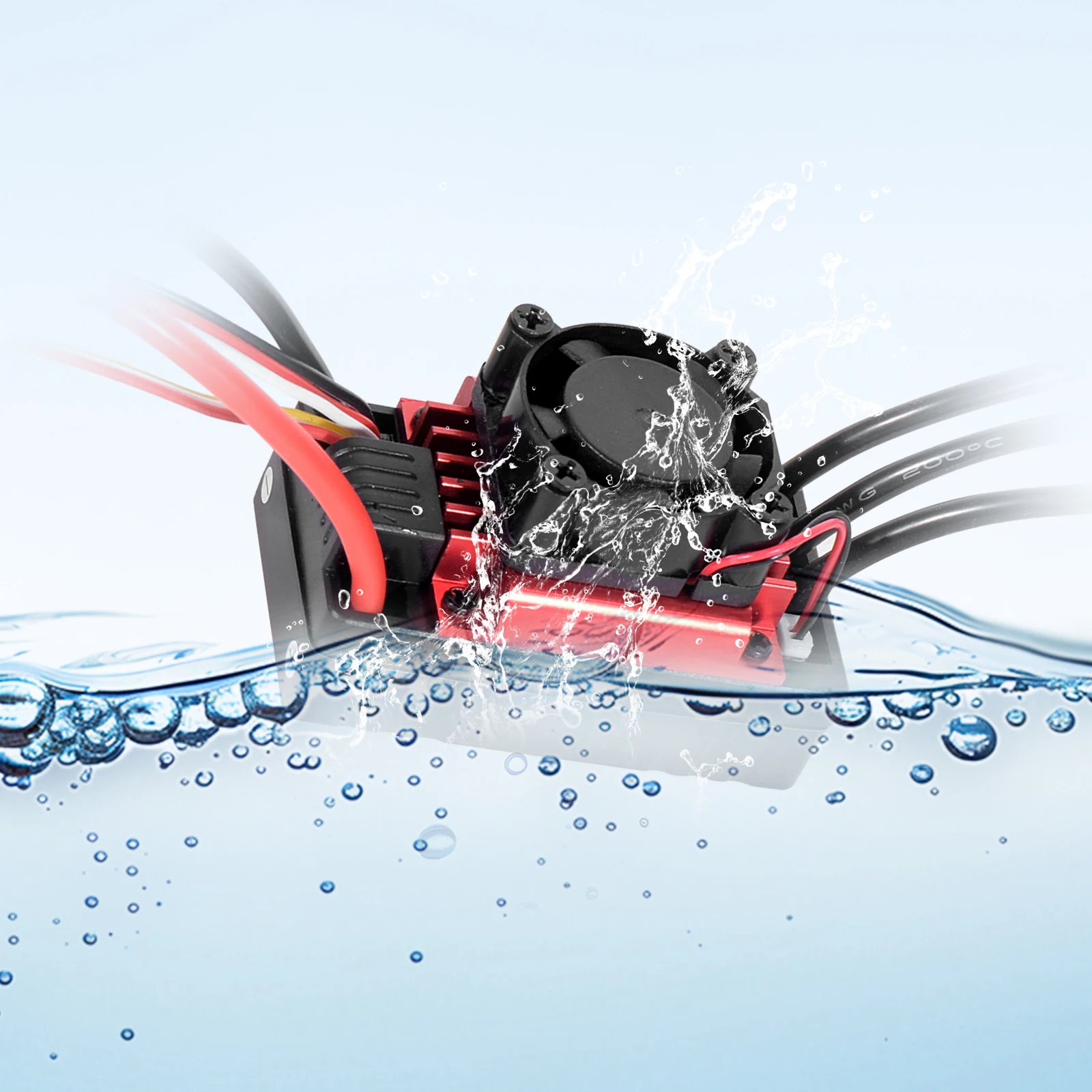

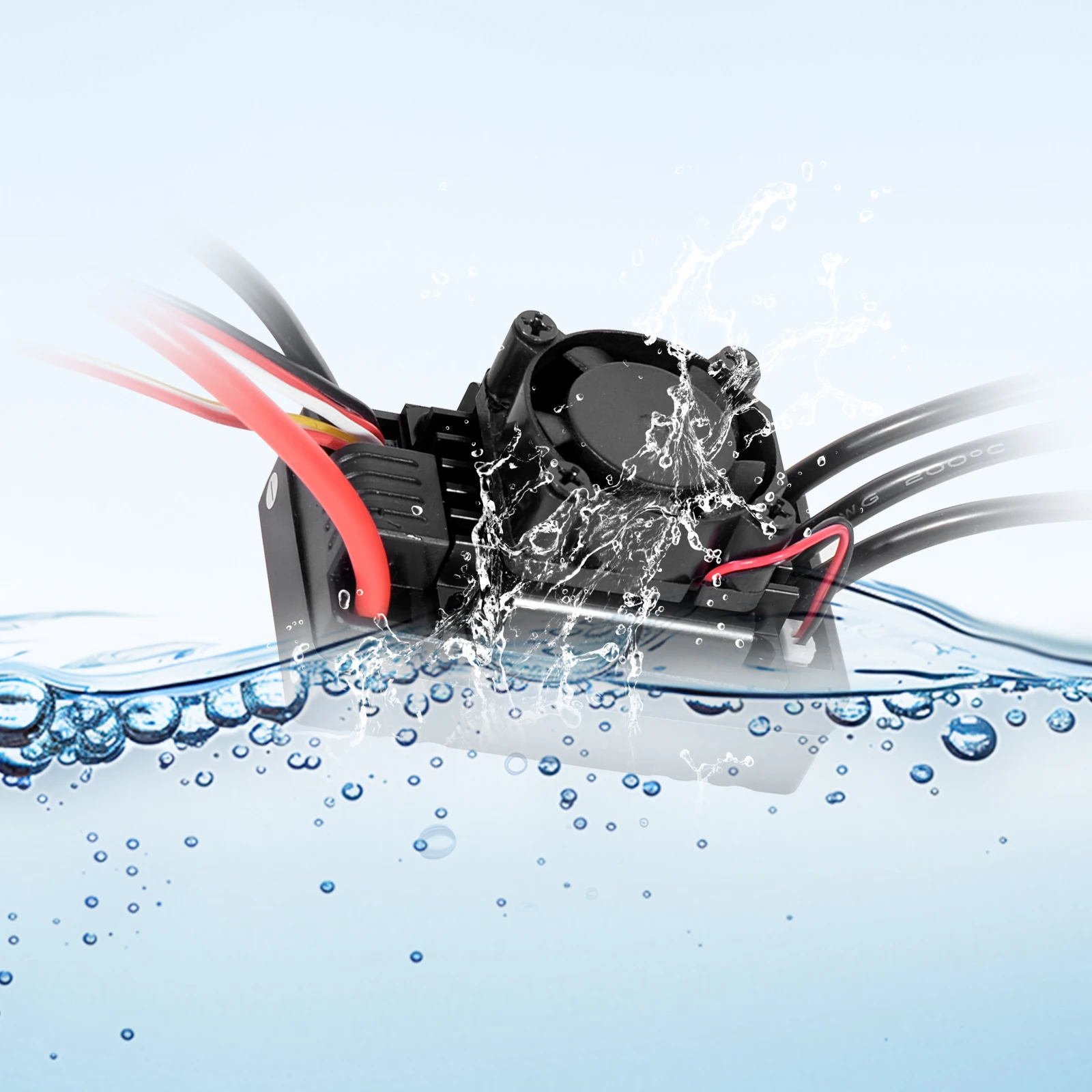

1.Water-proof and Dust-proof: The HG-80A brushless RC 80A ESC suitable to all-weather sport races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.External Programming Port: Easy to connect to the Program Card when setting the ESC
3.Multiple Protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection
4.Performance: Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment; 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks

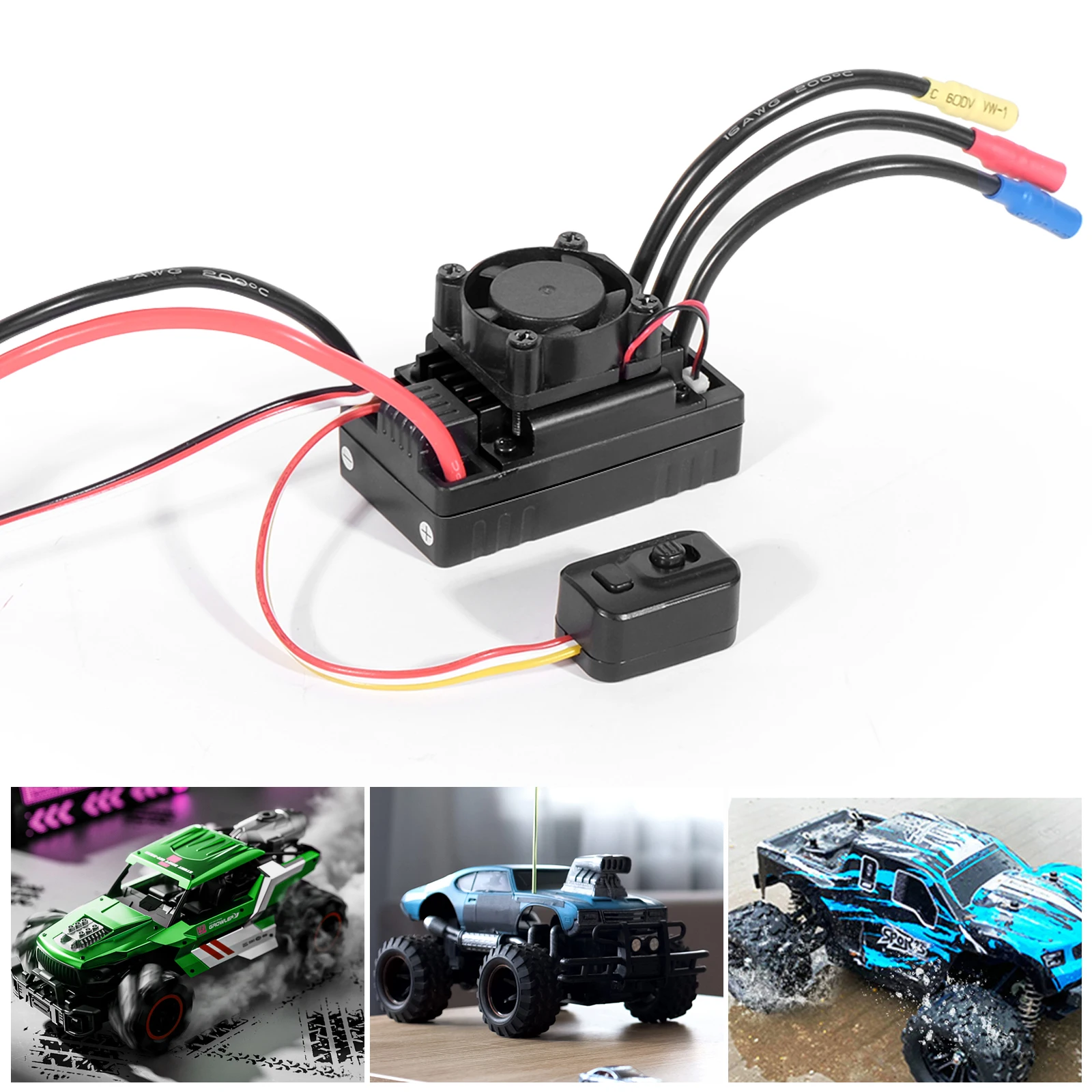

5.Application: This HG-80A brushless ESC suitable for 1/10th short course trucks, buggies, trucks, and monster trucks.The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this RC Brushless ESC compatible with various servos
Tips: Compatible with optional device – the portable Digital LED Program Card which is especially convenient for outdoor use.If necessary, you can consult our customer service to recommend for you.
Description:

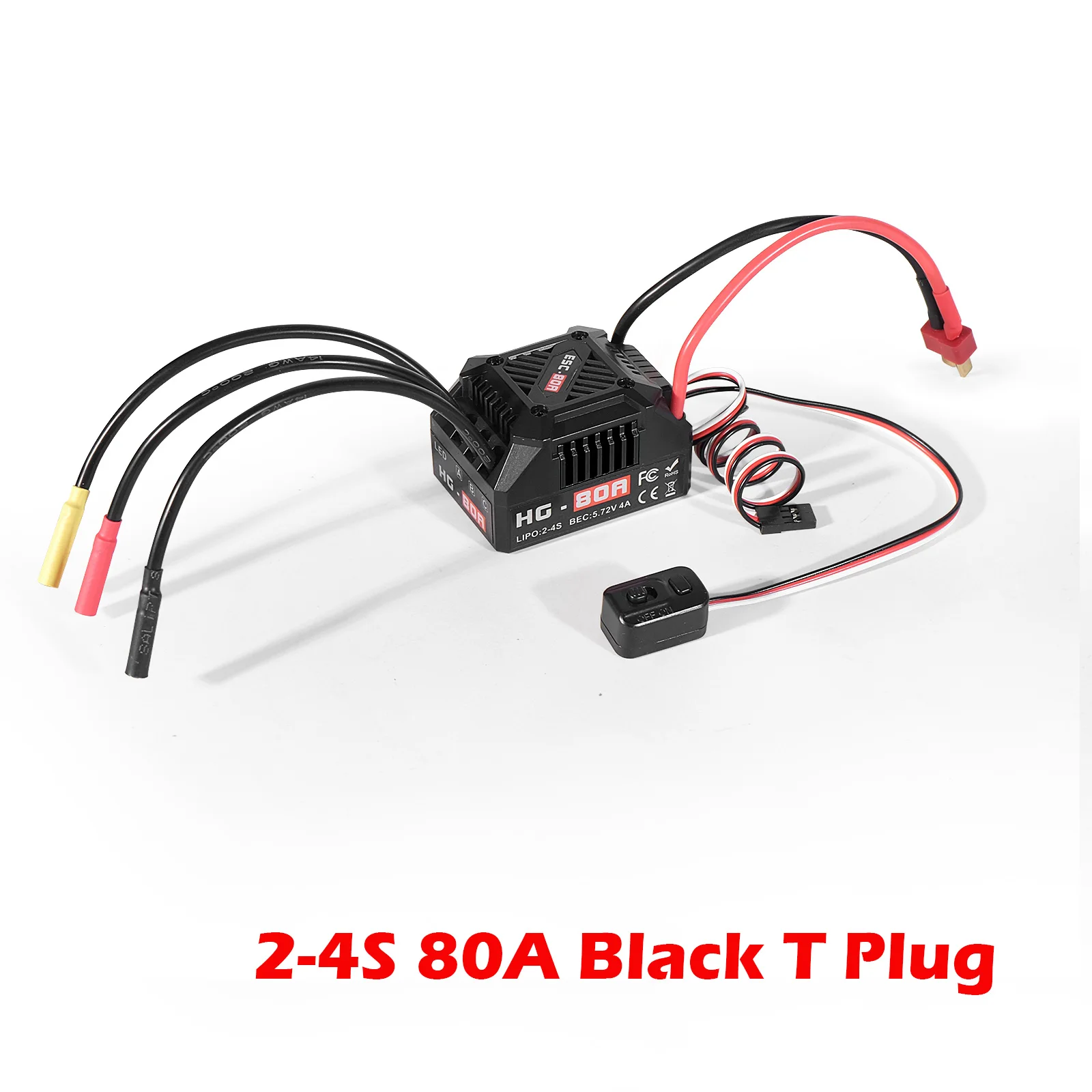

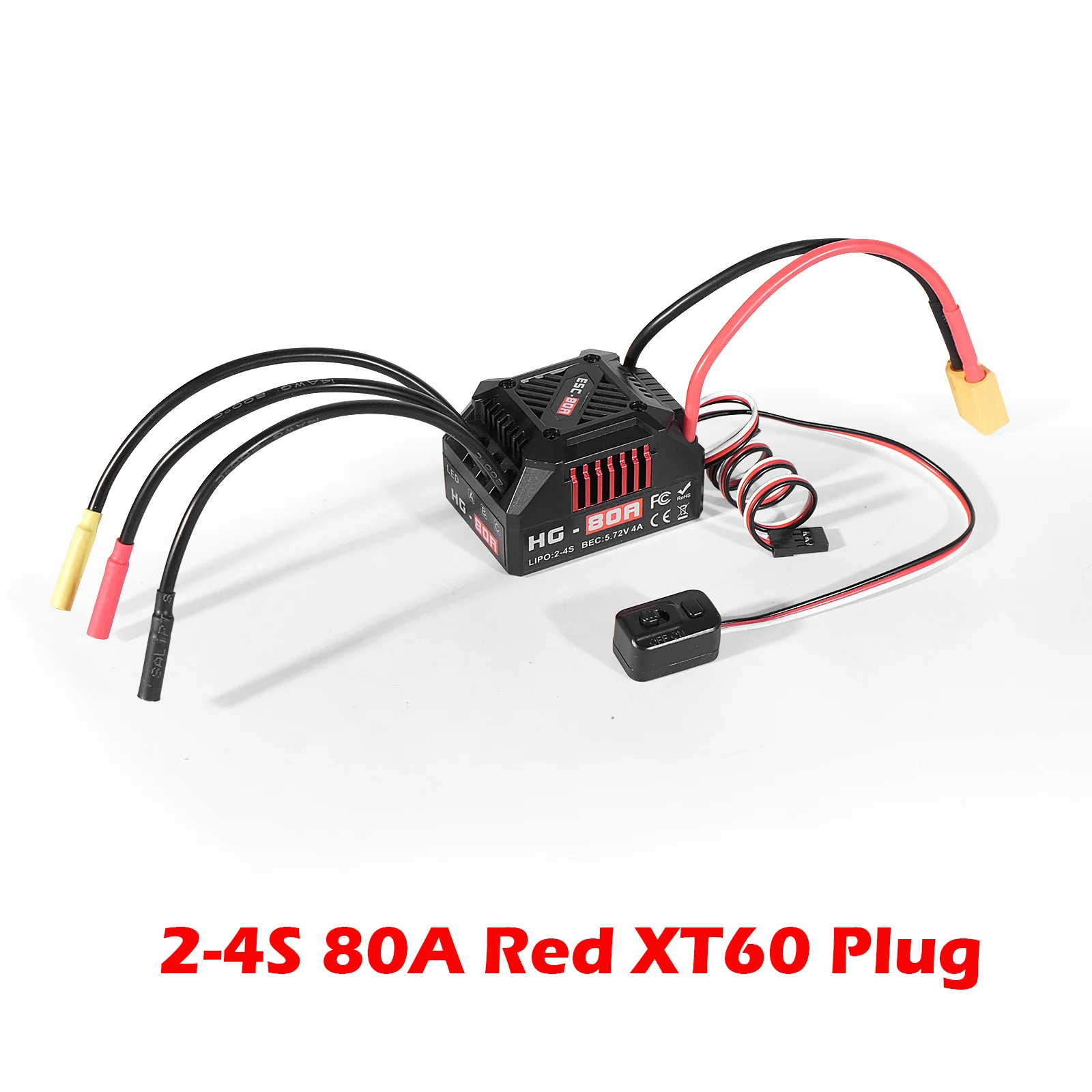

HG-80A RC sensorless brushless waterproof 80A ESC suitable for 1/10 RC ,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players
Specifications:
Brand Name: SENSORLESS BRUSHLESS ESC FOR CAR
Model: HG-80A
Cont. Current: Fwd. 80A / Rev. 80A
Peak Current: Fwd. 240A / Rev. 240A
Resistance: 0.0007Ω
Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster
Battery: 2-4S Lipo
Motor Limit:
For 2S Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<8000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<6000
For 4S Lipo
On-road: 3656-size or smaller motor with
the KV<52000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<5200.
BEC Output: 5.72V/4A
Cooling Fan:
From battery directly without regulating
The stock fan can work with 2S and 4S Lipo
Weight: 110g

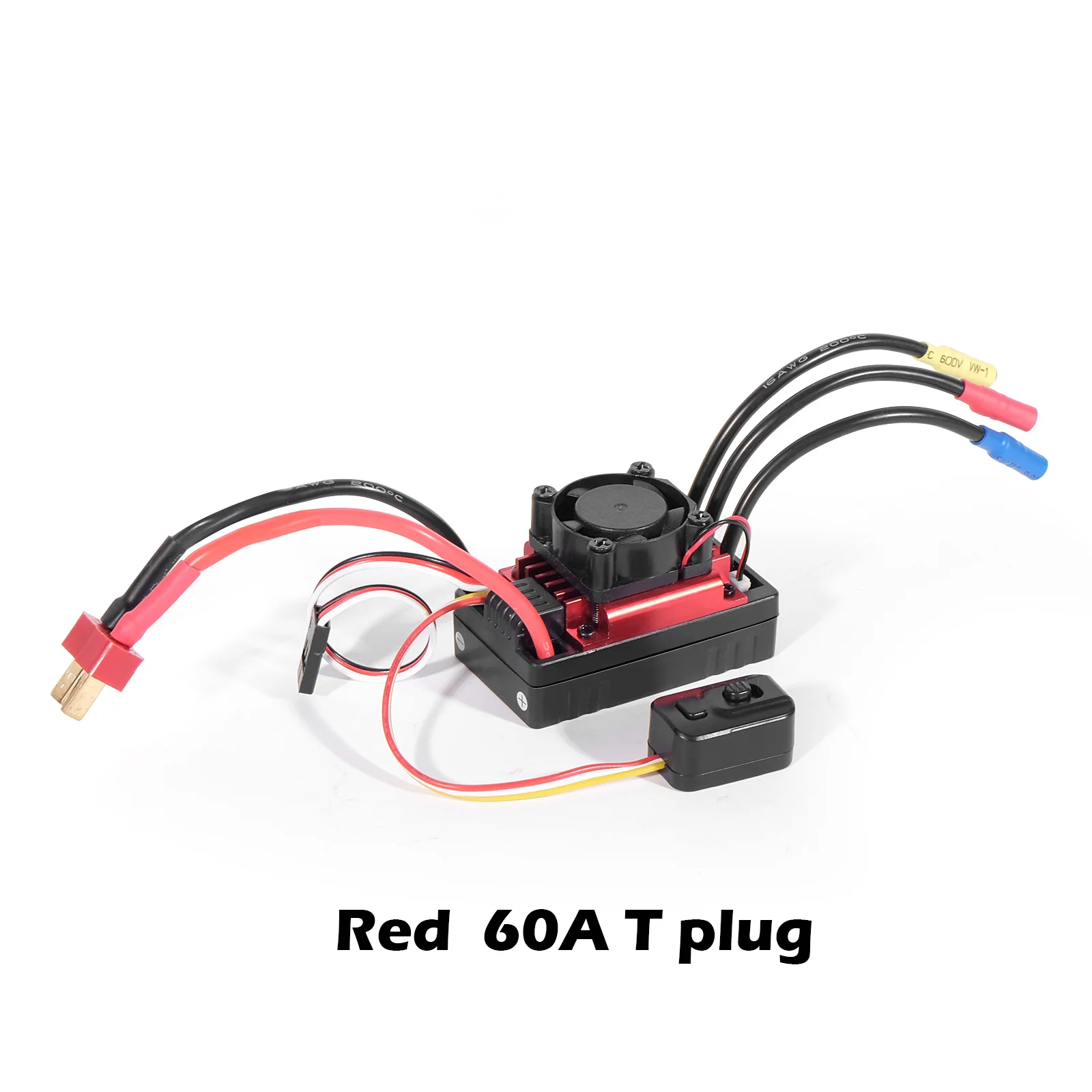

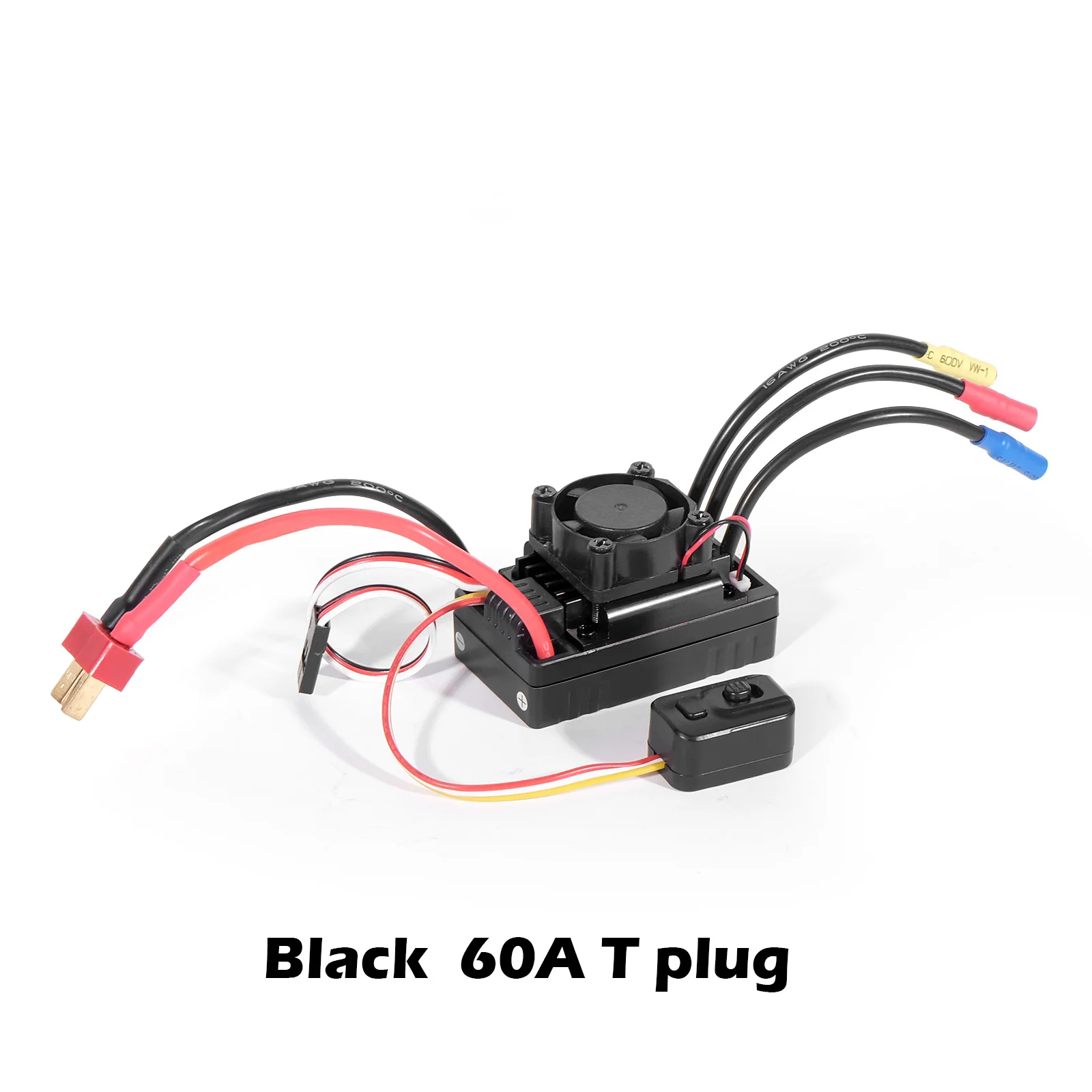

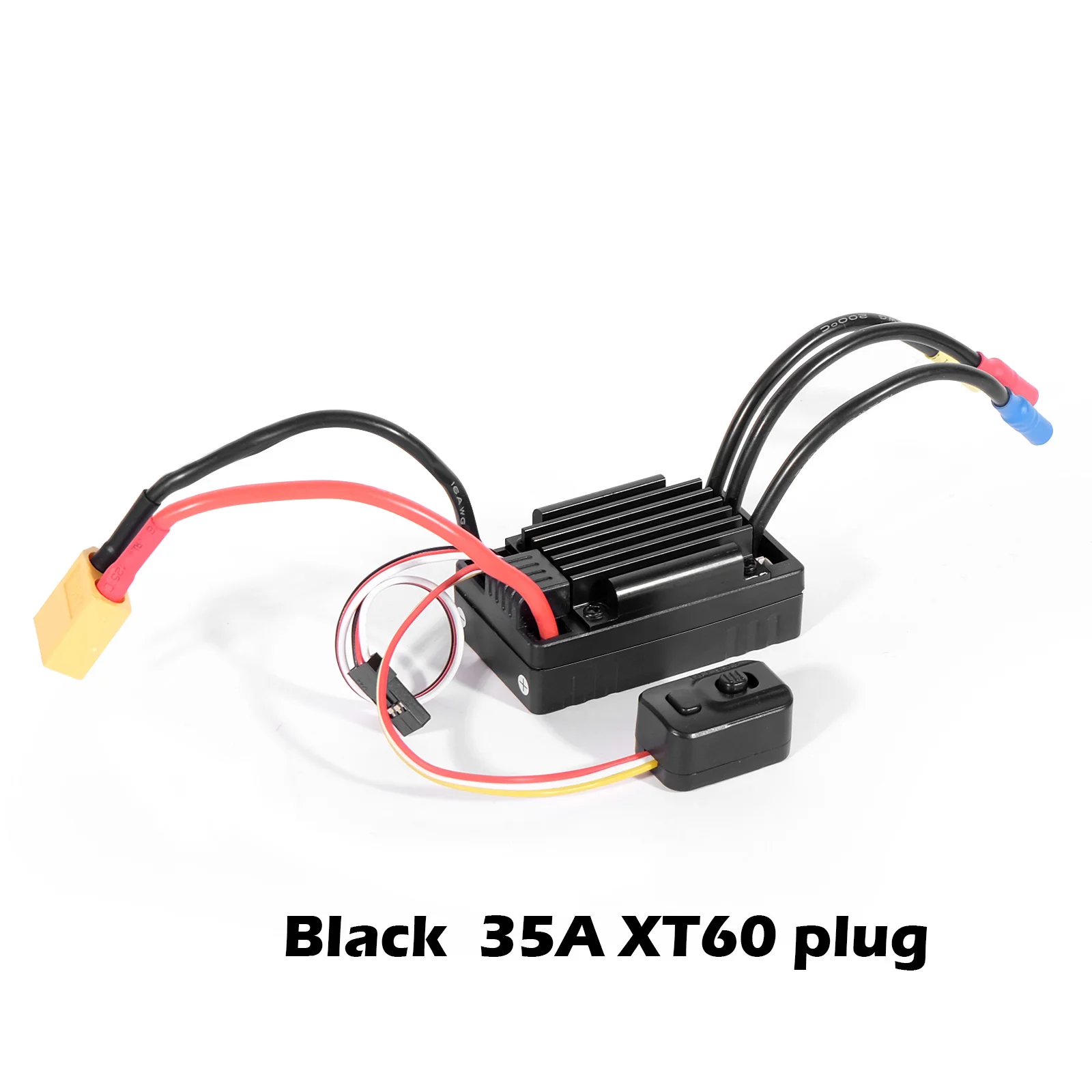

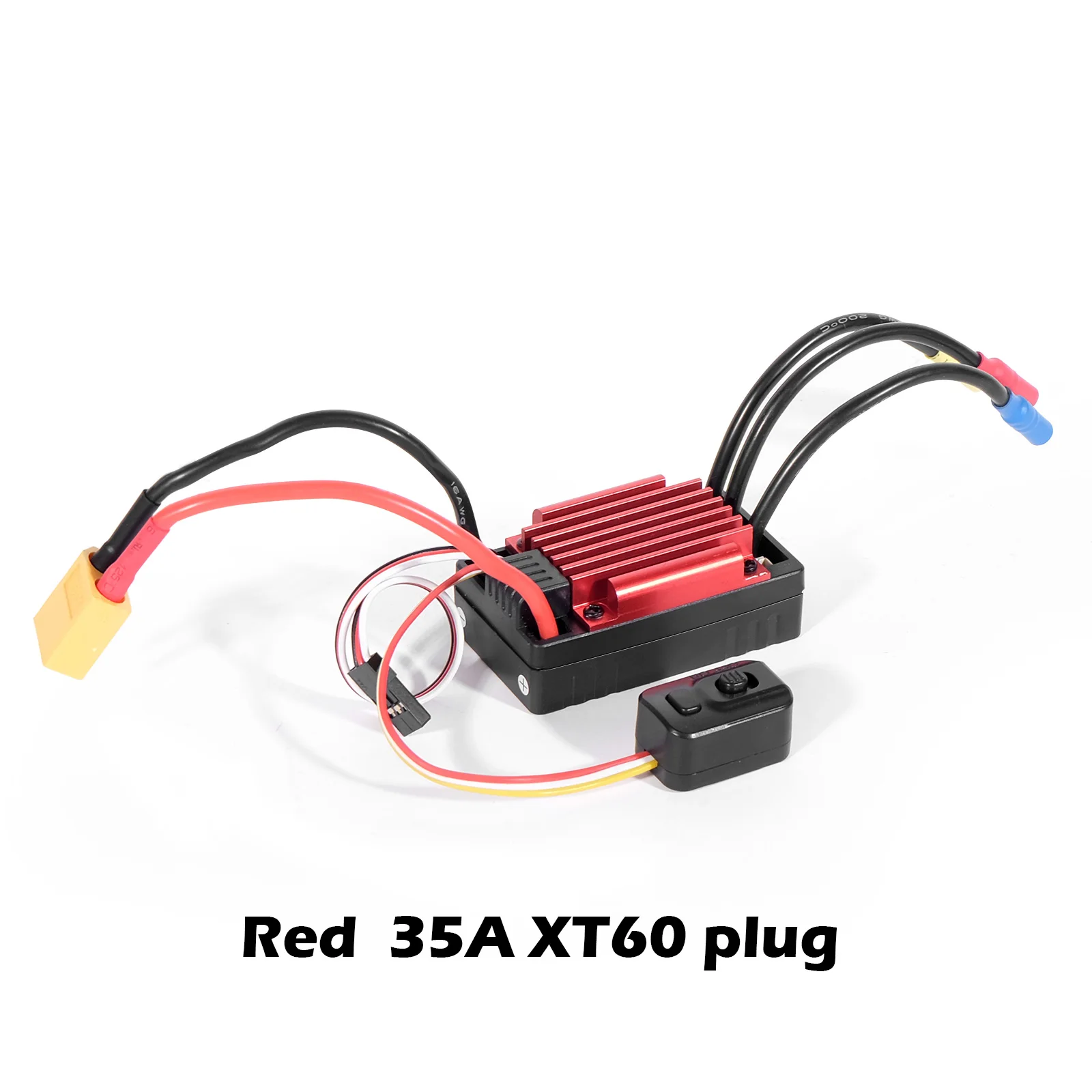

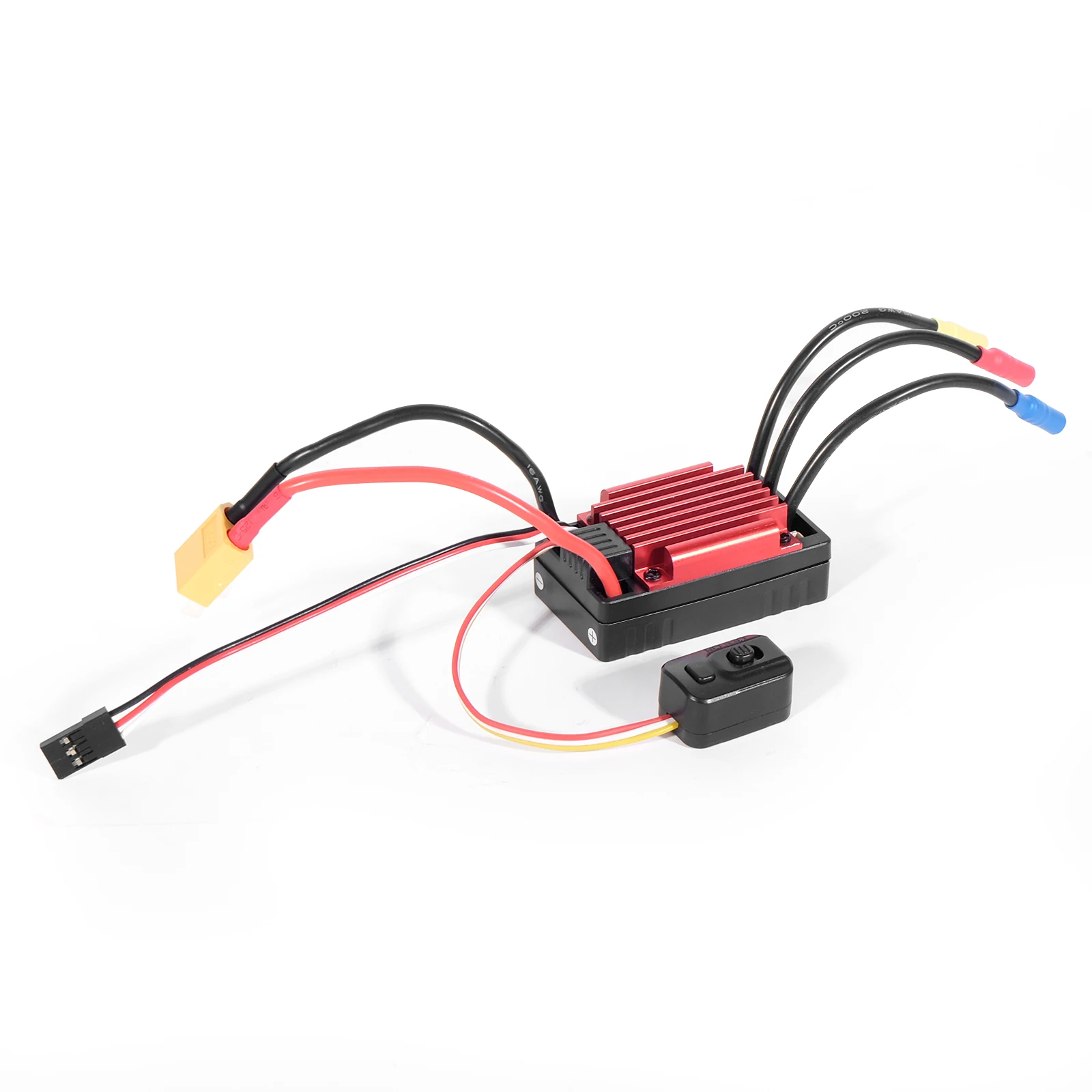

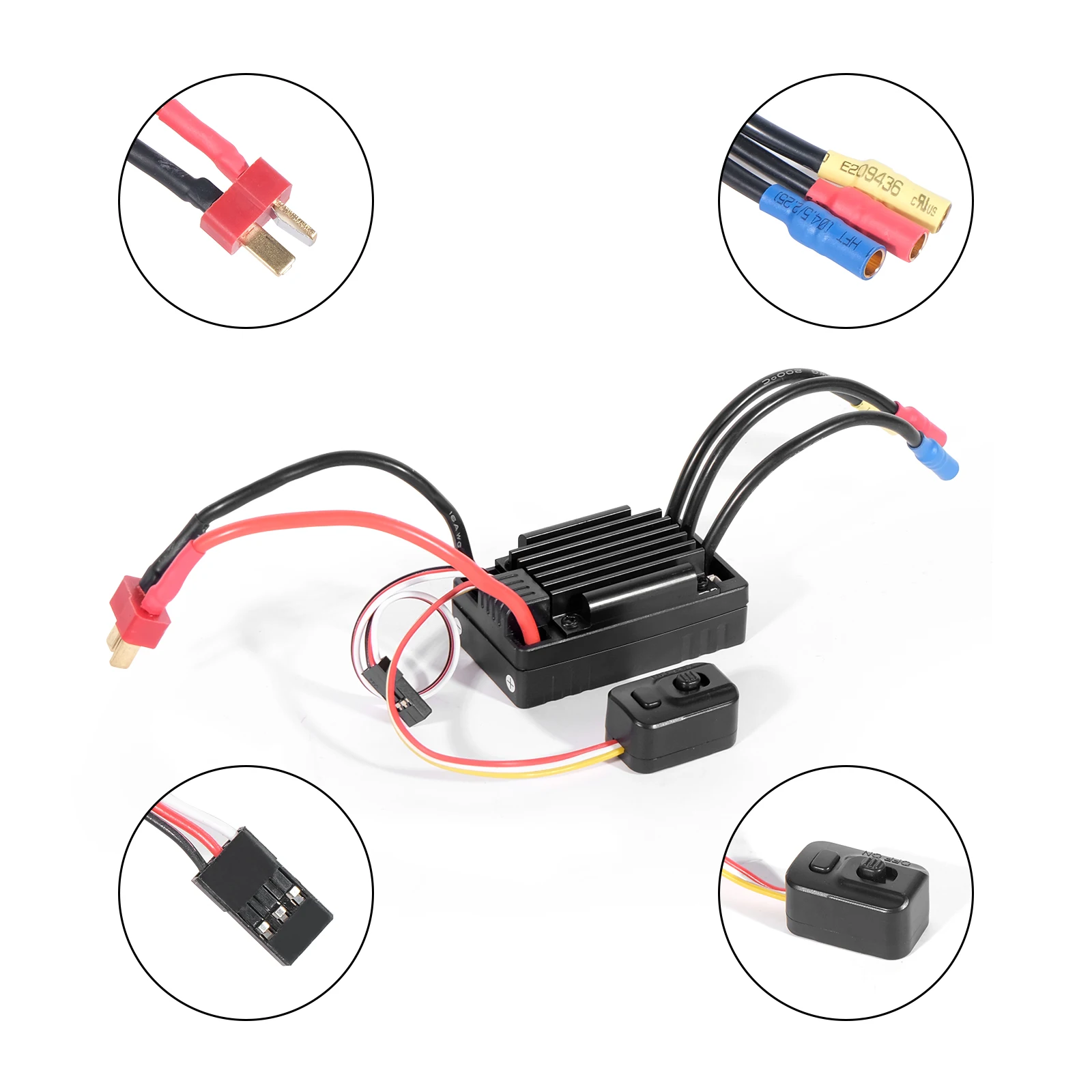

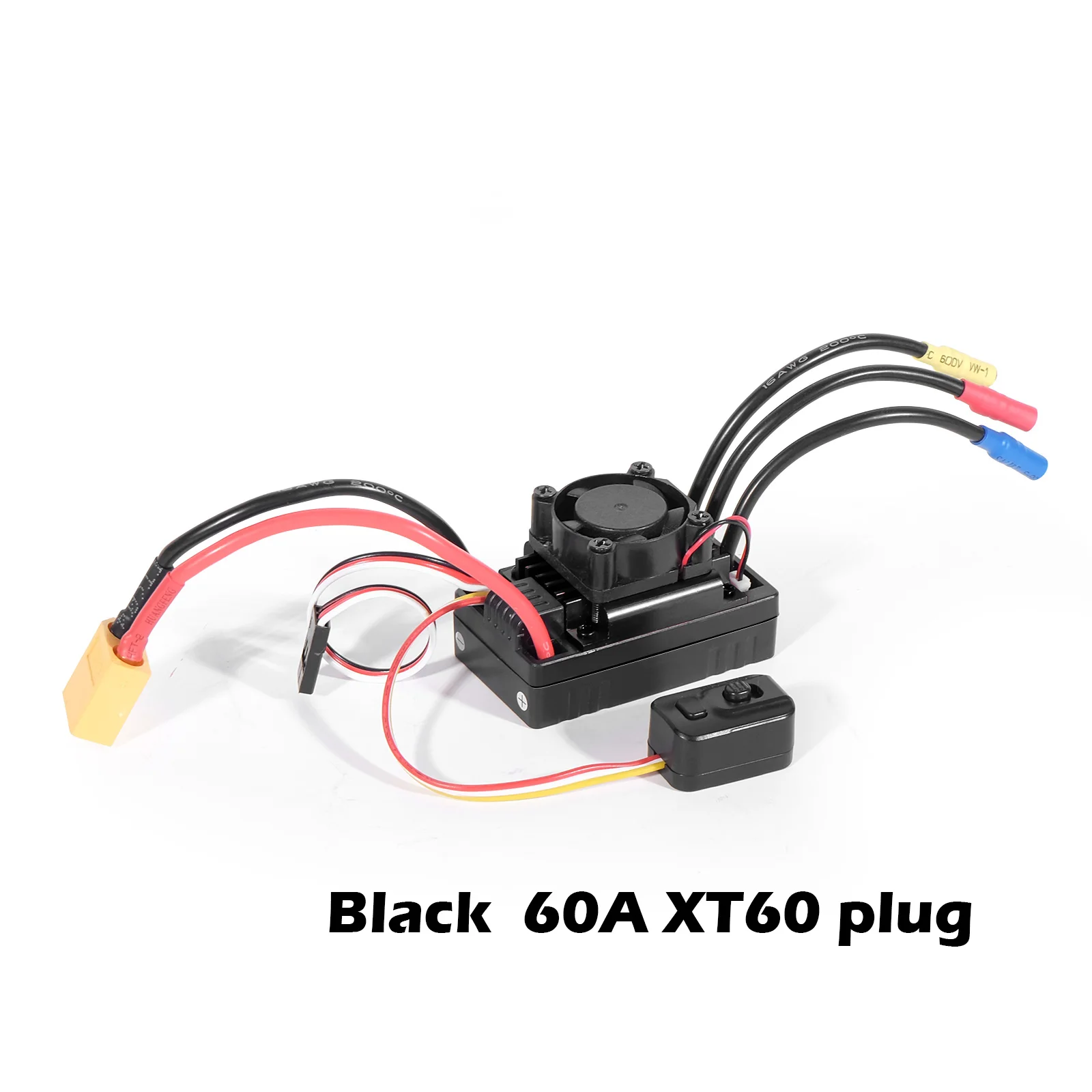

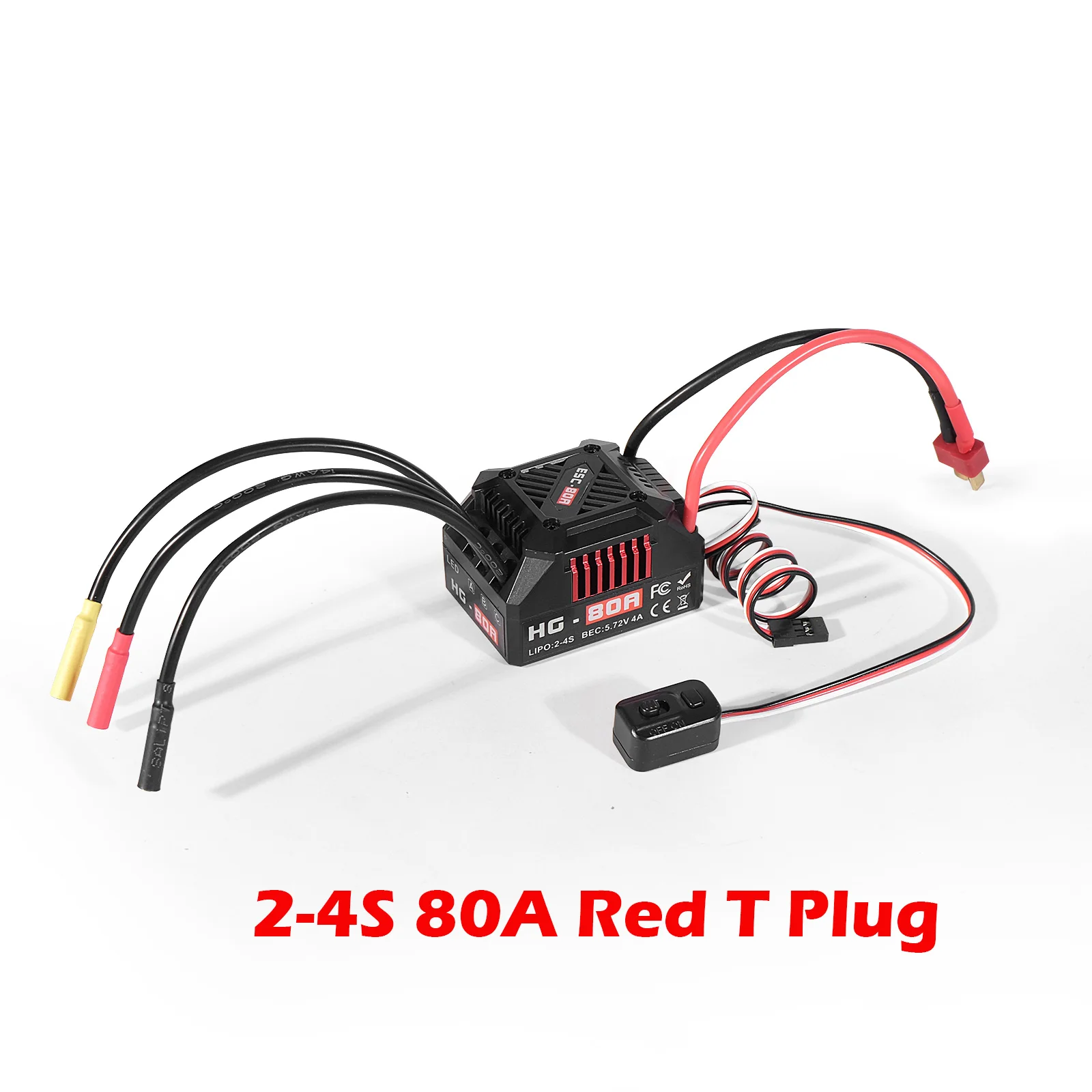

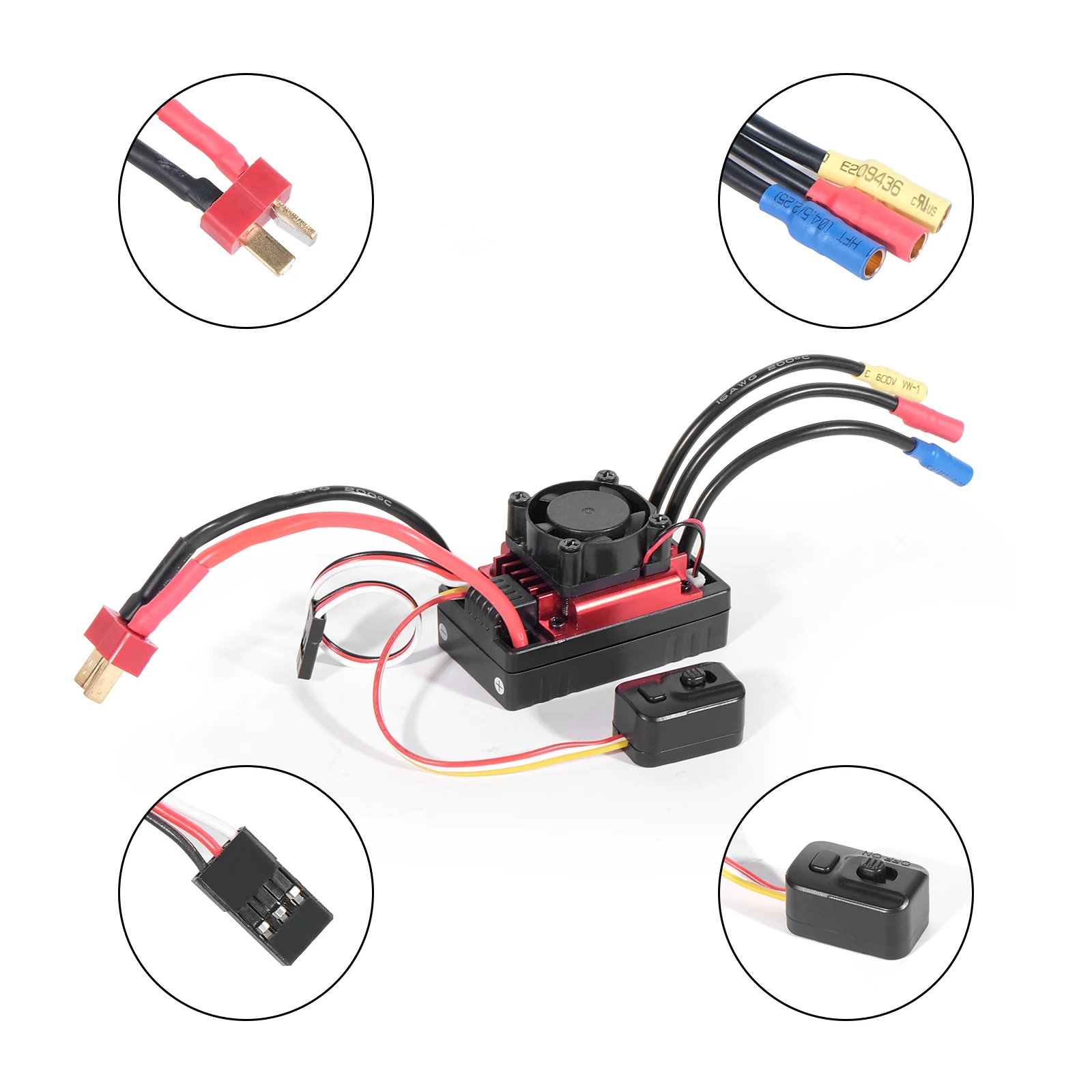

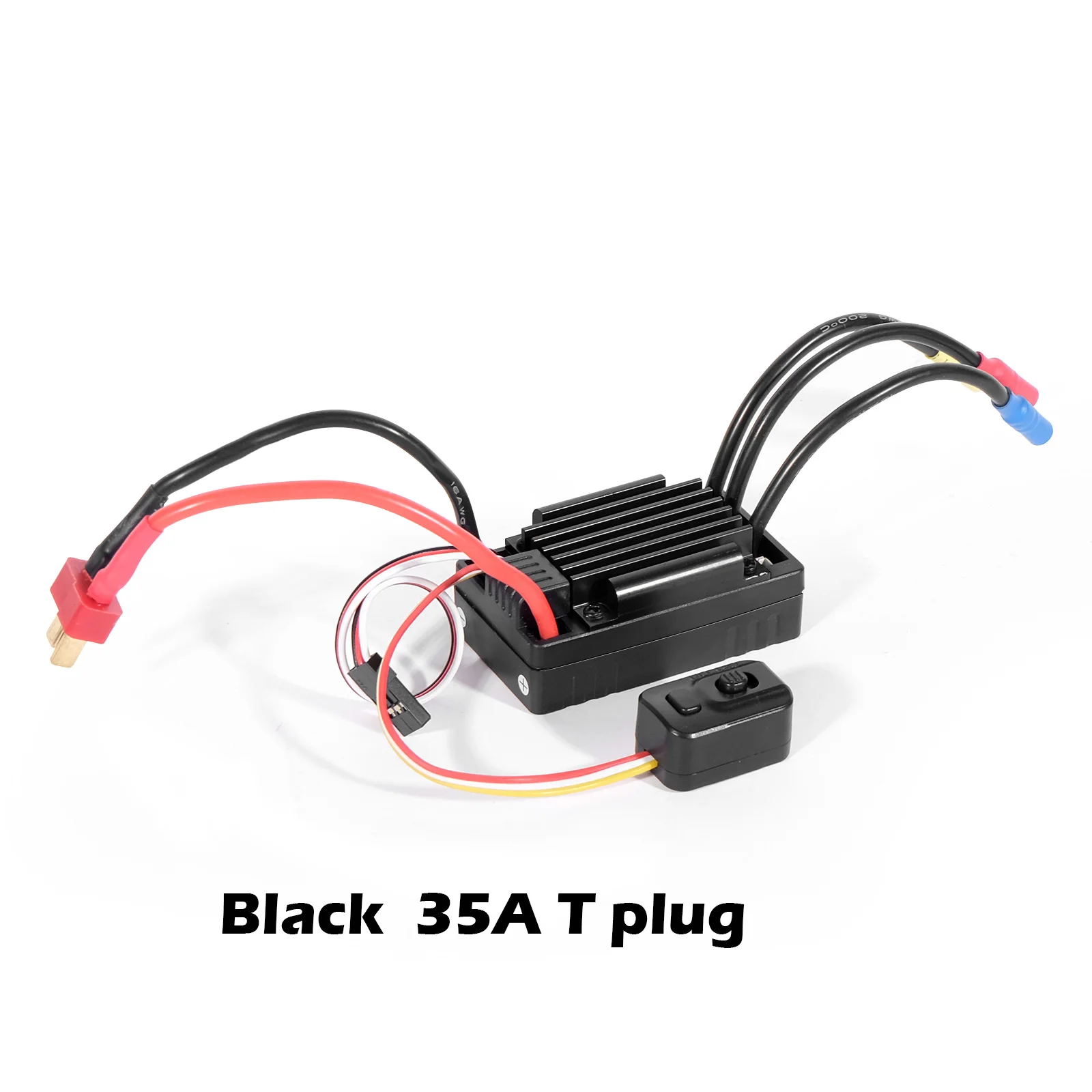

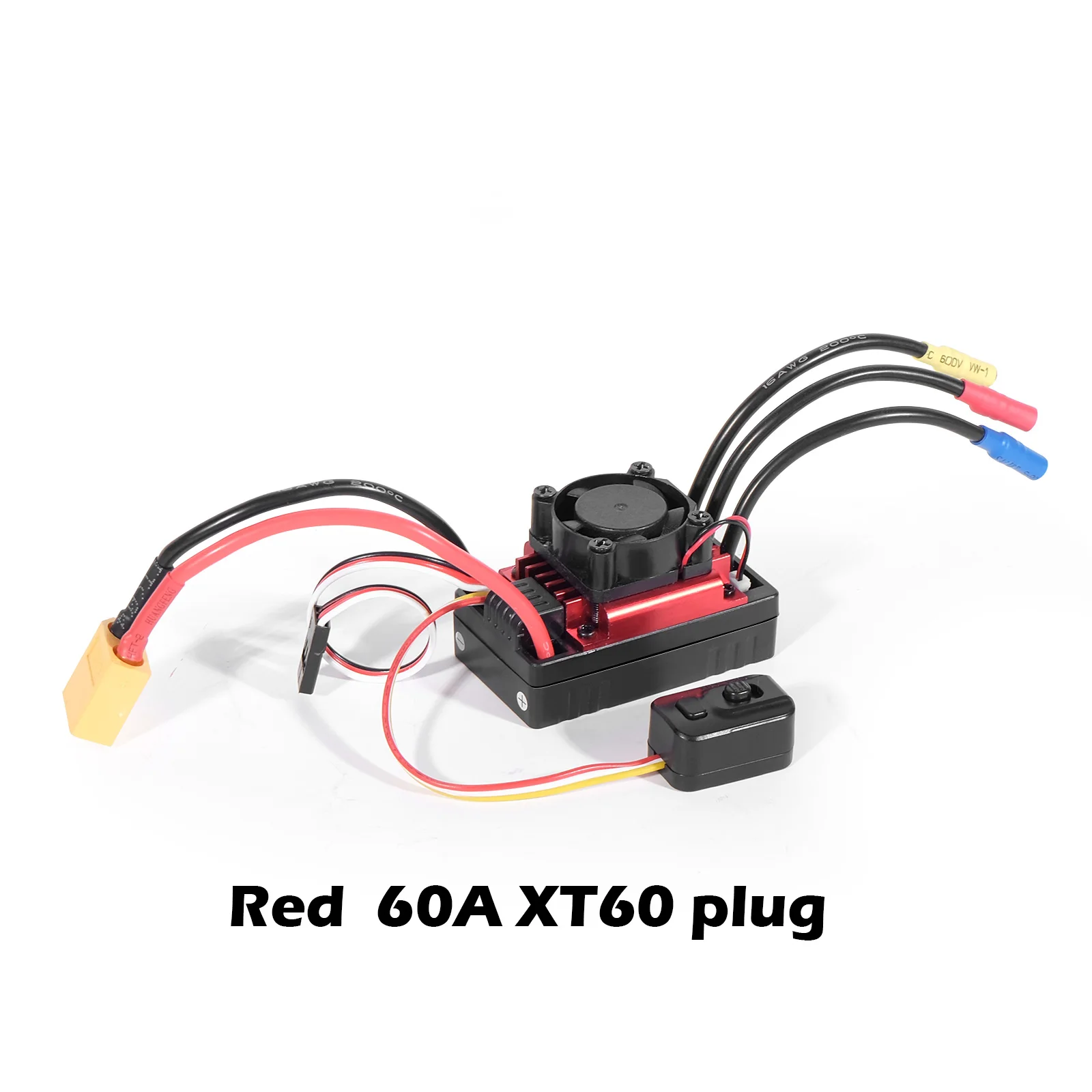

| Color | 35A Red XT60, 80A Red XT60, 35A Red T, 80A Red T, 80A Black XT60, 80A Black T, 60A Black XT60, 60A Black T, 60A Red XT60, 60A Red T, 35A Black XT60, 35A Black T |
|---|
