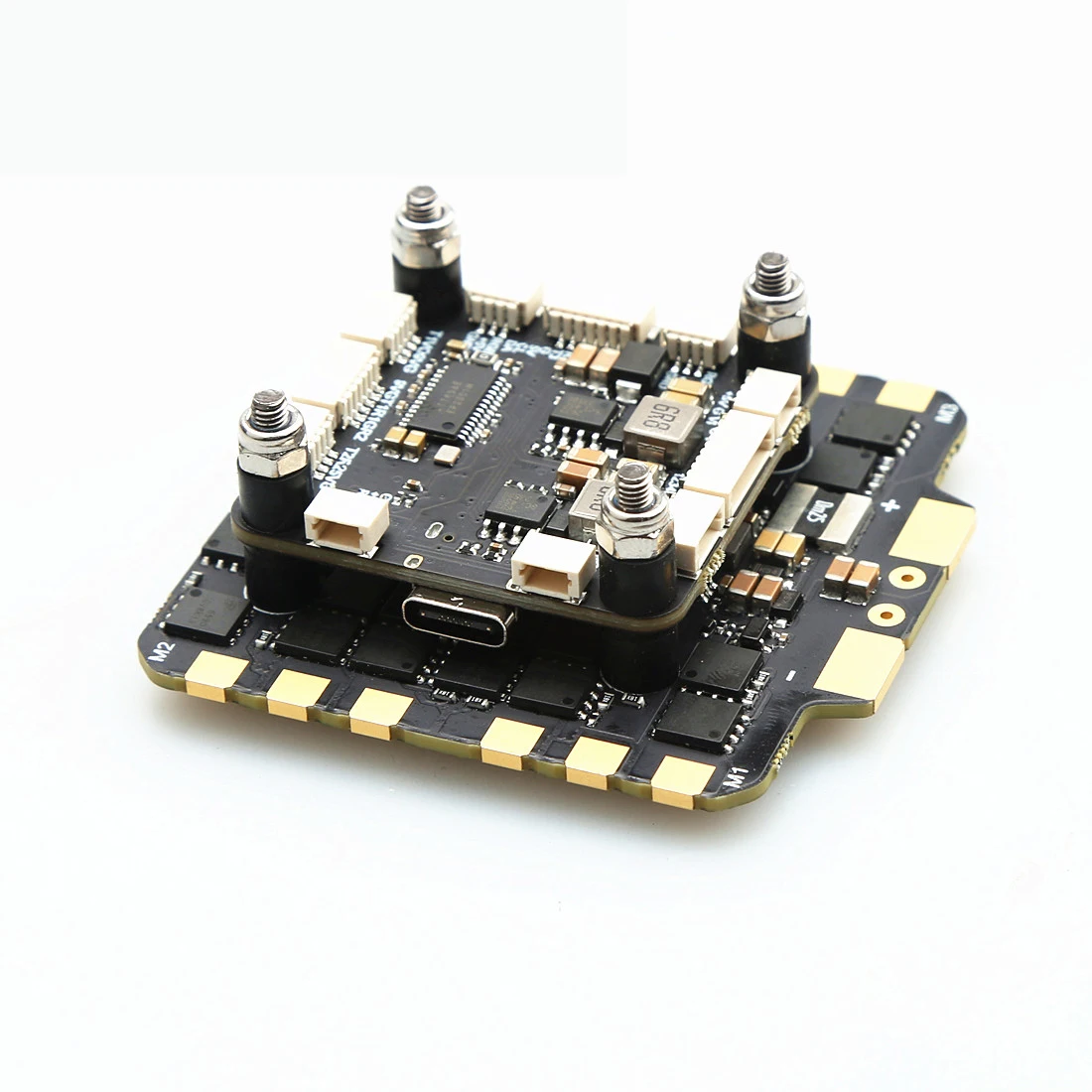

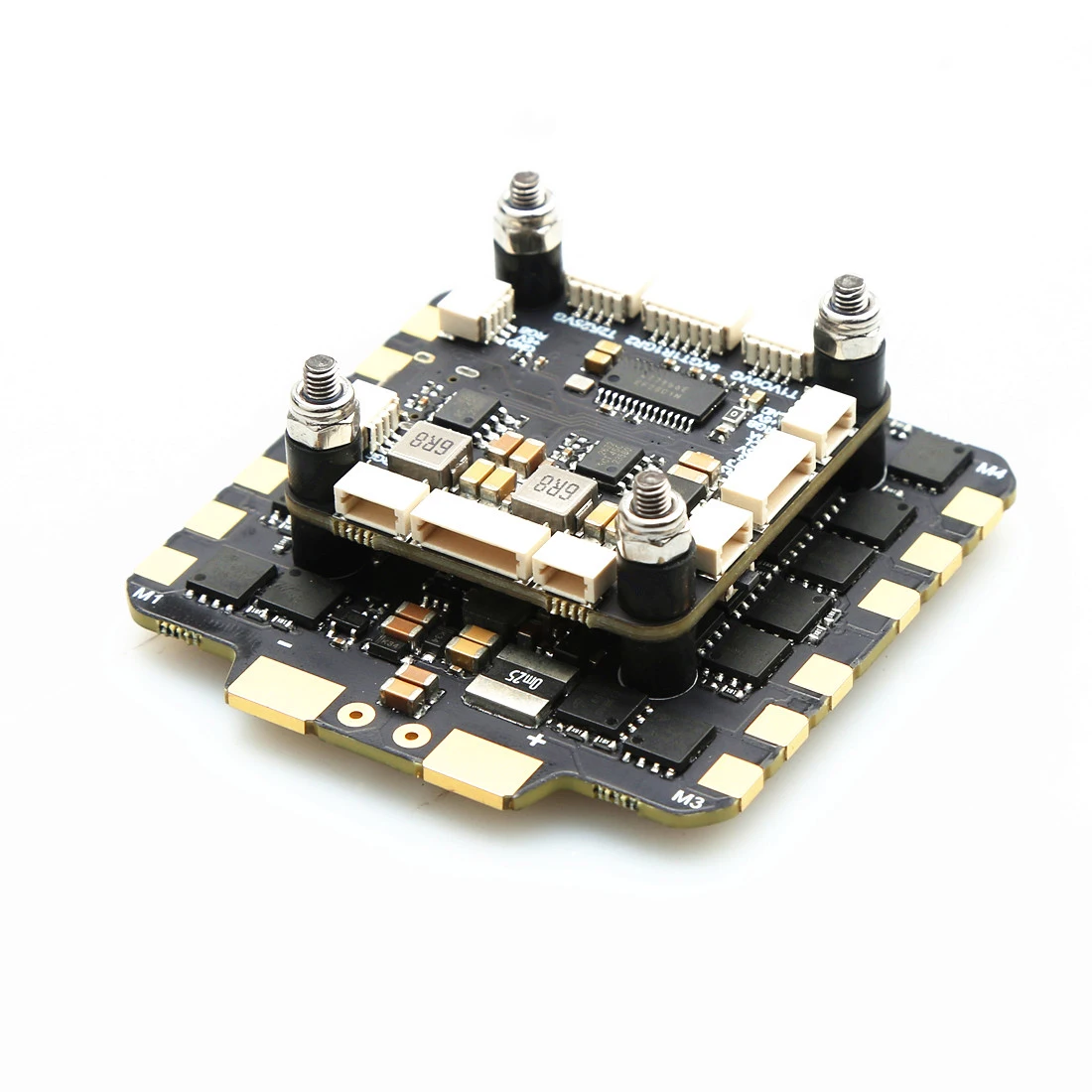

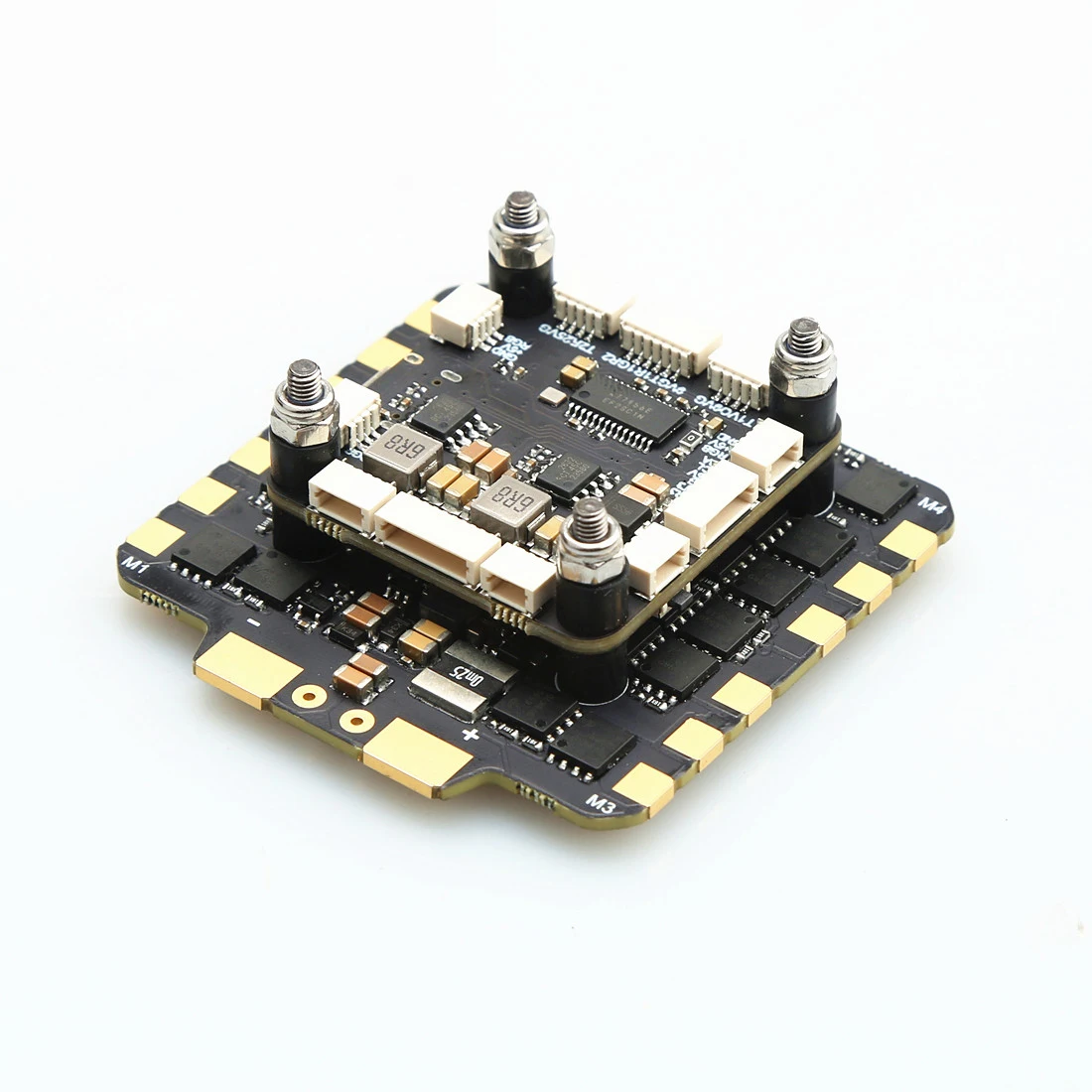

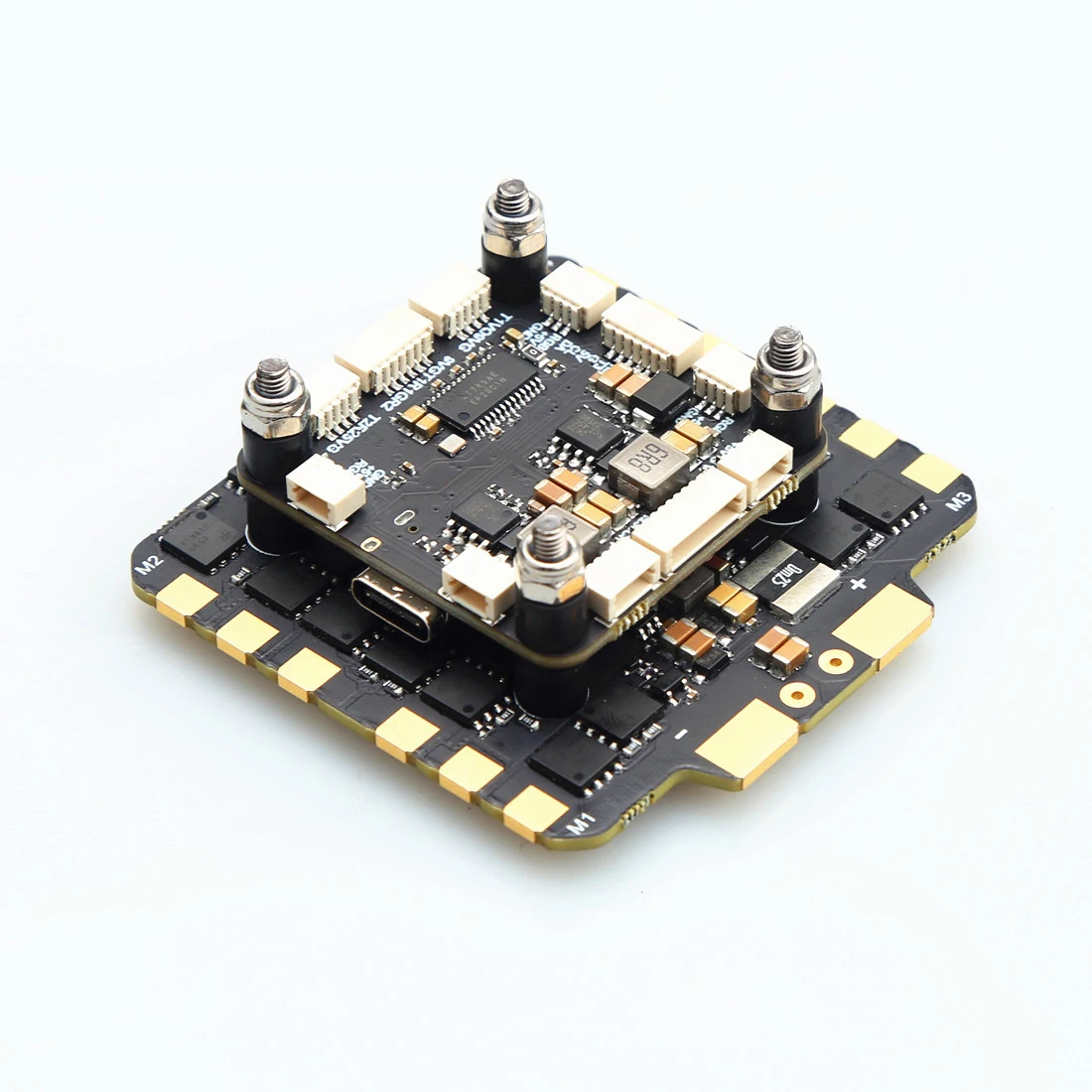

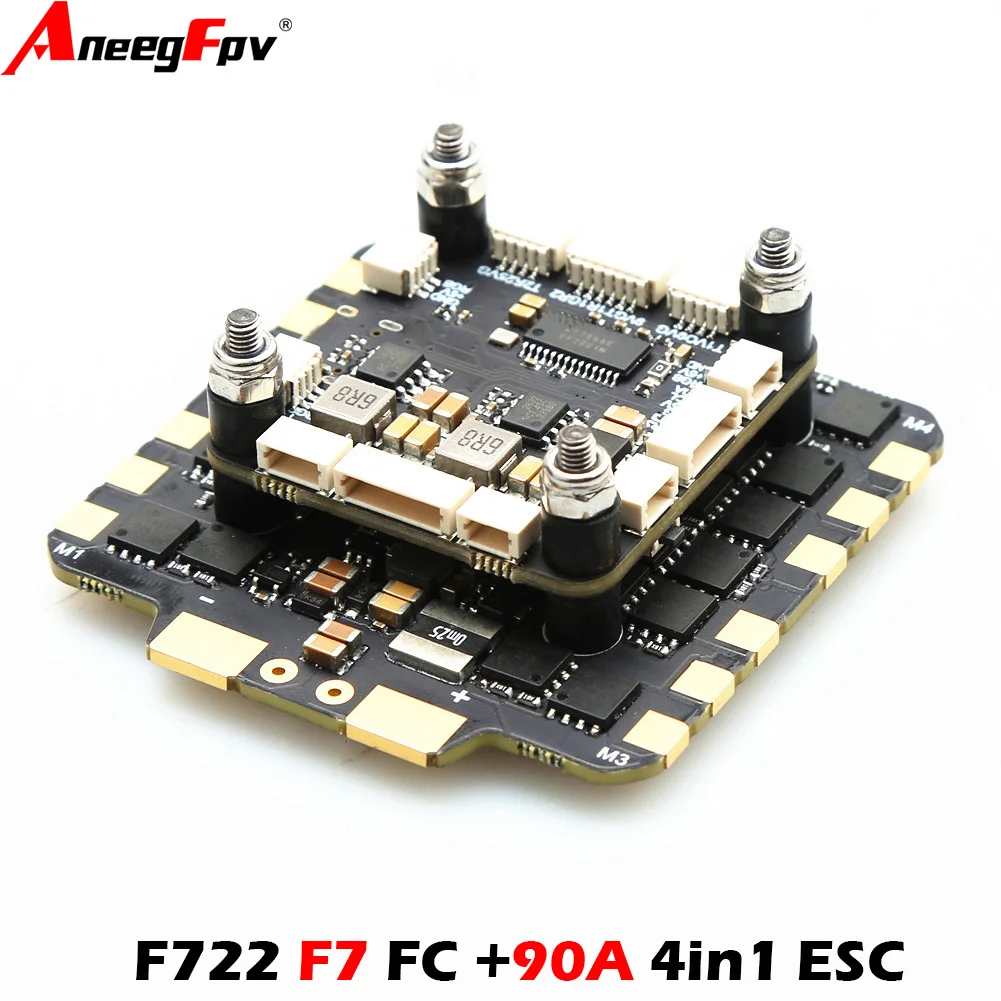

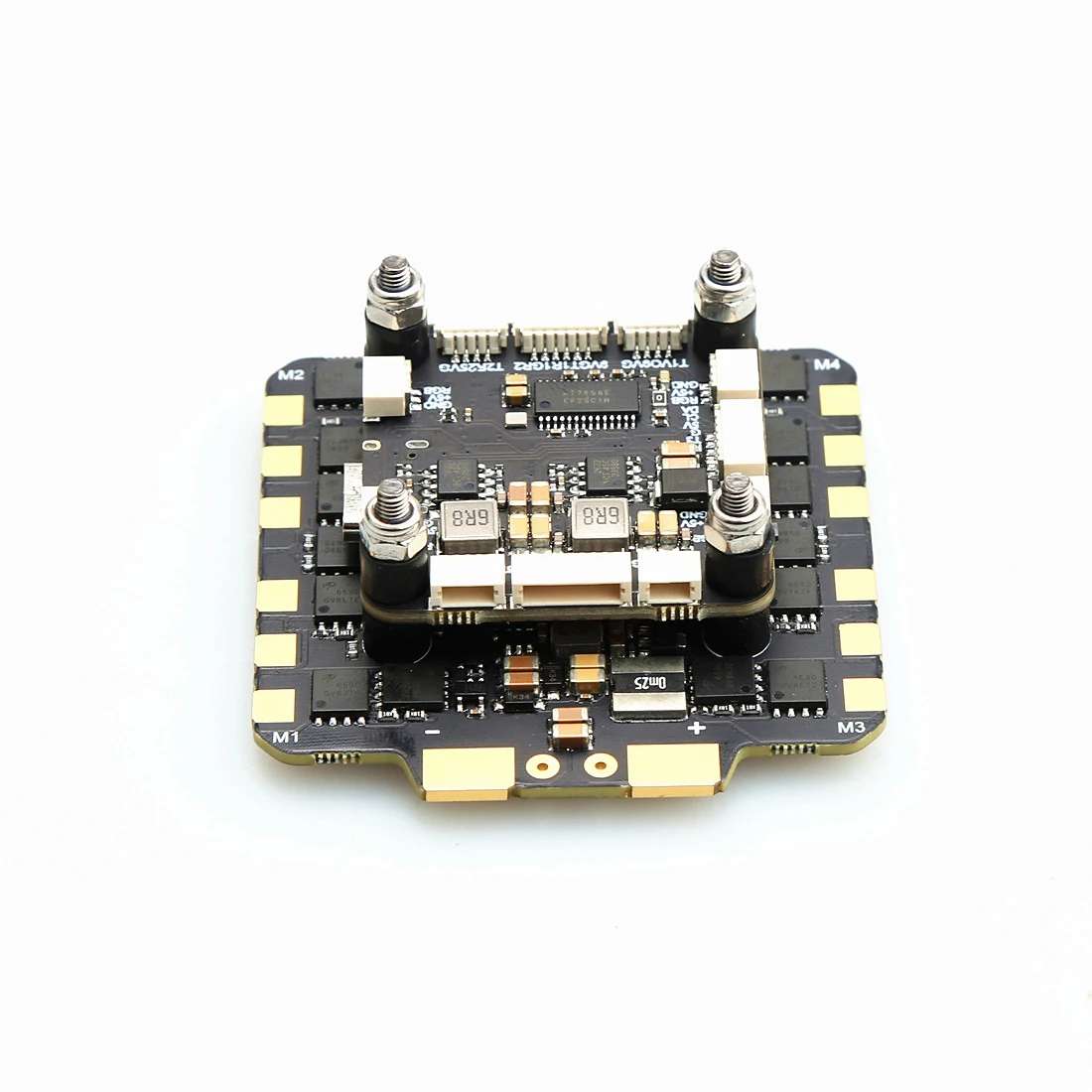

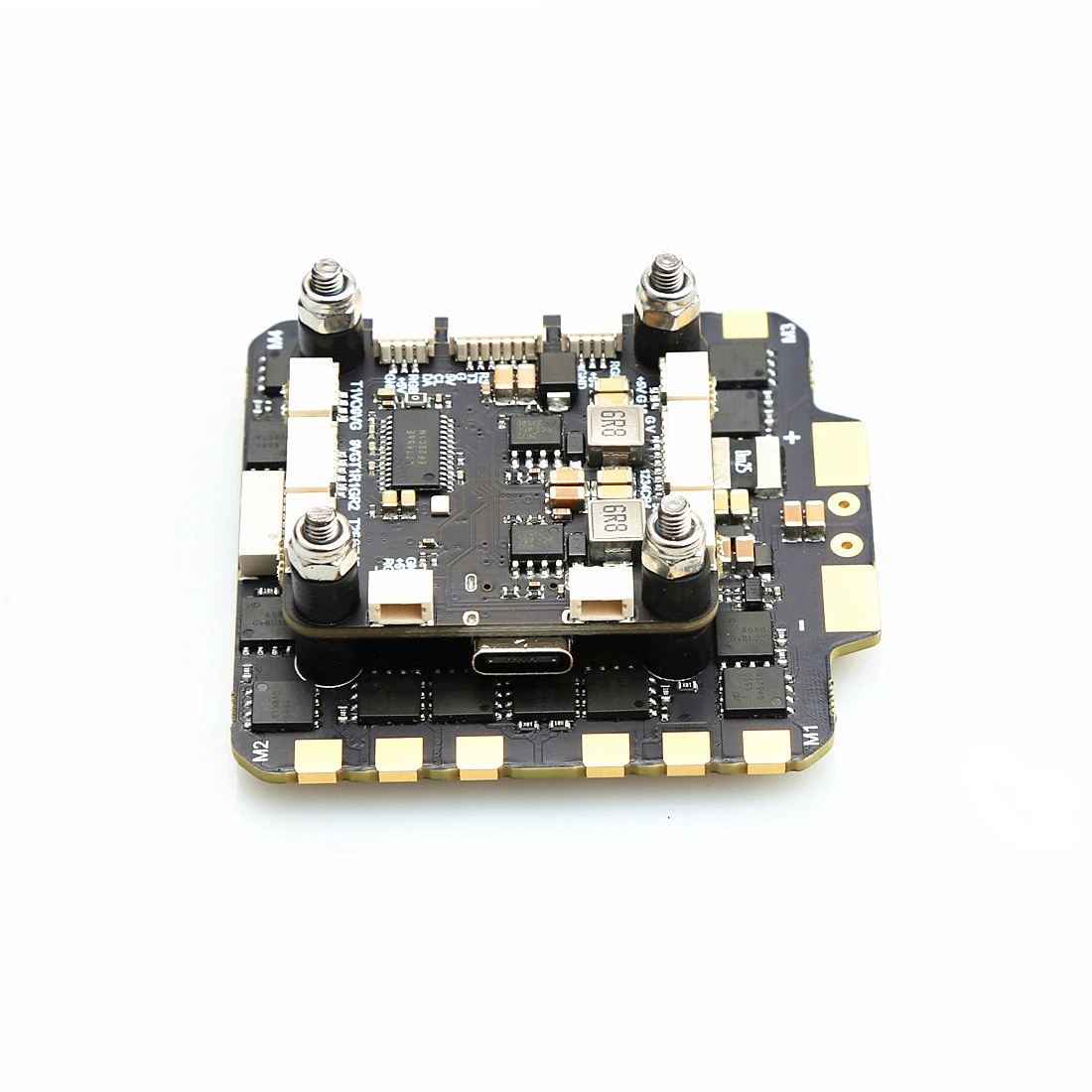

F722 F7 Flight Controller FC 3-8S Lipo 5V/10V Dual BEC w/100A 4in1 BLheli_S ESC for RC FPV Freestyle Racing Drone Accessories

Features:

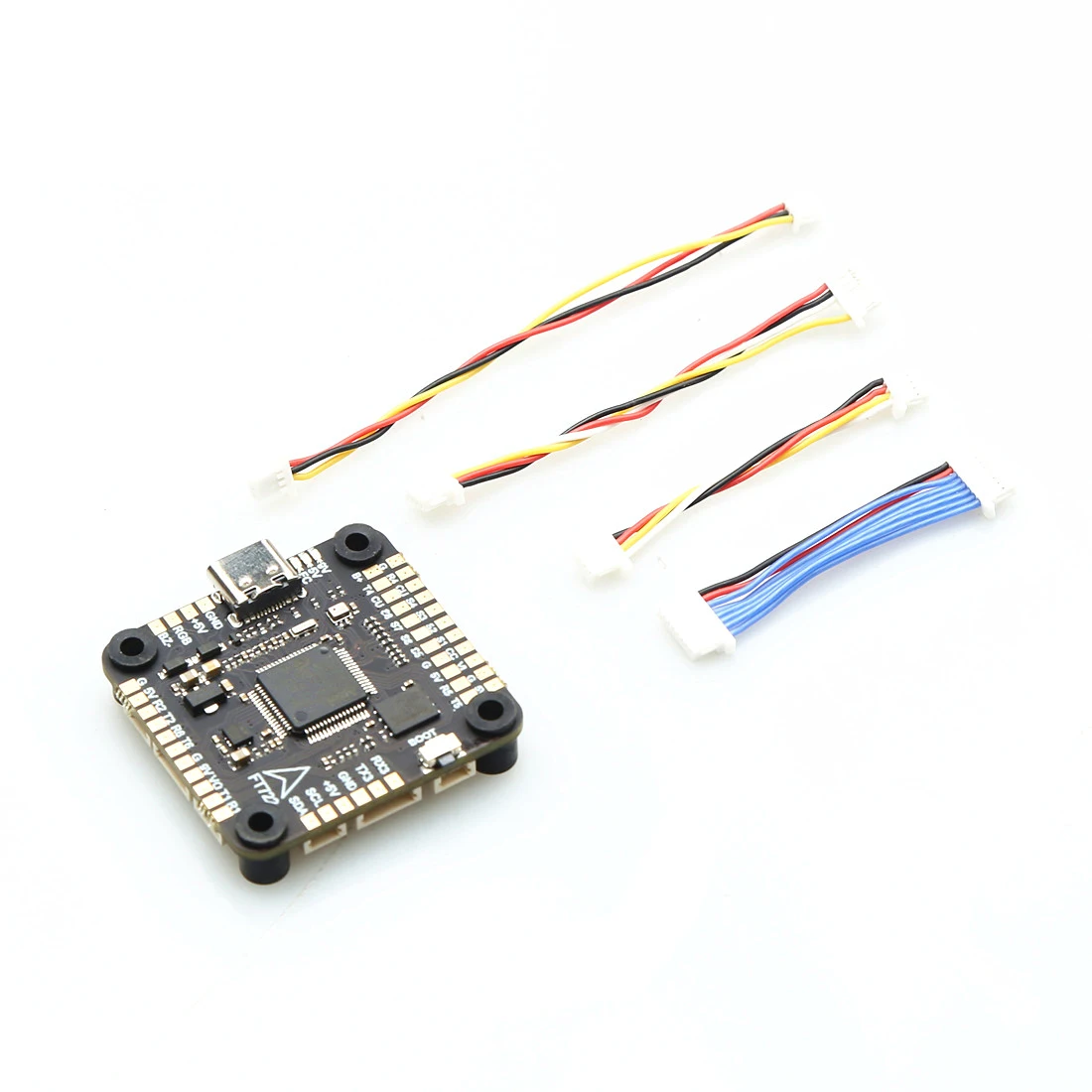

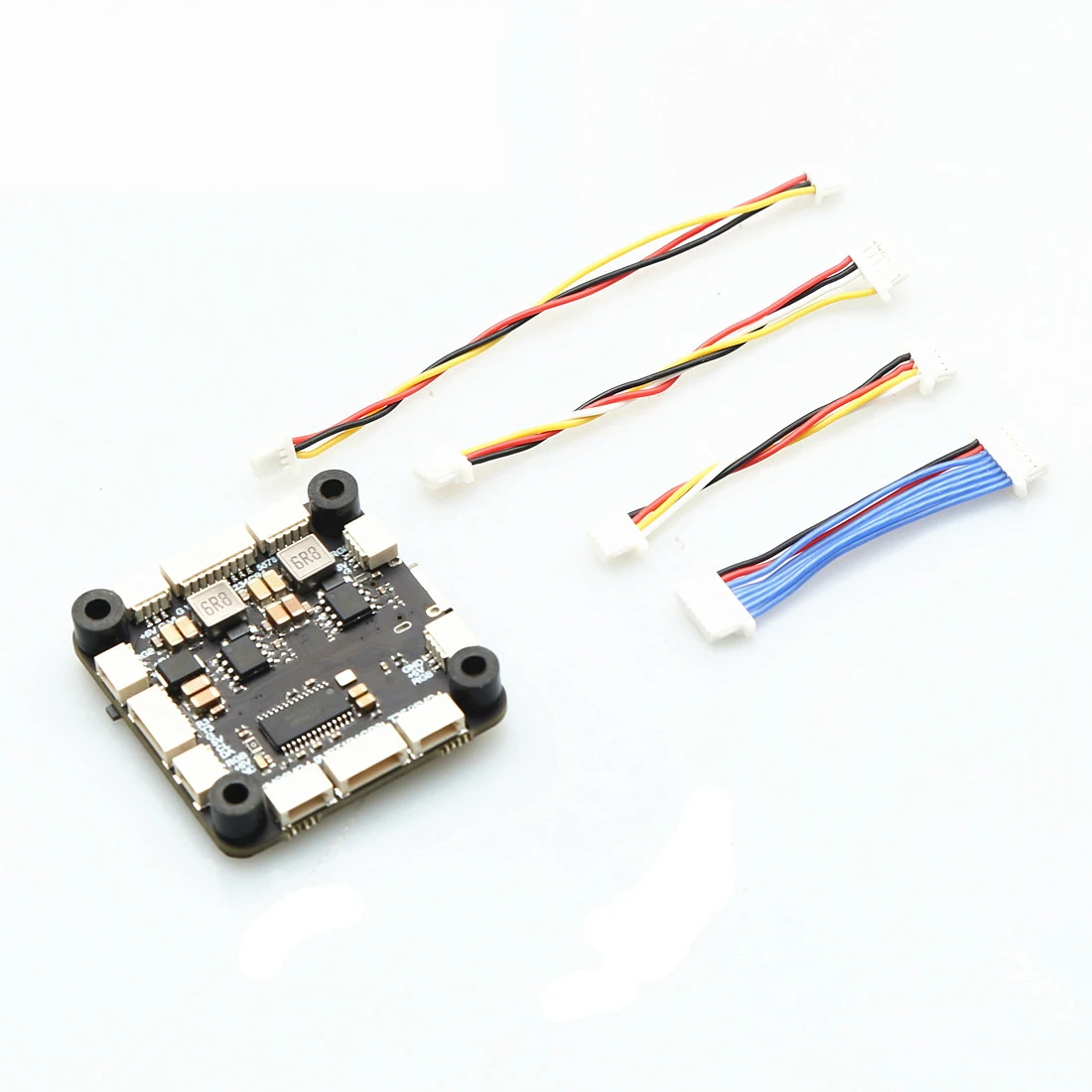

1. The F722 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation.

MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F722 Flight controller: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to

have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:

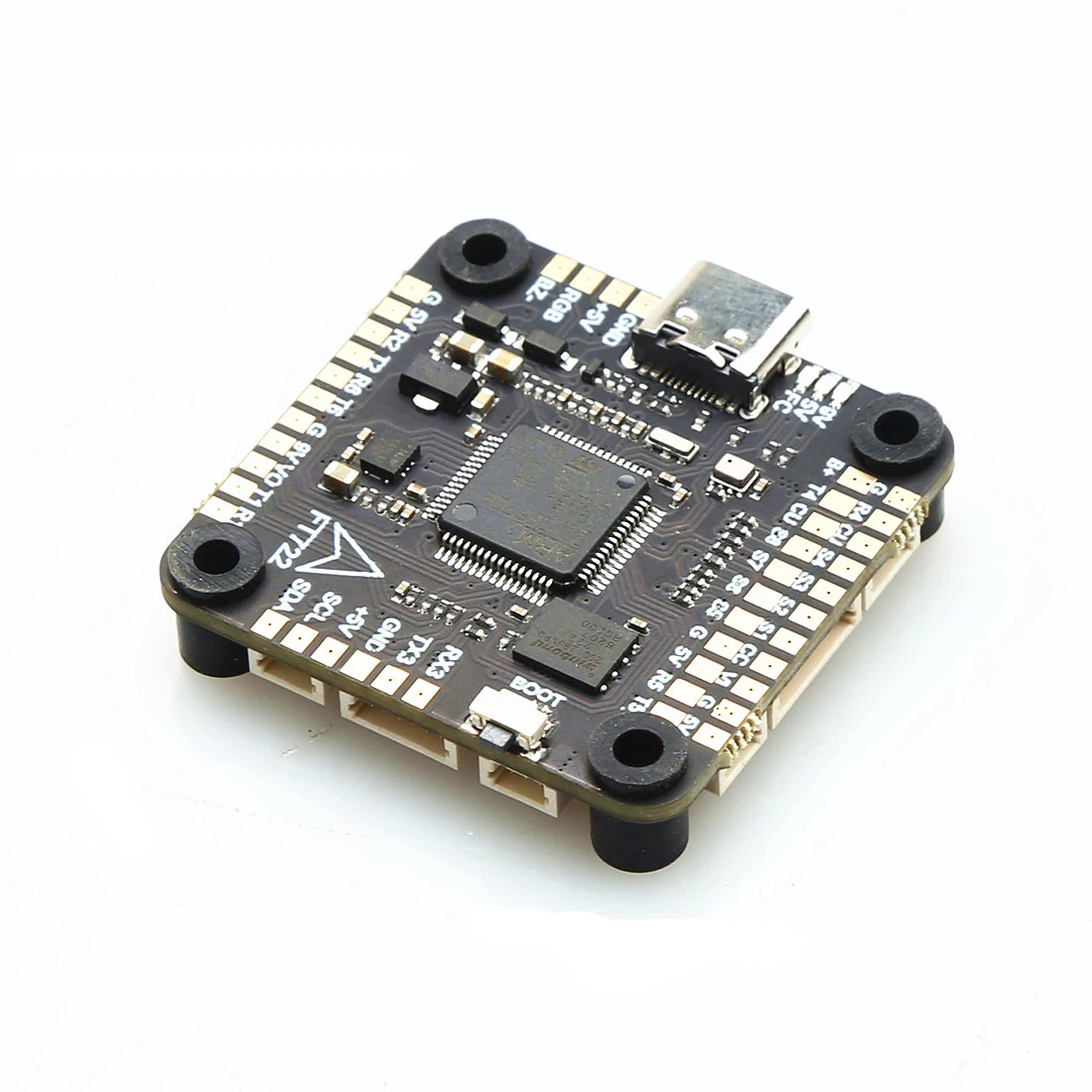

(Model): F722 Flight Controller

(MCU) STM32F722RET6

(IMU) ICM-42688

(OSD): AT7456E

(Baro) SPL06-001

(Blackbox): 16MB

(Input voltage): 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

IO2: USER2

(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX

UART: UART1/2/3/4/5/6

IIC: 12C1

Led Strip:YES

(Buzzer): 5V

(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600

USB: TYPE-C

(Current port): YES

(Voltage sensor) YES

DFU (DFU button): YES

(Firmware):AXISFLYINGF7PRO

(Size): 36*36MM

(Mounting Hole) 30.5*30.5*4MM

(Weight) 8.8g

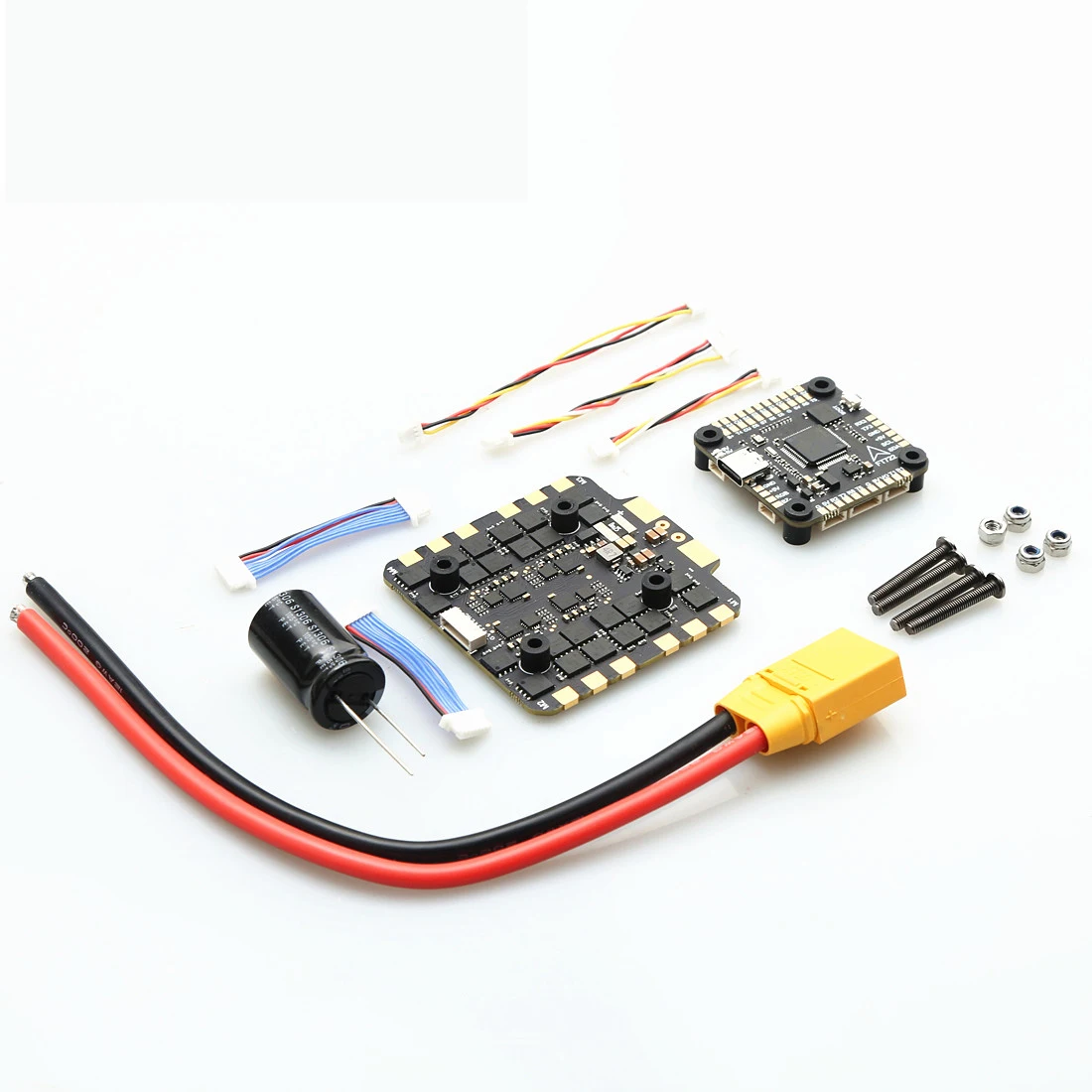

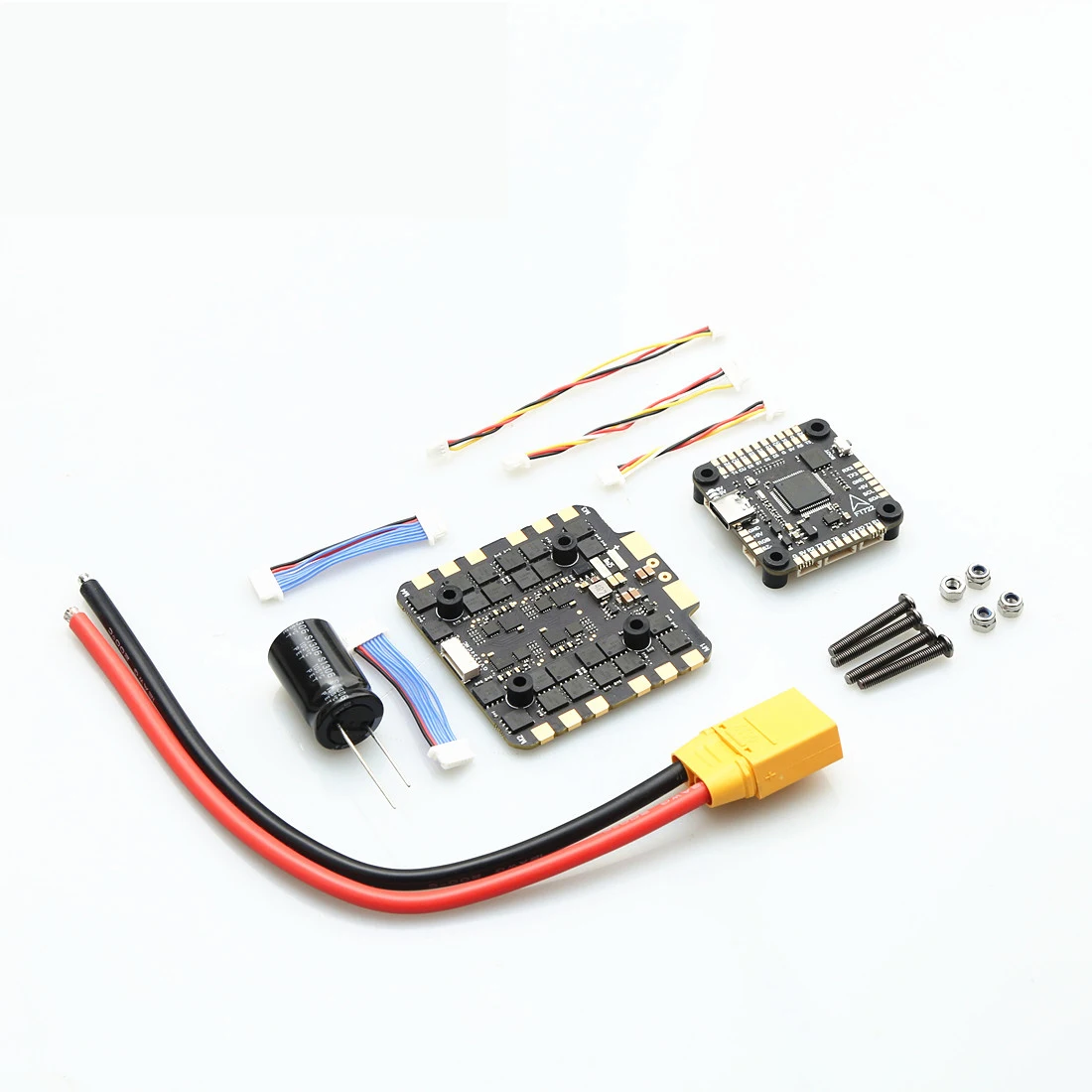

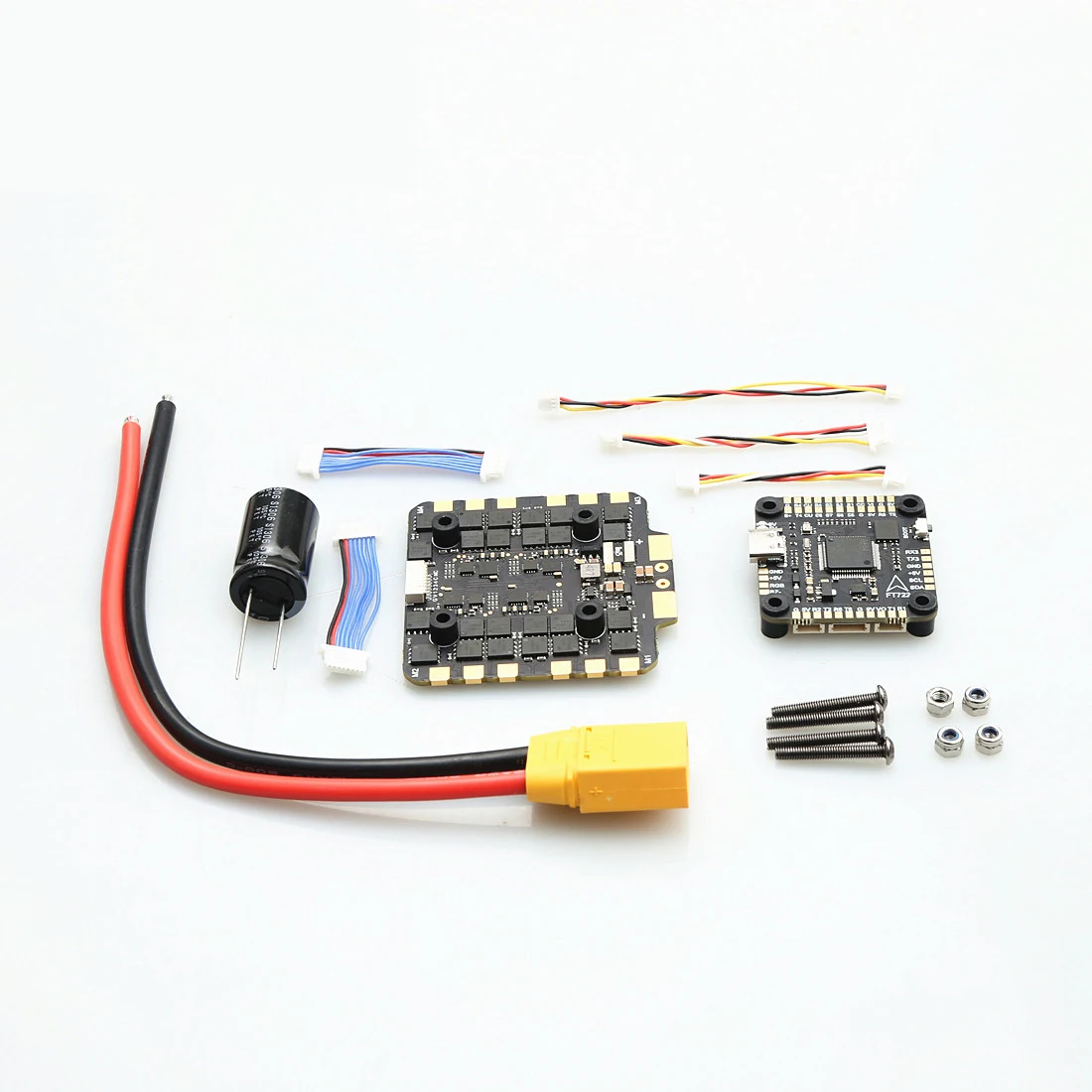

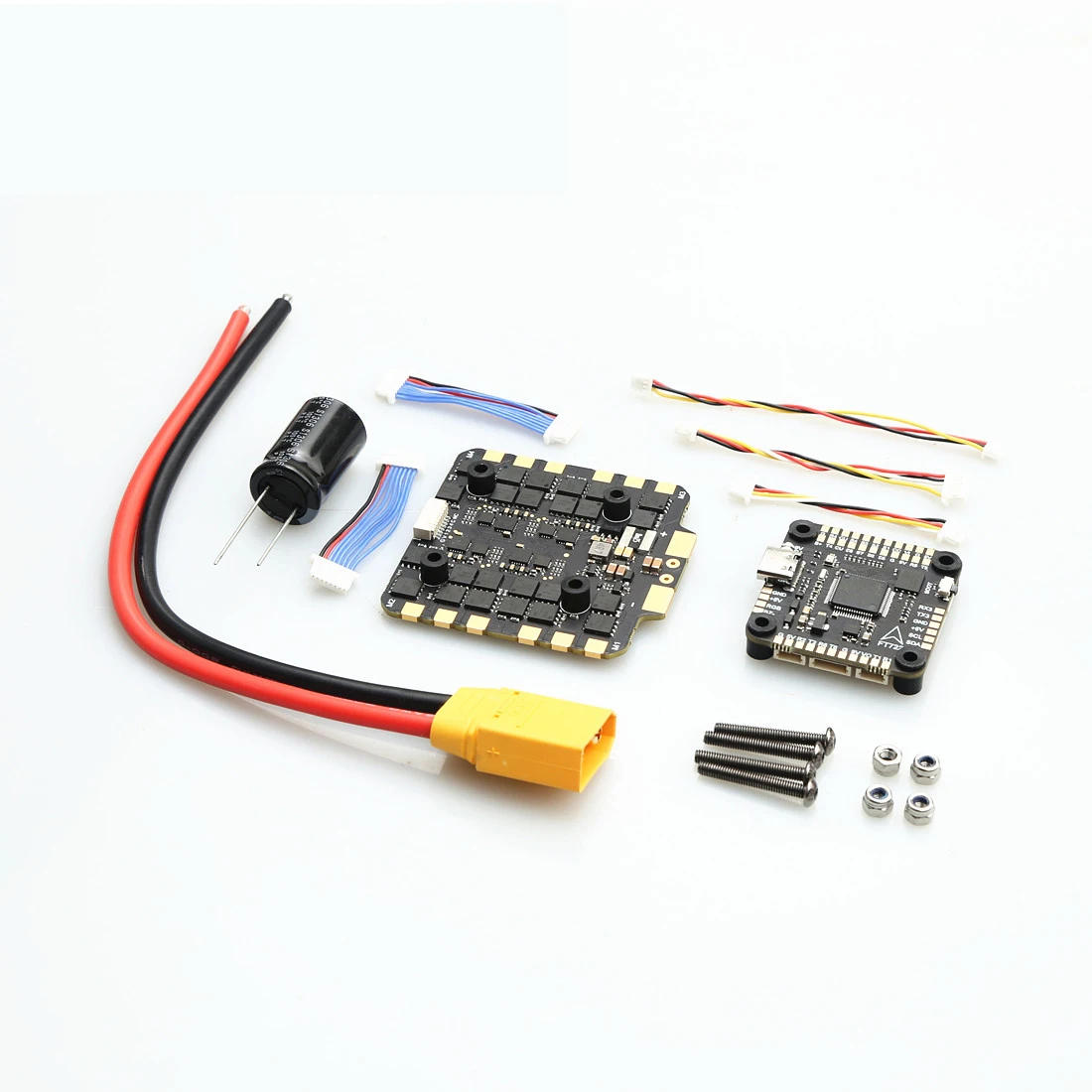

Package Includes:

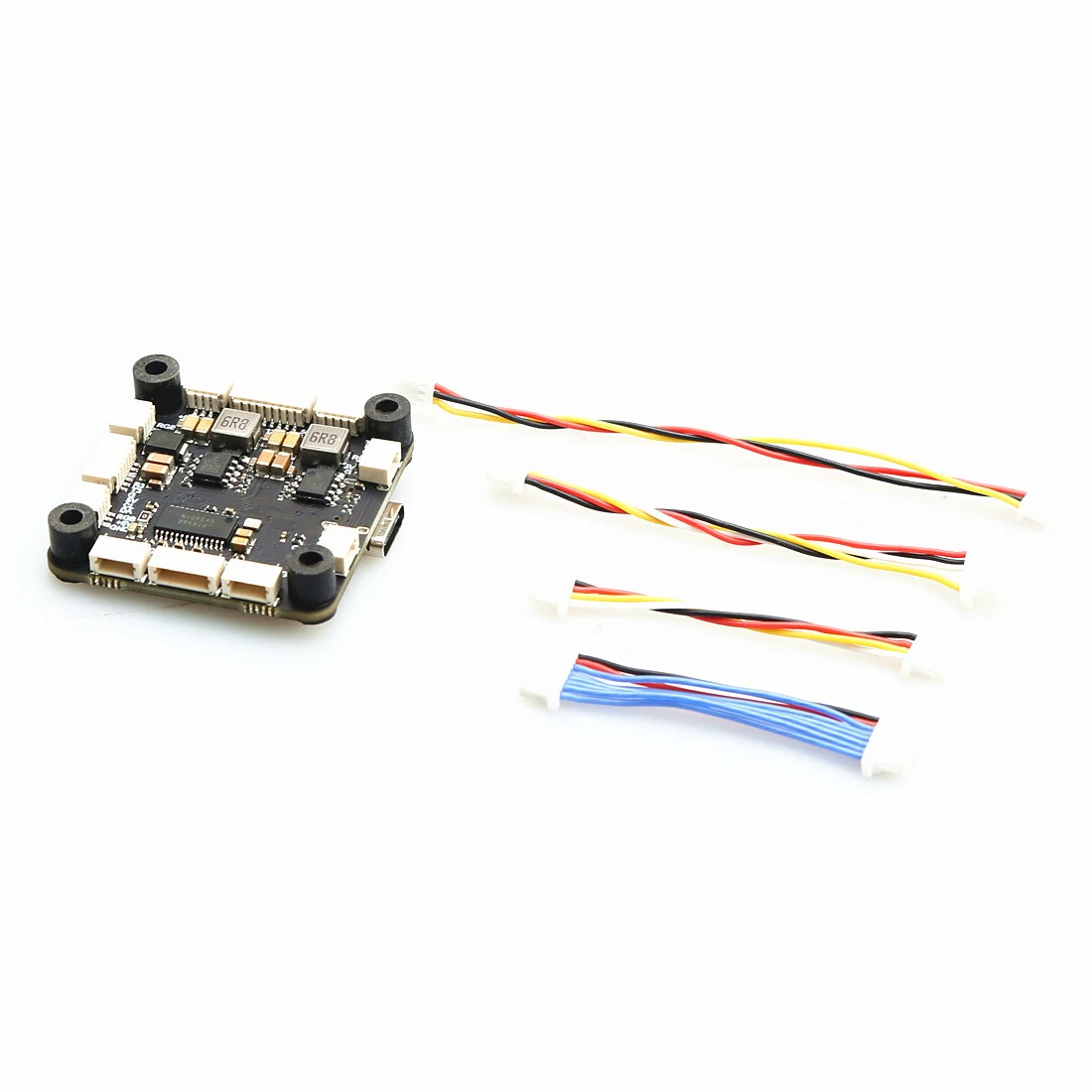

1* F722 Flight Controller

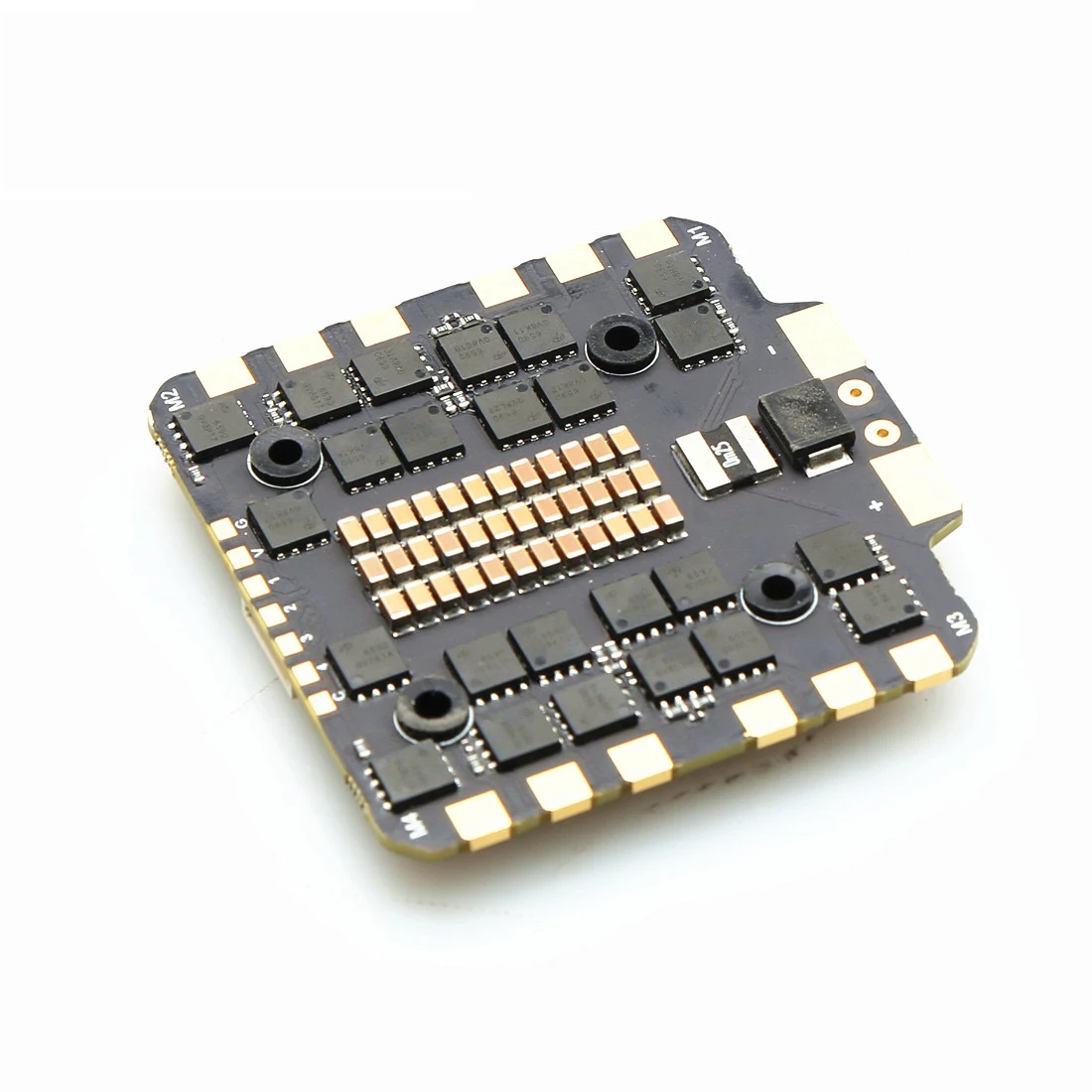

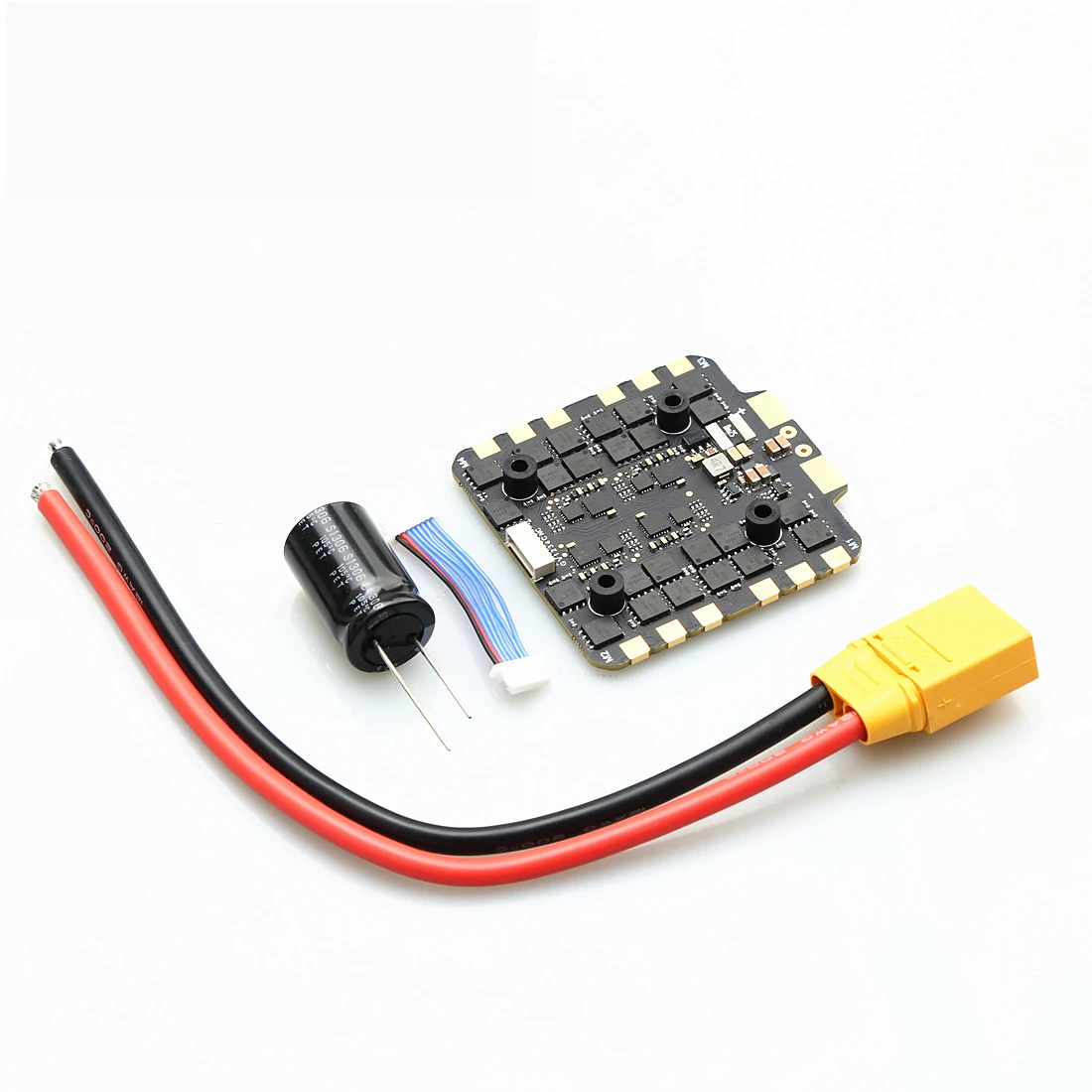

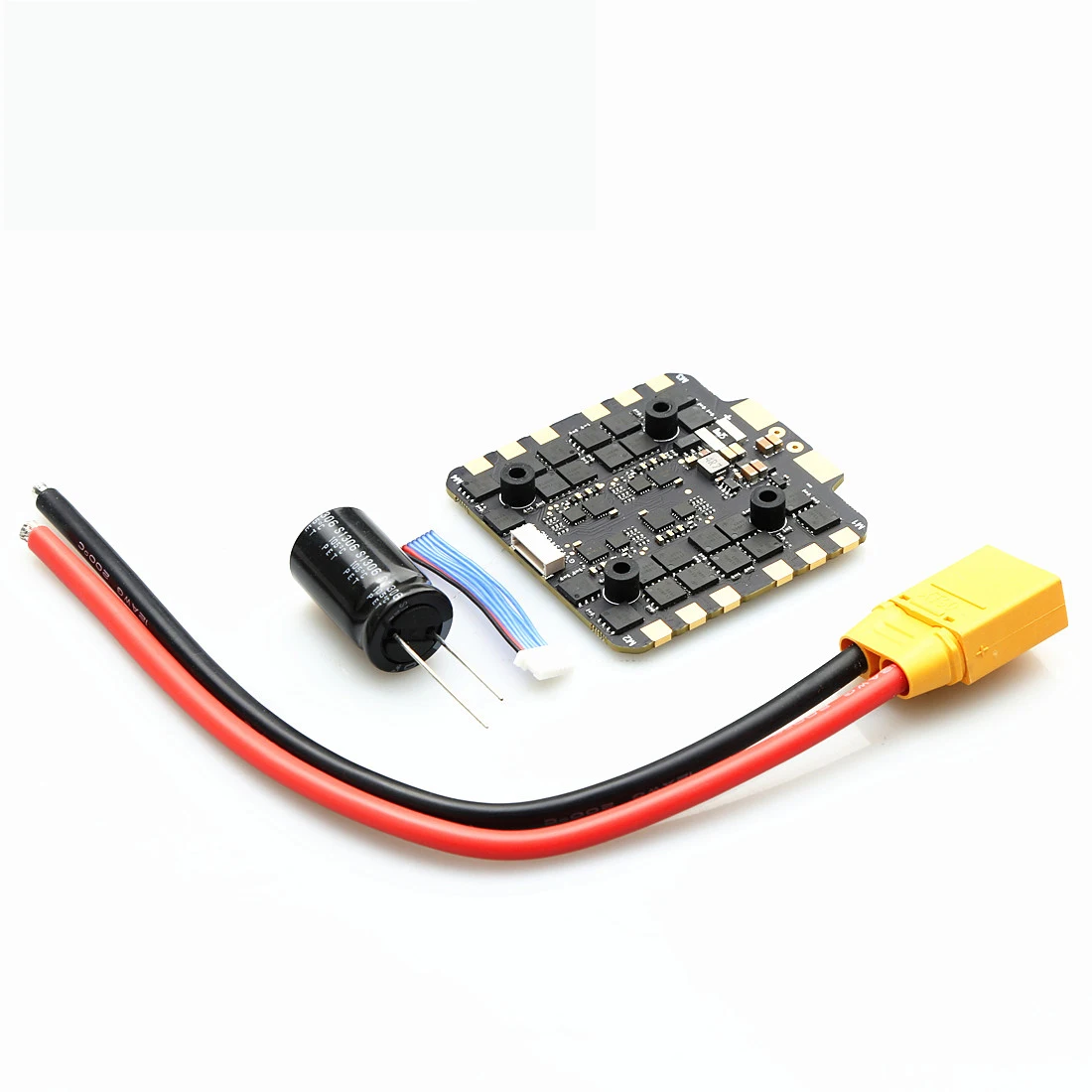

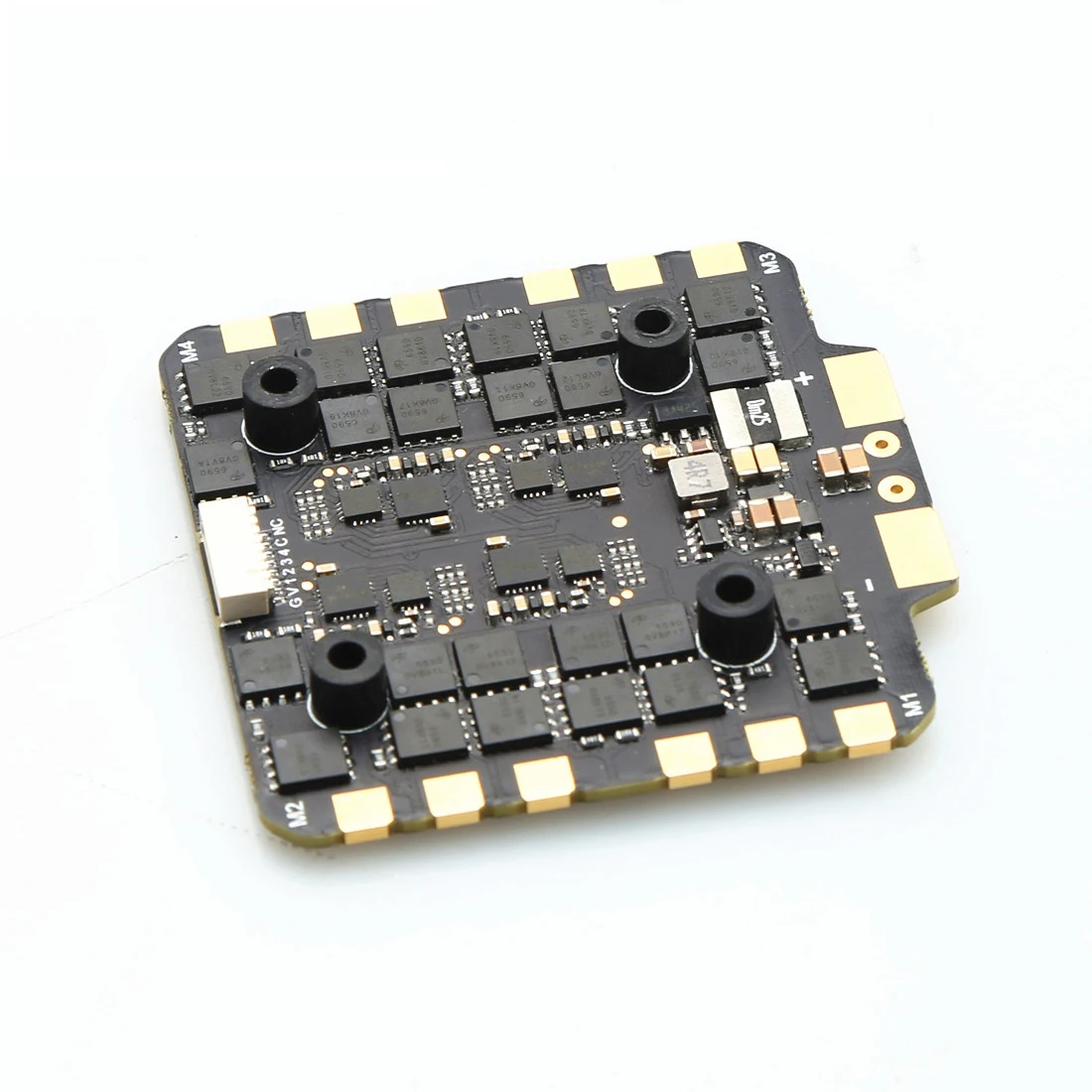

Item Type: BLS 90A 30.5×30.5 4-in-1 ESC

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-6S LiPo

Continuous Current: 90*4

Burst Current: 110A(10seconds)

ESC Telemetry :NO

Current Sensor Scale:200

ESC Protocol :DSHOT300/600

Firmware: Q_H_40_24_v0.19.2

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :57(L) * 56(W)

Weight 28g

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
