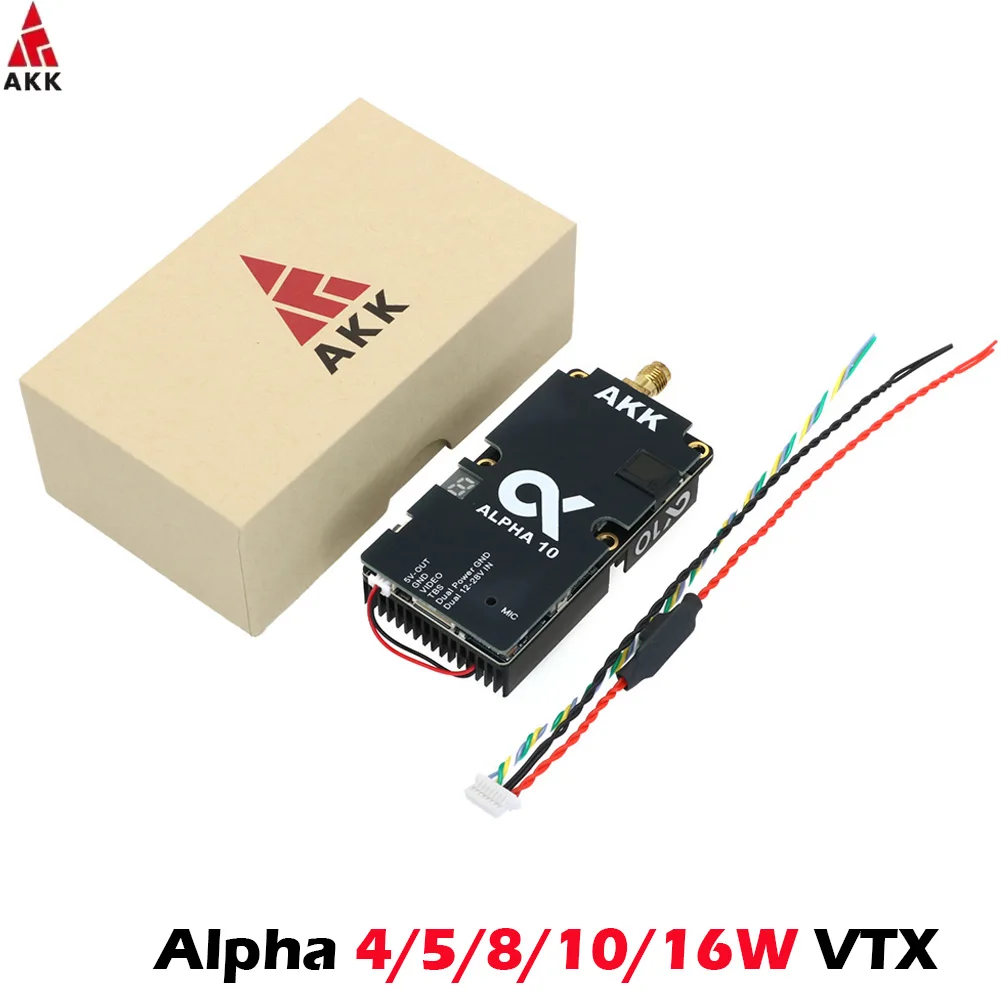

AKK Alpha4 Alpha5 Alpha8 Alpha10 Alpha16 5.8-6.0GHz FPV Video Transmitter 4W 5W 8W 10W 16W VTX for Long Range FPV Racing Drones
Price range: $346.82 through $715.68
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: AKK 8W VTX
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: AKK 16W VTX
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 30.5*30.5
Technical parameters: value 2
Tool Supplies: AKK VTX 48CH 5W
Type: AKK 10W VTX
Upgrade Parts/Accessories: akk alpha VTX
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

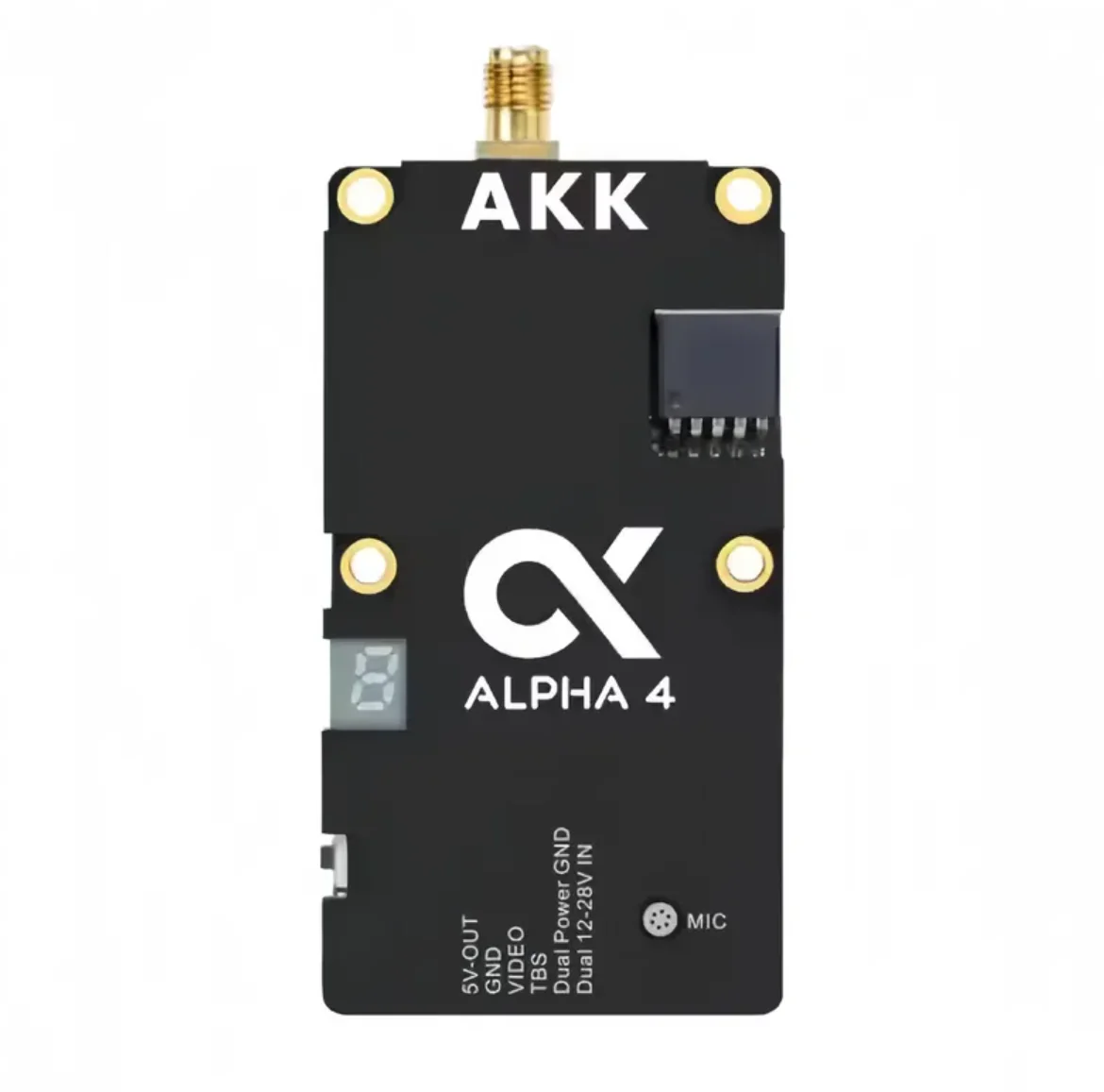

AKK Alpha 4 VTX 5.8G 4W 80CH 1w/2w/3w/4w Power Switchable Smart Audio FPV Video Transmitter for Drone
Description:
Main feature:
High transmission quality: Support HD 720P/1080P video transmission to ensure clear and smooth images.
Long-distance transmission: It can reach a transmission distance of more than 1km in an open environment to meet the needs of long-distance operations.
Multi-frequency selection: Multiple frequencies (such as 5.8GHz) are supported, and users can choose the optimal channel according to environmental interference.
Low latency: Using advanced coding technology, video latency is less than 30ms, suitable for real-time monitoring and control.
Rugged: The product design meets industry standards, with good anti-interference ability and weather resistance.

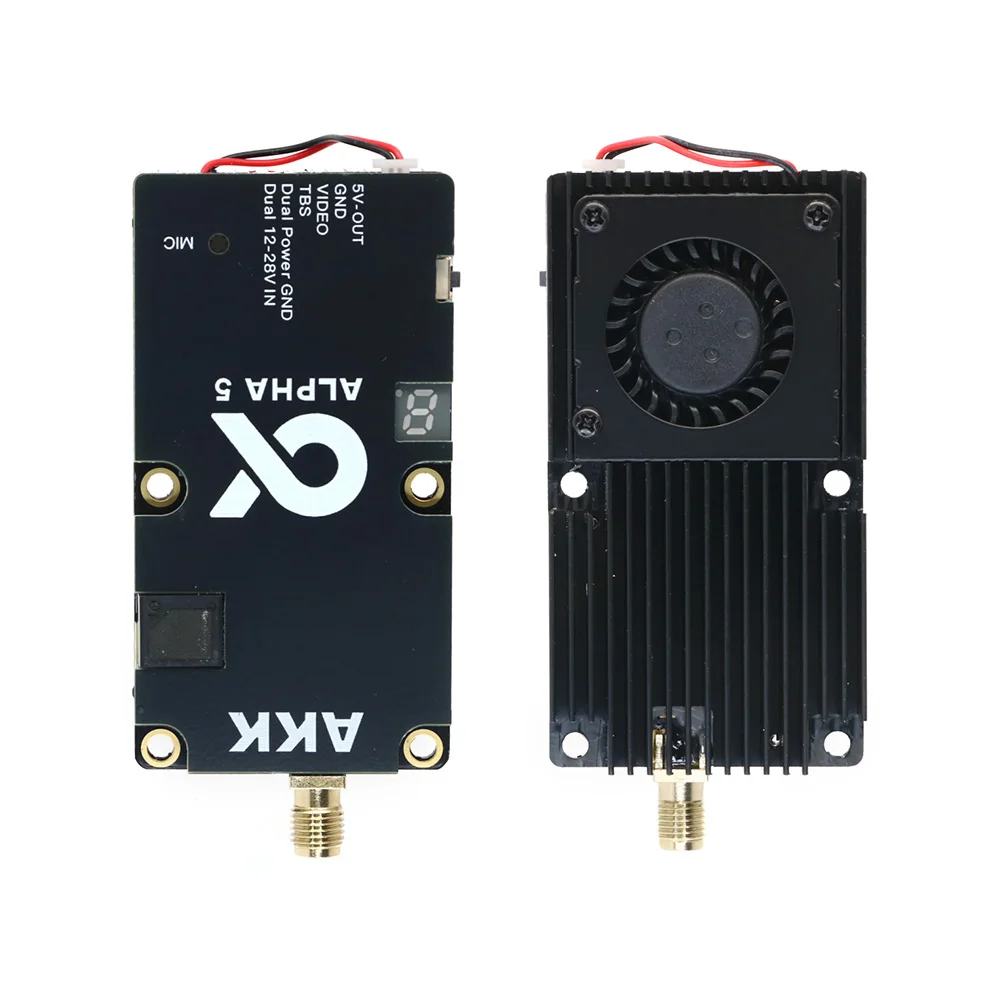

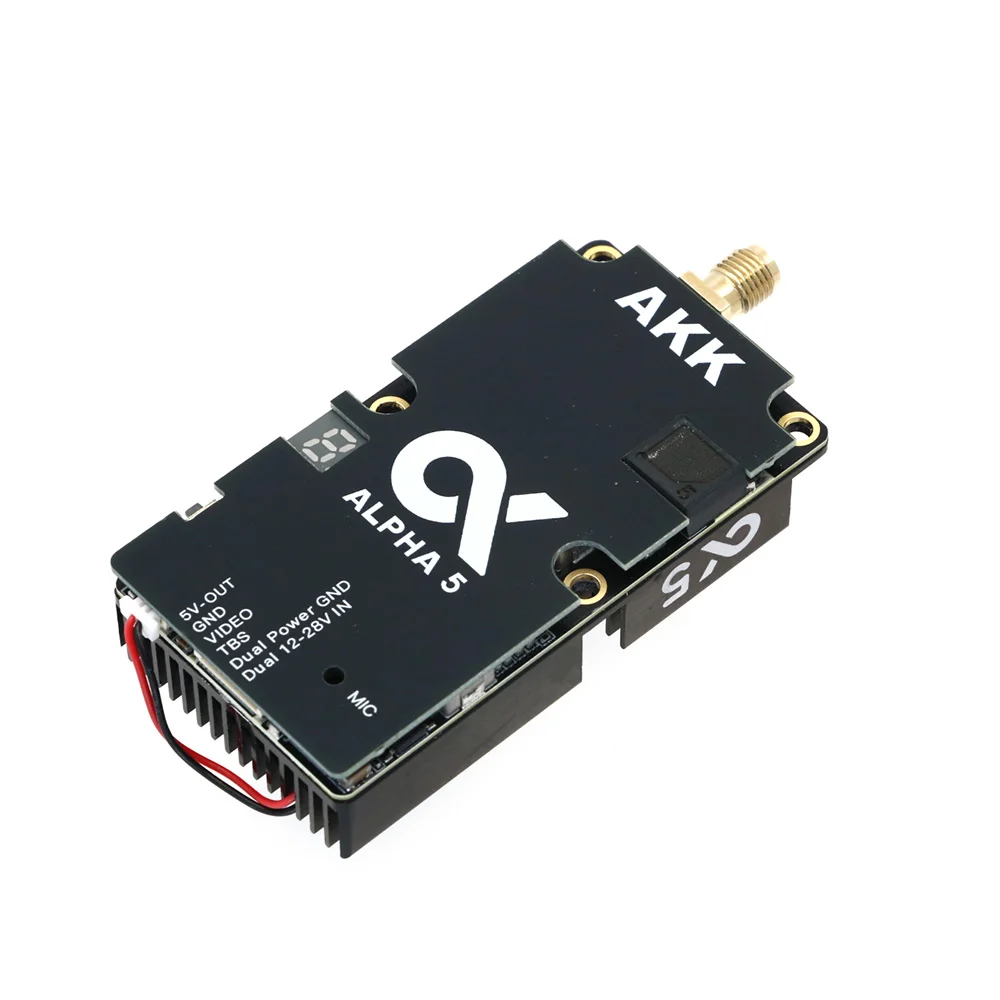

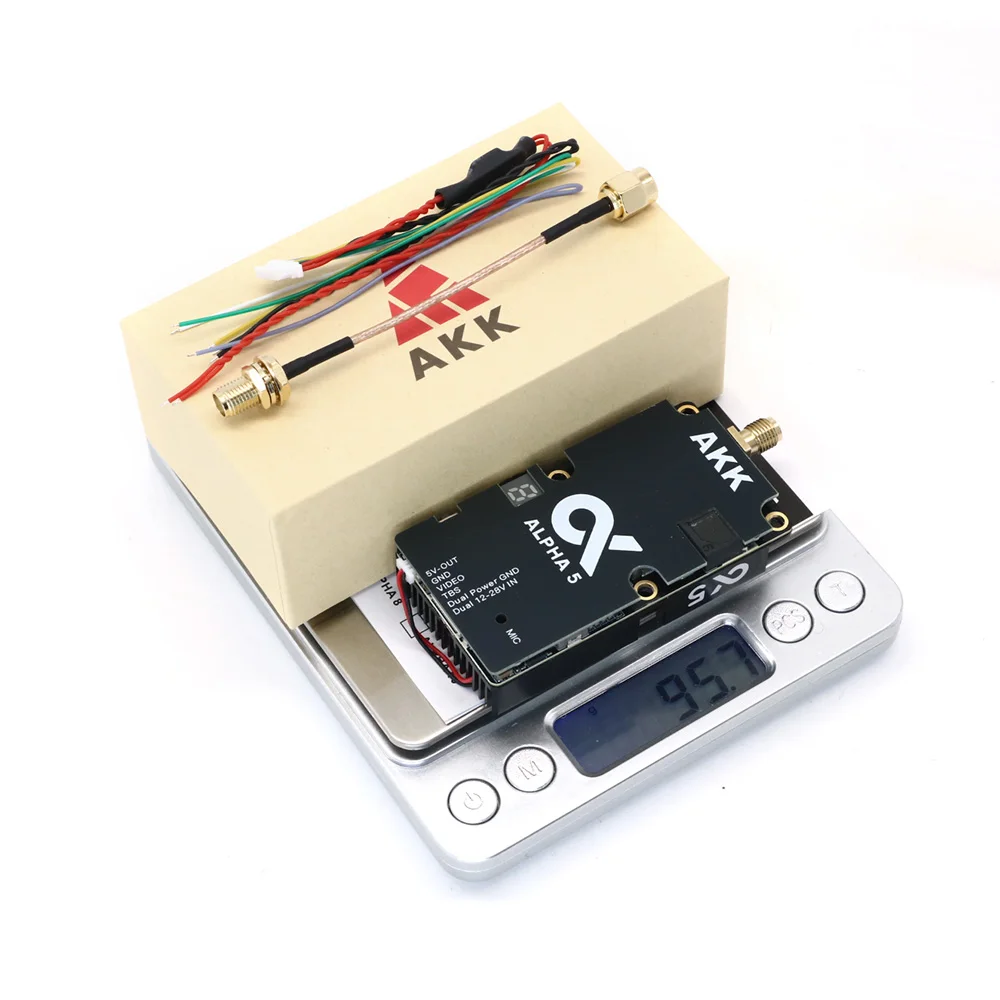

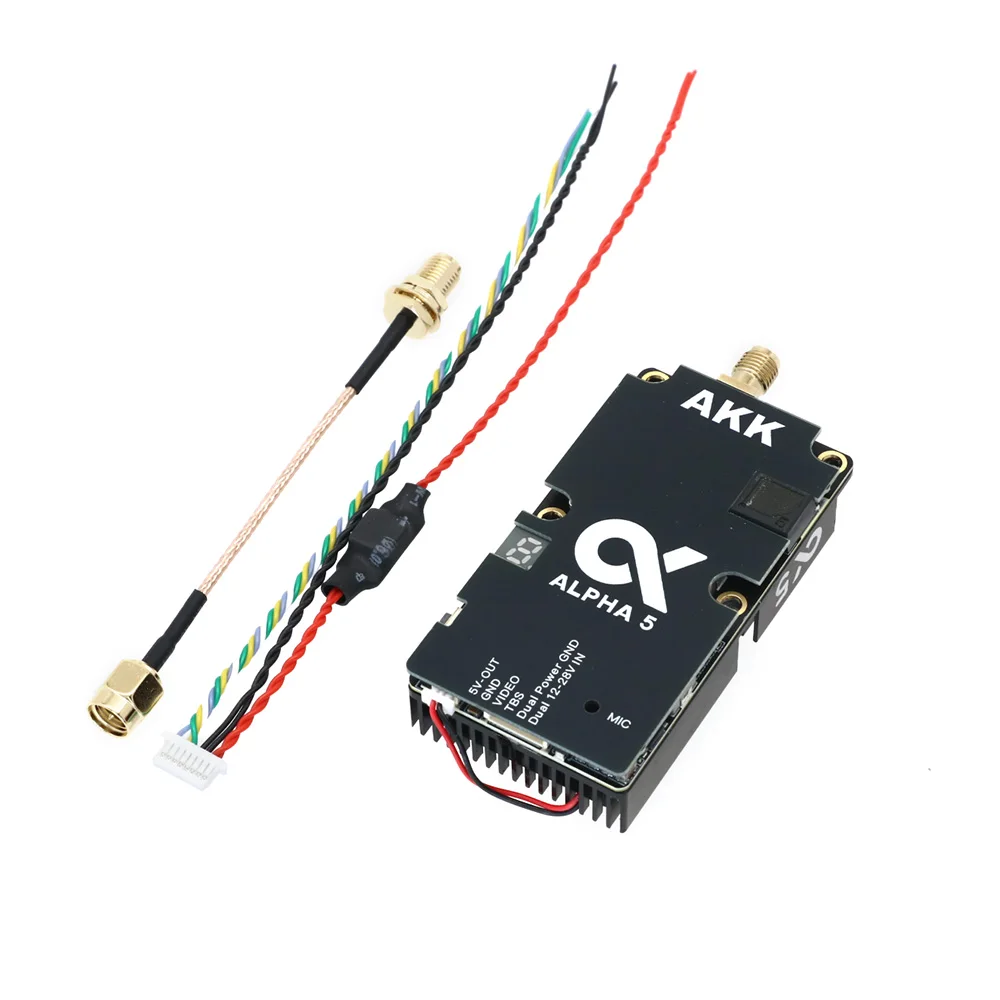

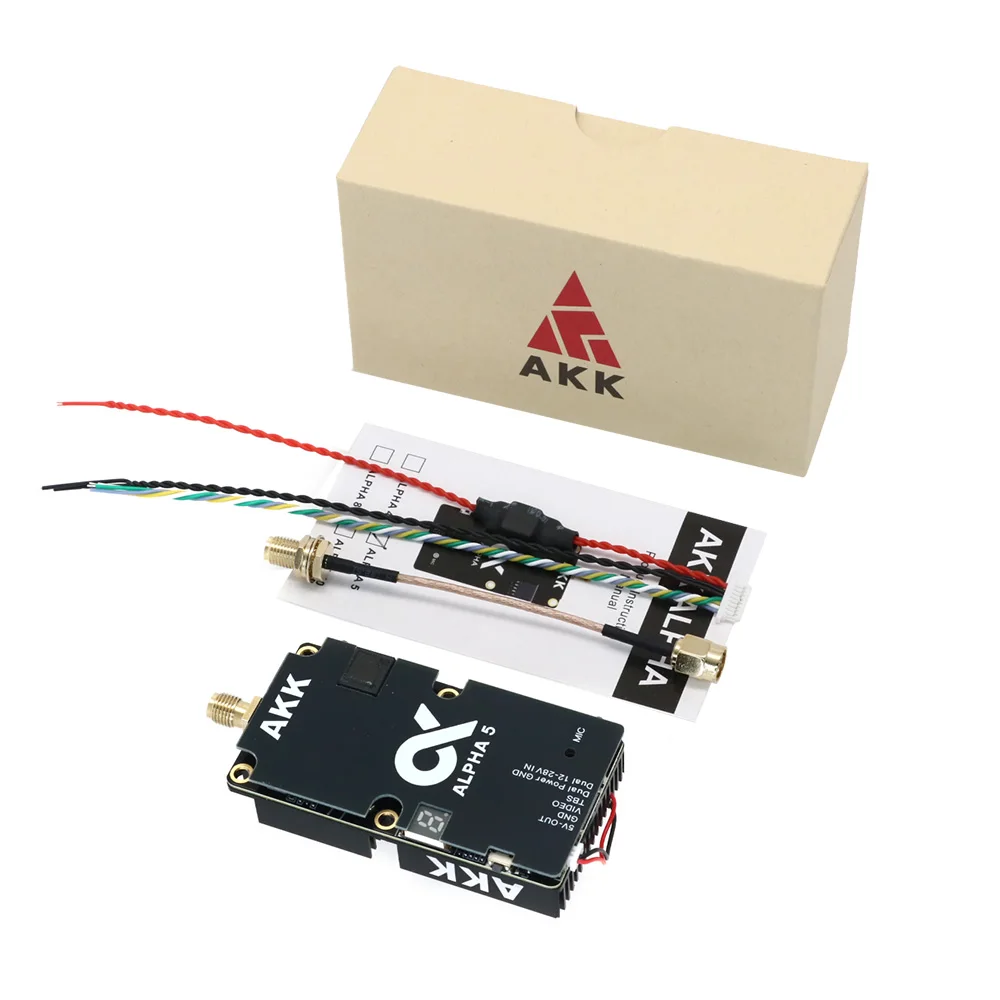

The AKK Alpha 5 is a high-performance 5.8-6.0GHz analog FPV video transmitter (VTX) designed for long-range and high-interference environments. With up to 5W switchable output power and a built-in cooling fan with heatsink, it ensures stable and reliable video transmission during extended flights.
-
Switchable power output: 1W / 2W / 3W / 5W
-
Supports Smart Audio for remote frequency and power adjustment
-
LED digital display for intuitive operation
-
Fan-embedded heatsink for efficient cooling
-
Stable frequency performance without signal drift
-
Wide voltage input for compatibility with various drone systems
-
High 5W output power for long-distance flight
-
Stable signal transmission with low latency and clear video
-
Versatile use for racing, aerial photography, and industrial drones
-
Reliable design for extended operation
-
FPV racing drones
-
Long-range aerial photography drones
-
Industrial drone systems (mapping, inspection, monitoring)
-
Education and research platforms
|
Specification |
Details |
|
Frequency Range |
5.8GHz – 6.0GHz |
|
Output Power |
1W / 2W / 3W / 5W switchable |
|
Video Type |
Analog video transmission |
|
Audio Protocol |
Smart Audio |
|
Display |
LED digital display |
|
Cooling System |
Built-in fan + aluminum heatsink |
|
Input Voltage |
DC 7V – 26V |
|
Dimensions |
Approx. 55mm × 35mm × 15mm |
|
Weight |
Approx. 28g |
|
Connector Type |
SMA / MMCX (optional) |

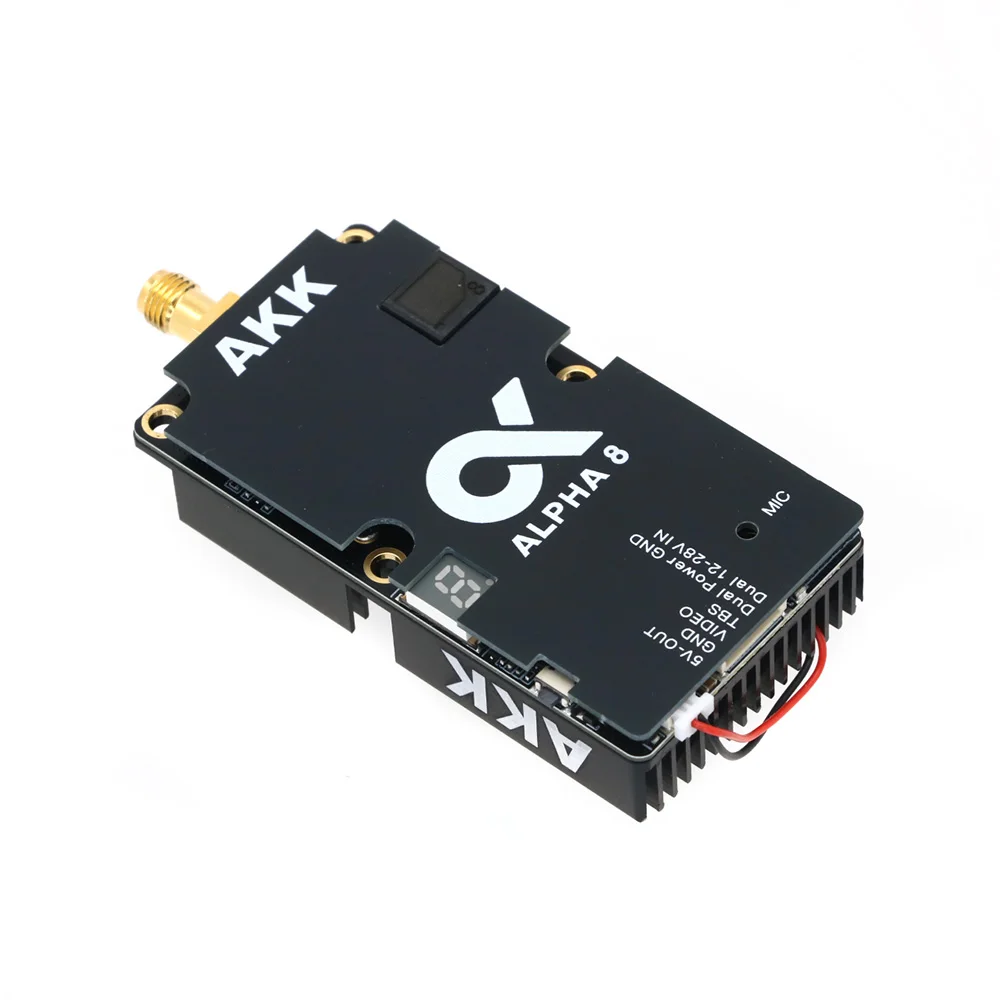

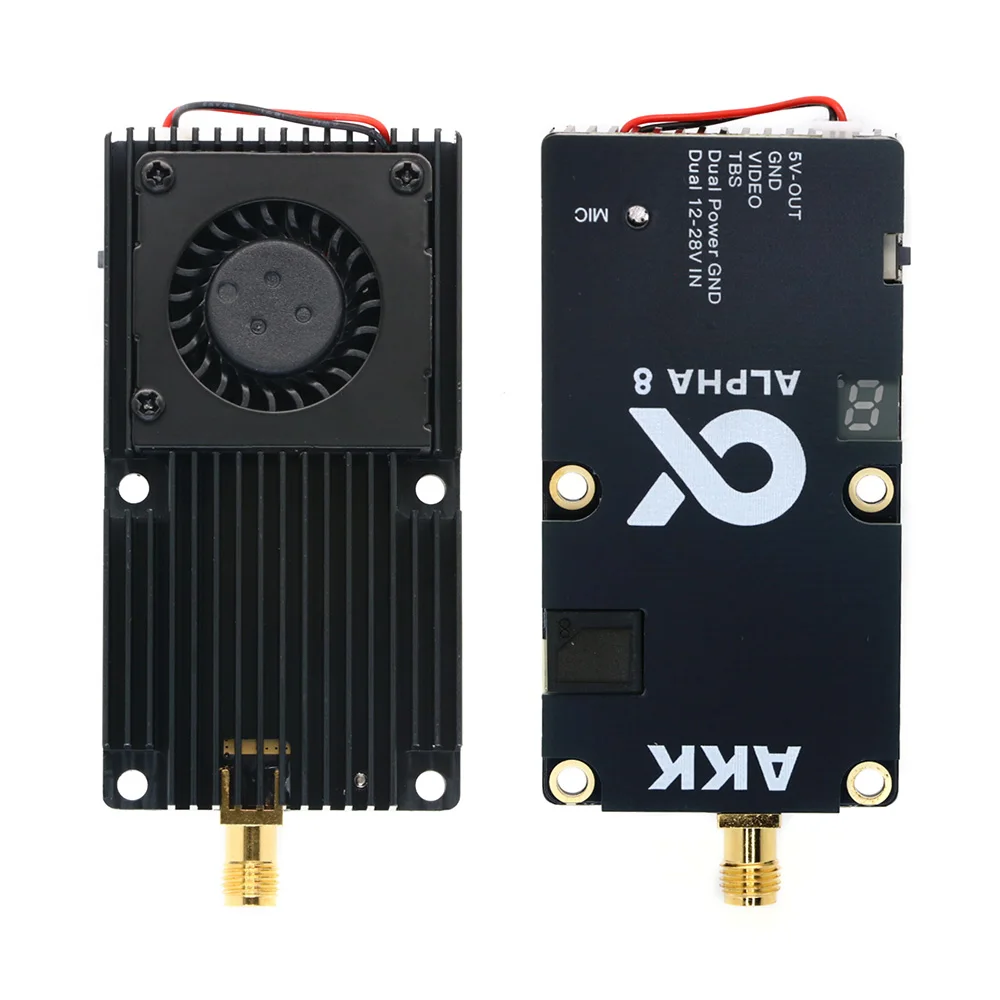

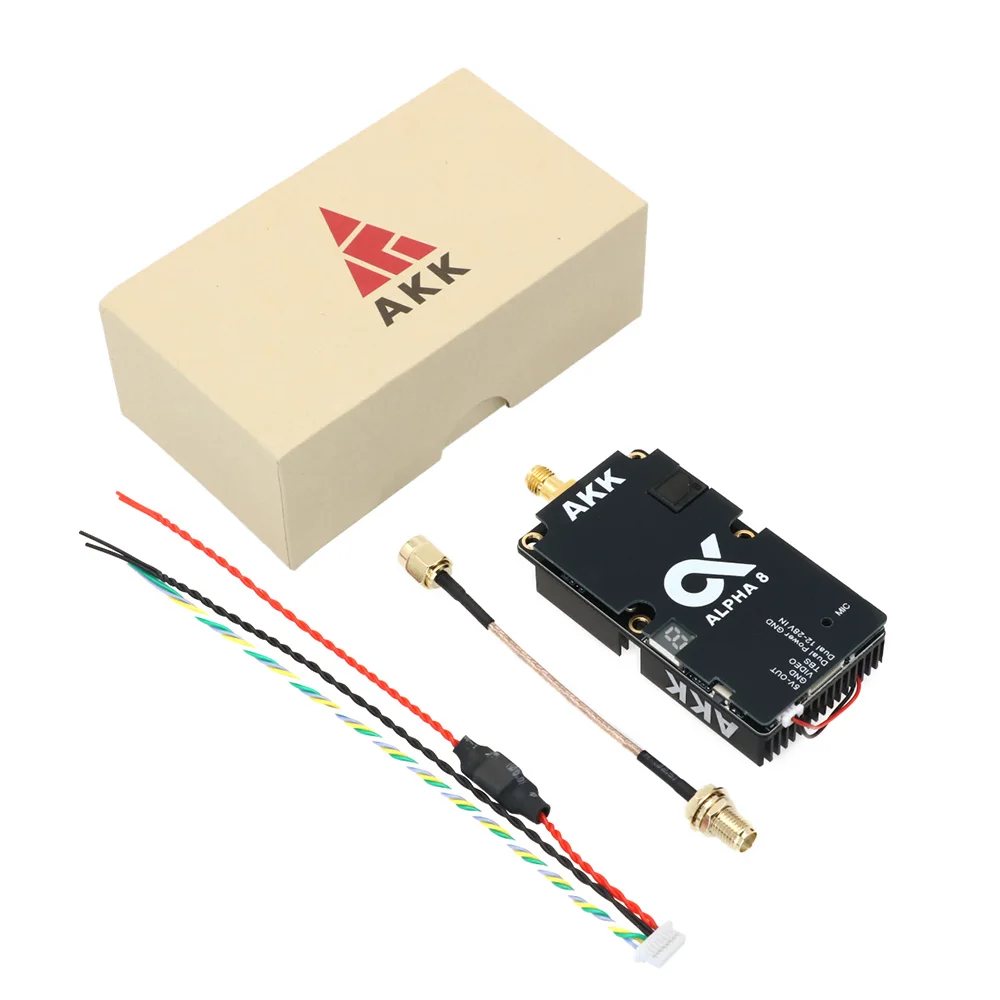

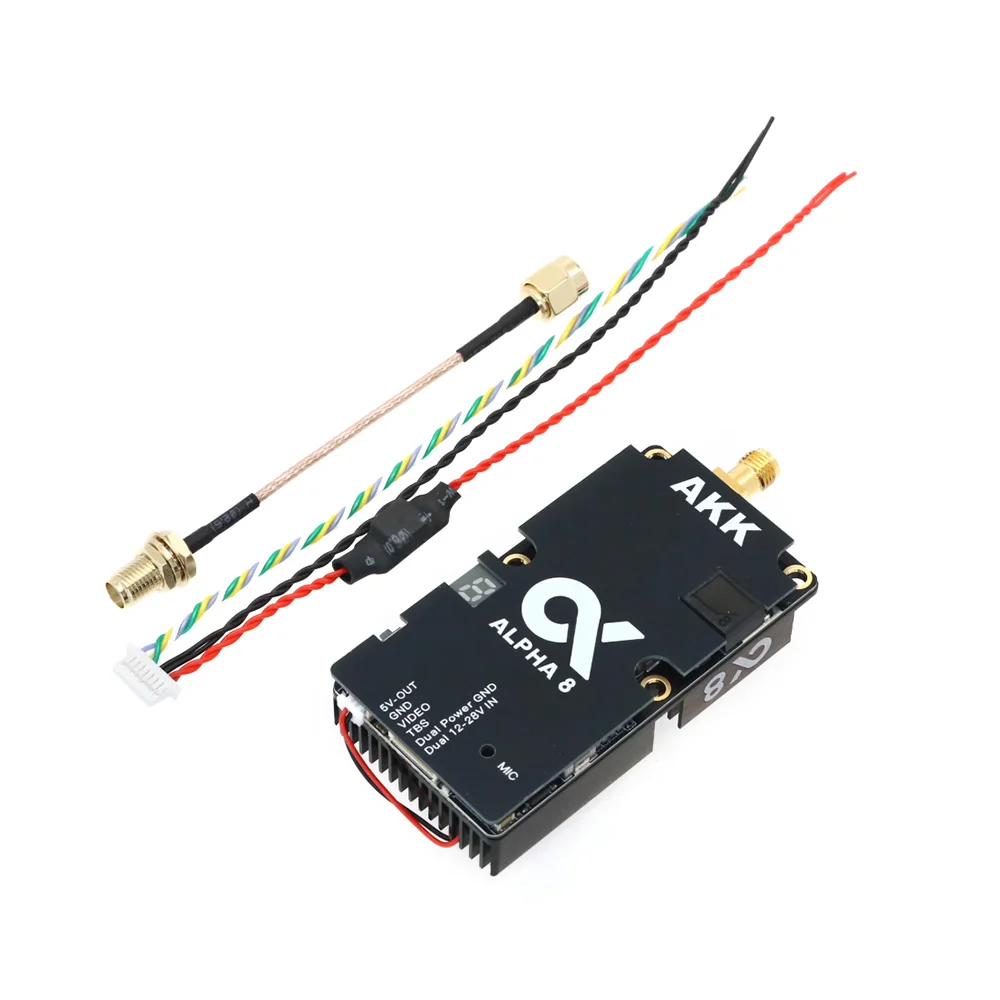

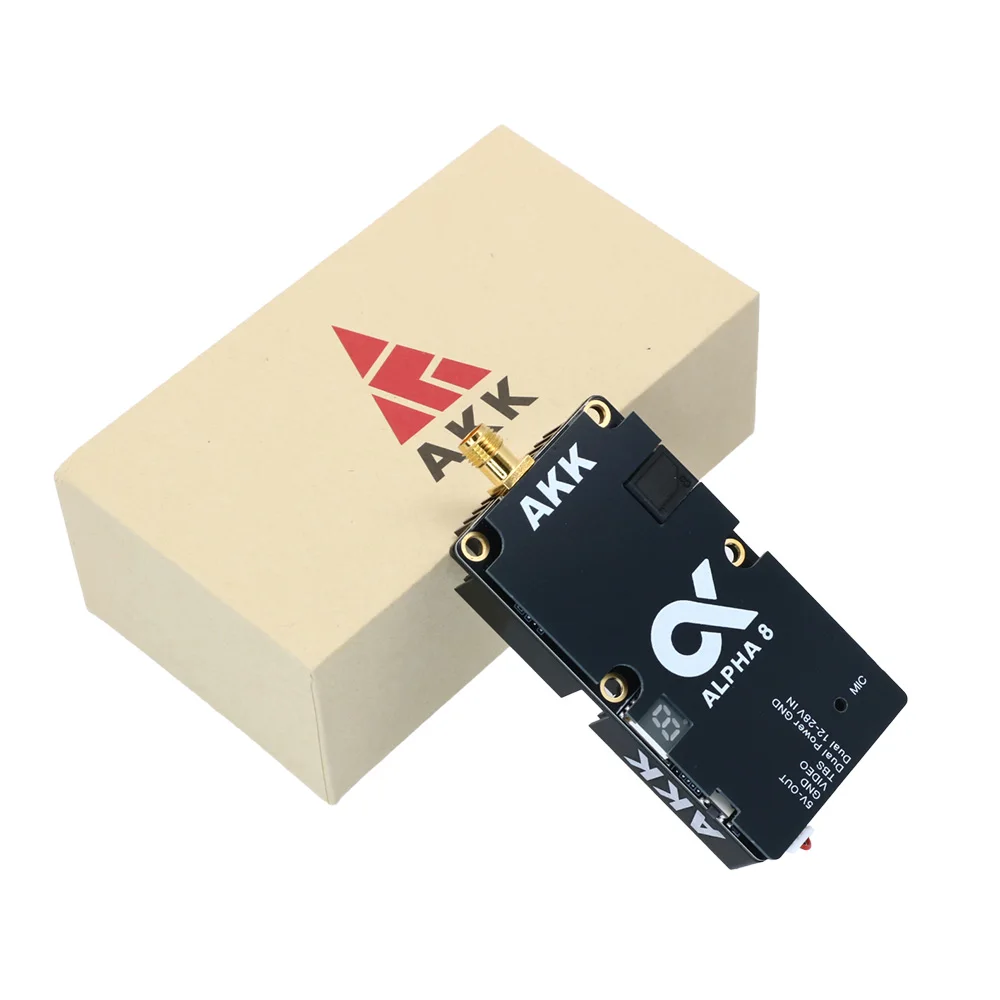

The AKK ALPHA8 5.8Ghz Wireless Video Transmitter delivers exceptional performance for FPV racing drones with its advanced features and reliable construction.
-
Extended Range: Explore higher altitudes and greater distances with 8W power output
-
Comprehensive Channel Selection: 80 channels across multiple bands for interference-free operation
-
Precision Engineering: 30dBm attenuator ensures accurate power measurement for optimal performance
-
Advanced Cooling: Built-in fan maintains optimal operating temperature during prolonged flights
-
Integrated Audio: Microphone enables clear audio communication
-
Robust Protection: All components shielded under heat sink for durability
-
Easy Installation: Four mounting holes accommodate various drone configurations
|
Input Voltage |
12-28V |
|
Output Voltage |
5V |
|
Channels |
80CH |
|
Power Output |
8W (1W/3W/5W/8W switchable) |
-

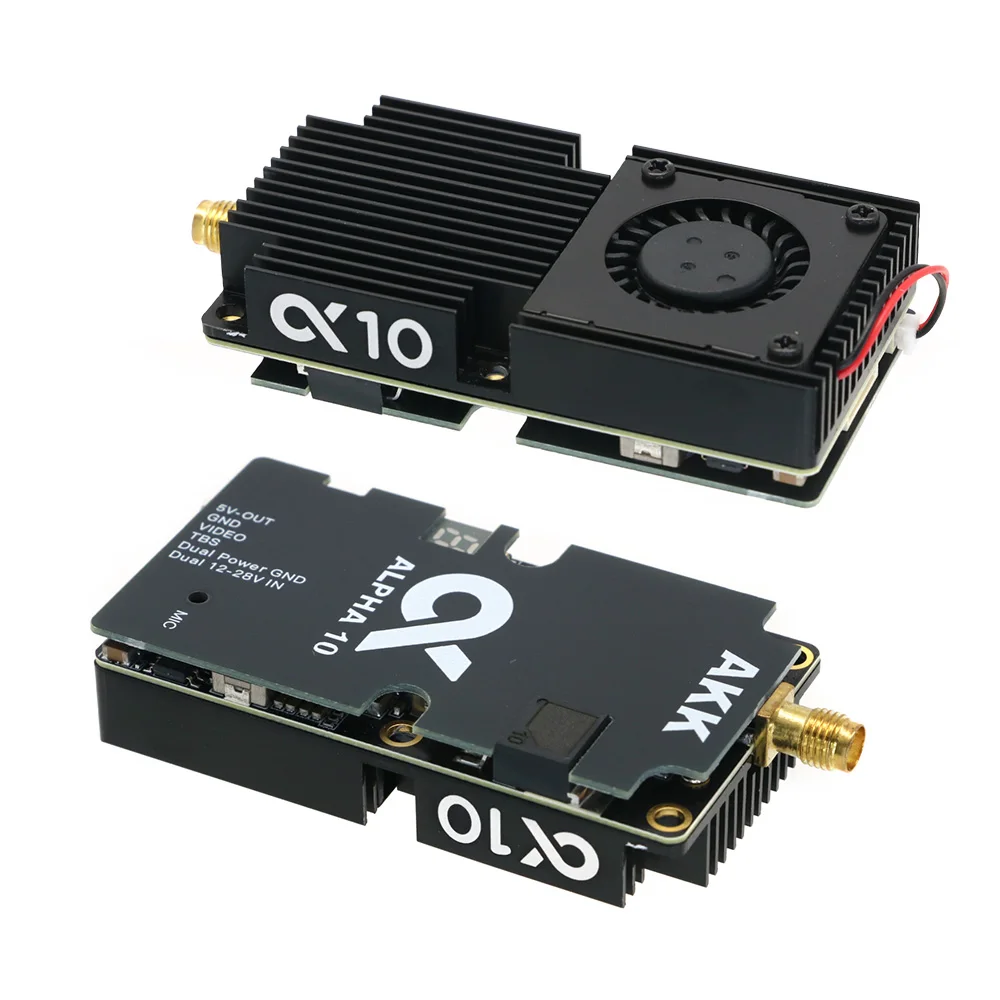

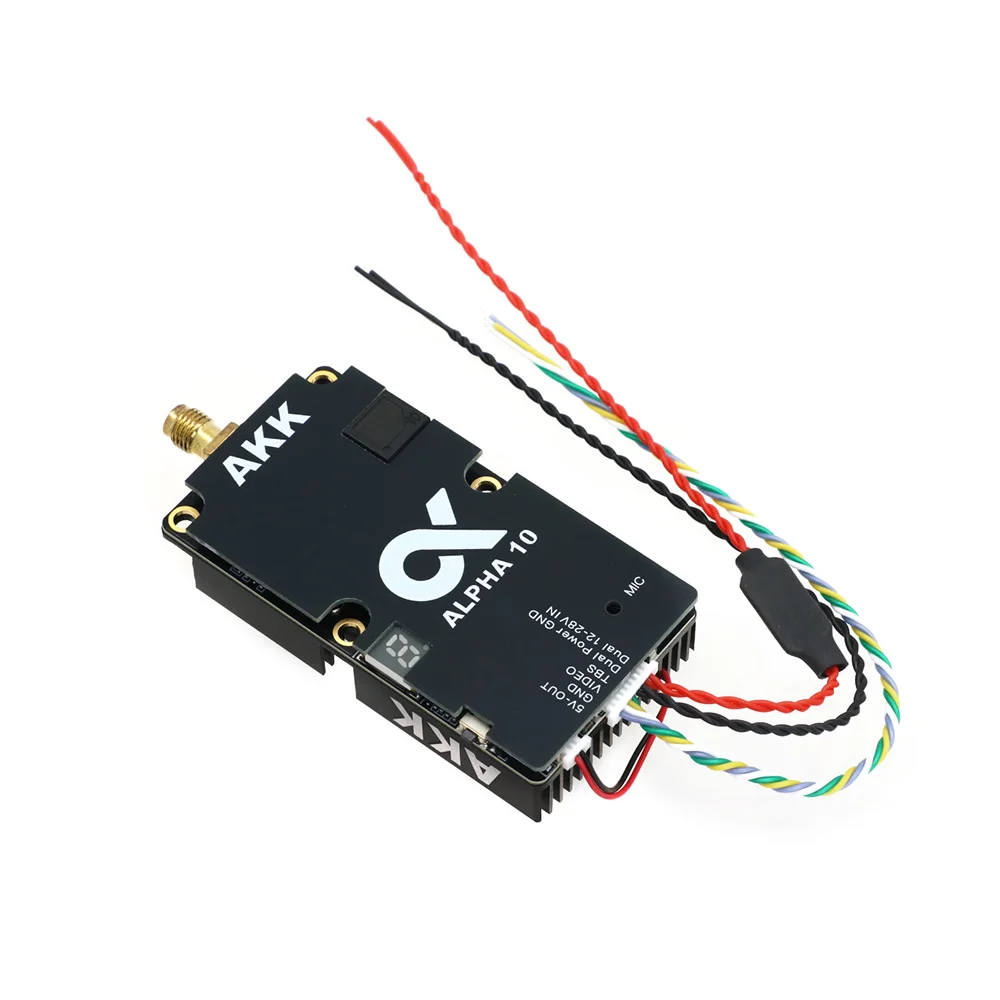

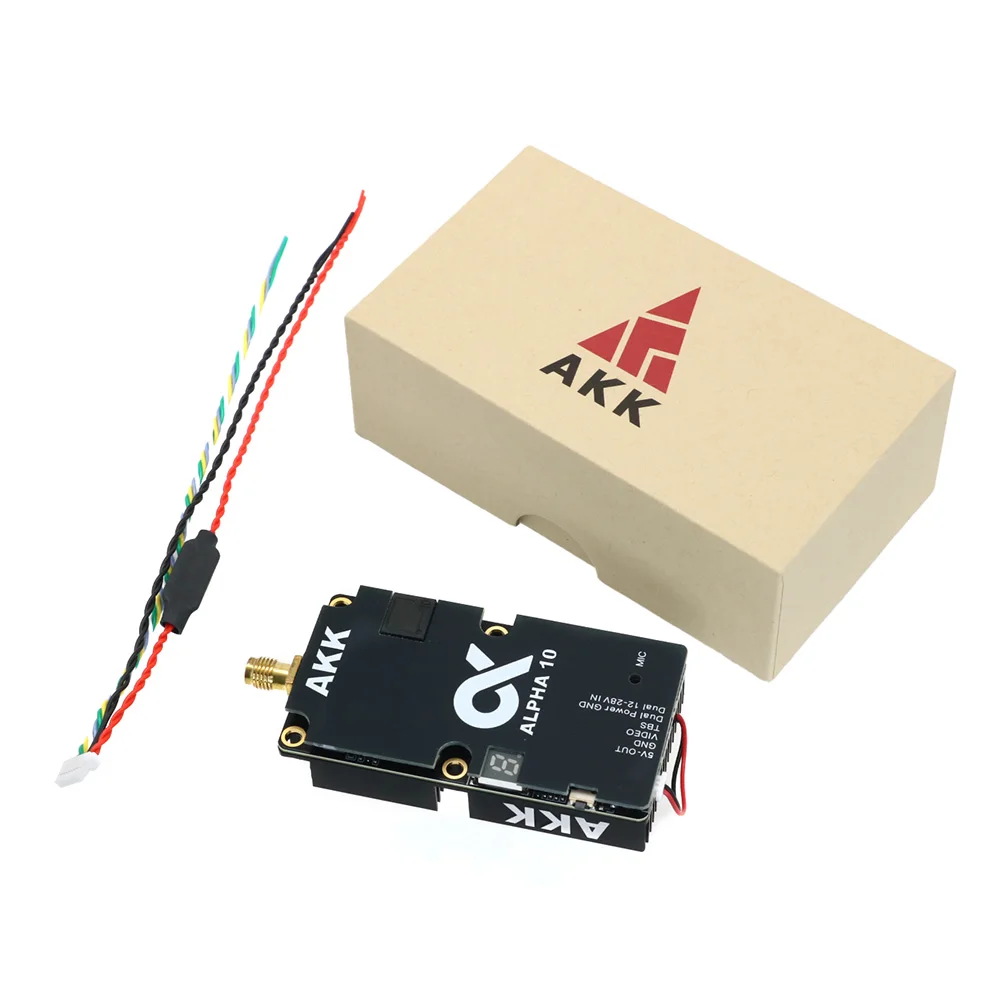

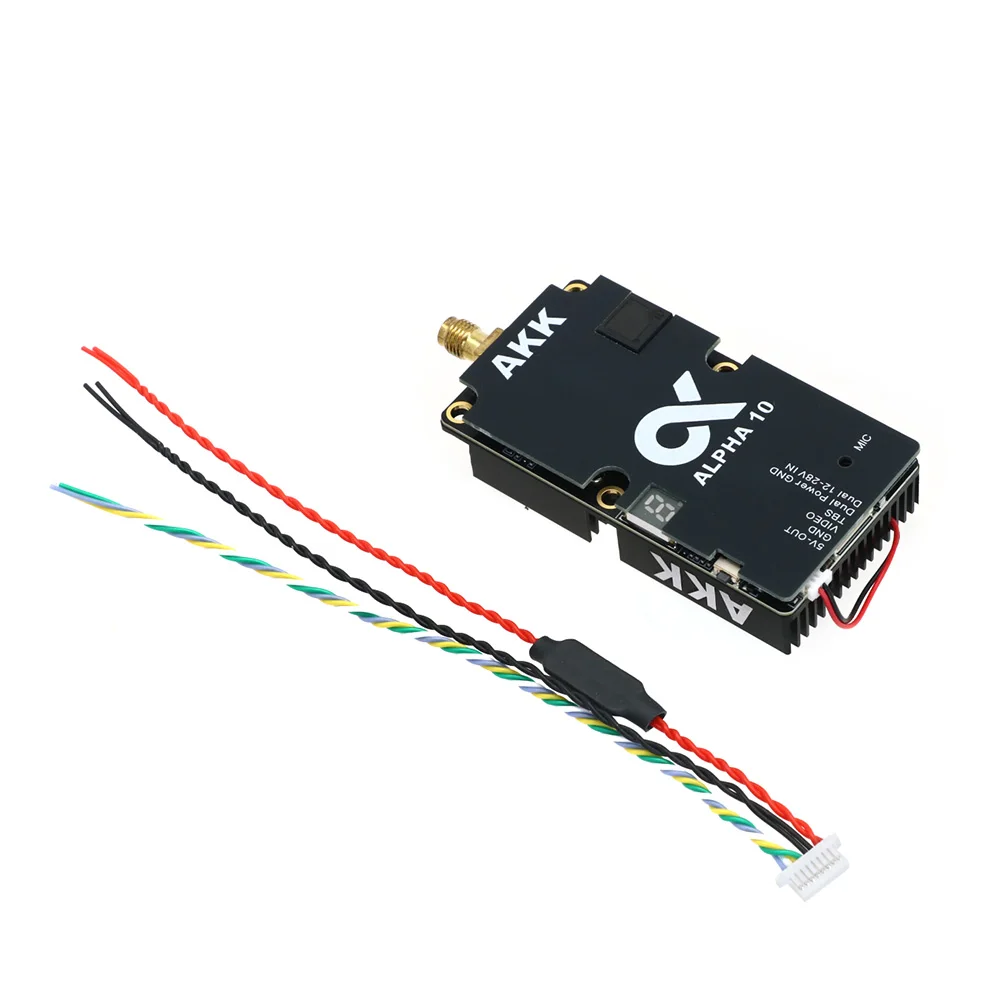

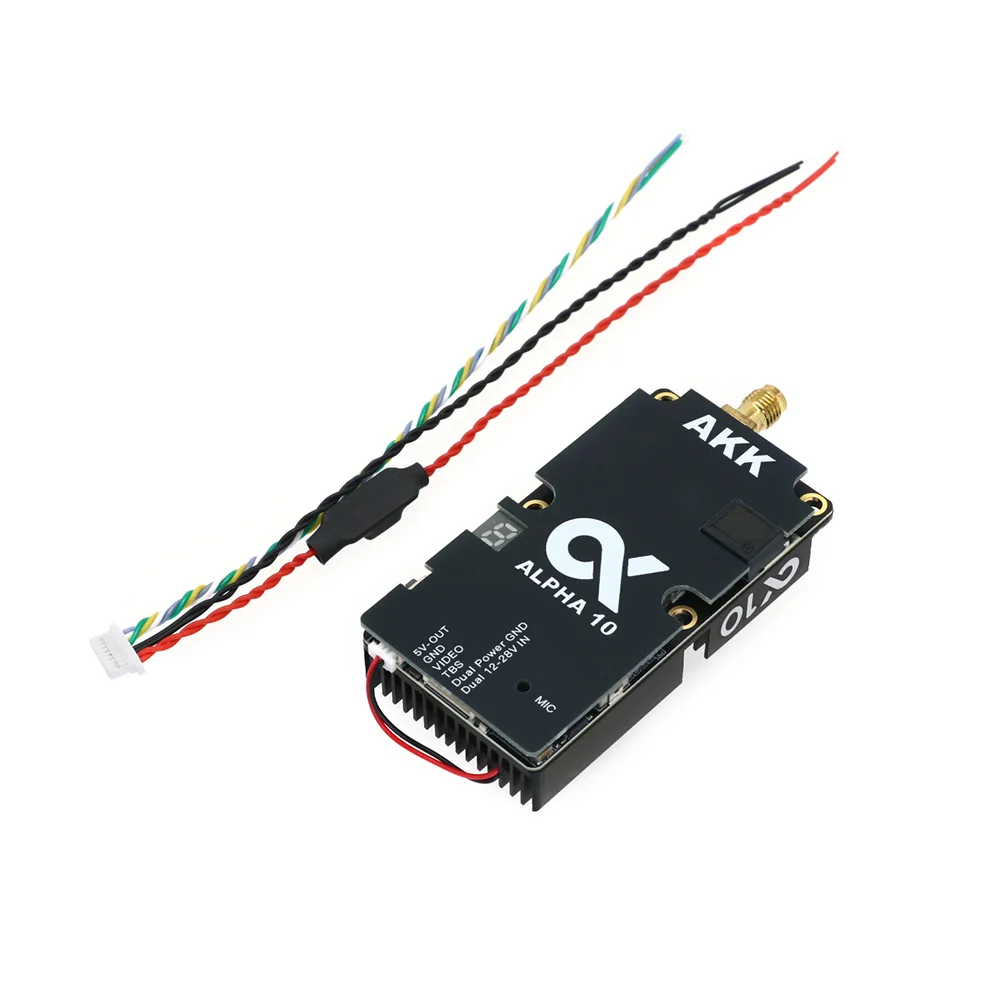

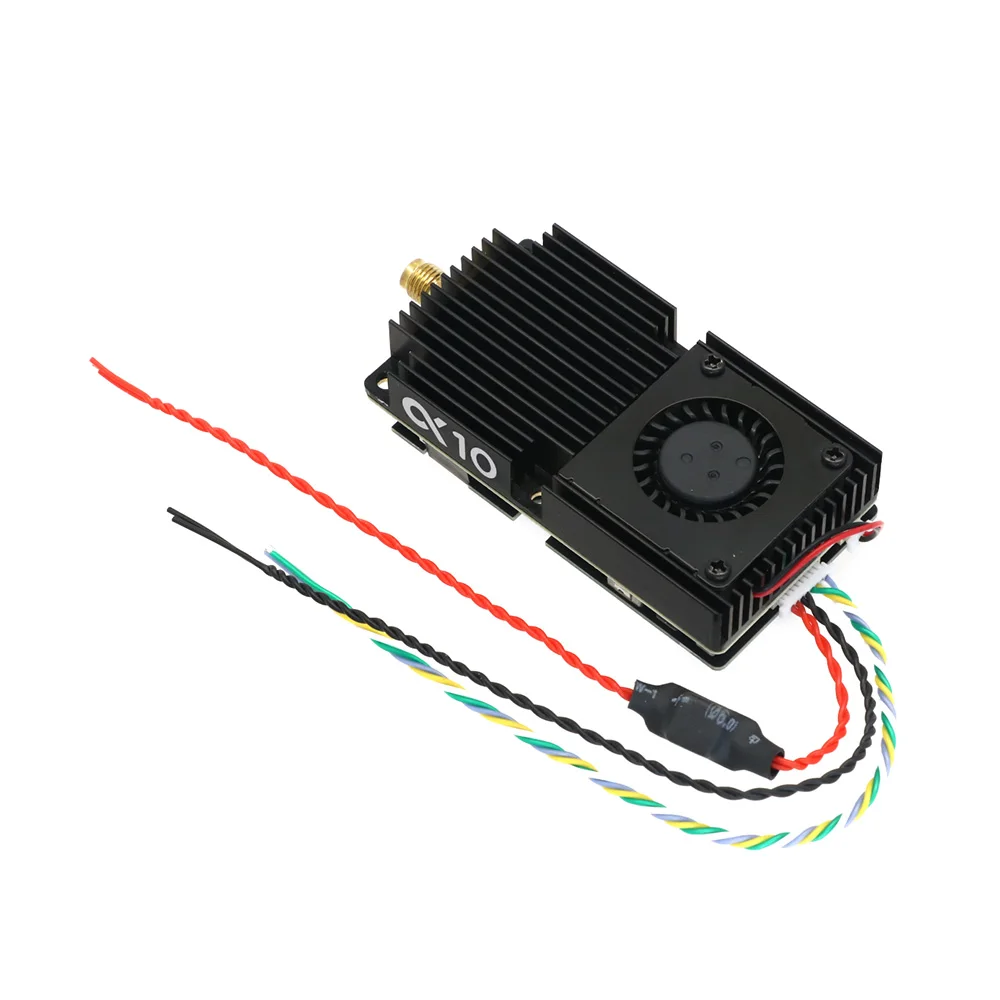

Up to 10W powerful output for long-range and stable transmission
-
80 channels for flexible switching to avoid signal interference
-
Built-in smart audio system, cooling fan, and heat sink for stable operation
-
Compact and lightweight design, compatible with various drone platforms
-
Strong signal penetration and transmission stability
-
Rich channel options suitable for diverse scenarios
-
Durable and reliable performance in complex flying environments
|
Frequency Range |
5.8 GHz |
|
Output Power |
Adjustable: 1W / 3W / 5W / 7W / 10W |
|
Channel Number |
80 Channels |
|
Input Voltage |
12-28V (Recommended 6S battery) |
|
Output Voltage |
5V |
|
Power Consumption |
12V/2.8A, 28V/1.1A |
|
Additional Features |
Smart audio, built-in fan and heatsink |
|
Mounting Hole Size |
30.5 x 30.5 mm |
|
Antenna Connector |
SMA |
|
Cable Connector |
JST 8-pin (Dual 12-28V inputs and dual ground) |
|
Weight |
48g |
|

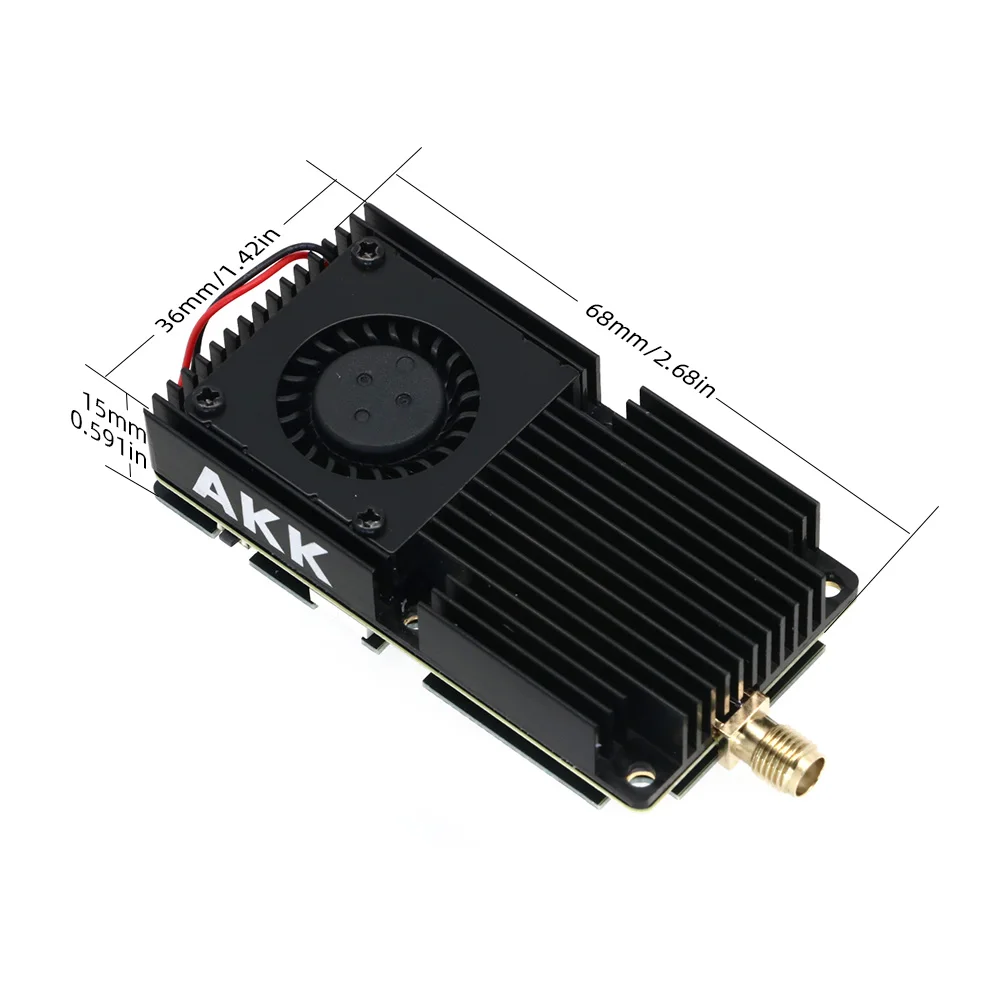

Dimensions |
68 x 36 x 15 mm |

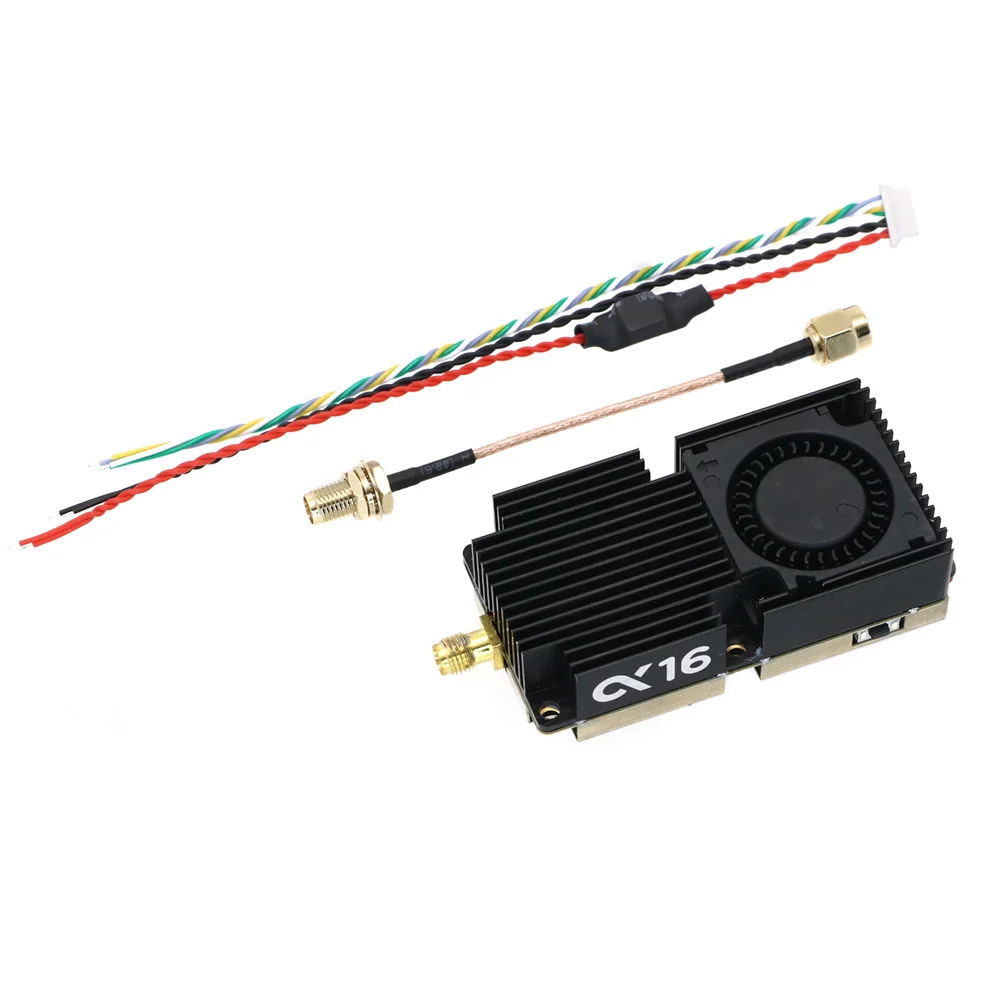

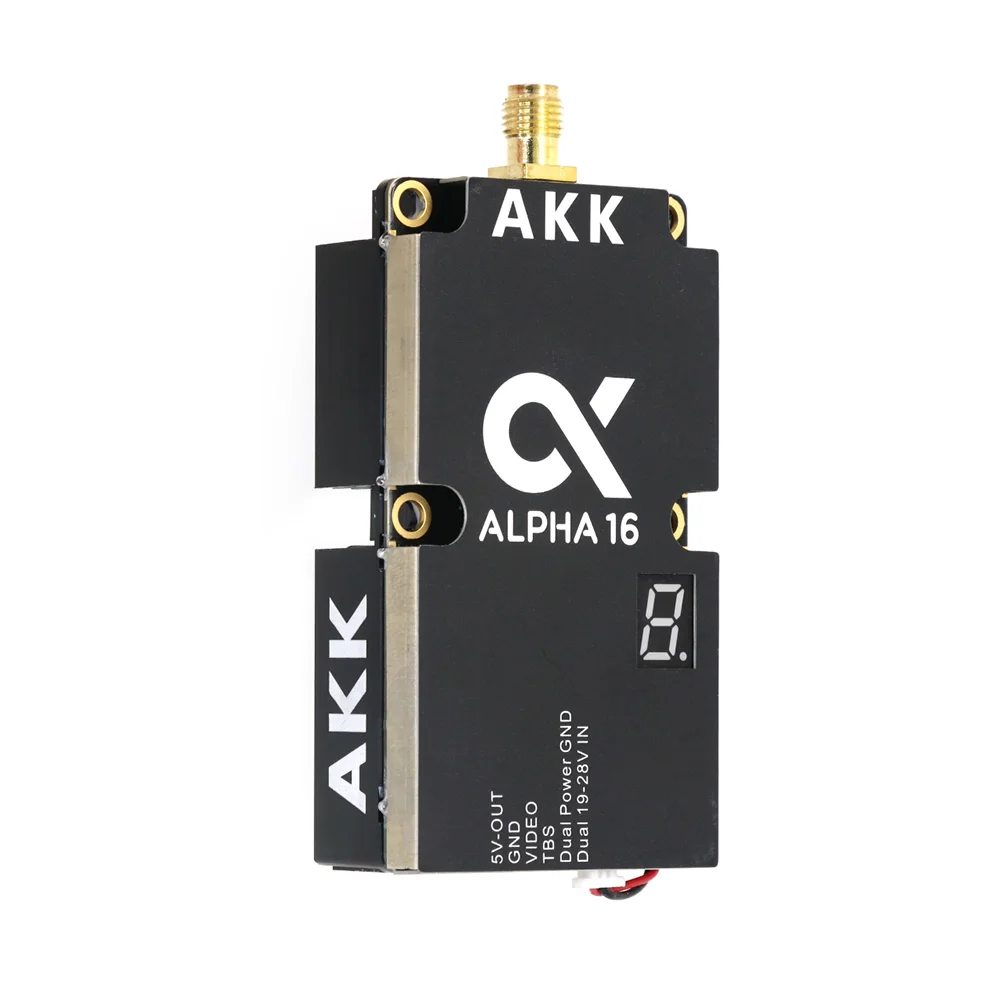

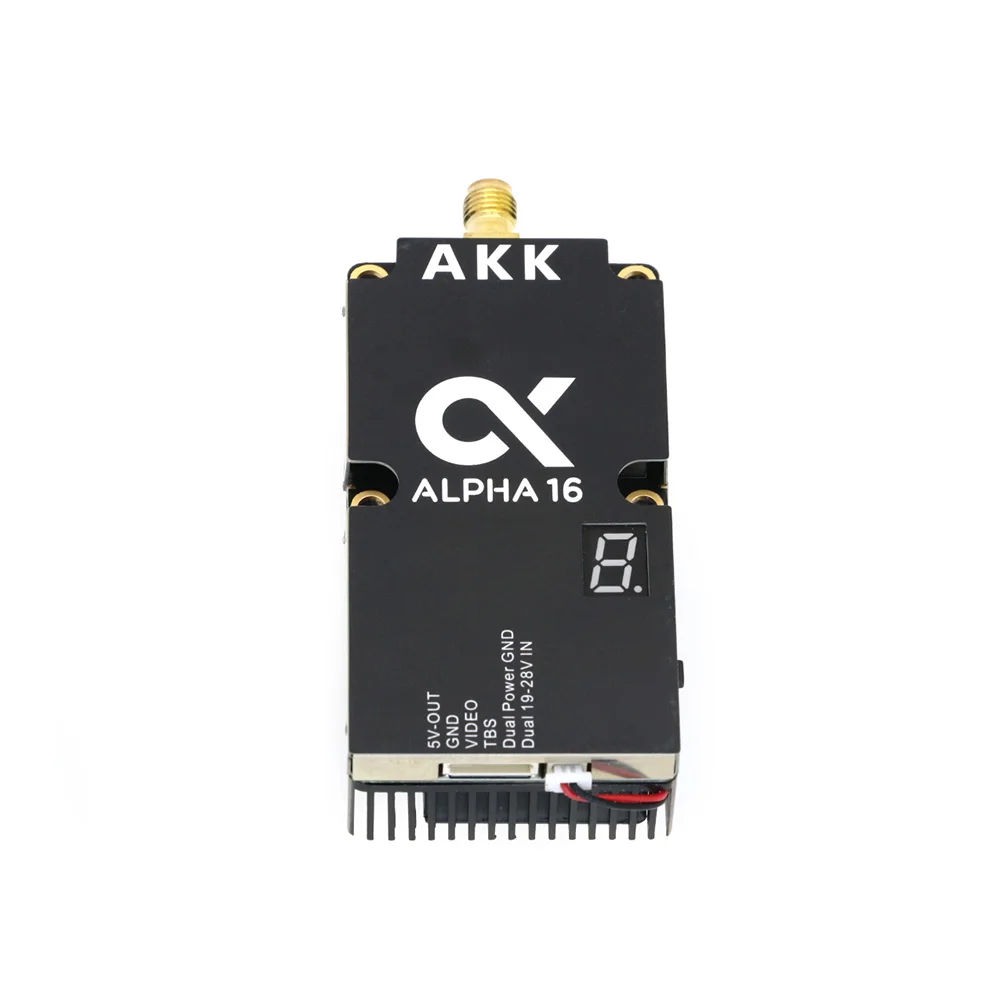

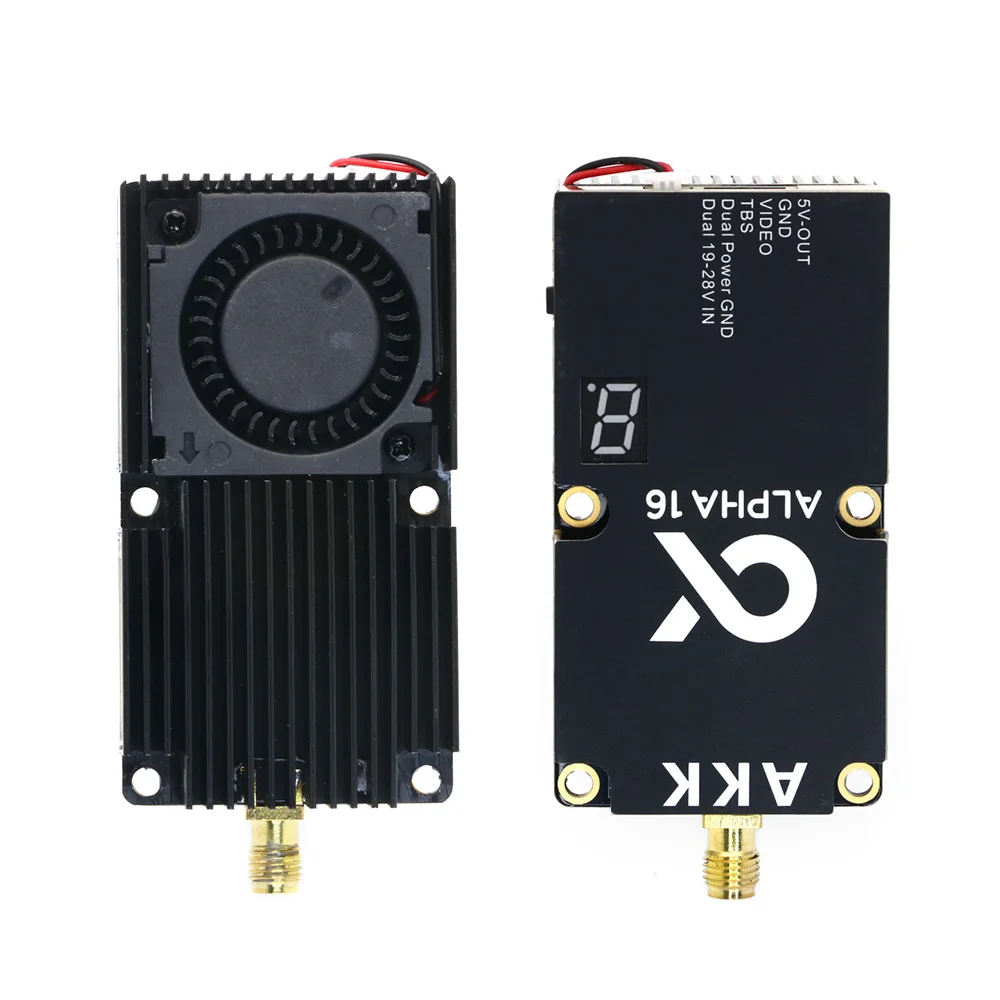

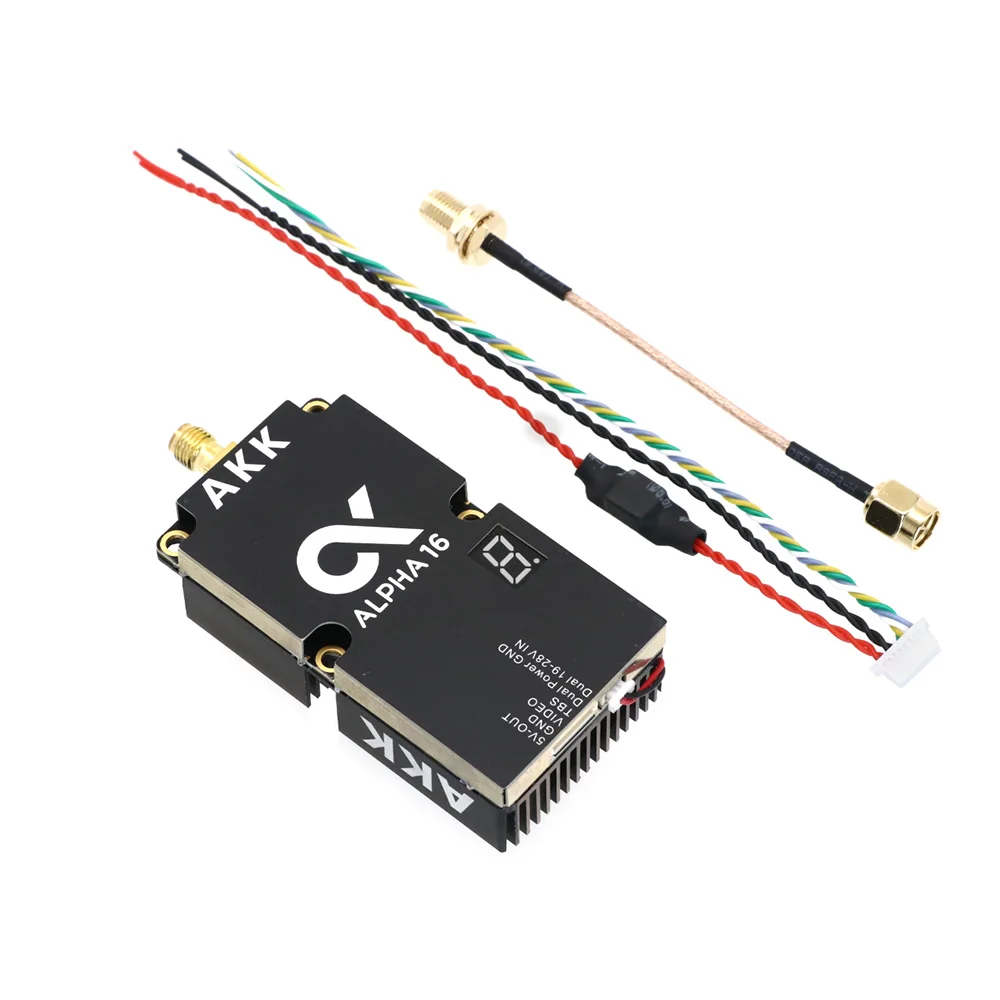

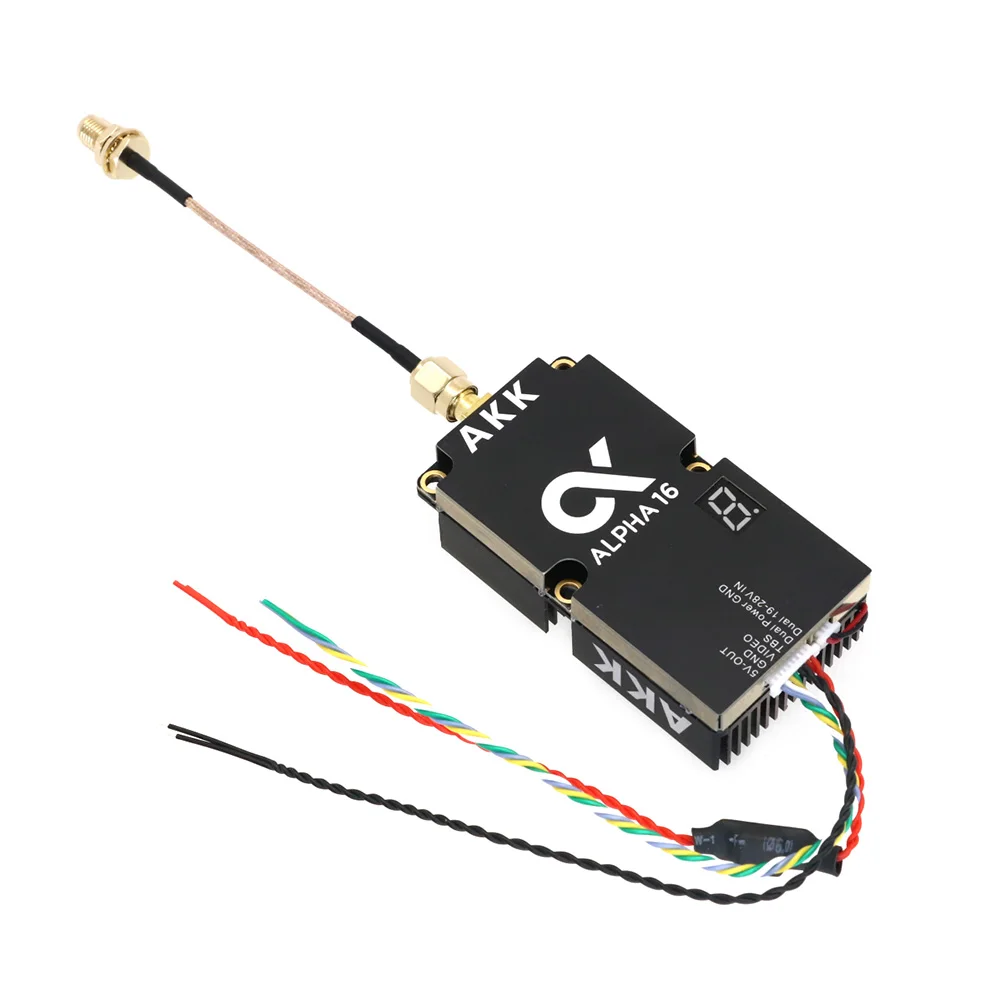

AKK Alpha 16 VTX 4.9G 5.8G 16W 96CH Video Transmitter Ultra Long Range VTX Smart Audio 16W
Description:
|
Item
|
Description
|
|
Frequency
|
4.9GHz to 6GHz
|
|
Output Power
|
25mW/1W/3W/5W/8W/16W
|
|
Quantity of Channel
|
96 Channels
|
|
Input voltage
|
19V to 28V, 3A
|
|
Antenna Connector
|
SMA
|
|
Extra Feather
|
Smart audio
|
|
Power supply
|
5V Camera @ under 500mA max.
|
|
Microphone
|
Not supported
|
|
Cable connector
|
JST, 6pin
|
|
Dimensions
|
68*36*15mm, 30.5 x 30.5mm (hole)
|
|
Weight
|
56g (excluding antenna)
|
|

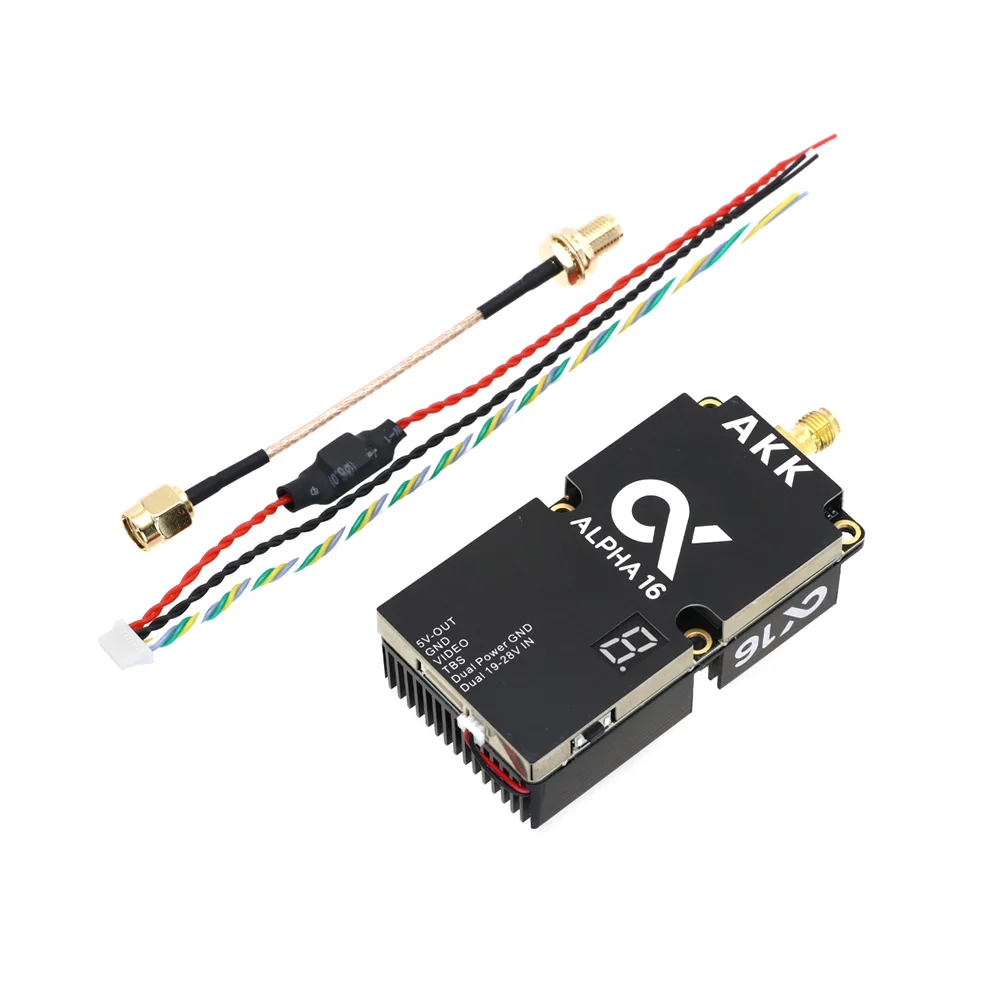

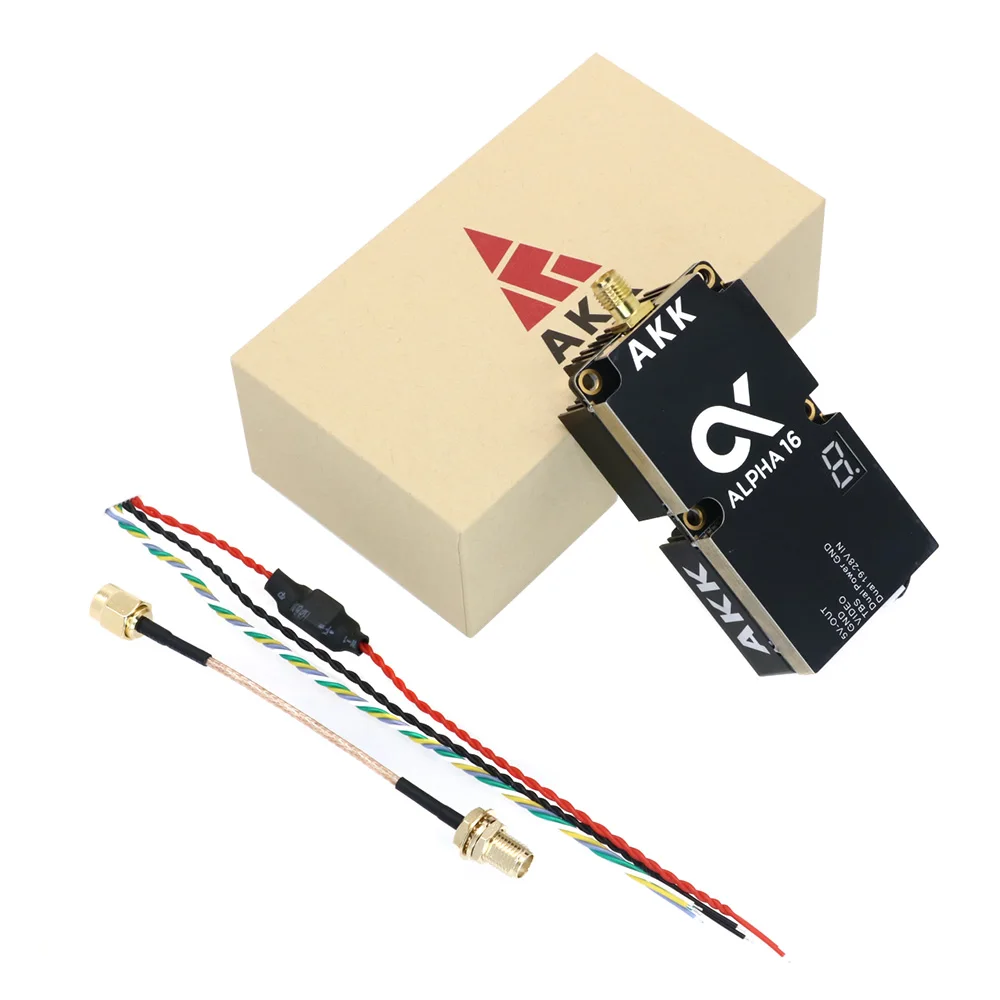

Kit contents
|
1pcs VTX,1pcs cable, 1pcs pigtail
|
| Color | ALPHA10 10W, ALPHA16 16W, ALPHA5 5W, ALPHA8 8W, ALPHA4 4W |
|---|
