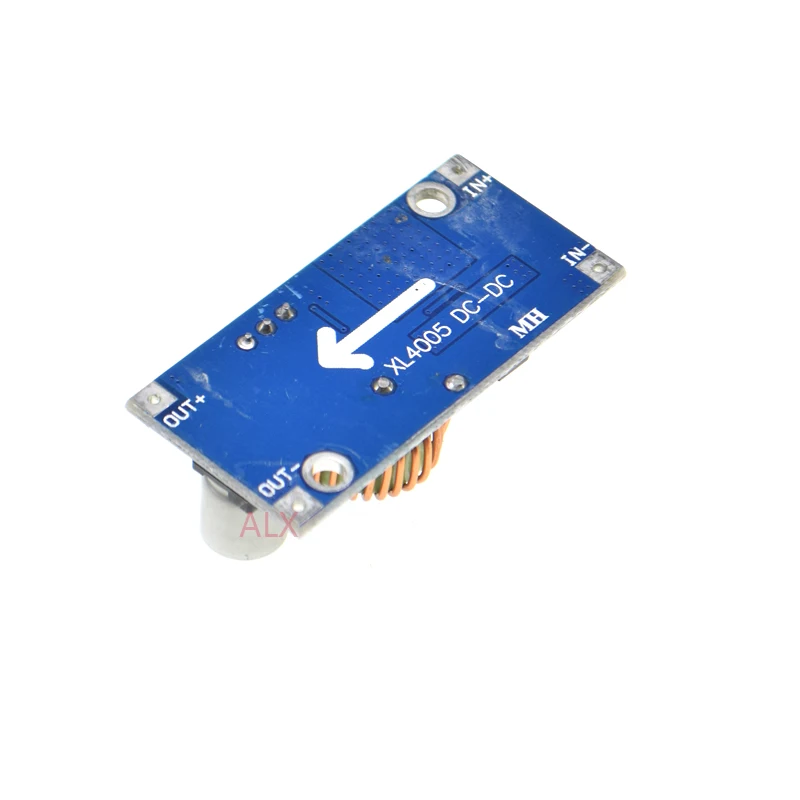

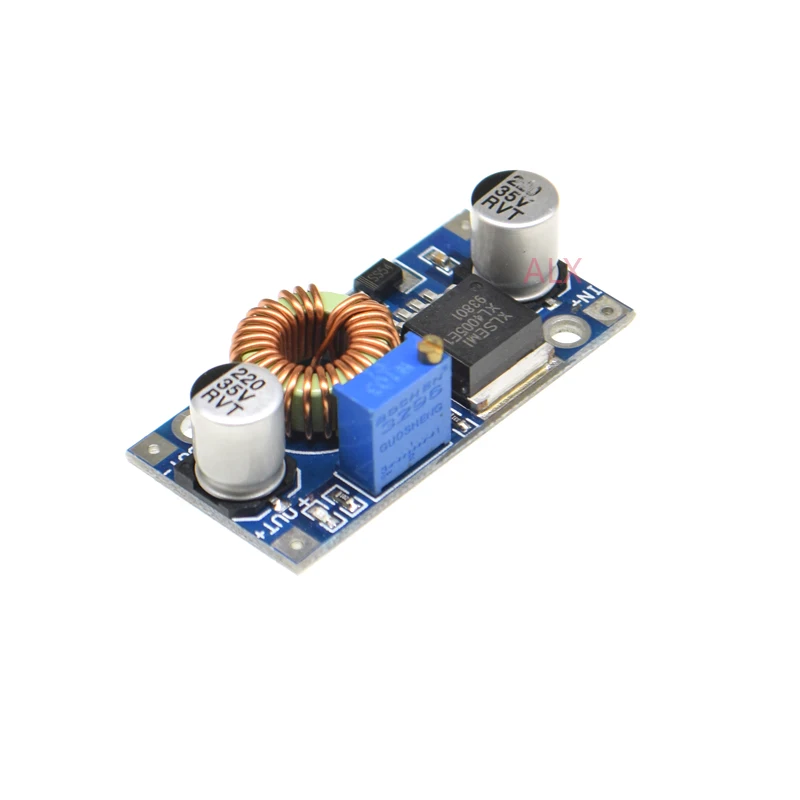

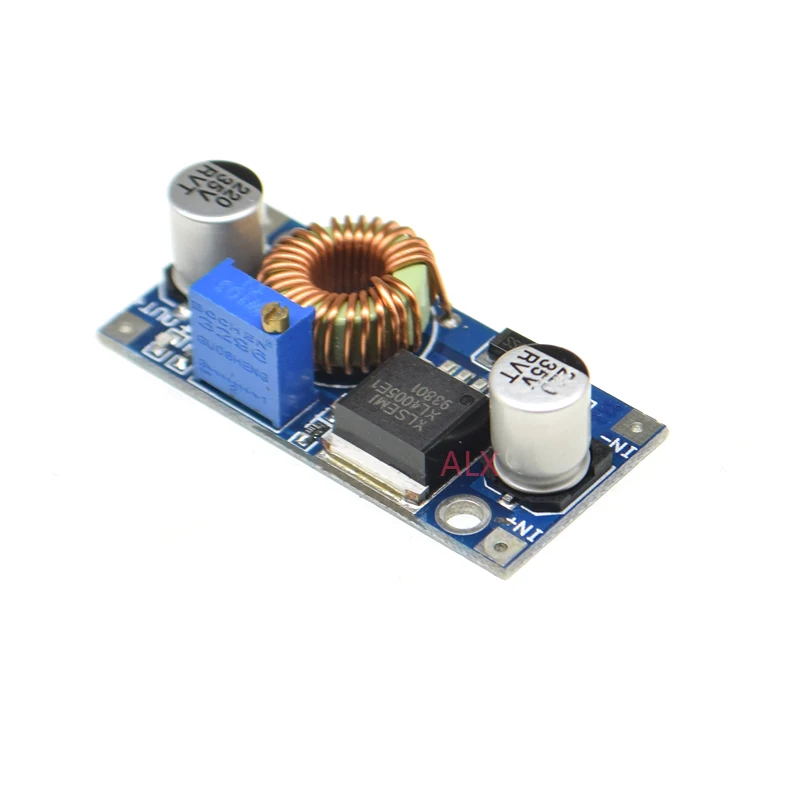

5a Xl4015 dc-dc 4-38v To 1.25-36v 24v 12v 9v 5v Step Down Adjustable Power Supply Module Led Lithium Charger With Heat Sink
Original price was: $9.12.$6.08Current price is: $6.08.
89217 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Certification: None
Current Type: DC
High-concerned chemical: None
Model Number: LM2596
Origin: Mainland China
Phase: single phase
Use: SVC
is_customized: Yes
Features:
Module nature: non-isolated buck module (BUCK) Input voltage: 4-38V (please try not to exceed 38V) Output voltage: 1.25-36V continuously adjustable Output current: 0-5A Output power: 75W Working temperature: -40 ~ + 85 degrees Working frequency: 180KHz Conversion efficiency: up to 96% Load adjustment rate: S (I) ≤ 0.8% (input 24V, output 12V, measured when the load changes from 1 ~ 4.5A) Voltage adjustment rate: S (u) ≤ 0.8% Power indicator: Yes Short-circuit protection: Yes (limited current 8A) Over-temperature protection: Yes (the output is automatically turned off after over-temperature) Input reverse connection protection: None, (if necessary, please insert a high current diode in the input) Installation: 2 3mm reeds
Wiring method: welding, V-IN is input, V-OUT is output
