1.Water-proof and Dust-proof: The WSDT-60A brushless RC 60A ESC suitable to all-weather sport races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

2.External Programming Port: Easy to connect to the Program Card when setting the ESC

3.Multiple Protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection

4.Performance: Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment; 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks

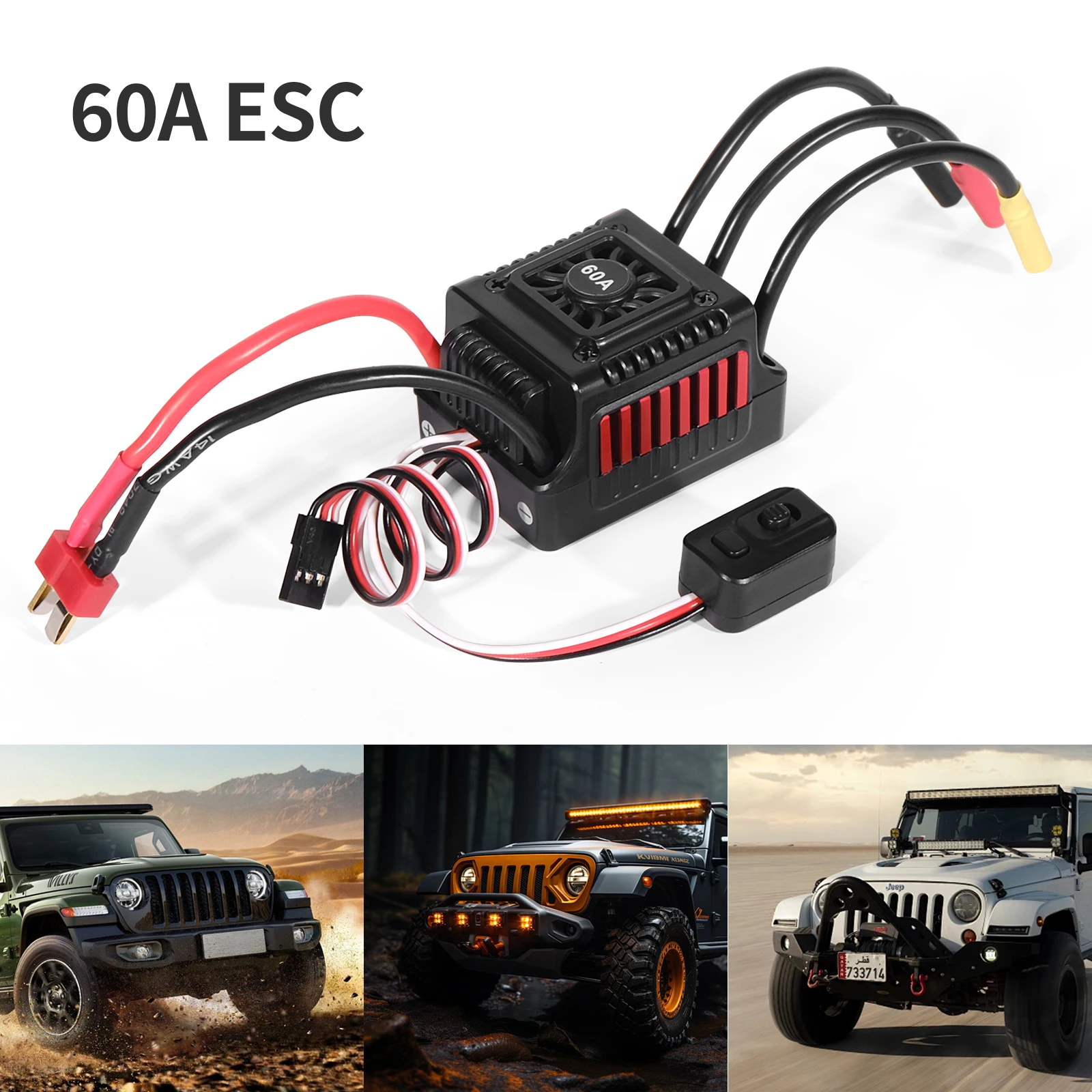

5.Application: This WSDT-60A brushless ESC suitable for 1/10th short course trucks, buggies, trucks, and monster trucks.The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this RC Brushless ESC compatible with various servos

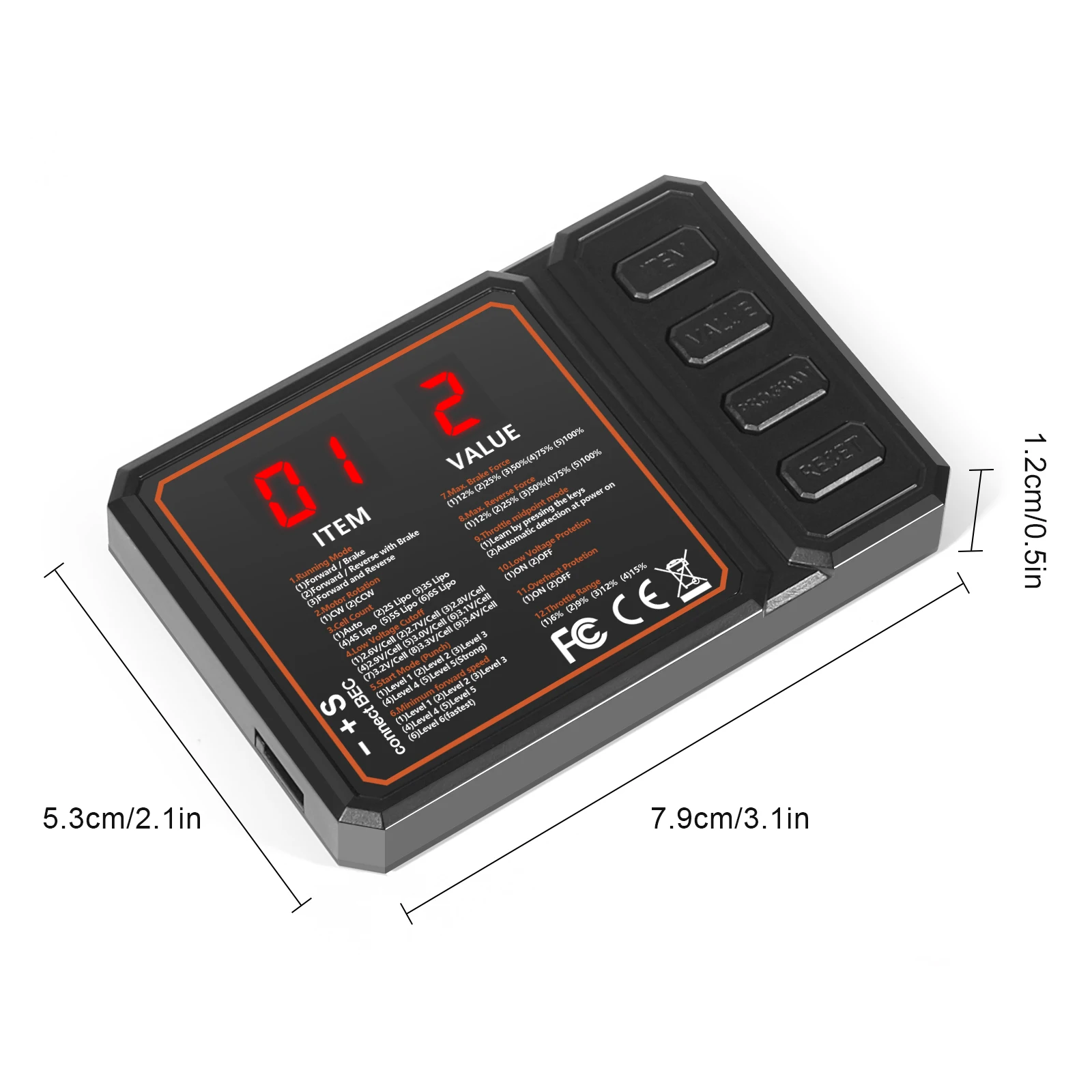

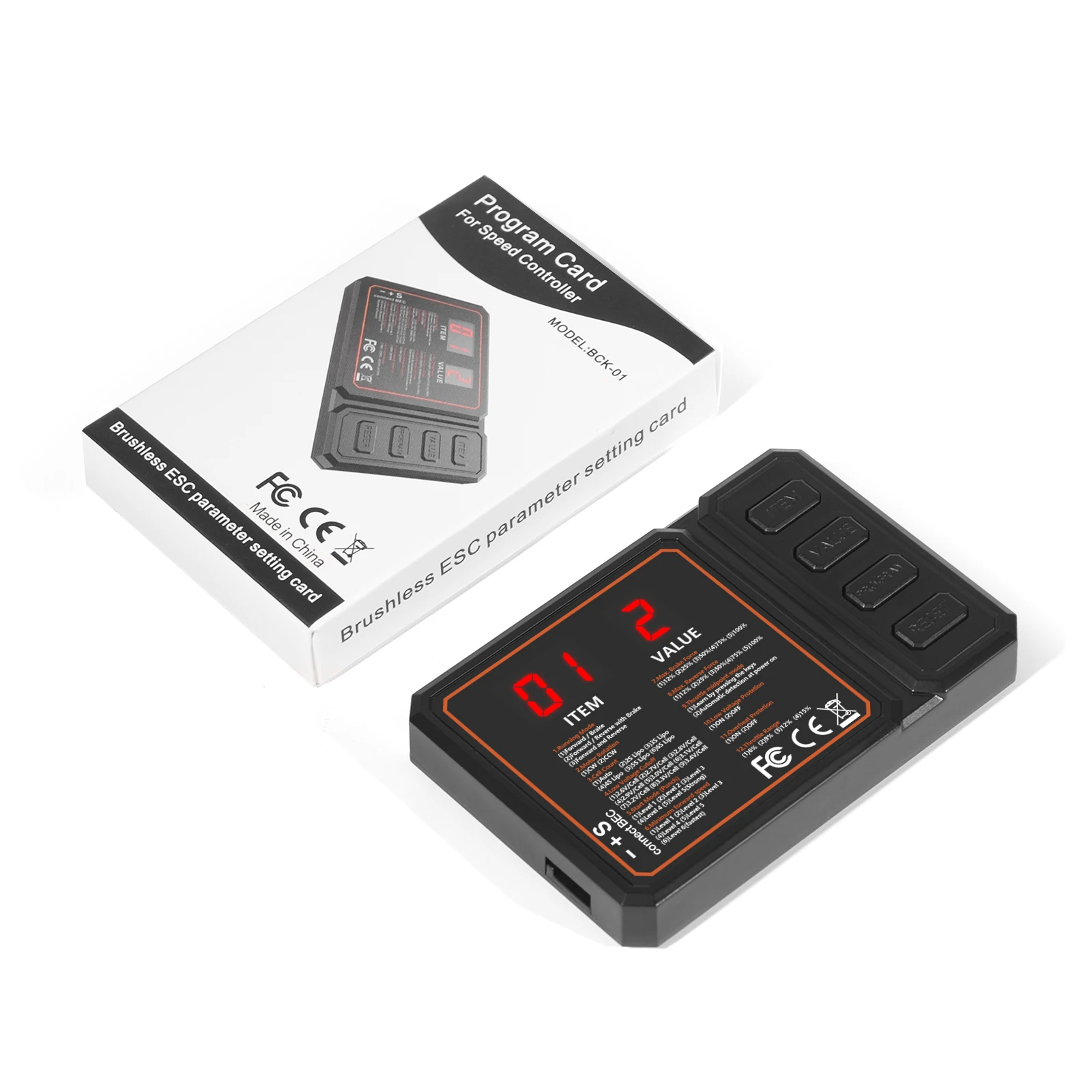

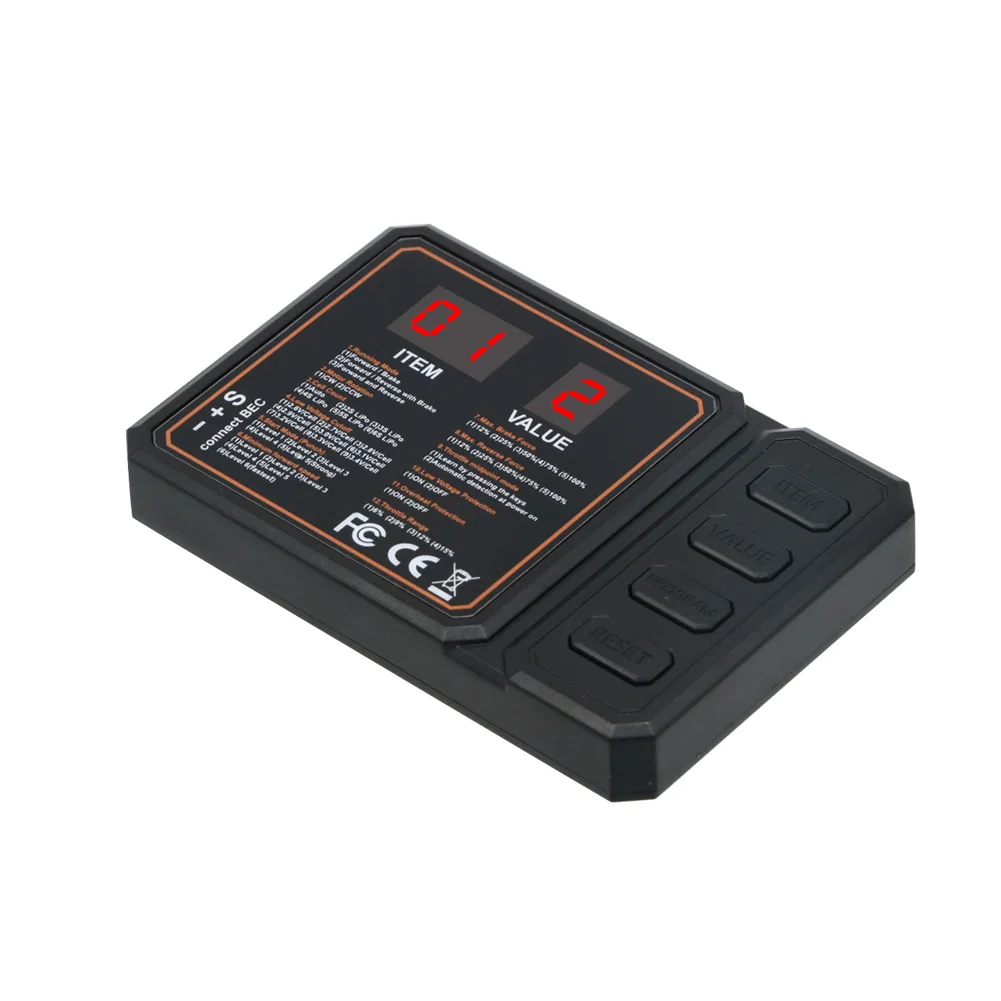

Tips: Compatible with optional device – the portable Digital LED Program Card which is especially convenient for outdoor use.If necessary, you can consult our customer service to recommend for you.

Description:

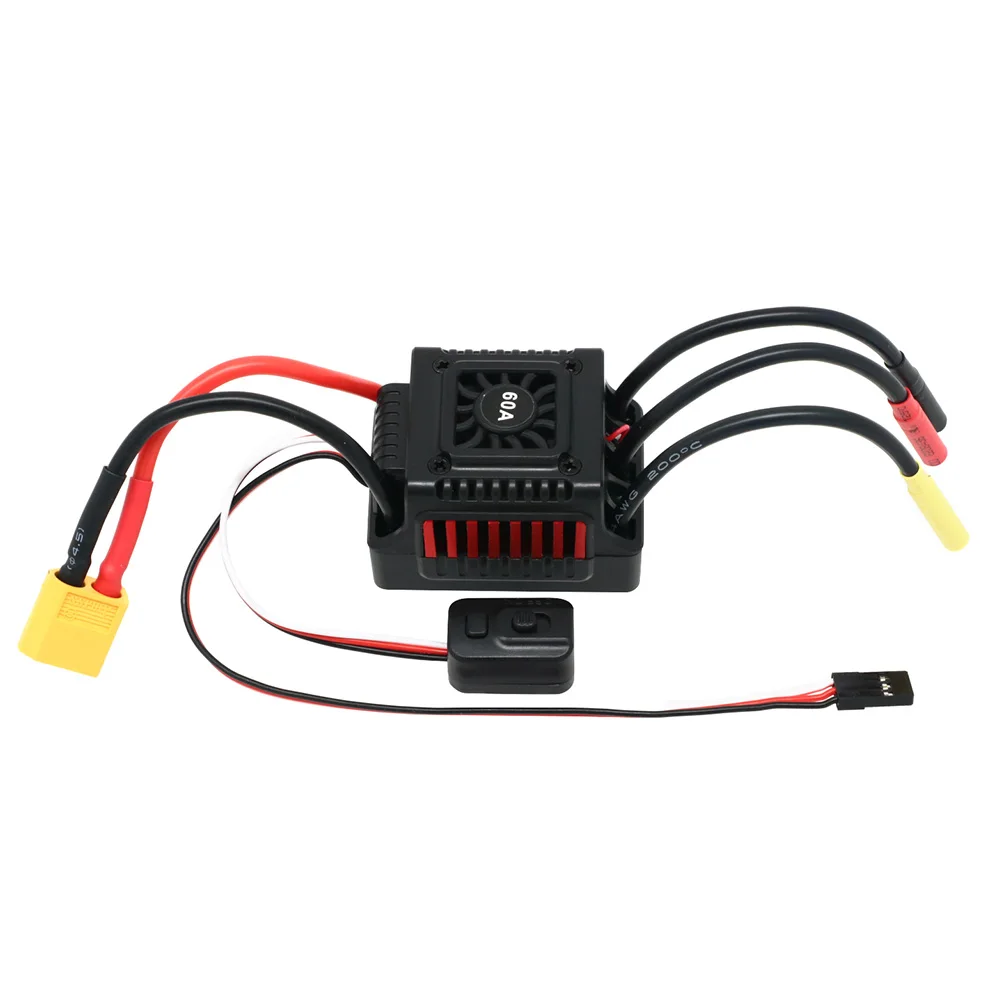

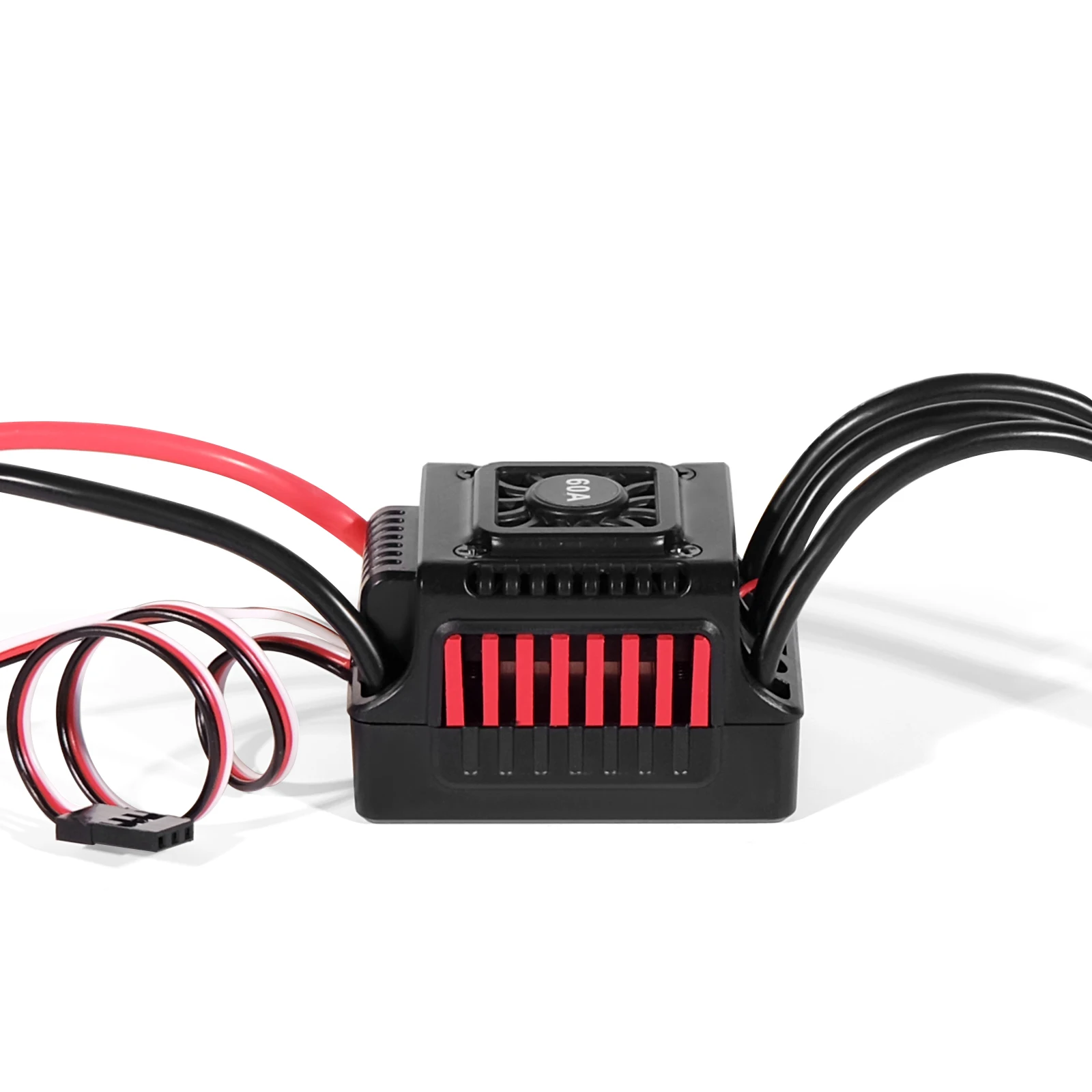

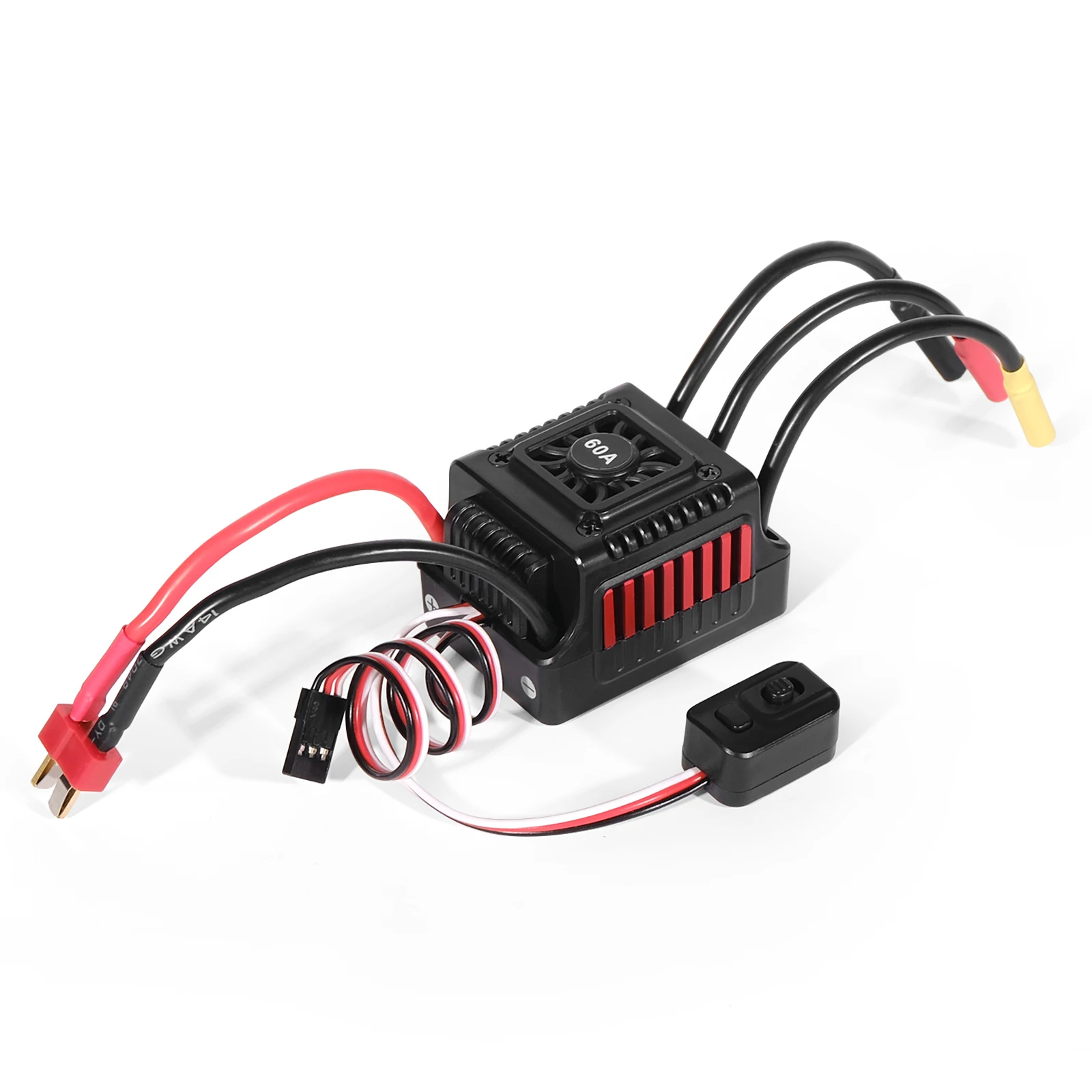

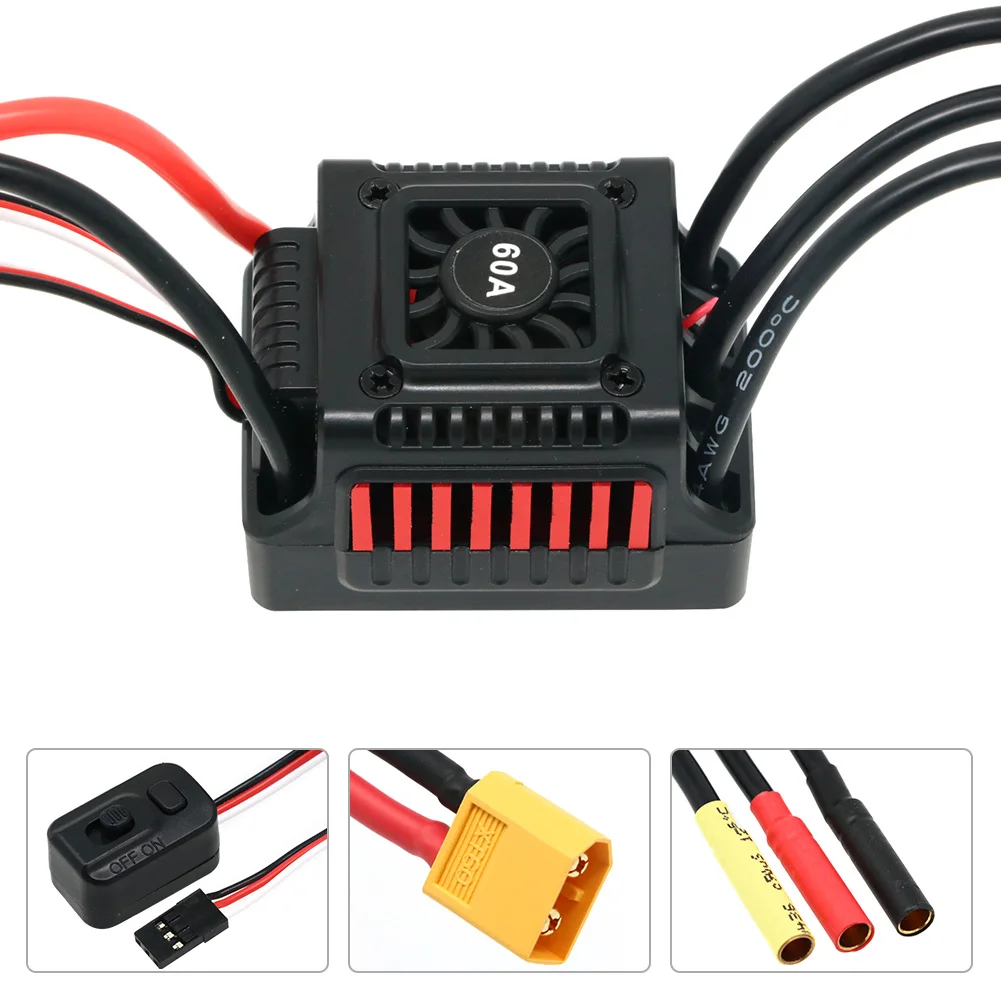

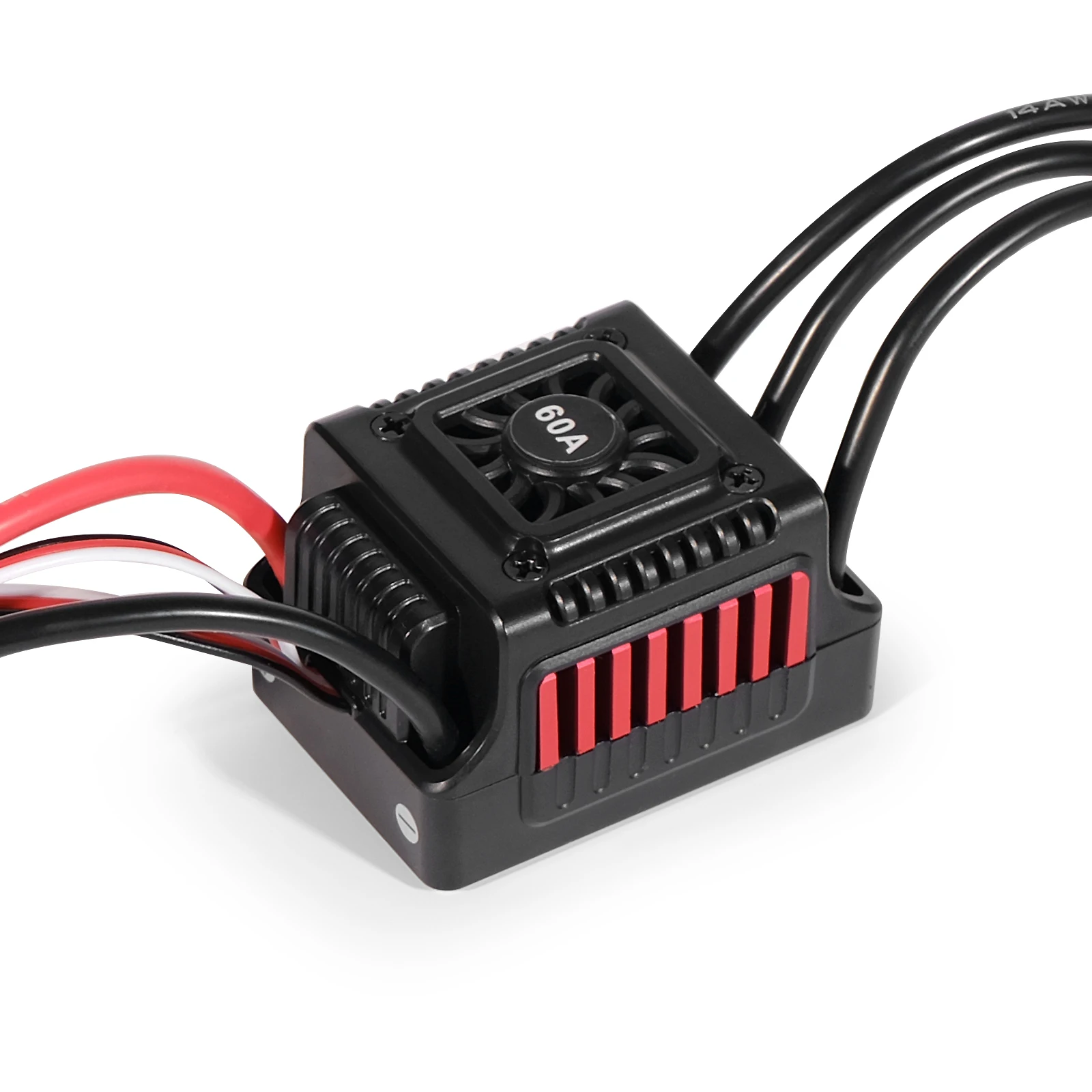

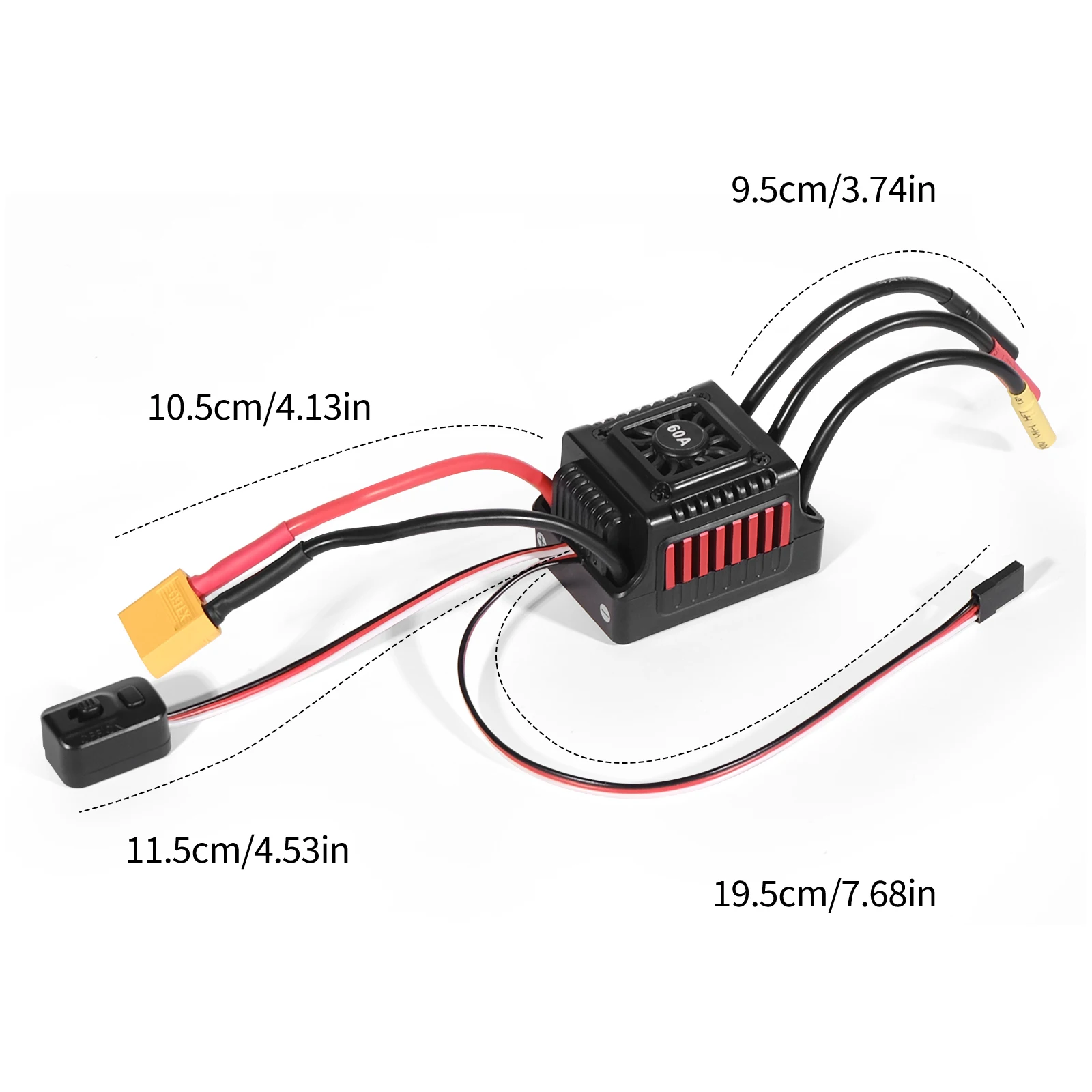

WSDT-60A RC sensorless brushless waterproof 60A ESC suitable for 1/10 RC ,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players

Specifications:

Brand Name: SENSORLESS BRUSHLESS ESC FOR CAR

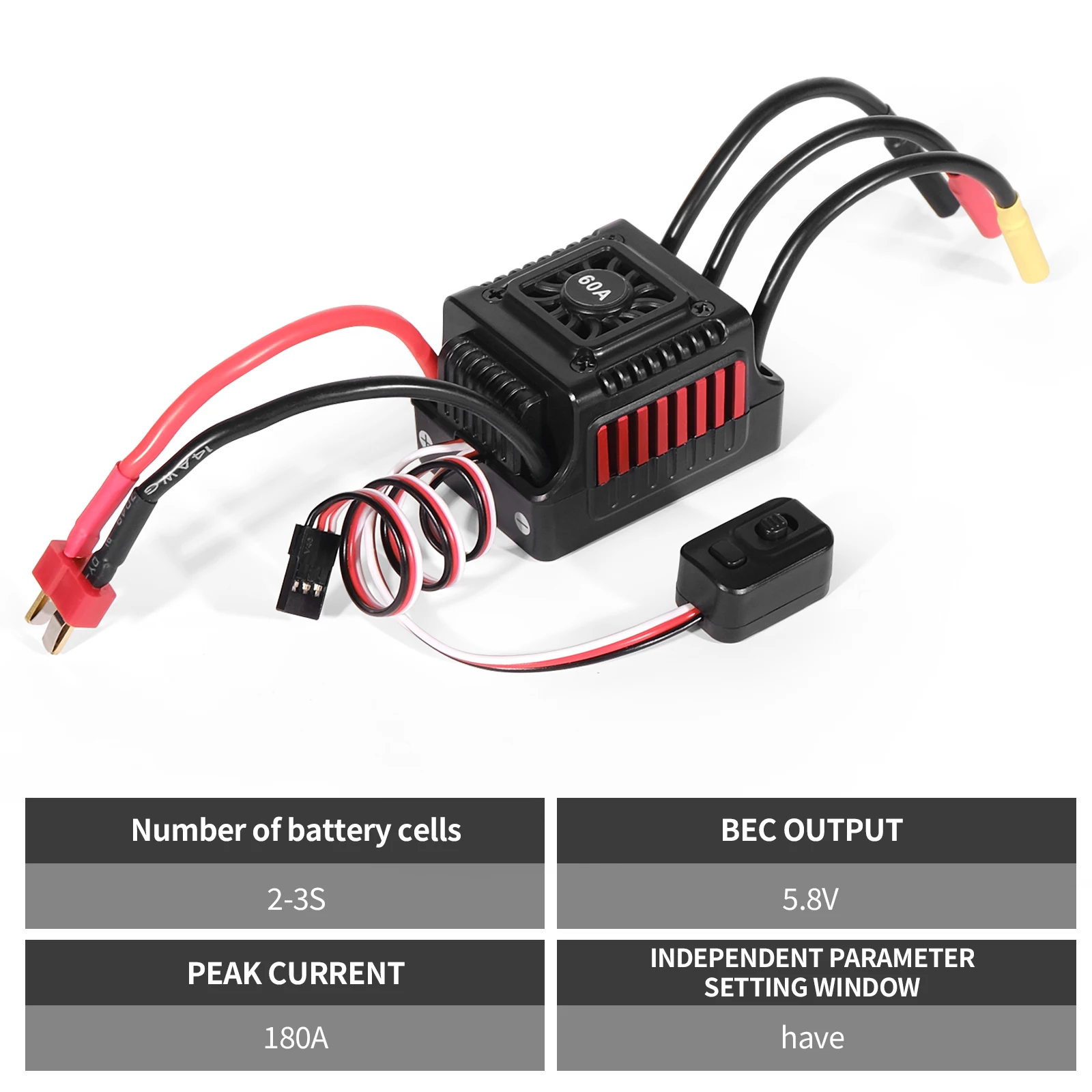

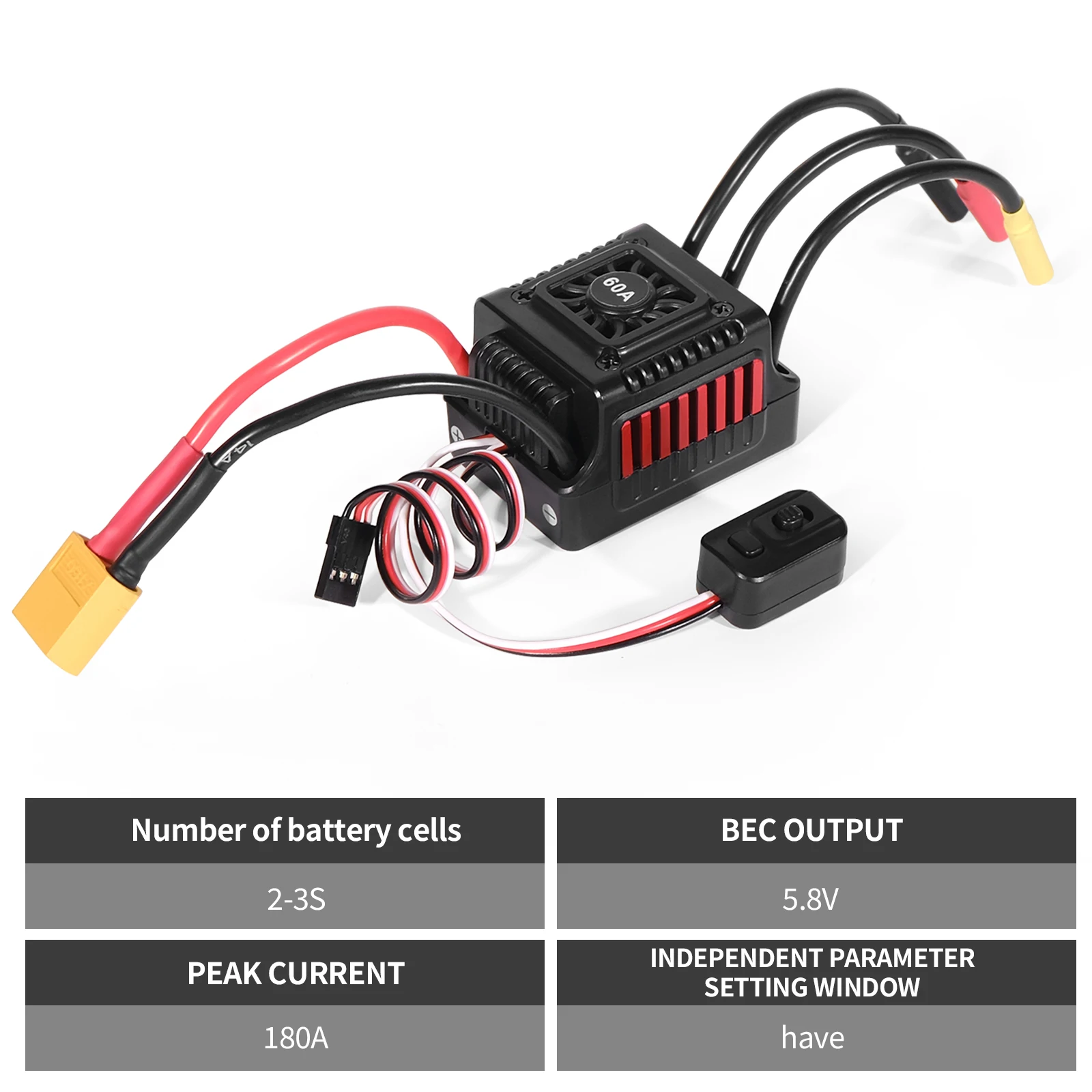

Model: WSDT-60A

Cont. Current: Fwd. 60A / Rev. 60A

Peak Current: Fwd. 180A / Rev. 180A

Resistance: 0.001Ω

Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster

Battery: 4-9 Cells NiMH, 2-3S Lipo

Motor Limit:

For 2S Lipo or 6 cells NiMH:

On-road: 3656-size or smaller motor with

the KV<6000

Off-road/Buggy/Monster: 3656-size or

smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

On-road: 3656-size or smaller motor with

the KV<4000

Off-road/Buggy/Monster: 3656-size or

smaller motor with the KV<3000.

BEC Output: 5.85V/3A

Cooling Fan:

From battery directly without regulating

The stock fan can work with 2S and 3S Lipo

Dimensions: 52(L)X39(W)X35(H)mm

Weight: 73g

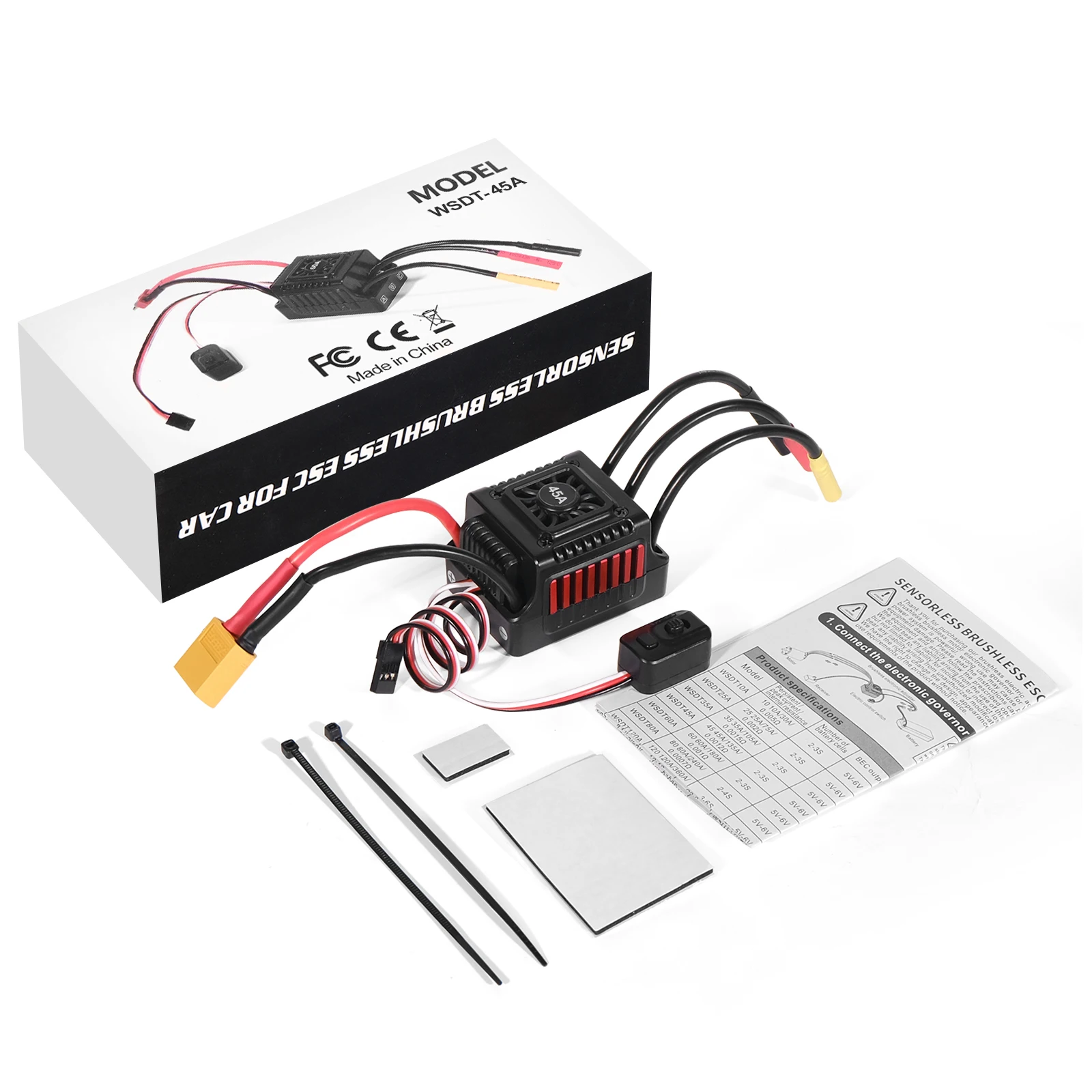

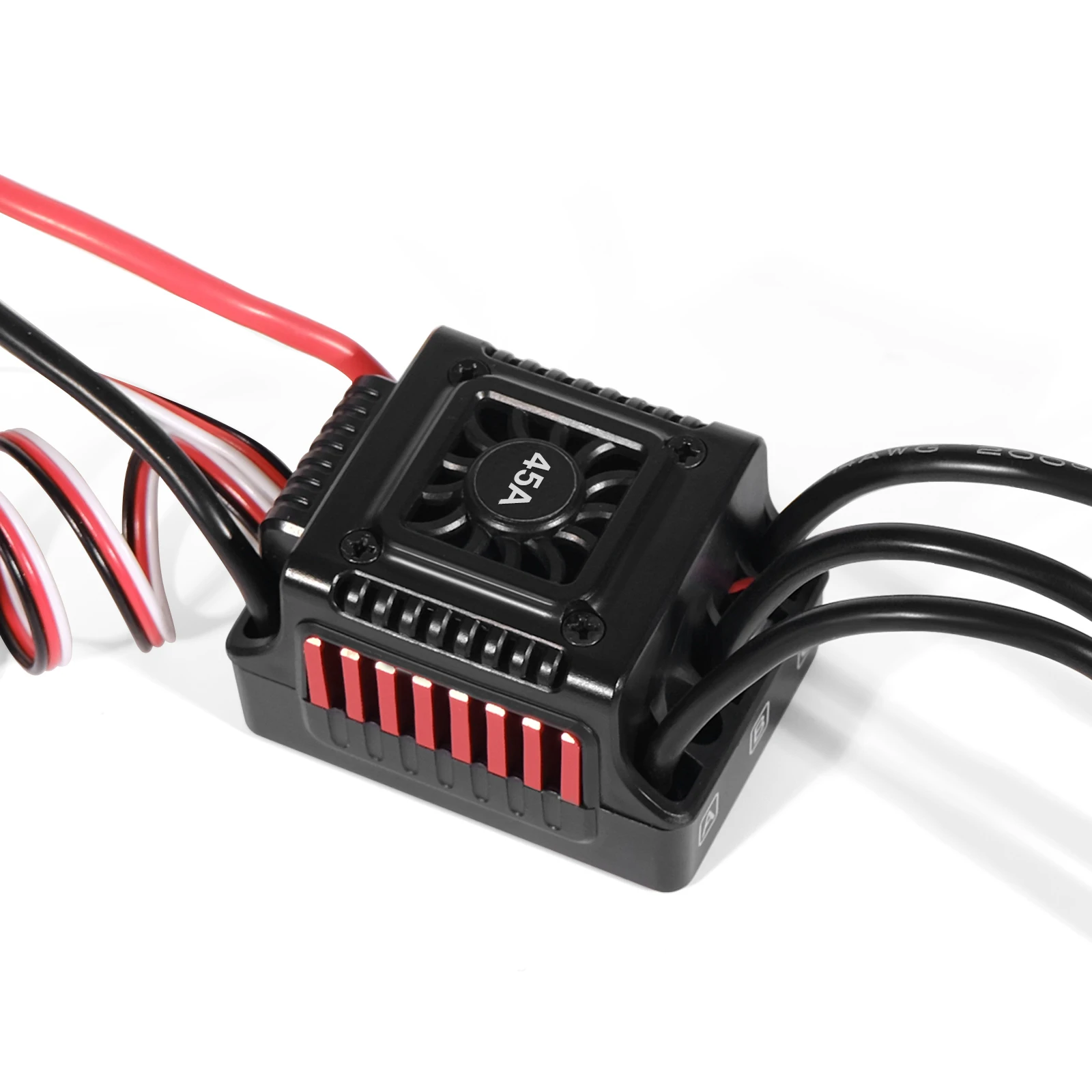

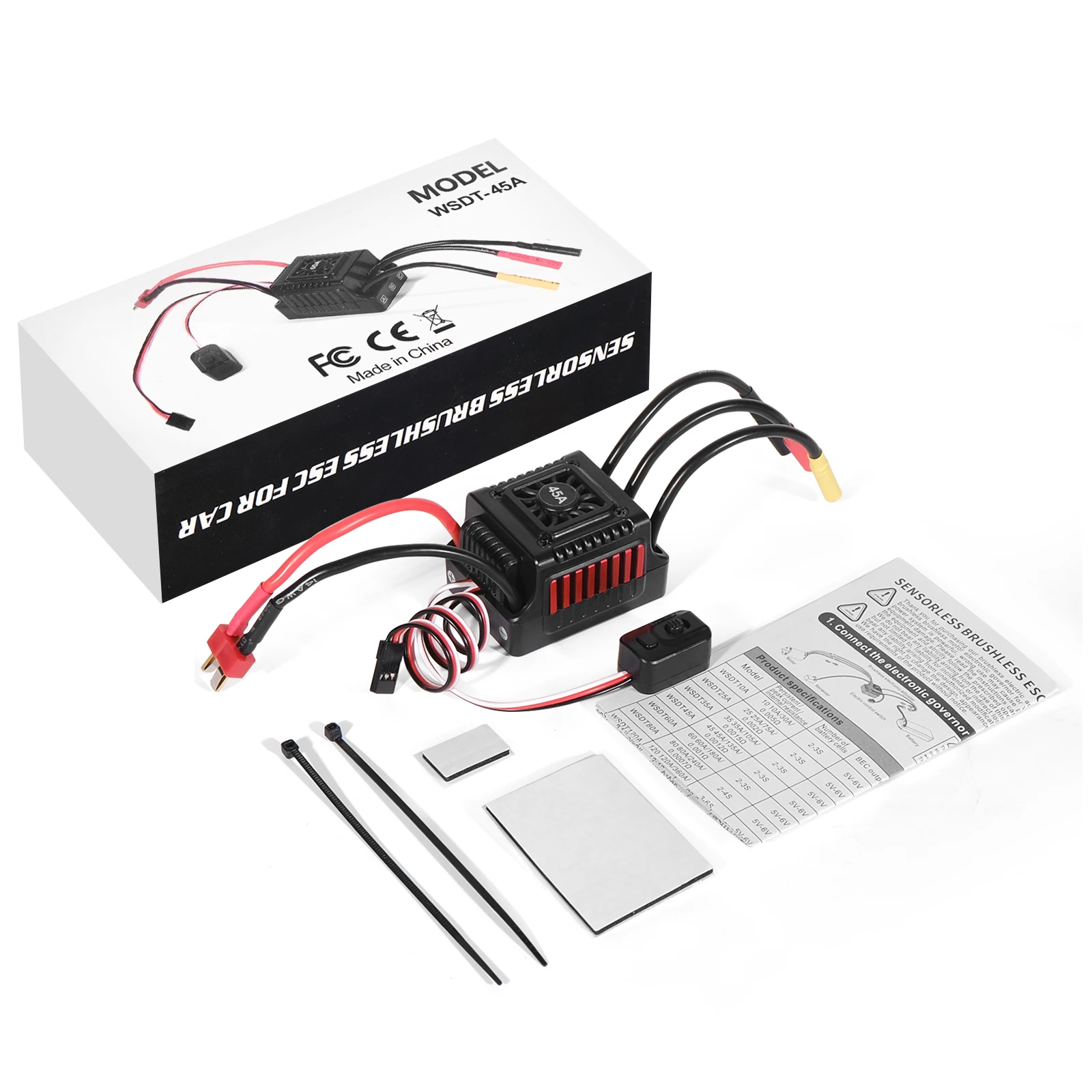

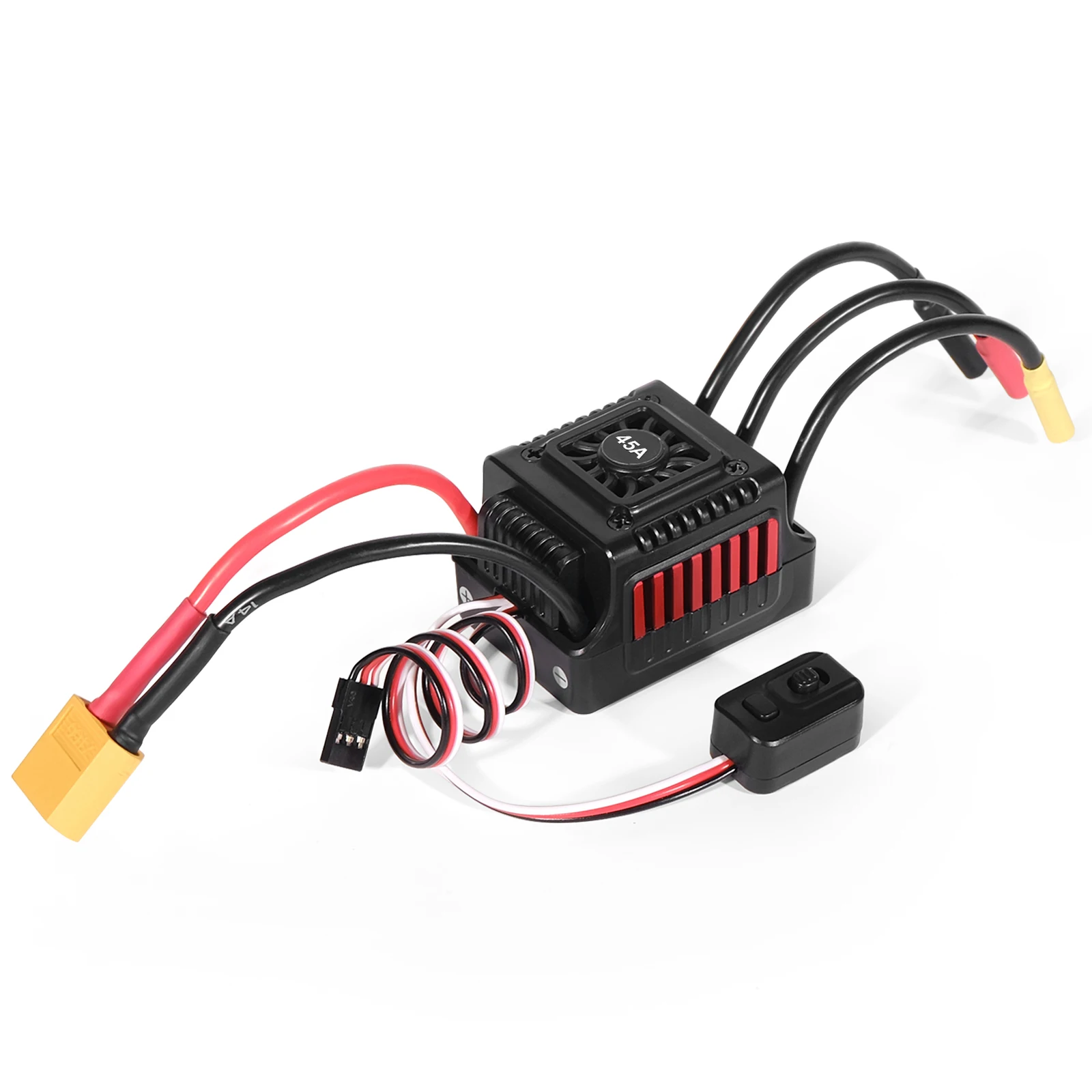

Model: WSDT-45A

Cont. Current: Fwd. 45A / Rev. 45A

Peak Current: Fwd. 135A / Rev. 135A

Resistance: 0.0012Ω

Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster

Battery: 4-9 Cells NiMH, 2-3S Lipo

Motor Limit:

For 2S Lipo or 6 cells NiMH:

On-road: 3650-size or smaller motor with

the KV<6000

Off-road/Buggy/Monster: 3656-size or

smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

On-road: 3656-size or smaller motor with

the KV<4000

Off-road/Buggy/Monster: 3656-size or

smaller motor with the KV<3000.

BEC Output: 5.85V/3A

Cooling Fan:

From battery directly without regulating

The stock fan can work with 2S and 3S Lipo

Dimensions: 52(L)X39(W)X35(H)mm

Weight: 73g
