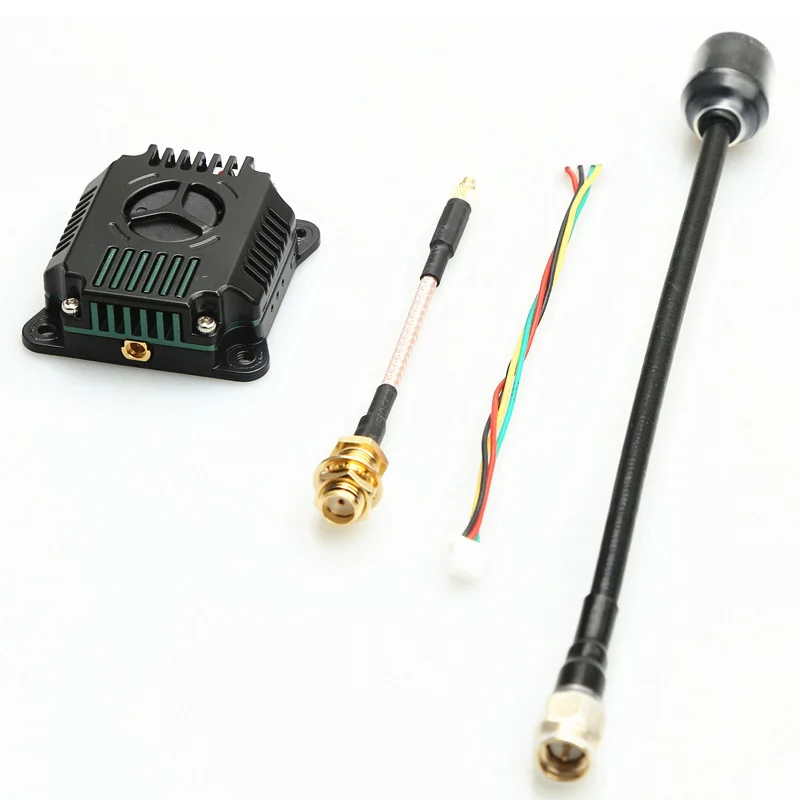

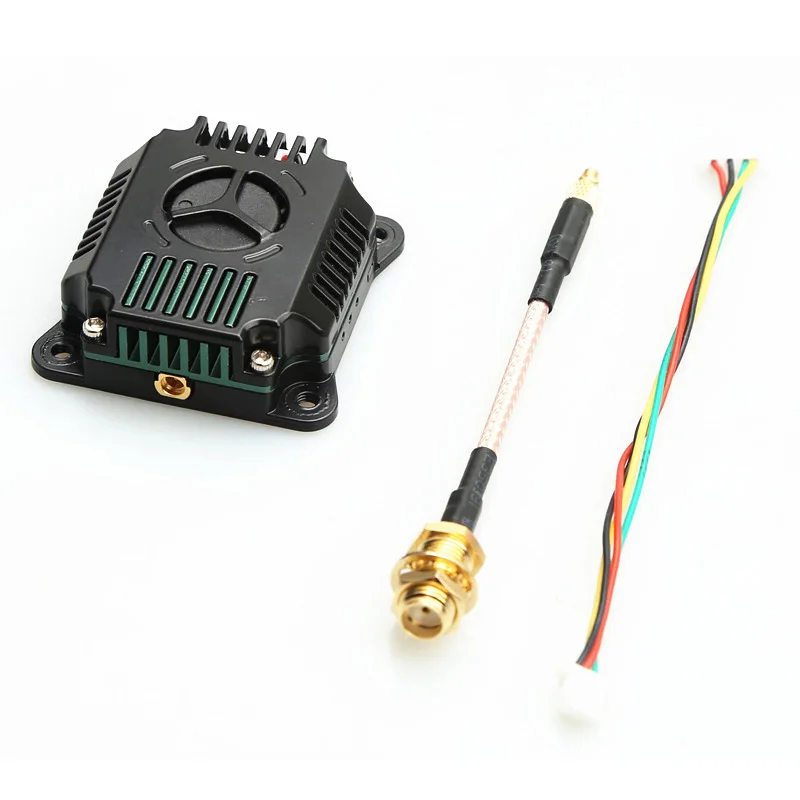

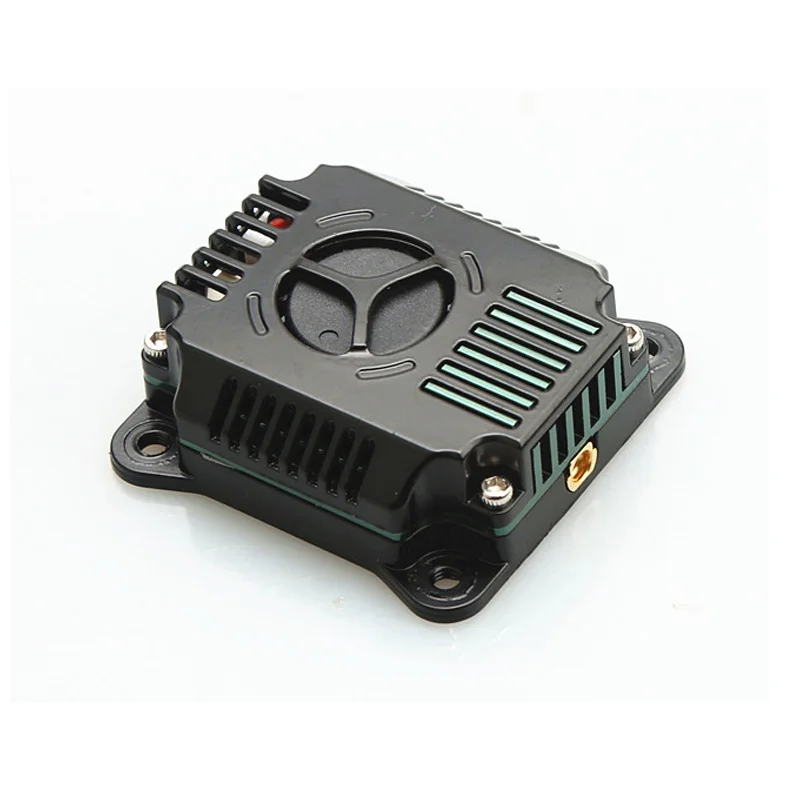

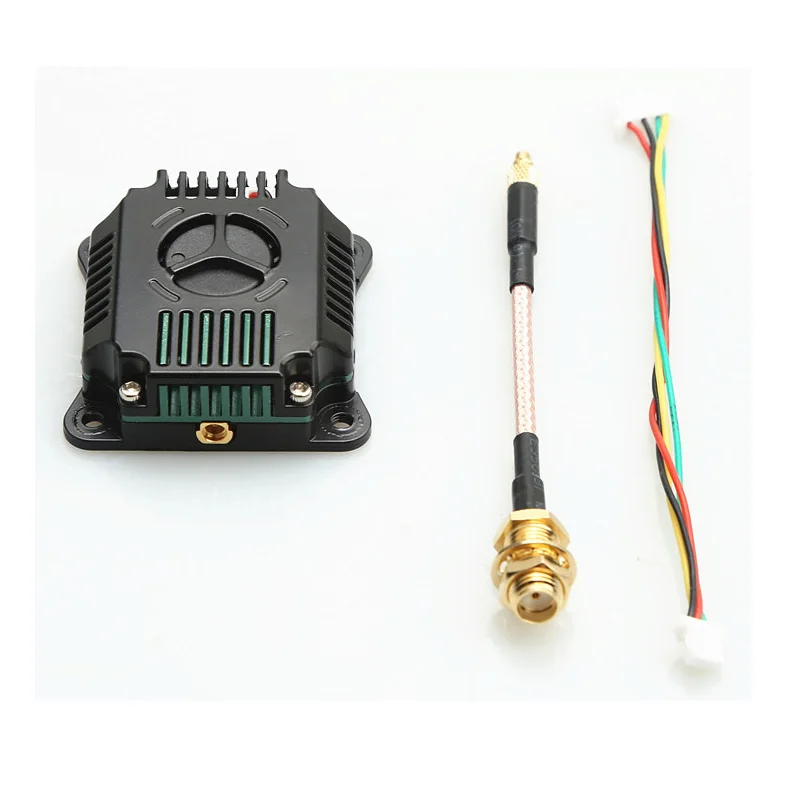

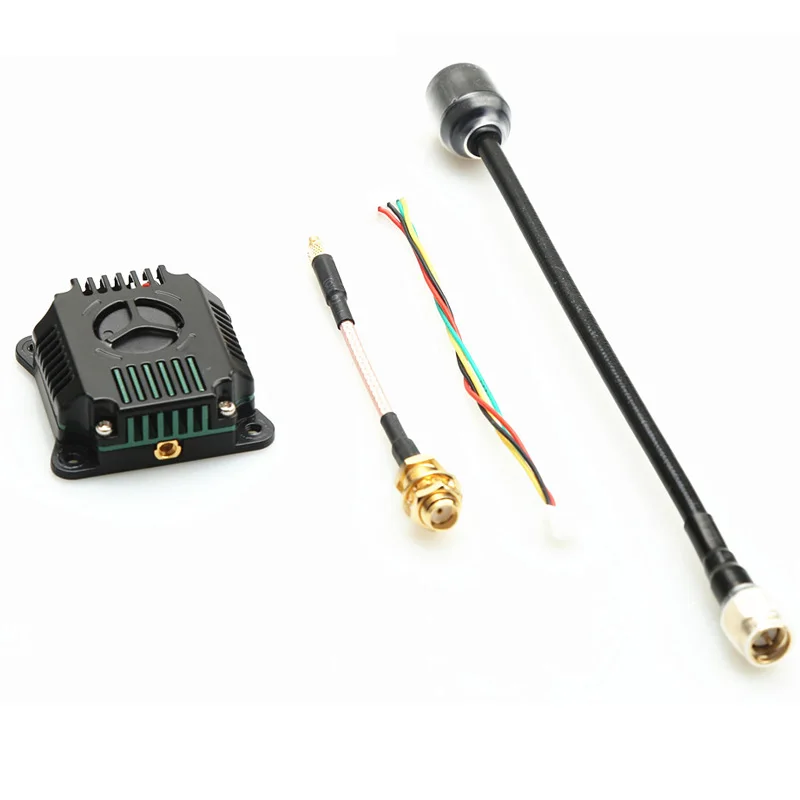

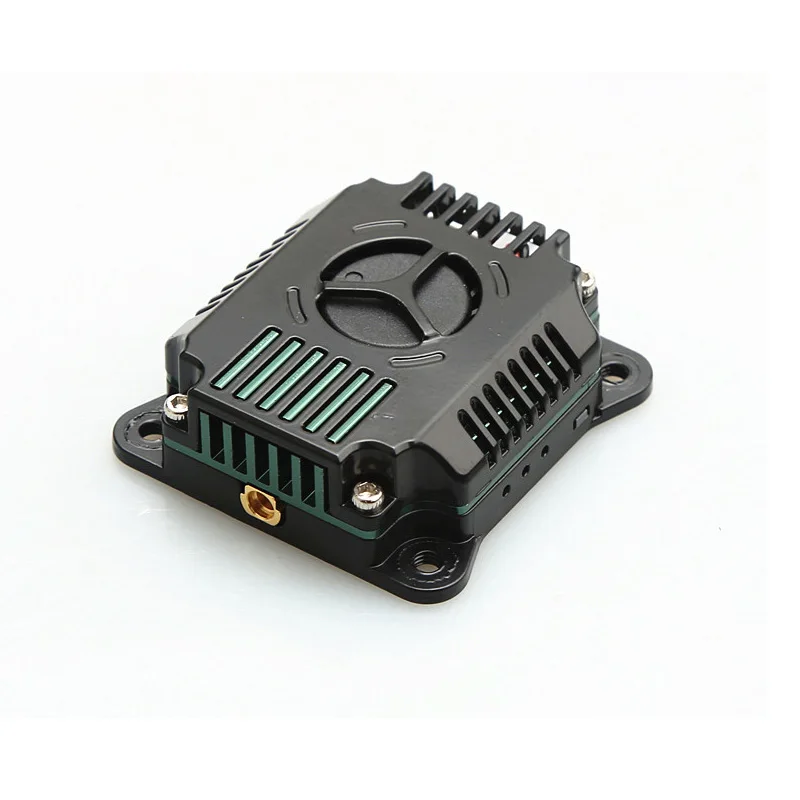

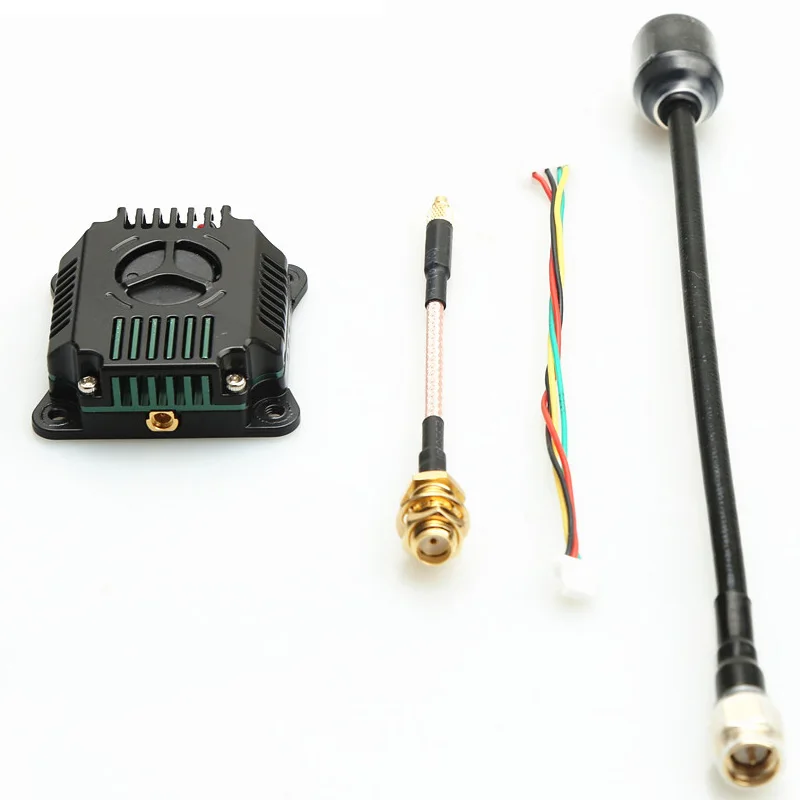

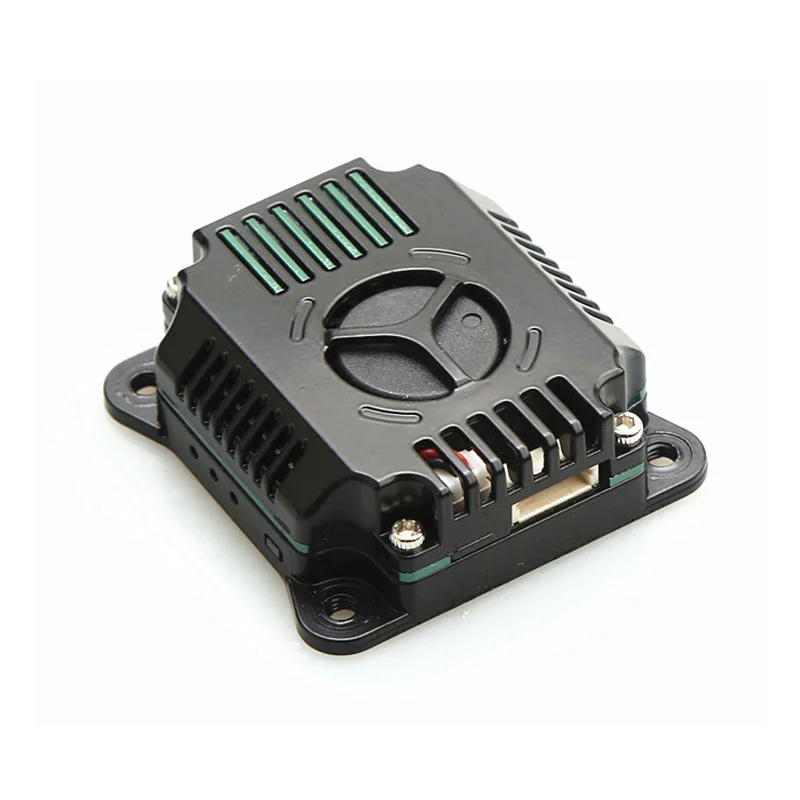

4.9G 5.8G 6GHz 72CH 3W PIT/25mW/1000mW/2000mW/3000mW MMCX Long Range FPV VTX Video Transmitter for RC Long FPV Drone
Price range: $178.12 through $186.52
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: 2.5W VTX
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: Max solo
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 30.5*30.5
Technical parameters: value 2
Tool Supplies: VTX 72CH 3000mW
Upgrade Parts/Accessories: 5.8G 3W VTX
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
I. Functional Schematic
Interface Definition Connection
Vcc 7-36V Power Input Connect to the device's 7-36V power output (directly connected to
the positive pole of the battery VBAT or the VBAT pin of the control board)
Gnd Power Ground Connect to the device's power grounding terminal (negative pole)
Date Image transmission control signal input Connect to theART TX interface of devices such as
flight control, and enable the TBS control protocol to control the image transmission frequency point, frequency band, power, etc.
Video signal input Connect to the video signal output of the flight control
II. Product Features
Supports 4.9 to 6.1G wide frequency operation
7-36V wide range voltage input
Button/TBS control, quick change of CH and power
Dual power amplifier design mutual backup, better stability
Specially designed not to burn the power amplifier without connecting the antenna
Automotive grade temperature range RF crystal, more stable frequency
Working voltage: 7-36v Large output power, stable output power, long transmission distance;
Working current: 1.2A@12,2500mW
Operating environment: -10～60℃ Frequency locking is fast, no interference with companions at startup;
Weight: 28g With built-in output power self-test function;
imension: 38mm×38mm×13mm video format: NTSC/PAL;

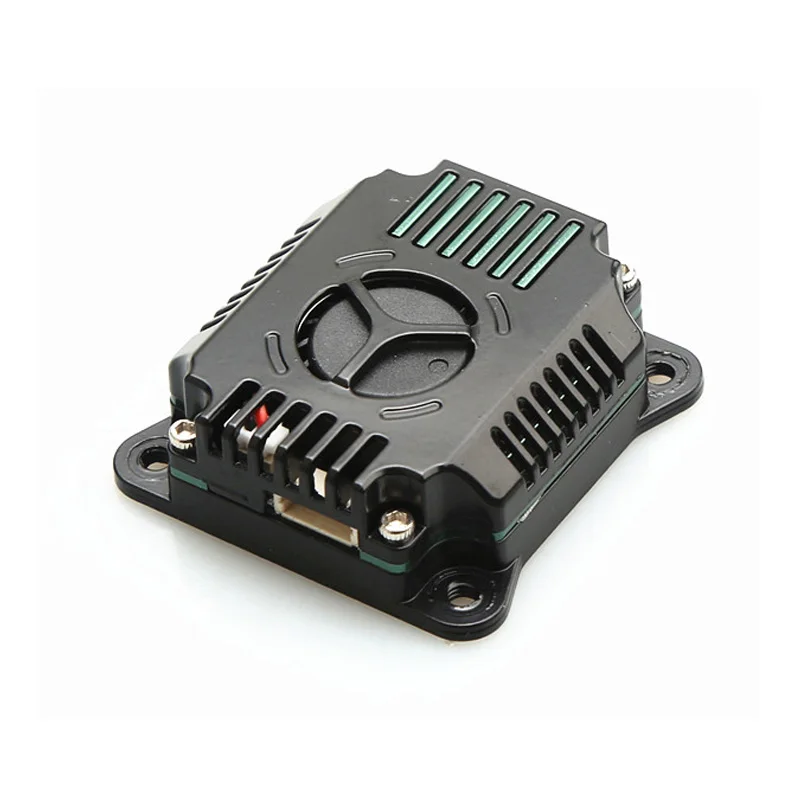

Mounting hole pitch: 30.5×30.5/M3 Full metal CNC case dustproof and explosion-proof, good heat dissipation, stable power.
Antenna connector: MMCX
Video format: NTSC/PAL Output power: 25mW、500mW、1000mW、2500mW、3000mW
Image transmission protocol: TBS
IV. Operation Adjustment
Hold the button down for more than 5 seconds to enter the adjustment mode, press to switch power/frequency point/frequency band, short press to adjust the size
The red light is the power indicator, short press to change the power, switch between25mW, 500mW, 1000mW, 1000mW, 2500mW, the is as shown in Figure 25mw blinks once, 2500MW blinks 5 times
The green light is the frequency point indicator, short press change the frequency point, a frequency band has up to 8 frequency points
The blue light is the frequency band indicator, short press to change the frequency band, up to band points
LED Indicator
LED flashing times 1X 2X 3X 4X 5X 6X 7X 8X X
Red light (power mw) 25 500 1000 2500 3000
Green light ( point) CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Blue light (frequency band) A E F R L V U H
Channel Table
Regular frequency band (BAND) Frequency point CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A(BOSCAM) 58655845 5825 5805 5785 5765 5745 5725
BBOSCAM) 5733 5752 5771 5790 5809 5828 547 5866
E(BOSCAM) 5705 5685 5665 5645 885 5905 5925 5945
F(FATSHARK) 5740 5760 780 5800 5820 5840 5860 5880
R(RACEBAND)5658 5695 5732 5769 5806 5843 5880 597
L(BAND) 5362 5399 5436 5473 5510 554 5584 5621
(BAND) Special frequency point
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
V BAND (MHZ) 4990 5020 5050 5080 5110 5140 5170 5520
U BAND (MHZ) 4867 4884 4921 4958 4995 5032 5069 5099
H BAND (MHZ 5960 5980 6000 6020 6040 6060 6080 6100
Additional information

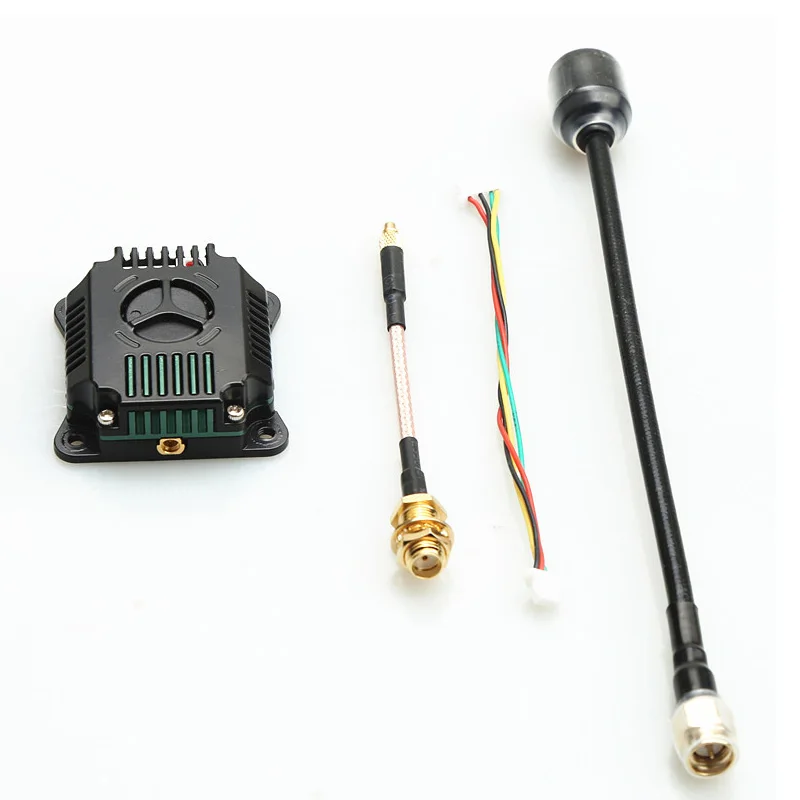

| Color | Only VTX, VTX With Antenna |
|---|
