3PCS MINI MTS-403 4PDT 12PIN ON-OFF-ON Miniature toggle switch power switches 6A/125V 2A/250V MTS 403 MTS403
Original price was: $18.54.$12.36Current price is: $12.36.
99903 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: MTS-403
Origin: Mainland China
Voltage: None

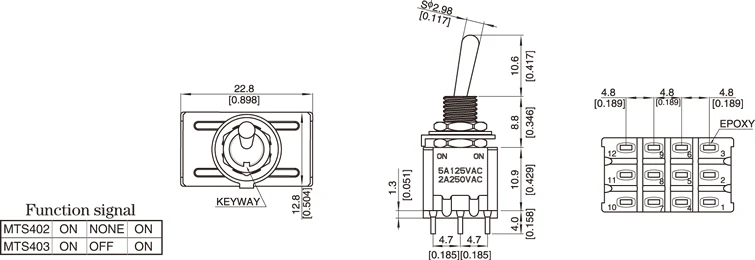

Overall Size: 13×22.5×32.5 ( mm )
Mounting Hole: 6mm
Type: 4PDT ( Four Pole Double Throw )
Tap Position: ON—OFF—ON ( Self-Locking )
Terminal Type: Pin ( 12 terminals )
Switch Colour: Red, Silver
Body Material: Plastic, Metal
Contact Material: Copper-plating silver
Switch Rating: 6A/125VAC, 2A/250VAC
Contact Resistance: 0.02mΩ max
Insulation Resistance: 500VDC 1000MΩ min
Operating Temperature: −25°c ~ +85°c
Humidity: <85%RH Max.
Mechanical Life: 100,000 Cycles
Electrical Life: ≥10,000 Cycles
