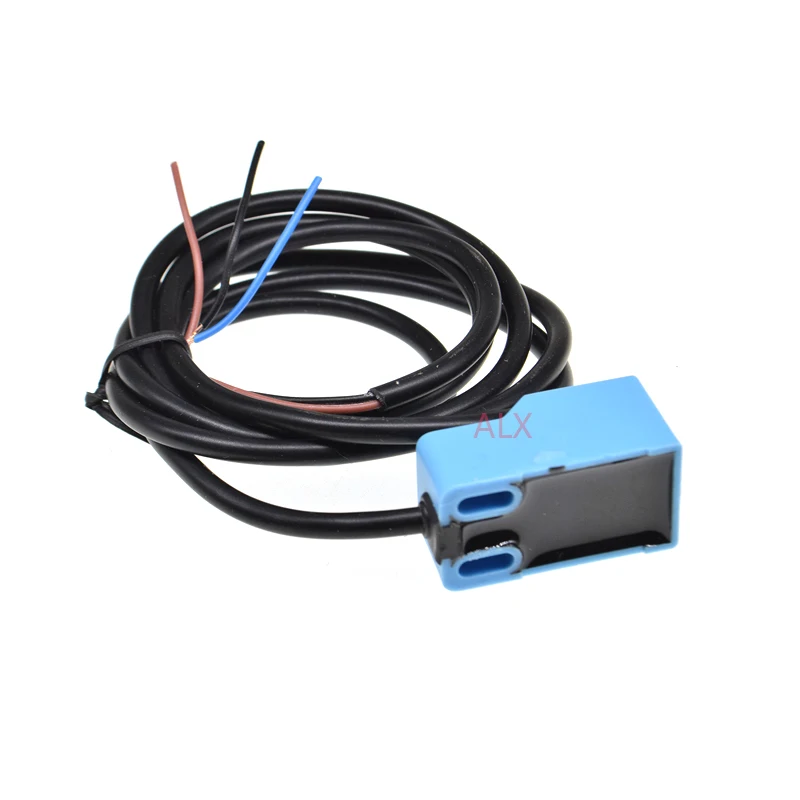

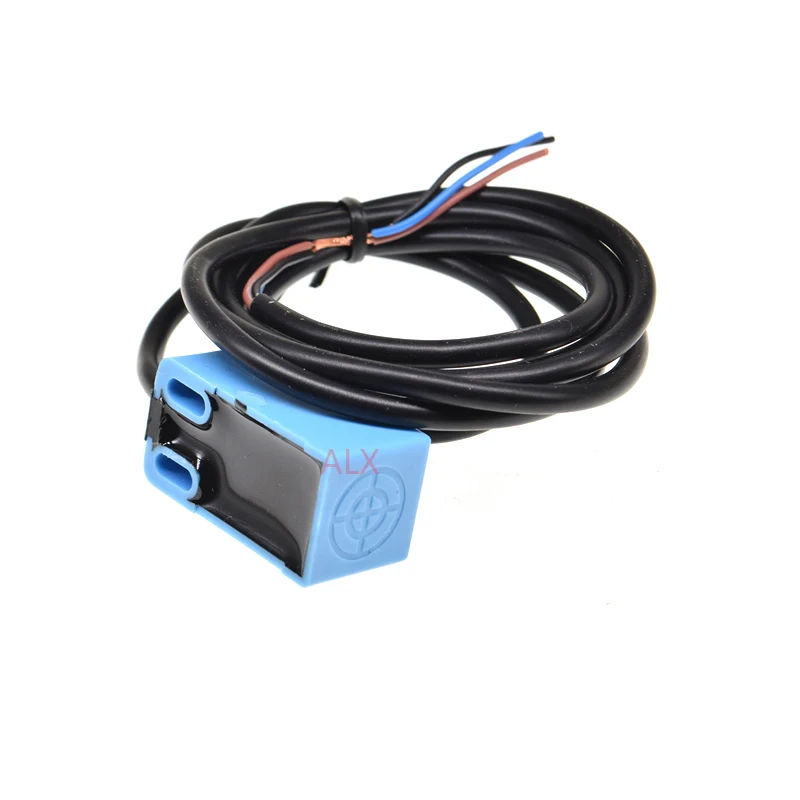

1PCS SN04-N Famous SN04N 4mm Approach Sensor NPN,3 wire,NO 10-30V DC Inductive Proximity Switch sn-04n
Original price was: $12.54.$5.85Current price is: $5.85.
9608 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Certification: CCC
Current: 1A
Features: SN-04N
High-concerned chemical: None
Material: Plastic
Model Number: SN-04N
Origin: Mainland China
Switch Type: Proximity Switch
Warranty: 7 DAYS
Product Introduction:
1.Name:prism universal proximity switch
2.Model:SN04-N
3.Size:18*18*36mm
4.Detection Distance:4mm
5.Detection Object:metal,iron
6.Operating Voltage:DC 10-36V
7.Output Way:DC 3 wire NPN normally open,NPN NO
8.Output Current:300?mA)
9.Shell Material:plastic
10.Fubction:proximity switch(also called non-contact travel switch),can operate when it comes close to metal,and it is widely applicated in controlling tool and other equipment
brown wire :-
blue wire : +
black : Signal output
Package Included:
1Pcs 12V 300MA SN04-N Inductance Proximity Switch 3 Wire NPN Normally Open 18*18*36mm
