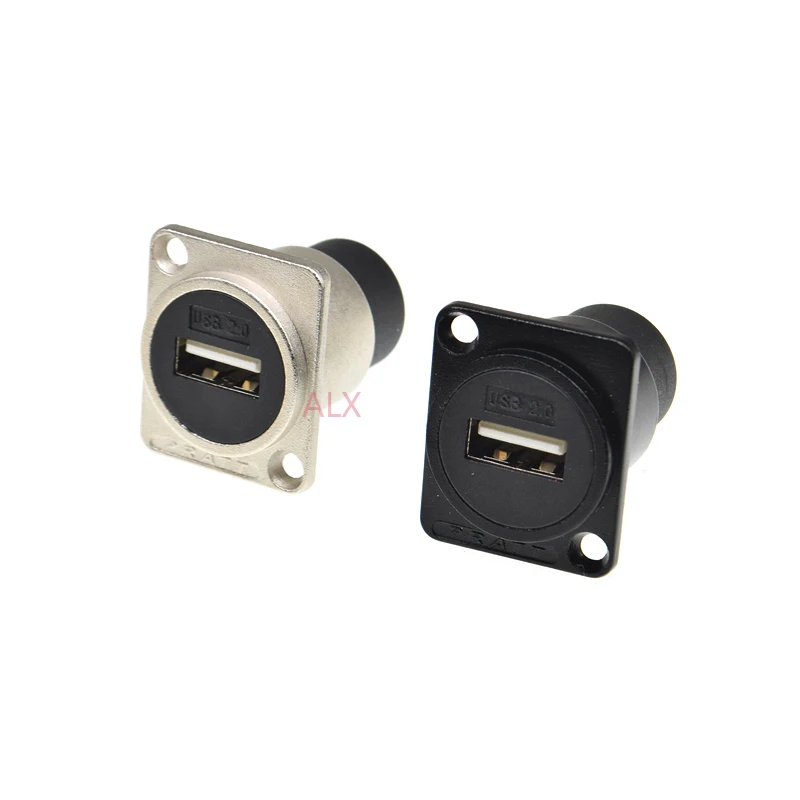

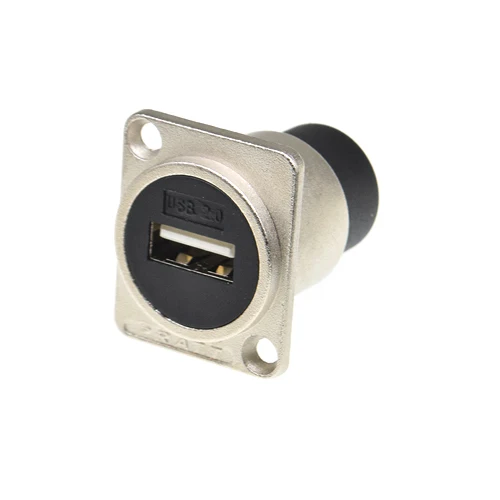

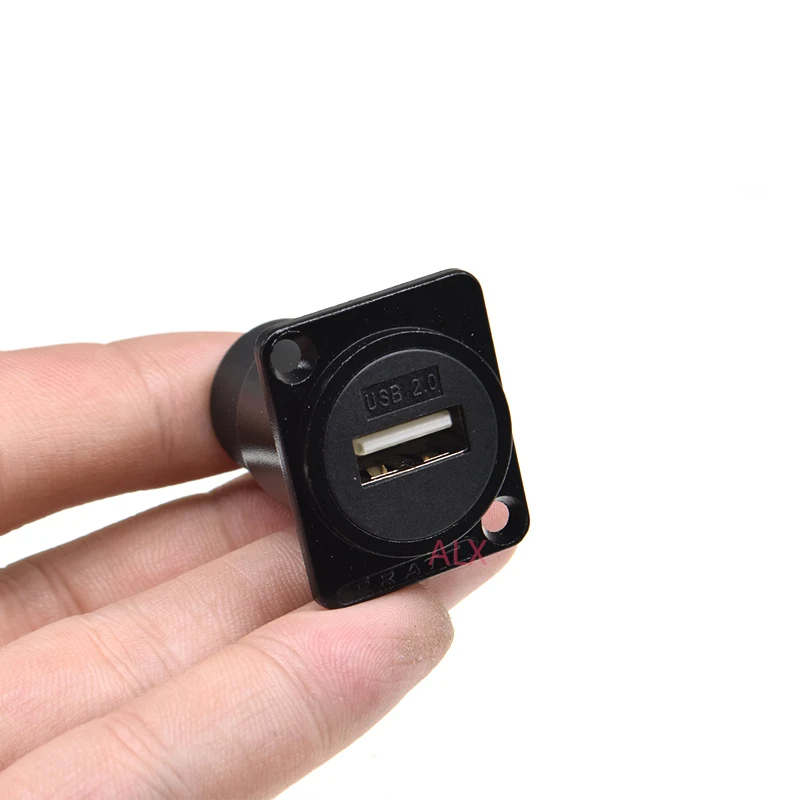

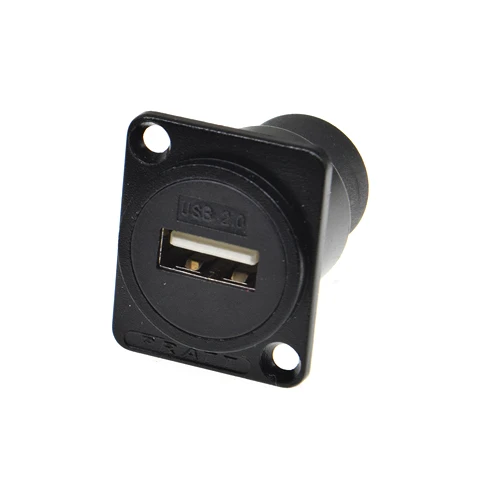

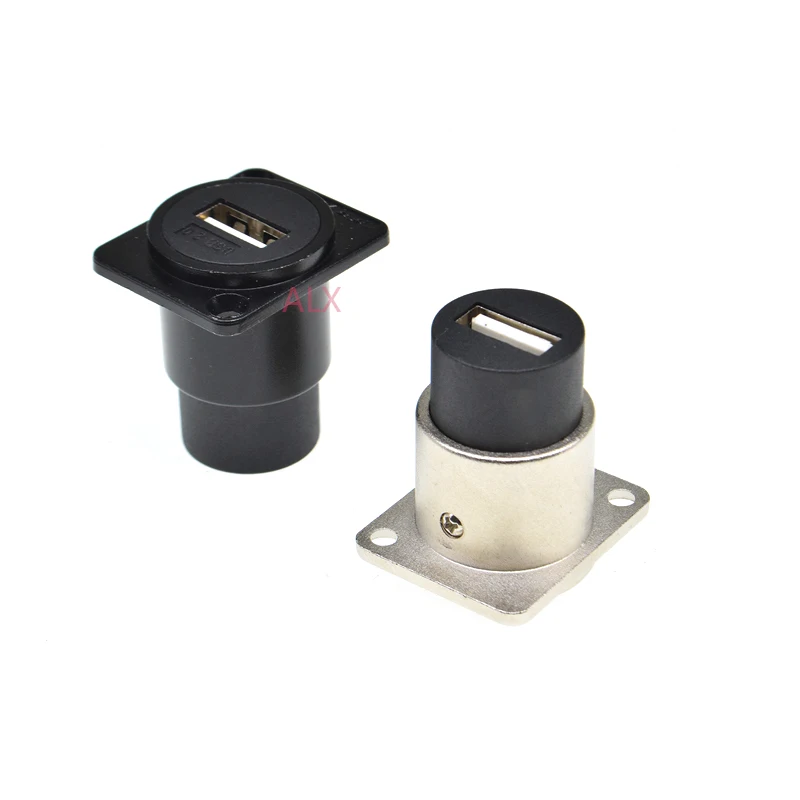

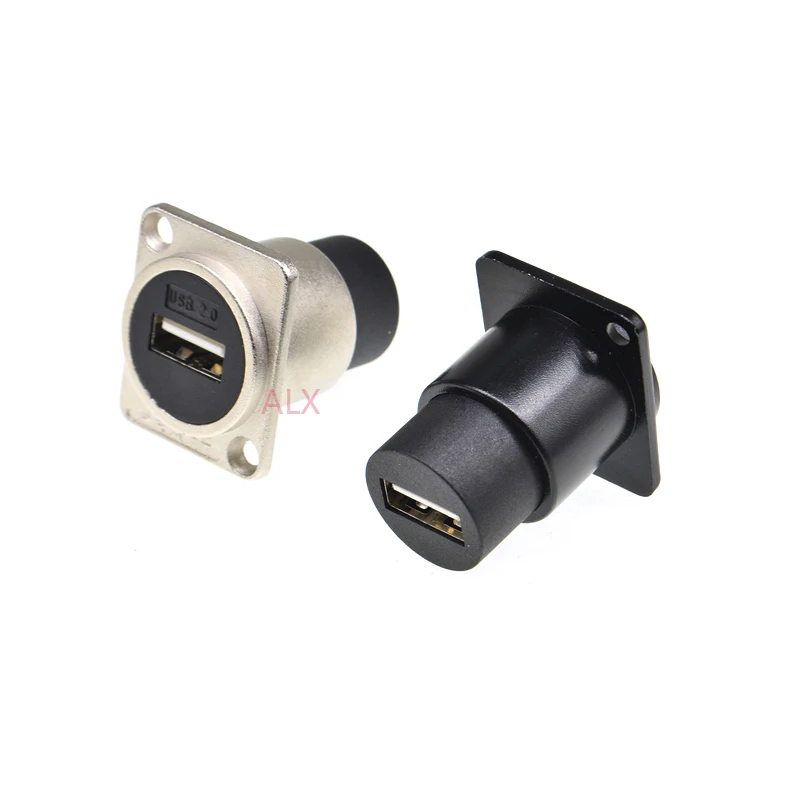

1PCS D type metal usb female socket module panel mounting holder adapter usb 2.0 female to female connector for 86 panel cannon
Original price was: $24.42.$16.28Current price is: $16.28.
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: USB 2.0
Origin: Mainland China
Voltage: 5 V 12 V 20 V 30 V
Specification:
Type: Connectors
Interface: USB 2.0
Material: Metal Flange
Color: Silver/black
Current Type: Weak Current
Plug Function: Industrial Plug
Contact Material: Bronze(CuSn8)
Insulator Material: PBTP 15% GR
Shell Material: Zinc Diecast(ZnAl4Cu1)
Size: One Size

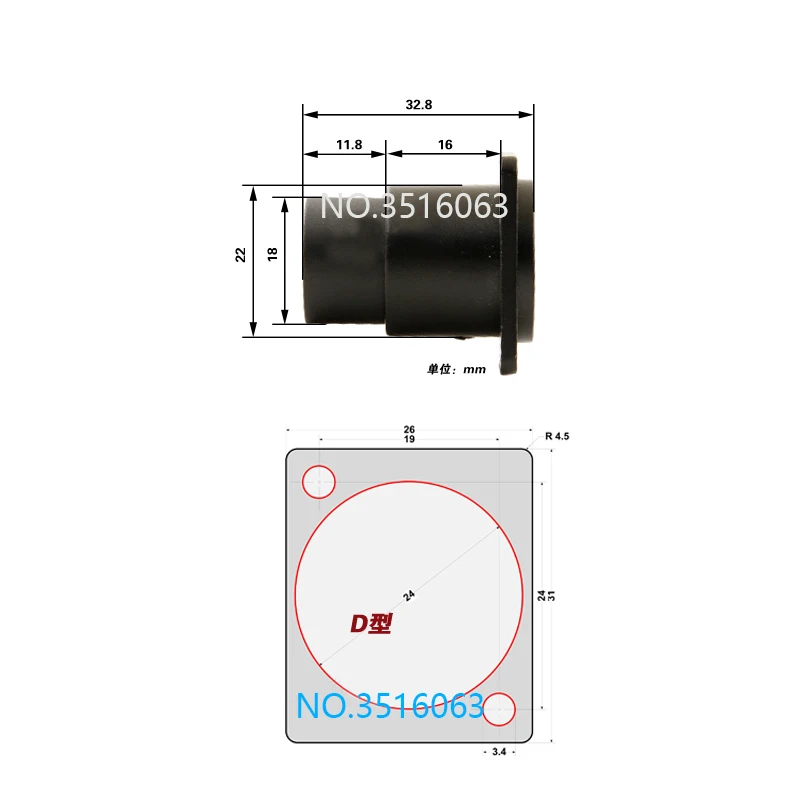

Panel thickness: 2.0-10mm/0.08-0.39in
Contact resistance: <10Ω
Dielectric strength: 1kVdc
Frequency range: 1-100MHz
Insulation resistance: >0.5GΩ
Rated current per contact: 1.5A
Rated voltage: 50V
Quantity: 1 PC
Note:
1.No retail package.
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x USB socket
| Color | silver, black |
|---|
