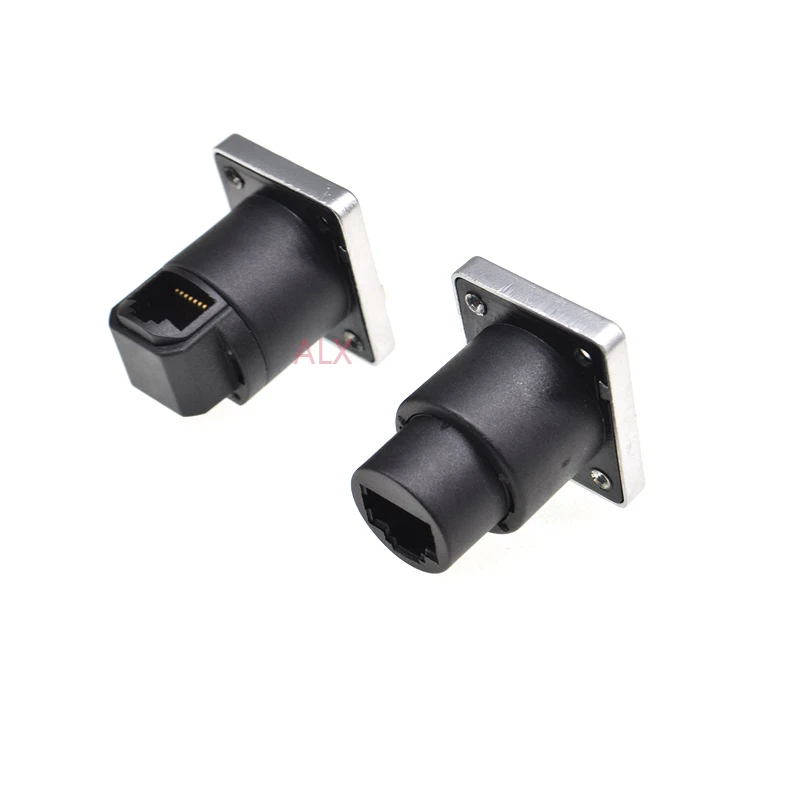

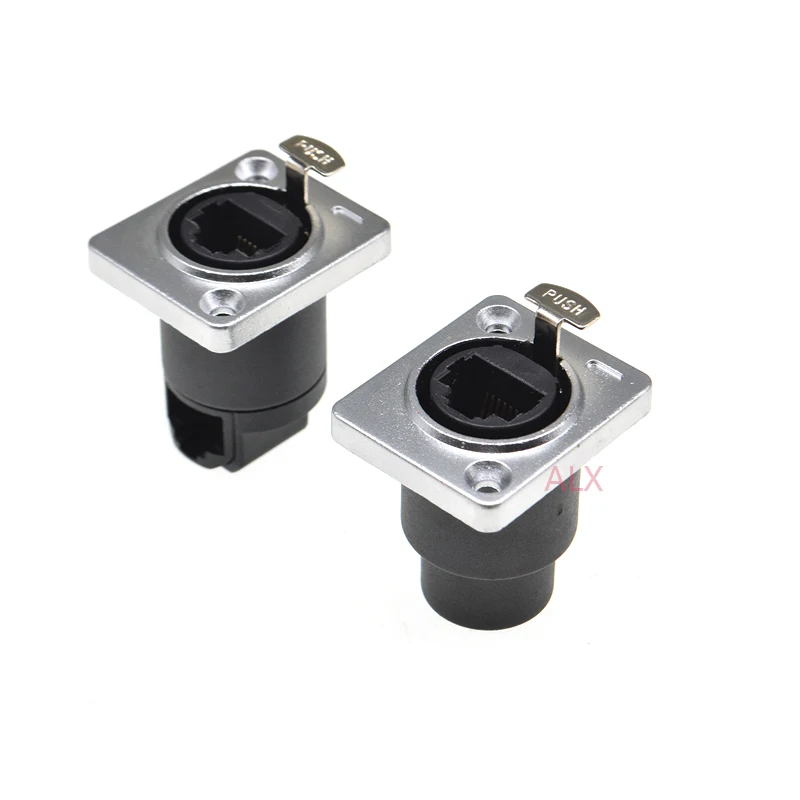

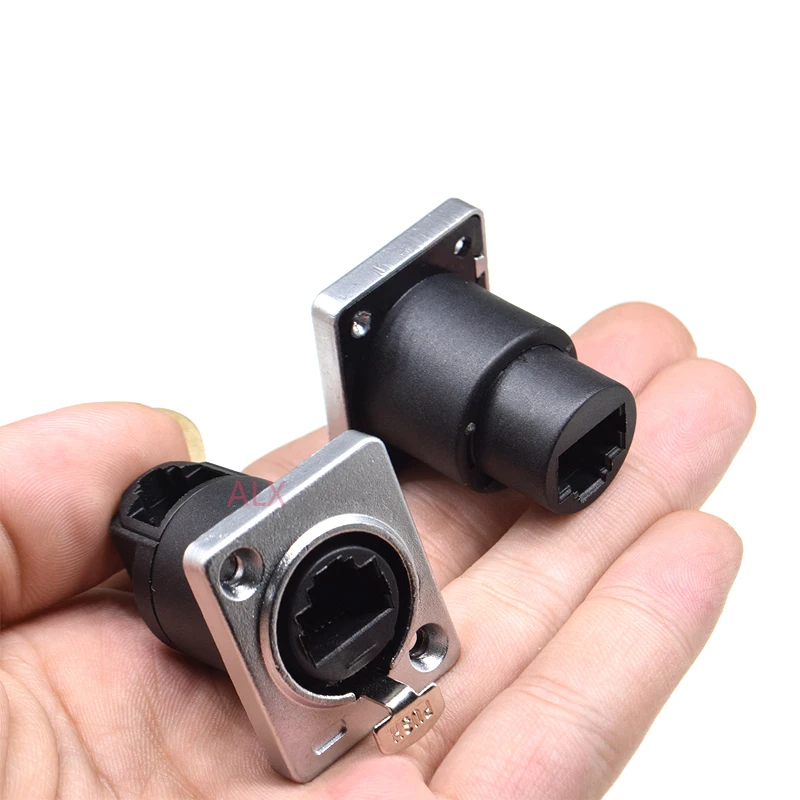

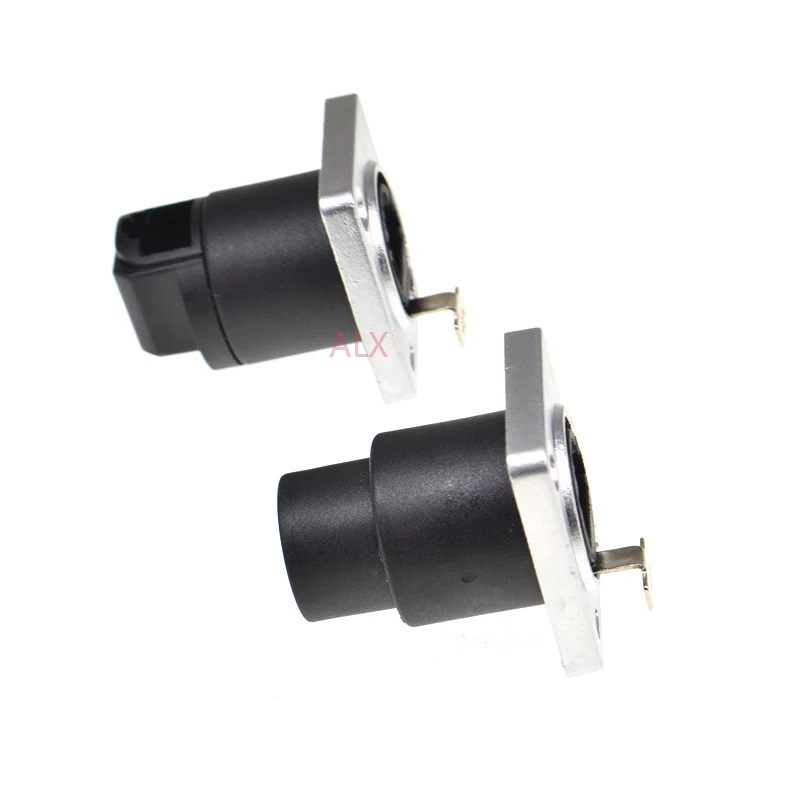

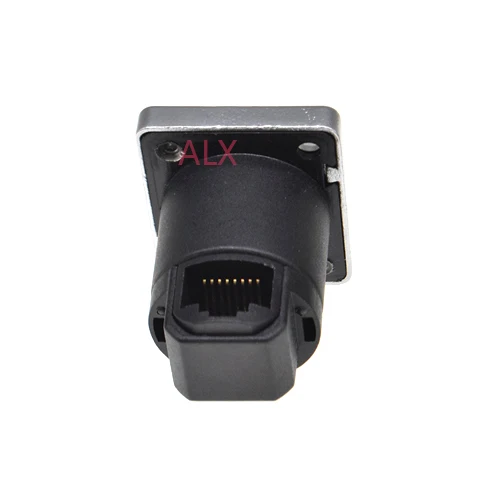

1PCS D type metal RJ45 female socket panel mounting holder adapter RJ45 female to female Network Ethernet connector for 86 panel
Original price was: $22.20.$10.36Current price is: $10.36.
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: RJ45
Origin: Mainland China
Voltage: 5 V 12 V 20 V 30 V
| Specifications: | |
| Connecting mode: | Plug/unplug, |
| Protection level: | IP65 |
| Cable specification: | 0.15 mm2 ~ 0.2 mm2 /26~24 AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 8 |
| Current rating(A): | 1.5A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| – Sealed against dust and fluid (IP65) | |
| – Vibration resistance,impact resistance,stretching resistance | |
| – With one hand, can quickly insert or pull out | |
| Application industries: | |
| – Stage equipment | – The smart grid |
| – Medical equipment | – Server |
| – Solar energy equipment | – Ship equipment |
| – Electric power equipment | – Vehicle equipment |
| – Communications equipment |
– Heavy machinery |
Additional information

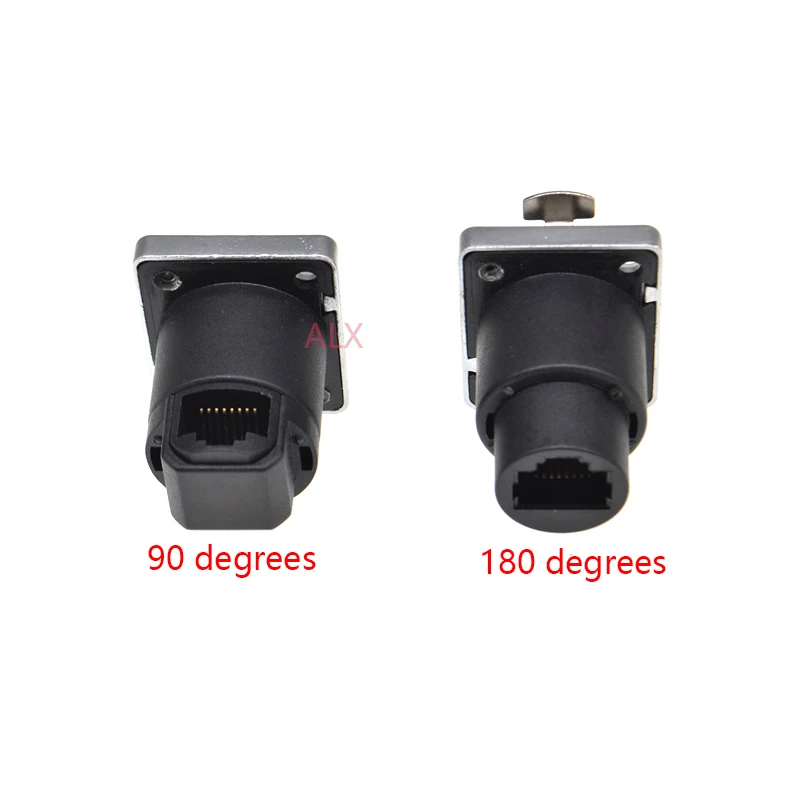

| Color | 90 degrees, 180 degrees |
|---|
