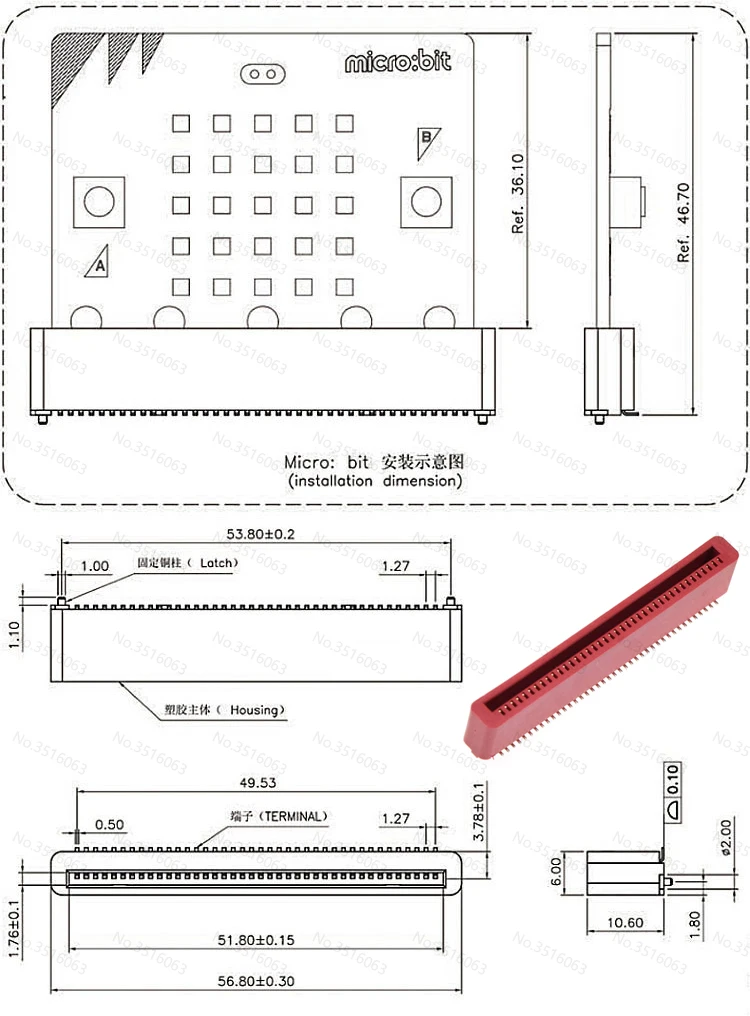

1/2/5Pcs Micro: Bit Development Board Slot Microbit Mainboard Vertical/Right Angle Slot Card Connector Socket 1.27mm Pitch PCB
Price range: $4.45 through $23.41
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Certification: CE
High-concerned chemical: None
Model Number: Slot
Origin: Mainland China
Voltage: 24V
电压: 1V 2V 4V 5V 12V 12V 等 或自定义
1. Micro bit and connector plugging force: 1Kg
2. Insertion life: 1500 times.
3. Rated voltage: 250V AC
4. Rated current: 1AMP
5. Contact impedance: 30mQ.
6. Insulation impedance: 1000 MQ, 500V DV
7. Withstand voltage: 500V1Minute.
Product parameters：
Material description:
1. Plastic body: Lcp high temperature resistant resin, 30% glass fiber added. Fire rating: UL94V-O
2. Terminal: phosphor copper, T=0.25
3. Fixed copper column: brass alloy.
Plating requirements:
1. Gold plating of terminal contact area 3u “min; Soldering area is tinned for 80u “min. The minimum is 50u” min
2. The fixed solder pad surface is tinned for 80 u “min; Minimum 50 u “min

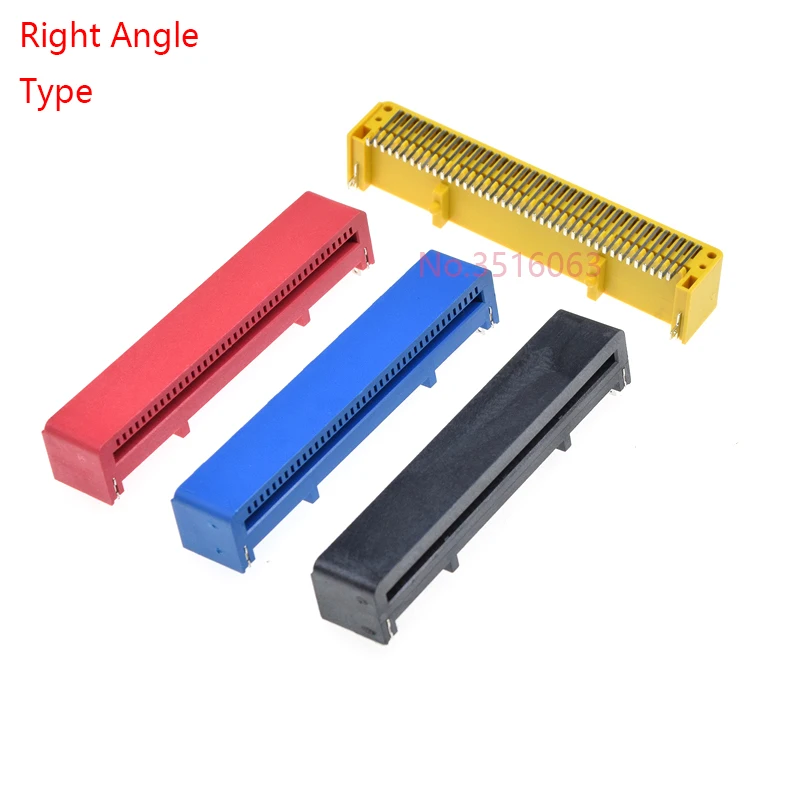

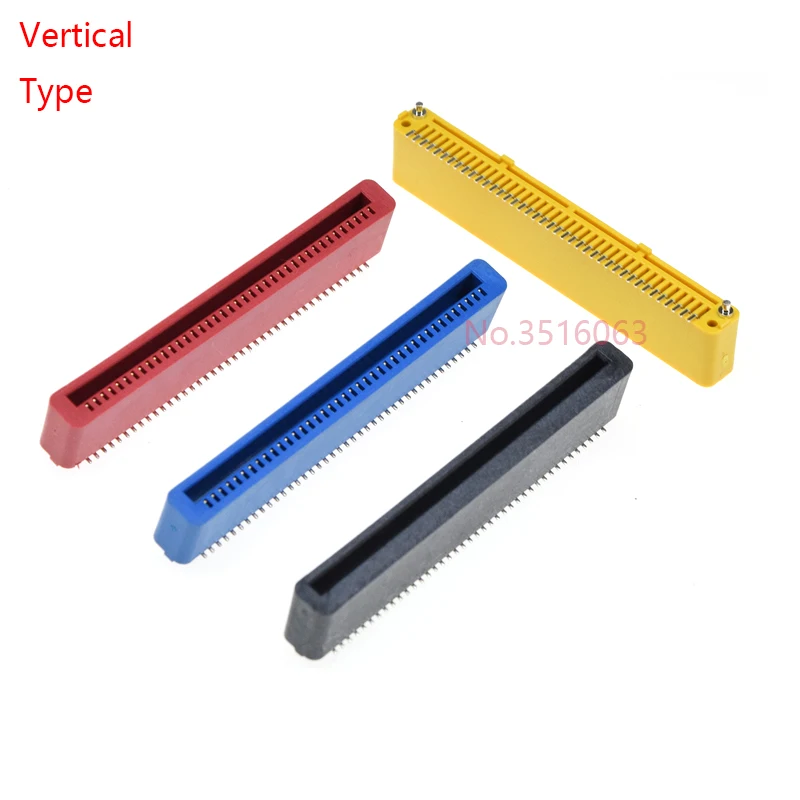

| Color | Vertical Type, Right Angle Type |
|---|---|
| Package Quantity | Yellow, Blue, Red, Black |
| Connector Type | 5Pcs, 2Pcs, 1Pcs |
