Waterproof 45A 60A 80A 120A Brushless ESC Electric Speed Controller Dust-proof for 1/8 1/10 1/12 RC Car Crawler RC Boat Part
Price range: $60.20 through $84.35
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: 60A Brushless ESC
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HLW048
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 30x 25x 15mm
Technical parameters: value 2
Tool Supplies: 80A Brushless ESC
Upgrade Parts/Accessories: 120A Brushless ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

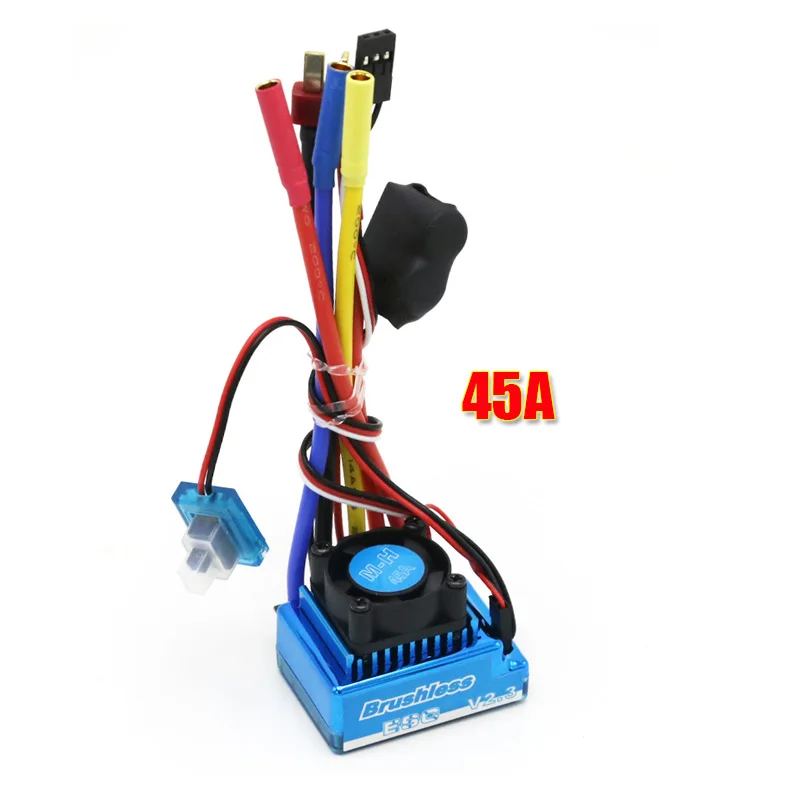

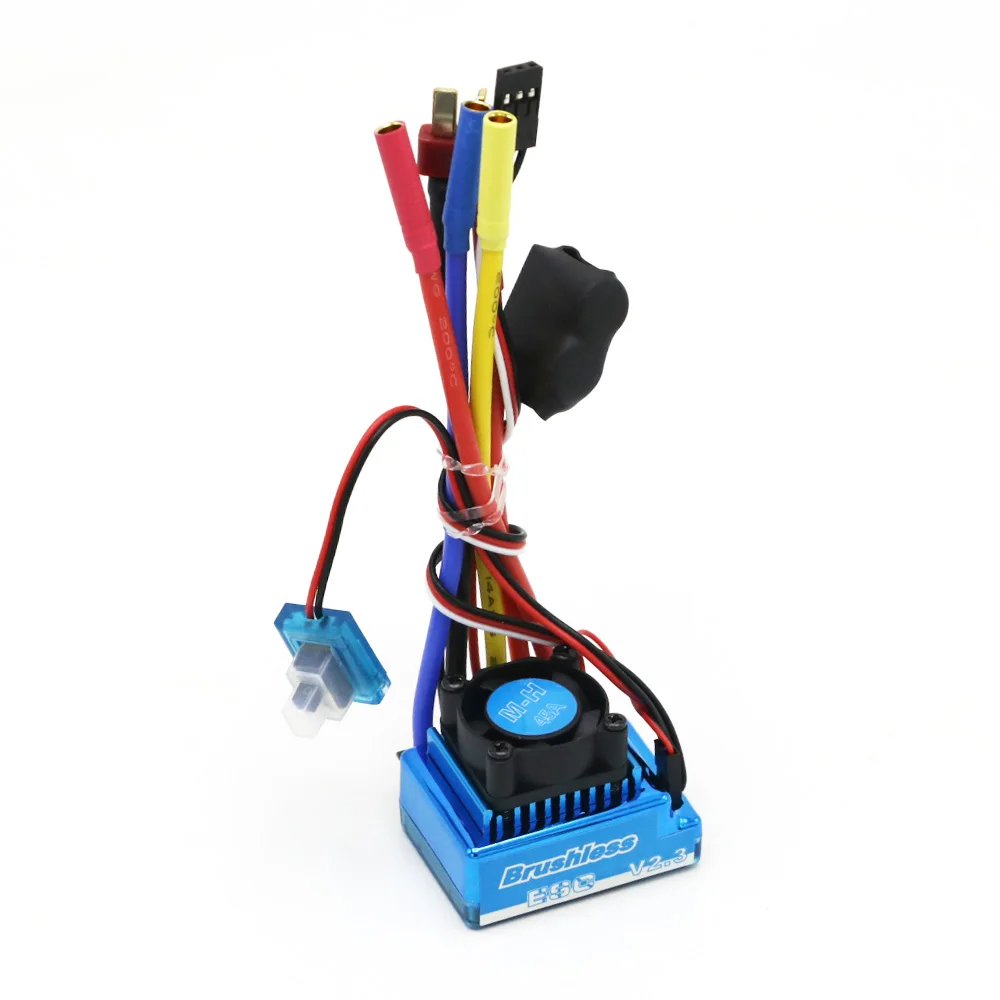

45A ESC Specification:
Continuous Current: 45A
Burst Current: 180A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: T Plug Male
60A ESC Specifications:
Item Name: Waterproof ESC
Continue Current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female

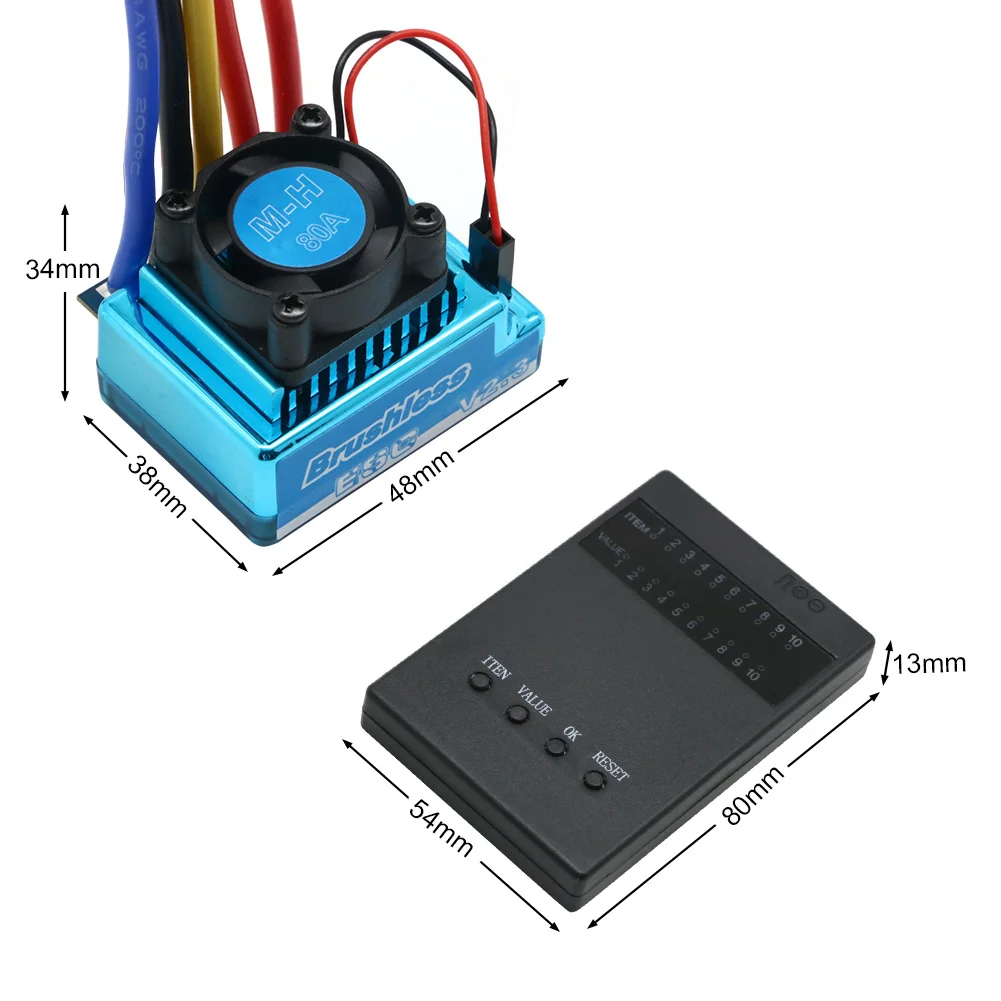

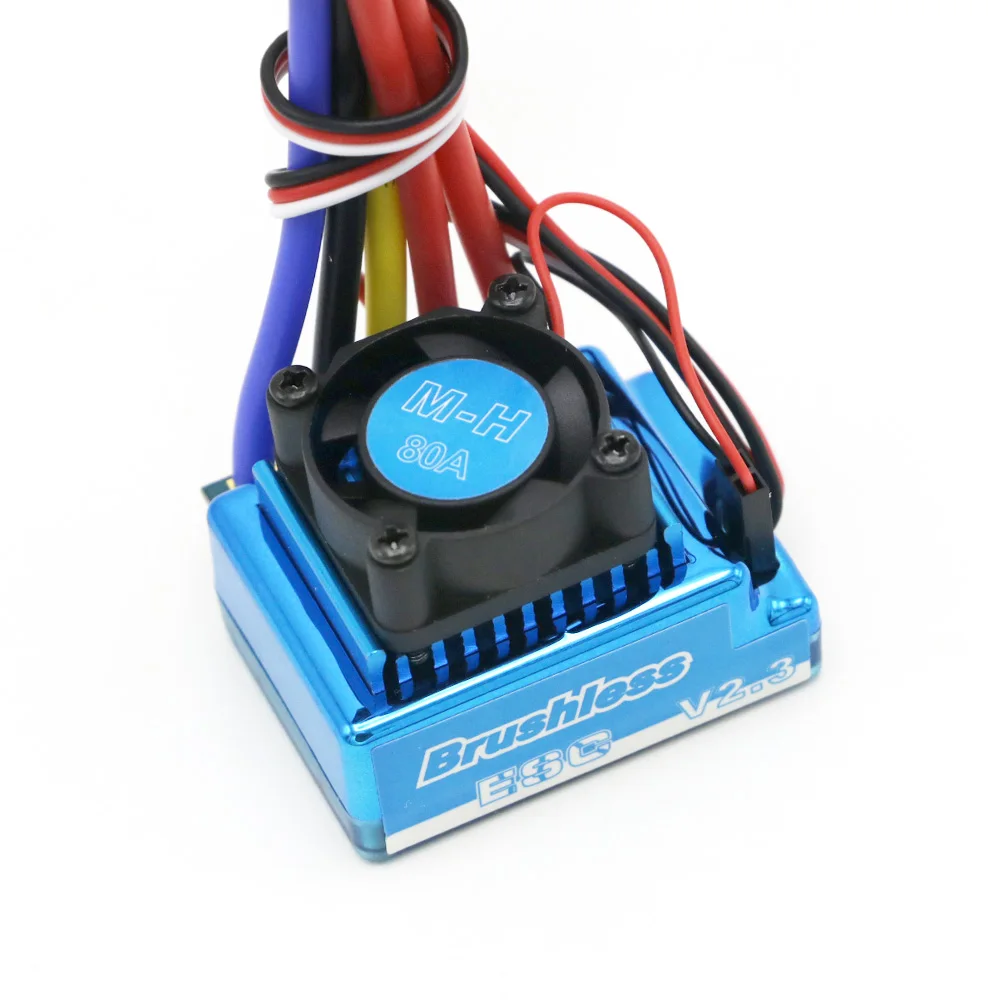

80A ESC Specifications:
Continue Current: 80A
Burst Current: 480A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Female Plug
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

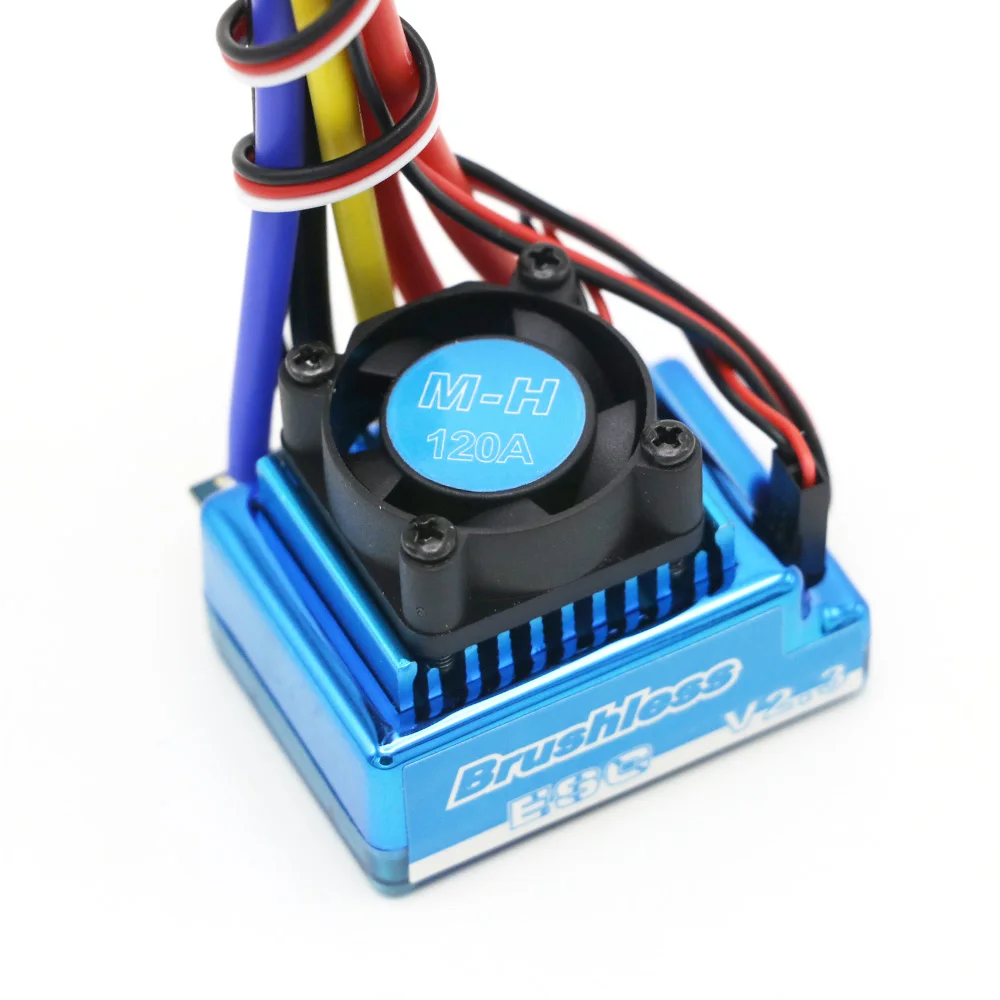

120A ESC Specifications:
Continuous Current: 120A
Burst Current: 480A / 10sec
Battery: 2-3s LiPo / 4-12s NiMh
BEC output: 5.3V / 5A(Switch Mode)
Power Supply Plug: T Male
Motor Plug: Female 5mm Bullet Connector
Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch
Programming Card for RC Car ESC Brushless Electronic Speed Controller
Features:
Light weight
Easy to use
Portable design
Programming Card for RC Car ESC Brushless Electronic Speed Controller, which
was specially designed for Brushless Electronic Speed Controller selled in our store.
Specifications:
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
| Color | 120A ESC, 45A with card, 120A with card, 45A ESC, 60A ESC, 80A ESC, 60A with card, 80A with card |
|---|
