SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: Yes

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: VR009

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: FPV Racing Drone

Recommend Age: 14+y

Remote Control Peripherals/Devices: FPV Racing Drone

Size: 13.5cm * 13.2cm * 6.5cm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: FPV Racing Drone

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

NameMini FPV Goggles

LCD ScreenScreen size: 3.0 Inch

Resolution: 480*320

Display Ratio: 16:9

View Angle: 6 o'clock

Brightness: 500cd/m with high brightness backlight LED

Video delayVideo time-delay less than 20ms

Lens4X Fresnel Lens, 92% transparent rate no distort of light

InterfaceAntenna: 2 X RP-SMA male

USB: To charge the battery

AV Jack: External video signals input or internals AV signal output

LanguagesEnglish and Chinese

Power SupplyPower adapter: DC5V/1A (USB interface)

Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time

Power Consumption:

*The device operating current of 300~330mA at 3.7~4.2V;

*Built-in battery maximum charge current of 500mA;

Body

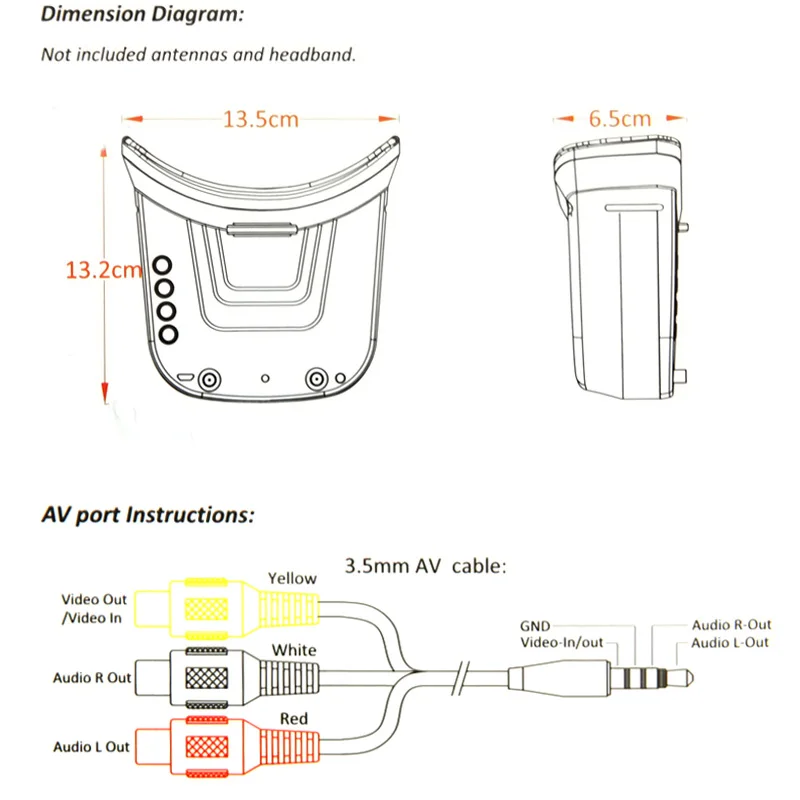

Dimension: 13.5cm * 13.2cm * 6.5cm

Weight: 180g(with headband, not included antennas)

Feature:

– Small size and light weight;

– Low power consumption, Working current 300~330mA;

– Double antenna reception to make the signal more stable;

– RaceBand 40 channel, Auto-Searching;

– 3.0 Inch 480*320 dot high brightness LCD screen;

– Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

– Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;

– Universal USB charging interface;

– Real-time video return, Very low time-delay;

– Bilingual menu in support of Chinese and English;

– Support external video signal input;

– Support AV signal output (Connect external DVR);

Band and Channel selection:

CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8

GROUP

A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ

B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ

E 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ

F 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ

R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ

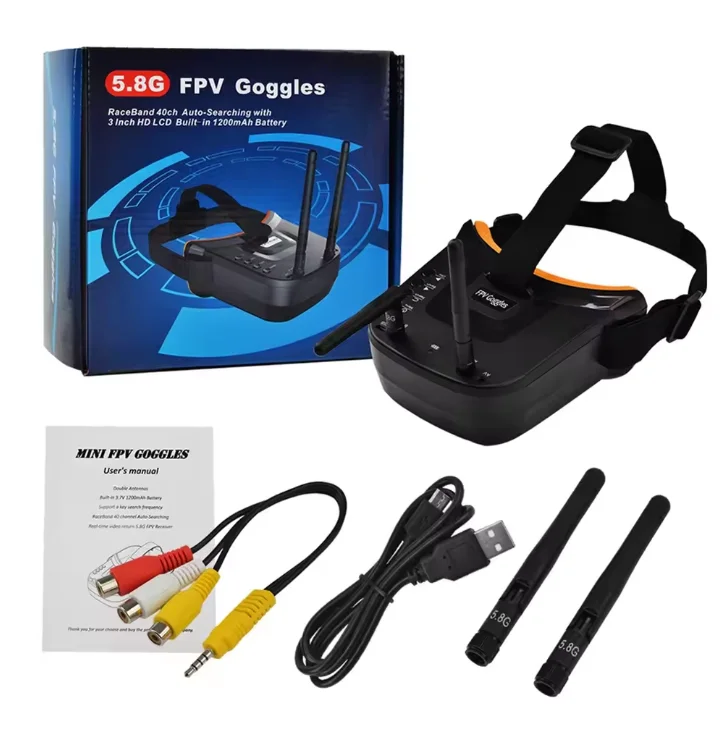

Package Included:

1 x VR009 Goggles

1 x 3.7V 1200mAh Battery

2 x Antenna

1 x USB Charging Cable

1 x Manual
