Usb A Micro Usb dc-dc Adjustable step-up/down Voltage Regulator Power Supply Module Boost Buck Converter 5v To 3.3v 12v 24v
Original price was: $13.98.$9.32Current price is: $9.32.
96799 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Current Type: DC
High-concerned chemical: None
Model Number: USB
Origin: Mainland China
Phase: single phase
Use: SVC
is_customized: Yes

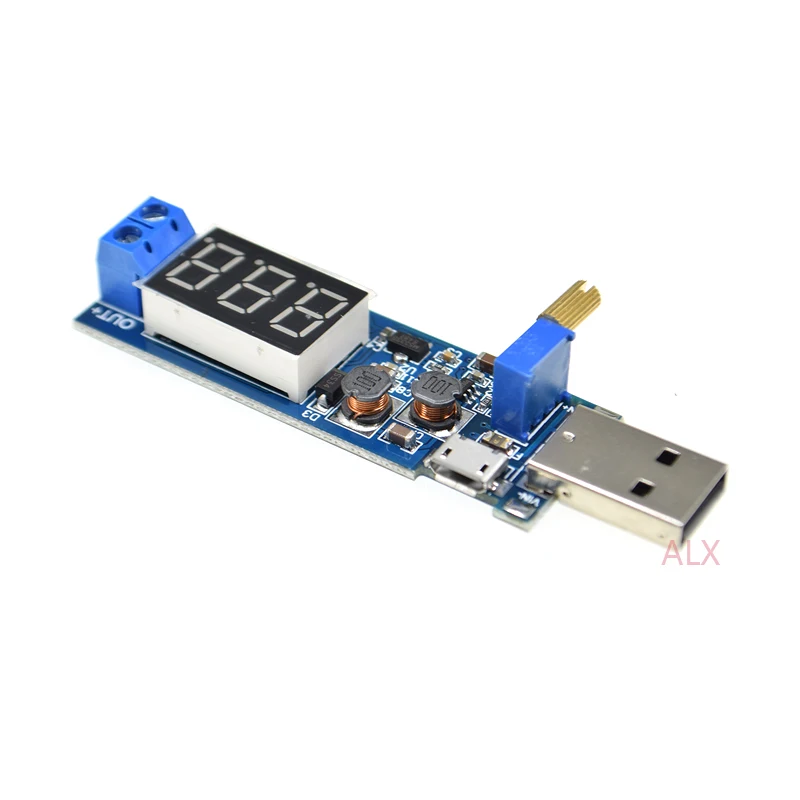

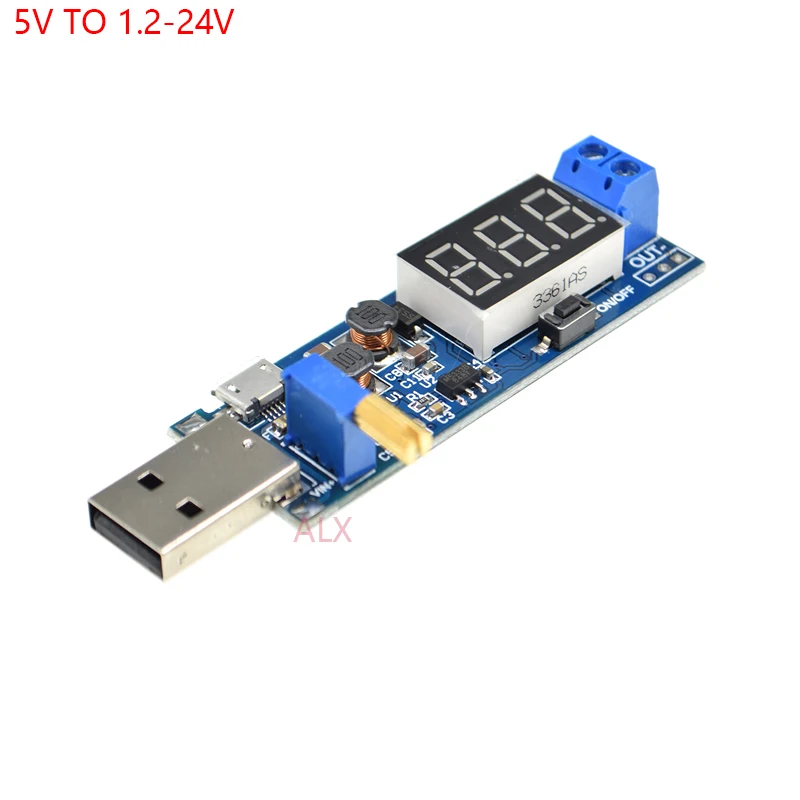

Digital USB/Micro USB DC-DC Step Up Down Boost Buck Converter 5V to 1.2V-24V Adjustable Voltage Regulator Power Supply Voltmeter
Features:
1.One button to turn off the output
2.Supply ON/OFF display screen
3.Support low power mode
4.Support sleep mode
5.Support both standard USB and Micro USB and pads input voltage
6.Potentiometer with rotating handle.
7.It is not a high power supply, please use it within the power range
8.USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage
Specifications:
1.Input voltage: DC 3.5-12V
2.Output voltage:DC 1.2-24V
3.Output power:
Input 1.2-2V,output power within 2W
Input 2V-20V,output power within 3W
Input 20V-24V,output power with in 2.5W
4.Display:3Bit digital tube display
5.Size:80*20*14mm.
Instructions:
1.Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-‘
2.Turn ON display screen
3.Adjust potentiometer to get the required voltage
4.Connect load.
Application:
1.Ordinary power supply
2.Battery charger
3.LED drive power
4.Instrument voltage display
5.Test meter
6.Circuit test
7.Power conversion.
Package Included:
1 x Digital USB Booster Buck Converter Module
