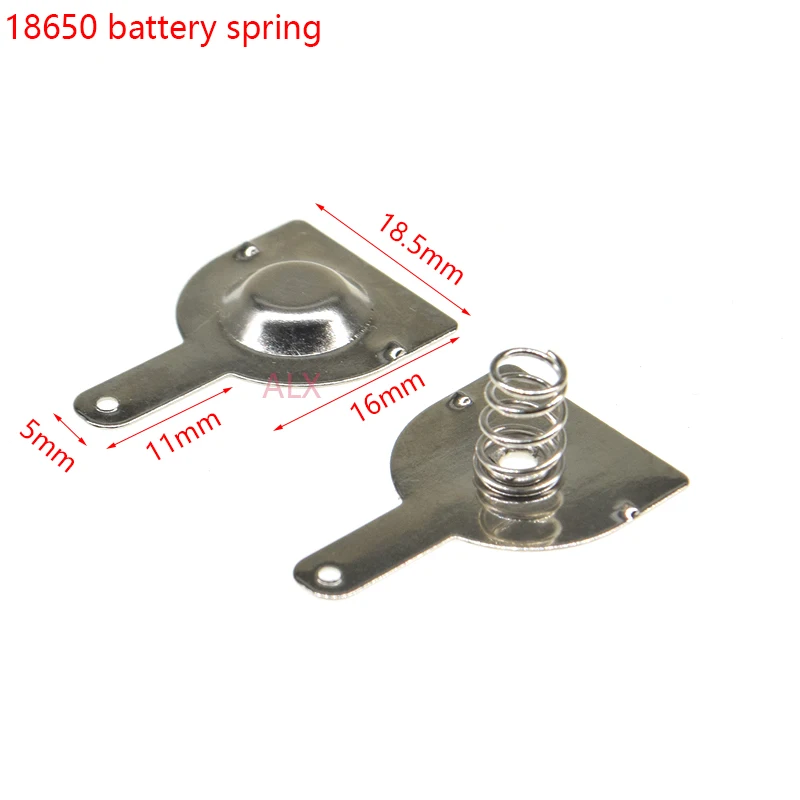

10pair (20pcs) 18650 battery pack 16MM*18.5MM spring contact piece battery box positive and negative single pole battery 10pairs
10pair (20pcs) 18650 battery pack 16MM*18.5MM spring contact piece battery box positive and negative single pole battery 10pairs Original price was: $13.98.Current price is: $9.32.
Back to products

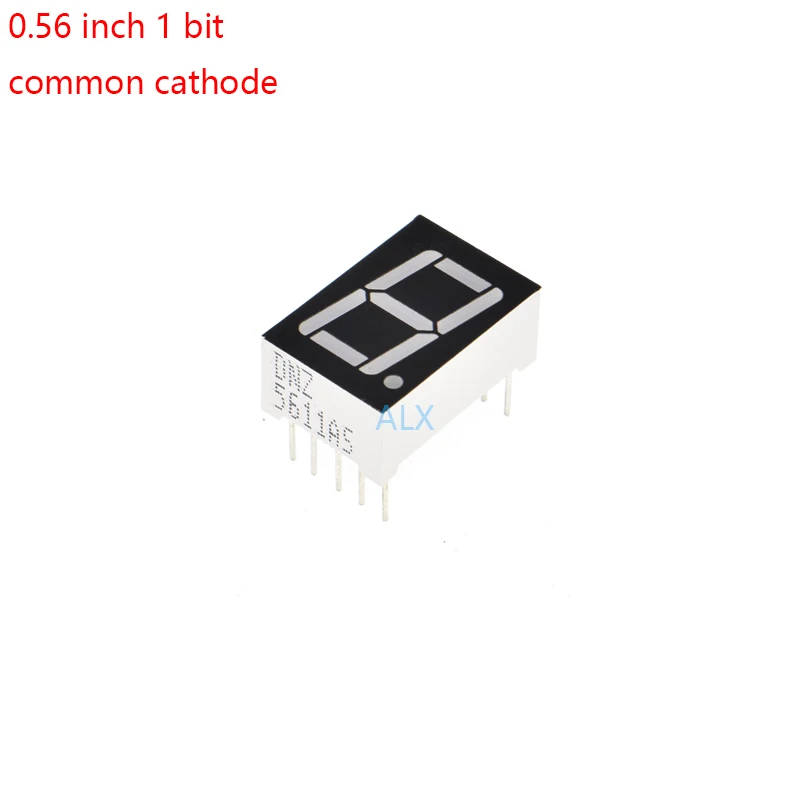

10PCS 0.56inch 7 Segment 1bit Red Digital Tube Common Cathode CC LED Digit Display 0.5inch 0.56 inch 0.56'' 0.56in. one 1 bit
10PCS 0.56inch 7 Segment 1bit Red Digital Tube Common Cathode CC LED Digit Display 0.5inch 0.56 inch 0.56'' 0.56in. one 1 bit Original price was: $11.40.Current price is: $7.60.
Sale

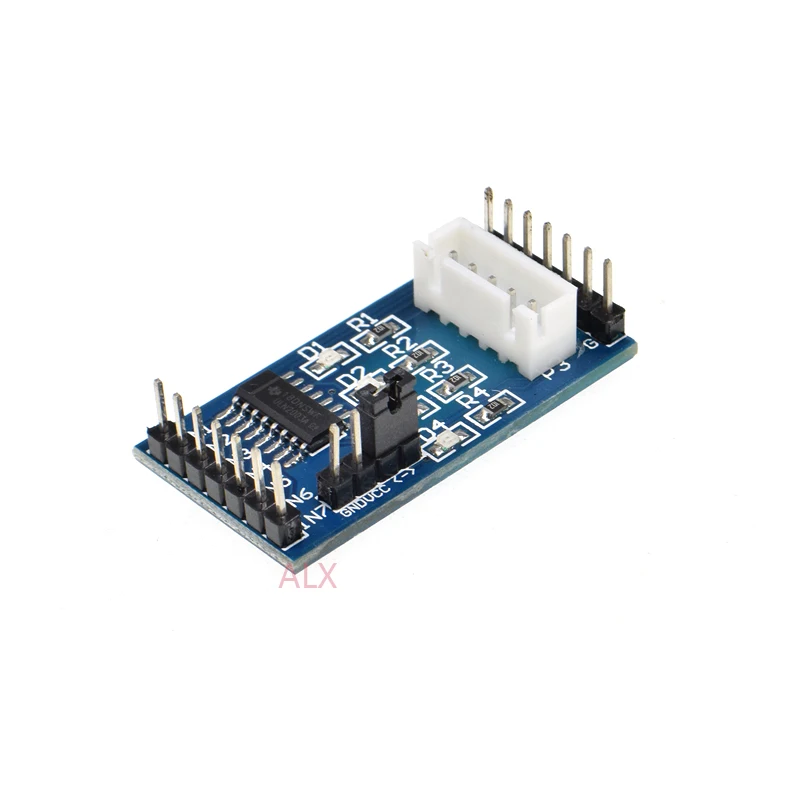

ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG - Image 1
ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG - Image 2
ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG - Image 3
ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG
ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG - Image 2
ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG - Image 3

ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG

Original price was: $8.46.Current price is: $5.64.

99797 in stock

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: _d6ud186kblug00evur40 Category:
Description

SPECIFICATIONS


Brand Name: NONE

Certification: ce

Current / Phase: 5V

High-concerned chemical: None

Holding Torque: 1

Model Number: ULN2003

Origin: Mainland China

Phase: 4

Step Angle(degrees): 1

Type: HYBRID


Specification:

Brand new


High quality


Rated Voltage: DC5V-12V


4-phase


Reduction Ratio: 1/64


Step Torque Angle: 5.625°/64


DC Resistance: 200ω±7% (25°)


Insulation Resistance: >10Mω (500V)


Insulation Grade: A


No-load Pull in Frequency: >600Hz


No-load Pull out Frequency: >1000Hz


Pull in Torque: >34.3mN.m(120Hz)


Detent Torque: >34.3mN.m


Temperature Rise: <40K(120Hz)


Noise: <40dB (120Hz, No load, 10cm)


Board Size: Approx. 40×21 mm


On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct

Package Included:

1 x DC 12V ULN2003 Stepper Motor Driver Board for Arduino

Additional information
Default TitleDefault Title
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ULN2003 DC 5V 12V Stepper MOTOR DRIVER MODULE board 4-phase 5 line 28BYJ-48 28BYJ ULN2003A ULN2003APG”
