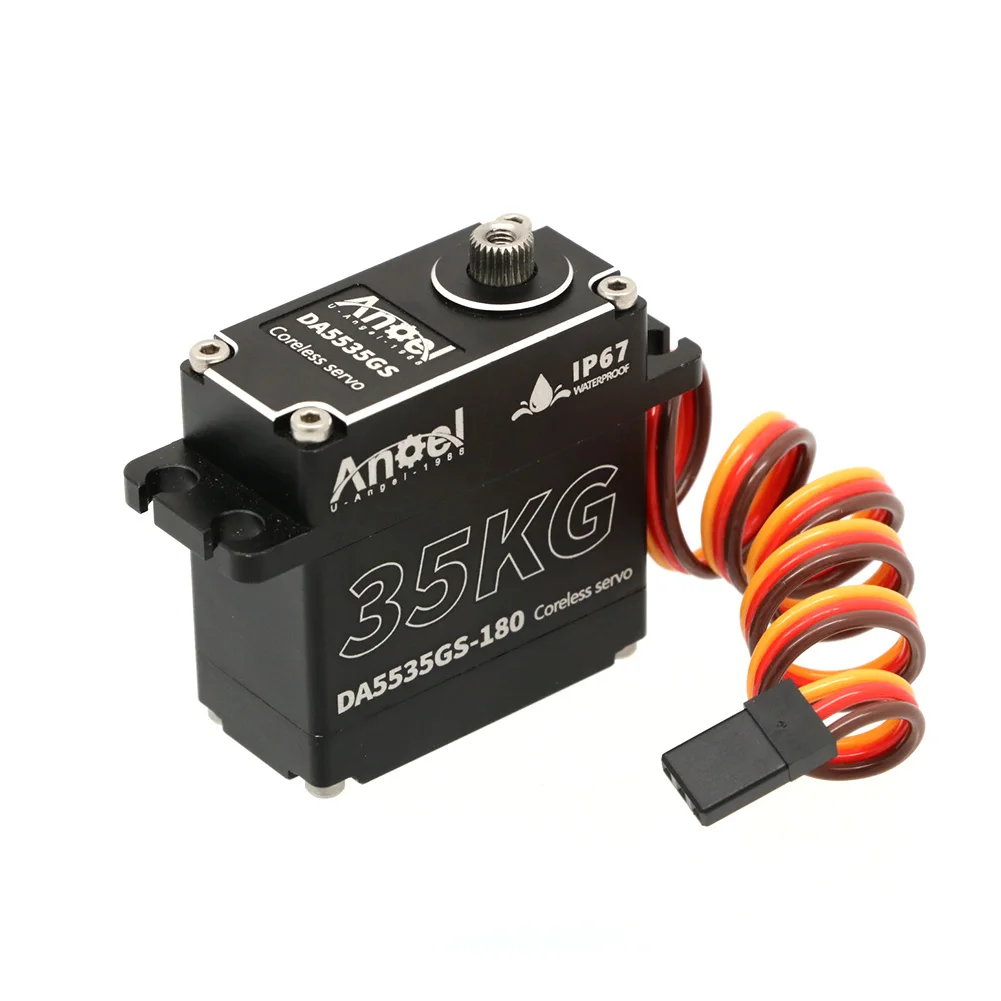

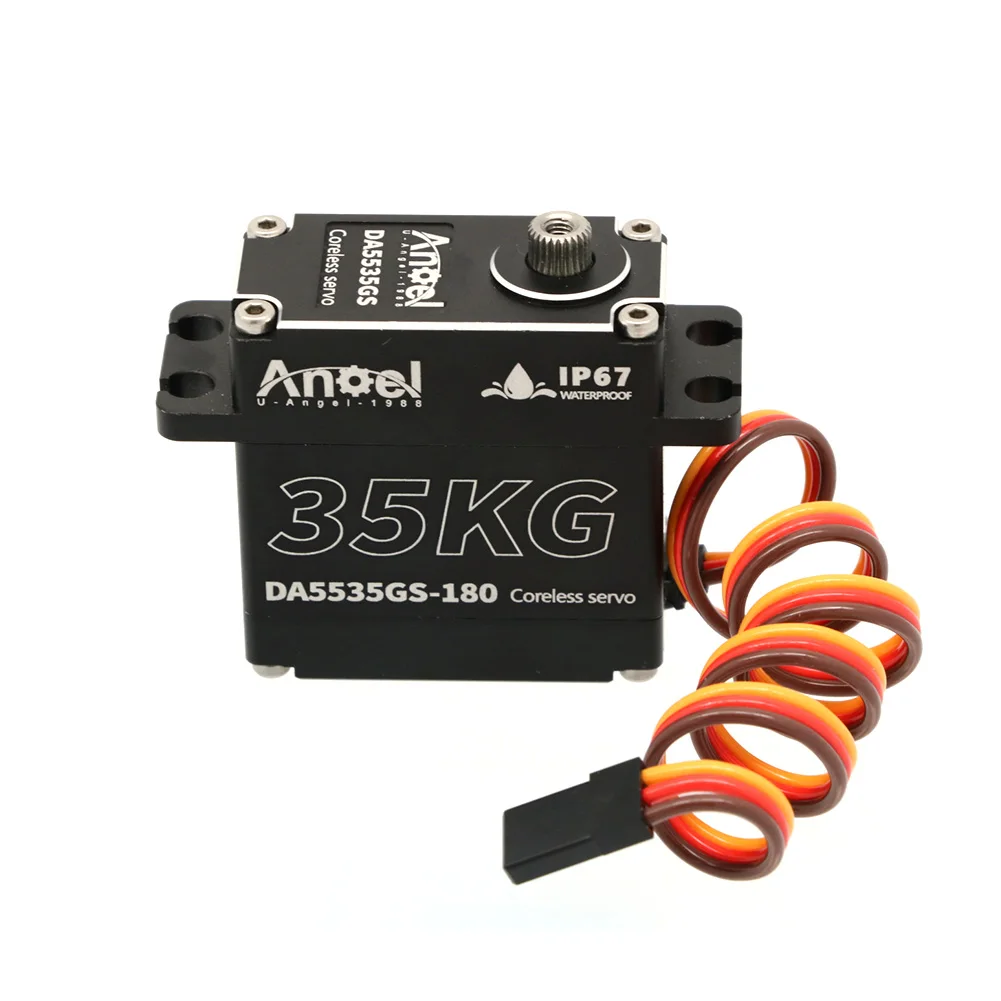

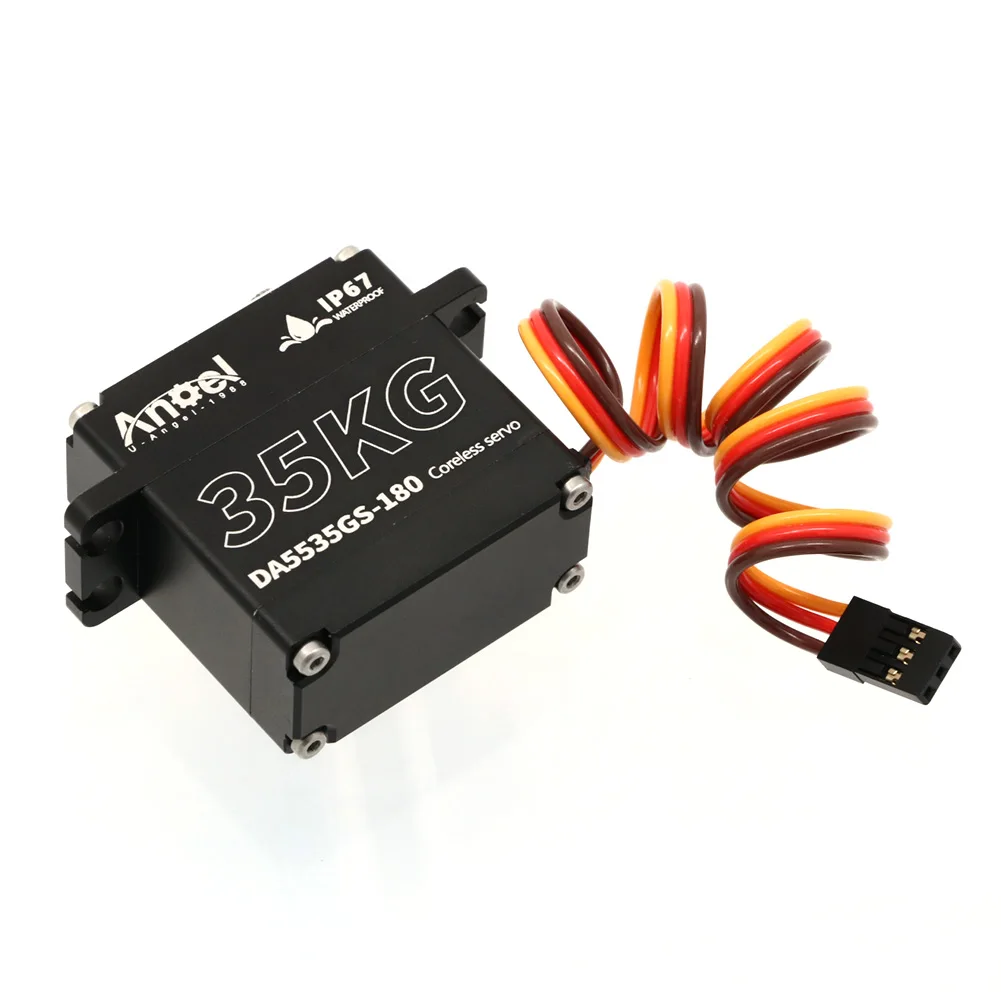

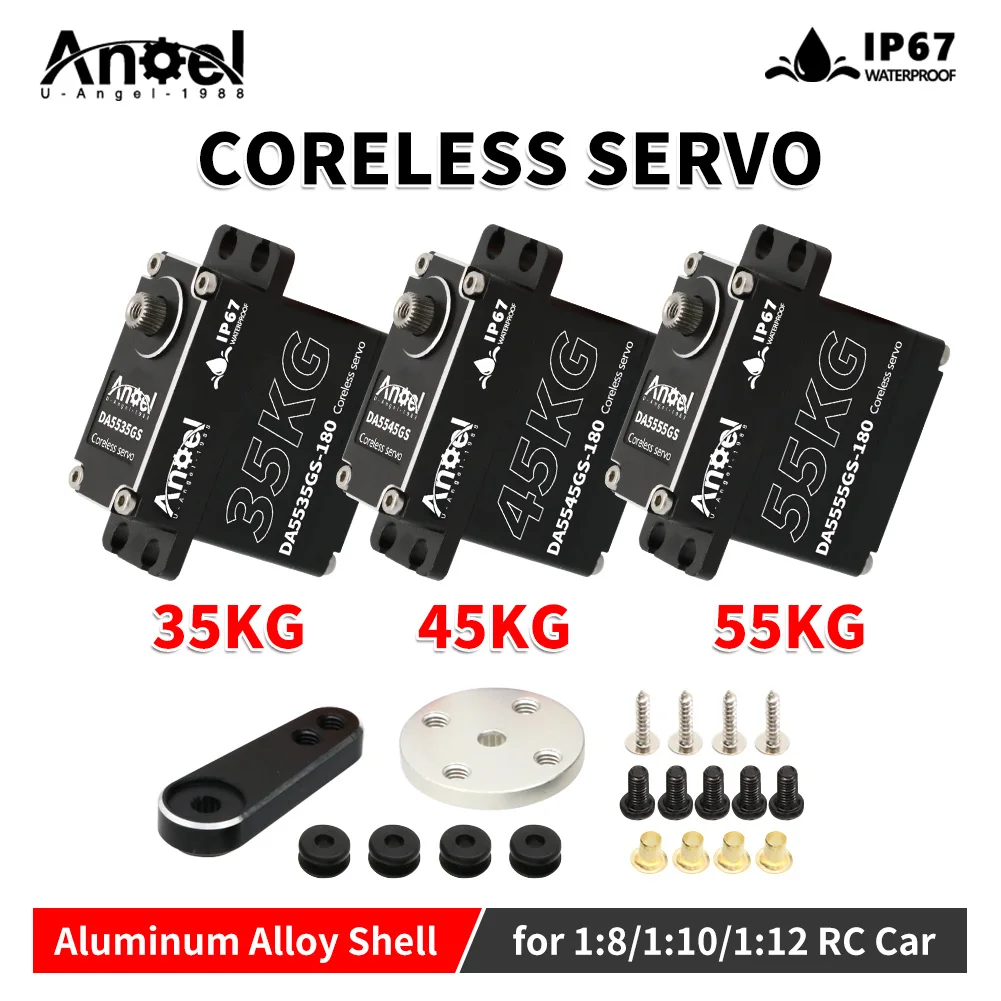

UAngel Waterproof Servo 35KG 45KG 55KG Aluminum Case Digital Metal Gear HV Coreless Servo for 1/8 1/10 RC Car Truck Crawler Boat

SKU: d6l56pesfveg00d05750 Category: Others

Description

SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Waterproof Servo

High-concerned chemical: None

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 55KG Digital Servo

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 40 x 20 x 40 mm

Technical parameters: value 2

Tool Supplies: 45KG Digital Servo

Upgrade Parts/Accessories: 35KG Digital Servo

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

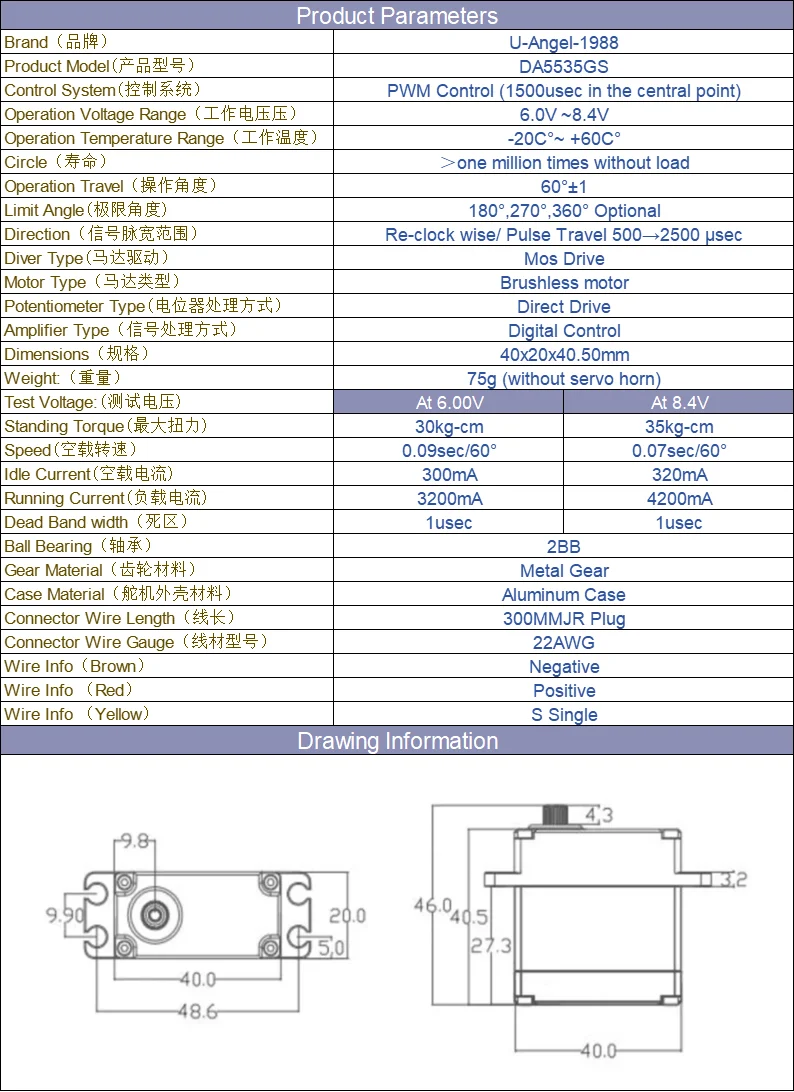

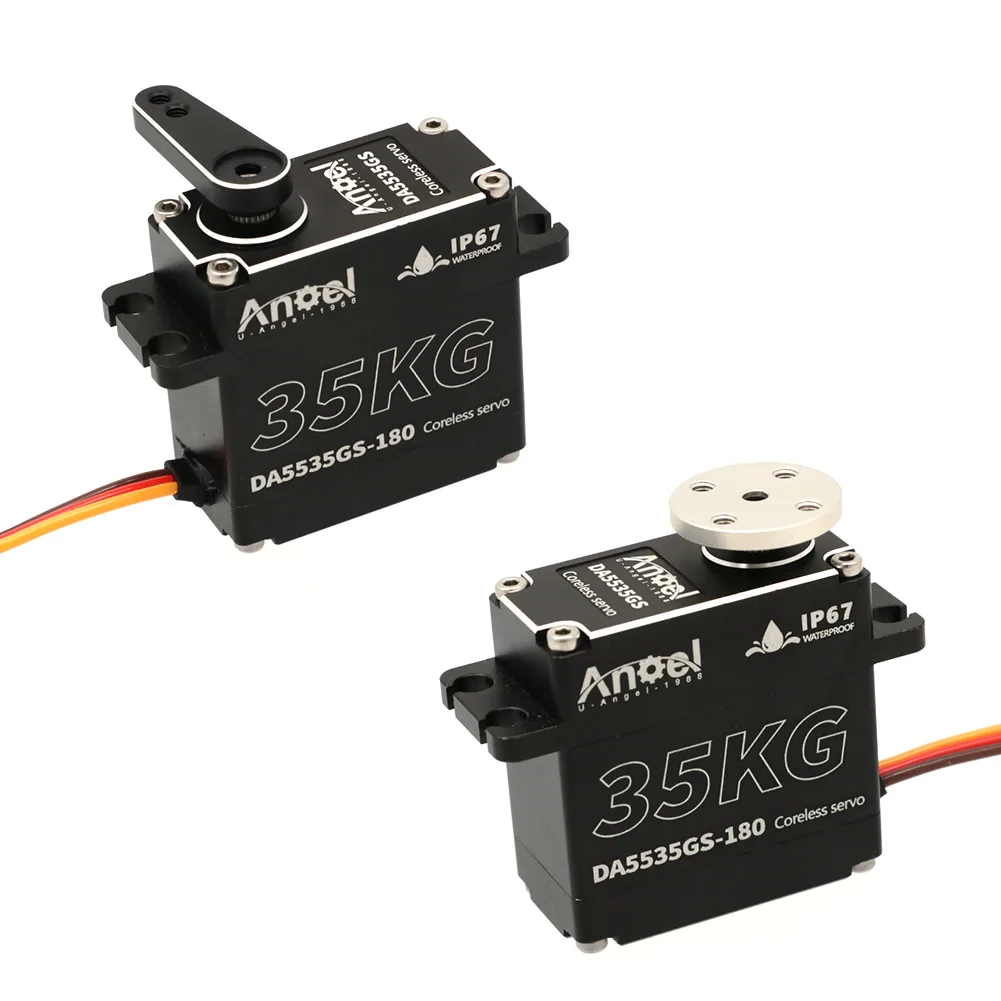

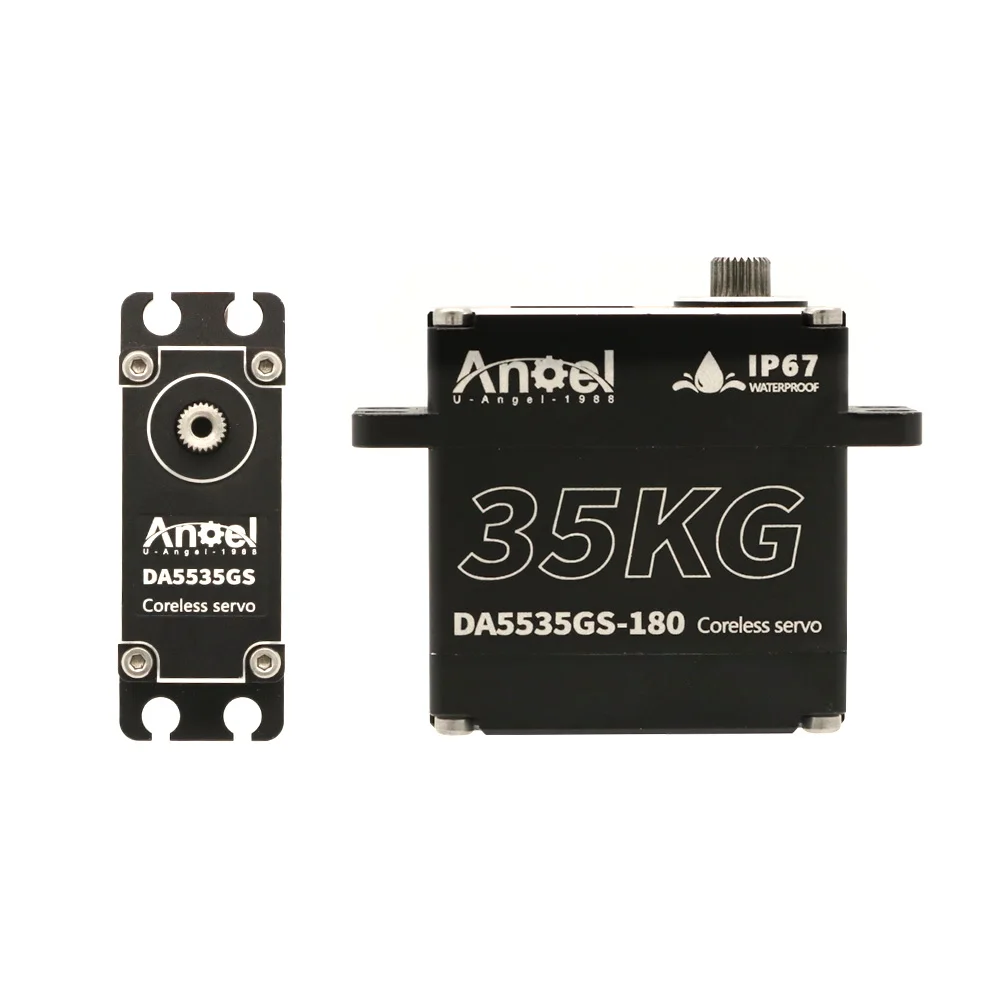

Product Model:DA5535GS
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:＞one million times without load
Operation Travel:60°±1
Limit Angle:180°,270°,360° Optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control

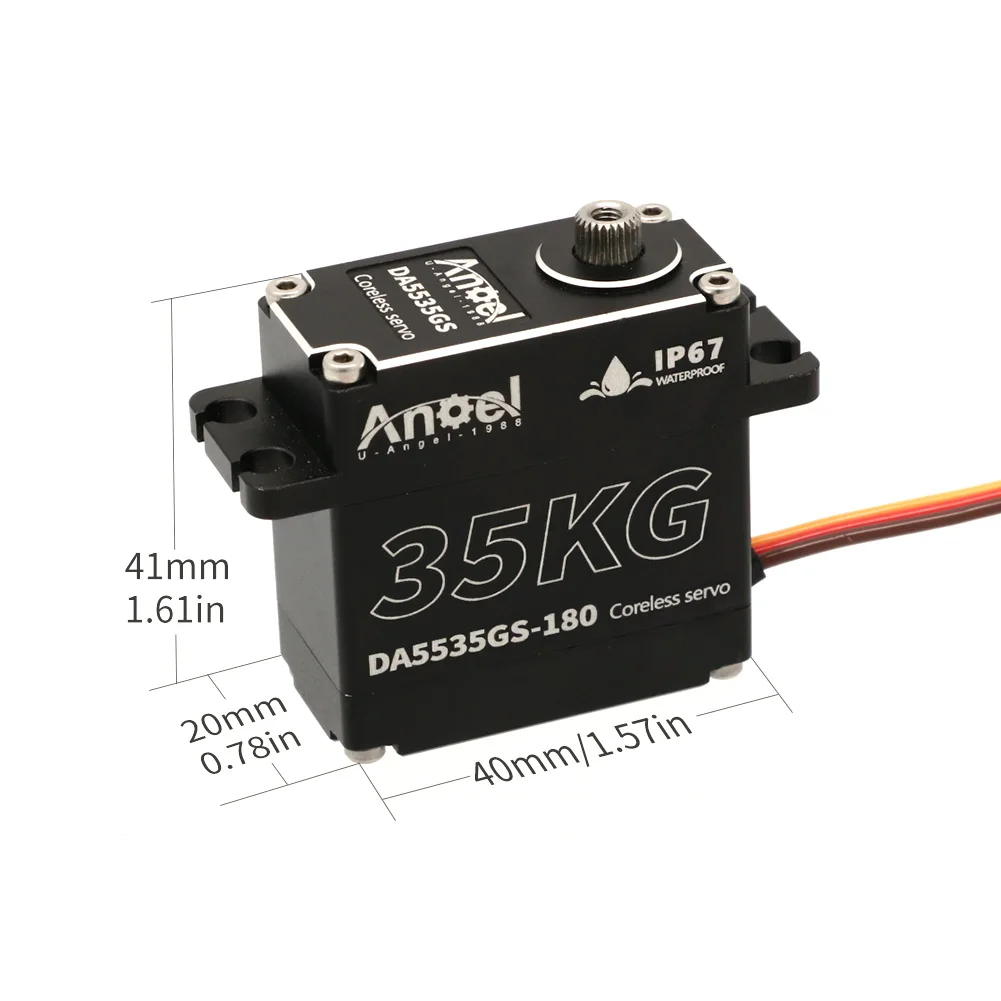

Dimensions:40x20x40.50mm
Weight:75g (without servo horn)

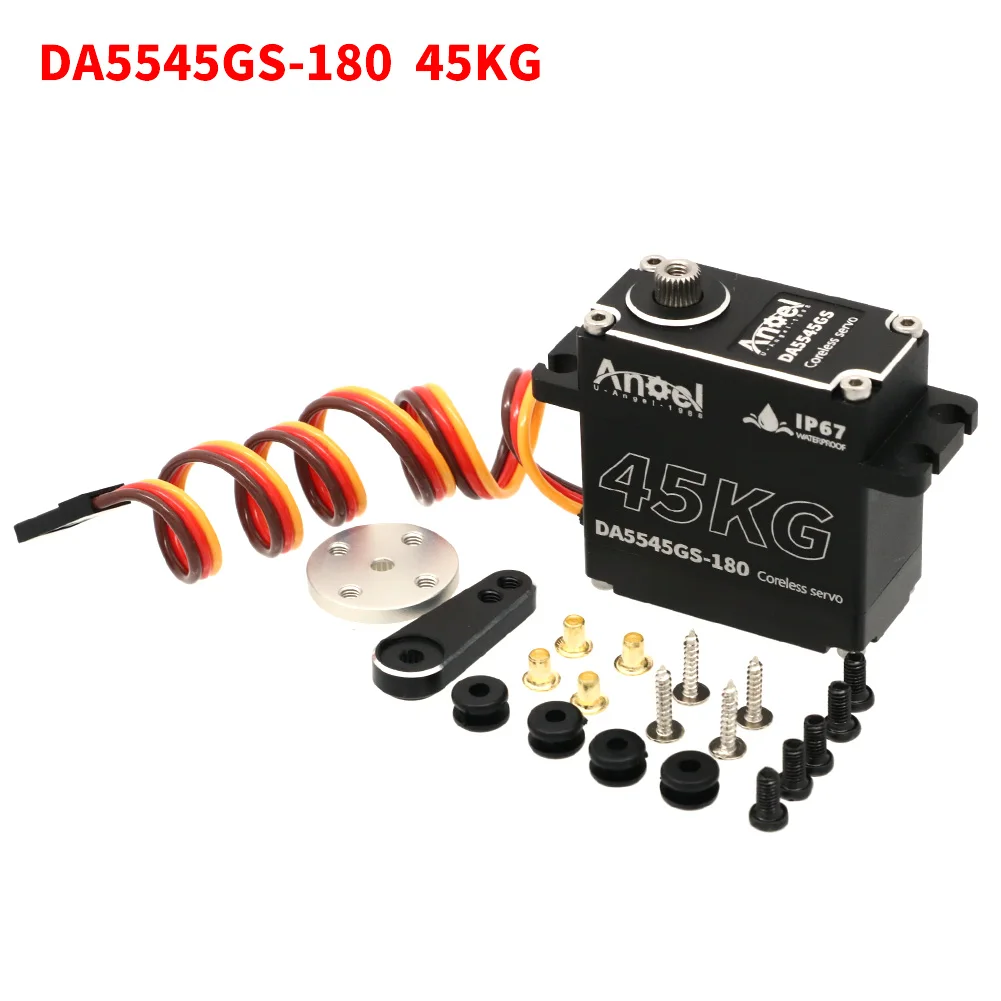

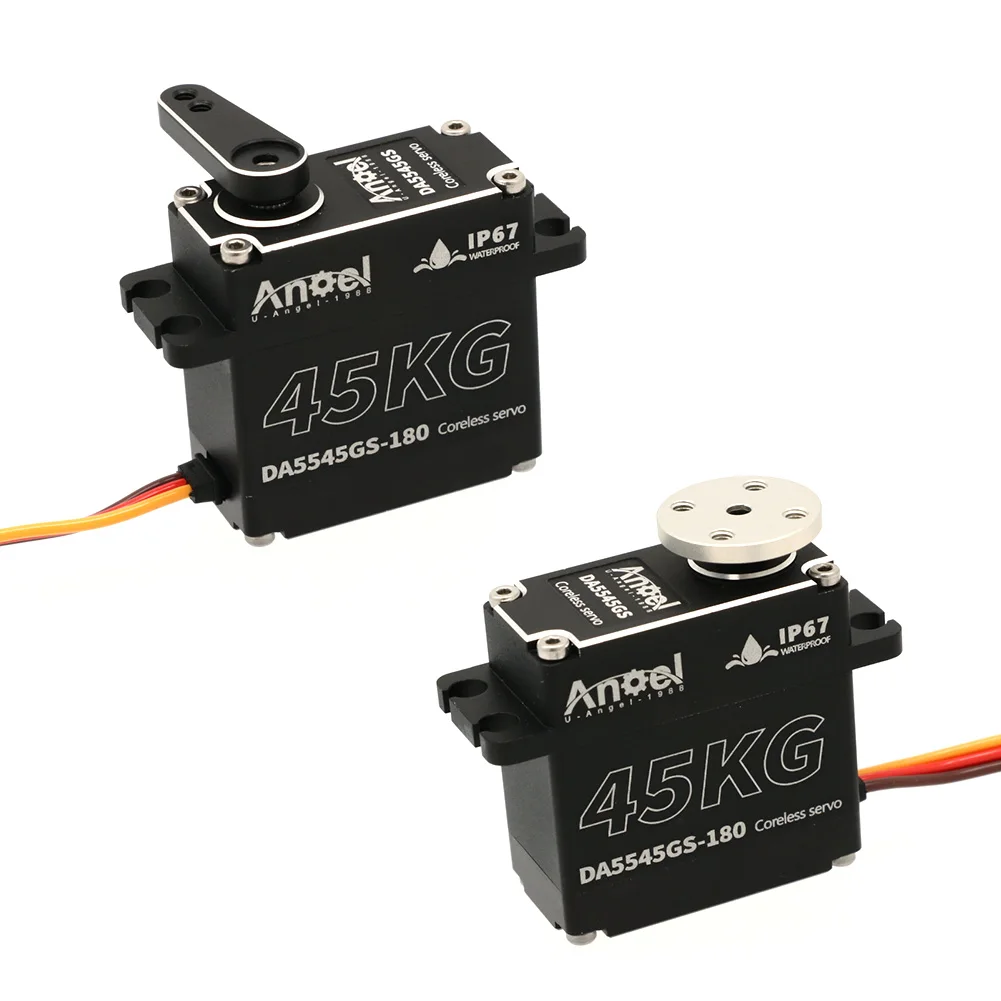

Product Model:DA5545GS
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:＞one million times without load
Operation Travel:60°±1
Limit Angle:180°,270°,360° Optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x40.50mm
Weight:75g (without servo horn)

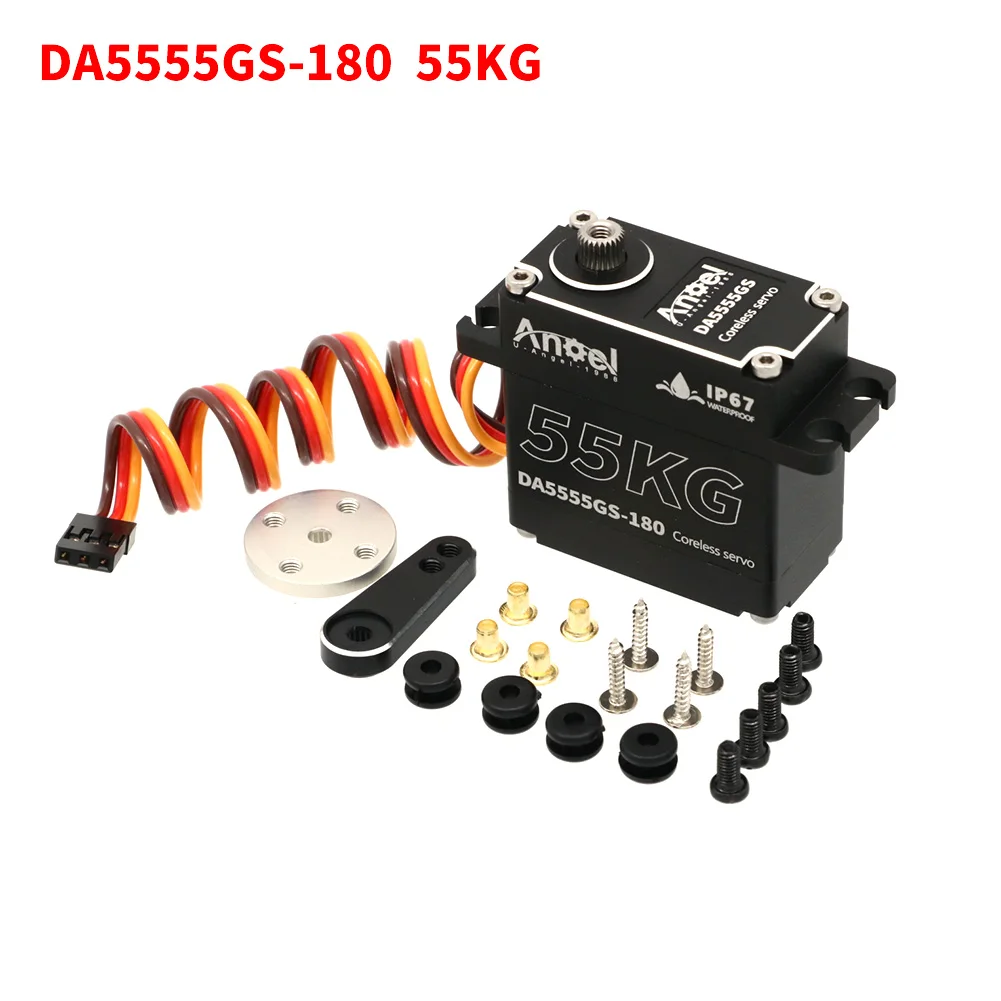

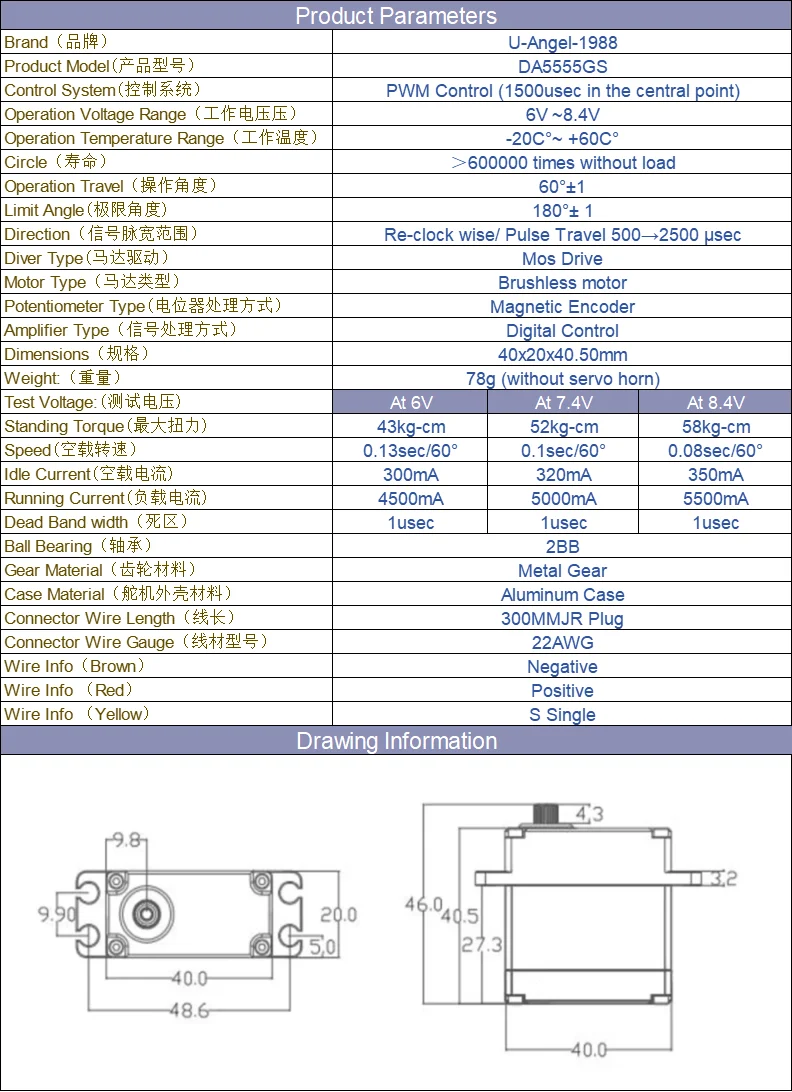

Product Mode:DA5555GS
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6V ~8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:＞600000 times without load
Operation Travel:60°±1
Limit Angle:180°± 1
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Magnetic Encoder
Amplifier Type:Digital Control
Dimensions:40x20x40.50mm
Weight:78g (without servo horn)

Additional information

Color	35KG 180 degree, 55KG 180 degree, 45KG 180 degree
