Uangel Universal PWM Relay Switch 5V Receiver Electronic Controller Module DIY Model Universal On-Off For FPV RC Drone Airplane
Original price was: $48.42.$28.25Current price is: $28.25.
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: 1/10 RC Car
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: KYDZ008
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: PWM Remote Control Switch Relay
Size: 29*9*8mm
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: LED Light Control
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

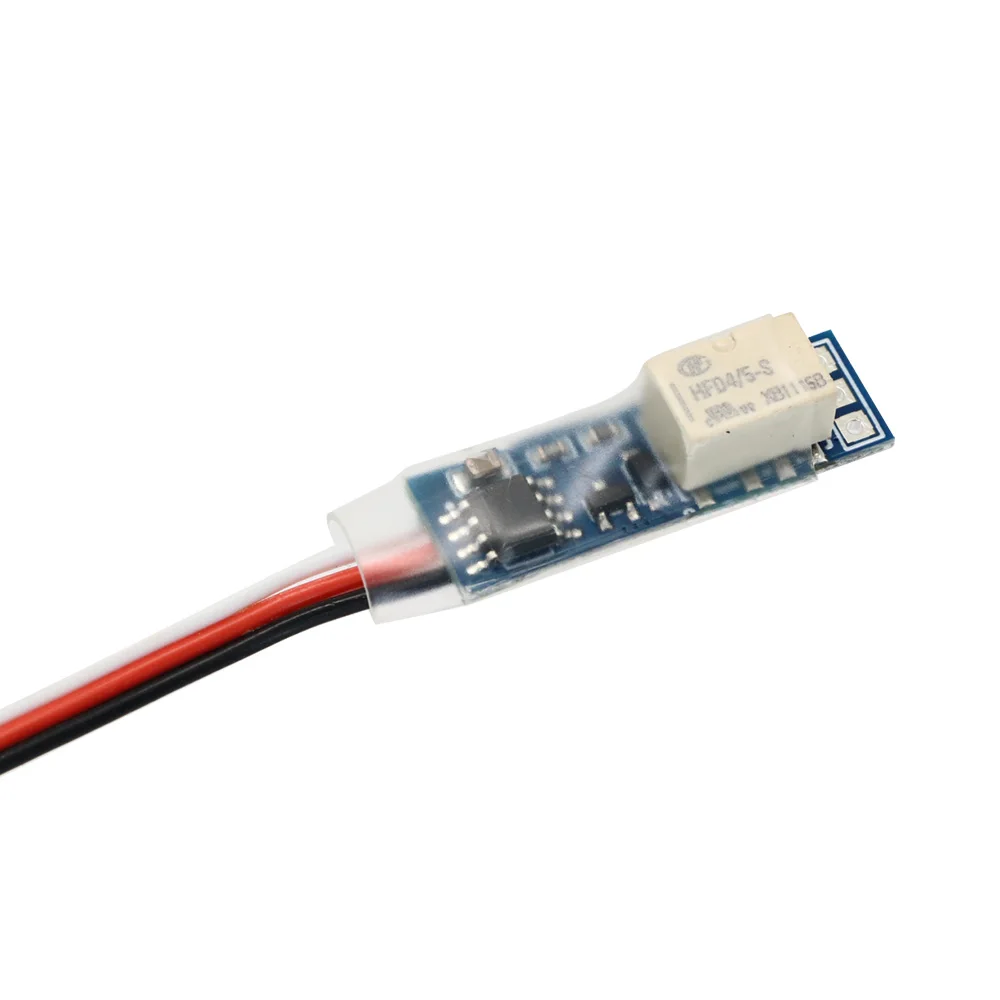

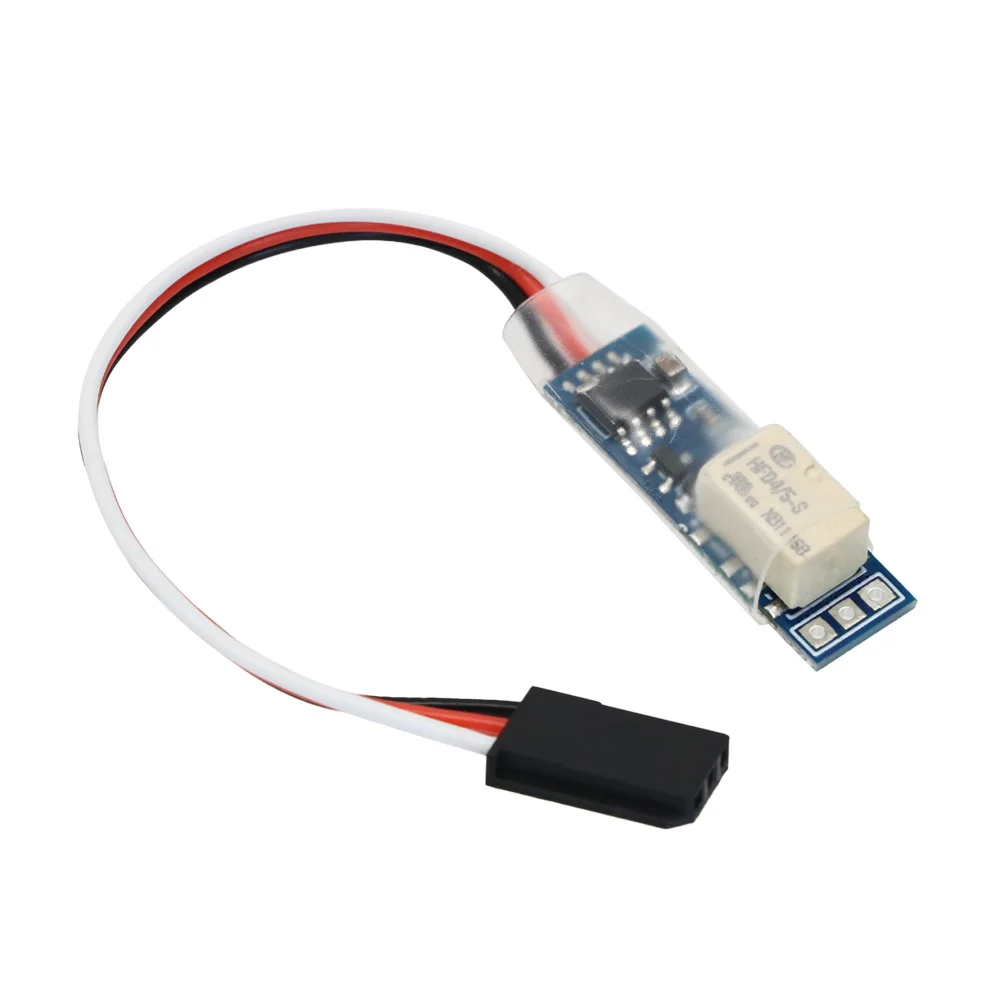

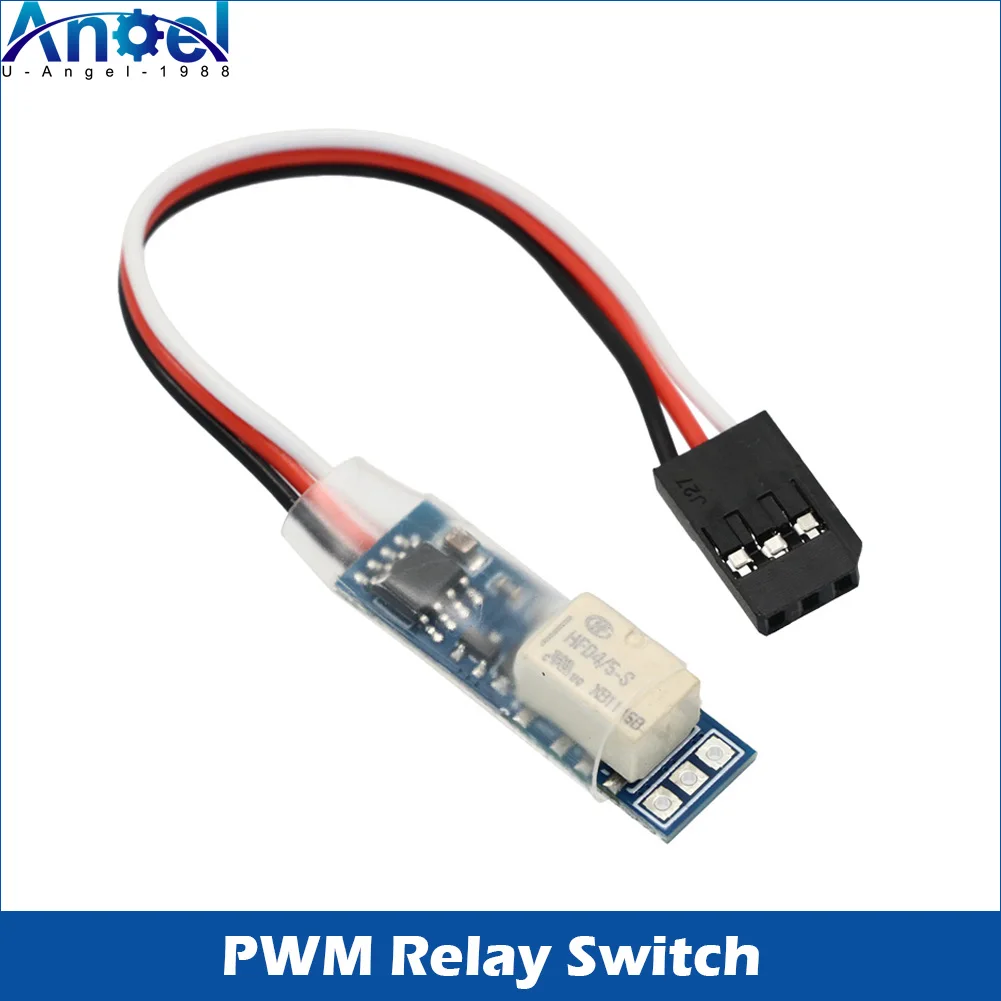

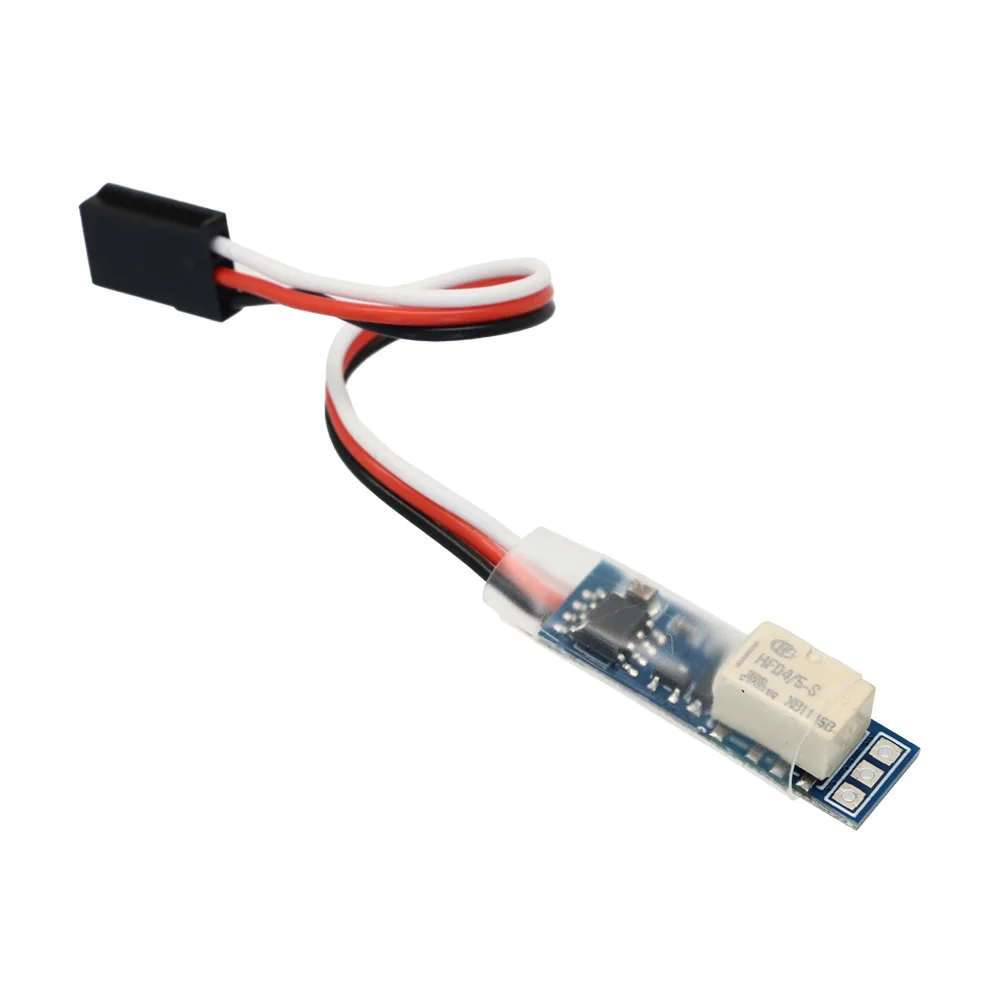

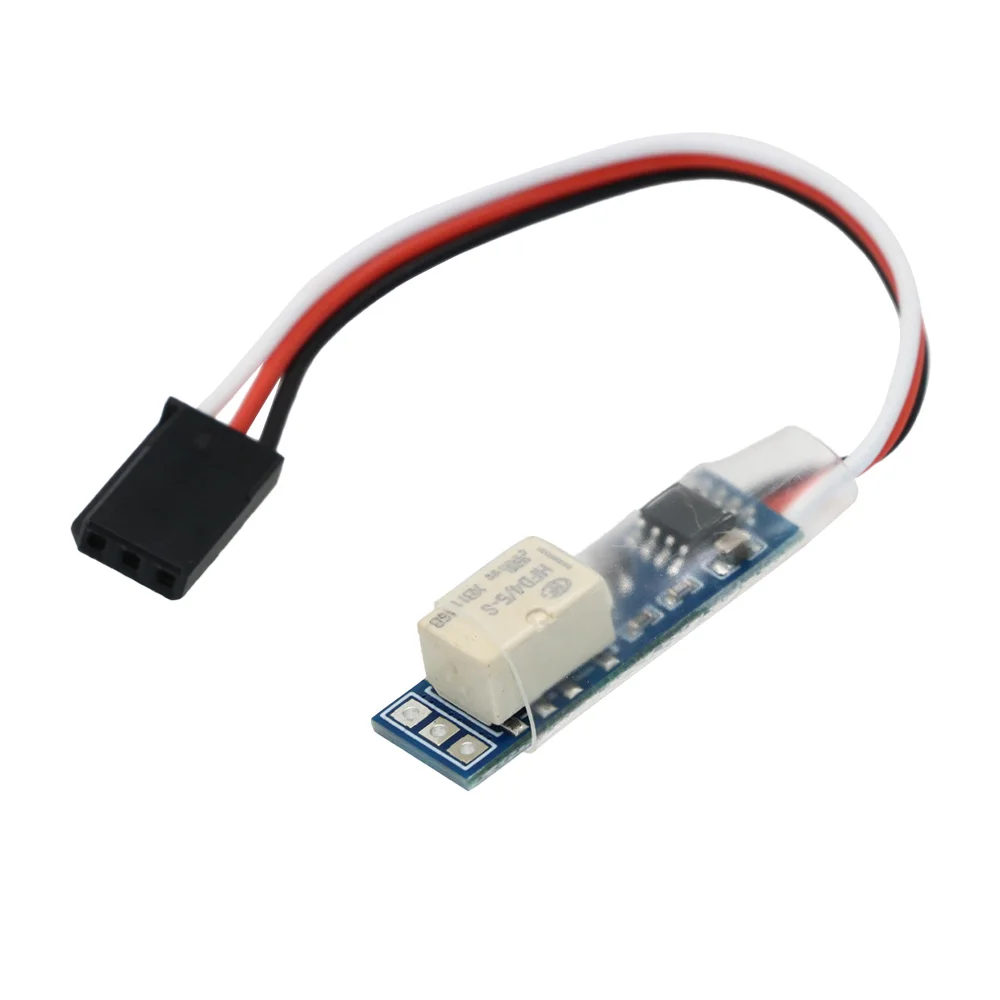

This product is PWM controlled relay switch, different from the field effect tube, it is directly established physical line connection, so can adapt to higher DC voltage, but also can connect to AC.
Control terminal: Input voltage 5v (connected to receiver)
PWM control: at high ( Greater than 1750us), NO(Normal Open) and COM(Common) are connected (at the same time, NC(Normal Close) and COM(Common) are disconnected).
(This means that NC(Normal Close) and COM(Common) are connected at all times except Greater than 1750us)
Here PWM is the steering gear signal, can turn the steering gear, you can use this device There are solder joints can be set to delay 3 seconds, automatic disconnect Connecting end 30V DC allowed current 2A, 125V AC allows current 0.5A
Motherboard size: length width height 29 x 9 x 8 mm
White Relay size only: 10 x 6.5 x 5.4 (mm)
The power consumption of the relay coil is about 140mW
Color: As Shown
Material: composite material
Package Contents:
1 x PWM Relay Switch
